MEGA 100 Portable Briefcase Charging Kit

MEGA 100 Portable Briefcase Charging Kit

$199.99 USD
$249.99 USD $199.99 USD
Sale Sold out
Shipping calculated at checkout.

features

• Solid design control box — Meets NEMA Type 4 & IP30 standard by lab test
• LCD color screen — Real-time status view and easy user interaction
• Breathing indicator light — Shows real-time charging status
• Control button — Adjust max output current & set scheduled charging time
• Water protection gasket — Resists 3-minute direct high-pressure water spray
• TPU cable — 14.76ft, excellent durability, cold resistant to -22°F
• ETL certified — Compliant with North American safety standards

Technical Specifications

Voltage: 240V/208V
Max Output Current: 40A (SS-PC1-100) / 32A (SS-HAY-100-32A)
Max Power: 8kW / 7kW
Frequency: 50/60Hz
Temperature Range: -22°F to 122°F
Humidity: 5–95%, no condensation
Connector: Type 1 (J1772)
Cable Length: 14.76ft (4.5m)
Altitude: ≤2000m (6,562ft)
Cooling: Natural
Safety Standards: ETL, UL2594, CSA C22.2
Scheduling: App / Timer control
Connectivity: Wi-Fi / Bluetooth
Warranty: 2 years

Packing Details

View full details

MEGA 100 Portable Briefcase Charging Kit

Equipment Type and Primary Applications

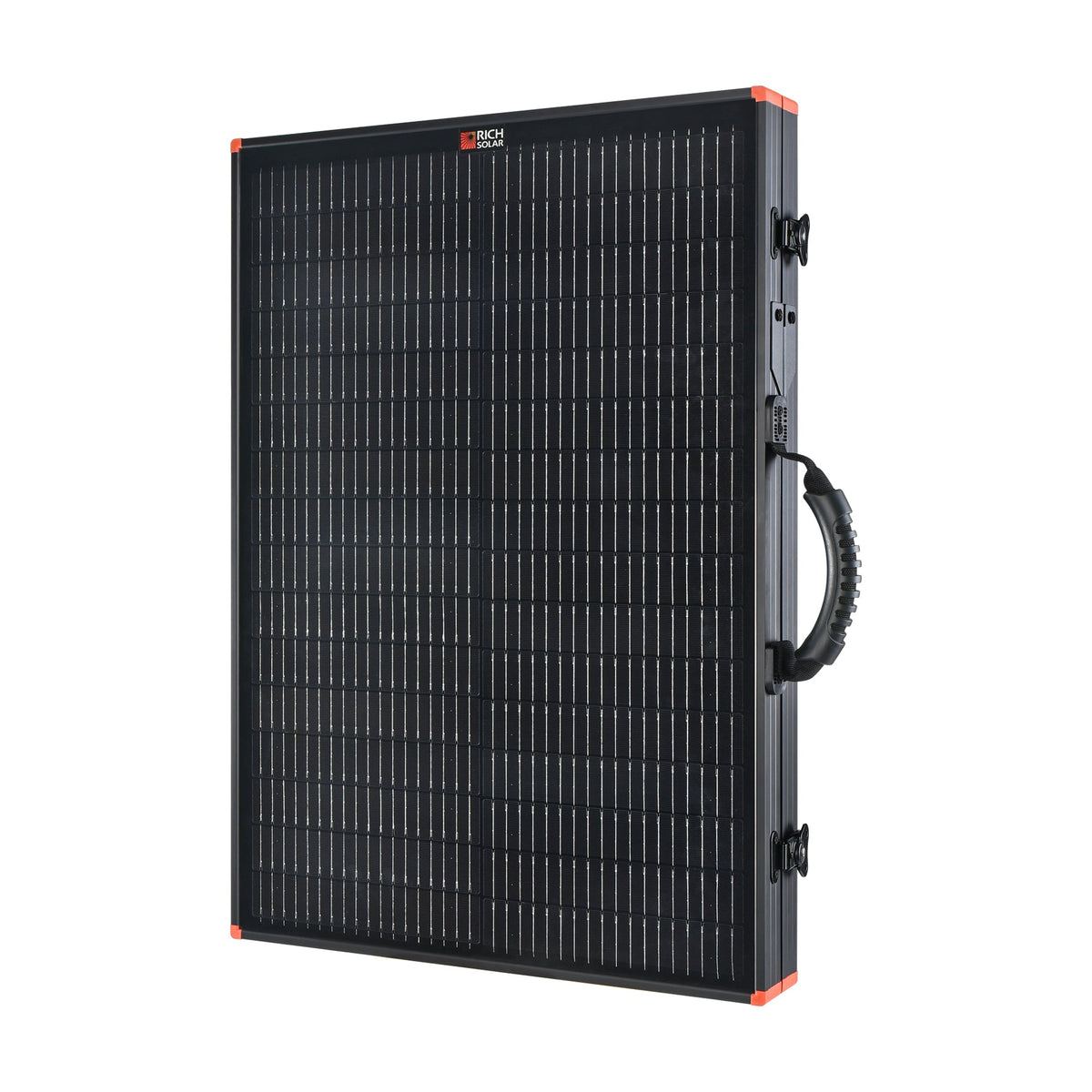

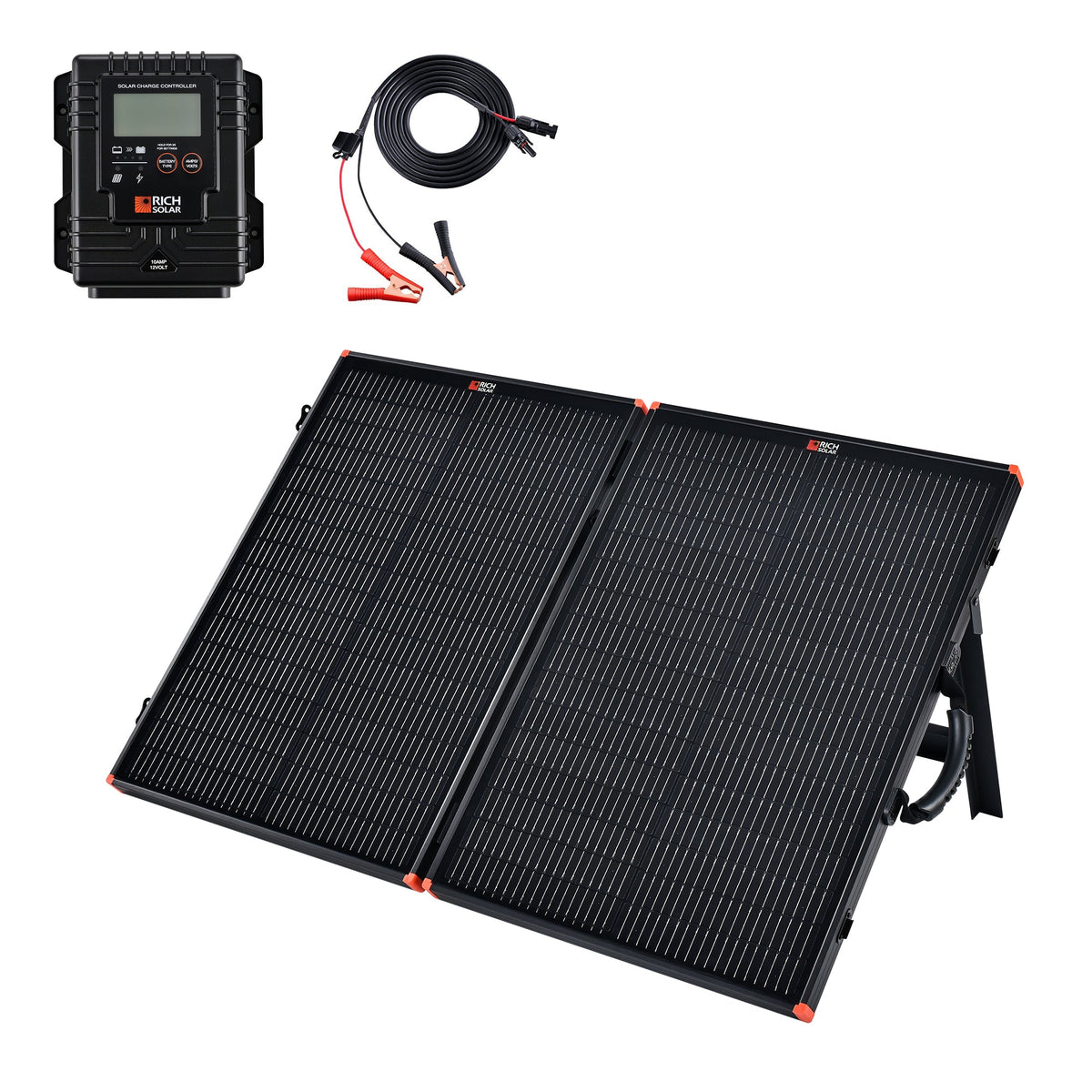

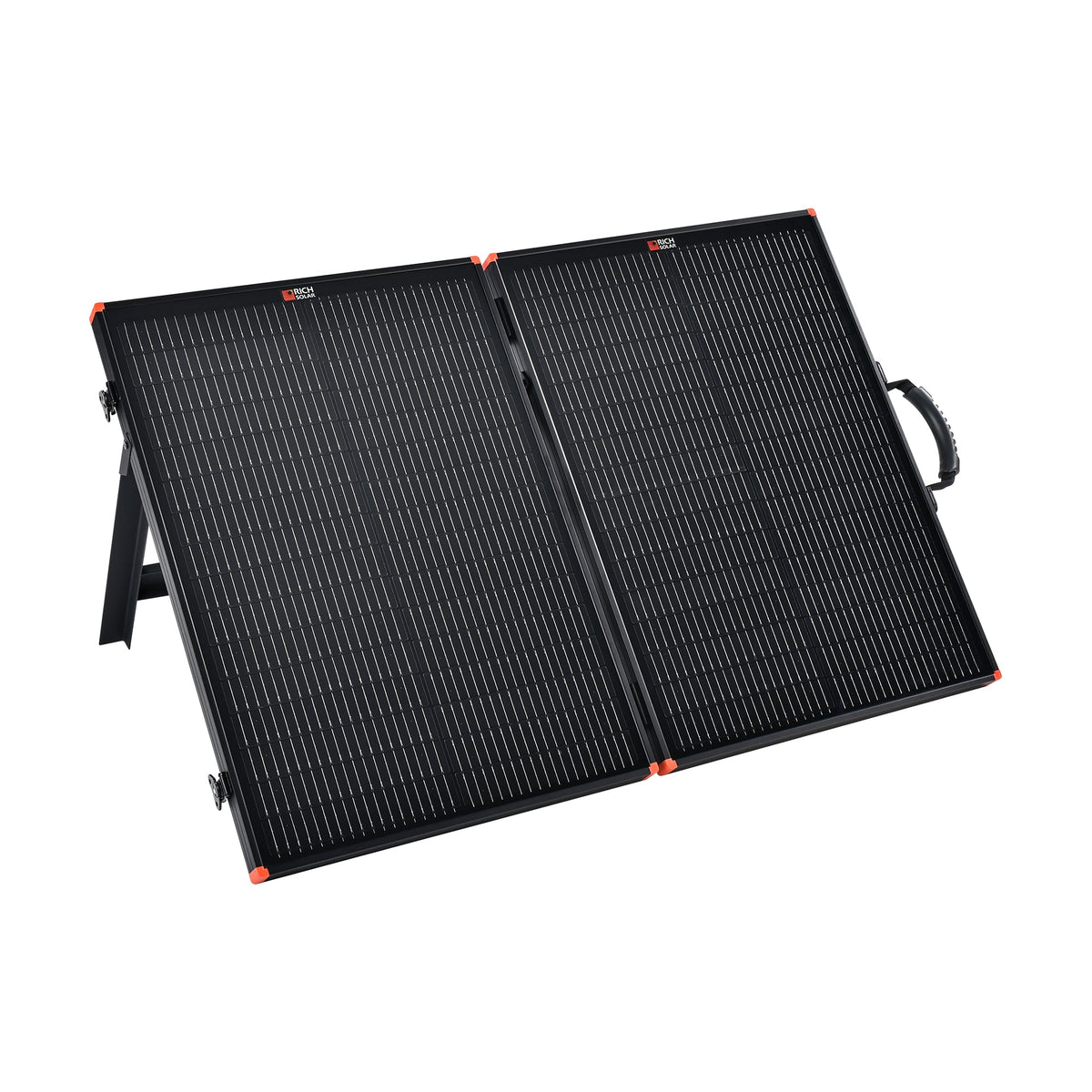

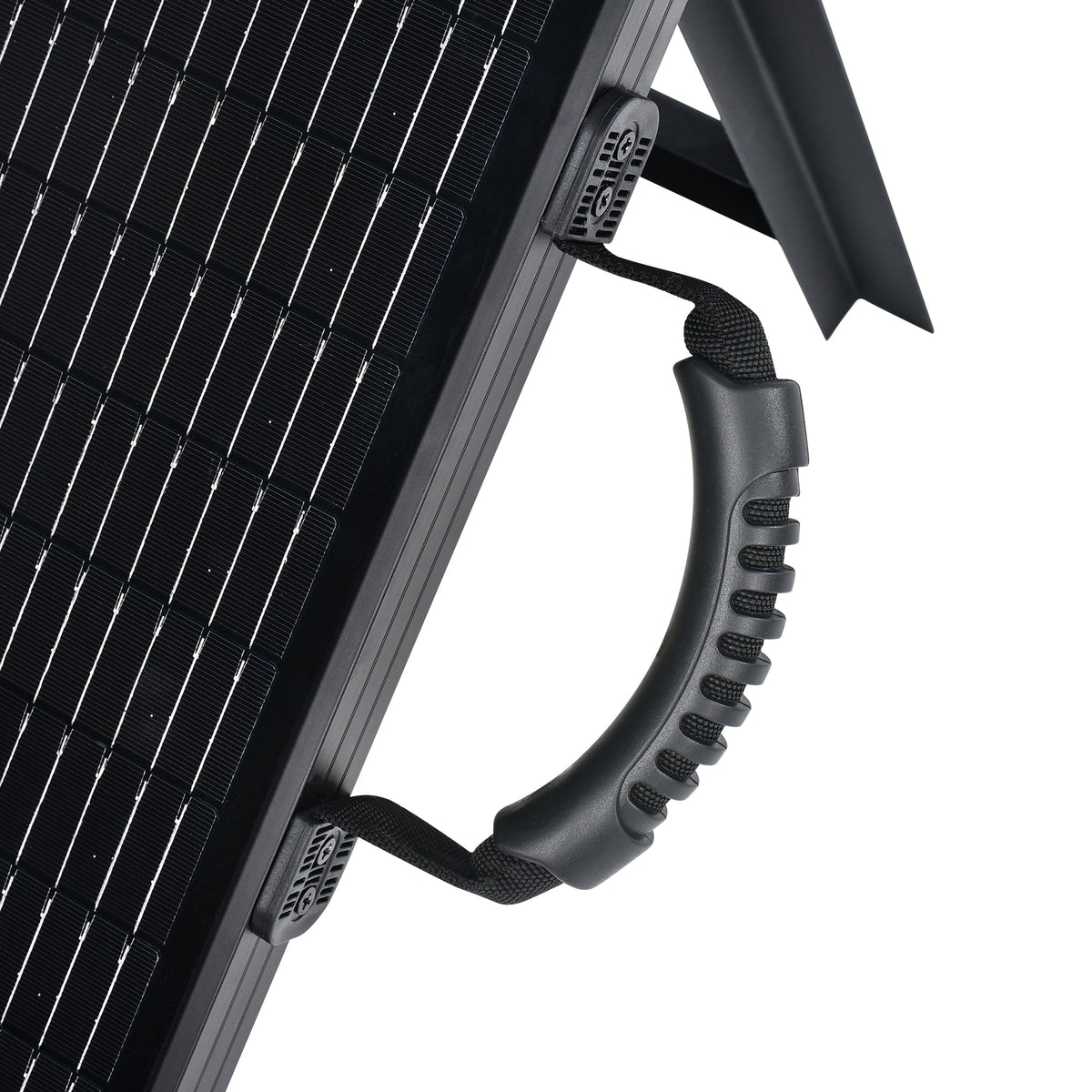

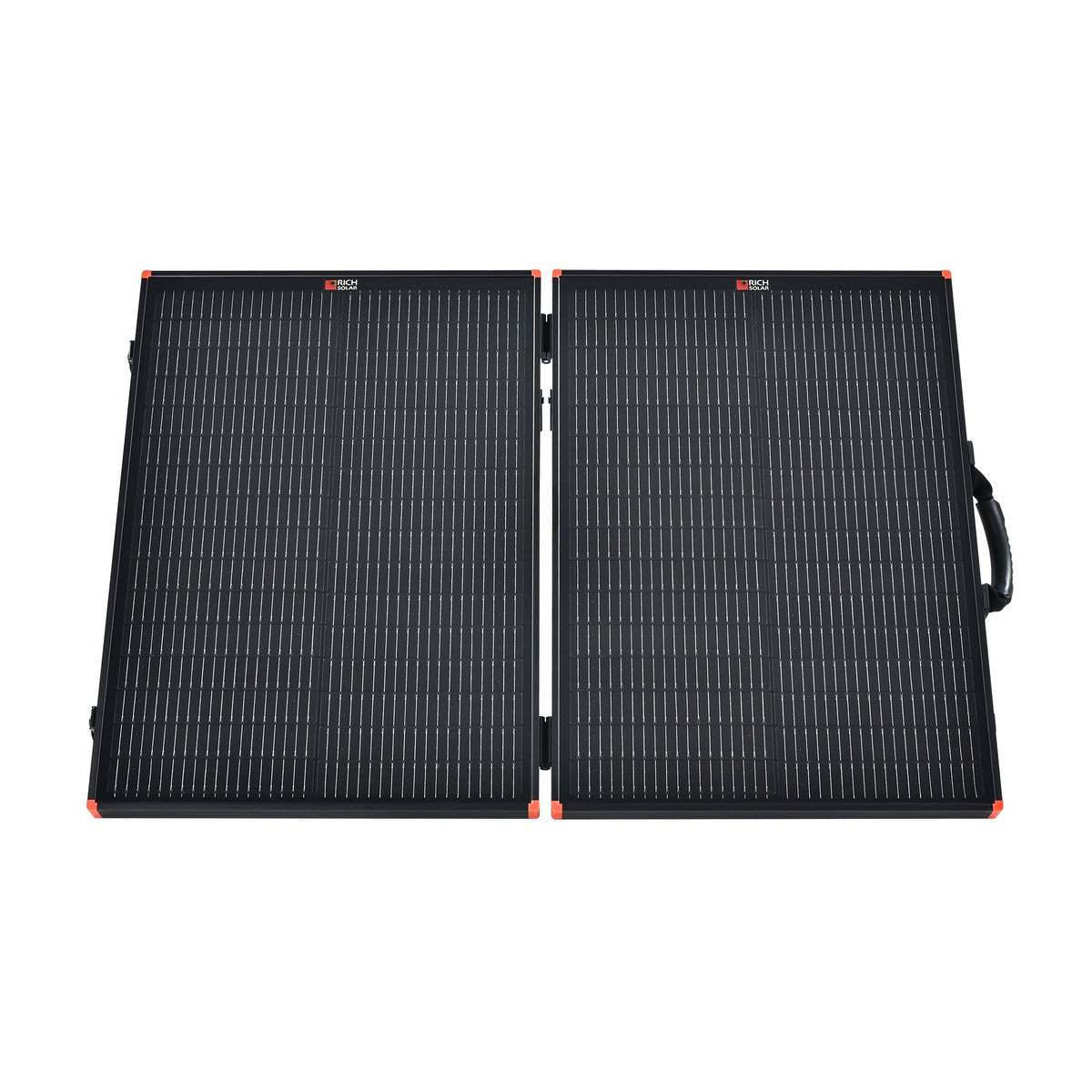

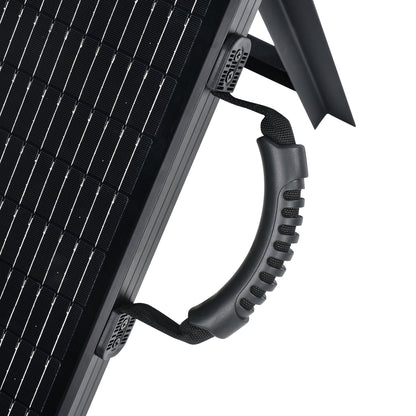

100W foldable briefcase solar charging kit designed for portable battery charging in RVs, boats, campsites, cabins, and off-grid applications. The integrated carrying handle, corner protection, and compact folded dimensions support transport and storage.

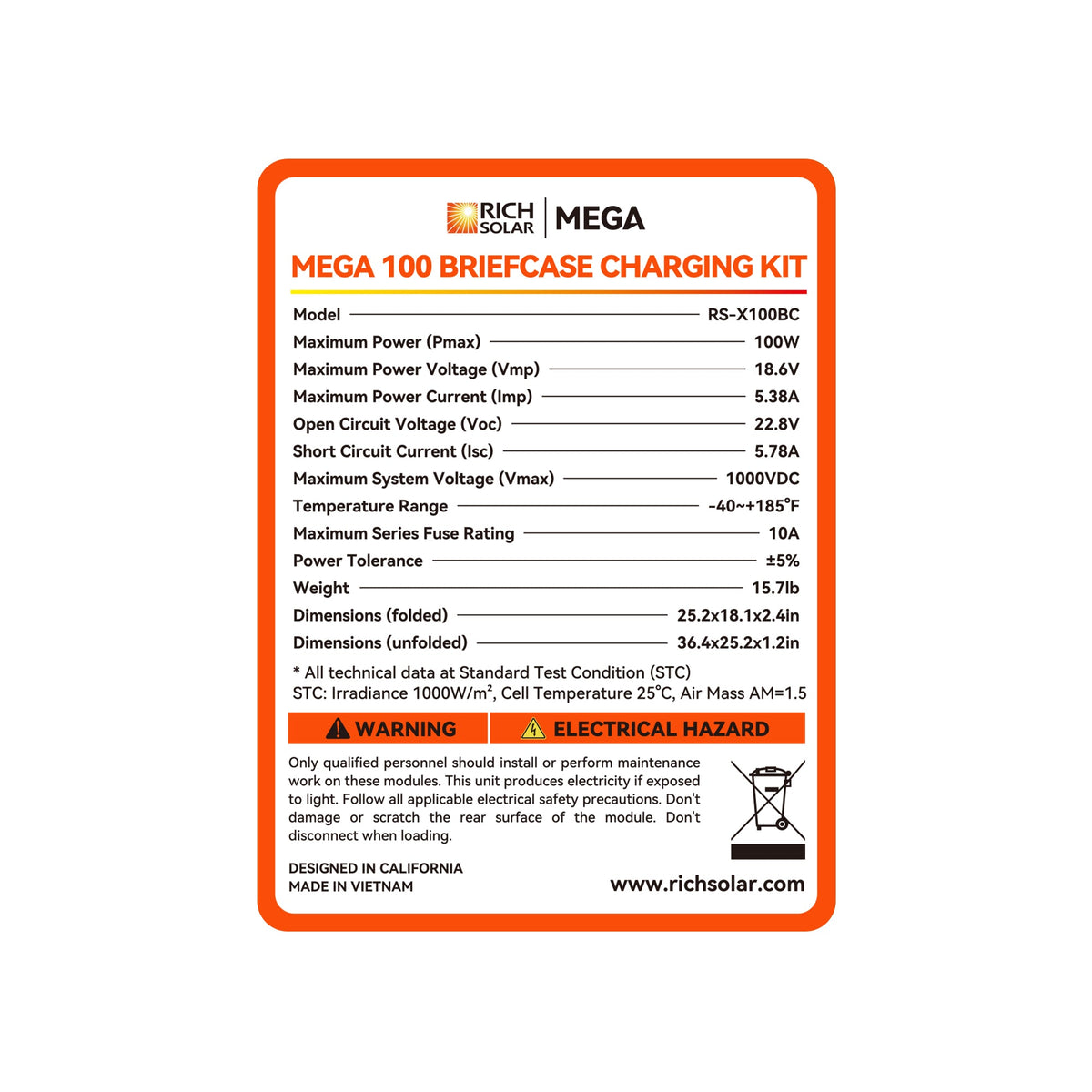

Performance Specifications

  • Maximum power: 100W
  • Maximum power voltage: 18.6V
  • Maximum power current: 5.38A
  • Open-circuit voltage: 22.8V
  • Short-circuit current: 5.78A
  • Maximum system voltage: 1000V DC
  • Solar cell efficiency: up to 23.2%, using monocrystalline cells

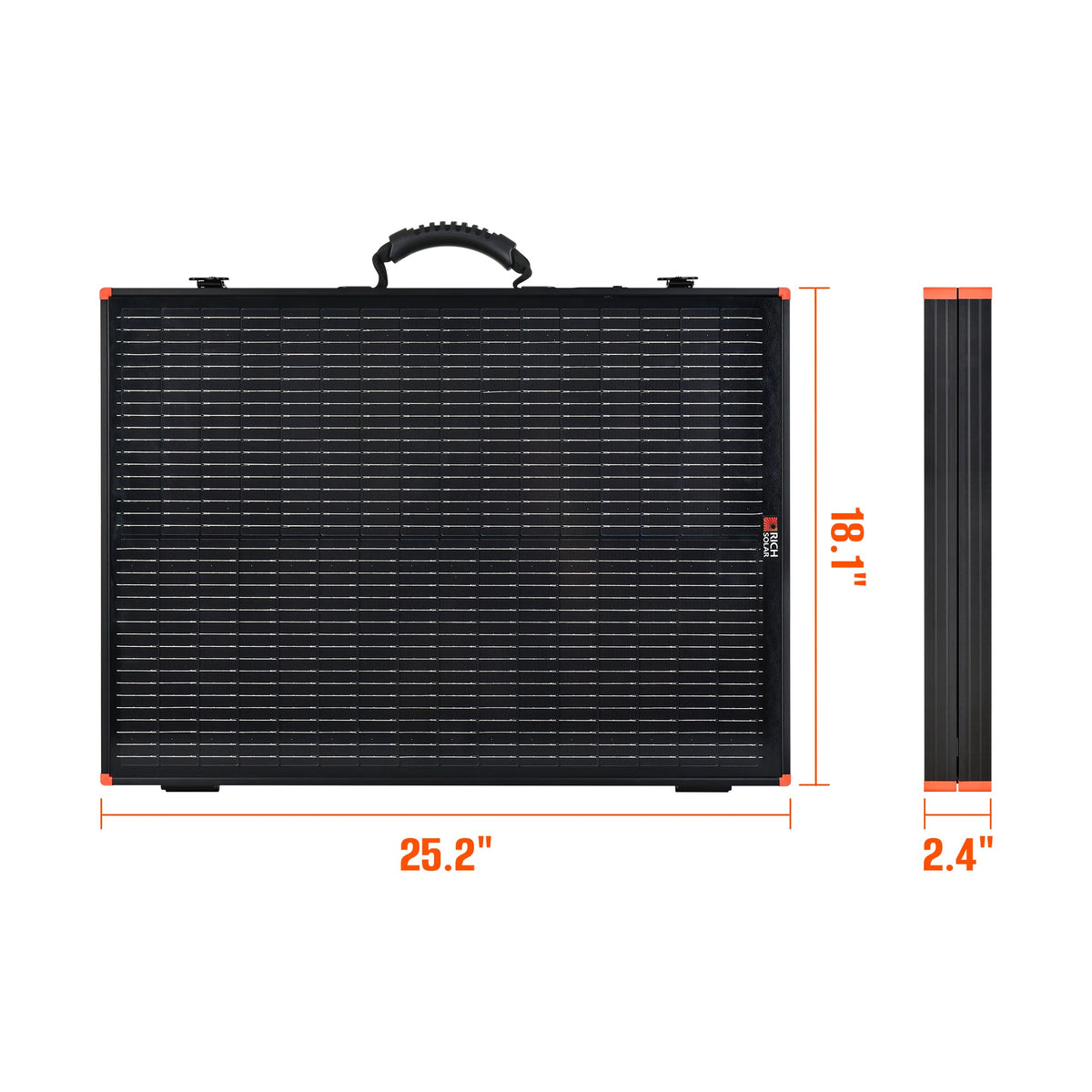

  • Folded dimensions: 25.2 x 18.1 x 2.4 in; unfolded dimensions: 36.4 x 25.2 x 1.2 in
  • Weight: 15.7 lb

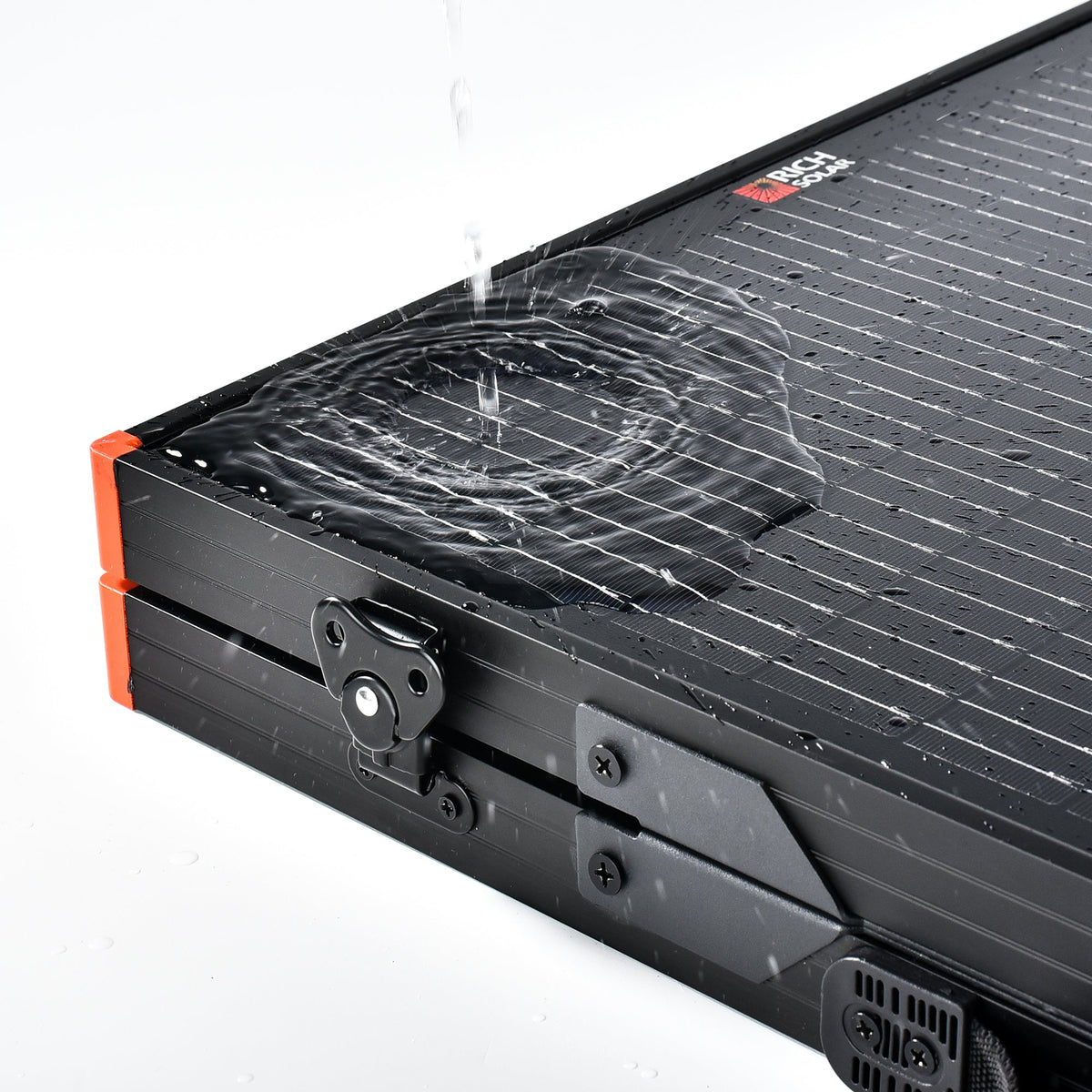

  • Environmental design: IP67-rated weatherproof junction box and solar connectors

Safety Features and Certifications

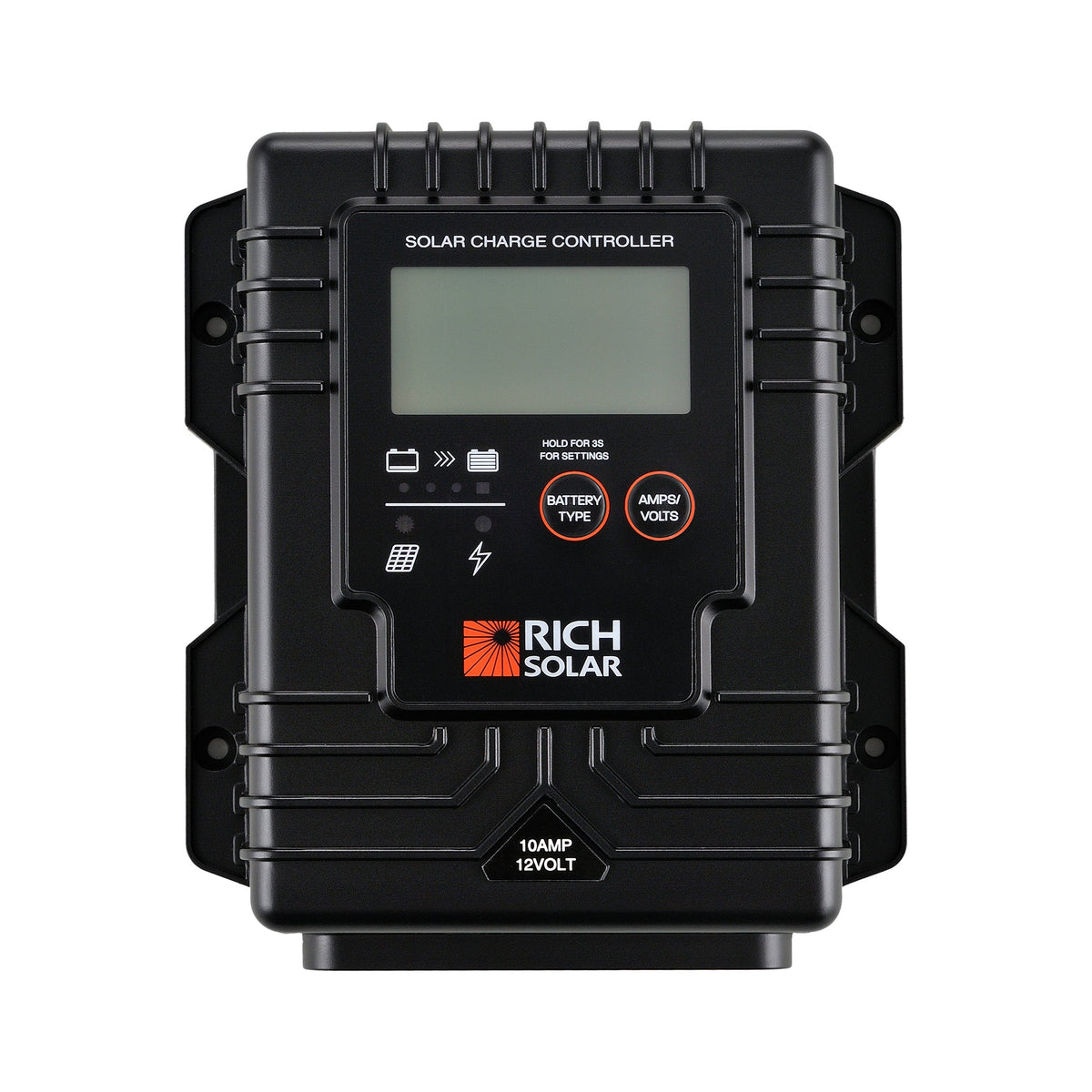

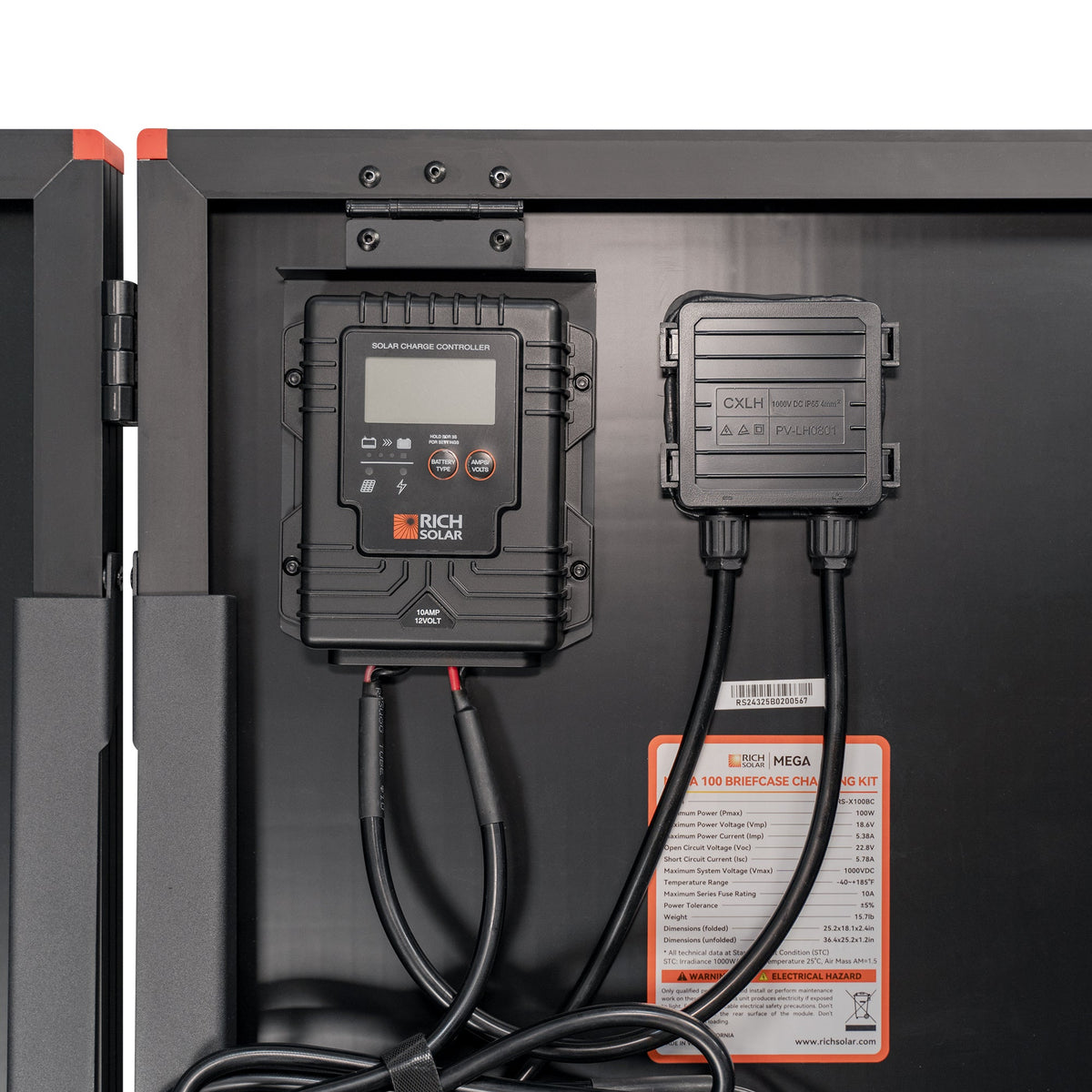

  • Waterproof 10A solar charge controller for controlled battery charging

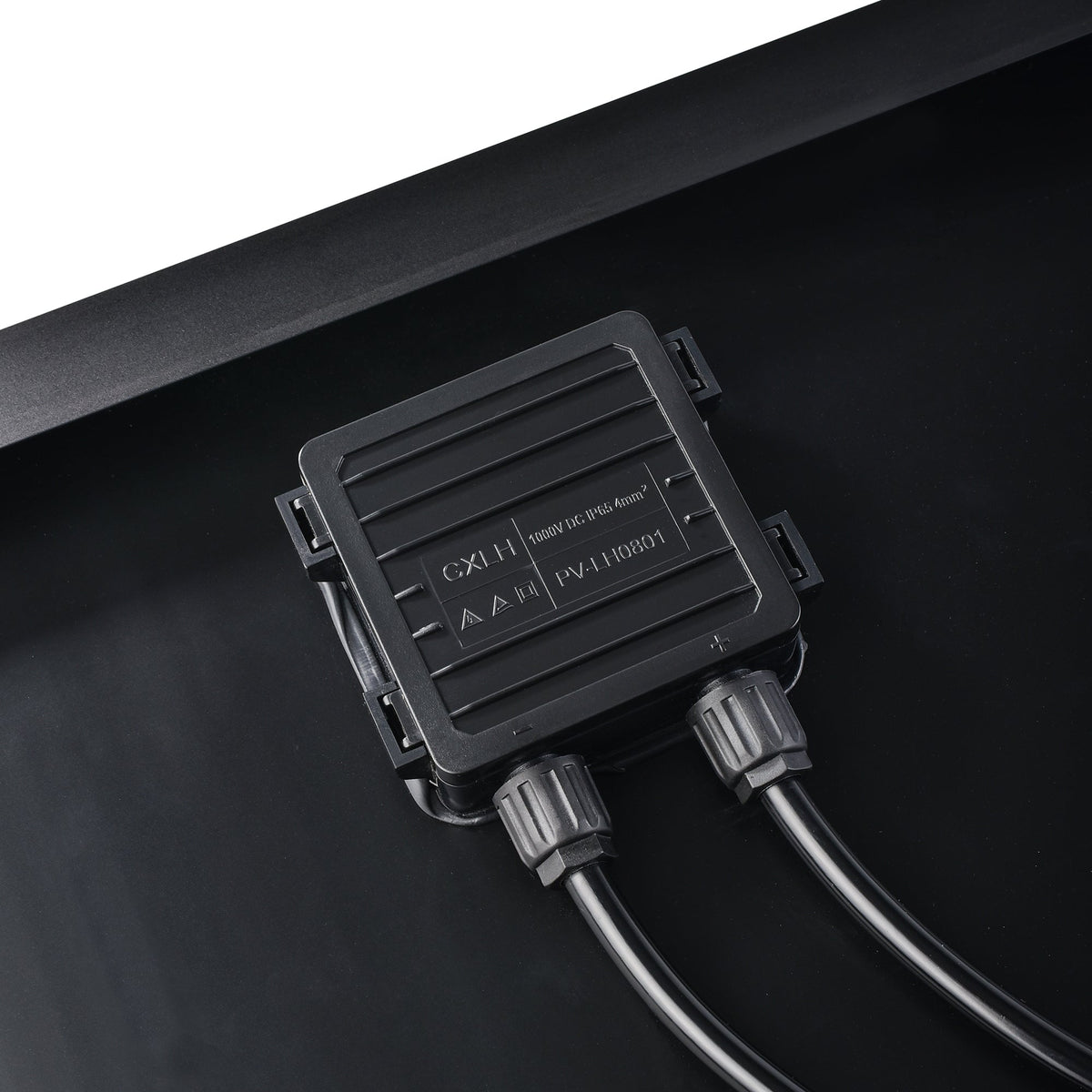

  • IP67-rated waterproof junction box and solar connectors

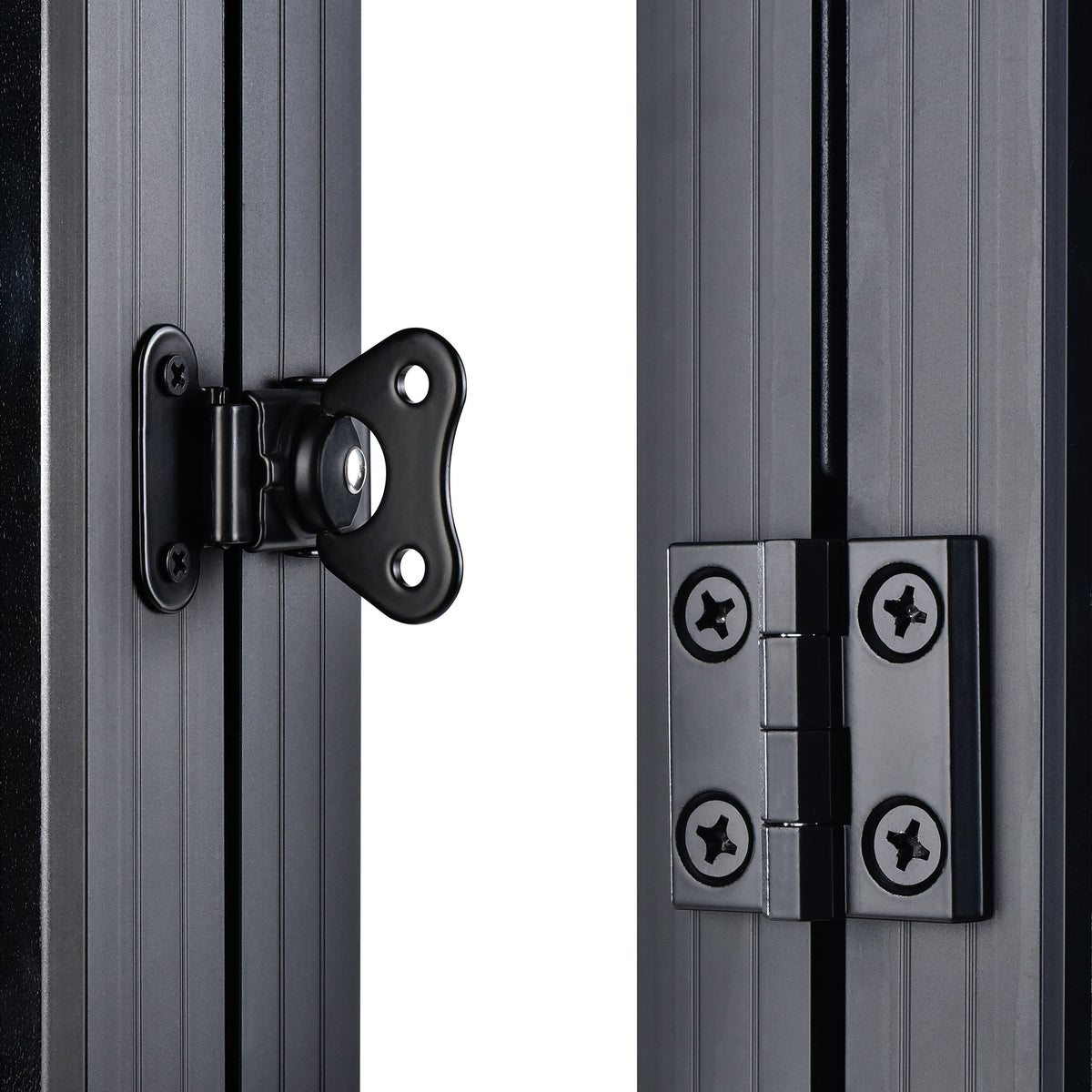

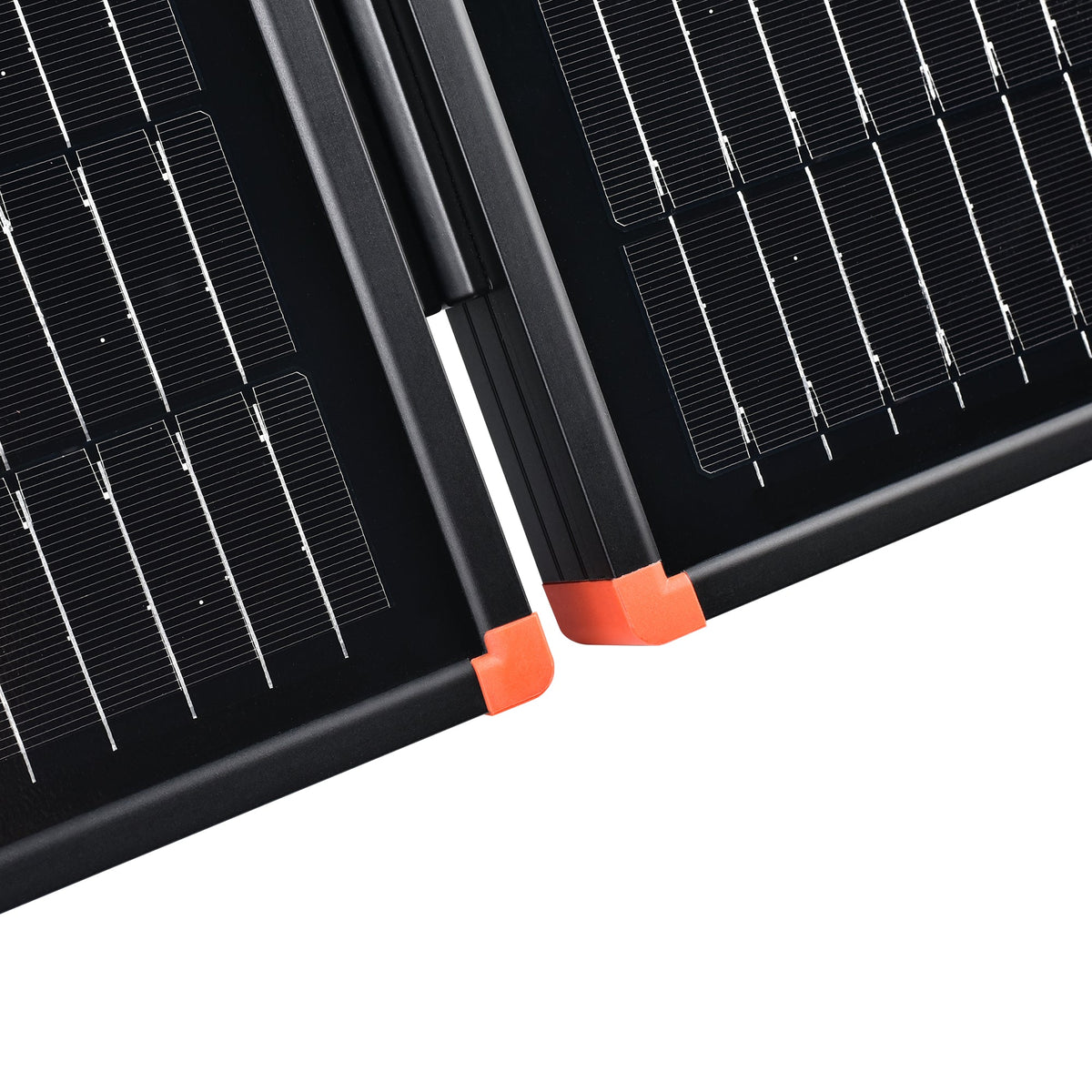

  • Strong tempered glass, aluminum frame, and corner protection for transport durability
  • Maximum system voltage rating: 1000V DC

Installation and Maintenance Requirements

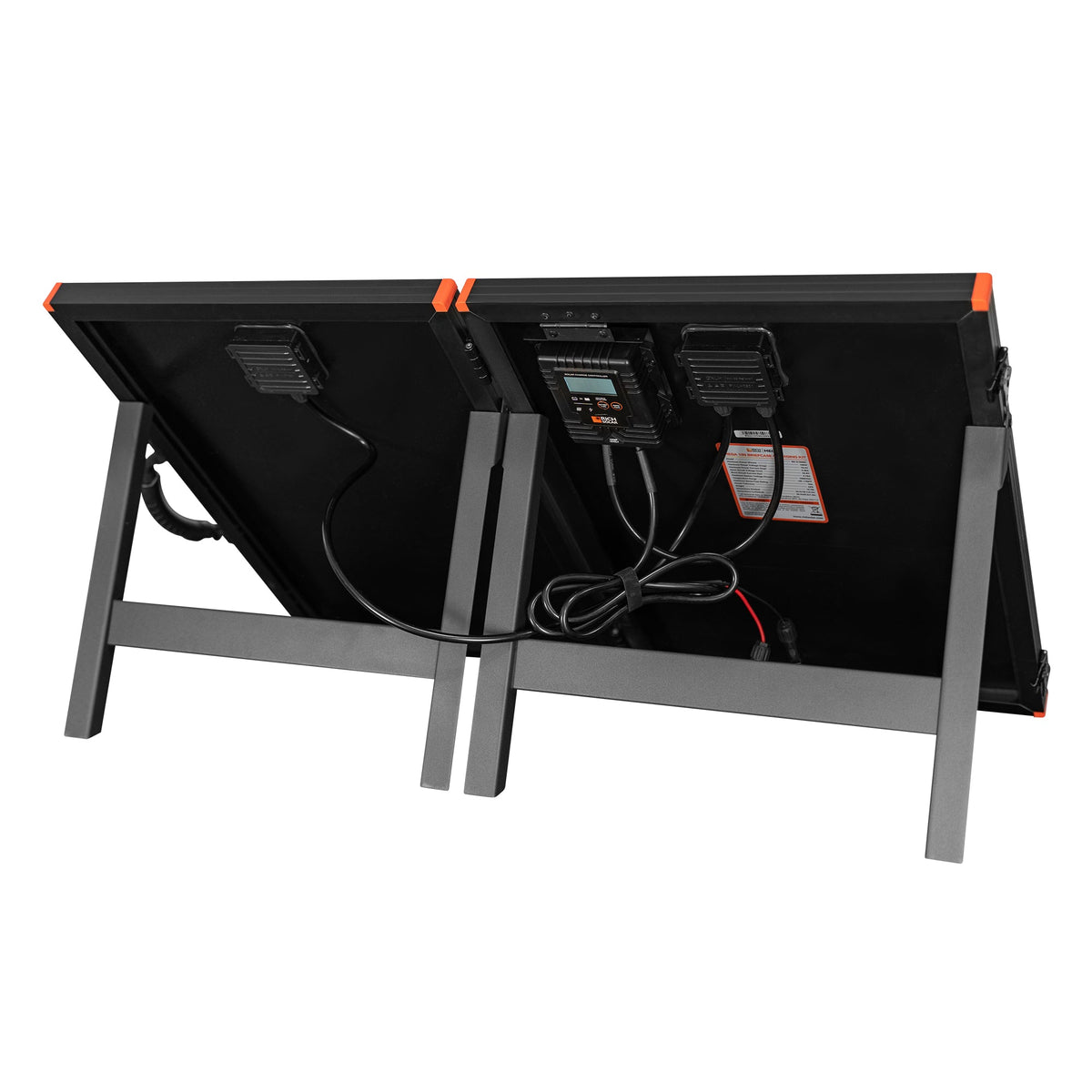

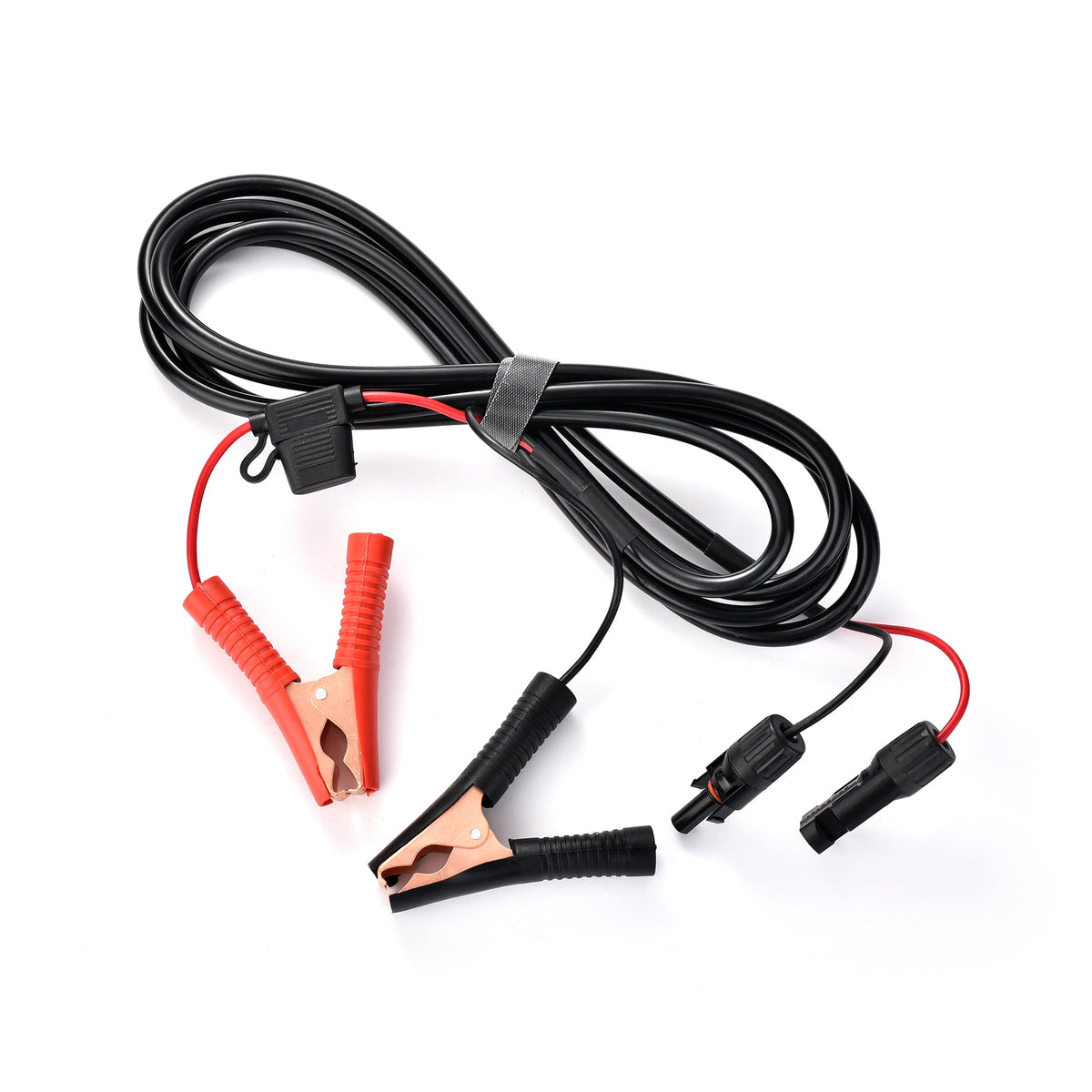

Set up the panel using its built-in kickstands, position it for sun exposure, and connect the 5 ft pre-attached 12 AWG panel leads through the MC4 connectors. The plug-and-play design supports quick battery setup. Fold the unit for transport after use.

Warranty and Service Information

  • 25-year power output warranty
  • 5-year workmanship warranty
  • 2-year warranty for the controller and built-in kit components

Branding/References

Product: MEGA 100 Portable Briefcase Charging Kit. Model reference: MEGA 100.

Differentiators

The MEGA 100 combines 100W solar output, up to 23.2% monocrystalline efficiency, an integrated waterproof 10A charge controller, and a foldable briefcase format with built-in kickstands.
