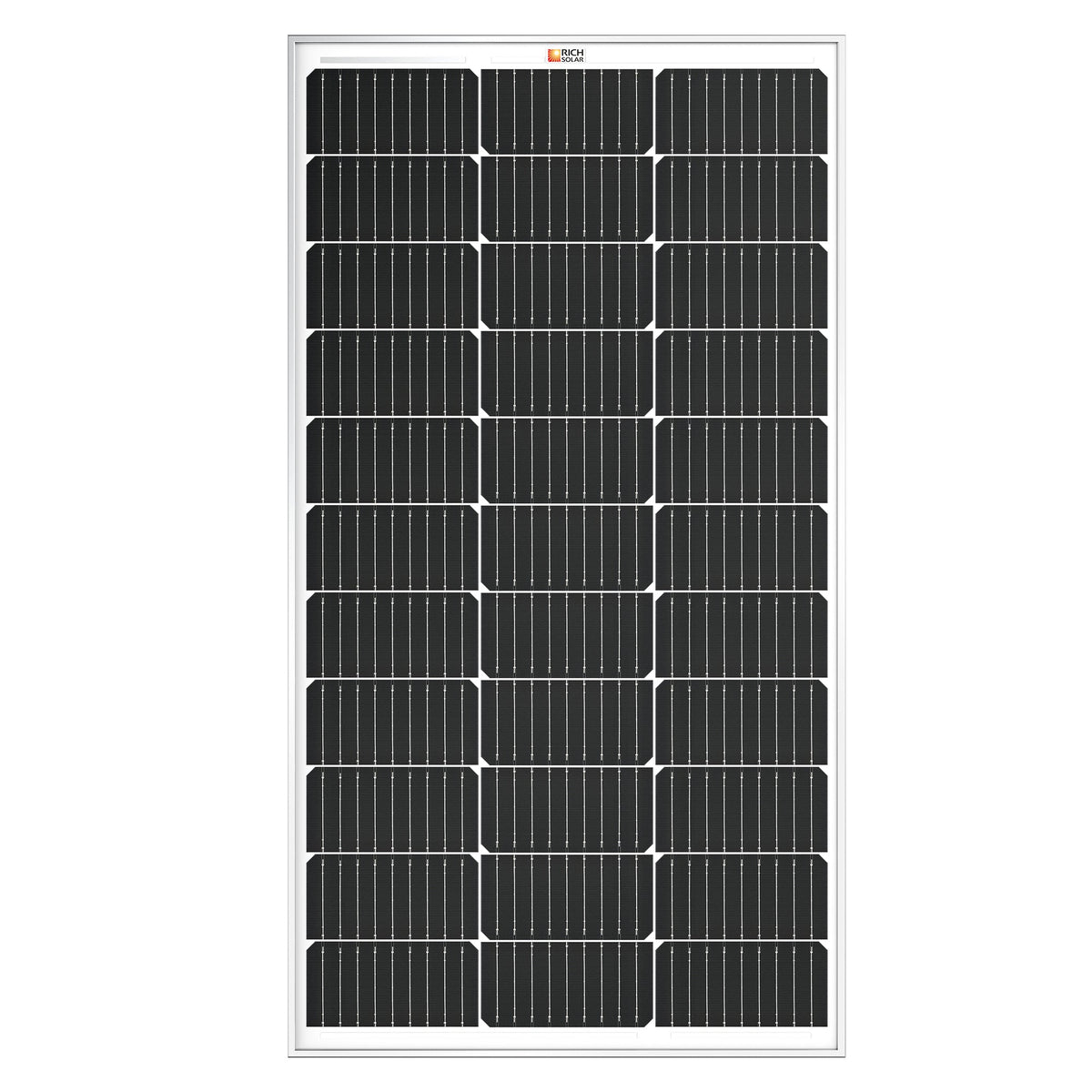

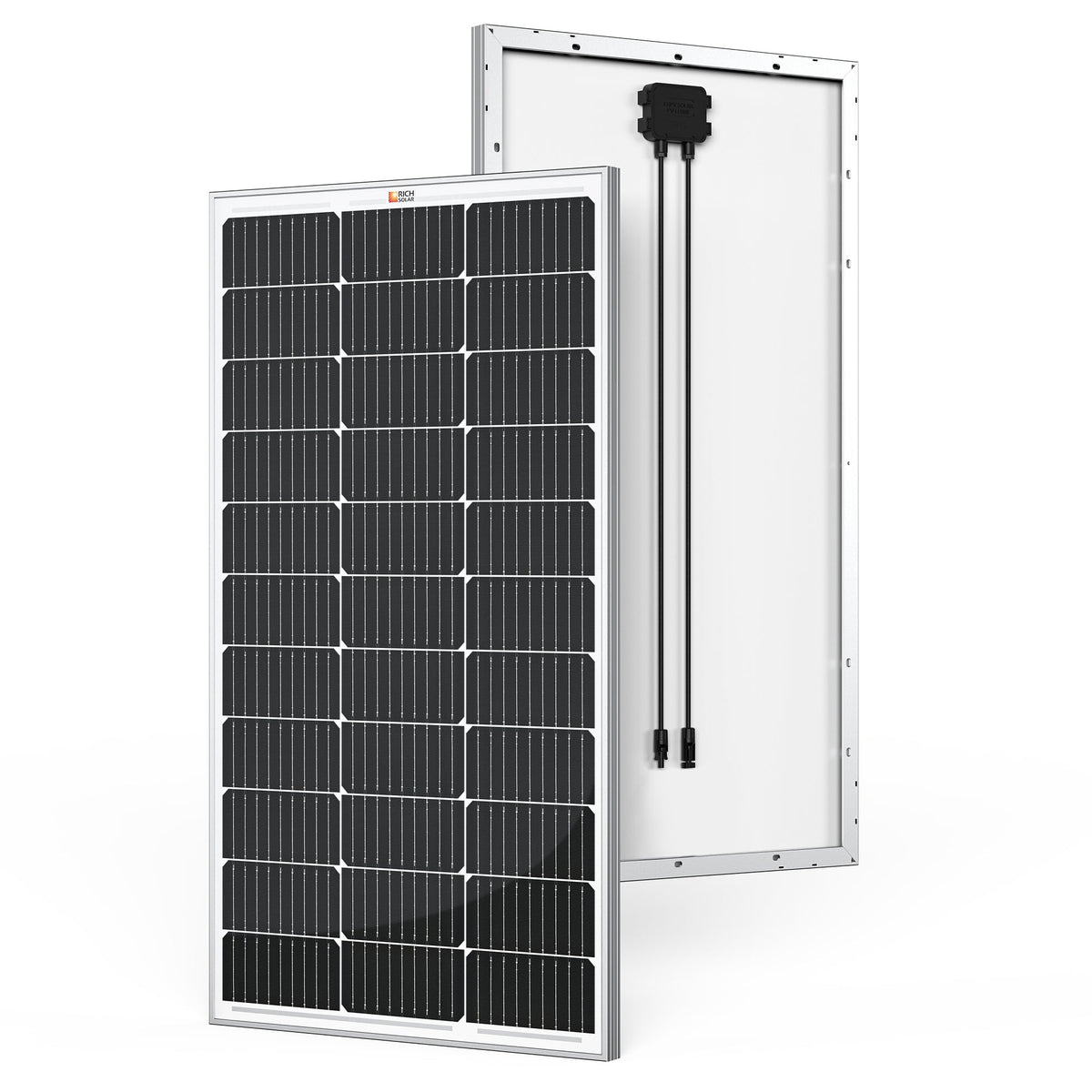

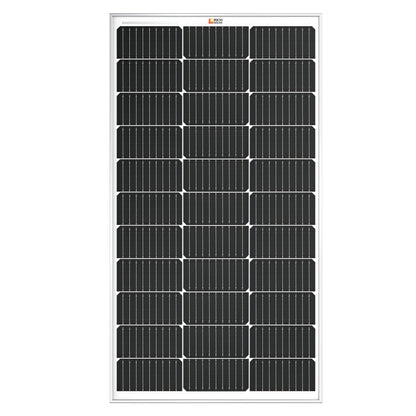

MEGA 100 | 100 Watt Solar Panel

MEGA 100 | 100 Watt Solar Panel

$95.99 USD
$119.99 USD $95.99 USD
Sale Sold out
Shipping calculated at checkout.

features

• Solid design control box — Meets NEMA Type 4 & IP30 standard by lab test
• LCD color screen — Real-time status view and easy user interaction
• Breathing indicator light — Shows real-time charging status
• Control button — Adjust max output current & set scheduled charging time
• Water protection gasket — Resists 3-minute direct high-pressure water spray
• TPU cable — 14.76ft, excellent durability, cold resistant to -22°F
• ETL certified — Compliant with North American safety standards

Technical Specifications

Voltage: 240V/208V
Max Output Current: 40A (SS-PC1-100) / 32A (SS-HAY-100-32A)
Max Power: 8kW / 7kW
Frequency: 50/60Hz
Temperature Range: -22°F to 122°F
Humidity: 5–95%, no condensation
Connector: Type 1 (J1772)
Cable Length: 14.76ft (4.5m)
Altitude: ≤2000m (6,562ft)
Cooling: Natural
Safety Standards: ETL, UL2594, CSA C22.2
Scheduling: App / Timer control
Connectivity: Wi-Fi / Bluetooth
Warranty: 2 years

Packing Details

View full details

MEGA 100 | 100 Watt Solar Panel

Equipment Type and Primary Applications

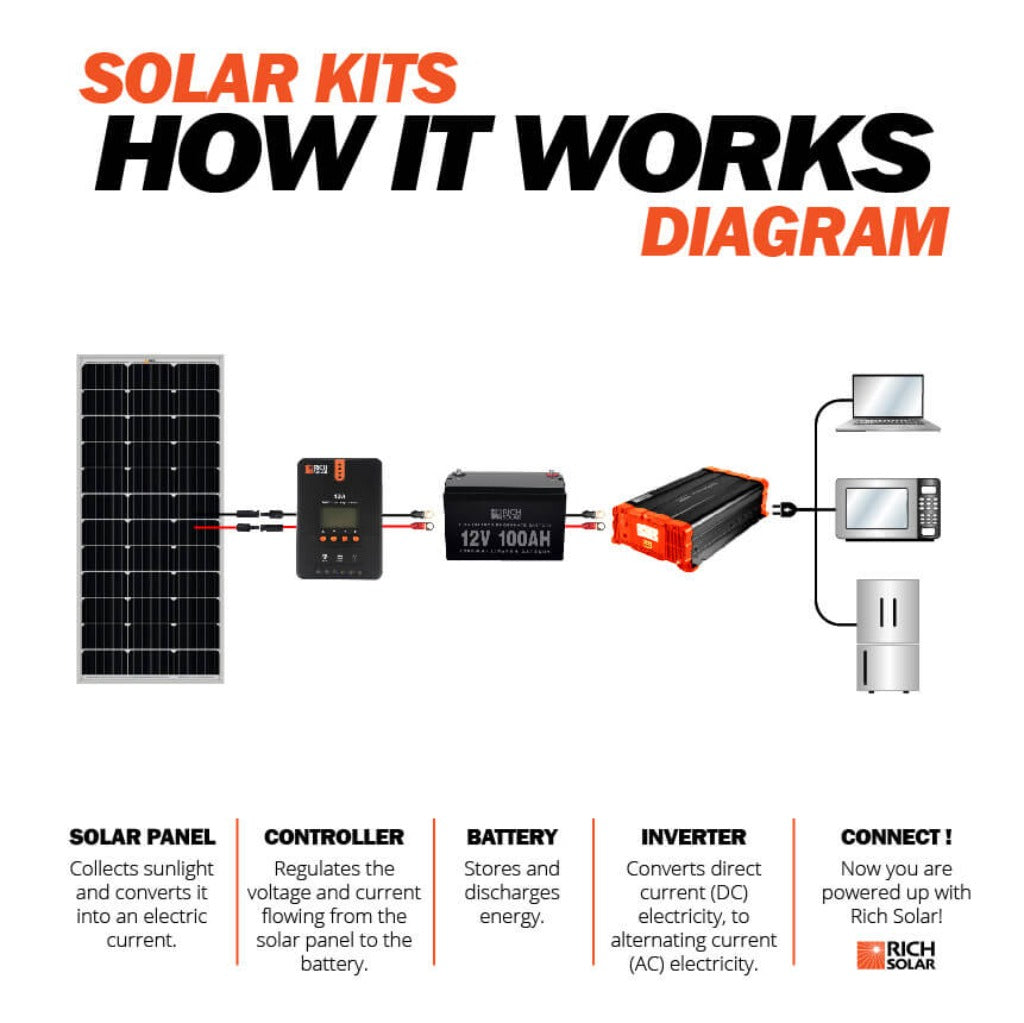

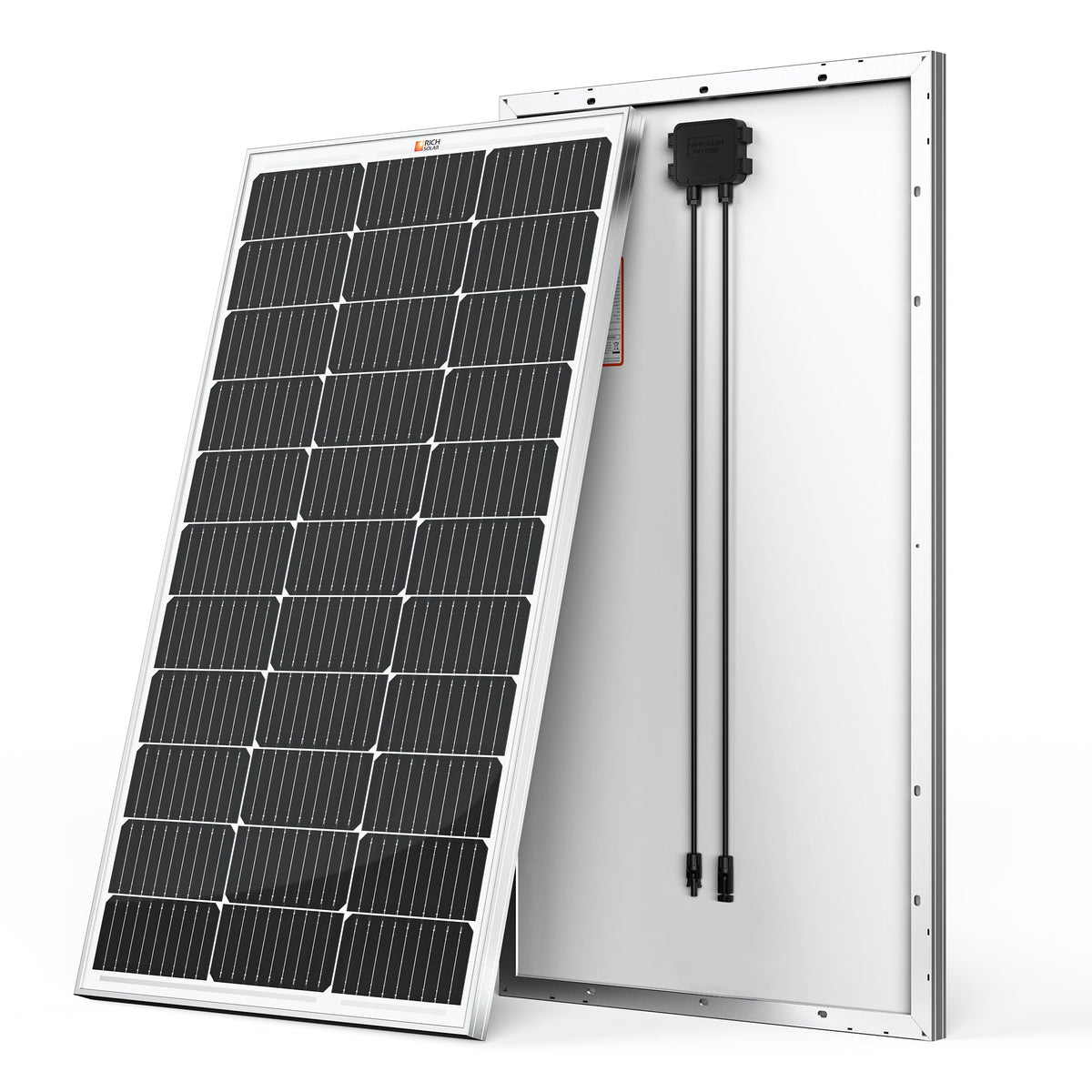

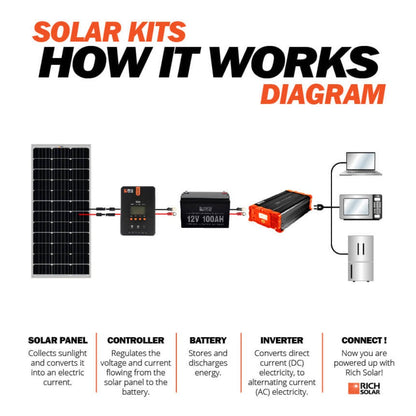

100W 12V off-grid solar panel using 33-cell, 9-busbar monocrystalline technology for RVs, vans, truck campers, marine systems, and compatible on-grid or off-grid inverter installations.

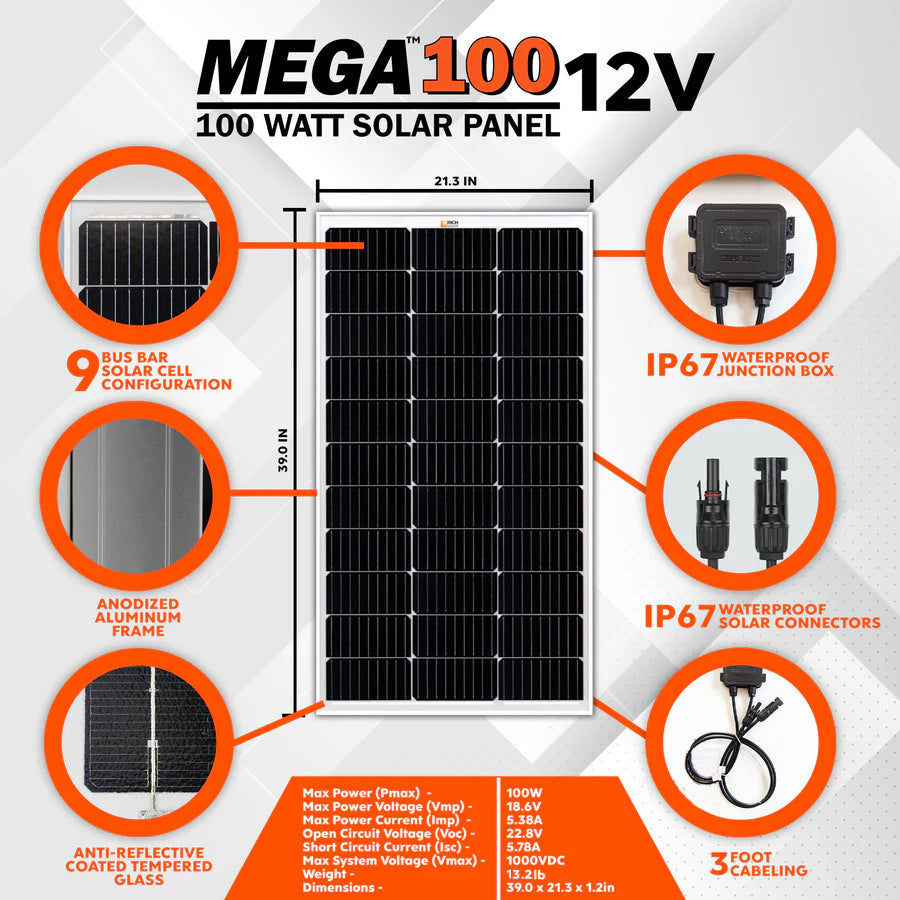

Performance Specifications

  • Rated power: 100W; guaranteed positive output: 0 to +5W.
  • Maximum power voltage: 18.6V; maximum power current: 5.38A.
  • Open-circuit voltage: 22.8V; short-circuit current: 5.78A.
  • Cell efficiency: up to 22.6%; maximum system voltage: 1000VDC.
  • Maximum series fuse rating: 10A.
  • Load certification: 2400Pa wind and 5400Pa snow.
  • 3.2mm anti-reflective tempered glass; designed for salt, ammonia, sand, high temperatures, and humidity exposure.

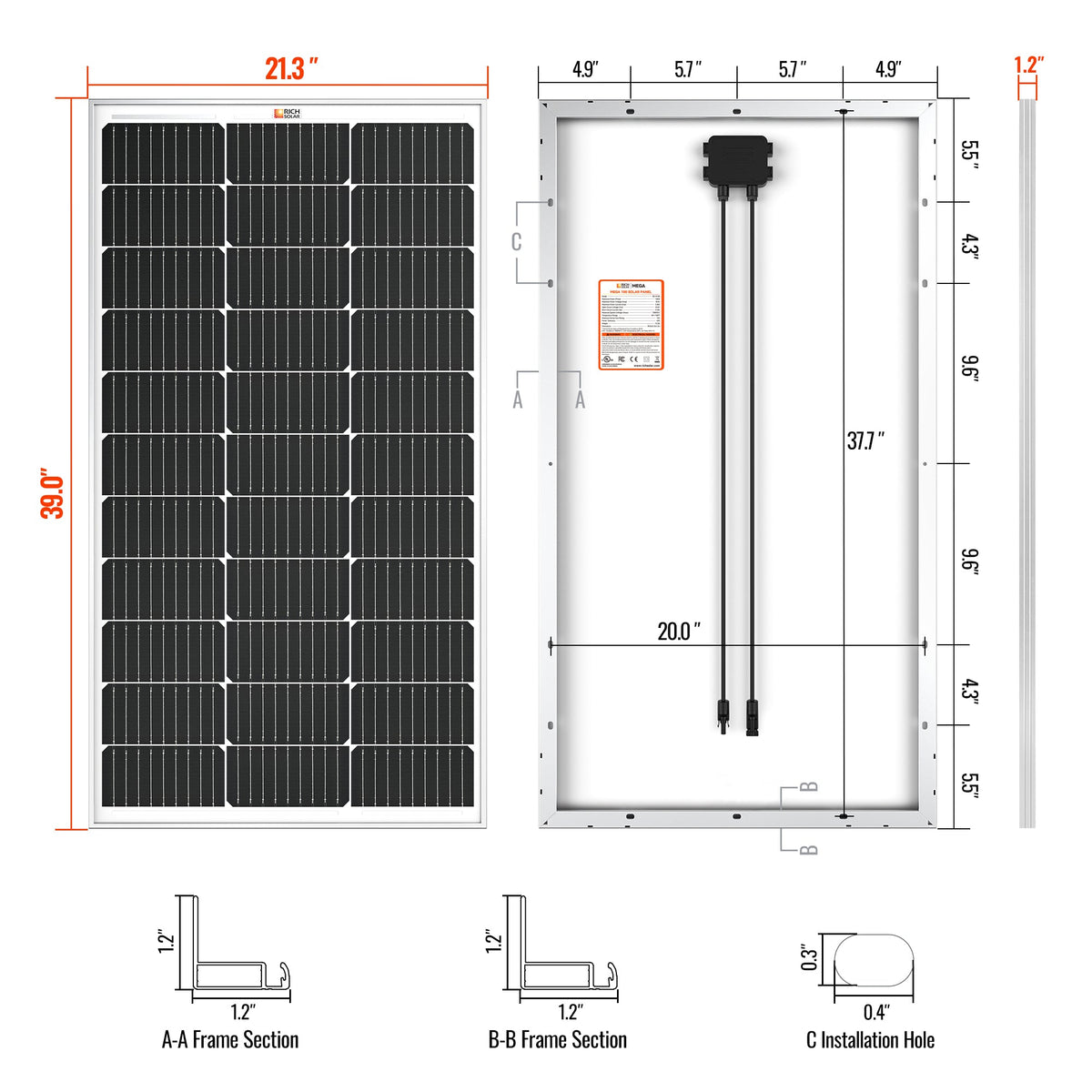

  • Dimensions: 39.0 × 21.3 × 1.2in; weight: 13.2lb.

Safety Features and Certifications

  • PID-resistant construction with 100% electroluminescence inspection.

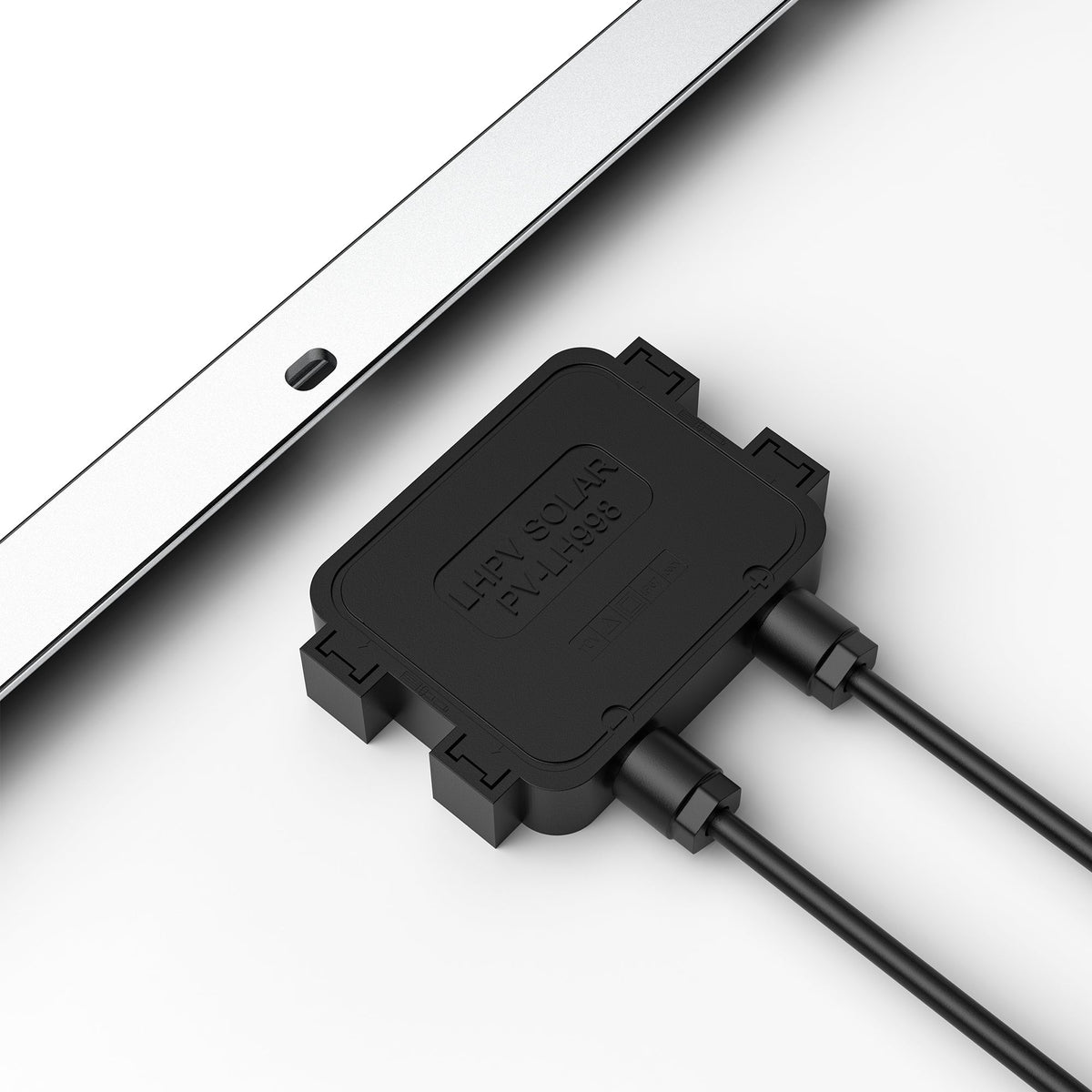

  • IP67-rated waterproof junction box and solar connectors.
  • Certified to UL 61730, IEC 61215, and CSA C22.2 standards.

Installation and Maintenance Requirements

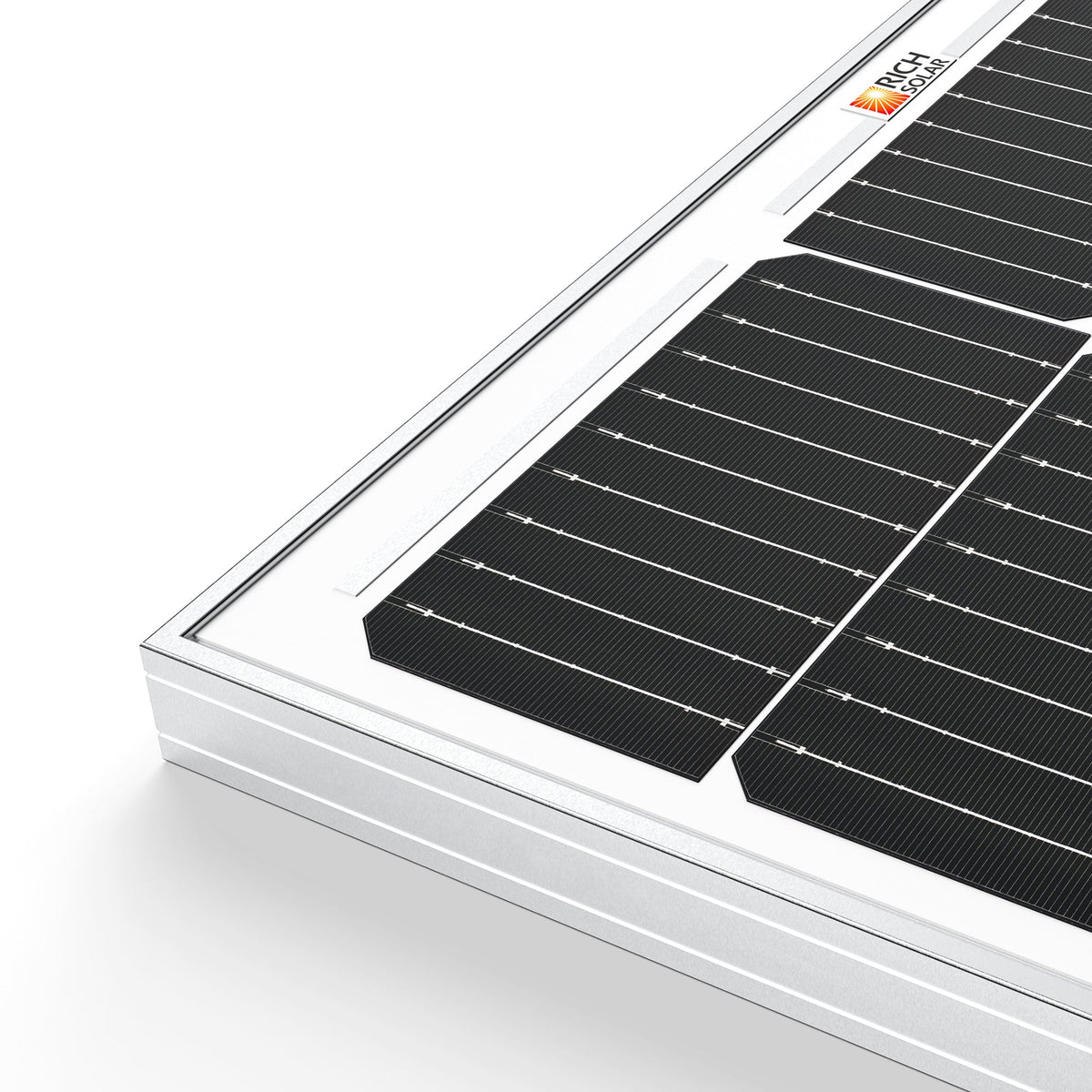

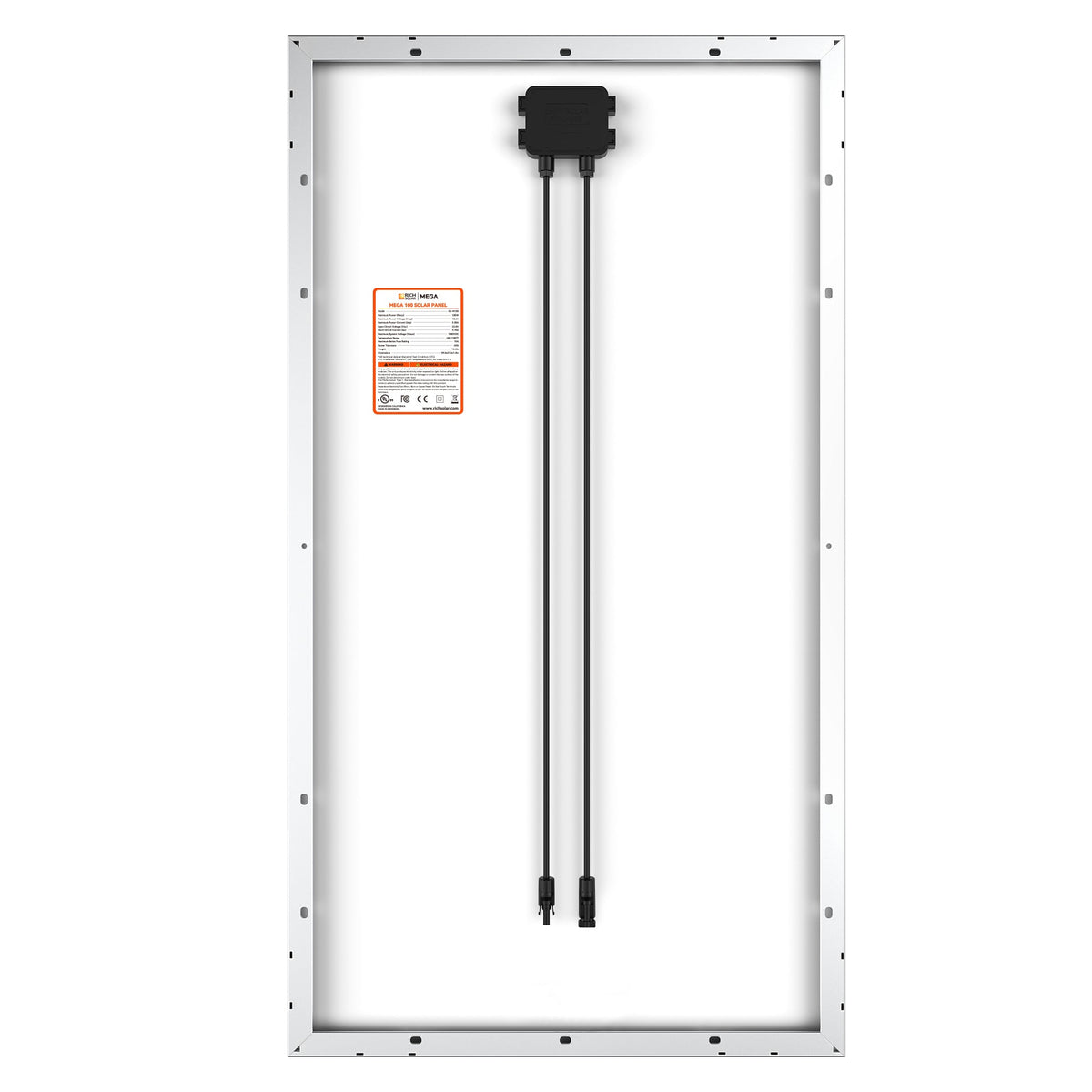

Use MC4 connectors with 3ft pre-attached cables and 12AWG panel leads. The anodized aluminum frame includes 14 pre-drilled mounting holes for Z brackets, tilt mounts, pole mounts, or ground installation. Inspect glass, frame, connectors, and cable condition before installation; keep the panel surface clear for consistent light transmission.

Warranty and Service Information

Includes a 25-year output warranty and 10-year workmanship warranty.

Branding/References

Product reference: MEGA 100. Electrical reference: 12V solar panel with MC4 connectors.

Differentiators

Its 9-busbar, 33-cell design combines up to 22.6% efficiency with low-light performance at dawn, dusk, and on cloudy days.
