LINIOTECH 14.33kWh LiFePO4 48V Floor-Mounted Battery Storage System
Designed for off-grid and hybrid solar installations, this high-capacity LiFePO4 storage system delivers reliable backup power for residential and commercial use. The floor-mounted, IP65-rated enclosure supports indoor and outdoor deployments—from garages to mechanical rooms—offering durable energy storage with serviceable performance in varied climates. UL-1973, UL-9540, and UL-9540A certifications, plus CEC listing, ensure code compliance and seamless integration with Sol-Ark inverters as a trusted partner for hybrid systems.
Performance specifications
- Energy capacity: 14.34 kWh (nominal 51.2 V)
- Capacity (Ah): 280 Ah
- Nominal/Operating voltage: 51.2 V / 46–56 V
- Scalability: Up to 16 modules in parallel (262 kWh)
- Discharge energy at 80% DOD: 13.10 kWh
- Charge/Discharge current: Recommend 100 A; Max 150 A; Peak 200 A (2 min @ 25°C)
- Physical size & weight: 900 × 675 × 200 mm; approx. 128.5 kg
- Temperature range: Charging 0°C–55°C; Discharging −20°C–55°C; Storage 0°C–35°C
- enclosure rating: IP65 outdoor-rated (indoor/outdoor installation)
Safety, certification and integration
Certified to UL1973, UL9540, and UL9540A standards with Sol-Ark testing; CEC-listed for California programs. Verified compatibility with Sol-Ark hybrid inverters, reinforcing system reliability for mixed solar and storage configurations.
Installation and maintenance considerations
- Floor-mount design enables space-saving, ground-level installation with no complex wall brackets or racking required.
Applications and benefits
Ideal for whole-home backup, off-grid living, or cost optimization through peak shaving and TOU billing. The system delivers dependable energy storage with durable, weather-ready construction for diverse installation scenarios.

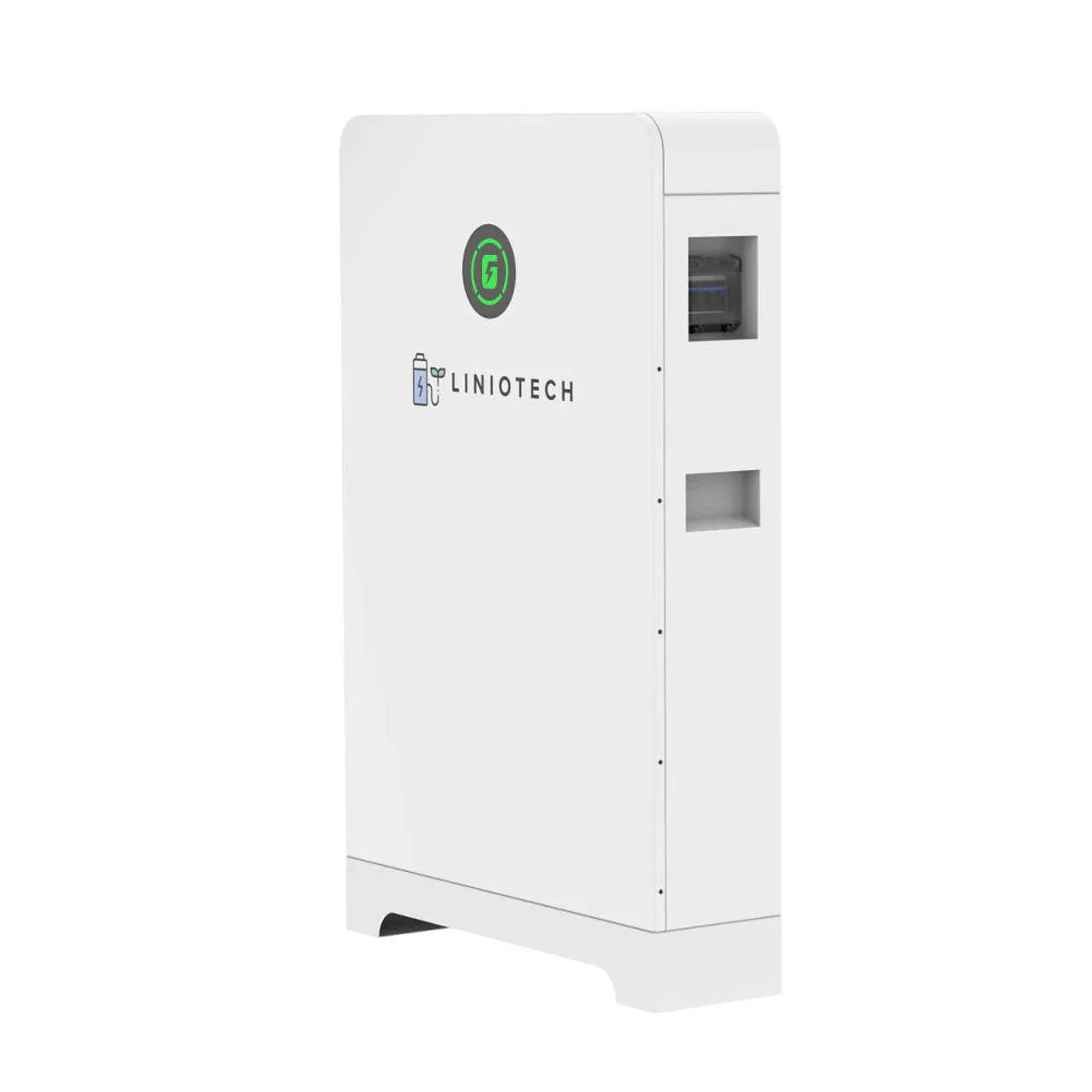

LINIOTECH 14.33KWH Lifepo4 48V 280Ah Battery Storage | IP65 Outdoor Rated Floor Mount UL1973 | Sol-Ark UL9540 | UL9540A | CEC
Take your off-grid or hybrid solar system to the next level with the LINIOTECH 14.33kWh LiFePO4 48V 280Ah Battery Storage System—a rugged, high-capacity solar battery backup solution designed for indoor and outdoor use. Built with premium lithium iron phosphate cells and a weather-resistant IP65-rated enclosure, this floor-mounted unit offers long-lasting, safe energy storage for residential or commercial installations.
Fully certified for U.S. and California compliance, the LINIOTECH battery is tested and approved to UL1973, UL9540, UL9540A standards, and is CEC listed, making it ideal for projects that require strict code adherence. It's also listed as a preferred battery partner by Sol-Ark and works flawlessly with Sol-Ark hybrid inverters.
Whether you're looking to store excess solar energy, ensure backup power during outages, or reduce electricity costs with peak shaving, LINIOTECH Energy delivers top-tier performance and seamless integration.
Top 5 Product Highlights-
✅ Indoor & Outdoor Rated (IP65 Protection): All-weather enclosure is engineered for installation in garages, mechanical rooms, or outdoors—perfect for diverse climate conditions.
-
✅ Fully UL Certified with California Compliance: Meets UL1973, UL9540A, and UL9540 with Sol-Ark testing, plus CEC listing for eligibility in California energy incentive programs.
-
✅ Floor Mount Design for Easy Installation: Space-saving, ground-mounted battery system—no complex wall brackets or racking required.
-
✅ Sol-Ark Certified Partner: Officially listed by Sol-Ark as a preferred battery partner, ensuring optimal compatibility with Sol-Ark hybrid inverter systems.
-
✅ 14.33kWh Capacity / 48V 280Ah: Ample power storage for whole-home backup, off-grid living, or energy cost optimization with time-of-use billing.
48V lithium battery for solar, LiFePO4 solar battery 14.33kWh, floor mount battery storage, UL9540 certified battery, UL1973 battery, CEC listed battery, outdoor rated solar battery, Sol-Ark compatible battery, California compliant solar battery, off-grid battery storage.
Product Specifications
LINIOTECH 14.33KWH Lifepo4 48V 280Ah Battery Storage | IP65 Outdoor Rated Floor Mount UL1973 | Sol-Ark UL9540 | UL9540A | CEC Product Specifications
Product Manual
Liniotech Brochure
Liniotech 14.33kWh Manual-floor mount
Liniotech 14.33kWh Specsheet-floor mount
Product Warranty
12 years limited warranty!
| MODEL NO |
LTN051280A-B-GBP2 |
|
| Battery Chemistry | LiFePO4 | |
|
Capacity (Ah) |
280 |
|
| Scalability | Max.16pcs in parallel (262kWh) | |
|
Nominal Voltage (V) |
51.2 | |
| Operating Voltage(V) | 46-56 | |
|
Energy (kWh) |
14.34 | |
|
Recomend Discharge Energy (80% DOD) (kWh) |
13.10 | |
|
Charge/Discharge Current (A) |
Recommend |
100 |
|
Max. |
150 | |
|
Peak(2mins,25℃) |
200 | |
| Other Parameter | ||
| Recommend Depth of Discharge | 80% | |
| Dimension (W/H/D,mm) | 900*675*200 | |
|
Weight Approximate (kg) |
128.50 | |
| Master LED Indicator | 4 LED (SOC:25%~100%) | |
| 2 LED (working, alarming, protecting) | ||
|
IP Rating of Enclosur |
IP20 | |
| Working Temperature | Charge:0℃～55℃ Discharge:-20℃～55℃ | |
|
Storage Temperature |
0℃～35℃ | |
| Humidity | 5%~95% | |
| Altitude | ≤2000m | |
| Cycle Life (25±2℃,0.5C/0.5C,80%EOL) | ≥10000 | |
| Installation | Wallmounted | |
| Communication Port | CAN2.0, RS485 | |
| Warranty Period [3] | 12 years | |
| Life Cycle Power During Warranty Period |
89.68MWh@80% EOL |
|
| Certification |
UL1973, UL9540A, UL9540, CB-IEC62619, CE-EMC, MSDS, UN38.3 |
|
