LINIOTECH 10 kWh LiFePO4 Solar Battery Brick Stackable

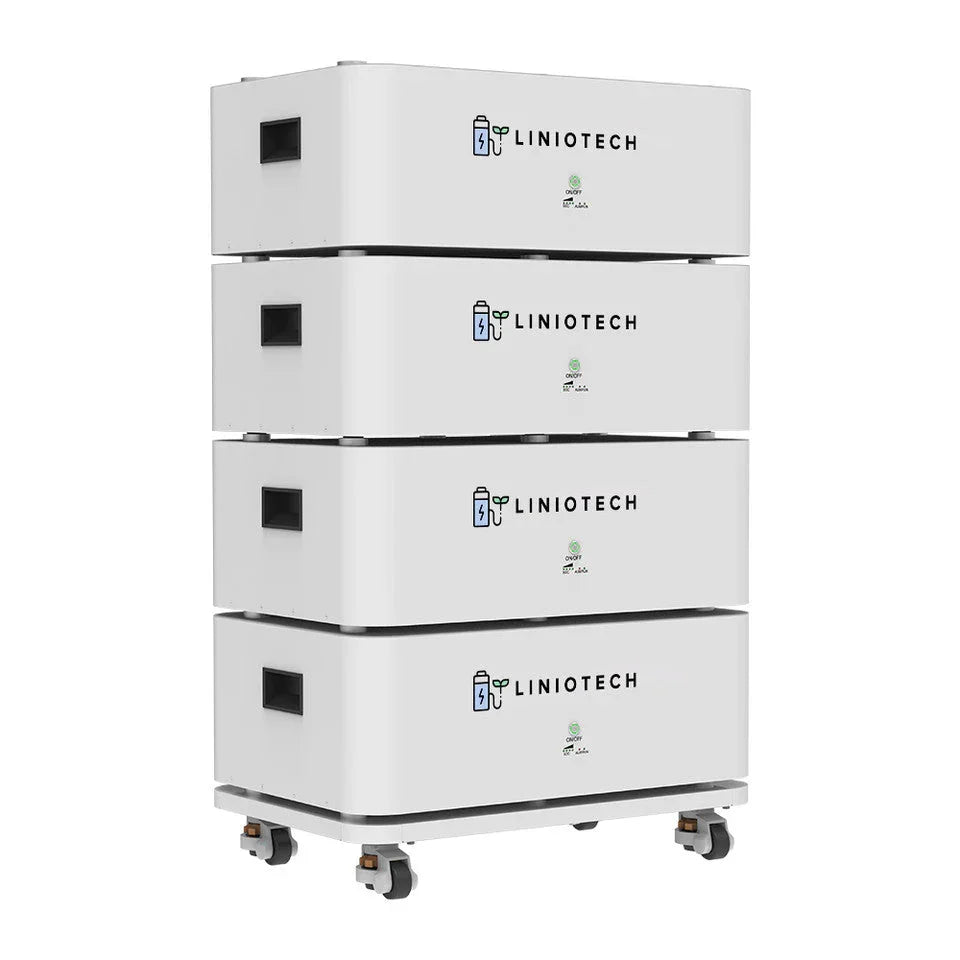

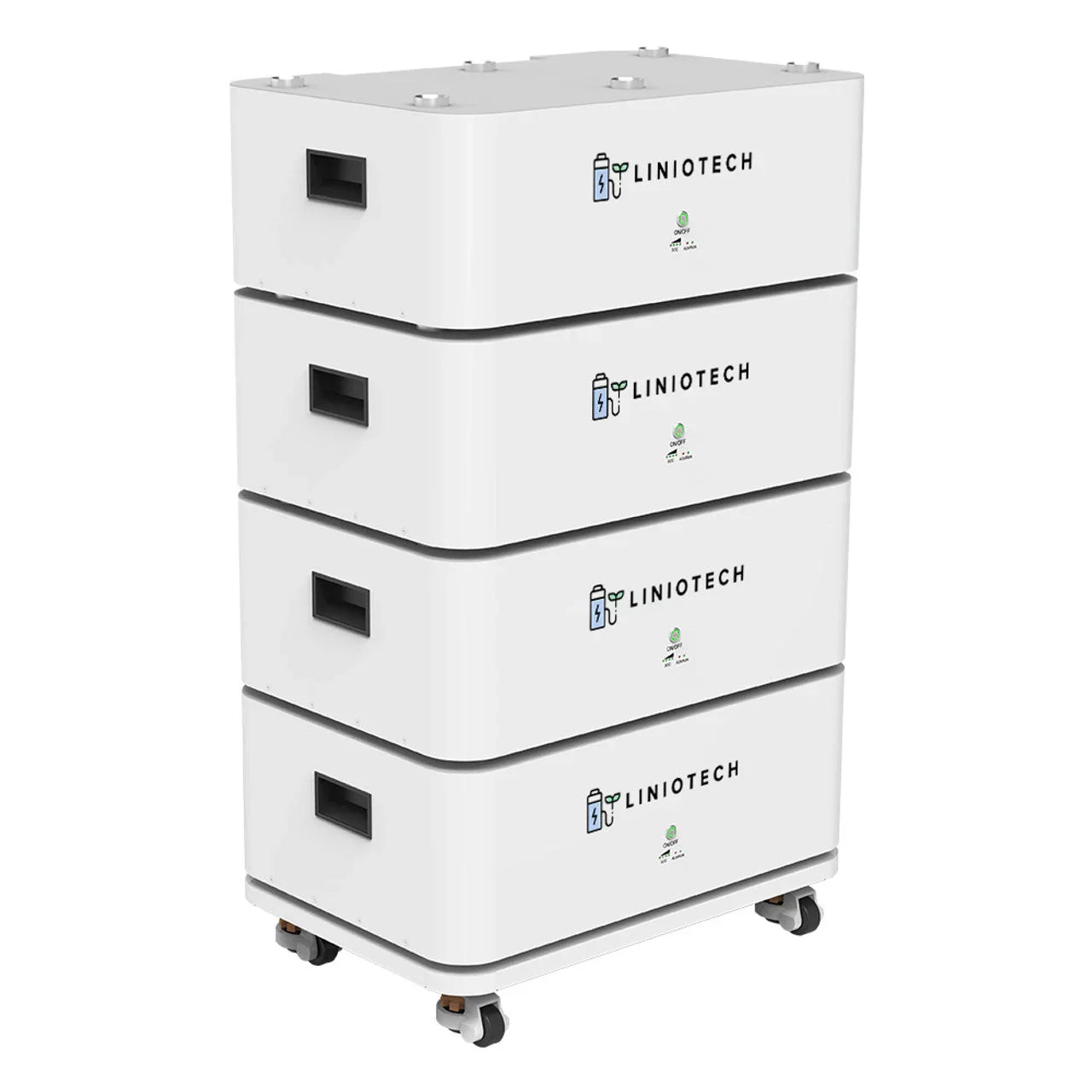

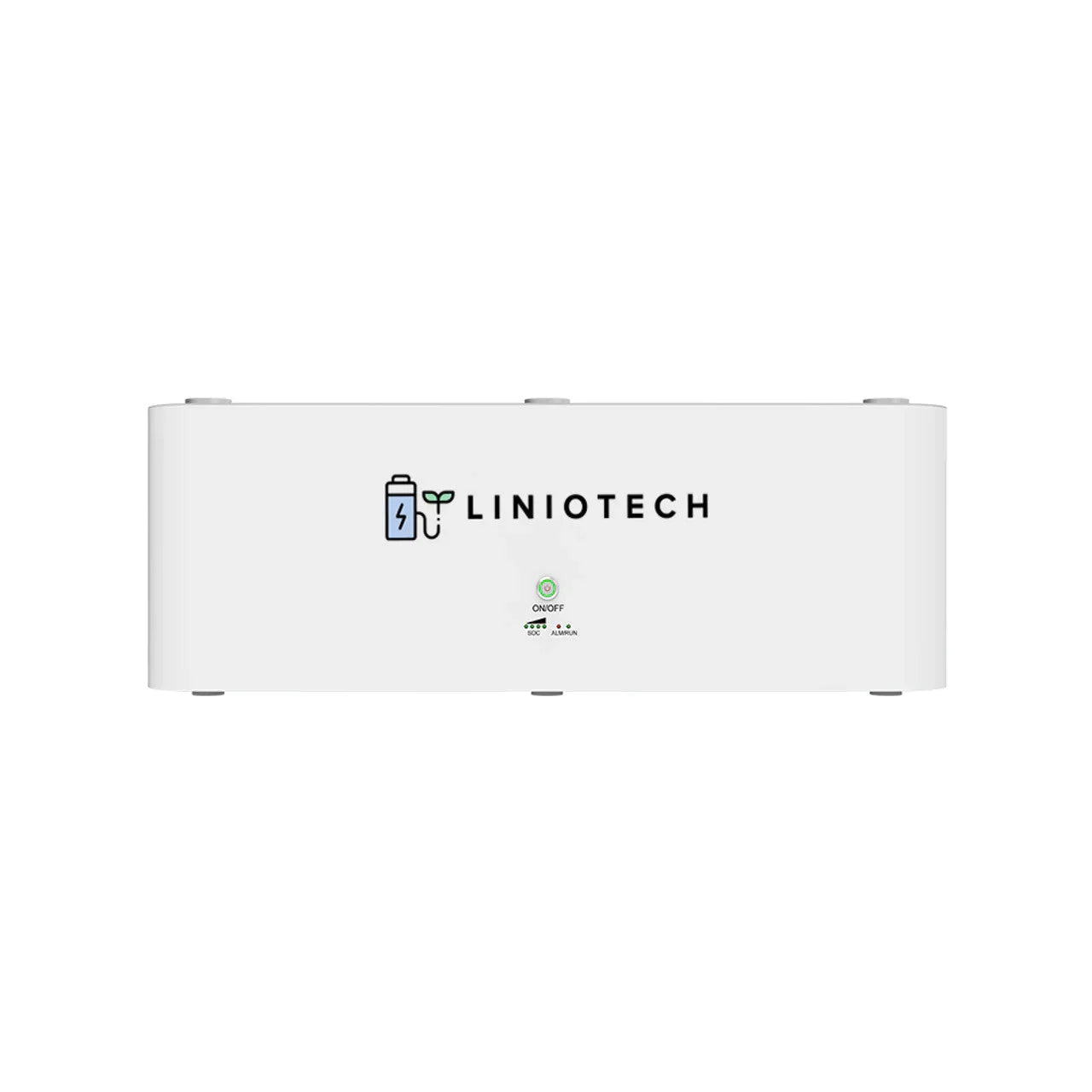

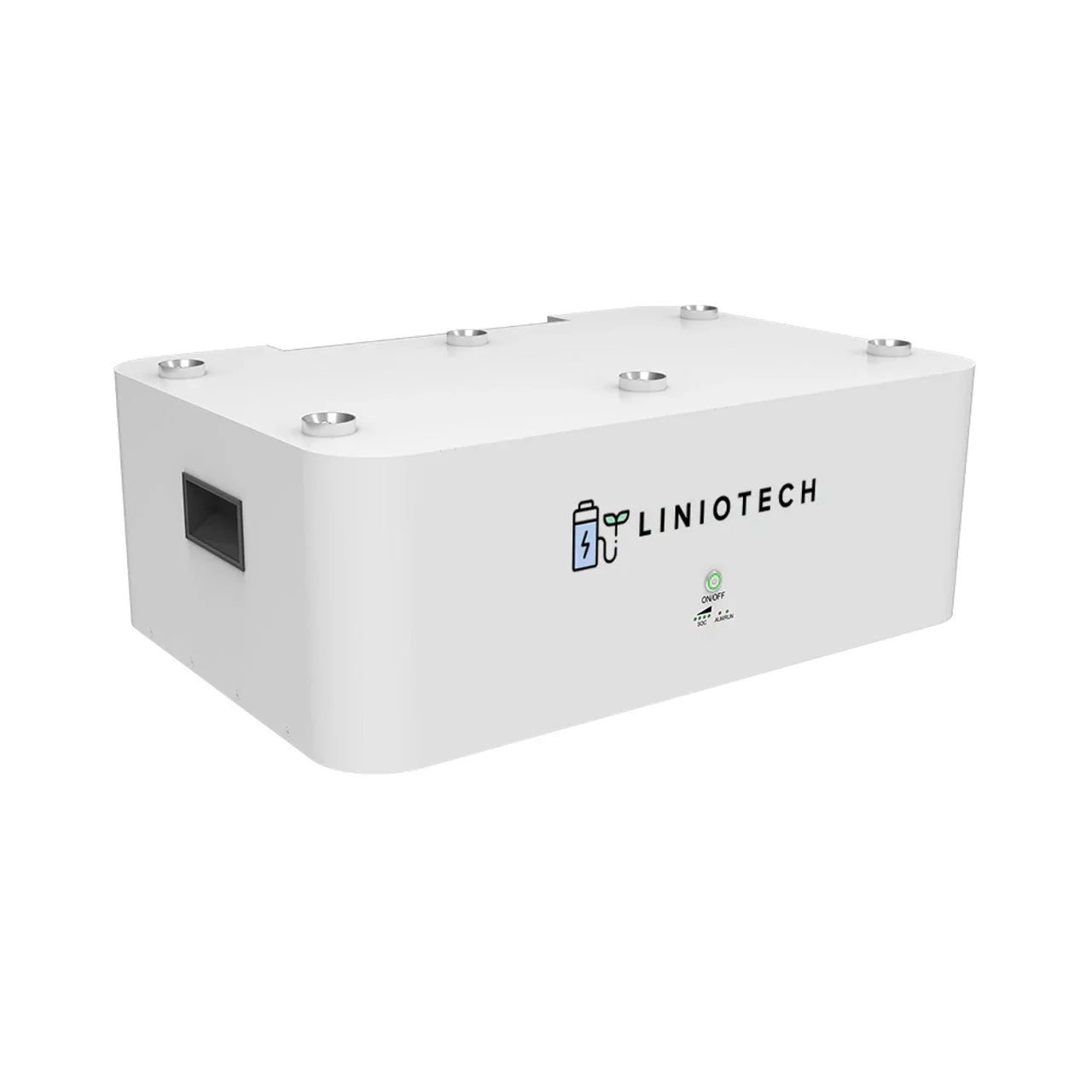

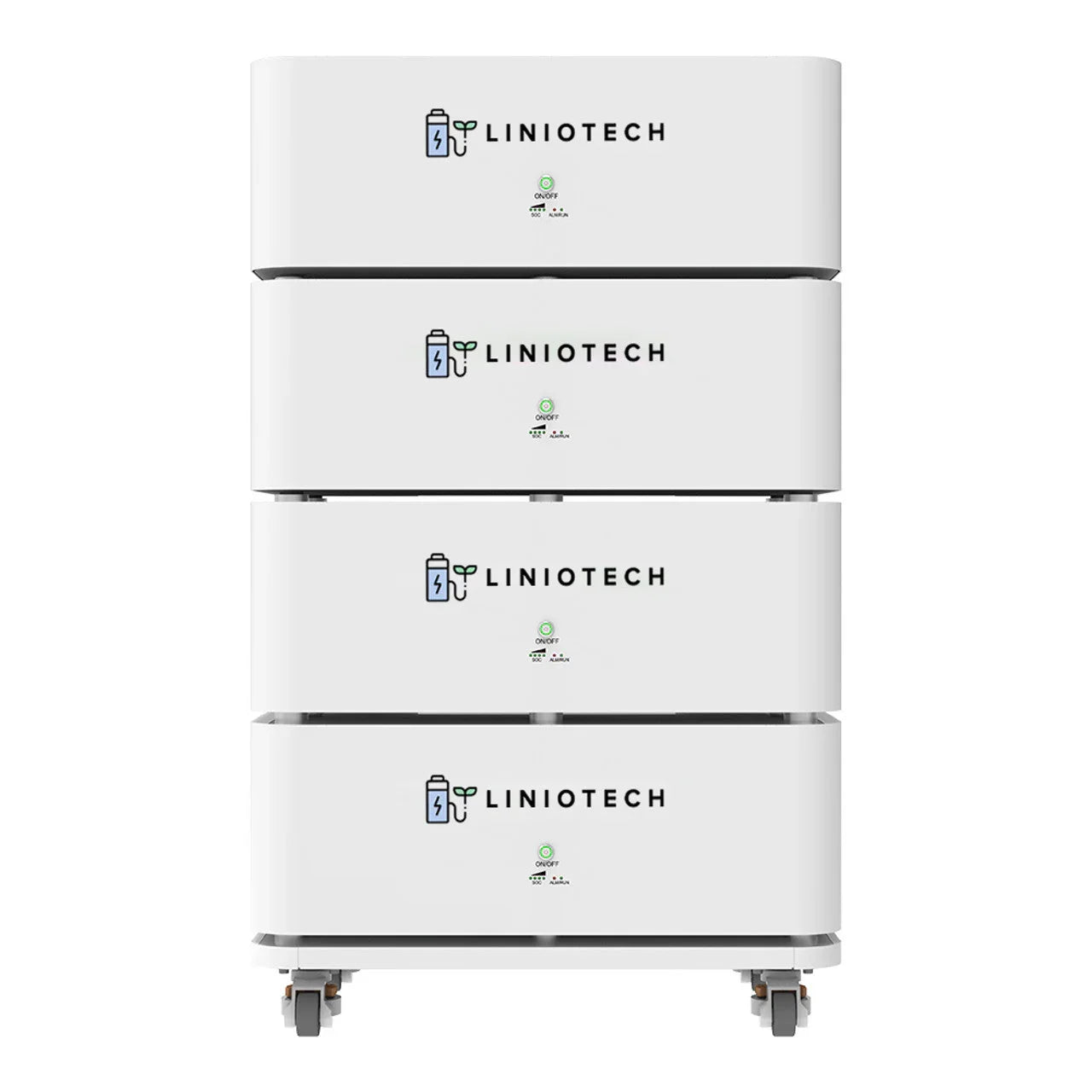

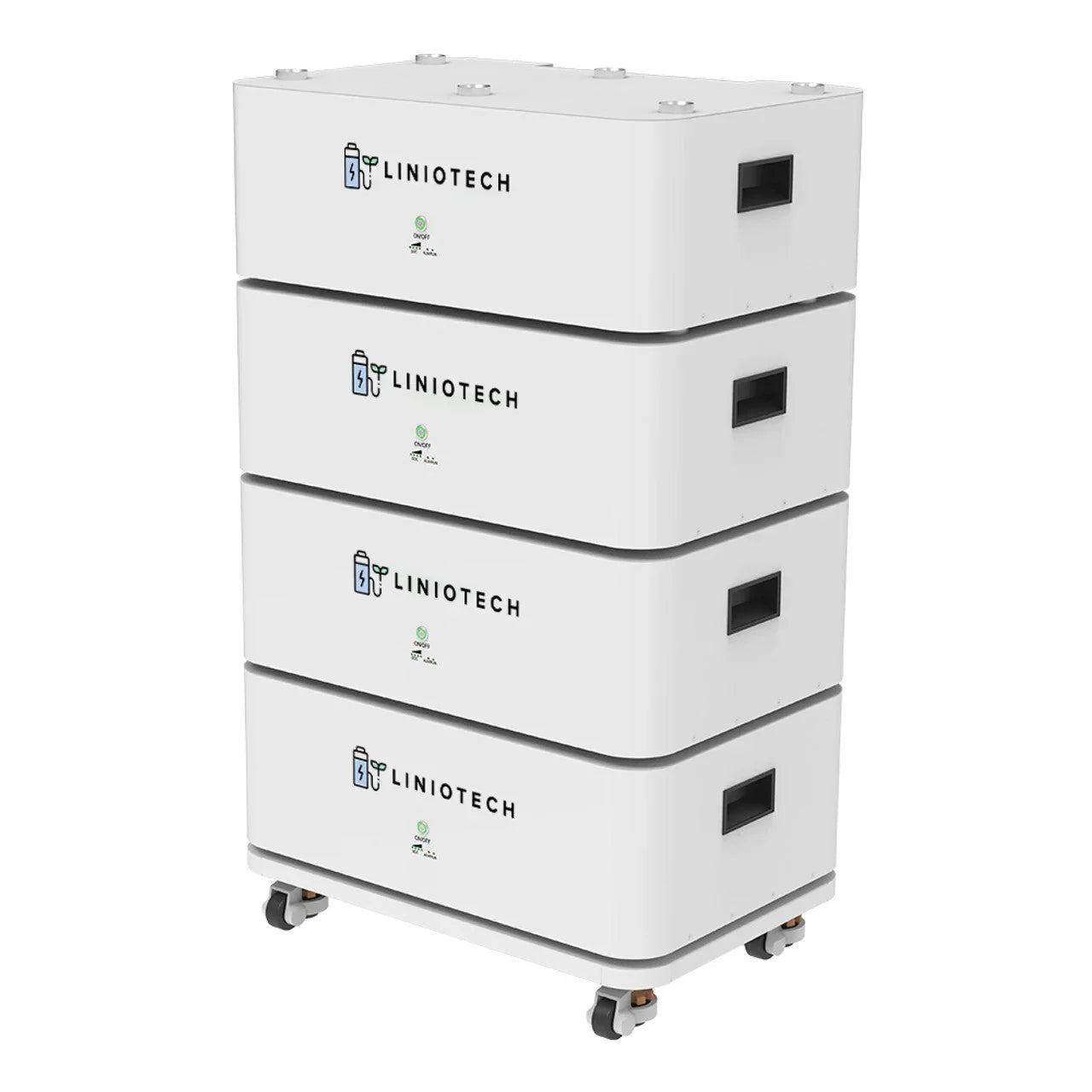

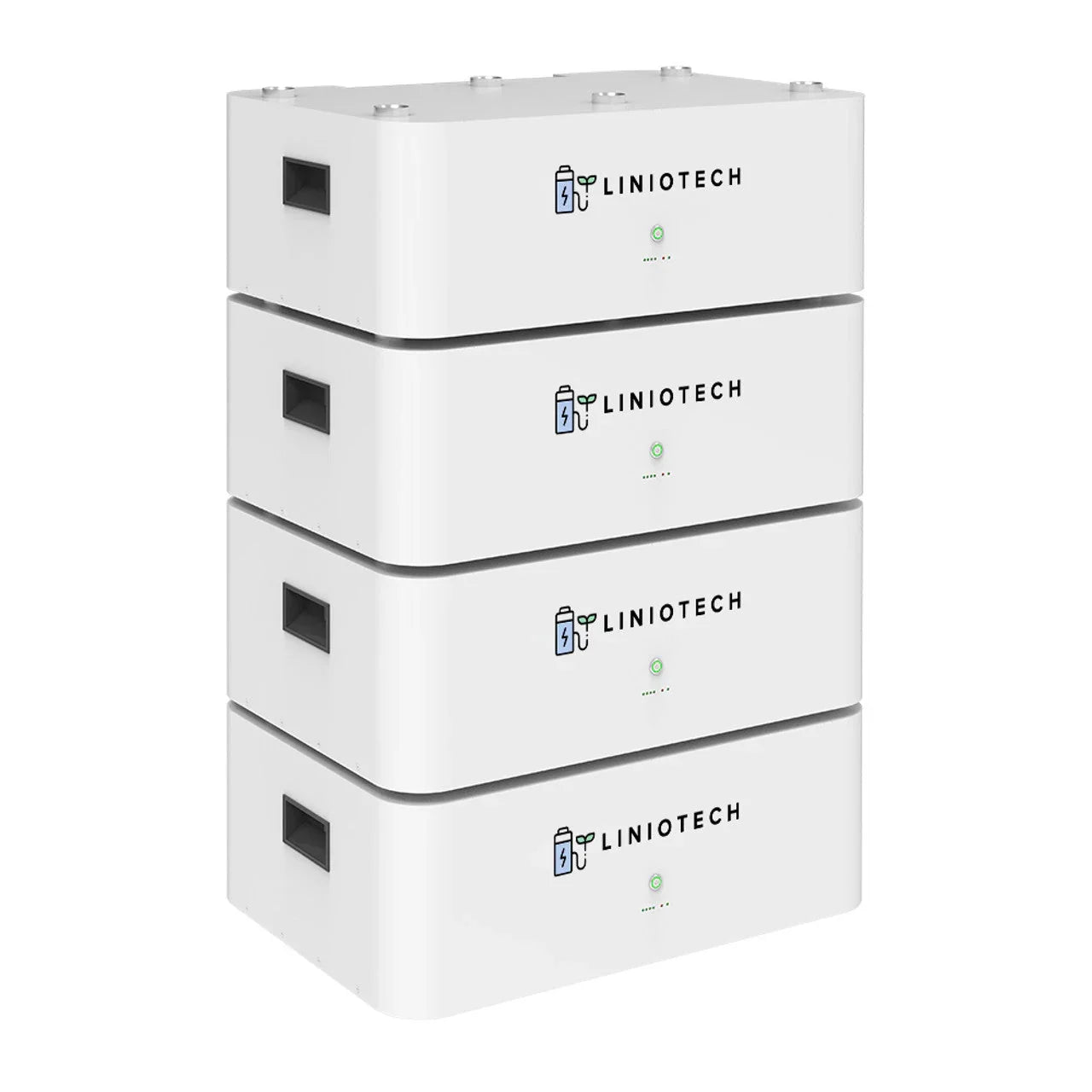

The LINIOTECH 10 kWh LiFePO4 solar battery brick is a stackable home energy storage system (ESS) designed to store solar energy, provide reliable backup power during outages, and scale with changing energy demands. Combining high energy density with easy expansion, this brick supports a sustainable, self‑reliant power strategy for residential solar installations and grid‑tied systems alike. Its 10.24 kWh energy capacity and 200 Ah capacity enable prolonged operation of essential loads when the sun isn’t shining, while its LiFePO4 chemistry delivers stable performance and safety in long‑term use.
Key specifications
Model: LNT10000U. Voltage: 51.2 V. Capacity: 200 Ah. Energy: 10.24 kWh. Operating voltage range: 46–56 Vdc. Max charging voltage: 56 Vdc. Max charging current: 100 A. Max discharging current: 150 A. Max power: 7.68 kW. Dimensions: 685 × 435 × 231 mm. Weight: 100.5 kg.
Safety features and certifications
The system includes security backup protection: it detects outages and automatically becomes the home energy source when the grid fails. Built around LiFePO4 chemistry, the battery brick emphasizes reliable long‑cycle performance and safe, quiet operation—key advantages over fuel‑based alternatives. A 12‑year limited warranty further underpins long‑term reliability and confidence in performance.
Installation and maintenance
Stackable design enables easy scalability; additional bricks can be added to grow storage capacity as requirements evolve. The product emphasizes ease of installation and expansion, with a configuration that supports solar recharge to keep appliances running after sunset. Maintenance requirements are minimal, reflecting the solid‑state nature of LiFePO4 cells and the absence of moving parts.
Warranty and service information
12‑year limited warranty.
LINIOTECH 10 KWh 200Ah 48V LiFePO4 Lithium Solar Battery Brick Stackable
Liniotech power storage brick ESS adopts the latest HESS battery system. Withrich experience and advanced techniques, the product has the features of the fashionable design, high energy, high power density, long service life, and easiness of installation and expansion, all of which reflect the real requirements of the end users and strongest technical capability of our company.
Liniotech's Lifepo4 Solar Battery is the perfect choice for those looking to maximize their solar power storage. With 10 kWh battery of energy storage capacity, you can power your home efficiently and sustainably. Its stackable design allows for easy scalability, making it adaptable to your evolving energy needs. Say goodbye to energy shortages and hello to a greener, more self-sufficient future with Liniotech's Lifepo4 Solar Battery.
Security
Backup Protection
Power storage brick is a battery that stores energy, detects outages and automatically becomes your home's energy source when the grid goes down. Unlike gasoline generators, Power storage brick keeps your lights on and phones charged without upkeep, fuel or noise. Pair with solar and recharge with sunlight to keep your appliances running for days.
Independence
Power Everything
Power storage brick reduces your reliance on the grid by storing your solar energy for use when the sun isn’t shining. Use Power storage brick alone or combine it with other GSL products to save money, reduce your carbon footprint and prepare your home for power outages.
Product Specifications
LINIOTECH 10 KWh 200Ah 48V LiFePO4 Lithium Solar Battery Brick Stackable Product Specifications
| Model No | LNT5000U | LNT10000U |
| Voltage | 51.2V | |
| Capacity | 100Ah | 200Ah |
|
Energy |
5.12Kwh | 10.24Kwh |
|
Opertion Voltage |
46-56Vdc | |
| Max Charging Voltage | 56Vdc | |
|
Max Charging Current |
100A | |
|
Max Discharging Current |
150A | |
|
Max Power |
5120W | 7680W |
| Dimension(L×W×H) | 580*390*200mm | 685*435*231mm |
| Weight | 65kg | 100.5kg |
Product Manual
LINIOTECH 10 KWh Data Sheet
Liniotech Brochure
Product Warranty
12 years limited warranty!
| Model No | LNT5000U | LNT10000U |
| Voltage | 51.2V | |
| Capacity | 100Ah | 200Ah |
|
Energy |
5.12Kwh | 10.24Kwh |
|
Opertion Voltage |
46-56Vdc | |
| Max Charging Voltage | 56Vdc | |
|
Max Charging Current |
100A | |
|
Max Discharging Current |
150A | |
|
Max Power |
5120W | 7680W |
| Dimension(L×W×H) | 580*390*200mm | 685*435*231mm |
| Weight | 65kg | 100.5kg |
