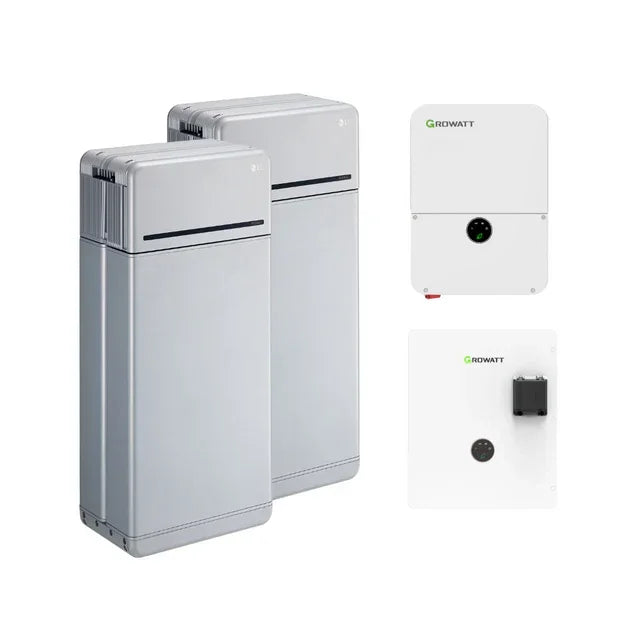

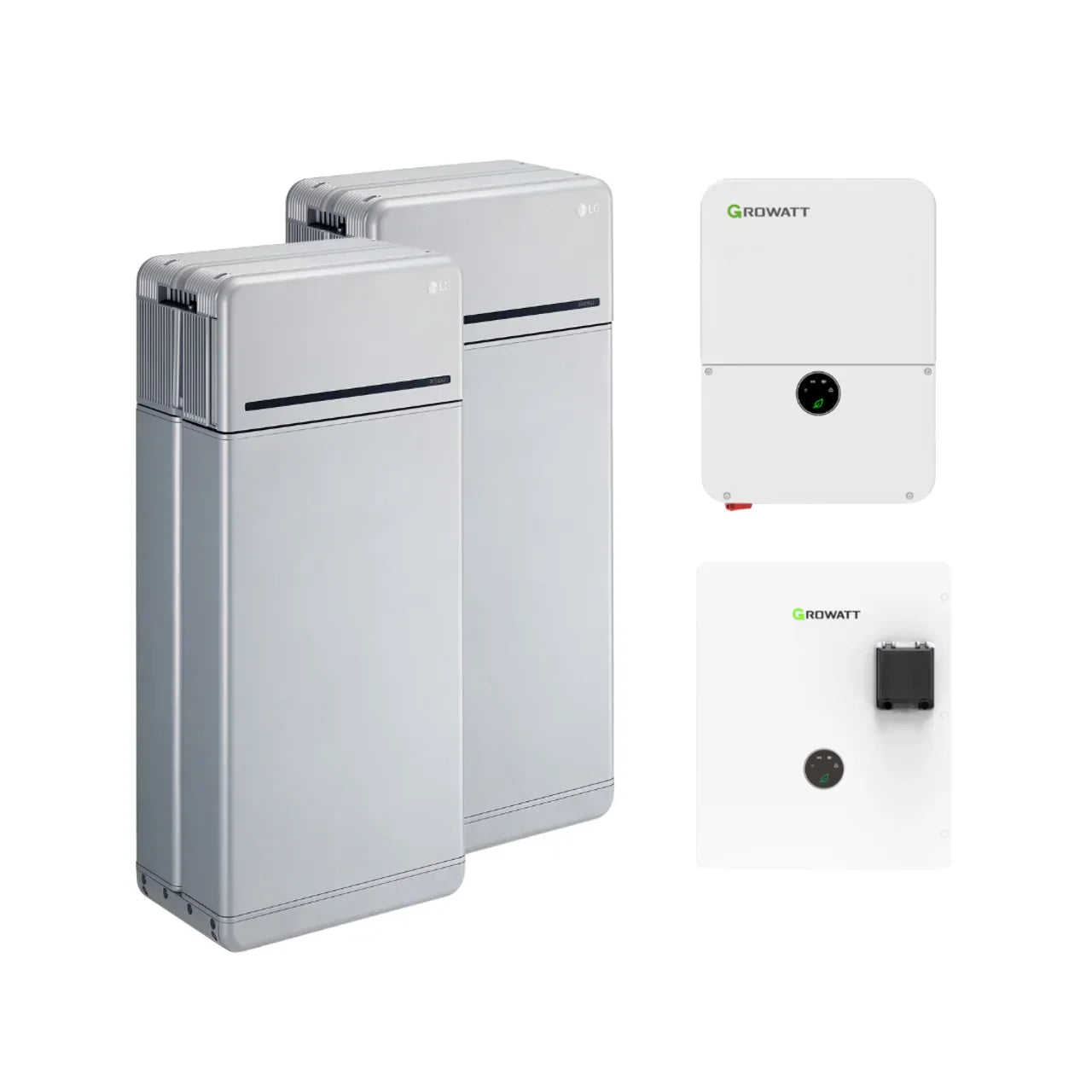

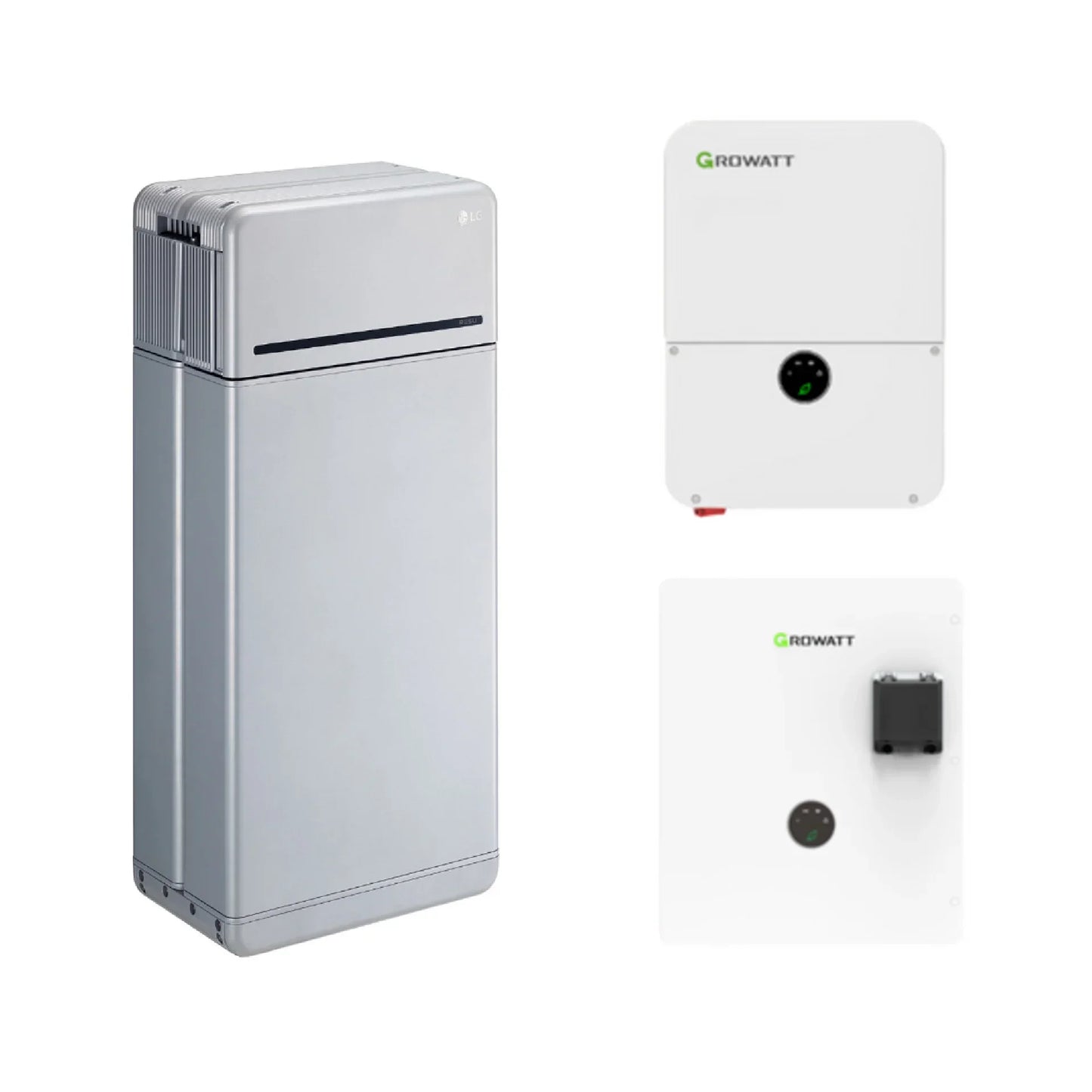

LG RESU 16H Prime 16 kWh High-Voltage Battery + Growatt Inverter Bundle
Pair LG’s flagship high-voltage storage with Growatt’s flexible “MIN” inverter line to maximize solar harvest today and keep upgrade paths open for tomorrow.
What’s in Every Bundle
-

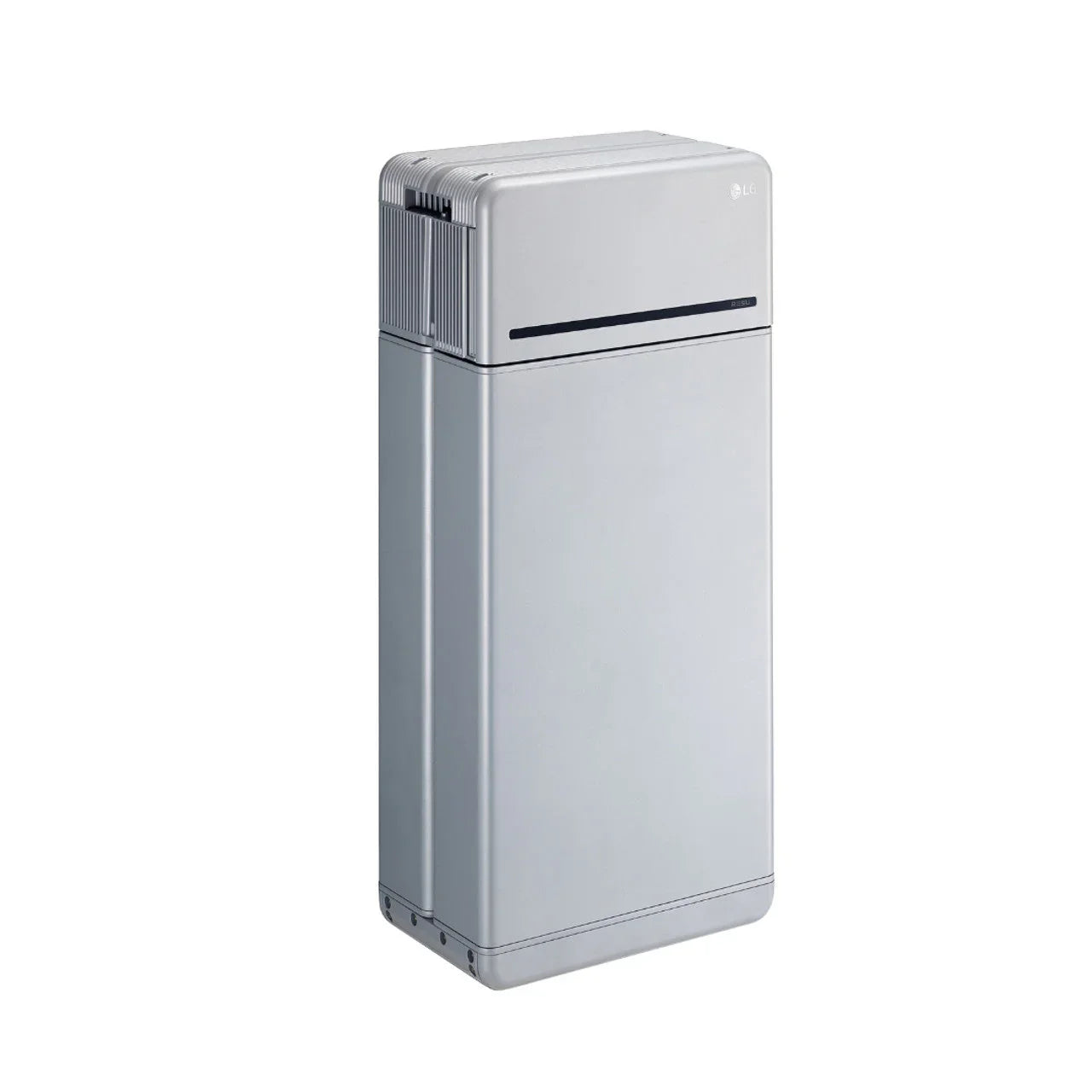

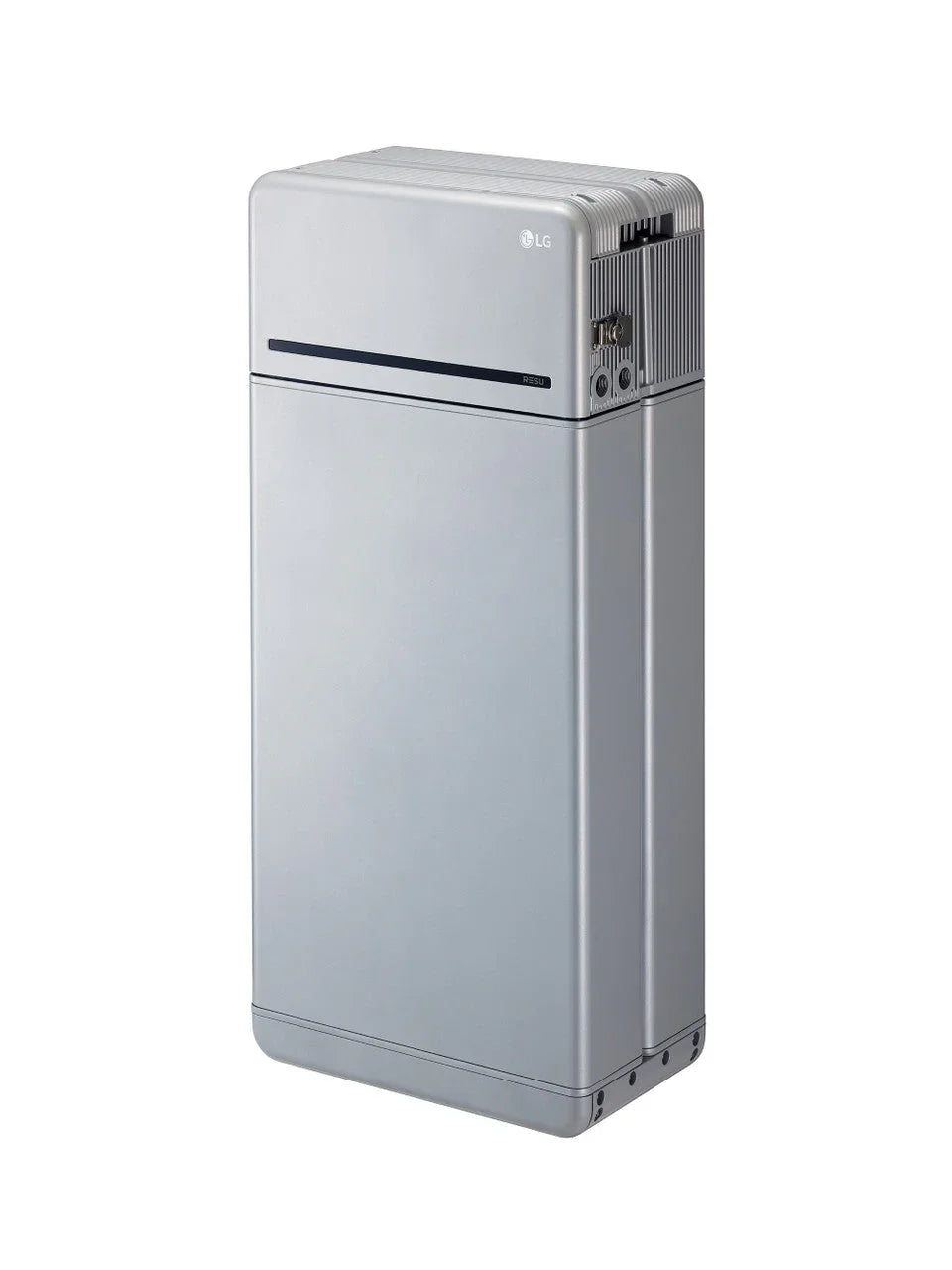

LG RESU 16H Prime (16 kWh usable)
-
16 kWh high-voltage (400 V) battery delivers fast-charging, reliable backup power.
-
Scalable to 32 kWh—parallel a second unit for extended runtime.
-
Advanced Li-ion + smart BMS maximize life span while guarding against heat, over-/under-charge, and short-circuits; rated for indoor or outdoor install.
-
Peak-shaving storage: bank daytime solar and discharge at night or during high-rate periods to cut utility costs.
-
-
Growatt Cloud & ShinePhone™ monitoring
• Real-time solar production, battery status, and consumption analytics
• Remote firmware updates and diagnostics
Option A — Growatt 7.6 kW Grid-Tie Package
Optimized self-consumption and export control (no backup power)
Includes:
-

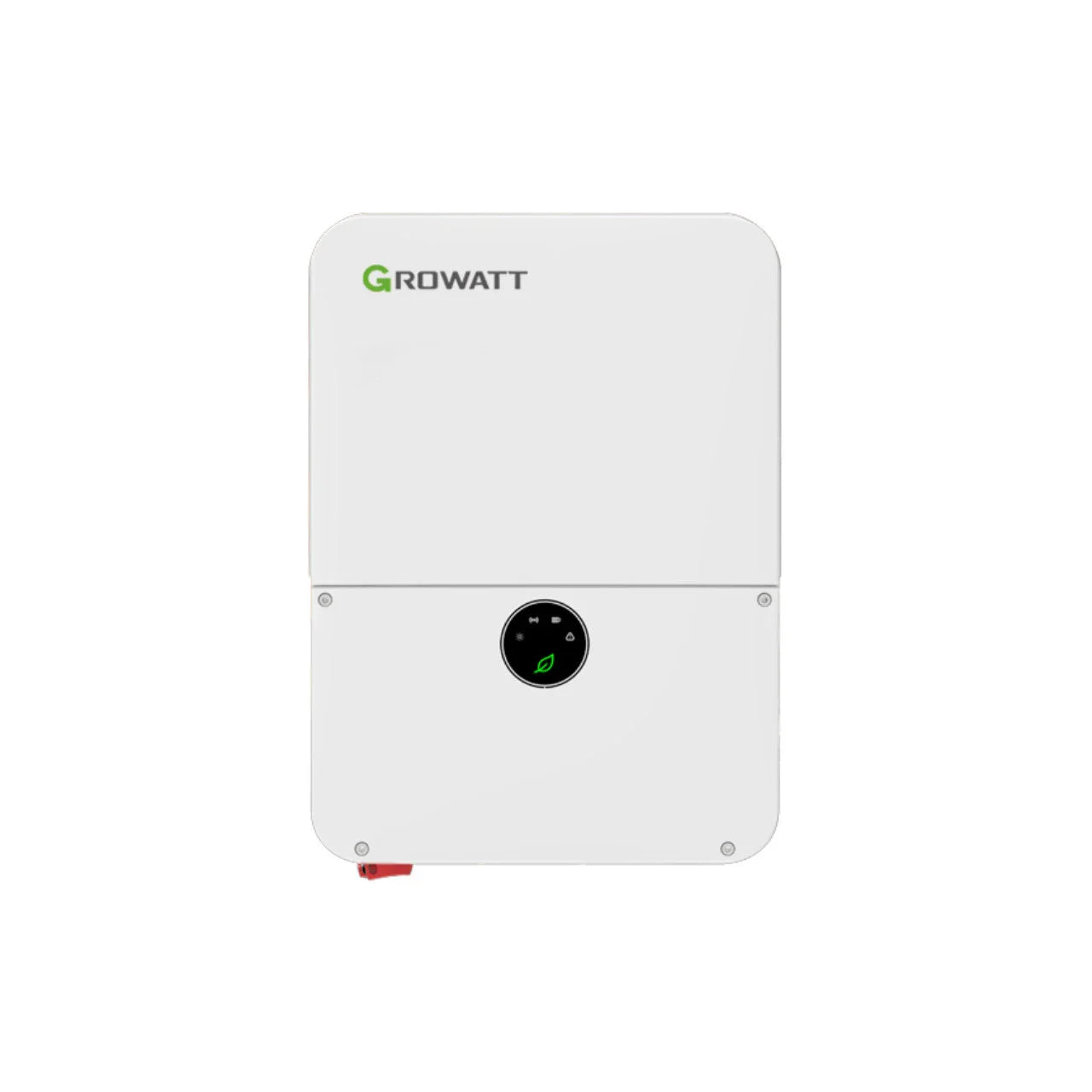

Growatt MIN 7600TL-XH-US inverter (7,600 W AC, 3 MPPTs, 98 % CEC efficiency)
-
Growatt SM-US-200 Smart Meter for household load sensing
Key Advantages
-
Time-of-Use shaping — charge or discharge the battery around utility peak rates.
-
Dynamic export limiting — throttle grid feed-in to comply with interconnection caps.
-
Future scalability — add a second RESU 16H Prime for 32 kWh total without inverter changes.
Note: This configuration shuts down during a grid outage; it is designed for energy management, not backup.
Option B — Growatt 11.4 kW Whole-Home Backup Package
Seamless power security with generator integration
Includes:
-
Growatt MIN 11400TL-XH-US inverter (11,400 W AC, 4 MPPTs)
-
Growatt SYN 200-XH-US automatic transfer switch (ATS)
Key Advantages
-
Sub-second switchover — the ATS isolates from the grid and powers all circuits from the battery.
-
Generator-ready — plug in a portable or standby gen-set for unlimited off-grid runtime.
-
Expandable power — parallel a second inverter for 22.8 kW AC and up to 64 kWh of LG storage.
Why Choose This Bundle?
-
High-voltage efficiency: Thinner DC cables, lower conversion losses, better round-trip performance.
-
Unified ecosystem: One app commissions inverter, battery, meter, and ATS.
-
Bankable warranties: 10-year coverage from both LG Energy Solution and Growatt.
-
Michigan-based tech support: Our design team can size your array, verify NEC compliance, and guide installation.
Need help deciding between the self-consumption kit and the whole-home backup kit? Let us know your load profile, outage history, and expansion goals—our technicians will tailor the perfect configuration for your project.
