Inverter Remote Controller with LCD
Equipment Type and Primary Applications
Wall-mount inverter remote controller and system monitor for NOVA SWITCH and NOVA SUPERCHARGER series inverters. It provides local access to inverter controls and operating information where the inverter is installed in a cabinet, vehicle, utility area, or other remote location.
Performance Specifications
- Control functions: inverter ON/OFF, operating-mode selection, and settings adjustment.
- Monitoring: real-time voltage, load, and system status.

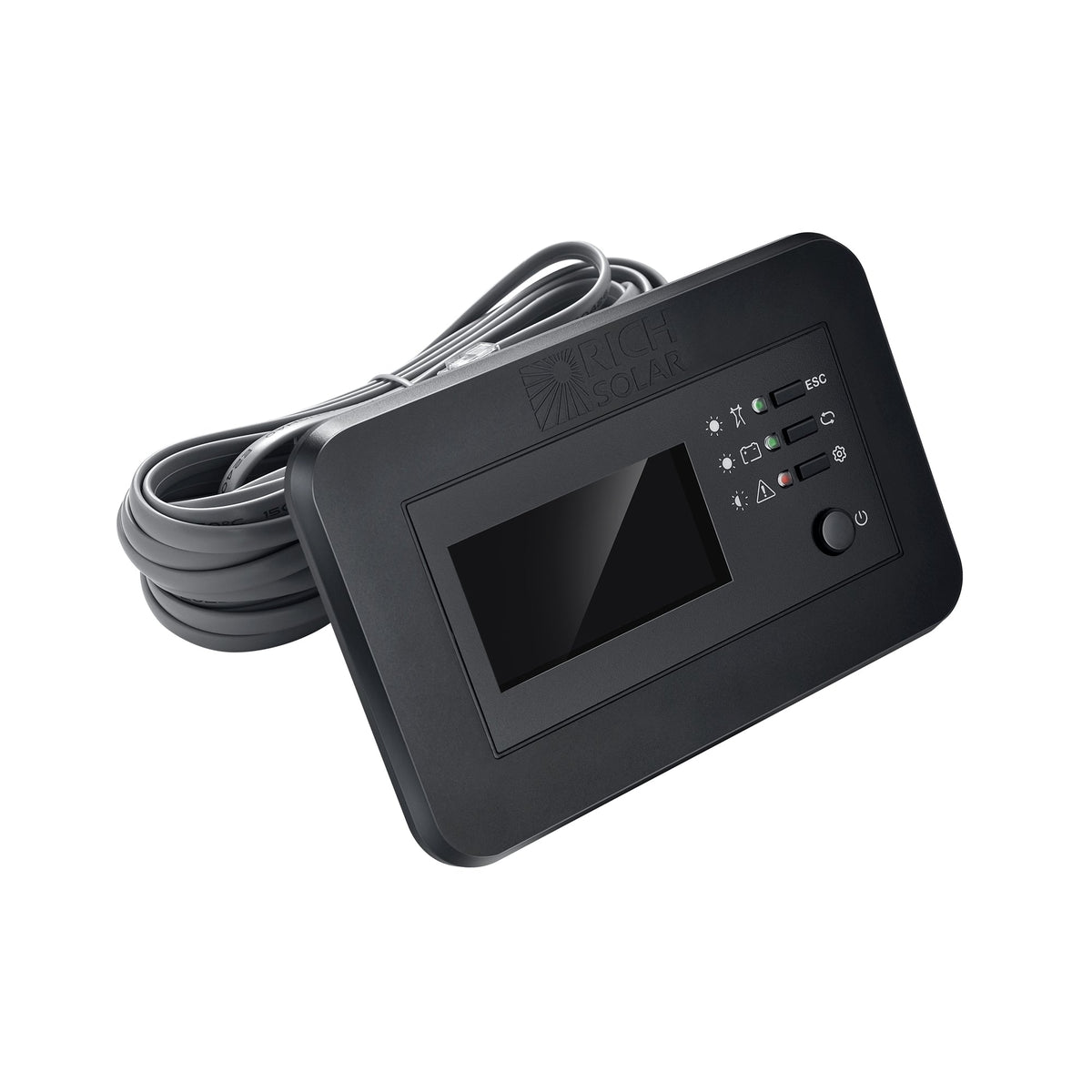

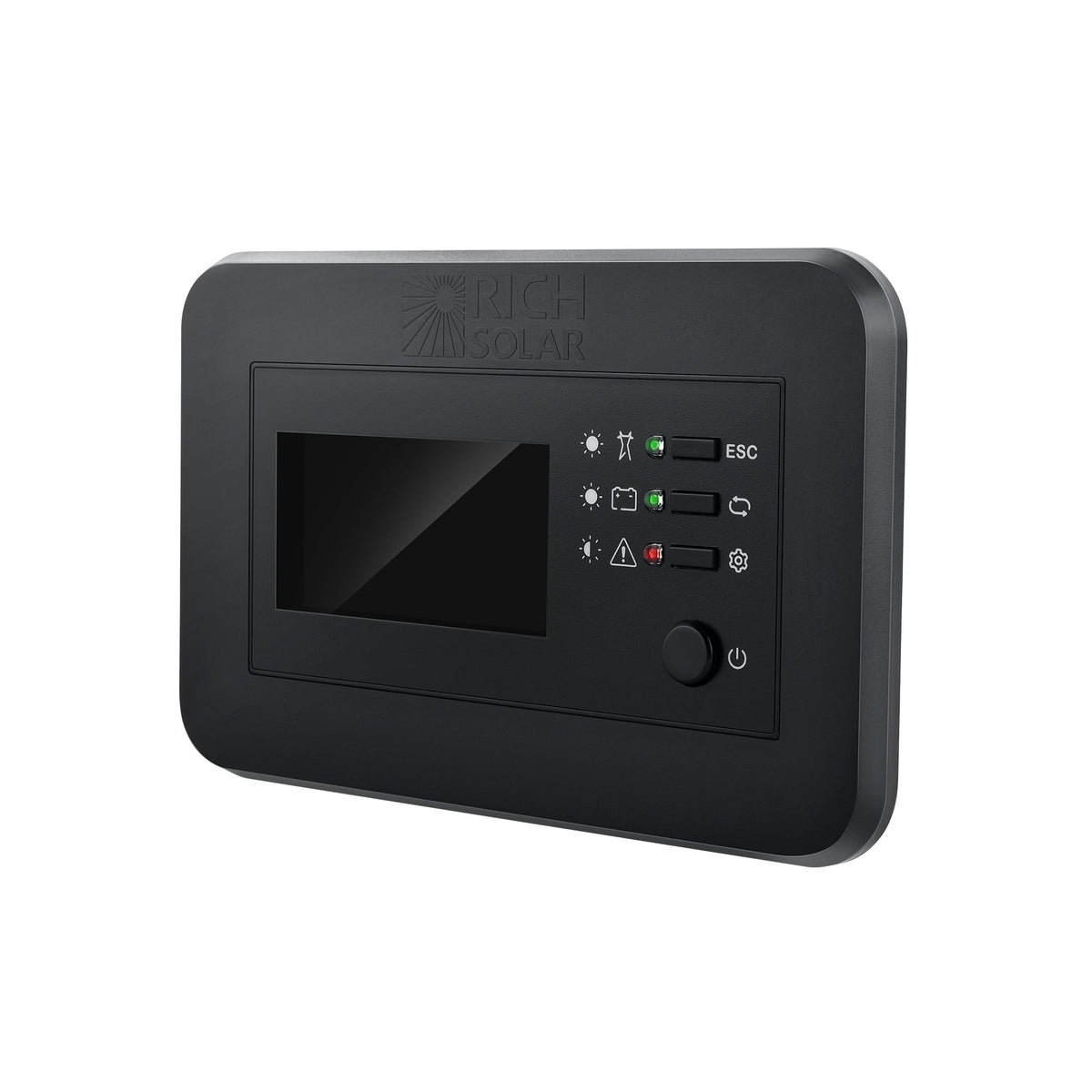

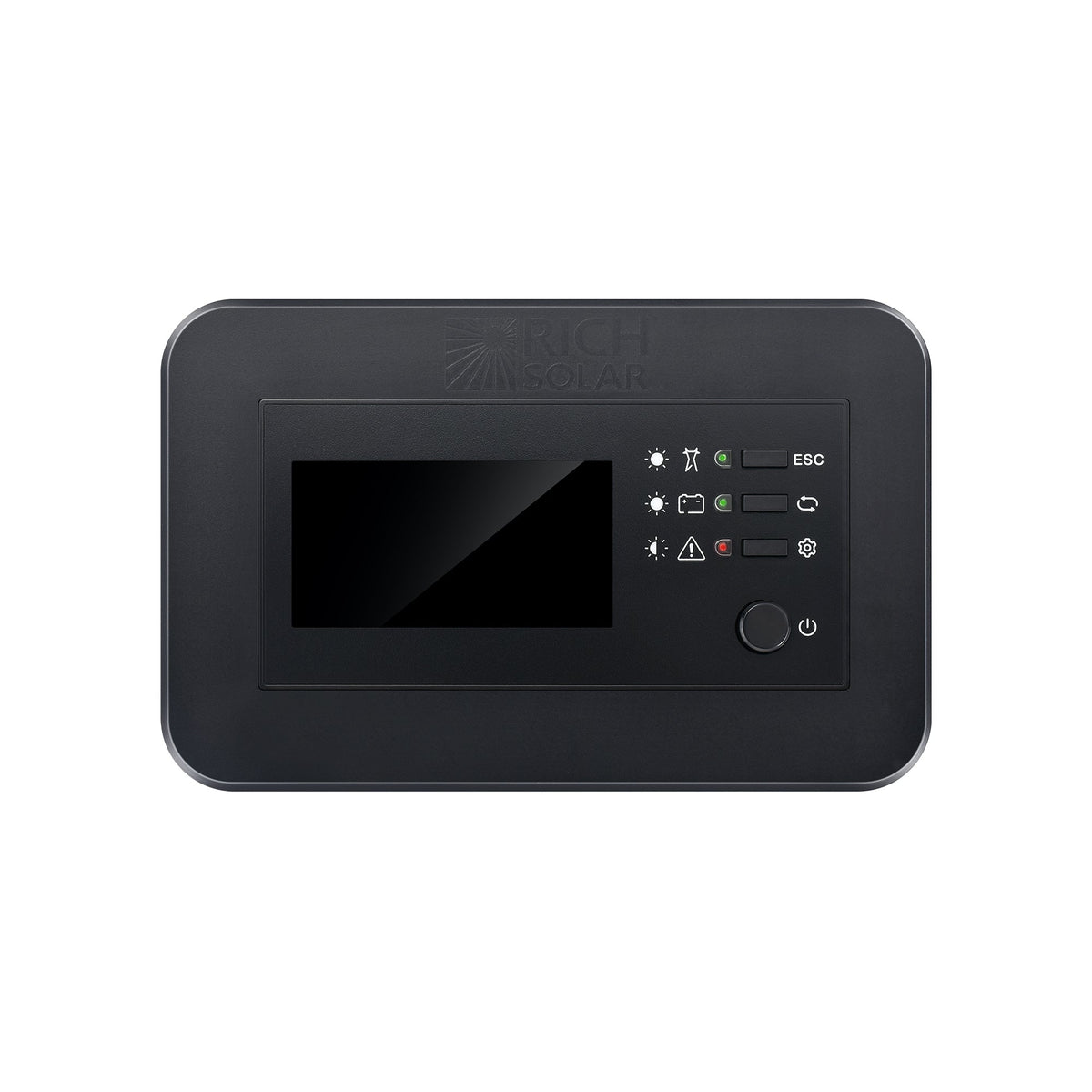

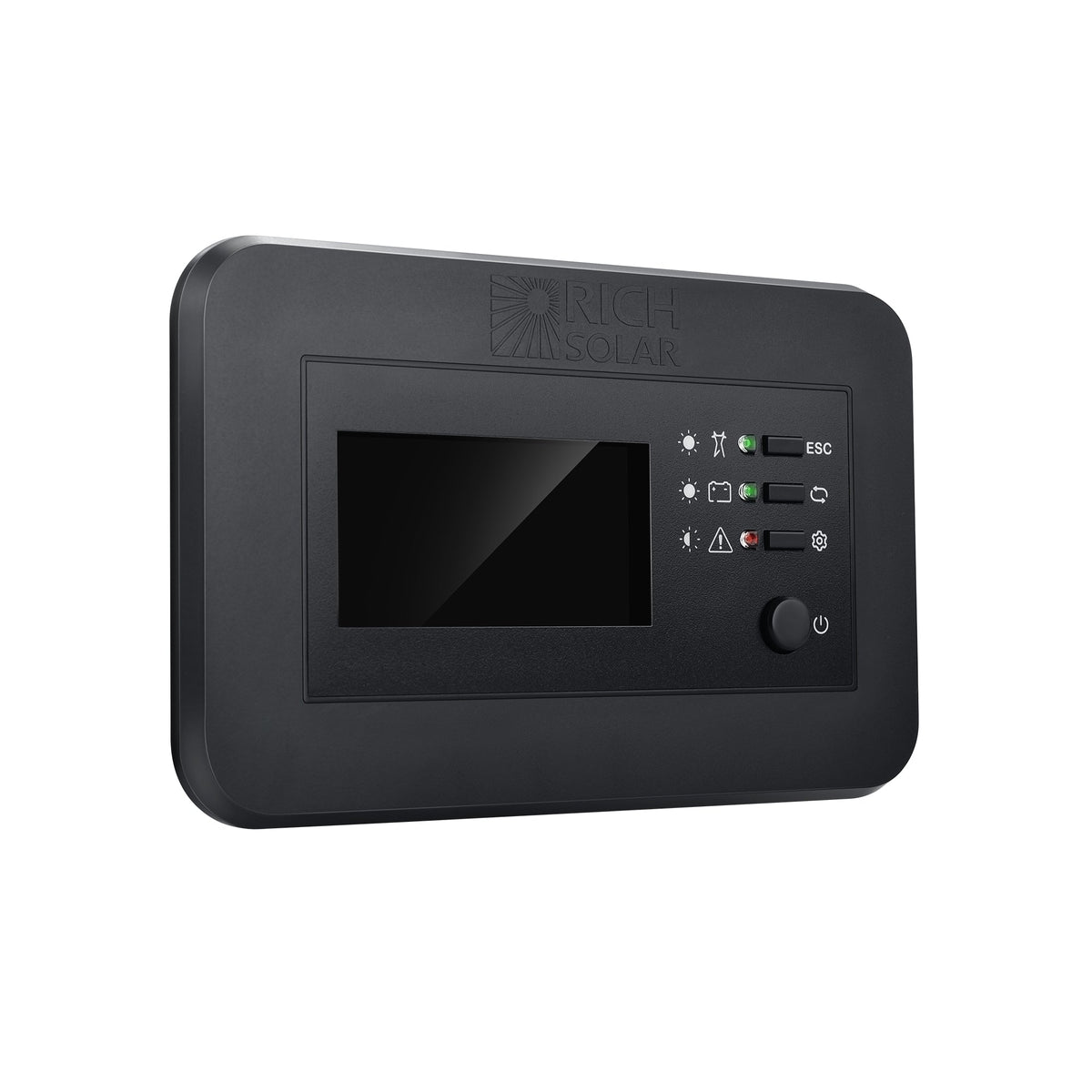

- Display: HD backlit LCD.
- Alert system: dual-color LED indicators, fault codes, and audible buzzer.

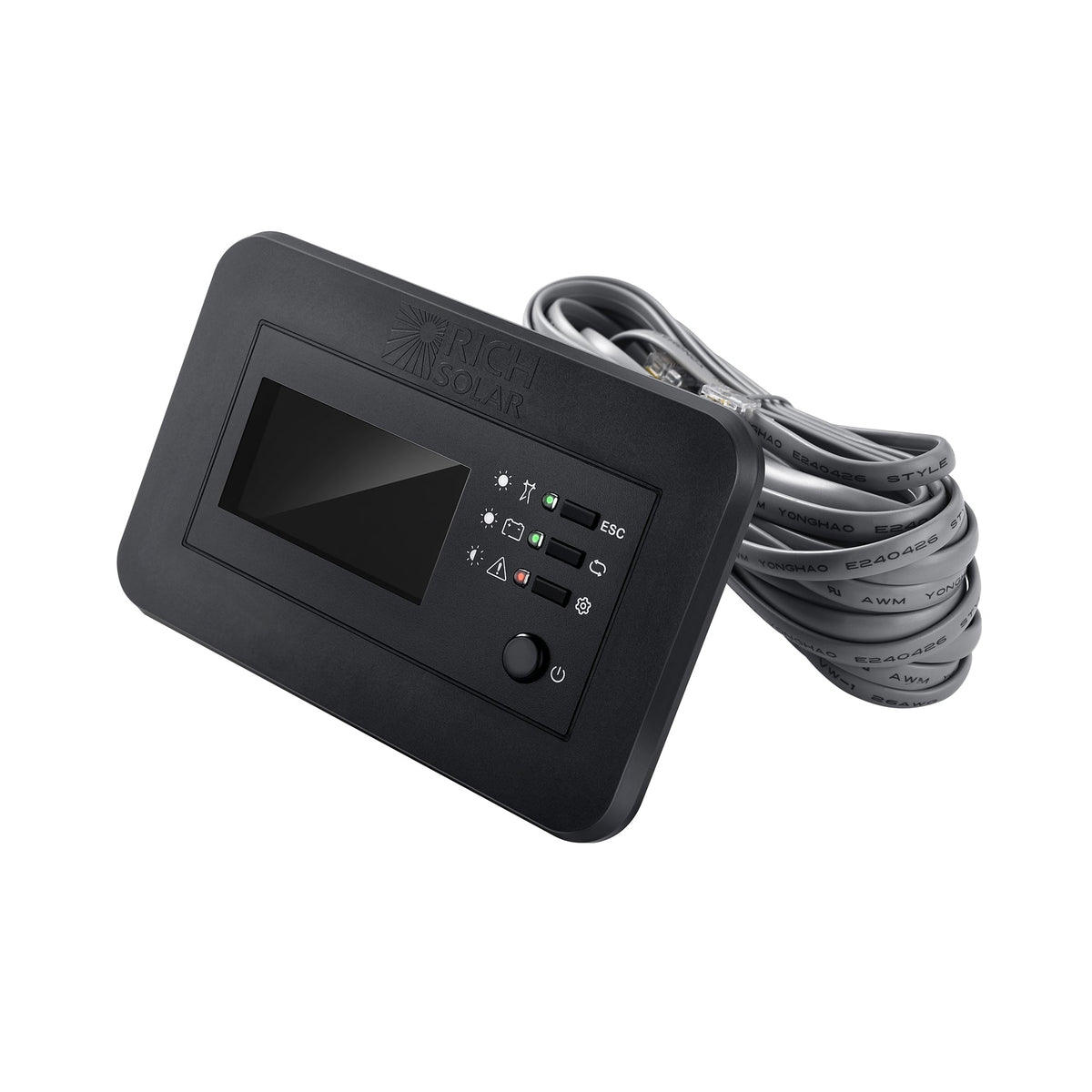

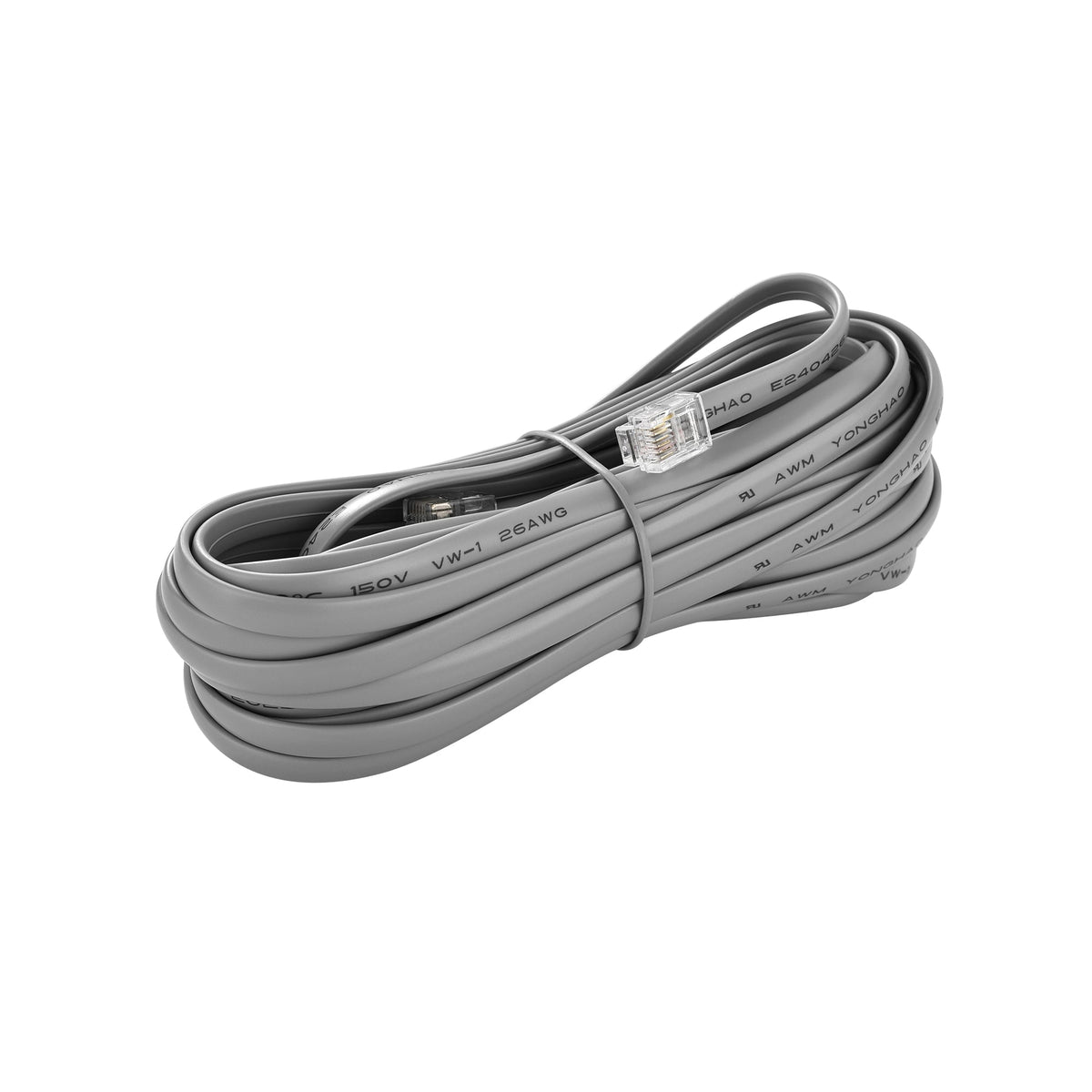

- Connection: wired plug-and-play communication with 6 m (20 ft) cable.

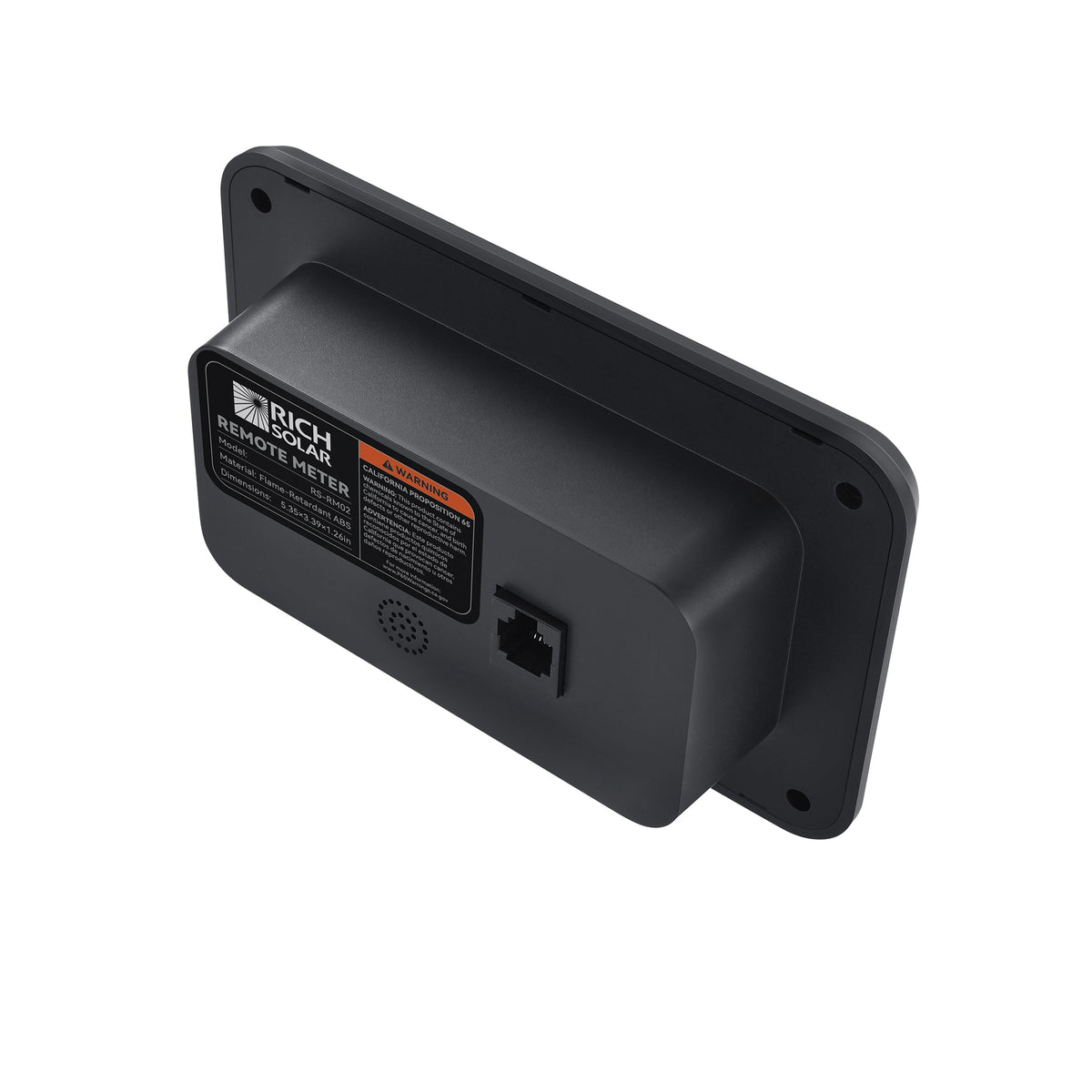

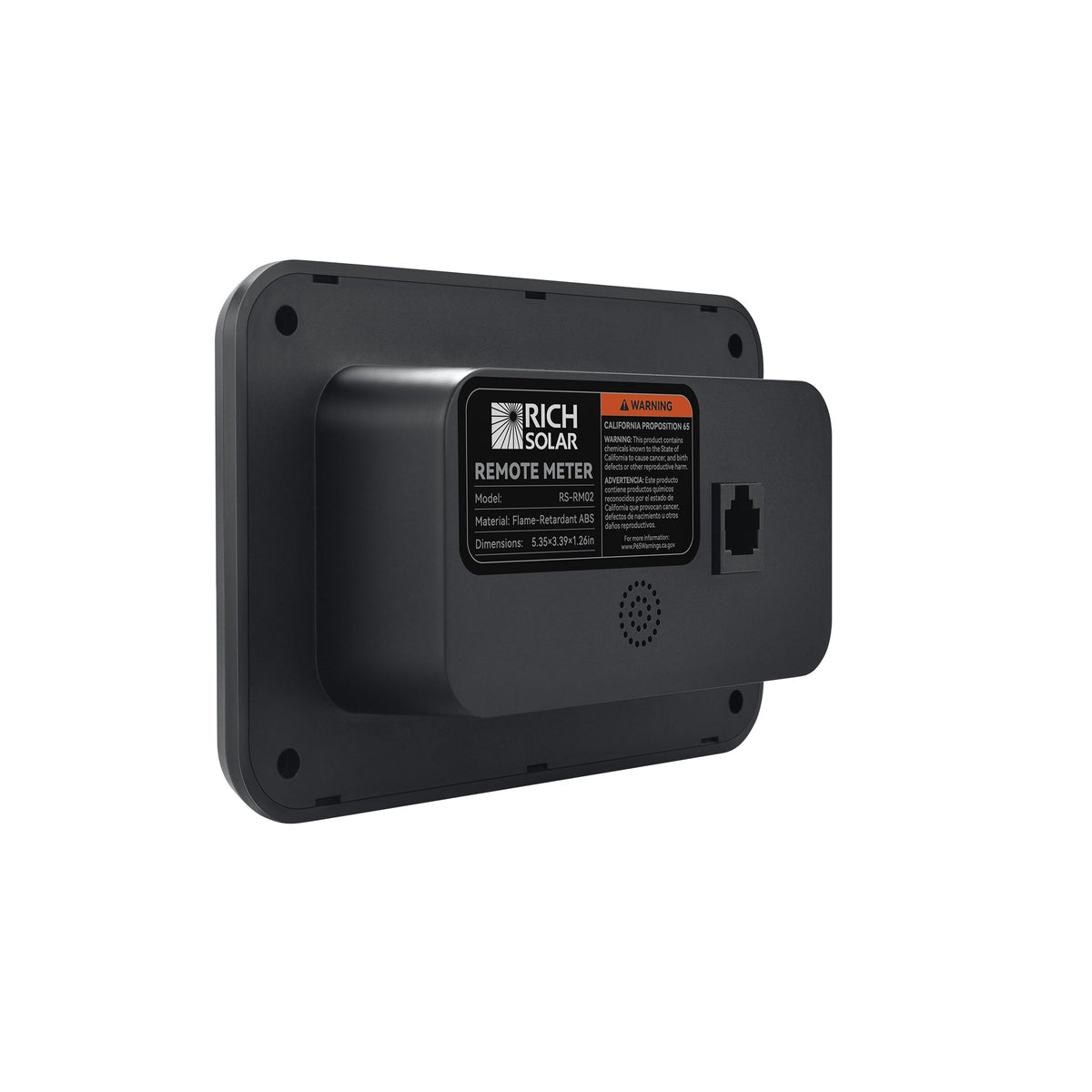

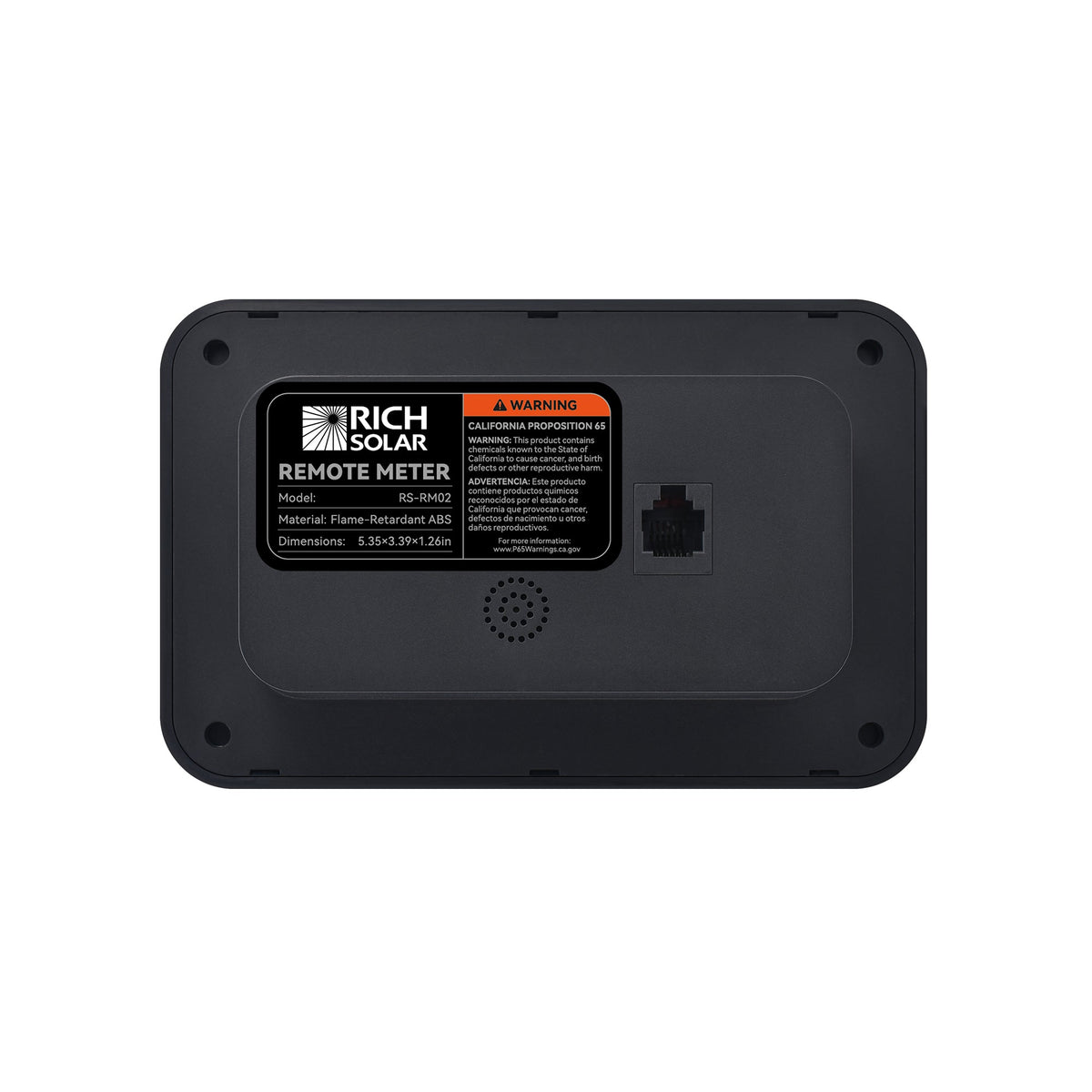

- Housing: flame-retardant ABS.

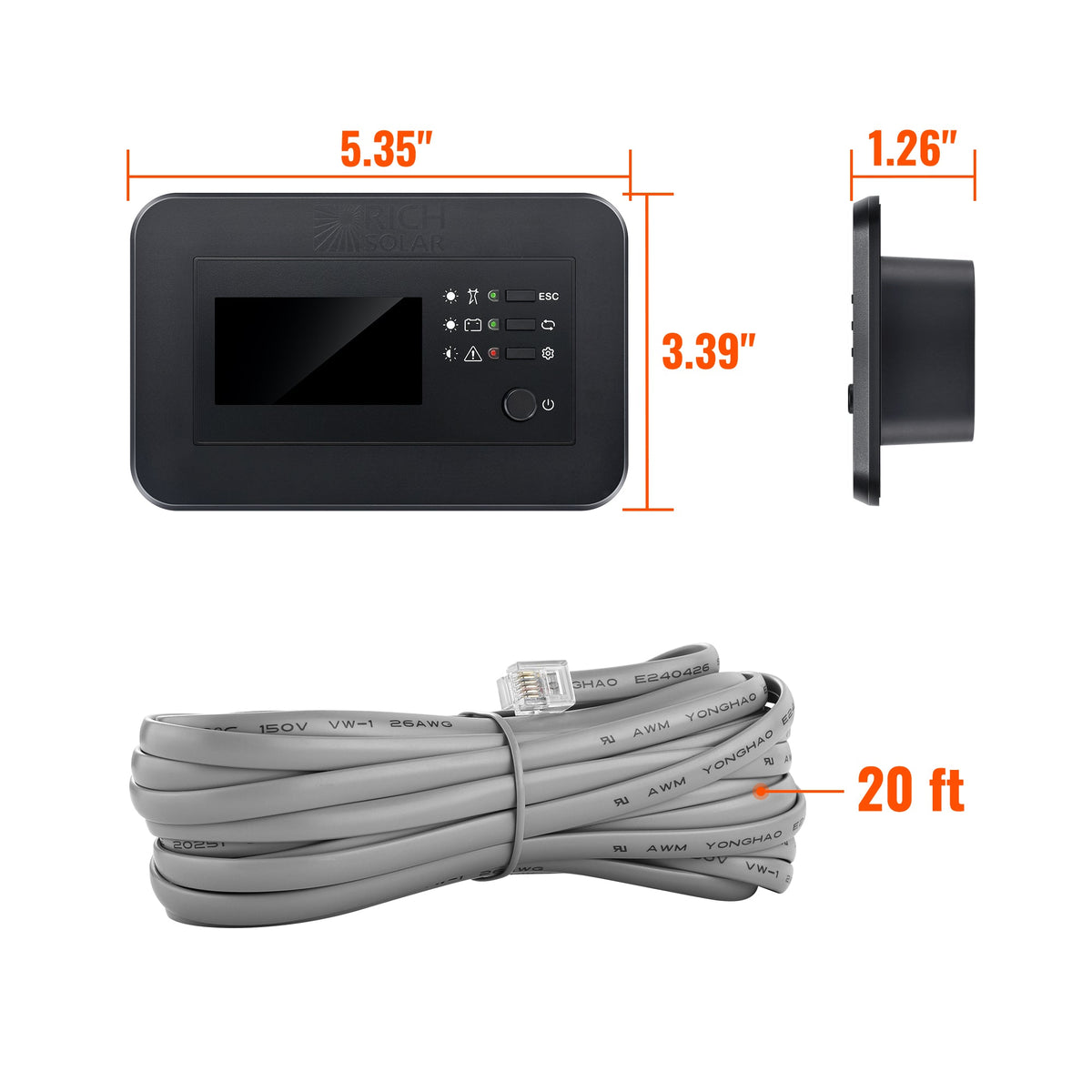

- Dimensions: 5.4 × 3.4 × 1.3 in.
- Package dimensions: 8 × 7 × 3 in; gross weight: 2 lb.
Safety Features and Certifications
- Flame-retardant ABS housing.
- Dual-color LED indicators, fault codes, and buzzer provide immediate system alerts.
Installation and Maintenance Requirements
- Flush wall mounting requires a 4.3 × 2.3 in cut-out and minimum recess depth of 1.97 in.
- Connect the wired cable to a compatible NOVA SWITCH or NOVA SUPERCHARGER series inverter, then secure the controller in the wall recess.
- Keep the LCD and housing clean and inspect the cable and connection during routine system maintenance.
Warranty and Service Information
Branding/References
- Product: Inverter Remote Controller with LCD.
- Compatible references: NOVA SWITCH and NOVA SUPERCHARGER series inverters.
Differentiators
The flush-mount controller combines inverter operation, voltage and load monitoring, backlit LCD visibility, and coded audible fault alerts in one wired interface with a 6 m (20 ft) connection cable.
