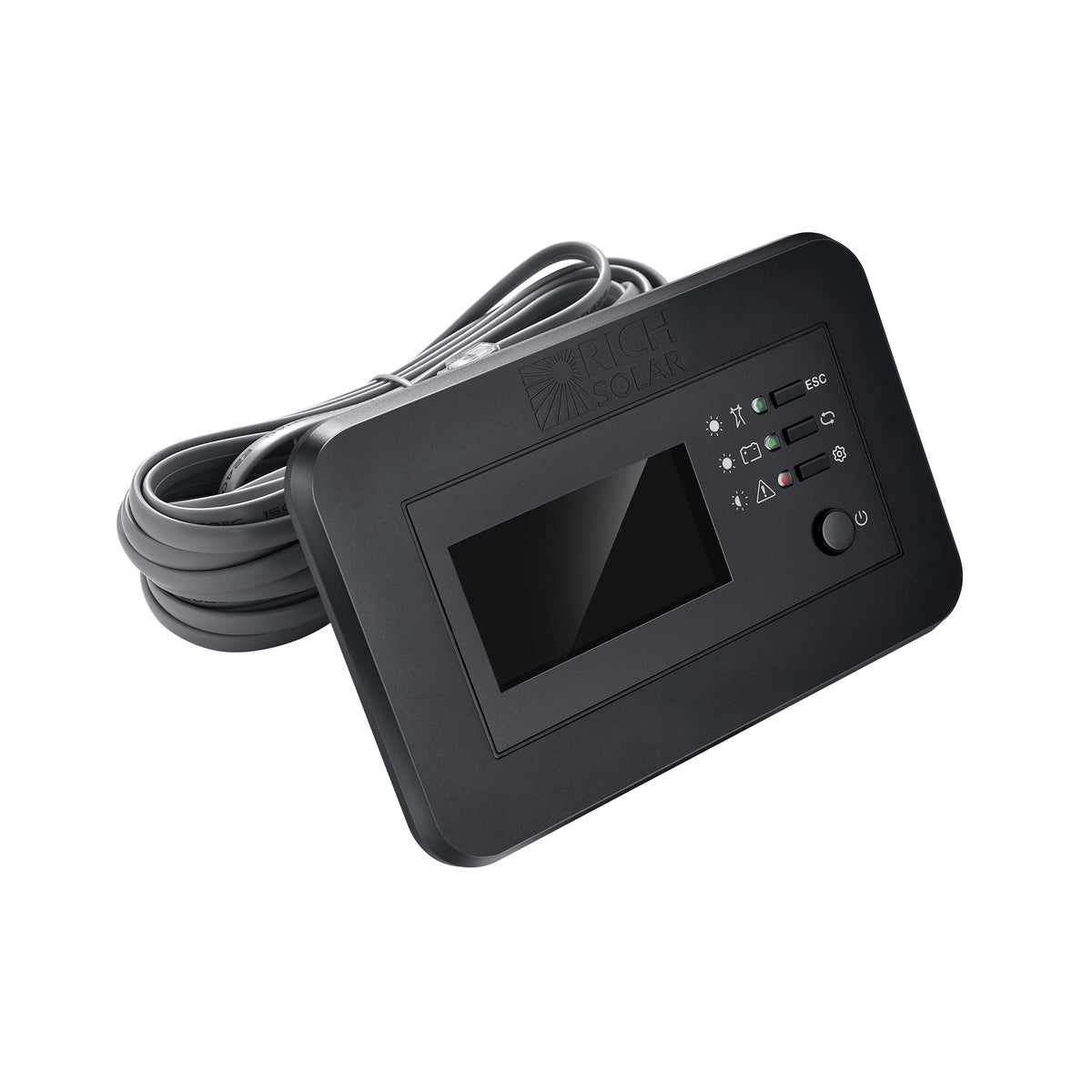

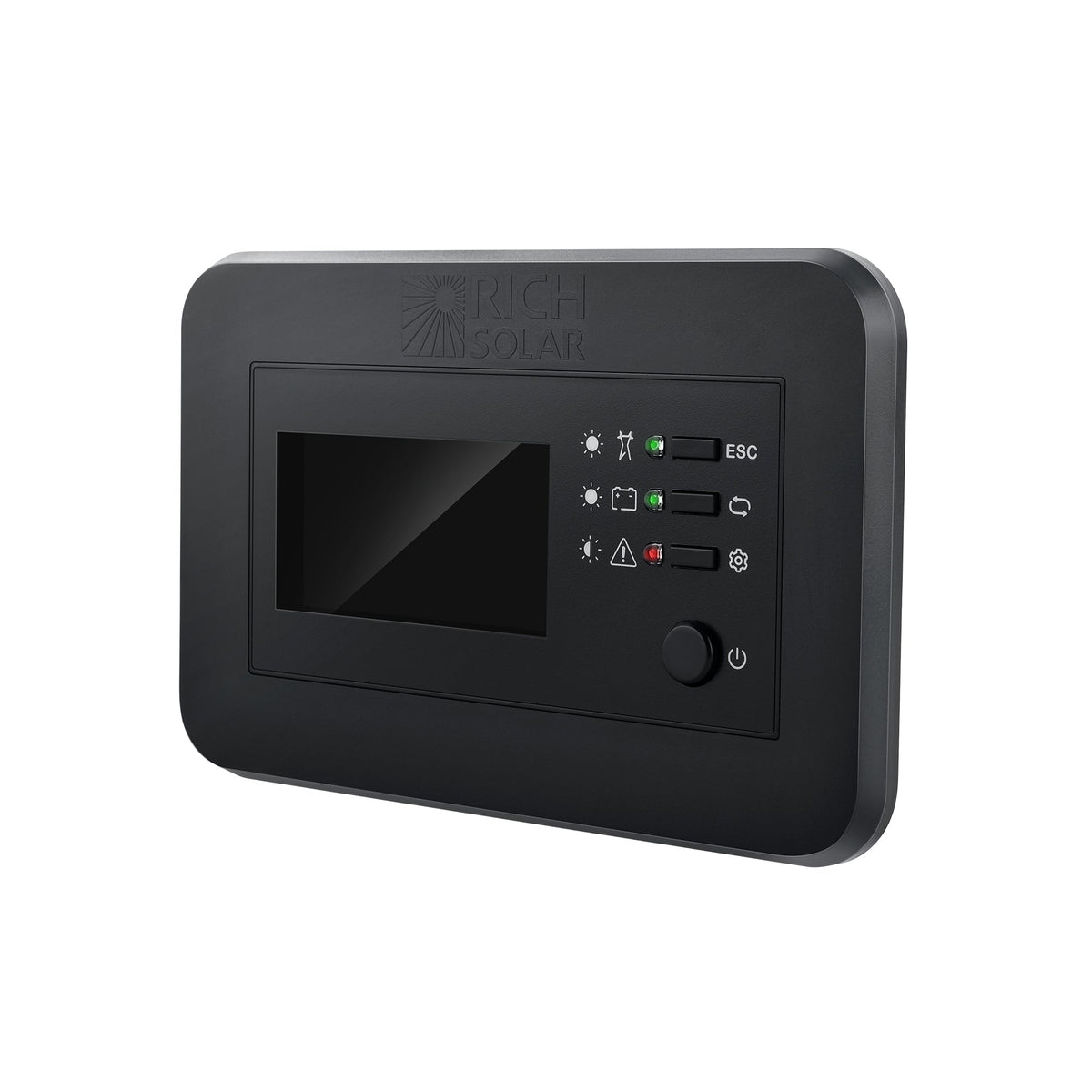

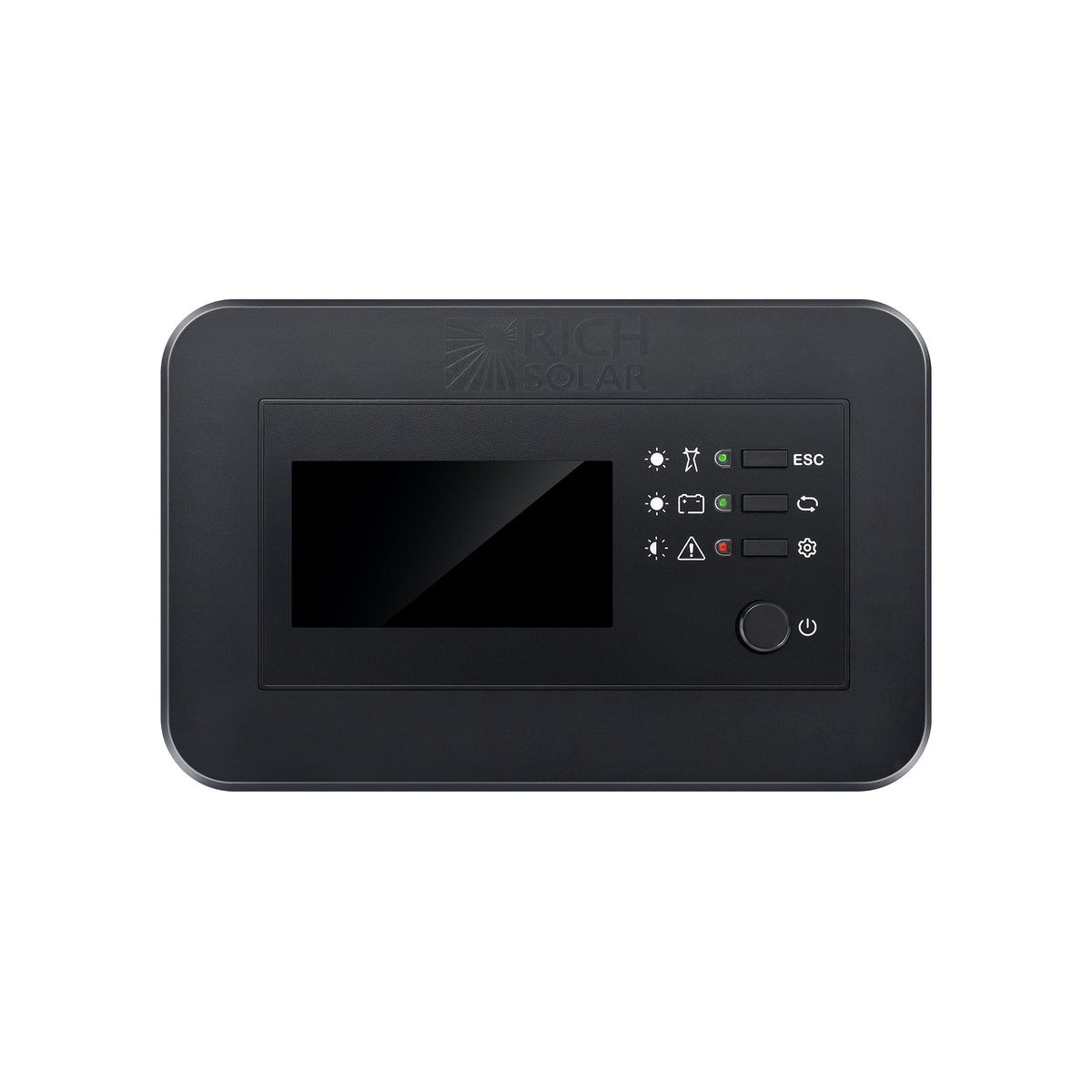

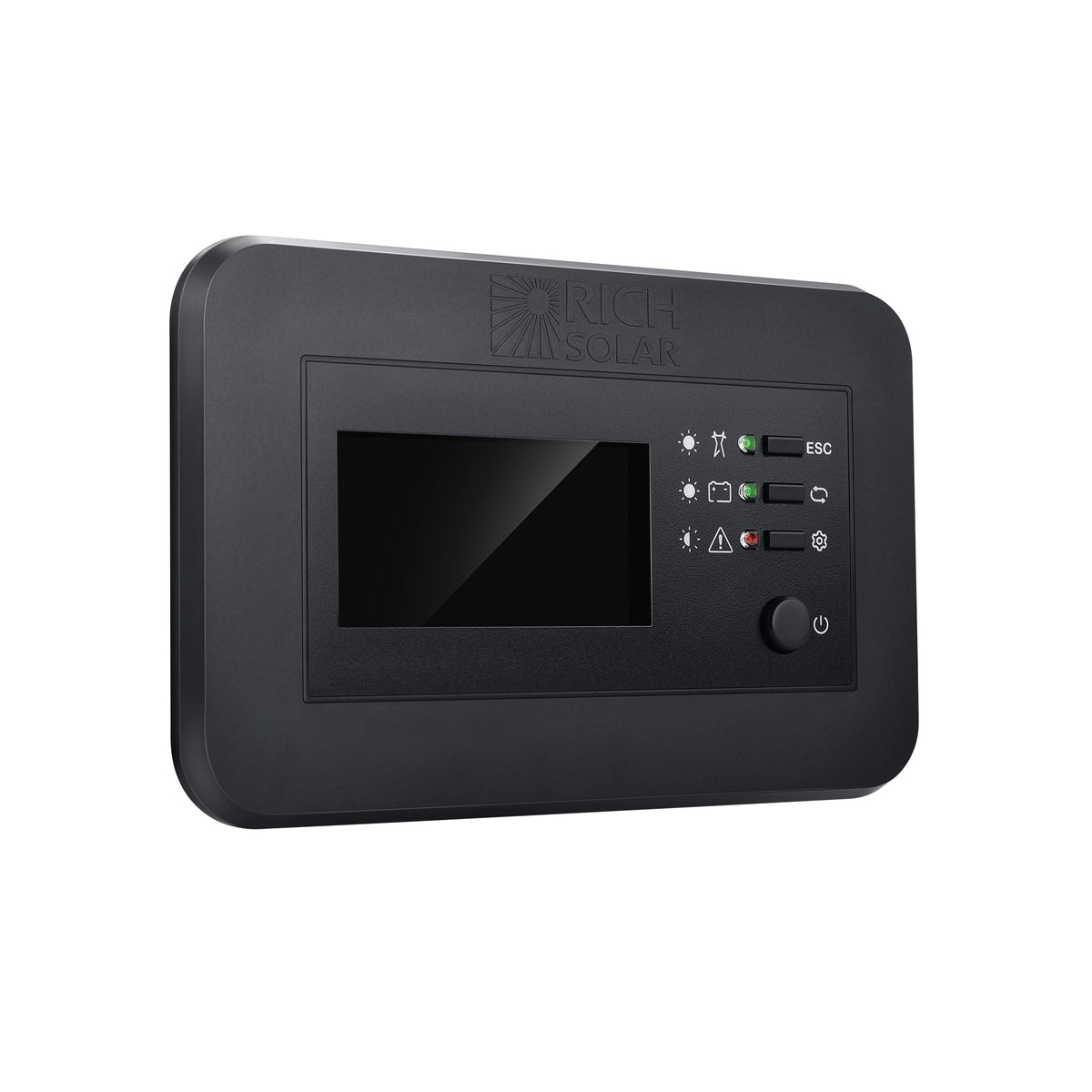

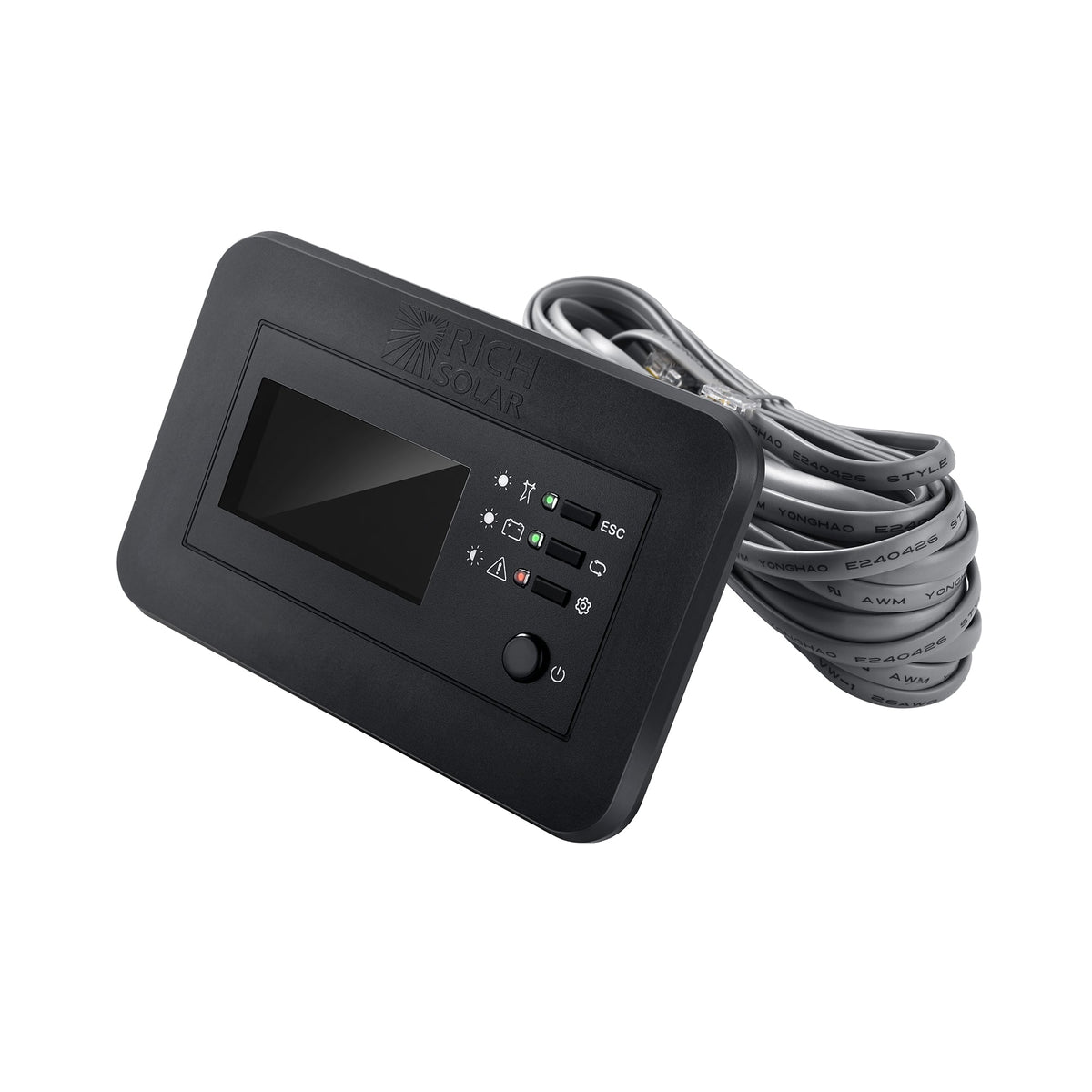

Inverter Remote Control with LCD and Bluetooth
Equipment Type and Primary Applications
Remote inverter control panel for NOVA SWITCH and NOVA SUPERCHARGER series inverters, providing local monitoring, Bluetooth access, operating-mode selection, and system settings control.
- Monitors voltage, current, load, battery status, and system information.
- Supports solar PV, utility, and battery power sources.
- Designed for residential, mobile, backup-power, and other inverter-based energy systems.
Performance Specifications
- Display: HD backlit LCD.
- Control functions: ON/OFF, mode selection, and settings adjustment.
- Bluetooth: Yes; compatible with the RICH SOLAR App.
- Charging profiles: AGM, lithium, and user-defined battery settings.

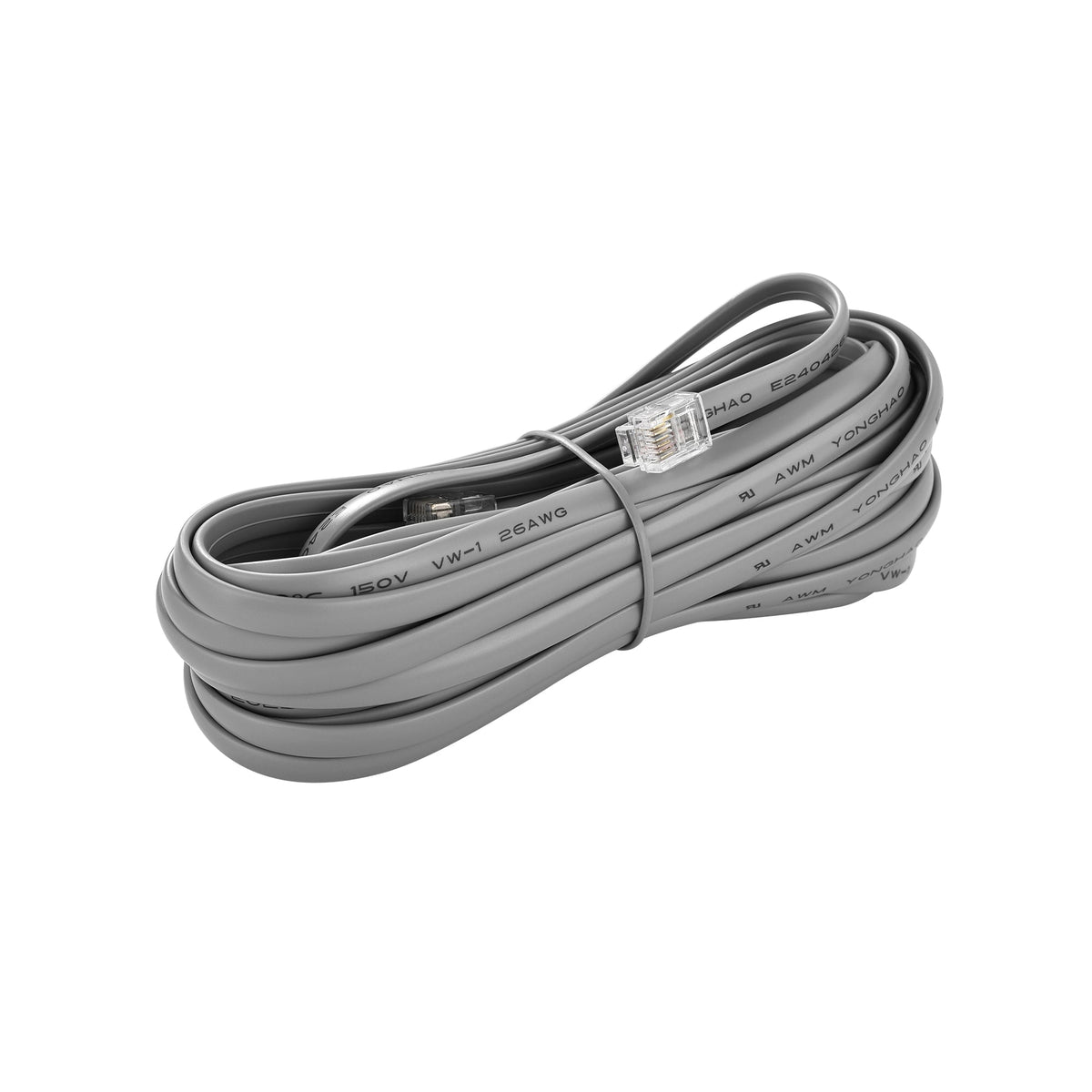

- Connection: Wired connection with 6 m (20 ft) cable.
- Housing: Flame-retardant ABS.

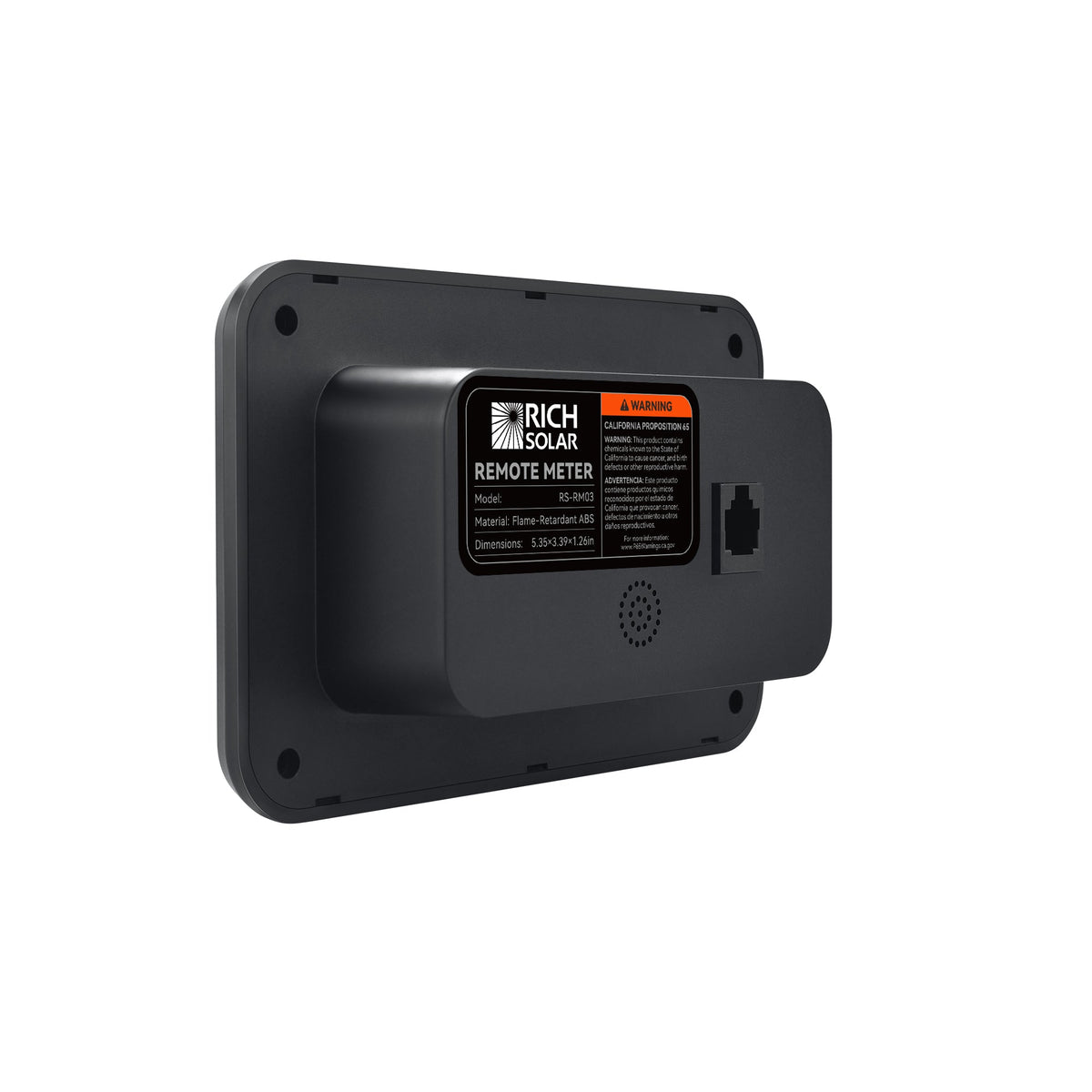

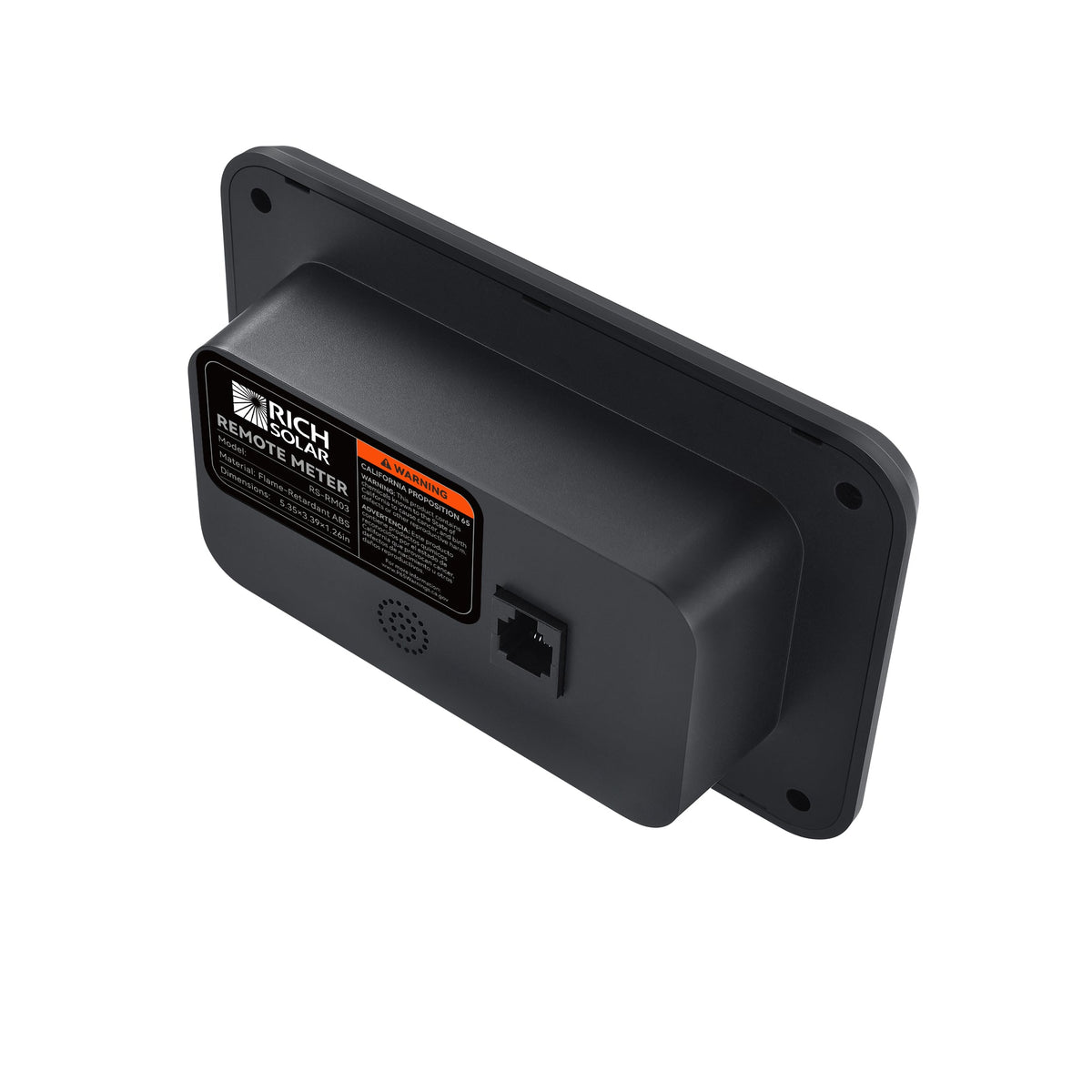

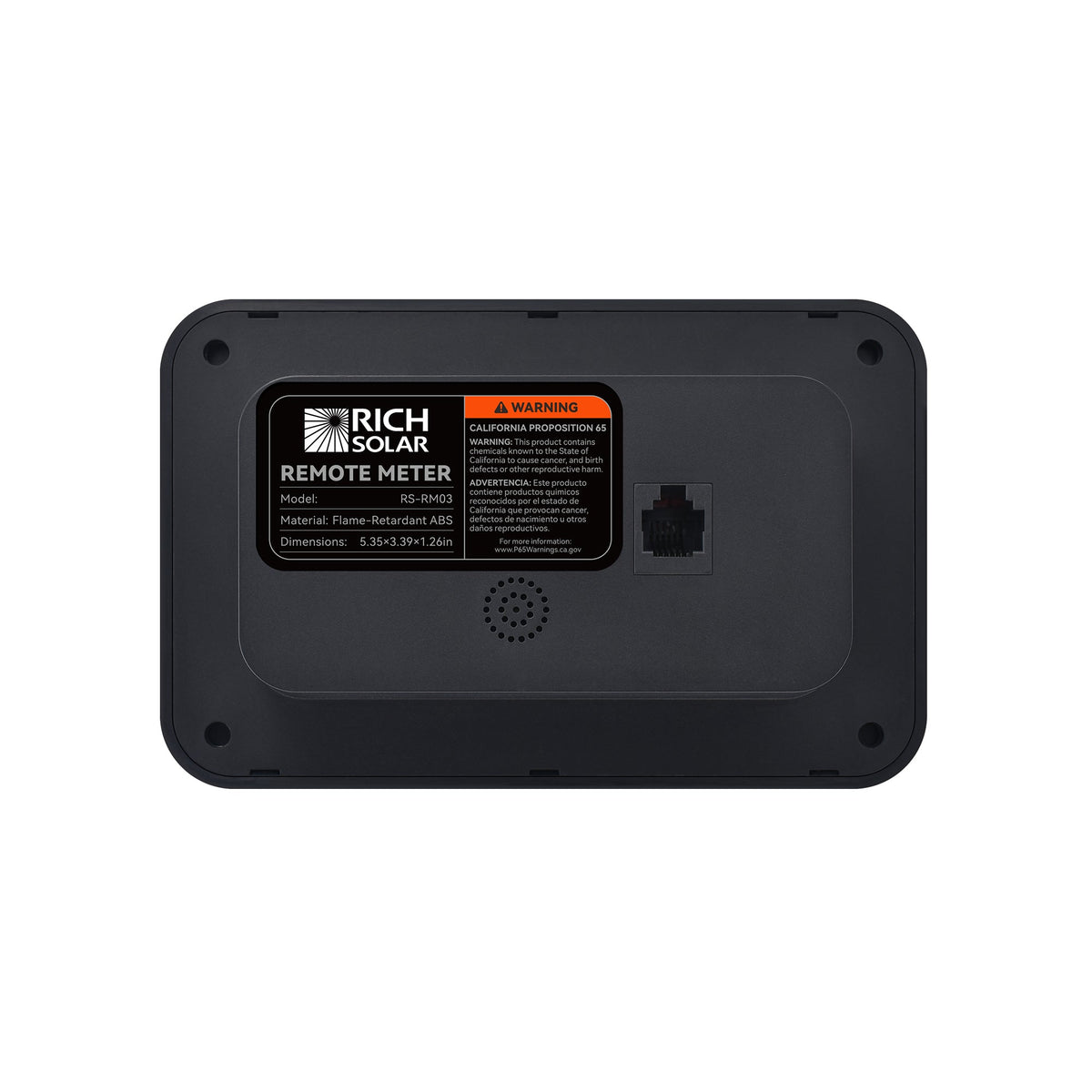

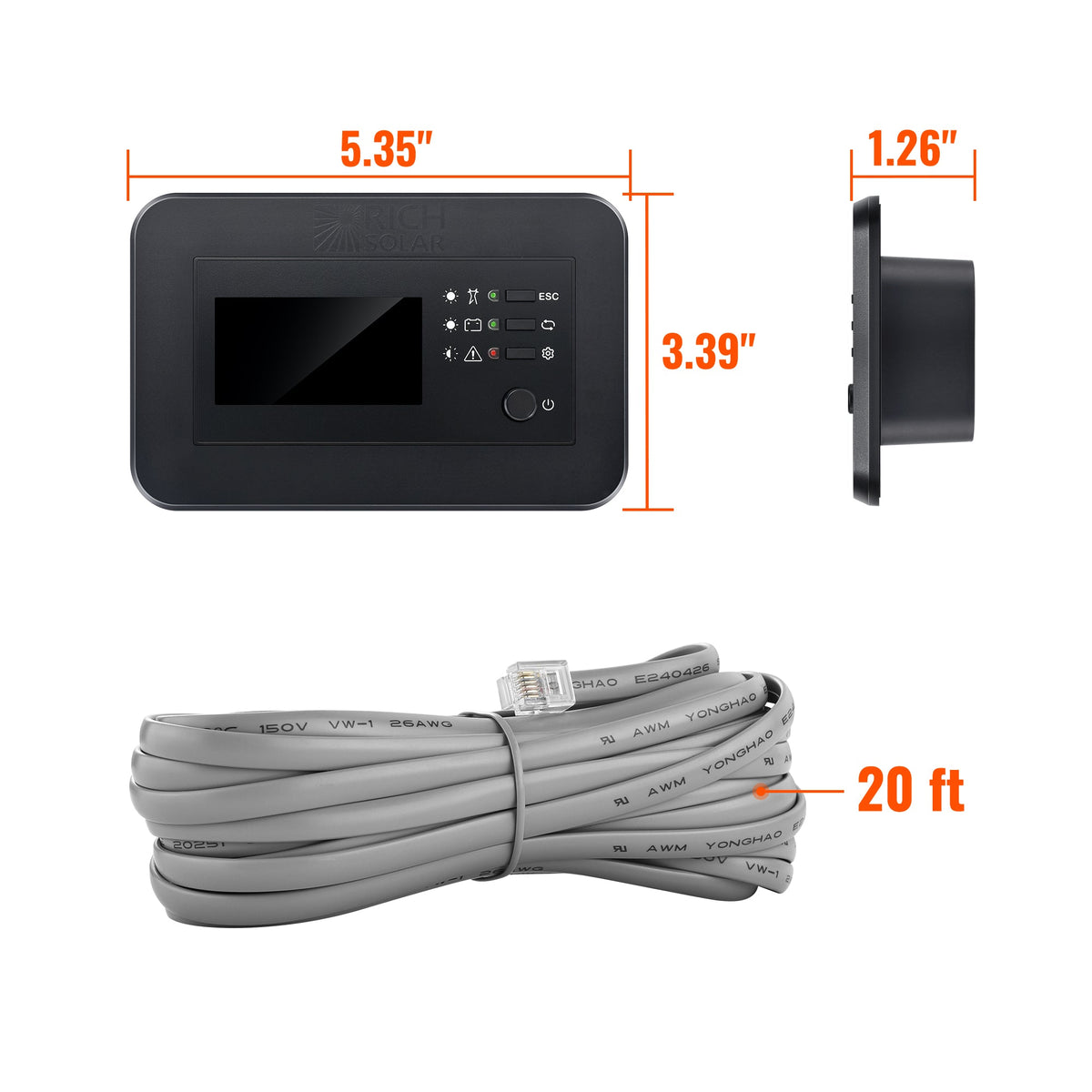

- Dimensions: 5.4 × 3.4 × 1.3 in.
Safety Features and Certifications
- Bypass mode maintains power to critical loads during inverter faults.
- Dual-color LED indicators, fault codes, and an audible buzzer provide system alerts.
- Flame-retardant ABS housing.
Installation and Maintenance Requirements
- Flush wall mount with a 4.3 × 2.3 in cut-out and minimum recess depth of 1.97 in.
- Plug-and-play wired installation using the supplied 6 m (20 ft) cable.
- Maintenance tasks and intervals are not specified.
Warranty and Service Information
Branding/References
- Compatible inverter families: NOVA SWITCH and NOVA SUPERCHARGER.
- Control application: RICH SOLAR App.
Differentiators
Combines Bluetooth control, real-time HD LCD monitoring, bypass operation for critical loads, and configurable AGM, lithium, or user-defined charging profiles in one flush-mount remote panel.
