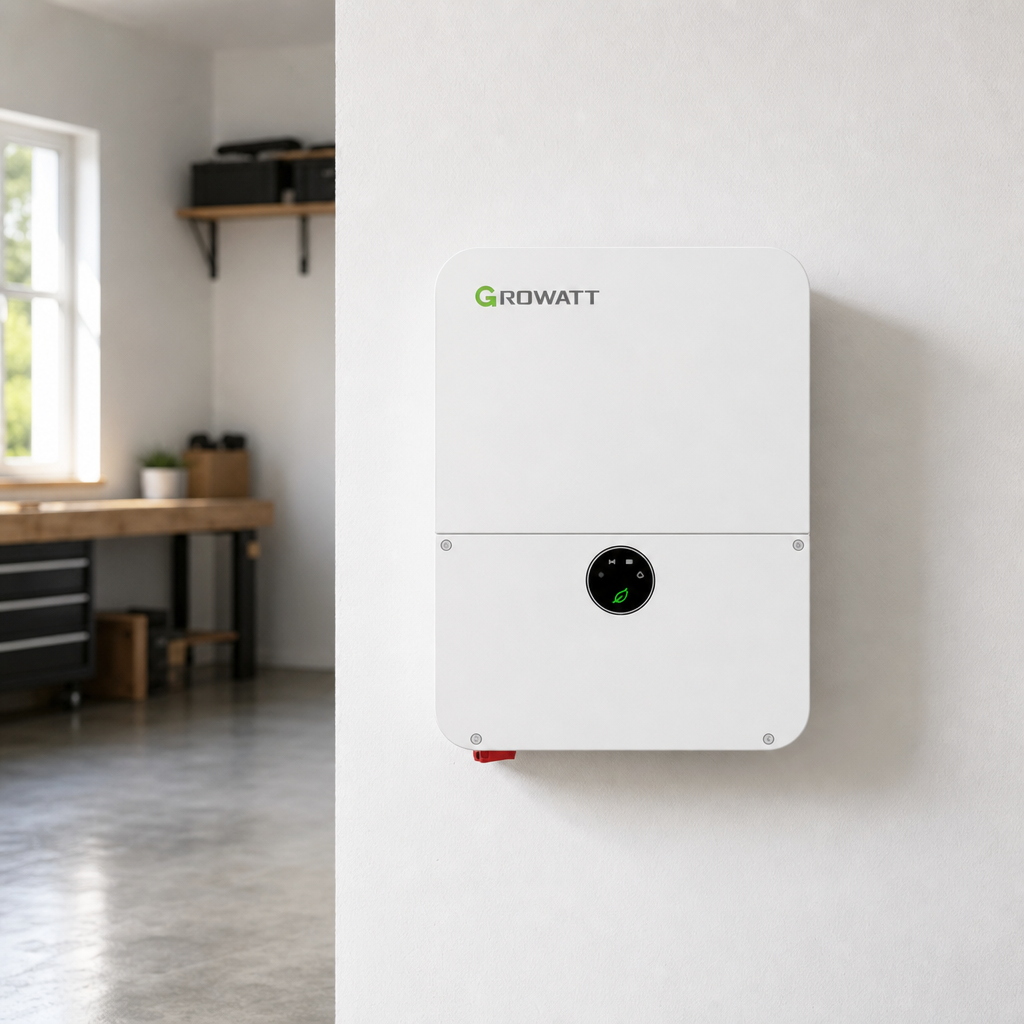

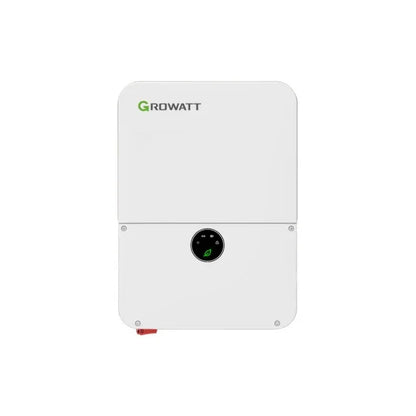

Growatt MIN 7600TL-XH-US — 7.6 kW Grid-Tie Solar Inverter

Growatt MIN 7600TL-XH-US — 7.6 kW Grid-Tie Solar Inverter

$1,299.00 USD
$0.00 USD $1,299.00 USD
Sale Sold out
Shipping calculated at checkout.

features

• Solid design control box — Meets NEMA Type 4 & IP30 standard by lab test
• LCD color screen — Real-time status view and easy user interaction
• Breathing indicator light — Shows real-time charging status
• Control button — Adjust max output current & set scheduled charging time
• Water protection gasket — Resists 3-minute direct high-pressure water spray
• TPU cable — 14.76ft, excellent durability, cold resistant to -22°F
• ETL certified — Compliant with North American safety standards

Technical Specifications

Voltage: 240V/208V
Max Output Current: 40A (SS-PC1-100) / 32A (SS-HAY-100-32A)
Max Power: 8kW / 7kW
Frequency: 50/60Hz
Temperature Range: -22°F to 122°F
Humidity: 5–95%, no condensation
Connector: Type 1 (J1772)
Cable Length: 14.76ft (4.5m)
Altitude: ≤2000m (6,562ft)
Cooling: Natural
Safety Standards: ETL, UL2594, CSA C22.2
Scheduling: App / Timer control
Connectivity: Wi-Fi / Bluetooth
Warranty: 2 years

Packing Details

Package contents: Teison Portable Pro charger, TPU cable, user manual
Package weight: Please confirm with Ampere Authority


View full details

Growatt 7.6kW Grid-Tie Inverter | MIN 7600TL XH-US

500 V DC input • 3 MPPTs • 98.5 % max efficiency • UL 1741 listed

Power up residential or light-commercial arrays with the Growatt MIN 7600TL-XH-US, a next-gen 7.6 kW grid-tie inverter engineered for the North-American market. Triple independent MPPTs, cloud-connected monitoring, and a rugged NEMA 4X housing deliver reliability and performance—rain, snow, or scorching summer heat.

Installer-ready highlights

  • True 7,600 W continuous output keeps 120/240 V split-phase loads and net-metering exports rock-steady.

  • Wide 500 V DC window means longer PV strings, lower combiner costs, and superior shade tolerance.

  • 3 MPPT channels / 2 strings each let you mix roof orientations and optimize production across the day.

  • World-class efficiency—up to 98.5 %—translates to higher kWh harvest and faster payback.

  • Natural convection cooling (fan-less) slashes maintenance and eliminates noise.

  • NEMA 4X/IP65 enclosure and –13 °F to 140 °F operating range handle harsh U.S. climates with ease.

  • Built-in 4G / Wi-Fi plus the free ShinePhone / ShineServer apps put live data, firmware updates, and remote diagnostics at your fingertips.

  • Comprehensive protection suite: AFCI, RSD-ready, RFCI, type-III AC surge, anti-islanding, residual-current, and continuous ground-fault monitoring—all fully UL 1741 compliant.

Quick-view specs (plain list)

  • Rated AC Output: 7,600 W

  • Max PV Input Voltage: 500 V DC

  • MPPTs / Strings: 3 MPPTs / 2 strings each

  • Max Efficiency: 98.5 %

  • Cooling: Natural convection (no fans)

  • Operating Temp: –13 °F to 140 °F (–25 °C to 60 °C)

  • Enclosure: NEMA 4X (IP65) flame-retardant composite

  • Communications: 4G, Wi-Fi, RS-485; iOS, Android, and Windows apps

  • Certifications: UL 1741, IEEE 1547, NEC 690.12 rapid-shutdown ready

Boost your solar ROI with the high-efficiency, cloud-connected Growatt MIN 7600TL-XH-US. Contact our Michigan-based team for sizing advice, bundle pricing, and fast shipping nationwide.

Spec Sheet: Download

Manual: Download

Quick Guide: Download

Certificate: Download
