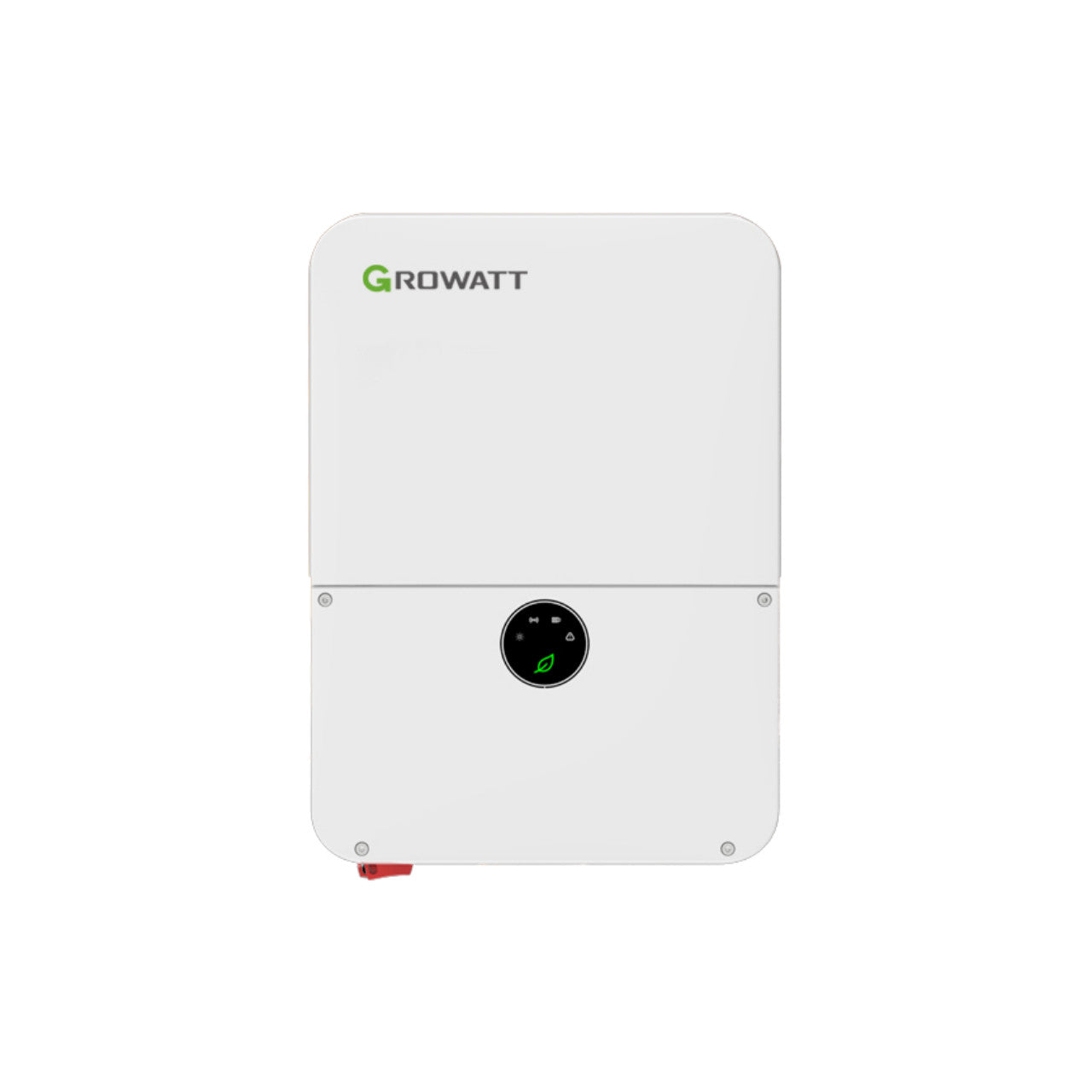

Growatt 6kW Grid-Tie Inverter (V2) | MIN 6000TL-XH-US
With three independent MPP trackers and 98.4% peak efficiency, the Growatt 6kW MIN 6000TL-XH-US grid-tie inverter maximizes energy production from rooftop arrays while meeting all North American safety standards. Perfect for homeowners seeking UL-certified performance and advanced monitoring capabilities.
- 98.4% Peak Conversion Efficiency
- 3 Independent MPP Trackers
- UL 1741 Certified
About the Product
The Growatt MIN 6000TL-XH-US supports six strings in total, optimizing energy harvest even when panels experience partial shading. The 500 VDC maximum input voltage accommodates larger string configurations, reducing balance-of-system costs. The NEMA4X (IP65) weatherproof enclosure protects internal components from moisture, dust, and extreme temperatures.
This string inverter features comprehensive protection, including UL 1741 certification, AFCI arc-fault protection, rapid shutdown capability, and anti-islanding protection. Additionally, with integrated 4G/Wi-Fi communication, you have real-time system monitoring through iOS, Android, and Windows apps.
Whether you're installing a new residential solar system or upgrading existing equipment, this high-efficiency solar inverter delivers reliable grid-connected power with industry-leading warranty protection and smart monitoring capabilities.
Specifications
|
Type |
Grid-tie (battery ready) |
|
AC Output Power |
6,000W nominal |
|
Phases |
Single phase |
|
Efficiency |
98.4% peak / 97% CEC weighted |
|
DC Input Voltage |
160 - 500V (full load voltage range) |
|
MPP Trackers |
3 independent trackers (2 strings per tracker) |
|
AC Output Voltage |
240V / 208V (grid-compatible) |
|
Battery Support |
Growatt APX , ARO, LG |
|
Protections |
UL 1741, AFCI, rapid shutdown, anti-islanding, Type III AC surge, ground fault monitoring |
|
Operating Conditions |
-13°F to +140°F / IP65 (NEMA4X) / Natural convection cooling |
|
Warranty |
10 years (manufacturer standard) |
Download full specifications here.
Download quick guide here.
Download certificate here.
