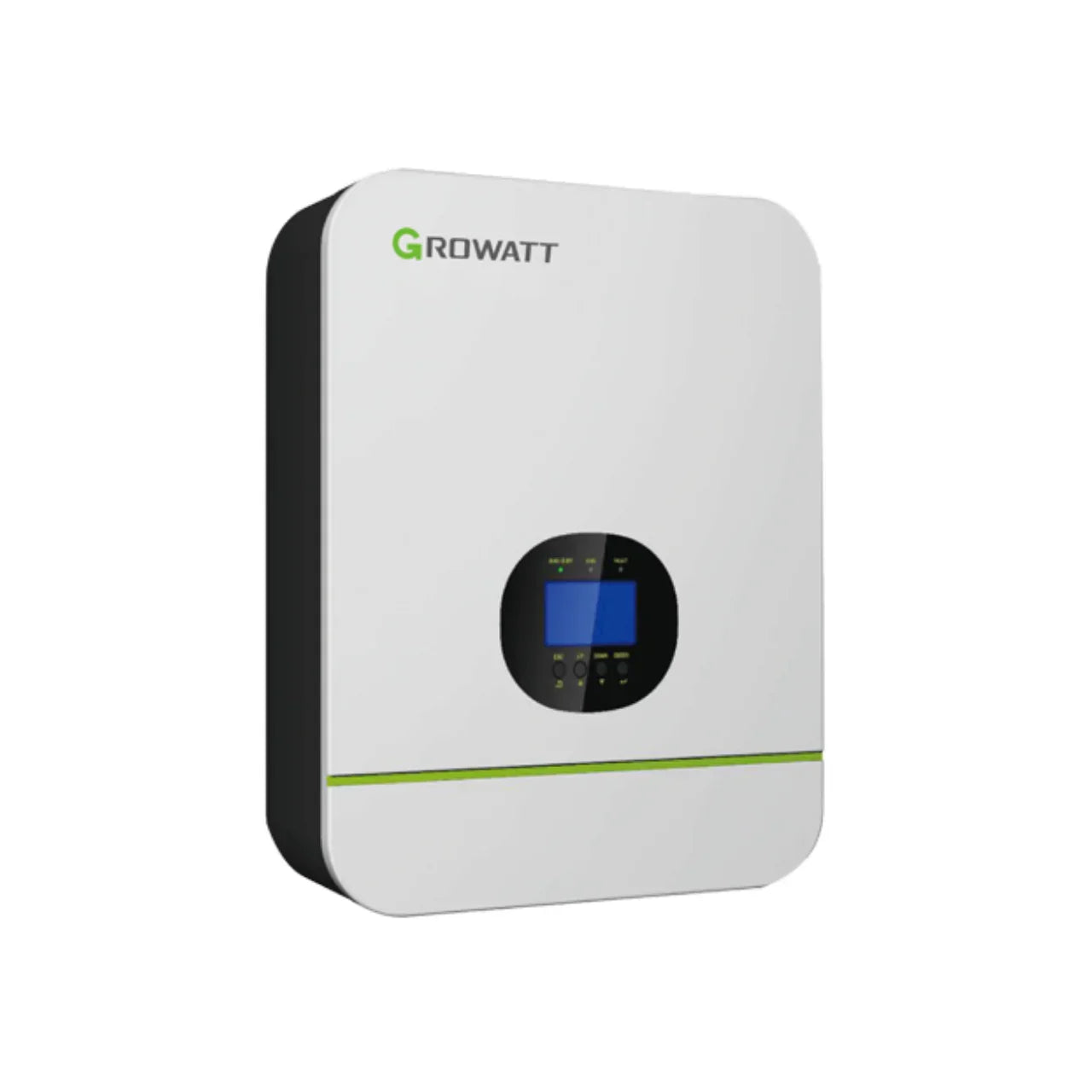

Growatt SPF 3000TL LVM-48P — 3 kW Stackable Off-Grid Inverter
48 V battery | 80 A MPPT | Pure-sine output | Parallel up to 6 units
Unlock clean, reliable power for cabins, RVs, tiny homes, or whole-house backup with the Growatt SPF 3000TL LVM-48P. This all-in-one off-grid inverter combines a high-frequency pure-sine inverter, an 80 A MPPT solar charge controller, and UPS-grade transfer switching in a single compact chassis—ready to stack for true 120/240 V split-phase or scalable to 18 kW in parallel.
Installer-approved advantages
-
3,000 W continuous / 6,000 W surge keeps essential loads running smoothly.
-
Wide PV window (60–115 V DC, 4,500 W max) lets you string up to 145 Voc without combiner loss.
-
High-current 80 A MPPT squeezes every watt from your array while safeguarding battery life.
-
48 V battery platform pairs effortlessly with today’s popular LiFePO₄ rack batteries or sealed lead-acid banks.
-
Stackable design: run two in split-phase for 120/240 V or parallel up to six (18 kW) for larger off-grid systems.
-
UPS-grade transfer (<10 ms) protects sensitive electronics when switching between solar, battery, generator, or mains.
-
Robust protections against overload, short-circuit, reverse polarity, and deep discharge.
-
Smart connectivity: built-in CAN/RS-485 for BMS integration; add the optional Growatt WiFi dongle for cloud monitoring and remote firmware updates.
-
Lightweight, transformer-less design simplifies wall mounting and reduces shipping costs.
Quick-view specifications
-
Rated AC Output: 3,000 W @ 120 V AC pure sine (single unit)
-
Max PV Input: 4,500 W (145 Voc)
-
Battery Voltage: 48 V nominal (40–60 V range)
-
Max Charging Current: 80 A (solar) + 60 A (AC)
-
Parallel Capability: up to 6 units / split-phase ready with 2 units
-
Efficiency: up to 92 % (inverter) / 98 % (MPPT)
-
Dimensions (H × W × D): 17.3 × 12.8 × 4.7 in (440 × 325 × 120 mm)
-
Weight: 24.3 lb (11 kg)
-
Operating Temp: -4 °F to 140 °F (-20 °C to 60 °C)
-
Certifications: CE, RoHS
Note: Growatt USB WiFi monitoring dongle sold separately.
Upgrade to hassle-free energy independence with the Growatt SPF 3000TL LVM-48P. Order today or contact our Michigan-based support team for sizing assistance and volume pricing.
Specs: Download
Manual: Download
