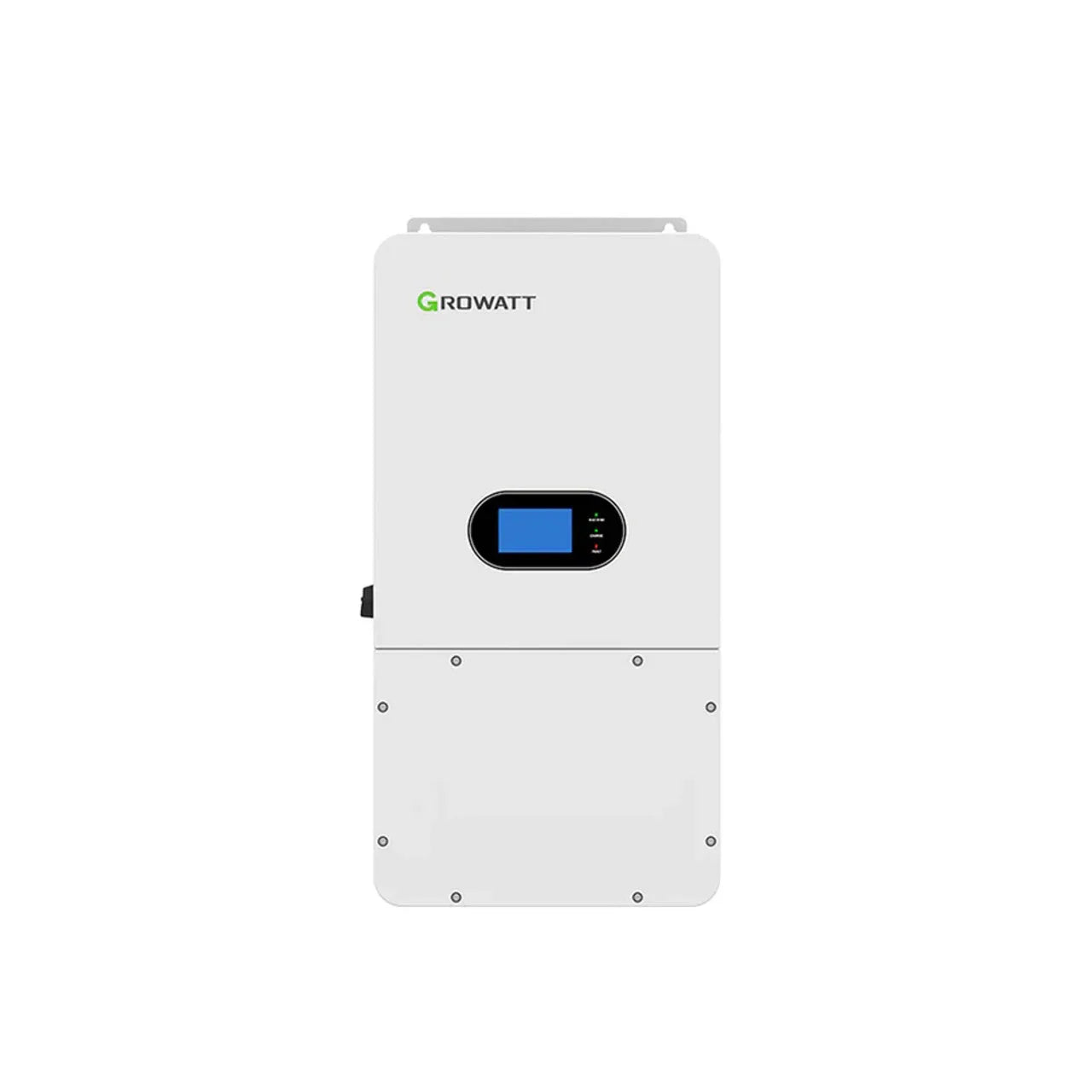

Growatt SPH 10000TL-HU-US-B 10 kW Hybrid Inverter
With 10ms UPS-level transition time and support for DC-coupled, AC-coupled, and AC-retrofit applications, Growatt SPH 10000TL-HU-US 10kW hybrid inverter is a good choice for homeowners and light commercial installations requiring reliable backup power, flexible battery integration, and advanced energy management.
- Up to 200A Charging and Discharging Current
- 10ms UPS Function
- Supports Diesel and Gas Generators
About the Product
The Growatt SPH 10000TL-HU-US combines advanced hybrid inverter technology with professional-grade backup capabilities. Engineered for North American split-phase systems, it delivers 10,000W of nominal output power, supporting DC-coupled battery installations, AC-coupled retrofits, and AC-retrofit applications.
With 200A charging and discharging current, the SPH 10000TL-HU-US handles high-power 48V lithium or lead-acid battery banks, enabling rapid battery recovery and extended backup duration during outages. Additionally, the 10ms UPS function ensures near-instantaneous transition during grid interruptions, keeping sensitive electronics, refrigeration, medical equipment, and critical loads protected.
Furthermore, this hybrid inverter is compatible with diesel and gas generators, automatically managing charging priorities between solar, grid, and generator sources. Three independent MPP trackers optimize energy harvest from complex roof layouts and partial shading conditions, while smart charger priority control allows you to set AC-first, solar-first, or generator-first charging from the responsive touchscreen.
With built-in WiFi, 4G, and Bluetooth connectivity, this hybrid inverter feeds real-time data to the Growatt monitoring platform. That way, you can get firmware updates and performance analytics remotely, as long as you have a stable connection.
Specifications
|
Type |
Hybrid |
|
AC Output Power |
10,000W nominal |
|
Phases |
Split-phase |
|
Efficiency |
98.1% peak / 97% CEC weighted |
|
DC Input Voltage |
150-450V MPPT range / 130V startup |
|
MPP Trackers |
3 independent trackers (2 strings per tracker) |
|
AC Output Voltage |
120V/208V, 120V/240V Split (180Vac - 280Vac) |
|
Battery Support |
Lithium/Lead-acid |
|
Protections |
AFCI, Type II surge (DC/AC), AC over current protection, AC over voltage protection, ground fault monitoring, grid monitoring, anti-islanding protection, residual-current monitoring unit, insulation resistance monitoring |
|
Operating Conditions |
-13°F to +140°F with derating above 113°F / IP65 / NEMA 4 |
|
Warranty |
10 years (manufacturer standard) |
Download full specifications here.
Download the manual here.
Download the quick guide here.
Download the certificate here.
