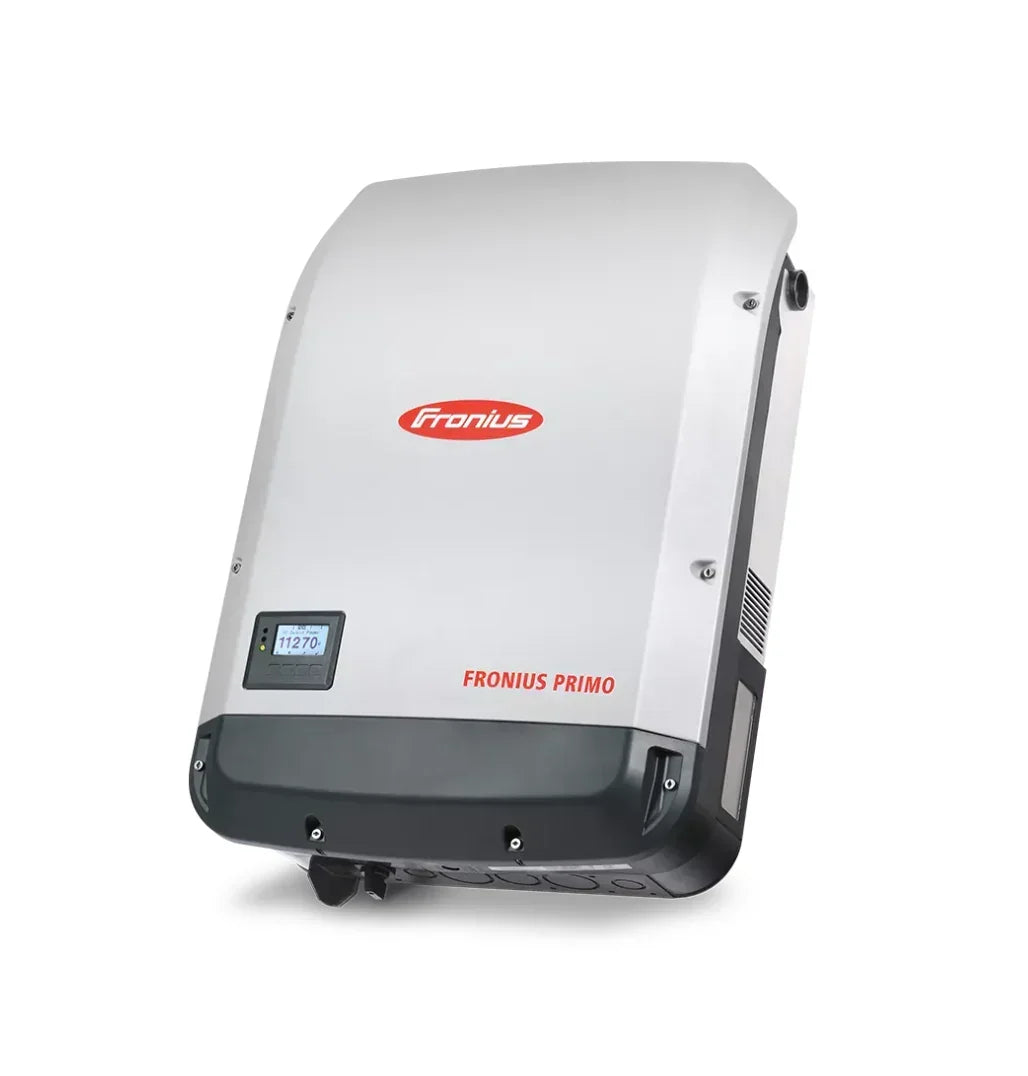

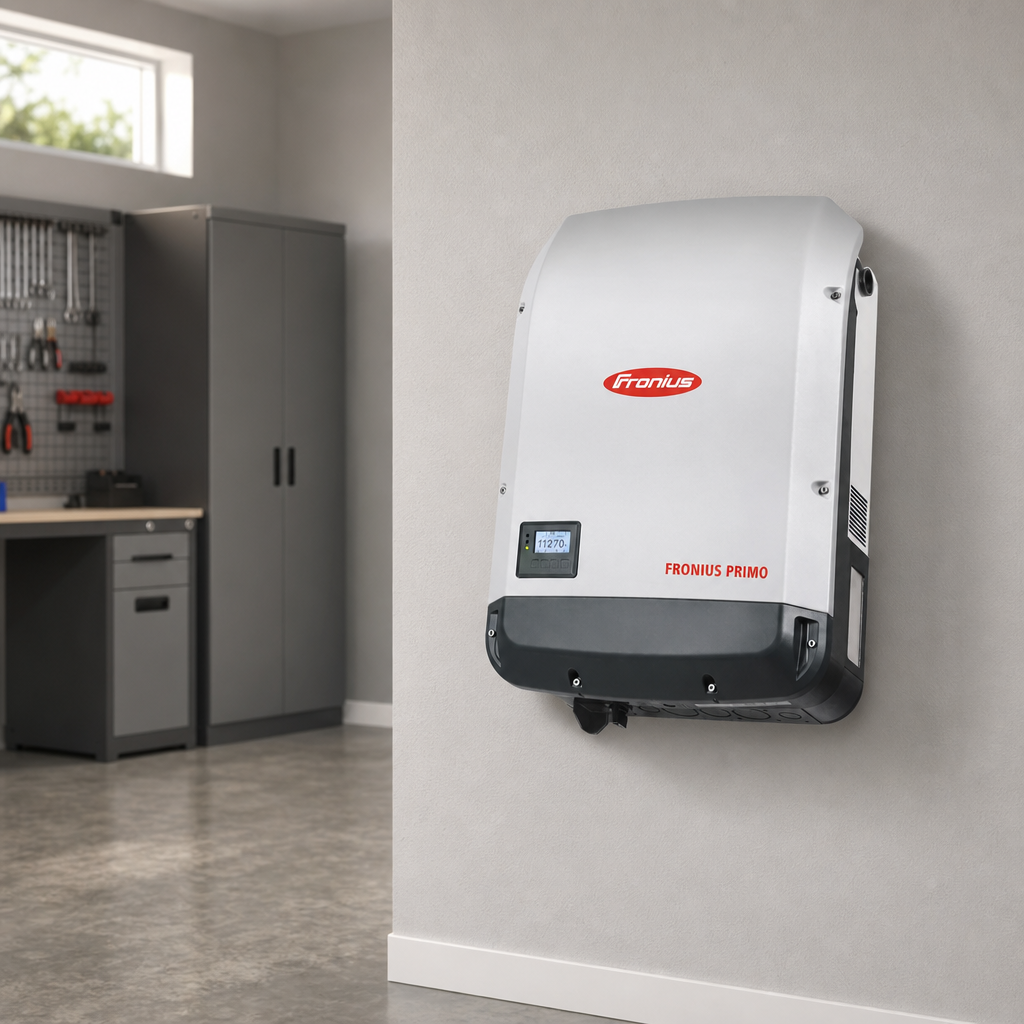

Fronius Primo 4,210,075,800 10.0-1 208-240VAC Single Phase String Inverter
Introducing the Fronius Primo 10.0-1, the ideal single-phase string inverter for residential solar installations. Designed with precision and efficiency, it delivers unmatched performance, integrating seamlessly into home energy systems with advanced features for optimal solar energy utilization.
- High efficiency for maximum solar yield and reduced energy bills.
- Integrated Data manager 2.0 card for easy system monitoring and management.
- Smart Grid Ready, ensuring future compatibility with evolving energy infrastructures.
- Dual MPPT for versatile installation and maximized energy harvest.
- Robust design with IP65 protection, suitable for outdoor installations.
Technology and Overview
This inverter features advanced MPPT technology and active cooling systems, ensuring high performance and reliability across a wide range of operating conditions.
Installation and Compatibility Overview
With flexible installation options and compatibility with various PV modules, the Fronius Primo 10.0-1 is designed for quick and easy setup, making it a top choice for homeowners.
Benefits and Applications Overview
Optimize your solar investment with this inverter, designed for enhancing energy efficiency, reducing carbon footprint, and ensuring seamless integration into residential power systems.
| Specification | Value |
|---|---|
| Model | PRIMO 10.0-1 |
| Recommended PV power (kWp) | 8.0 - 12.0 kW |
| Max. Input Current | (MPPT 1/MPPT 2 - 33.0 / 18.0 A) (MPPT 1+MPPT 2 - 51 A) |
| Nominal Input Voltage | 655 V |
| Max. Input Voltage | 1000 V |
| Max. Output Power (208V / 240V) | 9,995 VA |
| Max. Continuous Output Current (208V / 240V) | 48.1 A / 41.6 A |
| Frequency Range | 45-55 Hz / 50 - 66 Hz |
| Max. Efficiency | 96.7 % |
| CEC Efficiency 600 V/1,000 V | 96.0 % / 96.5 % |
| Cooling | Variable speed fan |
| Warranty | 10 years / extensions up to 15 and 20 years available 1 |
