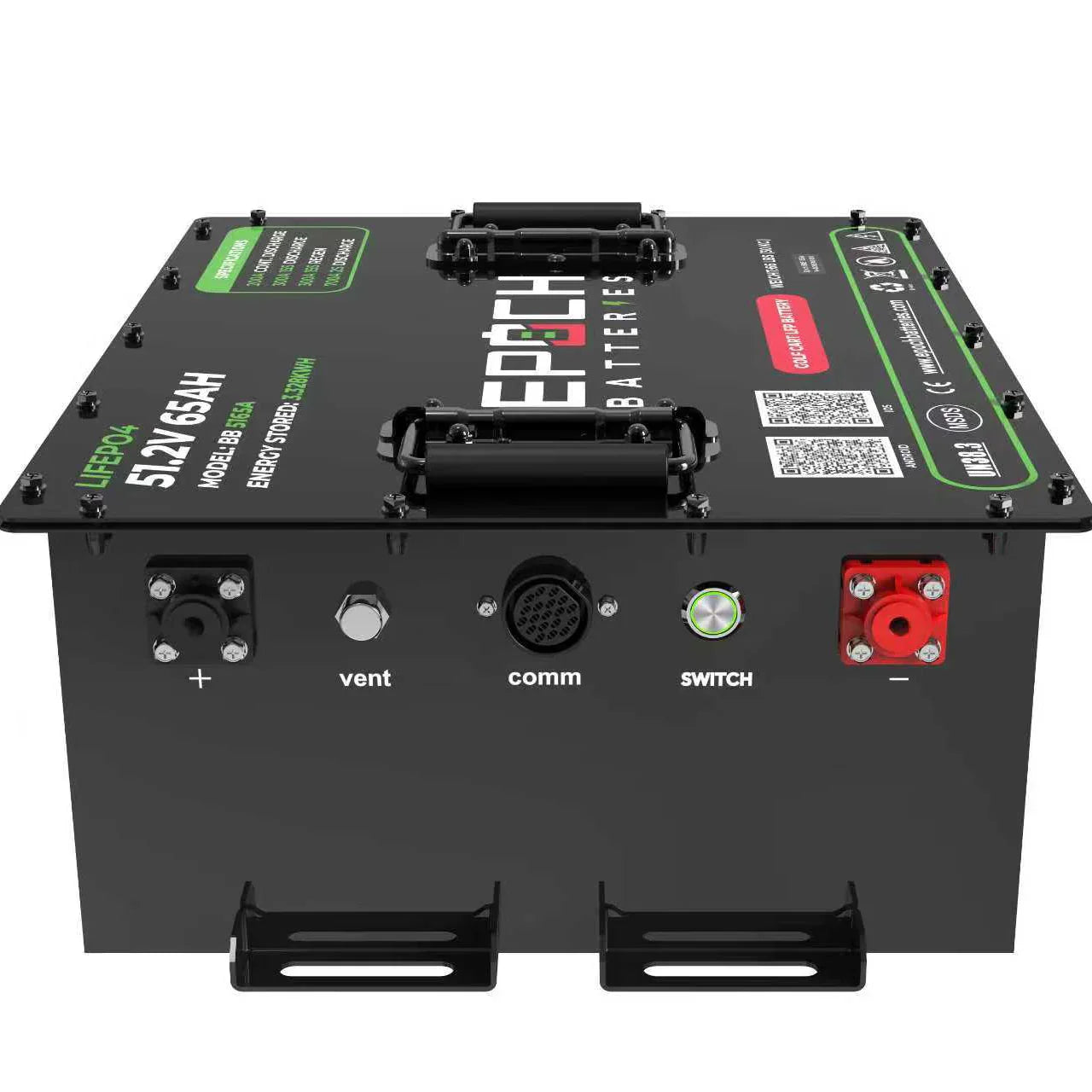

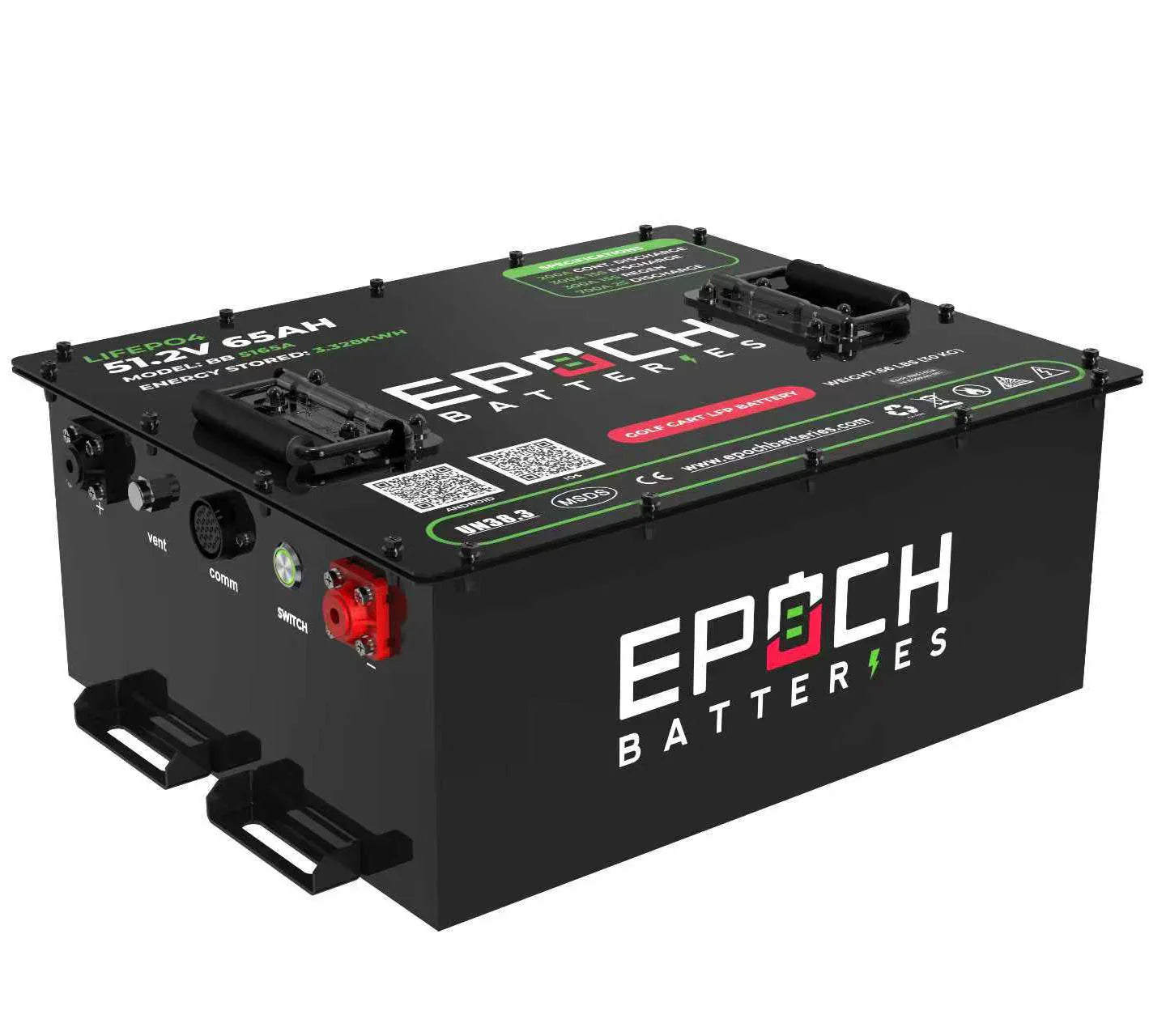

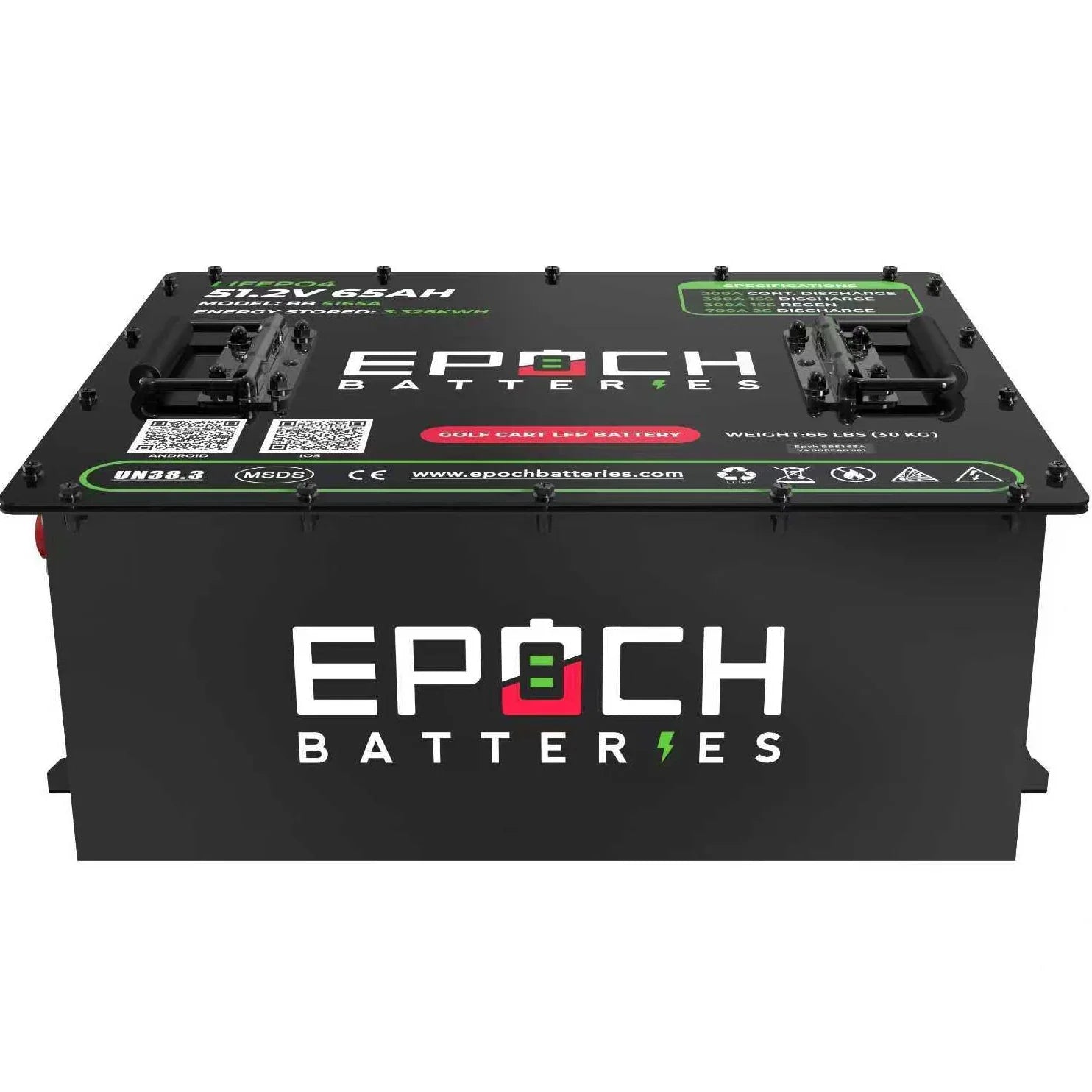

Epoch Batteries 48V 65Ah - LiMax Series - Lithium (LiFePO4) Golf Cart Battery - Complete Kit
- Complete Lithium Conversion Kit
- 48V 10A Lithium Charger, Battery Gauge, 12V Converter INCLUDED
- Cart Specific Mounting Brackets INCLUDED
- Bluetooth App (iOS & Android)
- Over the air firmware updates available
- 200A Max Continuous Discharge
- 300A @ 15s, 700A @ 2s Peak Discharge
- 100A Max Continuous Charge
- 300A @ 15s Peak Charge/Regen
- 3,500 Cycle Life
- 11 Year Warranty
Tech Specs
Configuration
Cell Configuration: 1P16S
Chemistry: LiFePO4
Current
Ah Capacity: 65Ah
Max Continuous Discharge Amps: 200A
Max Charge Current Amps: 100A Continuous, 300A @ 15s
Max Discharge Peak Current Amps: 300A @ 15s, 700A @ 2s
Series | Parallel: Max (2) in Parallel
Voltage
Voltage: 51.2V
Max Charge Voltage: 58.4V
Operating Voltage Range: 40 - 58.4V
Temperature
Charge Temp Range: 0°C (32°F) / 55°C (131°F)
Discharge Temp Range: -20°C (-4°F) / 60°C (140°F)
Storage Temp: 0°C (32°F) / 35°C (95°F) (Max 12 Months)
Weight: 66 (LBS)

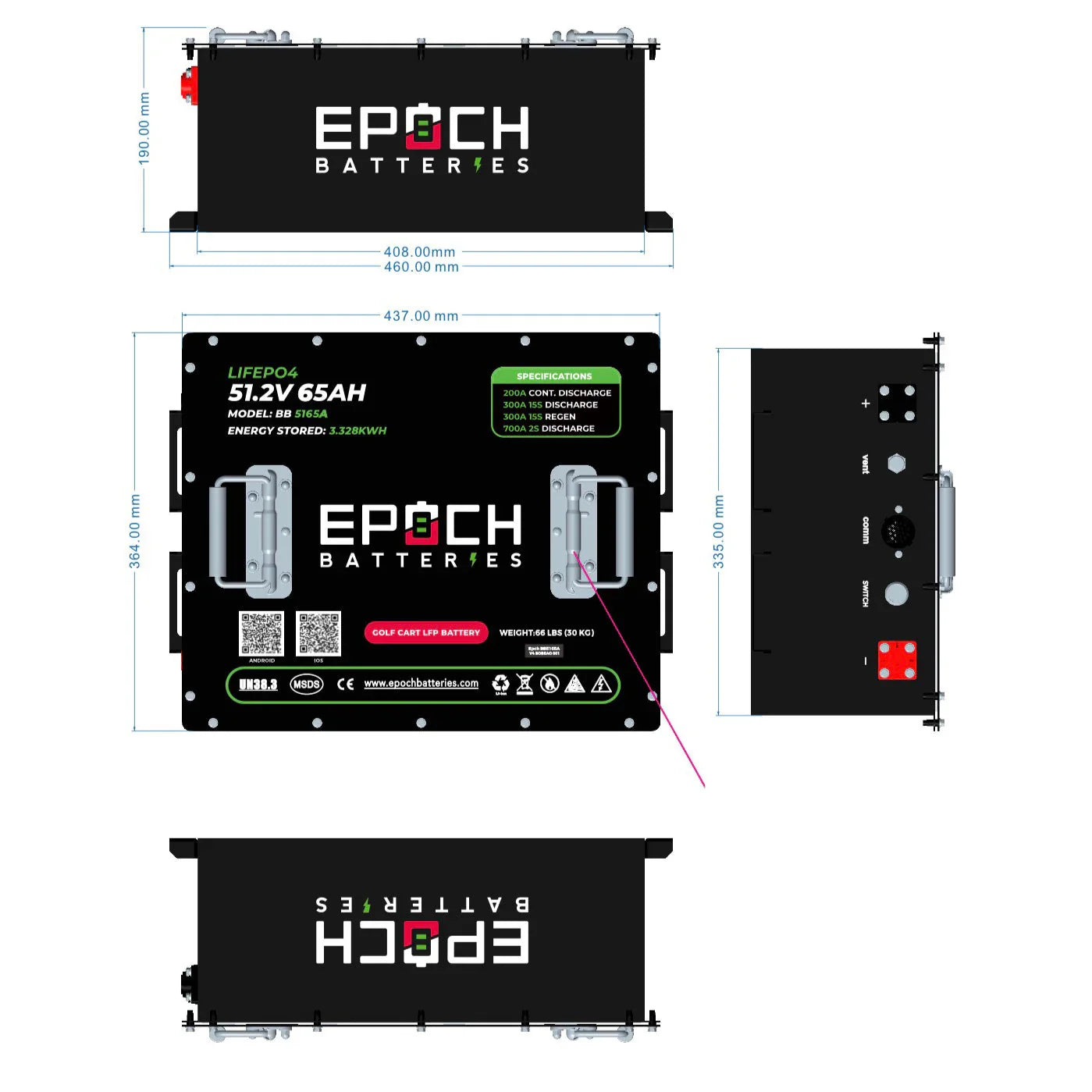

Dimensions
Length: 17.20 (inches)
Width: 14.33 (inches)
Height: 7.48 (inches)
Recommended Charging Settings
To properly charge your Epoch Batteries, you will want to verify that any charging component in your system is capable of being programmed for the following specifications. Charging components can include, but are not limited to converters, inverter chargers, solar charge controllers, DC to DC chargers, etc.
Bulk/Absorption: 14.2V – 14.6V
Absorption Time: Two batteries in parallel connections require 30 minutes 200Ah
Float: 13.4V – 13.8V
Equalization: 14.4V/ Disabled
Temperature Compensation: 0/Disabled
Charge Rate: 50% of the battery or battery bank capacity
Battery Charge Temperature Range: 32°F (0°C) to 131°F (55°C)
Battery Discharge Temperature Range: -4°F (-20°C) to 140°F (60°C)
Cell Charge Temperature: 32°F (0°C) to 131°F (55°C)
Cell Discharge Temperature: -4°F (-20°C) to 140°F (60°C)
NOTE: Not all chargers are capable of multistage charging. If yours is not, you will want to verify it can be programmed for the Bulk/Absorption voltage and have the other items mentioned disabled if applicable. Consult your charger's manual or the manufacturer.
