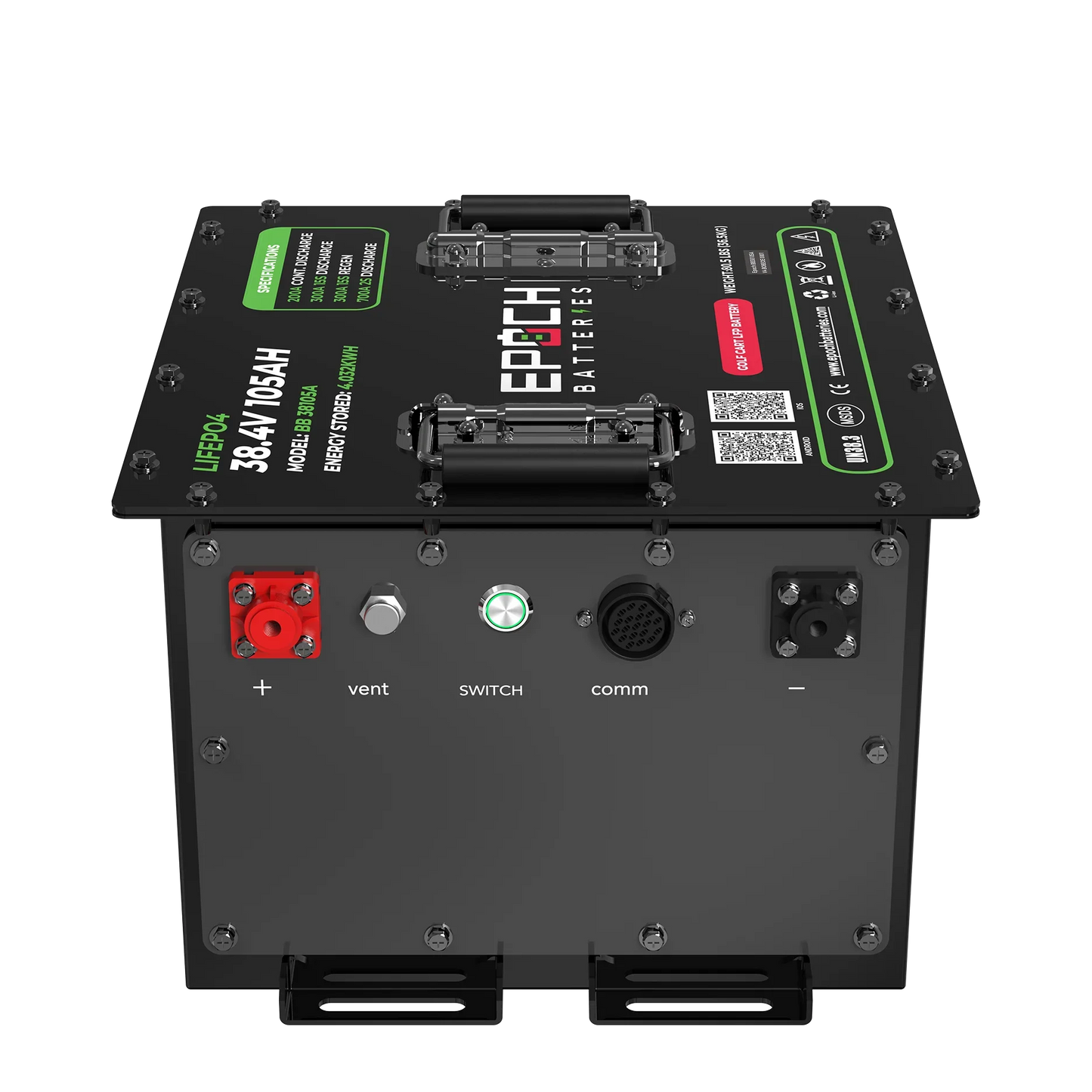

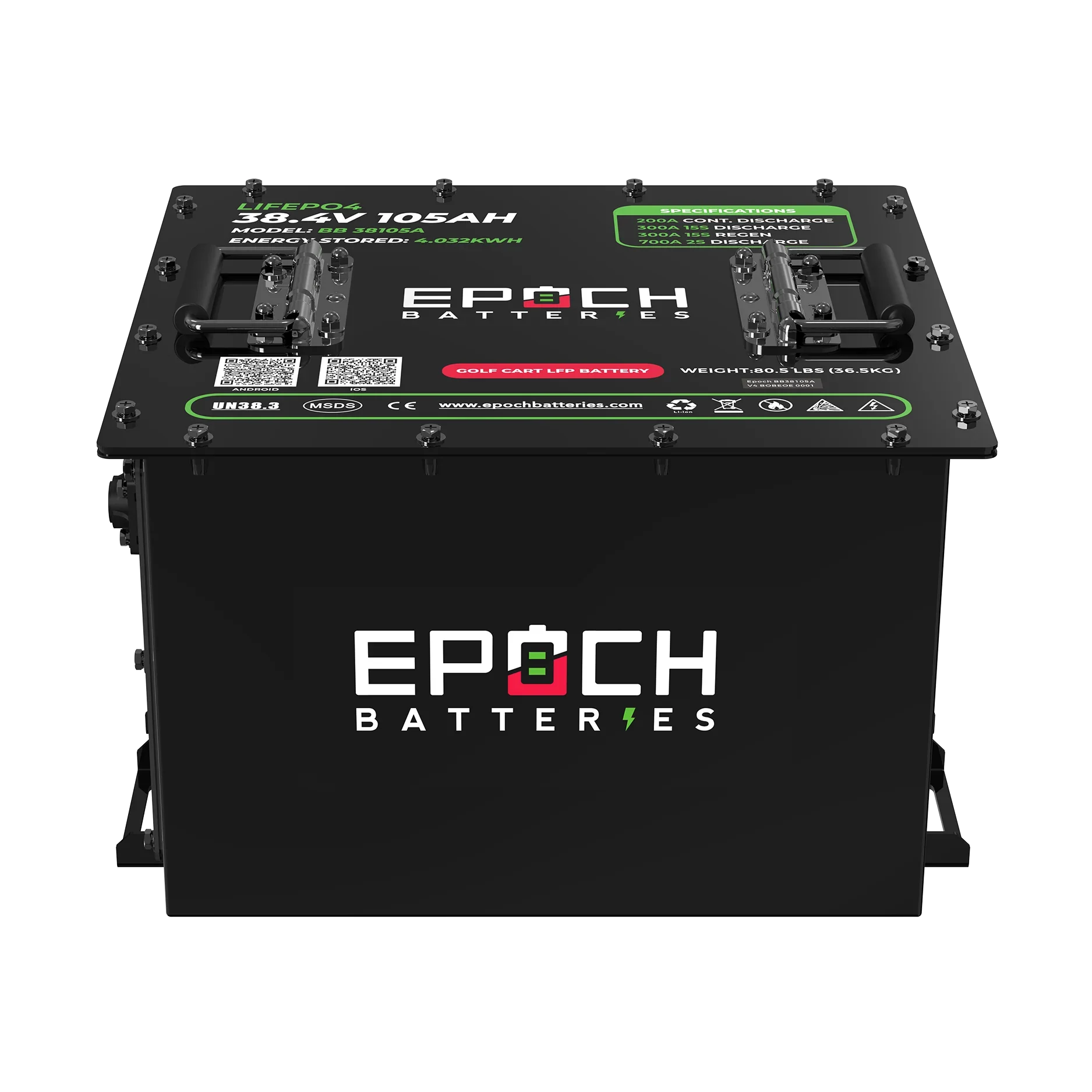

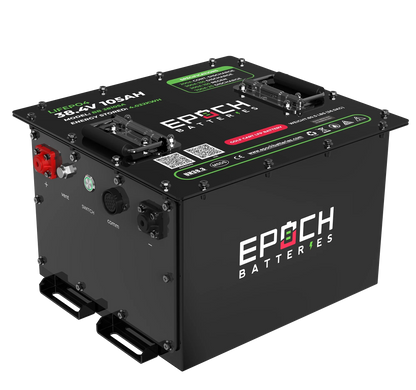

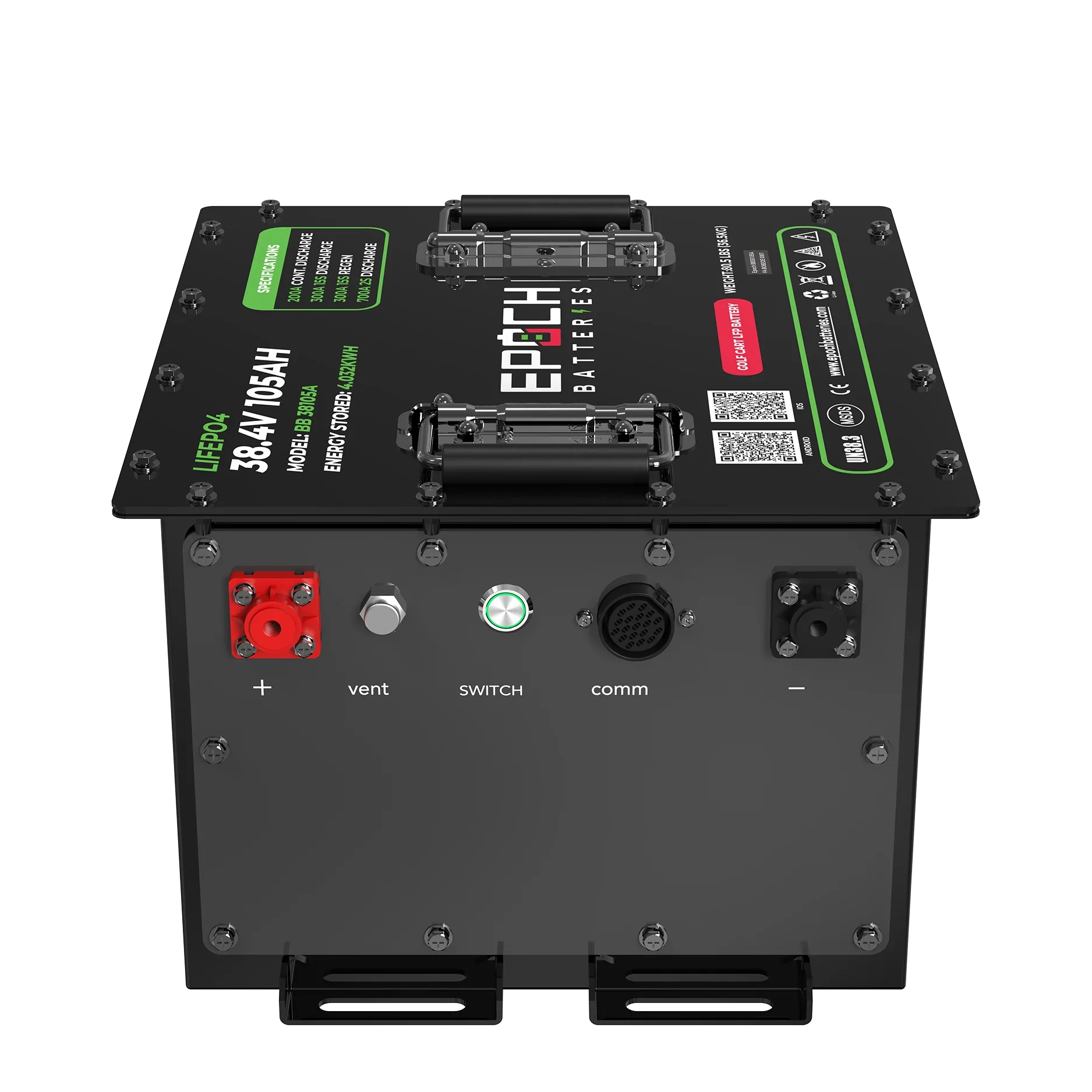

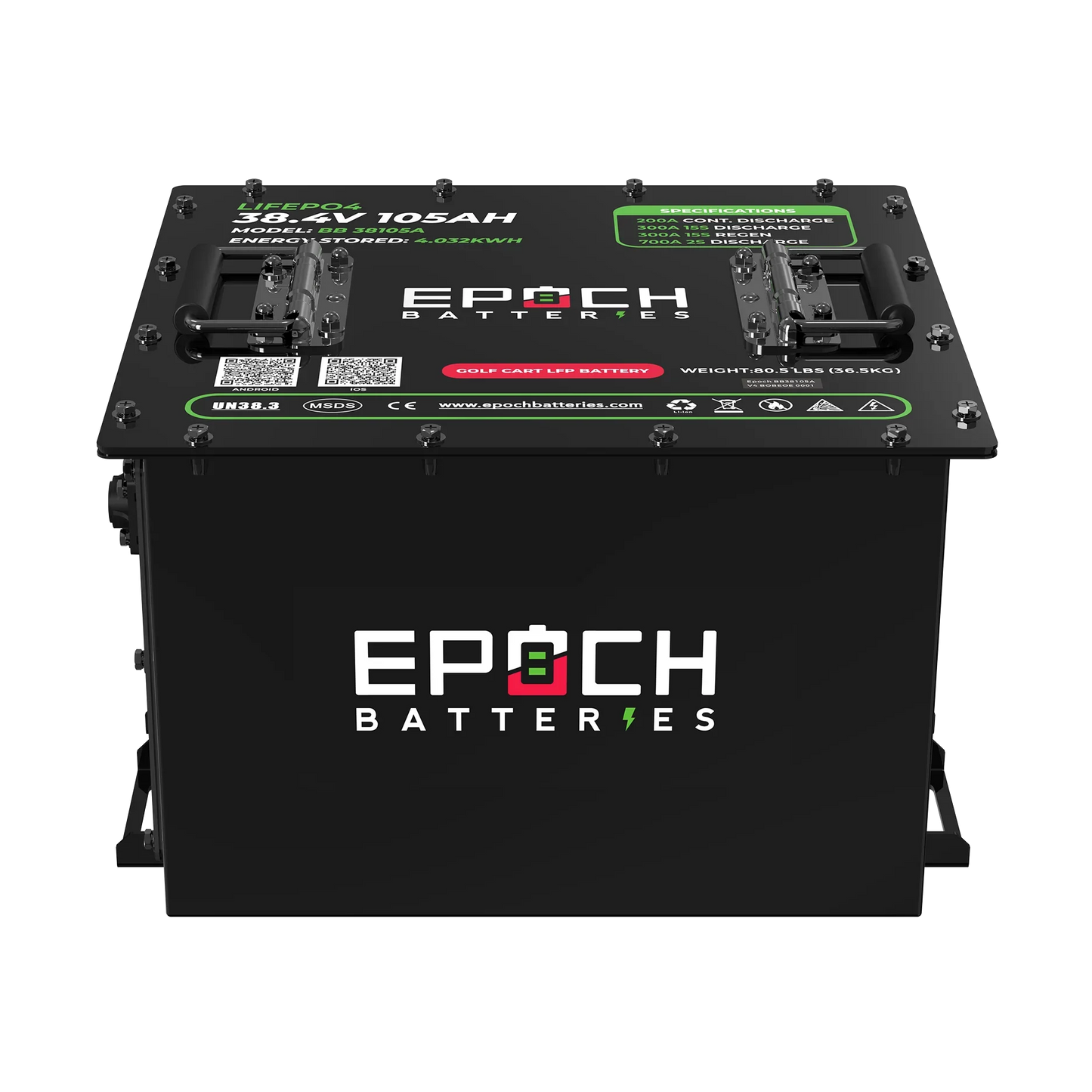

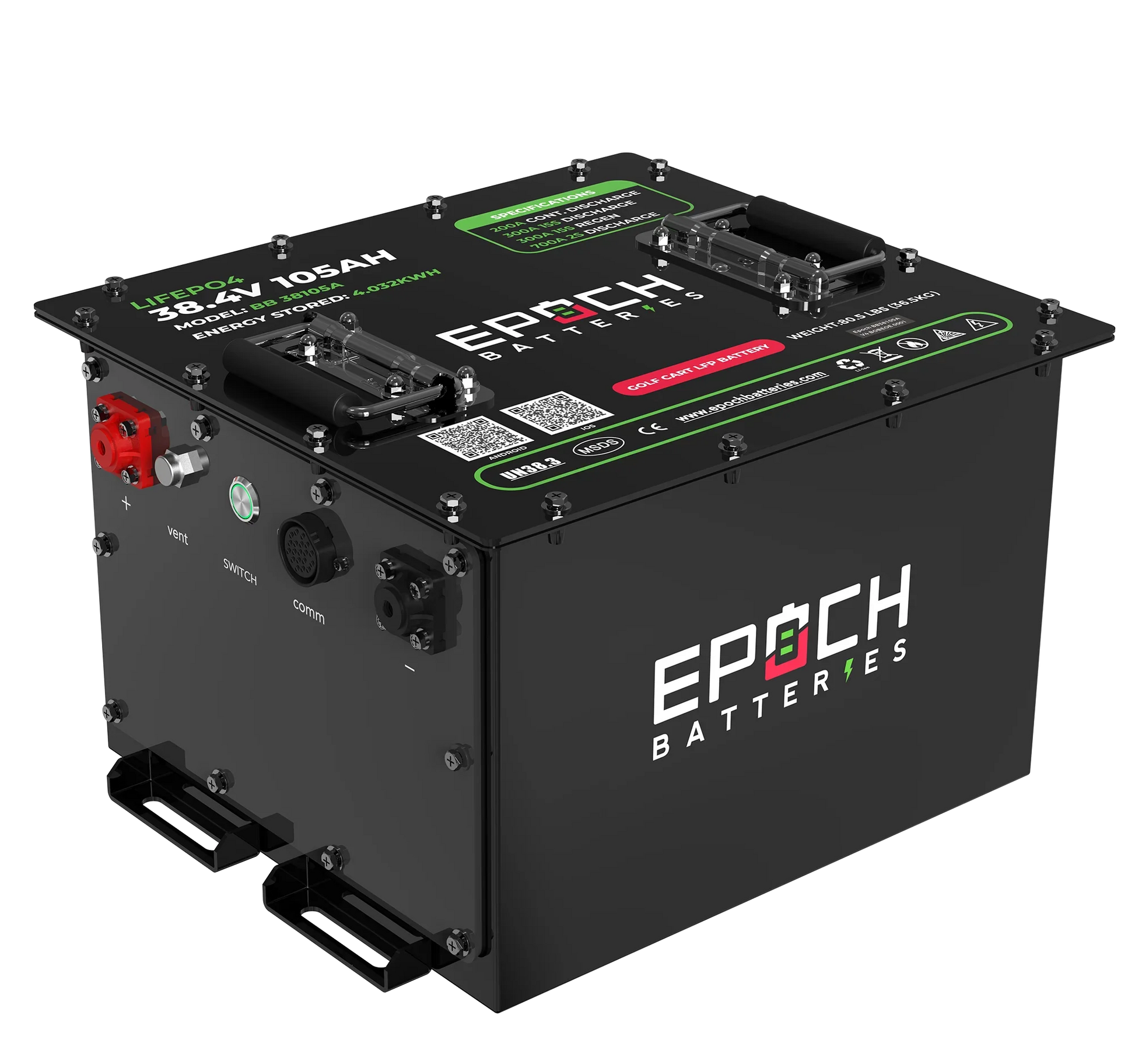

Epoch Batteries 36V 105Ah - LiMax Series - Lithium (LiFePO4) Golf Cart Battery - Complete Kit

Epoch Batteries 36V 105Ah - LiMax Series - Lithium (LiFePO4) Golf Cart Battery - Complete Kit

$1,699.00 USD
$2,199.00 USD $1,699.00 USD
Sale Sold out
Shipping calculated at checkout.

features

• Solid design control box — Meets NEMA Type 4 & IP30 standard by lab test
• LCD color screen — Real-time status view and easy user interaction
• Breathing indicator light — Shows real-time charging status
• Control button — Adjust max output current & set scheduled charging time
• Water protection gasket — Resists 3-minute direct high-pressure water spray
• TPU cable — 14.76ft, excellent durability, cold resistant to -22°F
• ETL certified — Compliant with North American safety standards

Technical Specifications

Voltage: 240V/208V
Max Output Current: 40A (SS-PC1-100) / 32A (SS-HAY-100-32A)
Max Power: 8kW / 7kW
Frequency: 50/60Hz
Temperature Range: -22°F to 122°F
Humidity: 5–95%, no condensation
Connector: Type 1 (J1772)
Cable Length: 14.76ft (4.5m)
Altitude: ≤2000m (6,562ft)
Cooling: Natural
Safety Standards: ETL, UL2594, CSA C22.2
Scheduling: App / Timer control
Connectivity: Wi-Fi / Bluetooth
Warranty: 2 years

Packing Details

Package contents: Teison Portable Pro charger, TPU cable, user manual
Package weight: Please confirm with Ampere Authority


View full details

Epoch Batteries 36V 105Ah Lithium (LiFePO4) Golf Cart Battery - Complete Kit

  • Complete Lithium Conversion Kit
  • 36V 15A Lithium Charger, Battery Gauge, 12V Converter INCLUDED
  • Bluetooth App (iOS & Android)
  • Over the air firmware updates available
  • 200A Max Continuous Discharge
  • 300A @ 15s, 700A @ 2s Peak Discharge
  • 100A Max Continuous Charge
  • 300A @ 15s Peak Charge/Regen
  • 3,500 Cycle Life
  • 11 Year Warranty

Tech Specs

Configuration
Cell Configuration: 1P12S
Chemistry: LiFePO4
Current
Ah Capacity: 105Ah
Max Continuous Discharge Amps: 200A
Max Charge Current Amps: 100A Continuous, 300A @ 15s
Max Discharge Peak Current Amps: 300A @ 15s, 700A @ 2s
Series | Parallel: Max (2) in Parallel
Voltage
Voltage: 38.4V
Max Charge Voltage: 43.8V
Operating Voltage Range: 30 - 43.8V
Temperature
Charge Temp Range: 0°C (32°F) / 55°C (131°F)
Discharge Temp Range: -20°C (-4°F) / 60°C (140°F)
Storage Temp: 0°C (32°F) / 35°C (95°F) (Max 12 Months)
Weight: 81 (LBS)

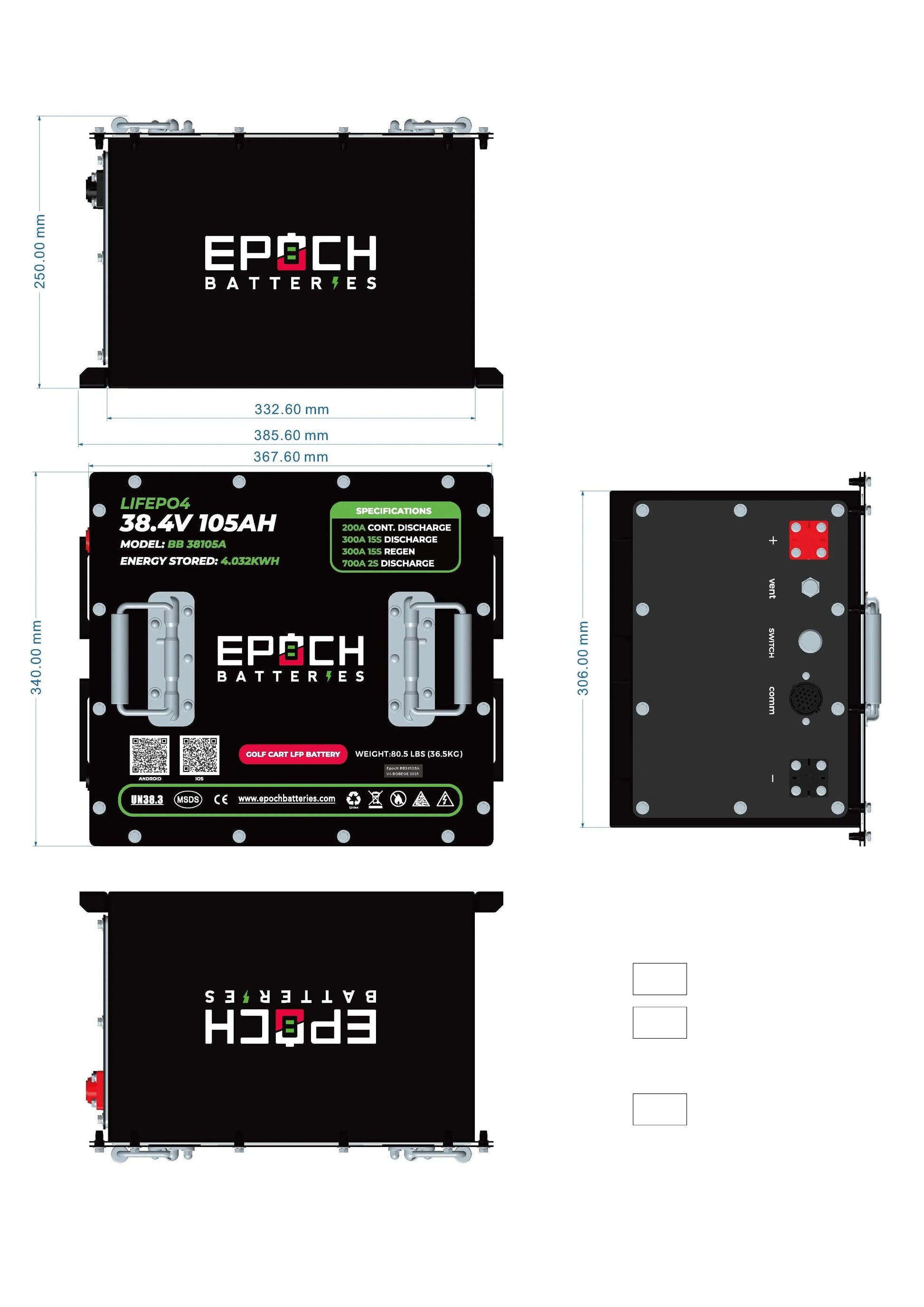

Dimensions
Length: 14.6 (inches)
Width: 13.4 (inches)
Height: 9.9 (inches)
