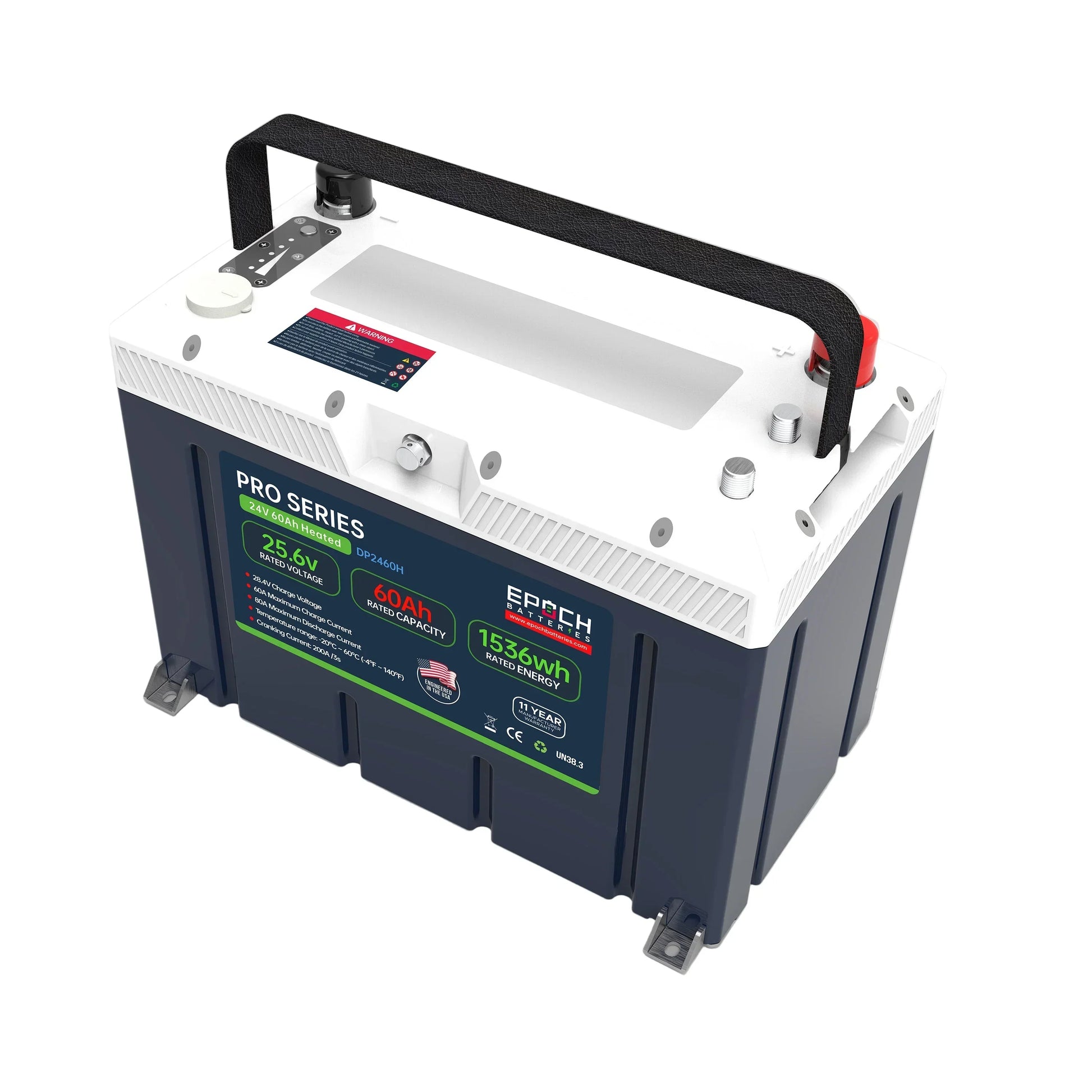

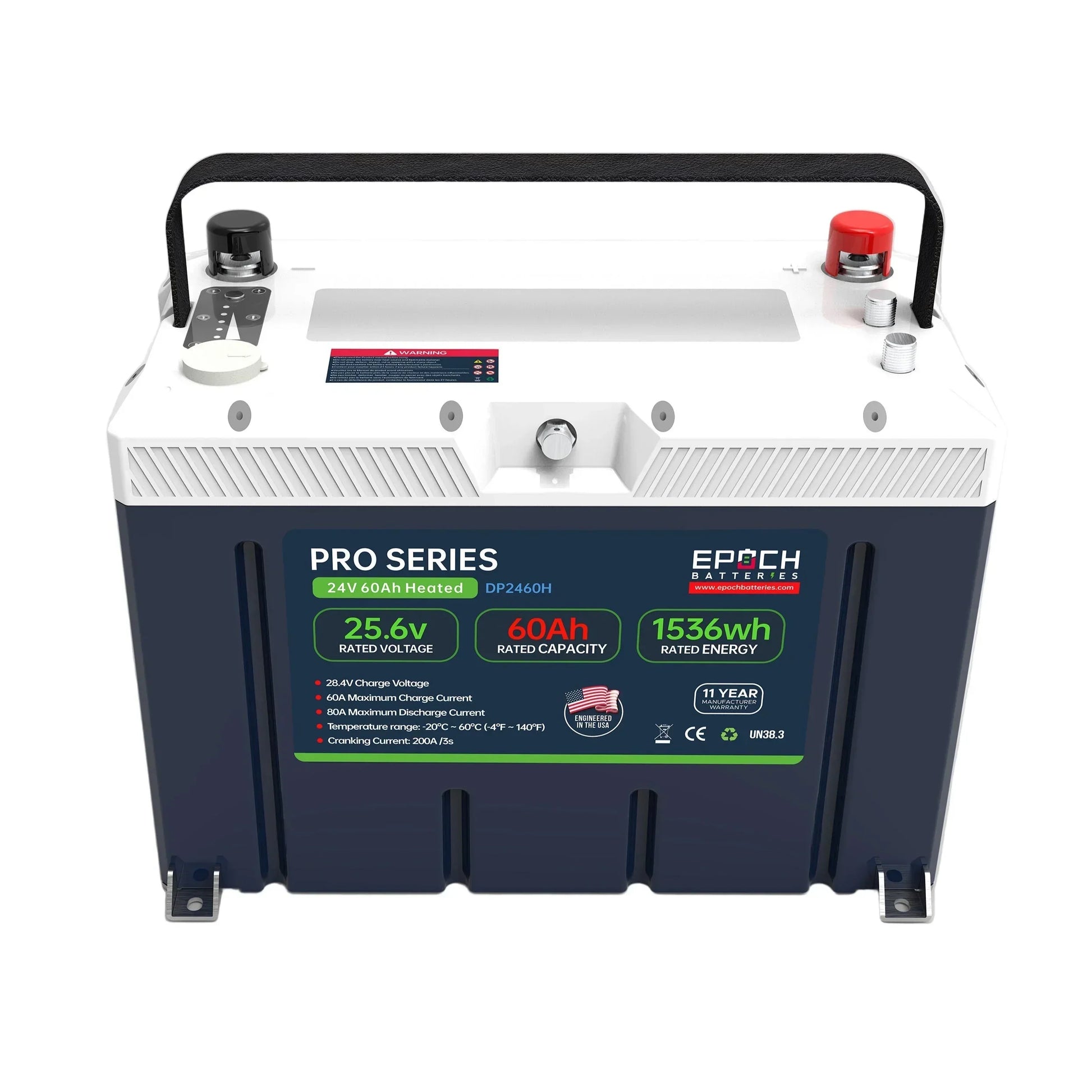

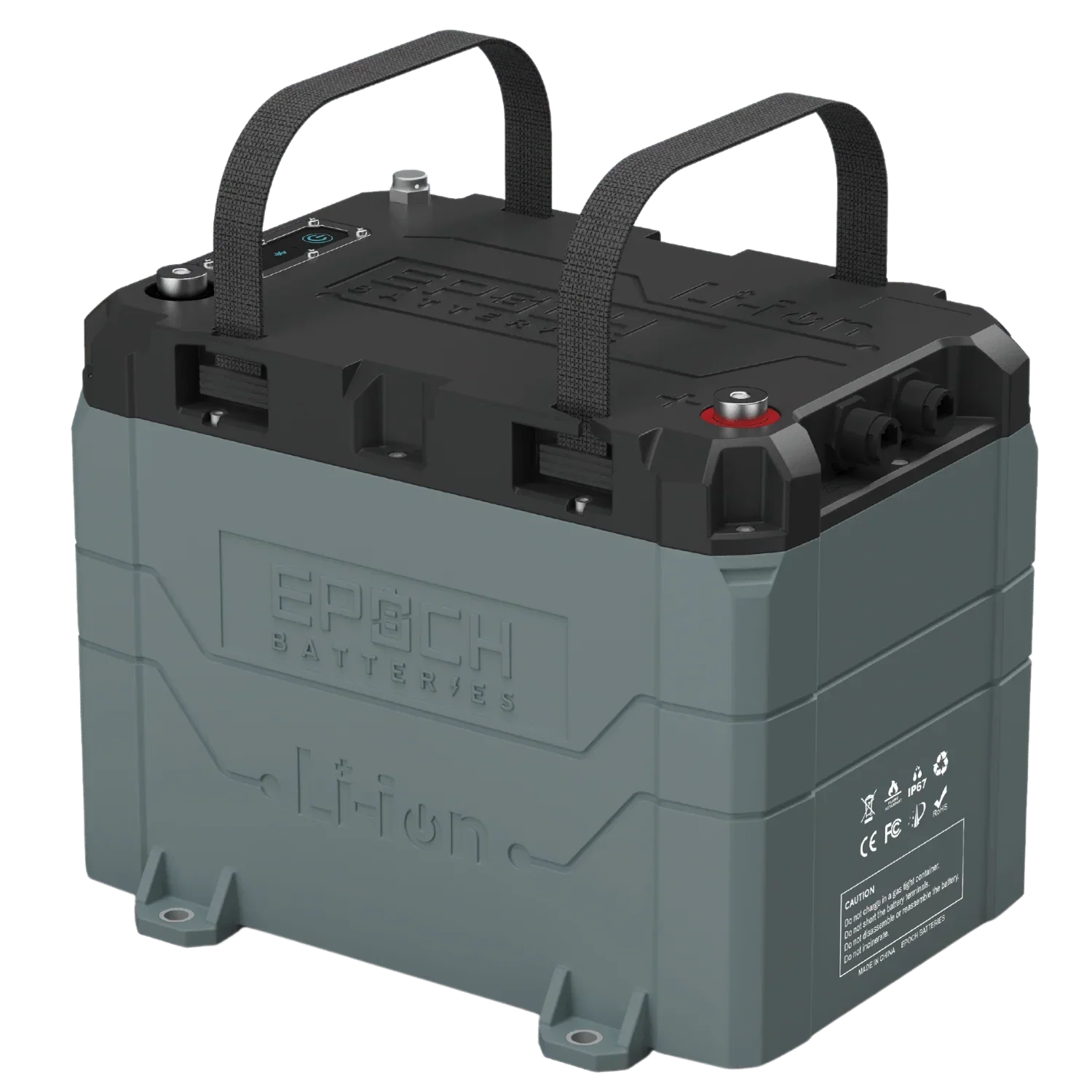

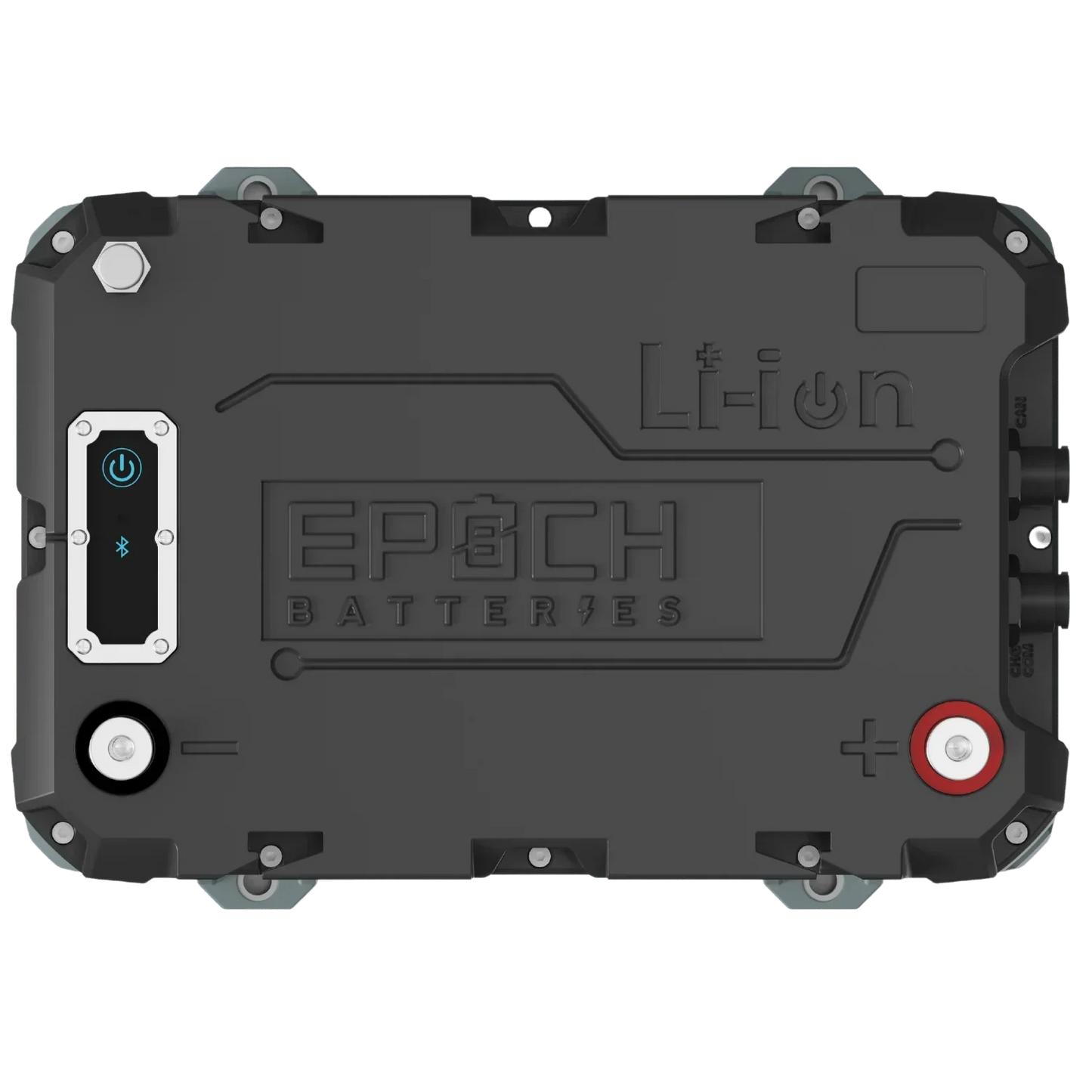

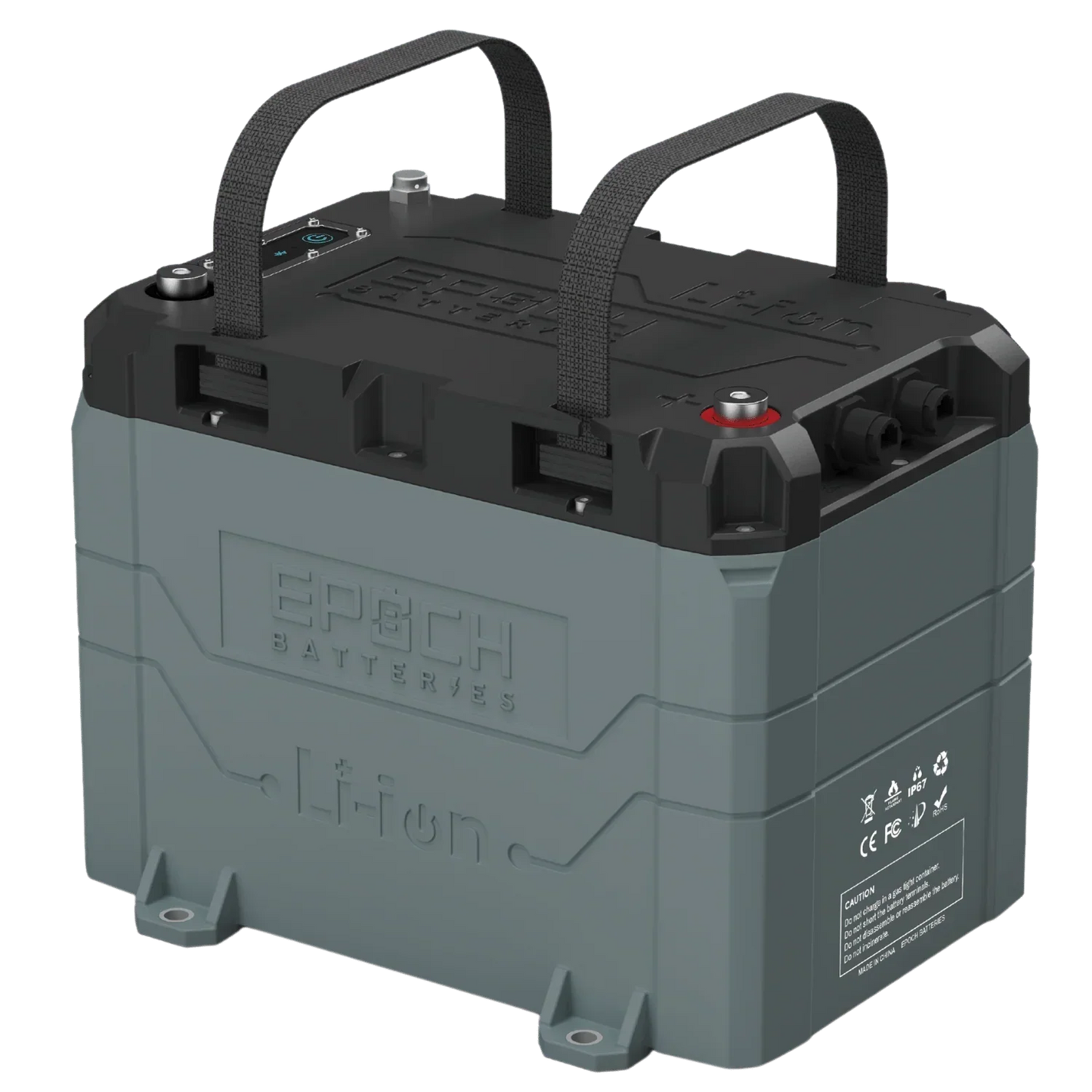

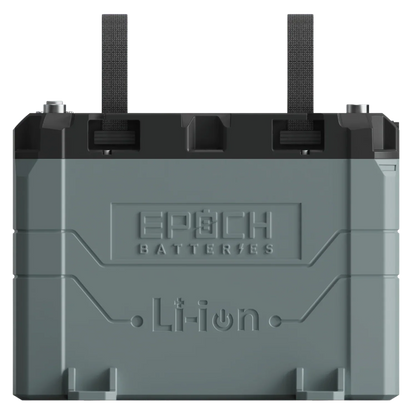

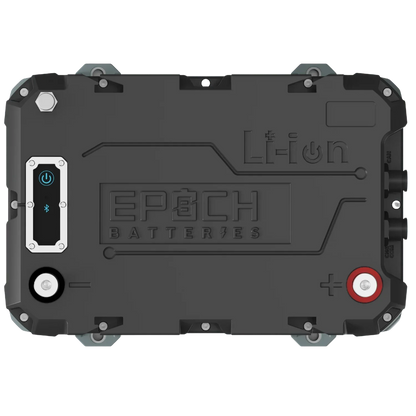

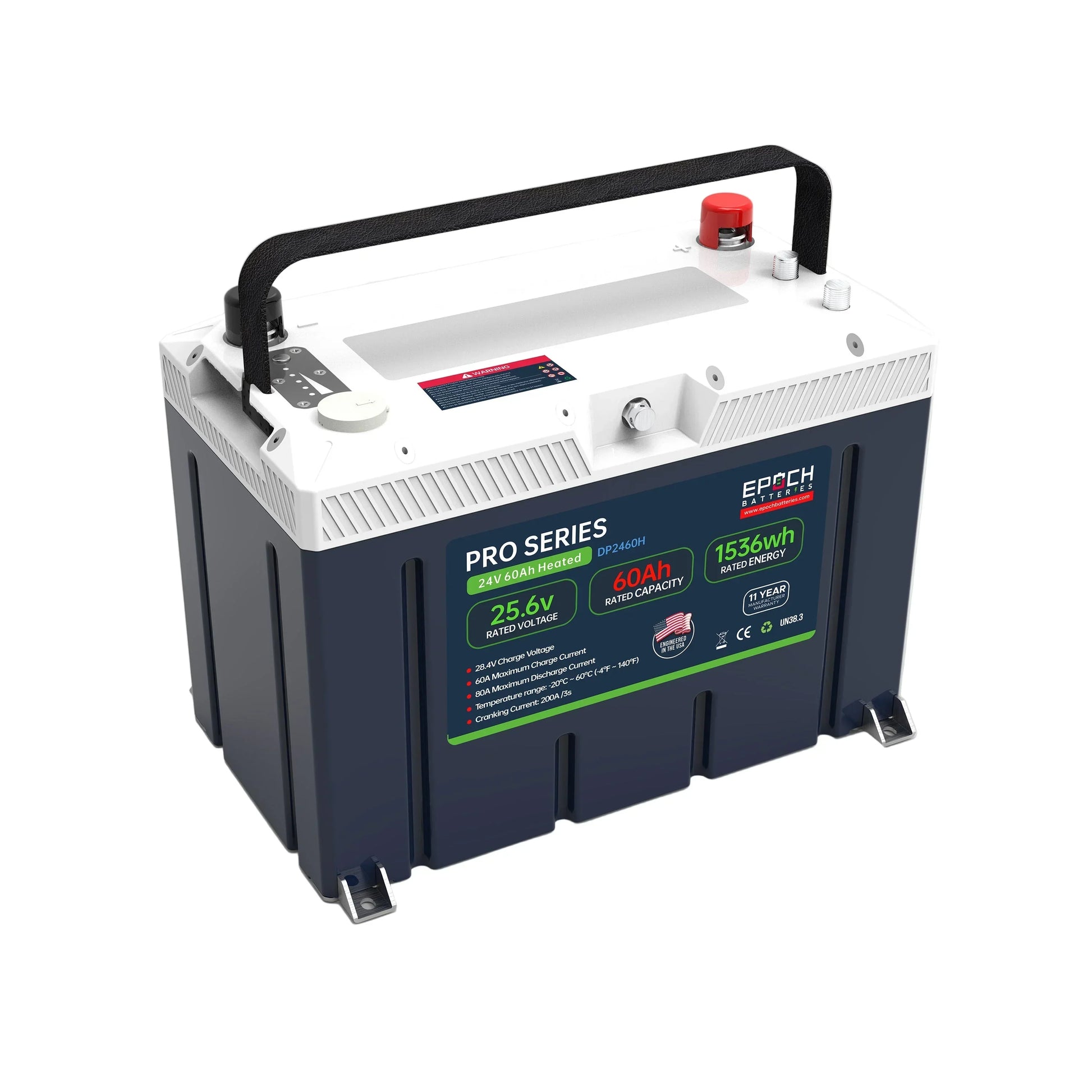

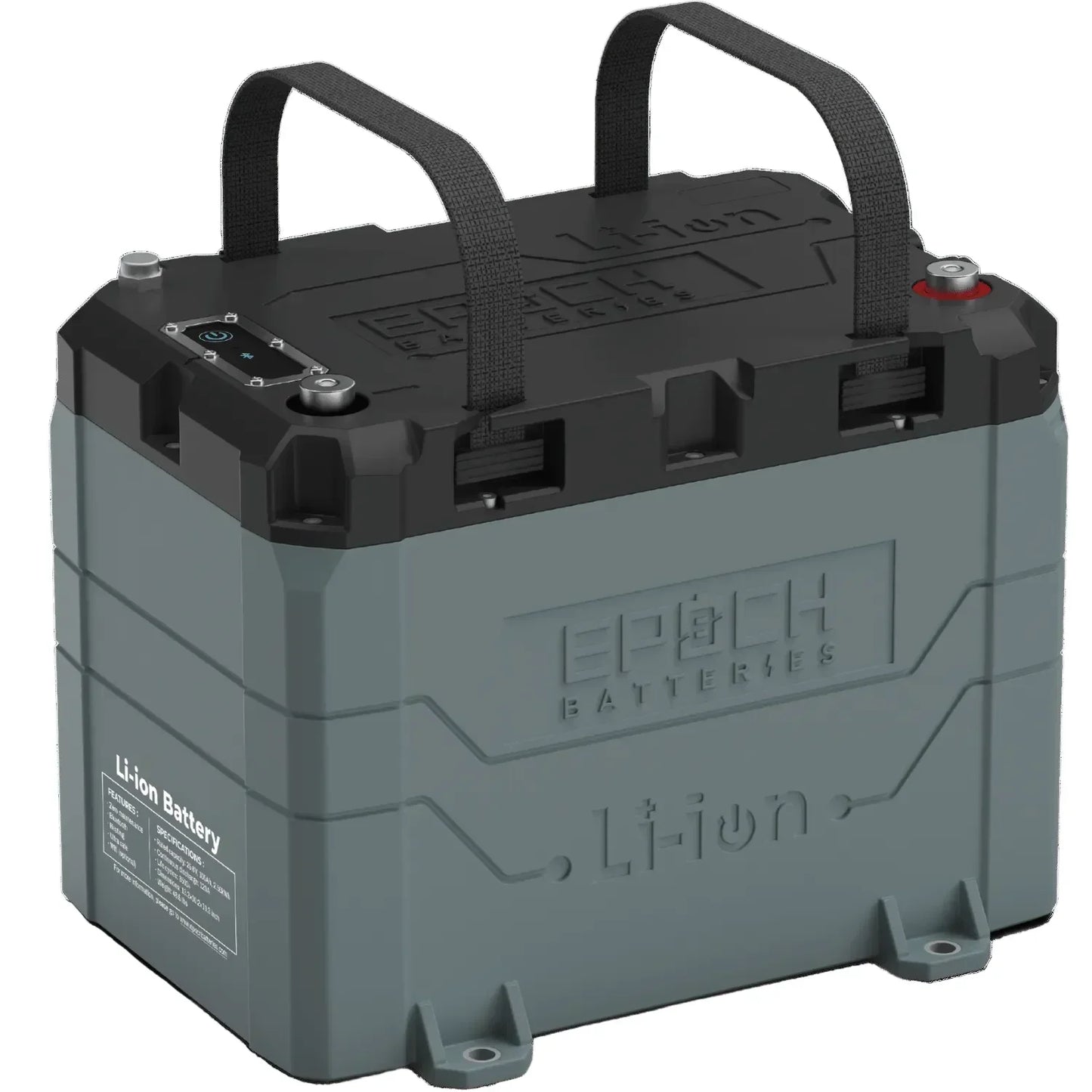

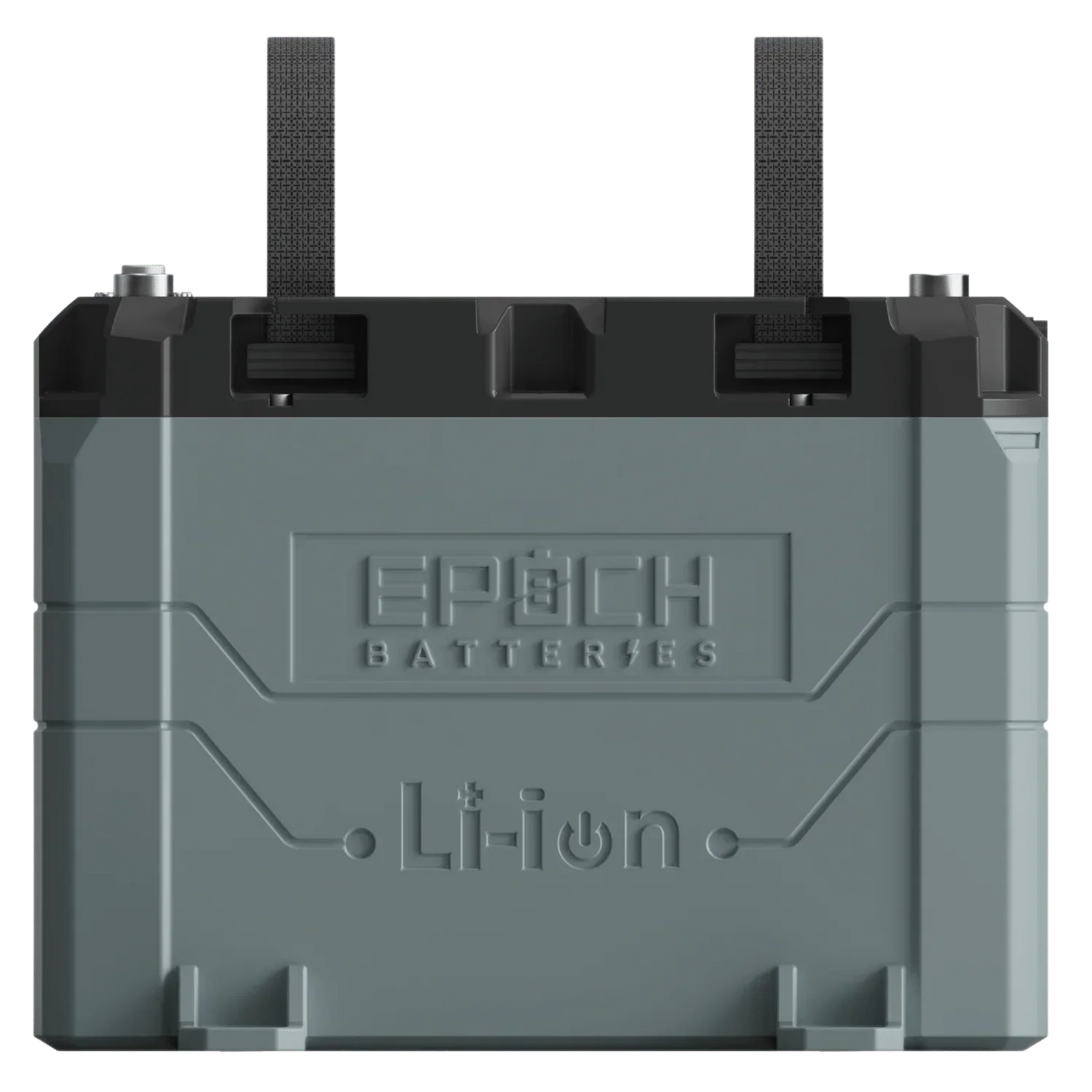

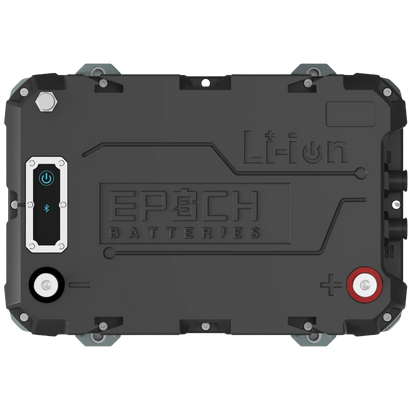

Epoch Batteries 24V 60Ah (1.54kWh) Pro Series - Heated, Bluetooth & Victron Comms LiFePO4 Battery

Epoch Batteries 24V 60Ah (1.54kWh) Pro Series - Heated, Bluetooth & Victron Comms LiFePO4 Battery

$699.00 USD
$699.00 USD
Sale Sold out
Shipping calculated at checkout.
Battery Capacity

features

• Solid design control box — Meets NEMA Type 4 & IP30 standard by lab test
• LCD color screen — Real-time status view and easy user interaction
• Breathing indicator light — Shows real-time charging status
• Control button — Adjust max output current & set scheduled charging time
• Water protection gasket — Resists 3-minute direct high-pressure water spray
• TPU cable — 14.76ft, excellent durability, cold resistant to -22°F
• ETL certified — Compliant with North American safety standards

Technical Specifications

Voltage: 240V/208V
Max Output Current: 40A (SS-PC1-100) / 32A (SS-HAY-100-32A)
Max Power: 8kW / 7kW
Frequency: 50/60Hz
Temperature Range: -22°F to 122°F
Humidity: 5–95%, no condensation
Connector: Type 1 (J1772)
Cable Length: 14.76ft (4.5m)
Altitude: ≤2000m (6,562ft)
Cooling: Natural
Safety Standards: ETL, UL2594, CSA C22.2
Scheduling: App / Timer control
Connectivity: Wi-Fi / Bluetooth
Warranty: 2 years

Packing Details

Package contents: Teison Portable Pro charger, TPU cable, user manual
Package weight: Please confirm with Ampere Authority


View full details

Epoch Batteries 24V 60Ah (1.54kWh) Pro Series - Heated, Bluetooth & Victron Comms LiFePO4 Battery



Description:

  • LiFePO4 Chemistry - GROUP 27 SIZE
  • 80A Max Continuous Discharge
  • 200A 3s Peak Discharge Current
  • HEATED - Internal heating allows for charging in sub-zero conditions

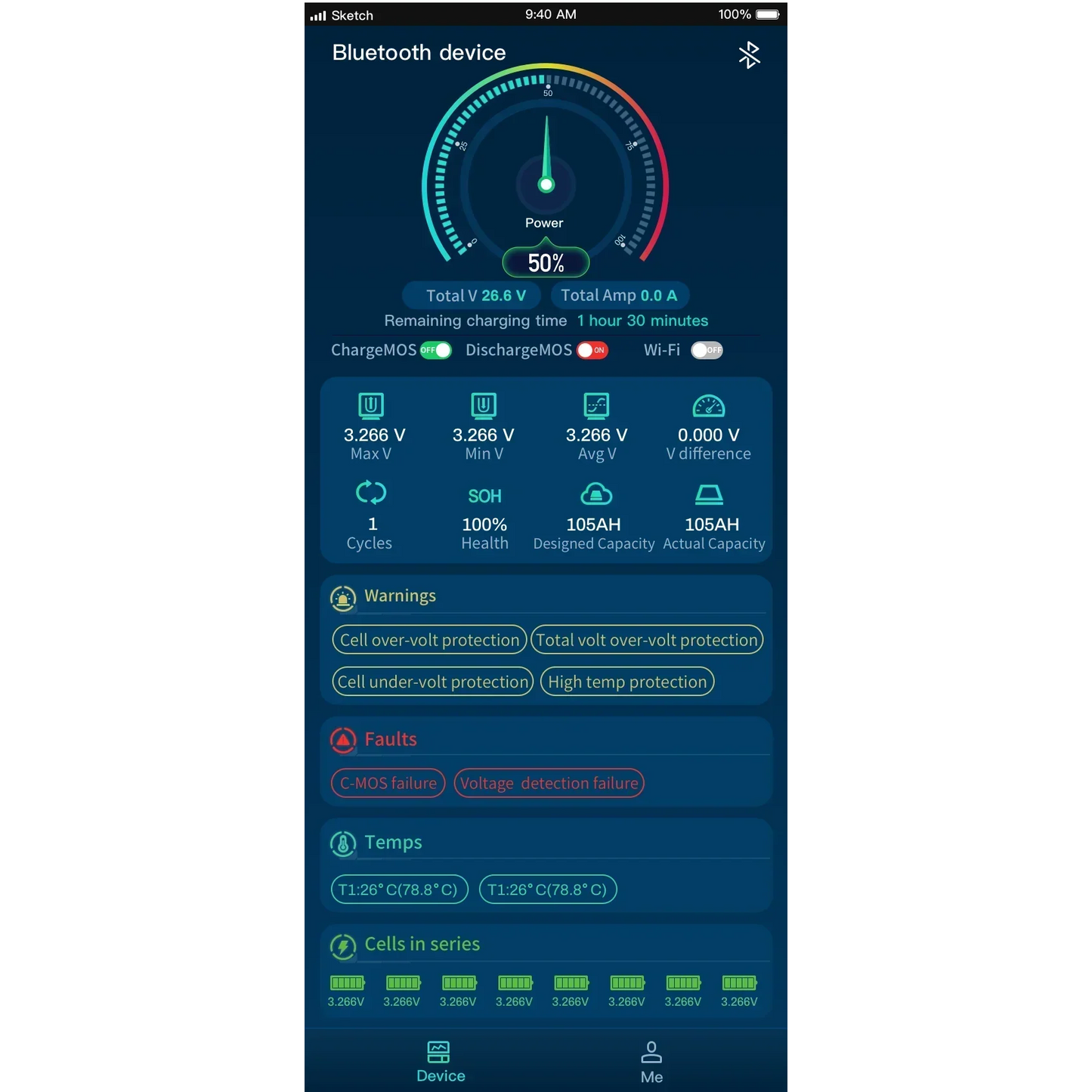

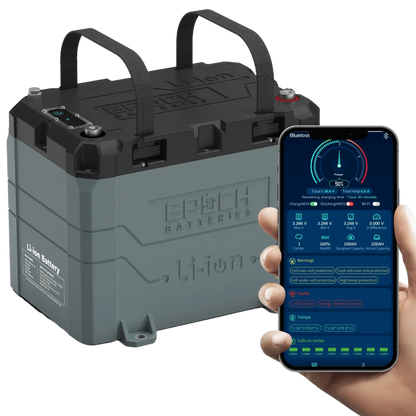

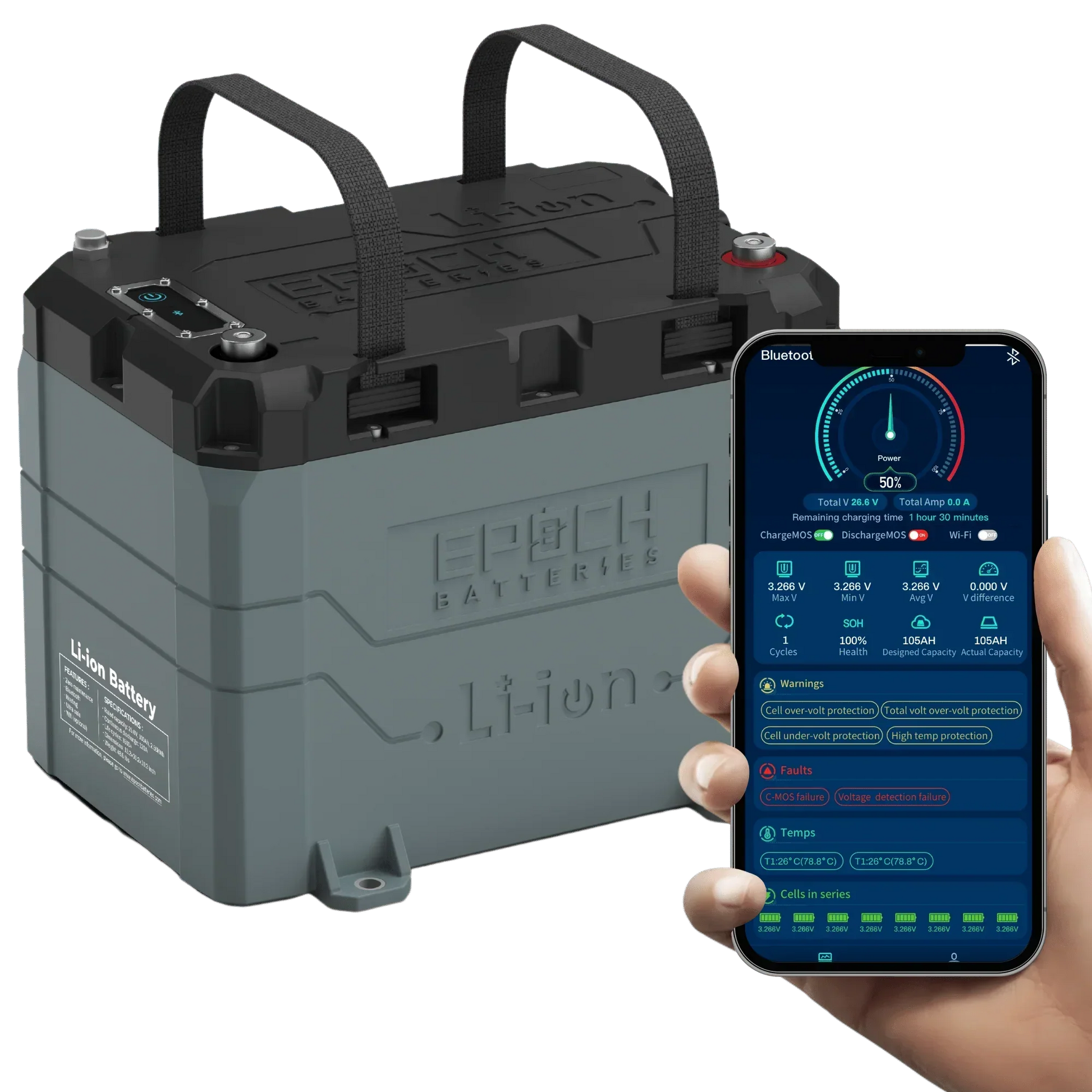

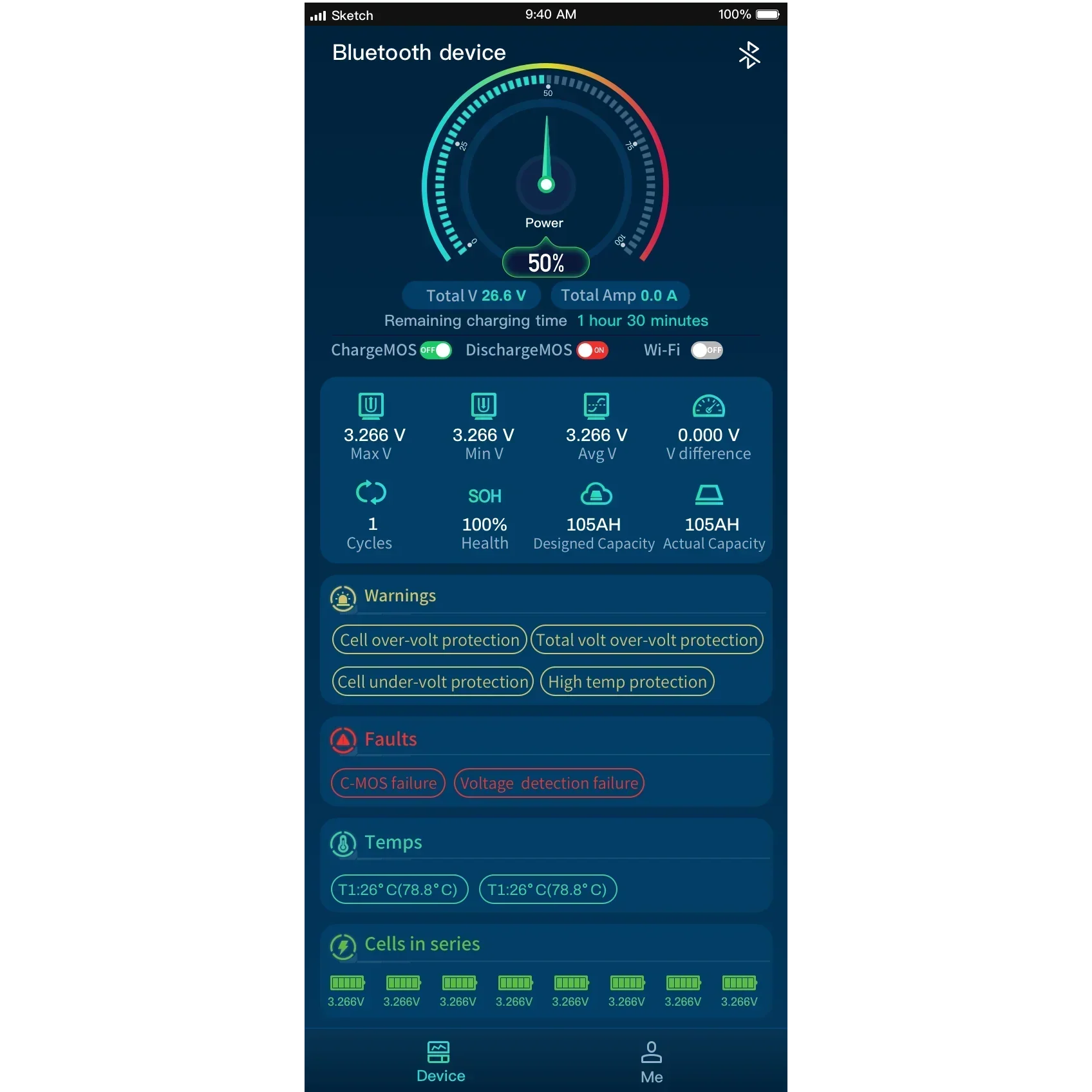

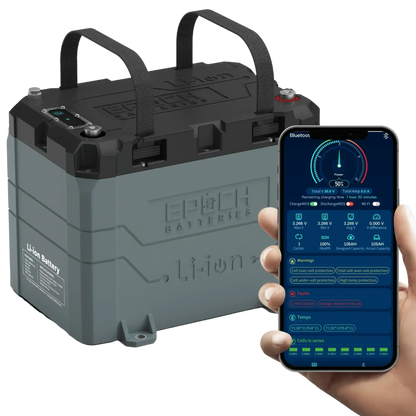

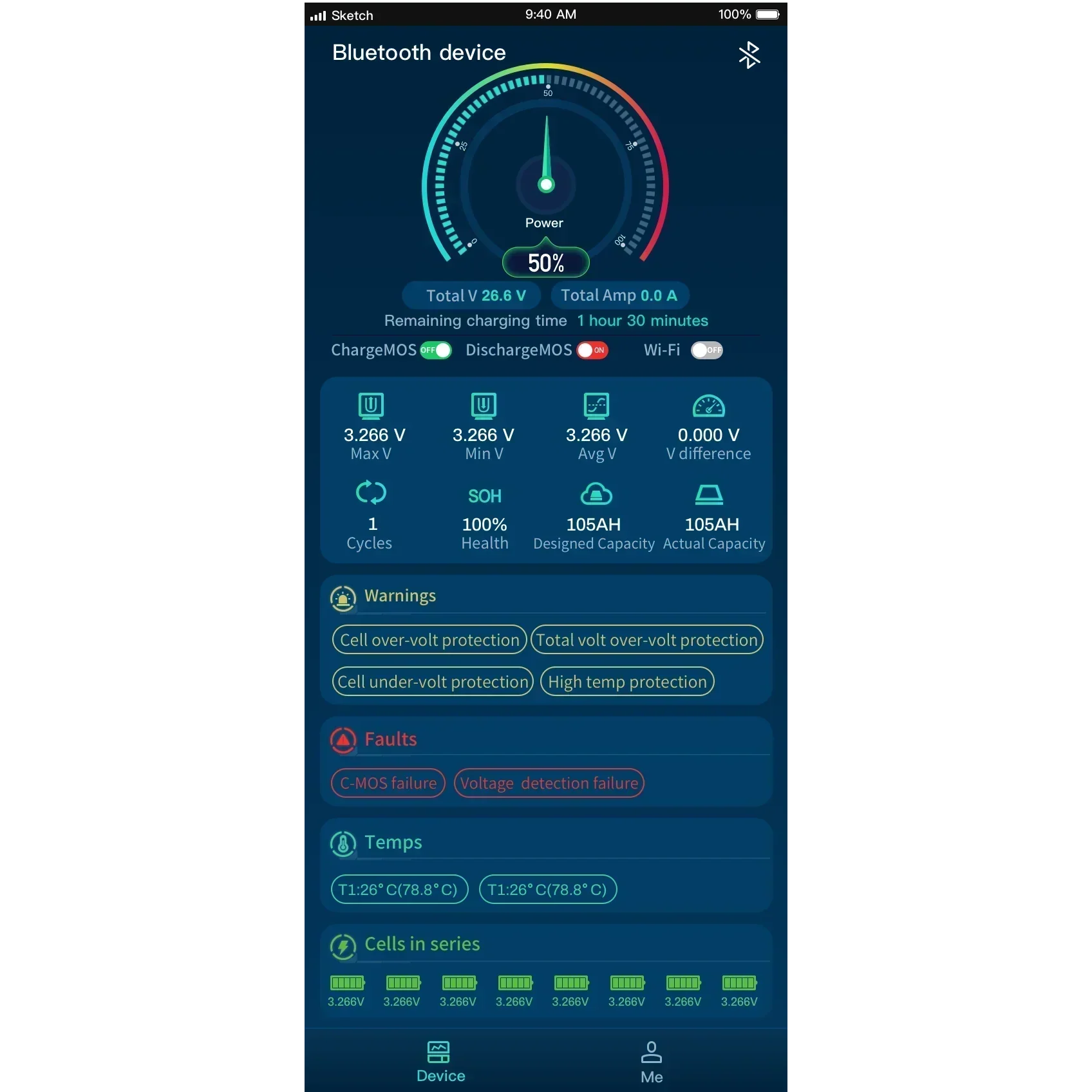

  • BLUETOOTH - iOS and Android Apps
  • BLUETOOTH - Over the air Firmware update via the app
  • Victron Comms - Communicate all battery information directly to the Victron Ecosystem
  • IP67 Rated, Dust and WATERPROOF

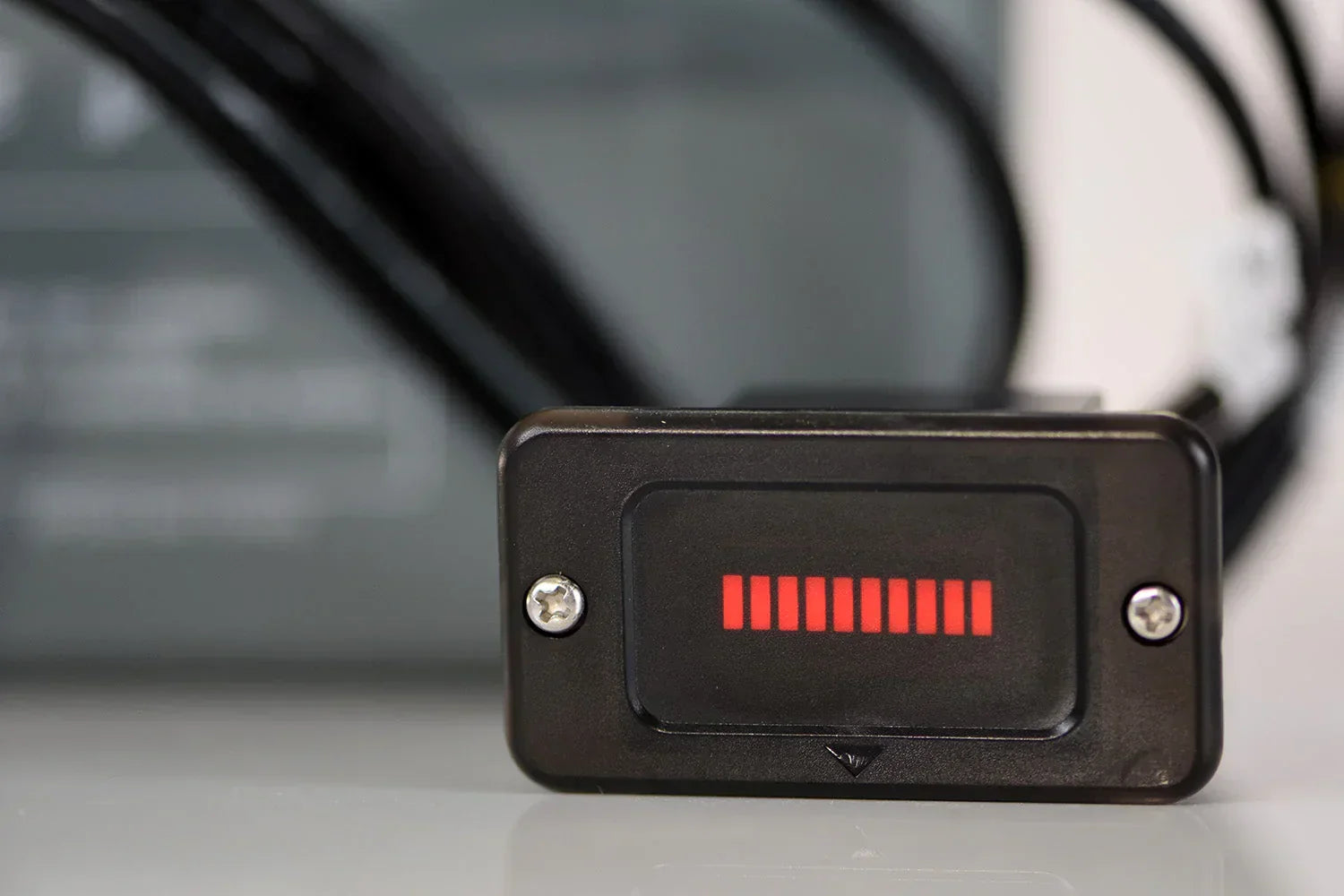

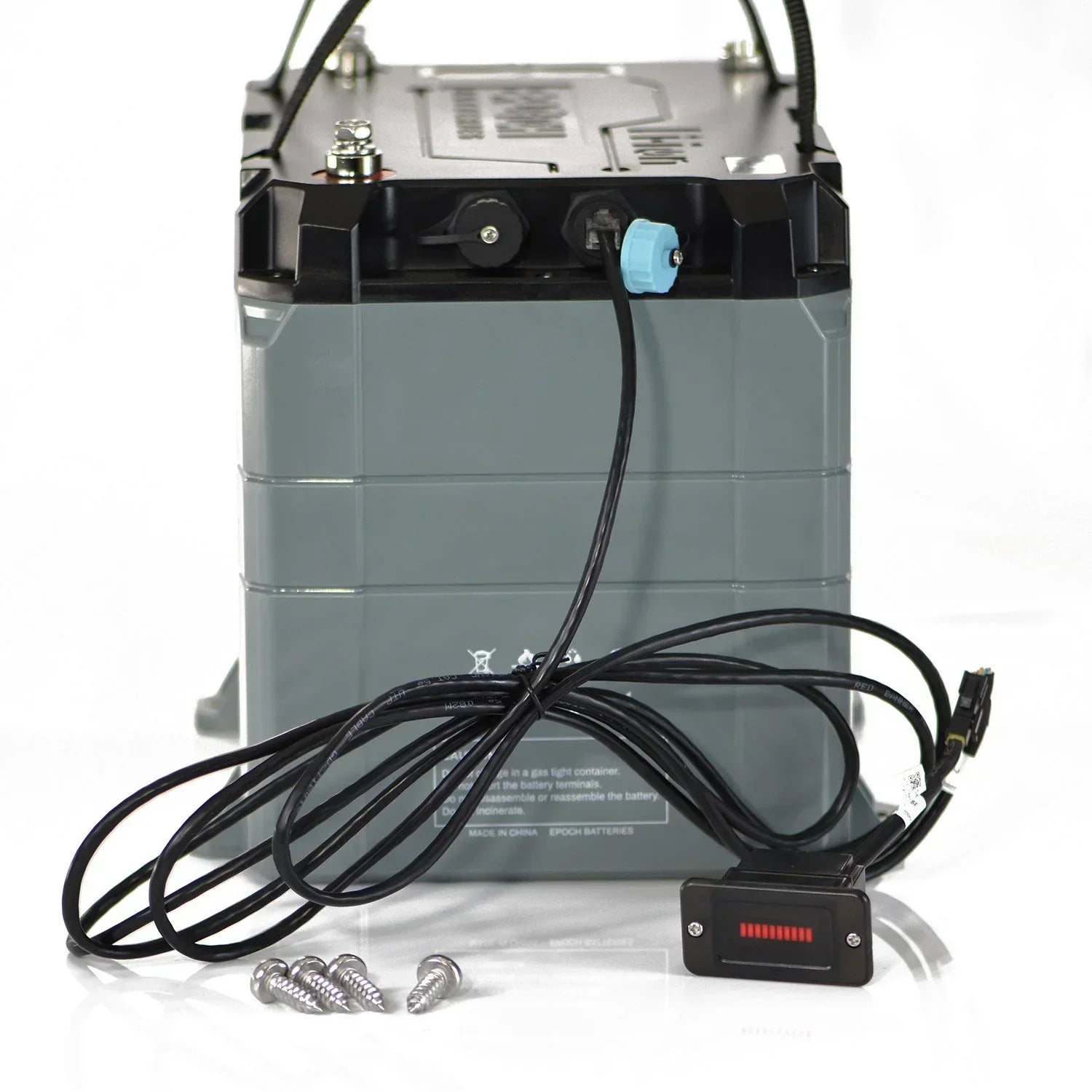

  • 5" Touch Screen Battery Gauge (Optional)
  • Built-in Smart Battery Management System (BMS)
  • Over charge and over discharge protection
  • Over current and short circuit protection
  • High & low temperature disconnects
  • Max (16) in Parallel
  • 6000+ Cycle life & Maintenance-free
  • 11 Year Manufacturer Warranty



Specifications:

Configuration
Chemistry: LiFePO4
Current
Ah Capacity: 60Ah
Max Continuous Discharge Amps: 80A
Max Charge Current Amps: 60A
Max Discharge Peak Current Amps: 200A 3 seconds
Series | Parallel: Max (16) in Parallel
Voltage
Voltage: 25.6V
Max Charge Voltage: 29.2V
Operating Voltage Range: 20 - 29.2V
Temperature
Charge Temp Range: -20°C (-4°F) / 55°C (131°F) (with heating)
Discharge Temp Range: -20°C (-4°F) / 60°C (140°F)
Storage Temp: 0°C (32°F) / 35°C (95°F) (Max 12 Months)


Weights & Dimensions:

Weight: 30
Dimensions
Length: 12.25 (inches)
Width: 6.75 (inches)
Height: 9 (inches)


Recommended Charging Settings:

Maximum Continuous Charge Current: 60A
Bulk/Absorption: 28.4V-28.8V
Absorption End Condition: Stop when charge current ≤ C/20 or 15 min max
Float Voltage: Disabled (preferred) or 26.6V-27.2V
Re-bulk: 26.4V
Temperature Compensation: 0 mV/°C (none)
Equalization: Disabled
Battery Charge Temperature Range: -20°C (-4°F) / 55°C (131°F) (with self-heating)
BMS High Voltage Cutoff: 29.2V
SoC Recalibration: 29.2V
