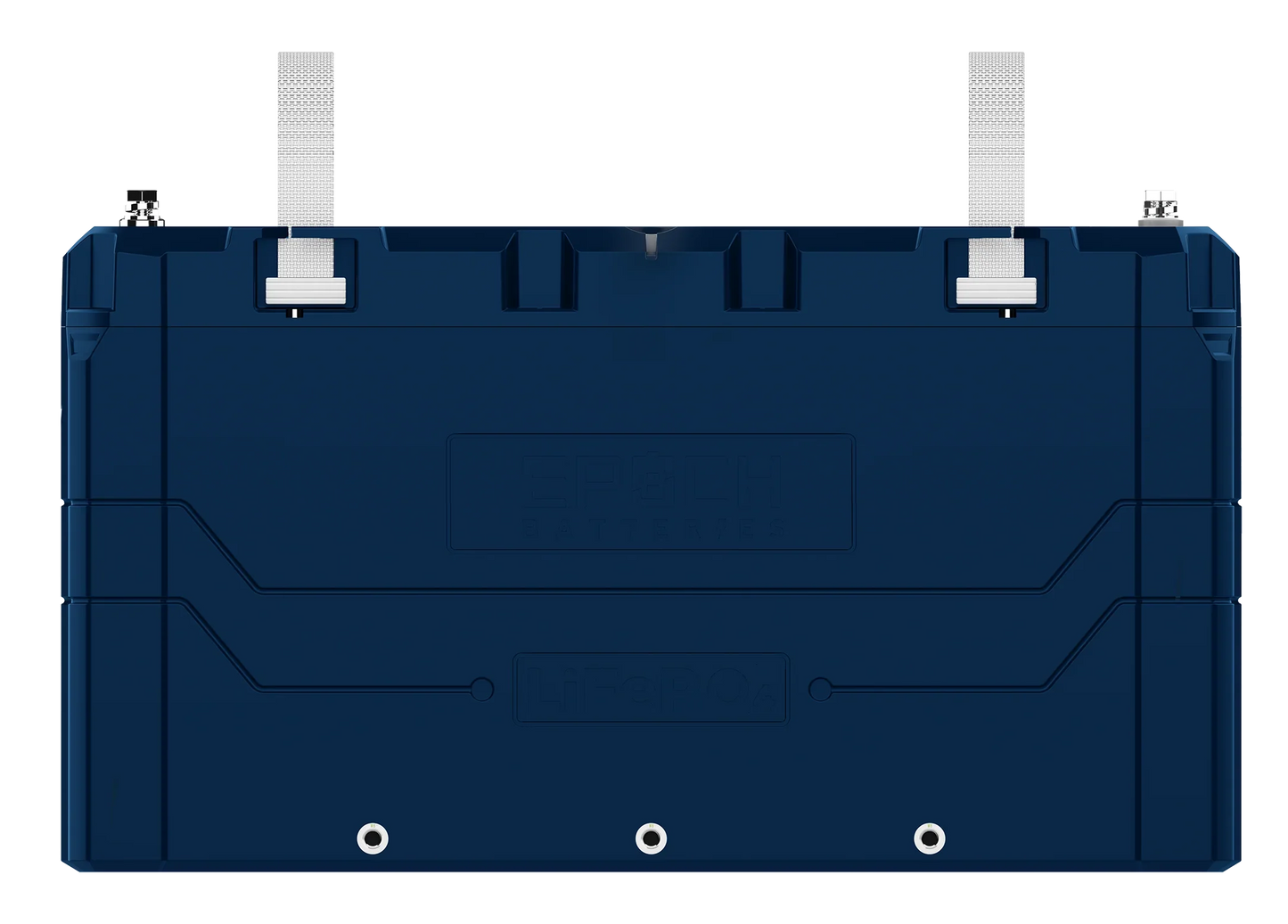

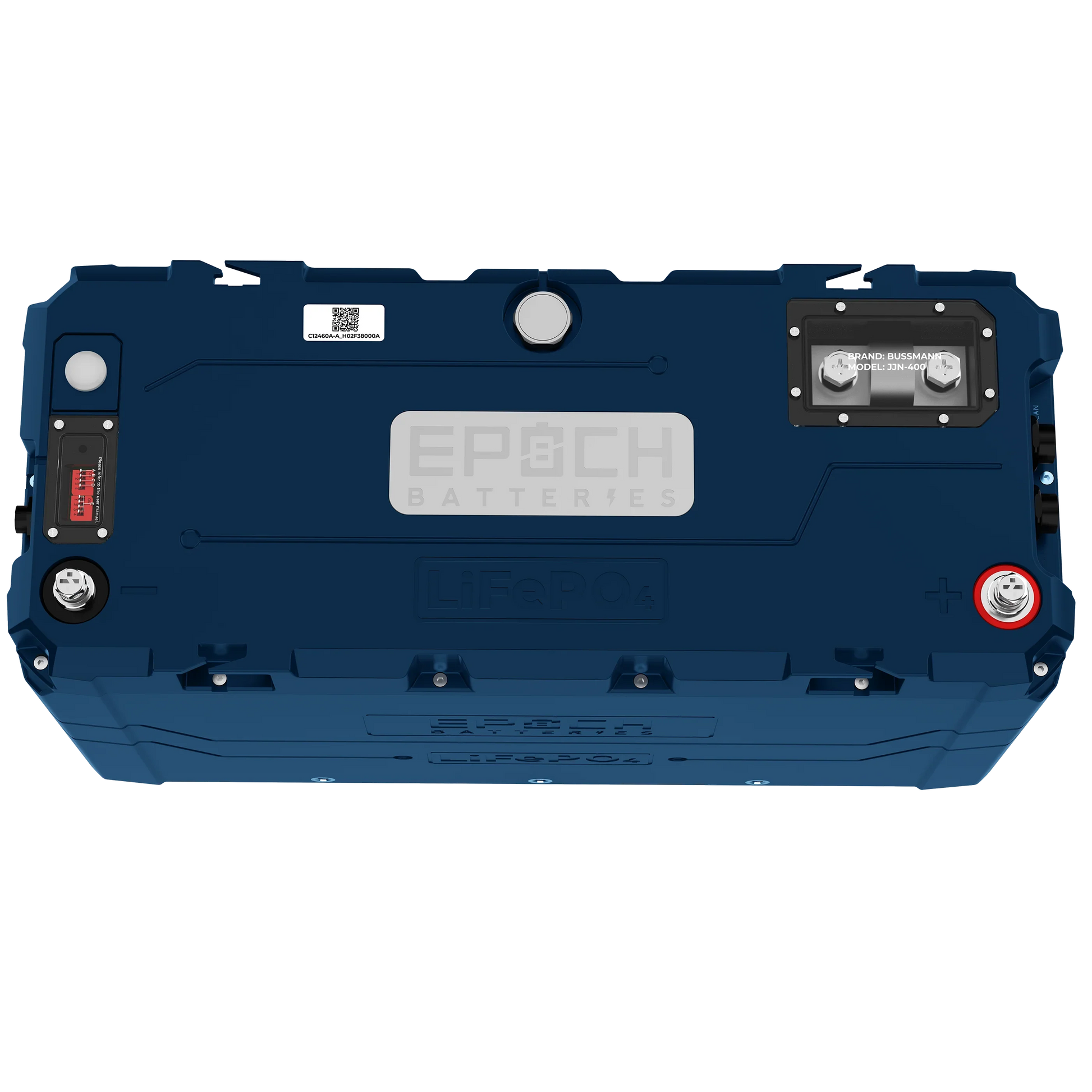

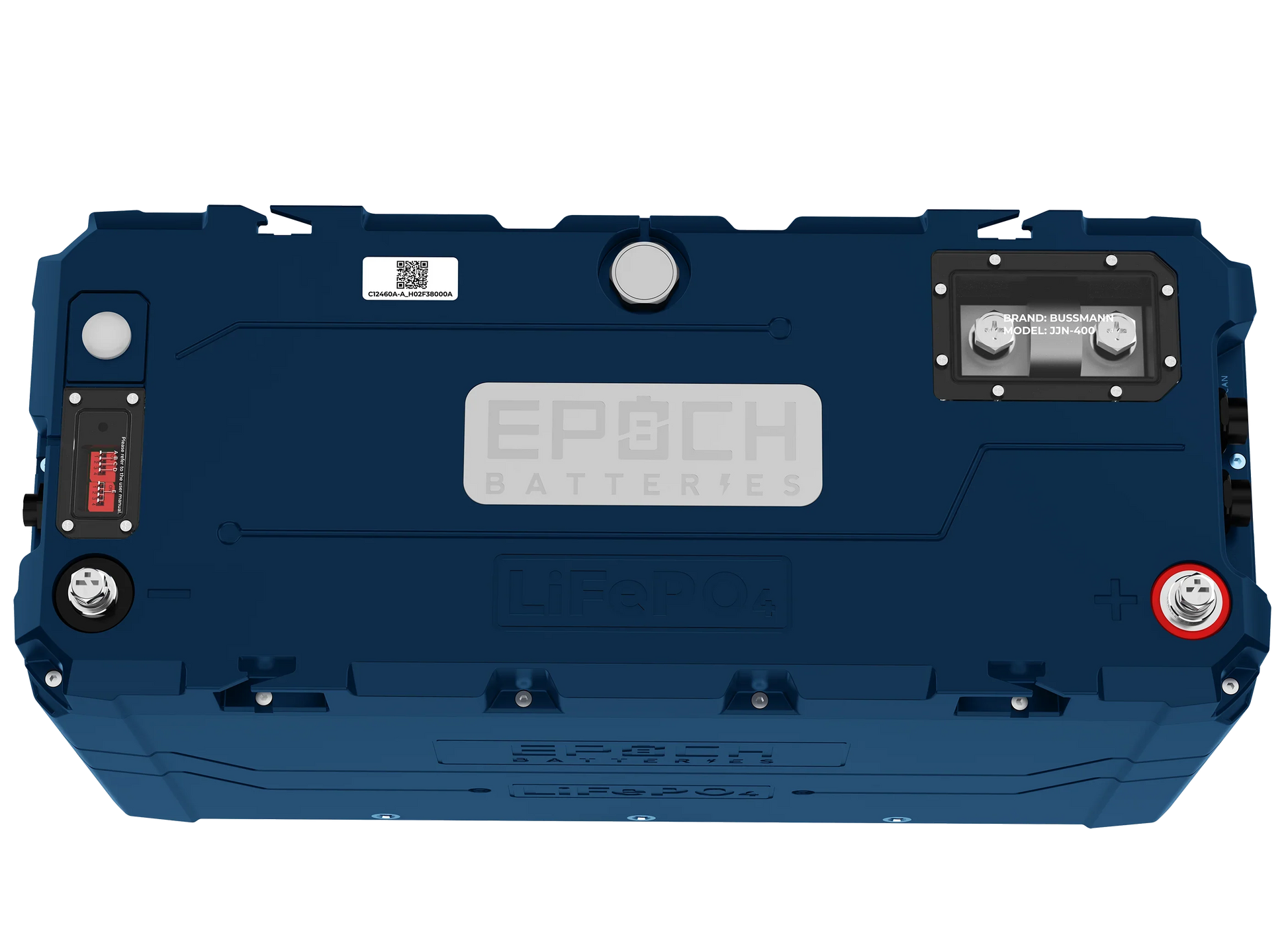

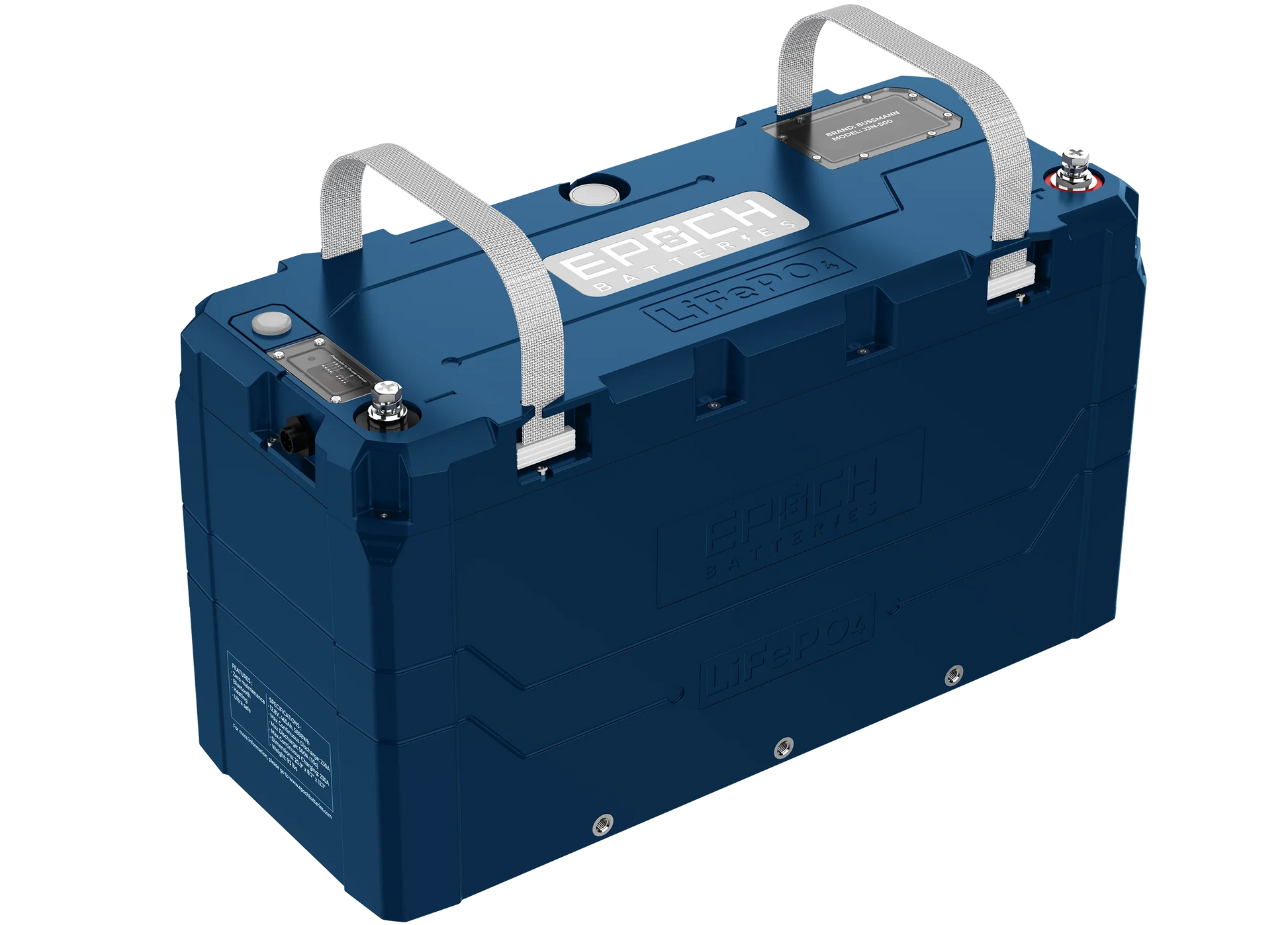

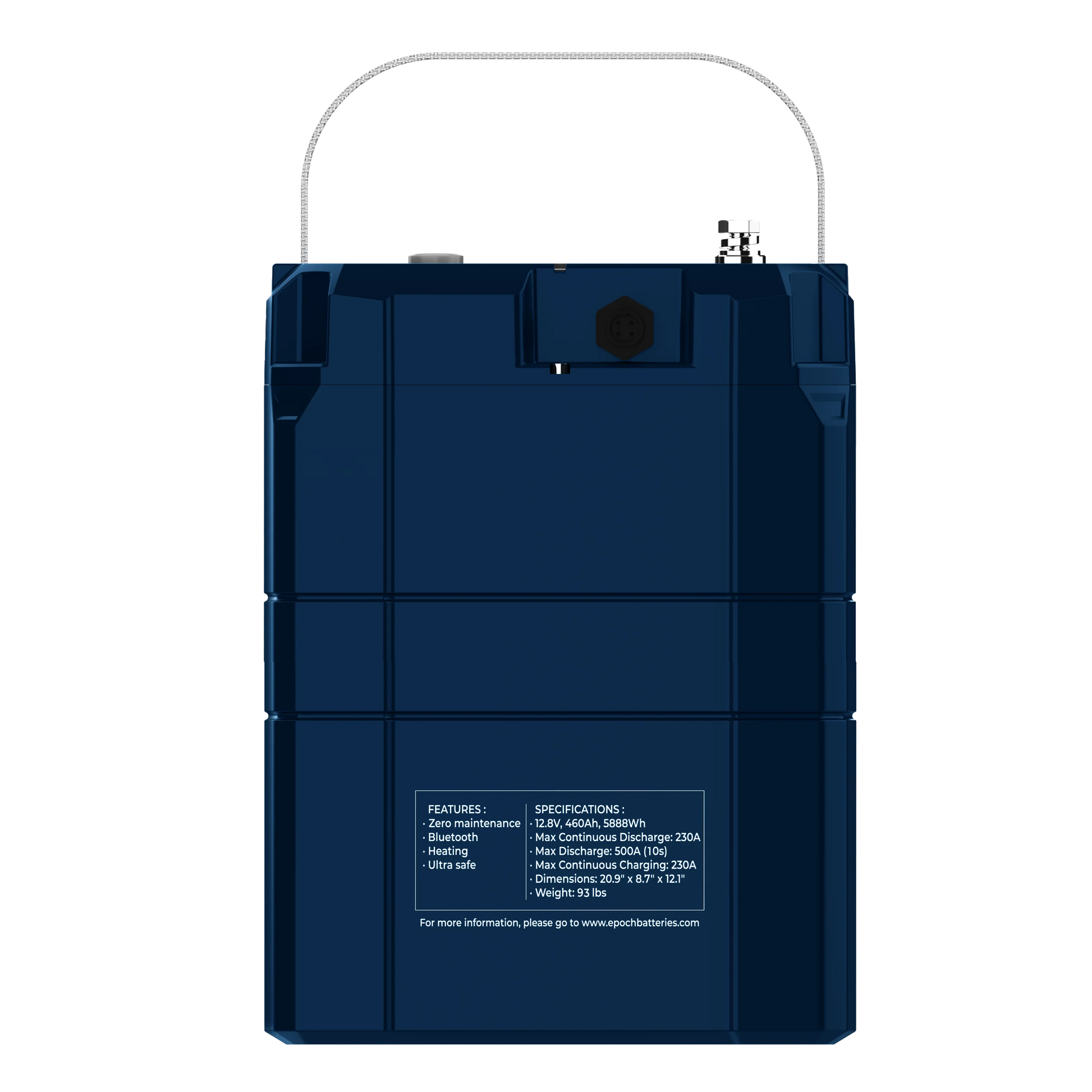

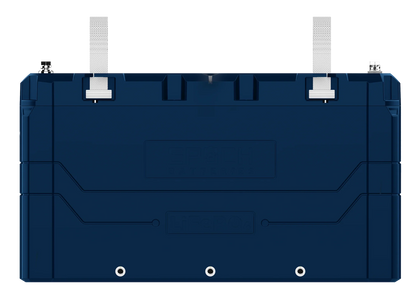

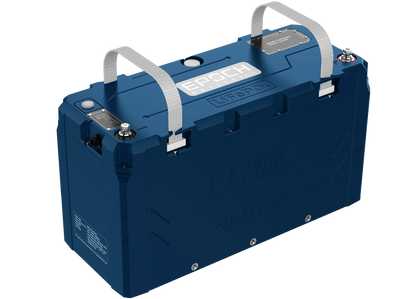

Epoch Batteries 12V 460Ah V2-T Elite Series LiFePO4 Battery
Engineered for high-demand energy systems, the V2-T Elite delivers dependable 12V LiFePO4 storage with integrated heating, Bluetooth, and Victron DVCC compatibility for remote management. Ideal for off-grid solar, marine, RVs, and critical backup power where long cycle life matters.
Performance specifications
- Cell configuration: 4S2P; nominal voltage 12.8V; capacity 460Ah; energy 5.89kWh
- Max continuous discharge: 230A @ 25°C; max continuous charge: 210A @ 25°C
- Discharge peak: 500A (30 s); 1,300A (1 s)
- Parallel/series: up to 4 in series or up to 16 in parallel
- Charge temperature range: -30°C to 55°C (with self‑heating); discharge: -20°C to 55°C; storage: 0°C to 35°C
- Weight and dimensions: 97 lb; 20.75" L × 8.5" W × 12" H
- Protection: built‑in smart BMS with over/under temperature, overcurrent and short‑circuit protection; IP67 rated
- Accessories: heated charging, external power button, battery gauge; Bluetooth (iOS/Android) and Victron DVCC communications
Safety features and certifications
- Internal fuse: UL60691 certified; user‑serviceable 400A Eaton Class T fuse
- Certified cells and packs: UL1642, U9540A, IEC 62619:2022; UL1973 certified pack
- Test/documentation: Test reports (JJN-400 Fuse; UL TEX150-R1N-XBZ); Safety Data Sheet (SDS); updated user manual
- Environmental/operational: IP67
Installation and maintenance
- Fusing: install a 400A Eaton Class T fuse in the DC feed
- System scaling: parallel up to 16 batteries; plan for balanced load sharing
- Mounting: secure, vibration‑resistant, with adequate ventilation
- Maintenance: no routine balancing; monitor via Bluetooth and ensure firmware updates
Warranty and service
11‑year manufacturer warranty with 4000+ cycle life. Includes access to updated documentation (User Manual updated 03/18/2026) and SDS, plus technical support and replacement parts under warranty.
Epoch Batteries 12V 460Ah (5.89kWh) V2-T Elite Series - Heated & Bluetooth & Victron Comms LiFePO4 Battery
- LiFePO4 Chemistry
- 460Ah Capacity
- 400A EATON Class T Fuse (User Serviceable)
- 230A @ 25°C Max CONTINUOUS Discharge (500A 30s Discharge)
- 210A @ 25°C Max CONTINUOUS Charge
- IP67 Rated, Dust and WATERPROOF
- HEATED - Internal heating for below 0C charging
- BLUETOOTH - iOS and Android Apps
- VICTRON Communications with distributed charge control via DVCC
- Parallel up to 16 batteries on 1 system

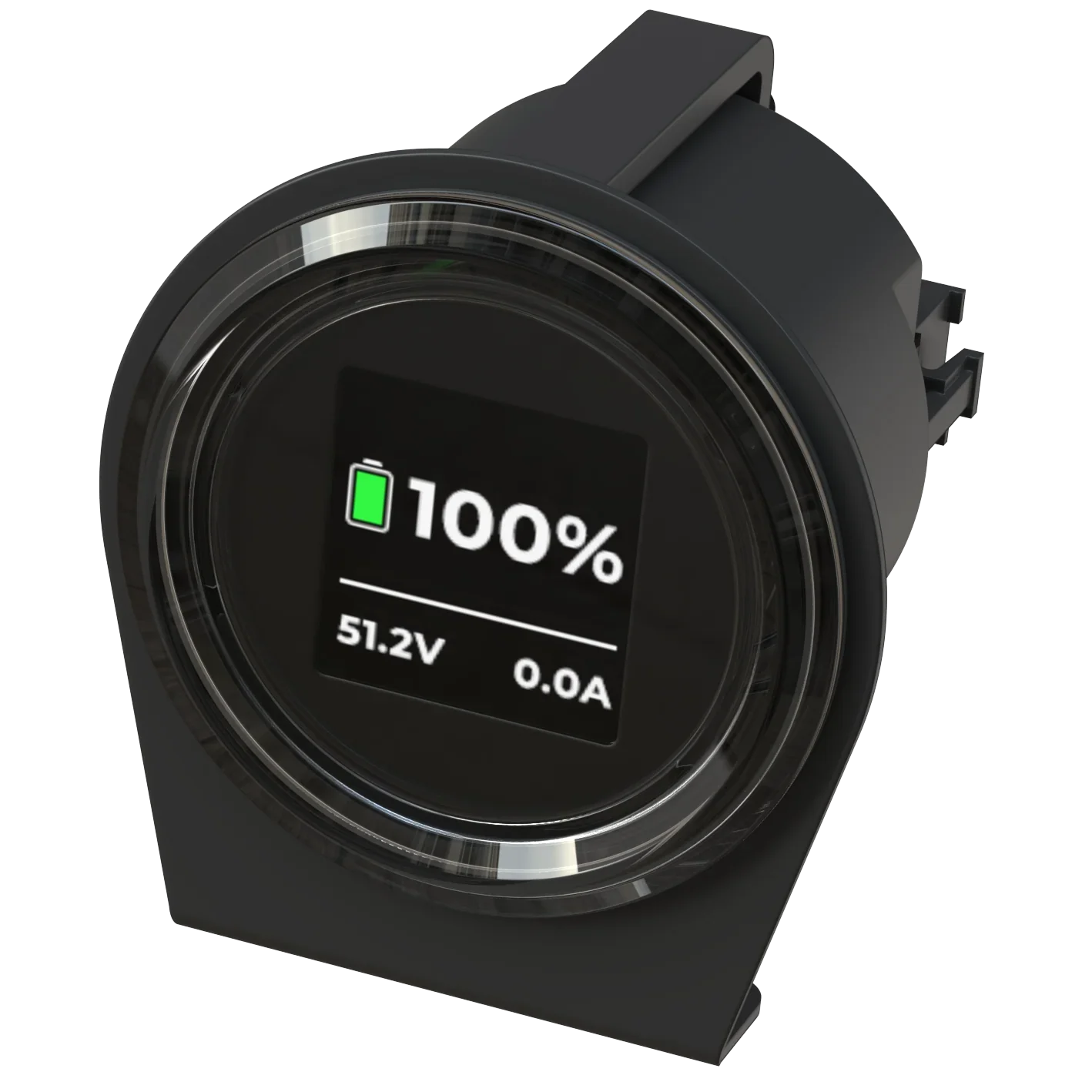

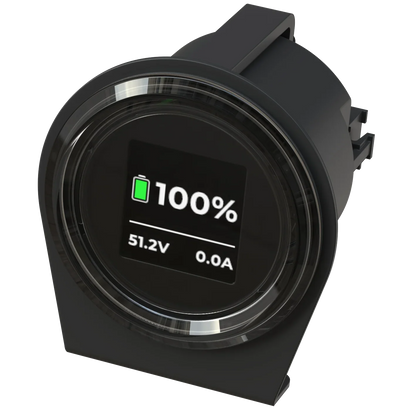

- External Power Button & Battery Gauge INCLUDED
- Built-in Smart Battery Management System (BMS)
- Over charge and over discharge protection
- Over current and short circuit protection
- High & low temperature disconnects
- UL60691 Certified Internal Fuse
- UL1642, U9540A, IEC 62619:2022 Certified Cells
- UL1973 Certified Pack
- 4000+ Cycle life & Maintenance-free
- 11 Year Manufacturer Warranty
Configuration
Cell Configuration: 4S2P
Chemistry: LiFePO4
Current
Ah Capacity: 460Ah
Max Continuous Discharge Amps: 230A @ 25°C
Max Charge Current Amps: 210A @ 25°C
Max Discharge Peak Current Amps: 500A (30 Seconds), 1300A (1 Second)
Series | Parallel: Max (4) in Series OR Max (16) in Parallel - 4S1P or 1S16P
Voltage
Voltage: 12.8V
Max Charge Voltage: 14.6V
Operating Voltage Range: 10.0 - 14.6V
Temperature
Charge Temp Range: -30°C (-22°F) / 55°C (131°F) (with self-heating)
Discharge Temp Range: -20°C (-4°F) / 55°C (131°F)
Storage Temp: 0°C (32°F) / 35°C (95°F)
Weight: 97 (LBS)
Dimensions
Length: 20.75 (inches)
Width: 8.5 (inches)
Height: 12 (inches)
