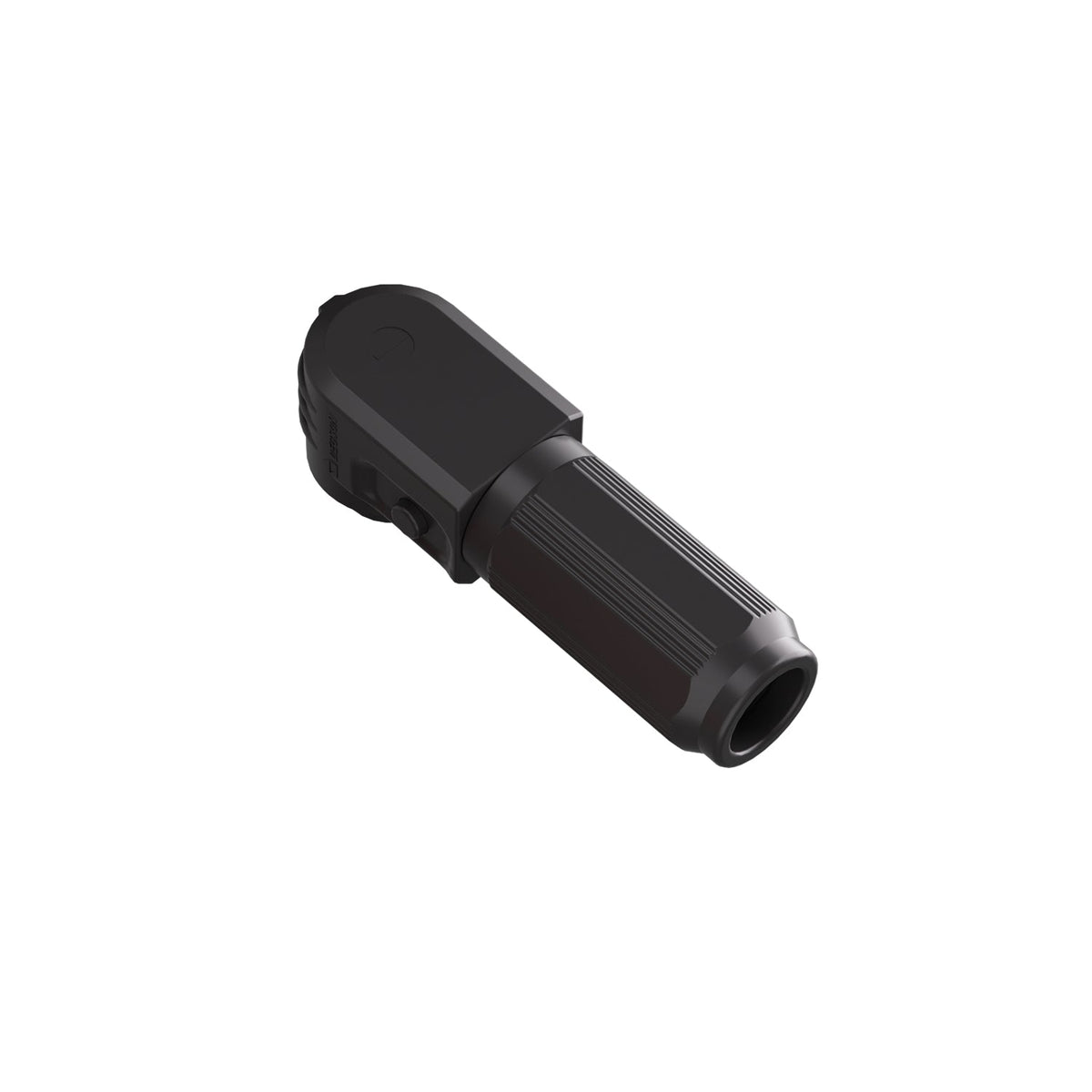

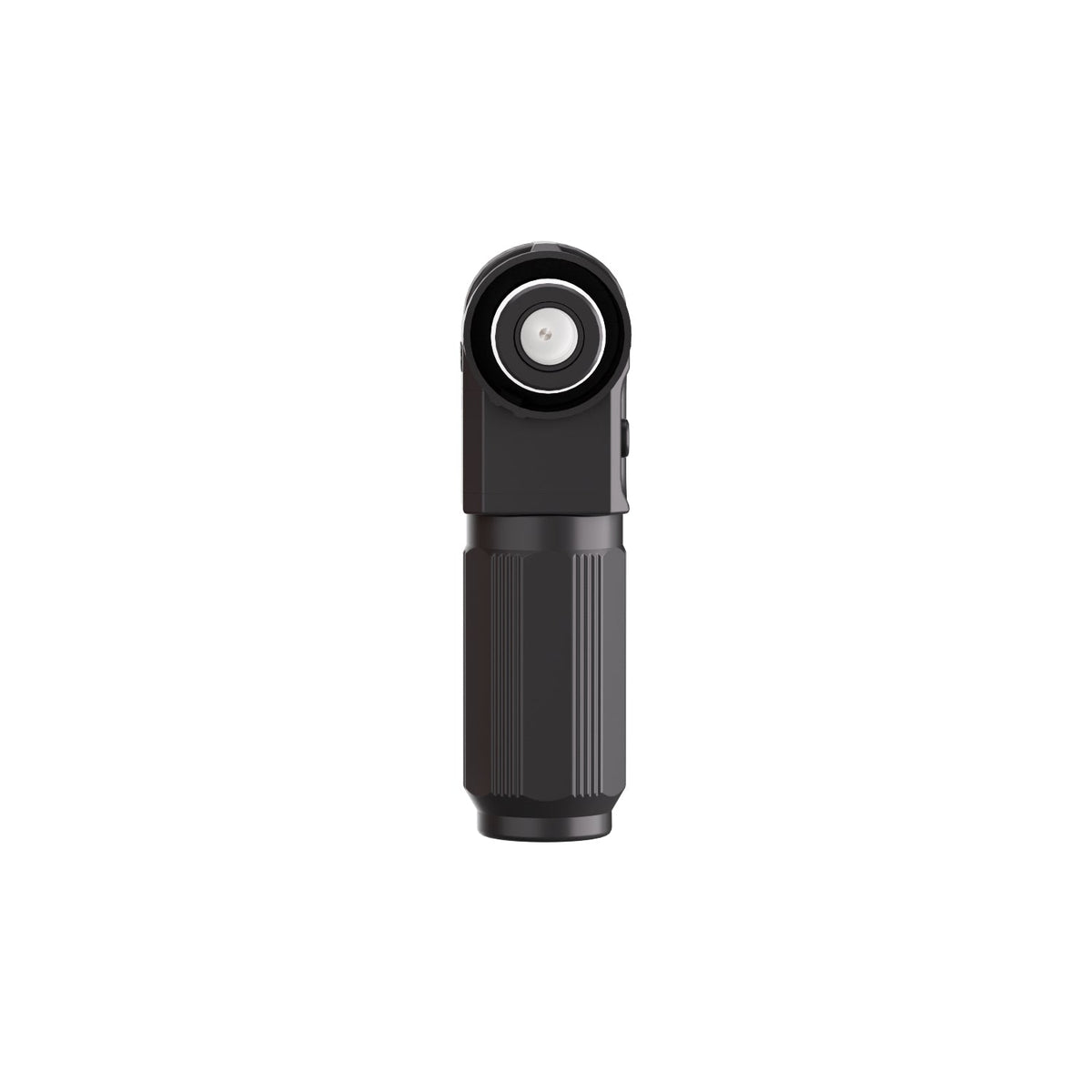

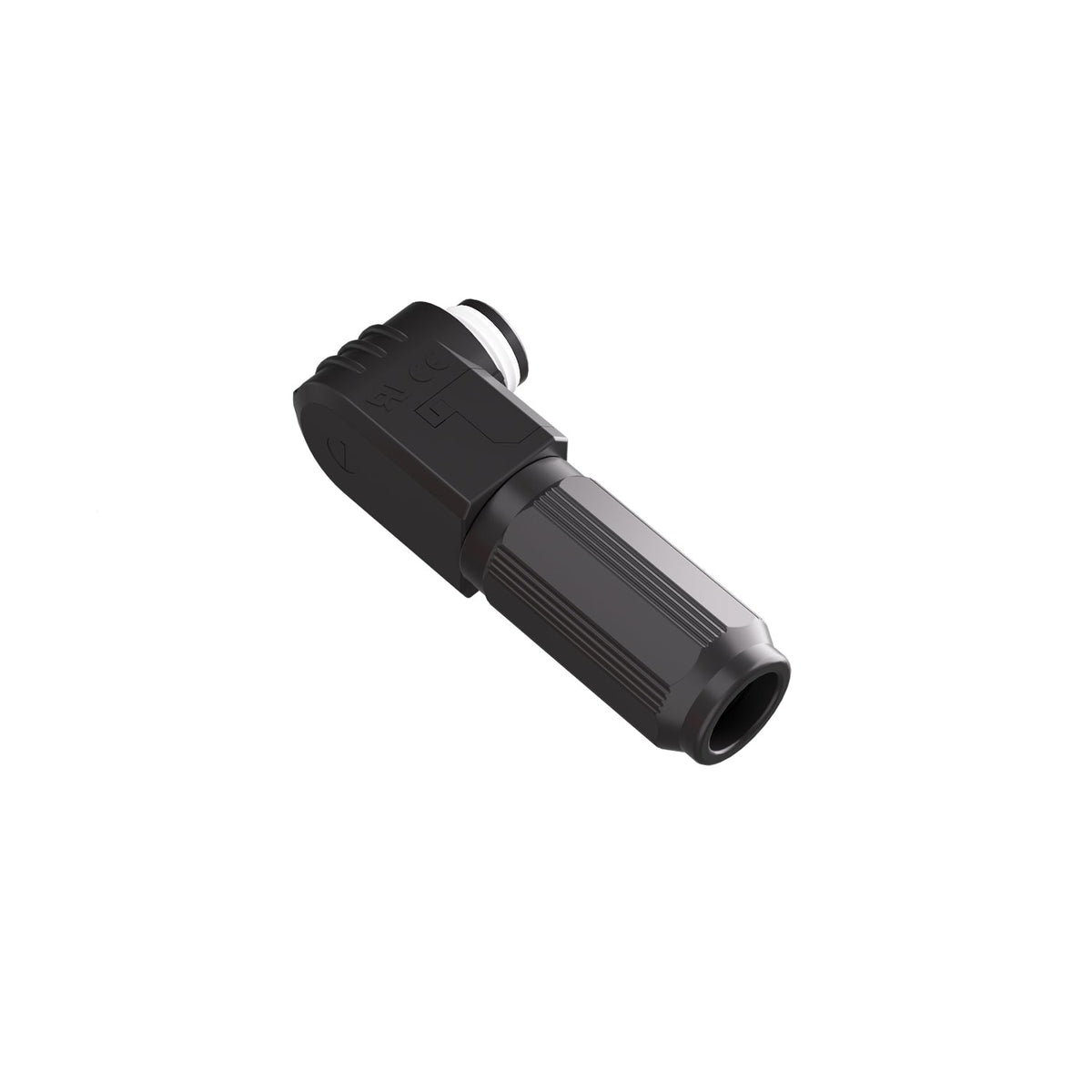

Energy Storage Connector | 120A 4AWG Wall-Mount DC Connector | ALPHA 5 PRO Battery Cable Connector

$20.79 USD

~~$25.99 USD~~ $20.79 USD

Sale Sold out

Shipping calculated at checkout.

Style Positive Plug Negative Plug

features

• Solid design control box — Meets NEMA Type 4 & IP30 standard by lab test
• LCD color screen — Real-time status view and easy user interaction
• Breathing indicator light — Shows real-time charging status
• Control button — Adjust max output current & set scheduled charging time
• Water protection gasket — Resists 3-minute direct high-pressure water spray
• TPU cable — 14.76ft, excellent durability, cold resistant to -22°F
• ETL certified — Compliant with North American safety standards

Technical Specifications

Voltage: 240V/208V
Max Output Current: 40A (SS-PC1-100) / 32A (SS-HAY-100-32A)
Max Power: 8kW / 7kW
Frequency: 50/60Hz
Temperature Range: -22°F to 122°F
Humidity: 5–95%, no condensation
Connector: Type 1 (J1772)
Cable Length: 14.76ft (4.5m)
Altitude: ≤2000m (6,562ft)
Cooling: Natural
Safety Standards: ETL, UL2594, CSA C22.2
Scheduling: App / Timer control
Connectivity: Wi-Fi / Bluetooth
Warranty: 2 years

Packing Details

View full details

Equipment Type and Primary Applications

Wall-mount DC energy storage connector for custom battery cable connections to RICH SOLAR ALPHA 5 PRO batteries. This 4AWG/25 mm² connector supports high-power DC battery applications, including compatible stationary energy storage installations and outdoor systems requiring mated IP67 protection.

Performance Specifications

Rated voltage: 1500 V DC; rated current: 120 A.
Contact resistance: ≤ 0.5 mΩ; dry insulation resistance: ≥ 5000 MΩ.
Dielectric withstand voltage: 6800 V/min.
Operating temperature: -40°F to 257°F (-40°C to +125°C).
IP67 protection applies when the connector is mated.

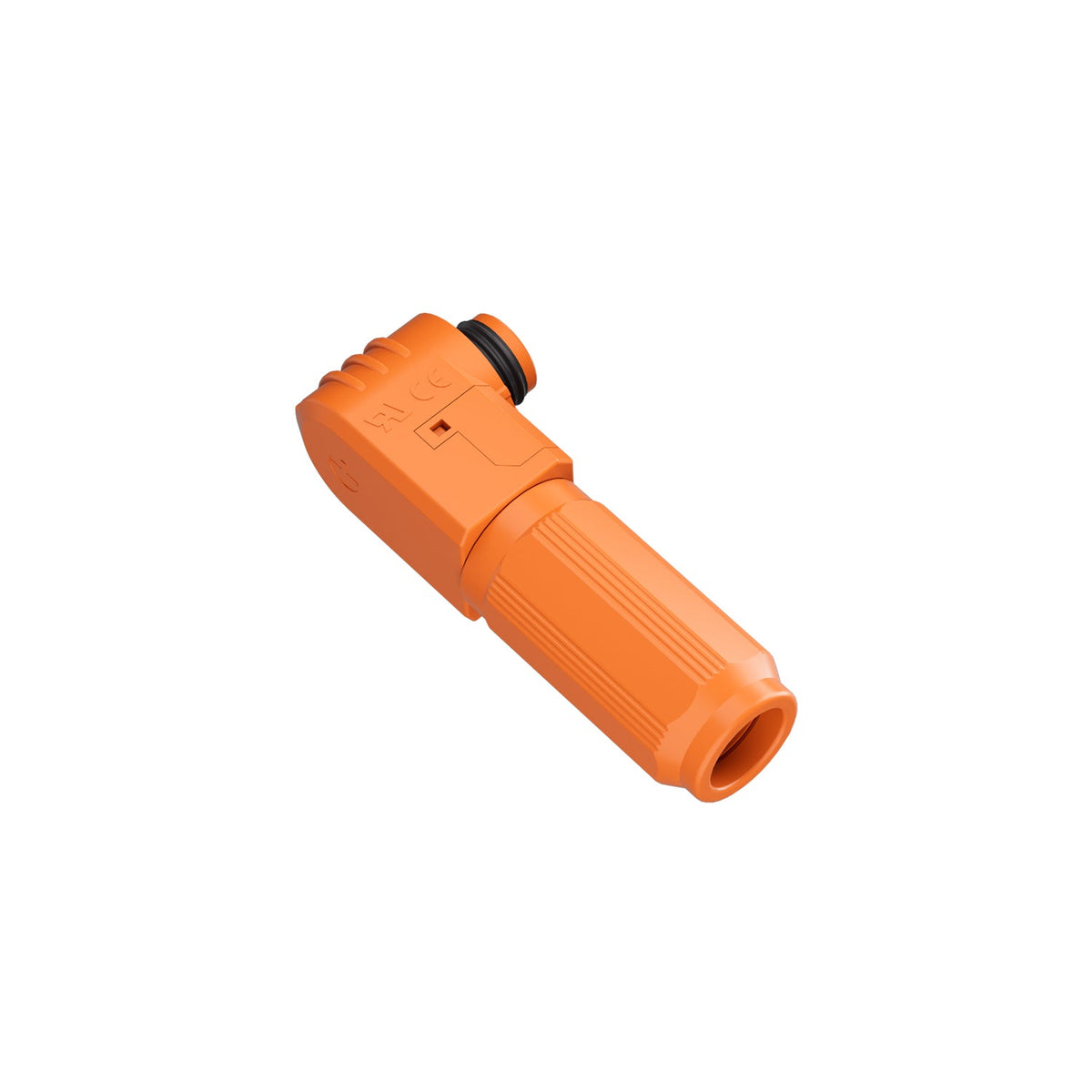

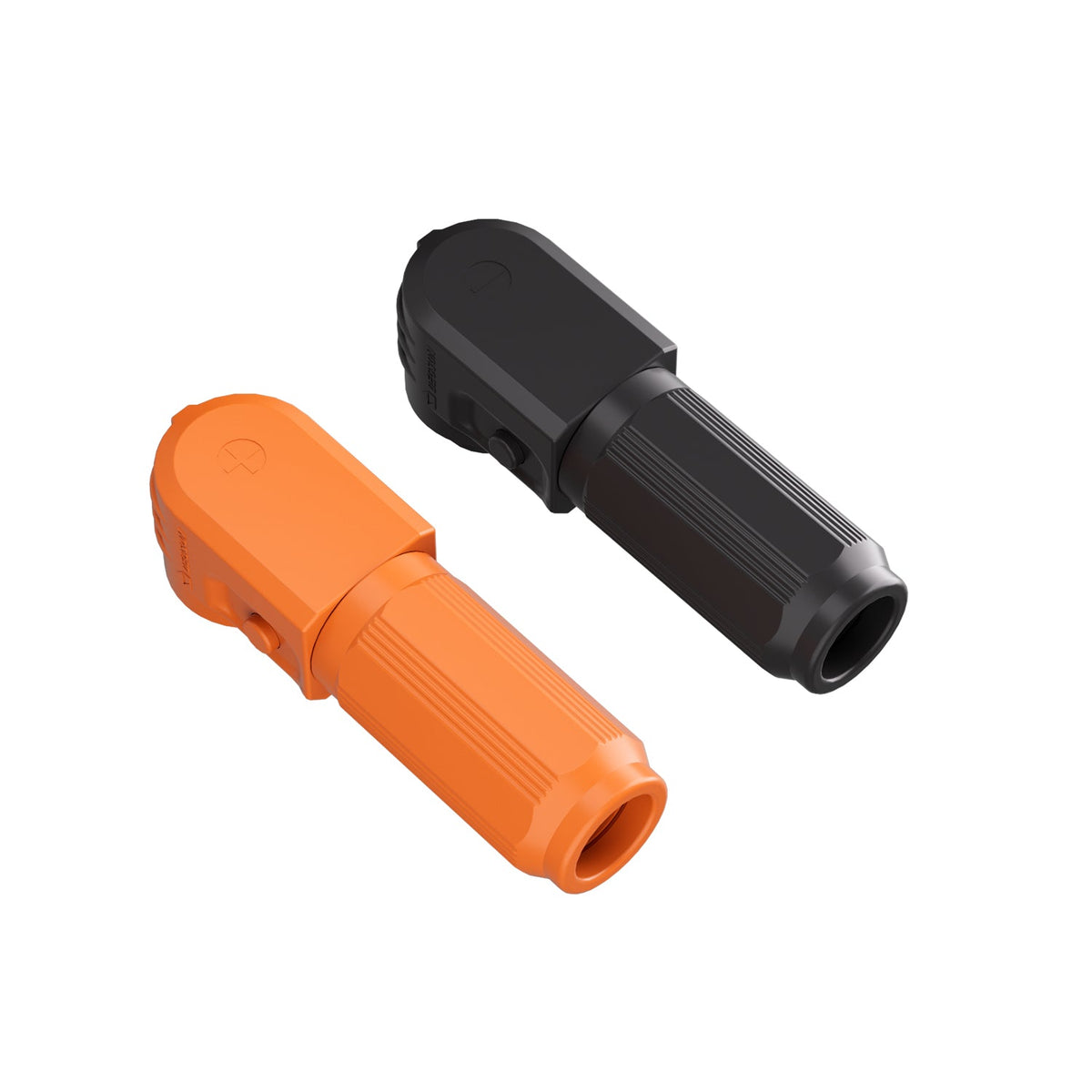

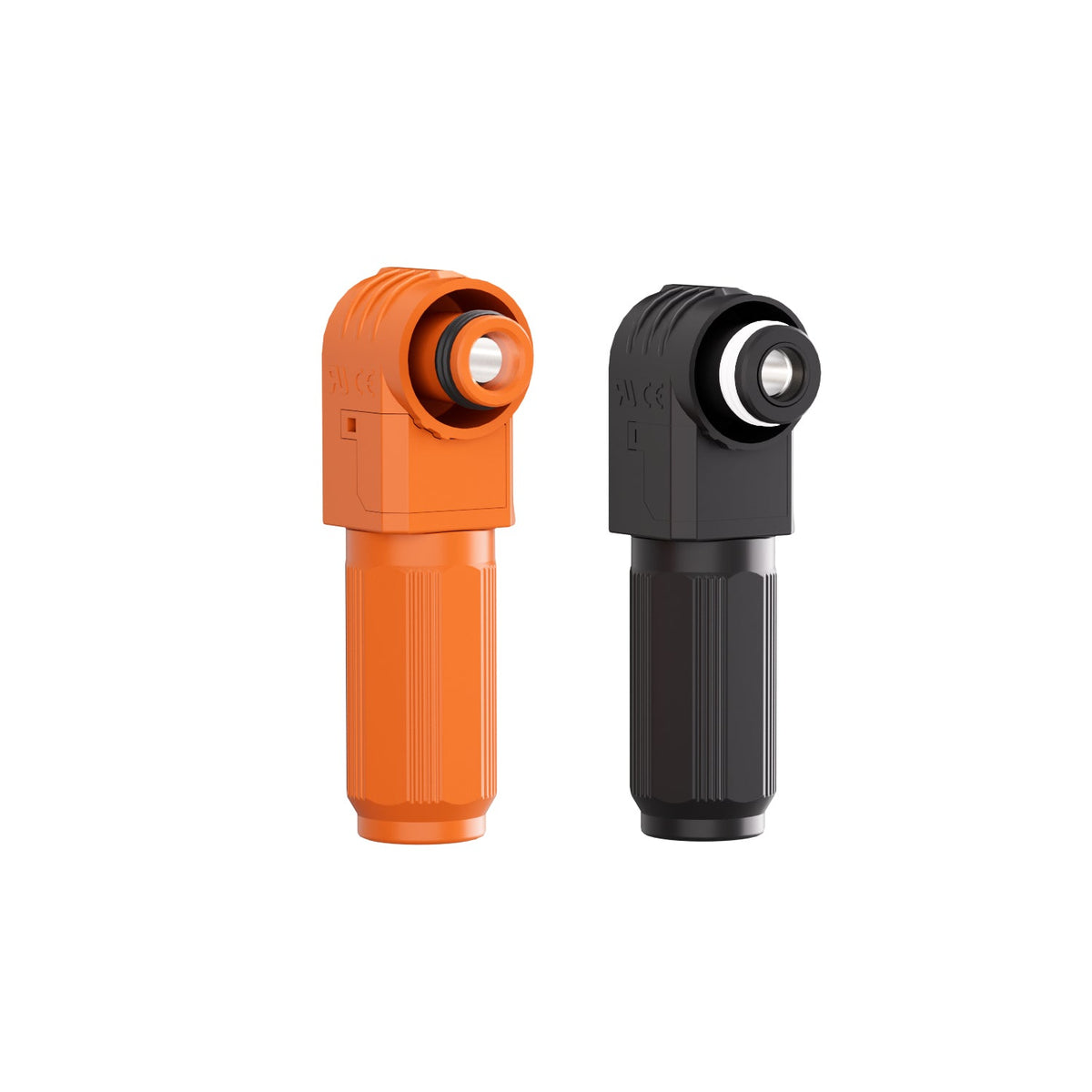

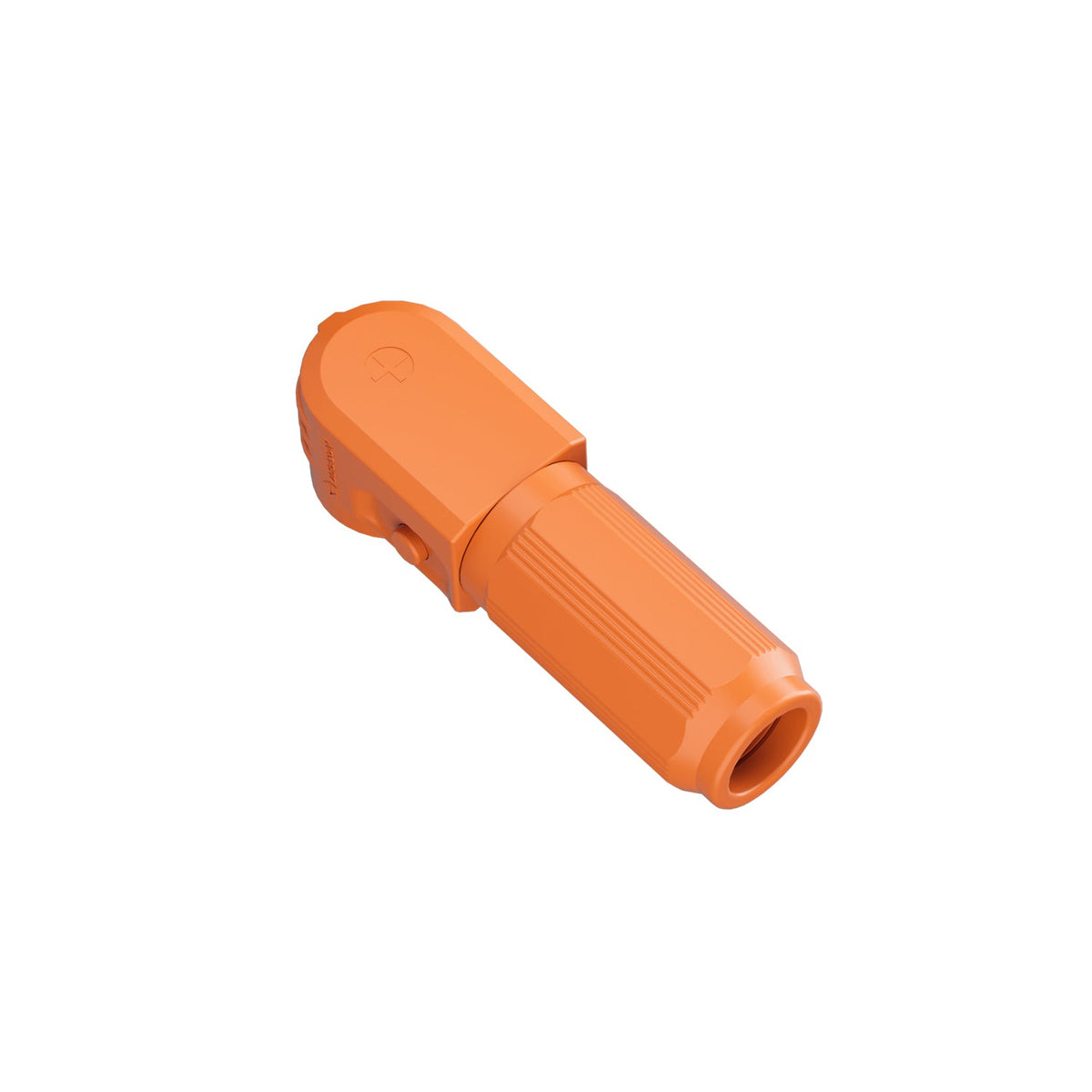

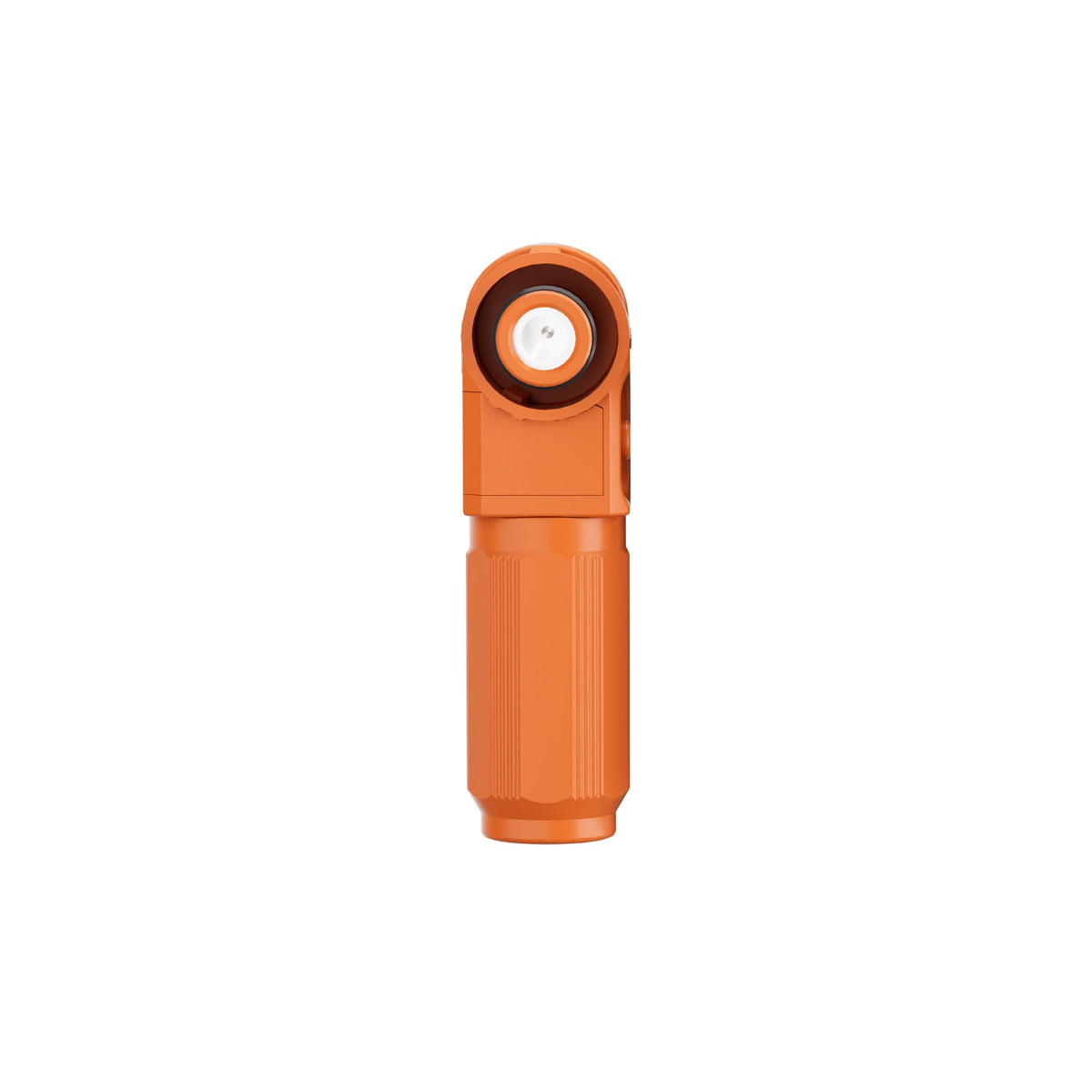

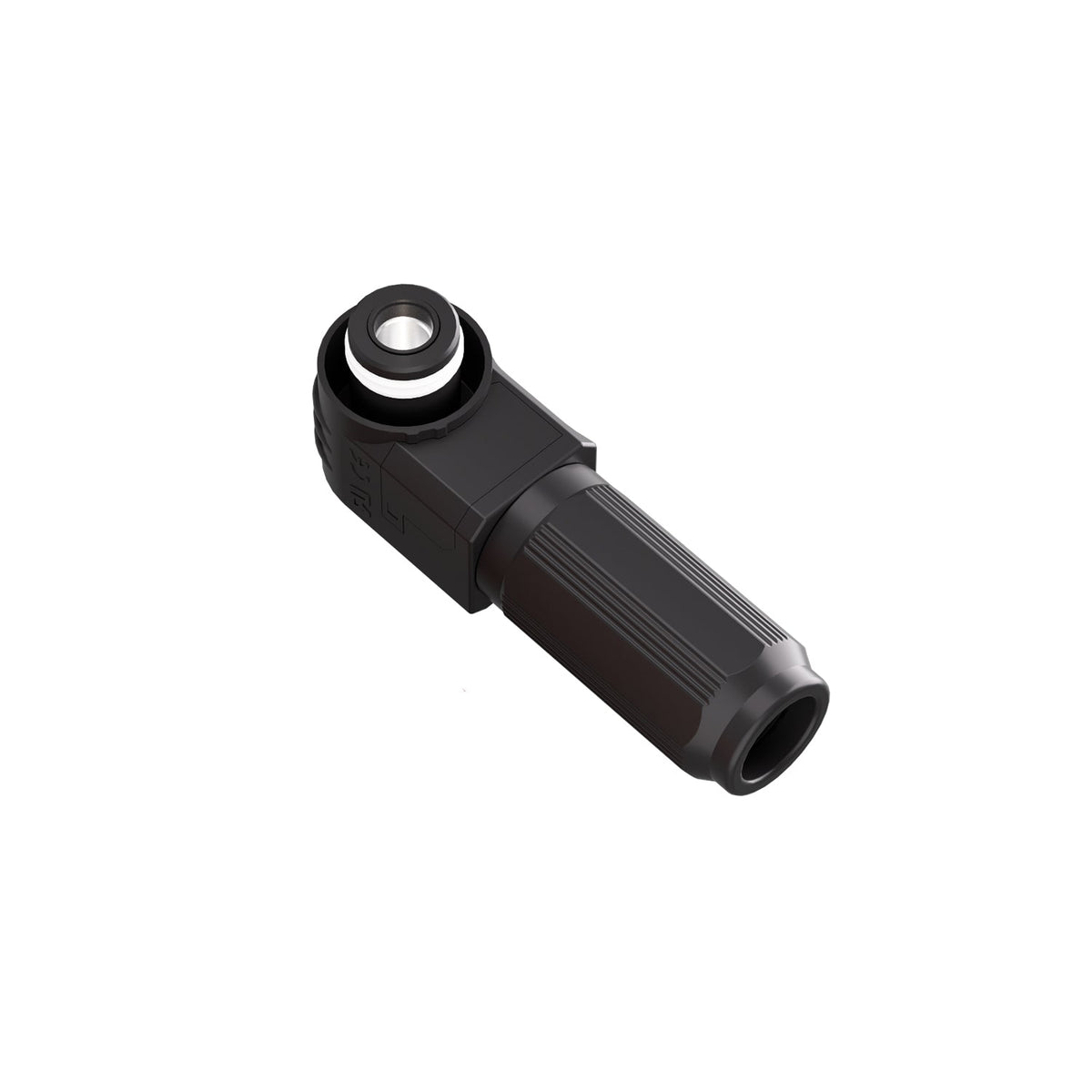

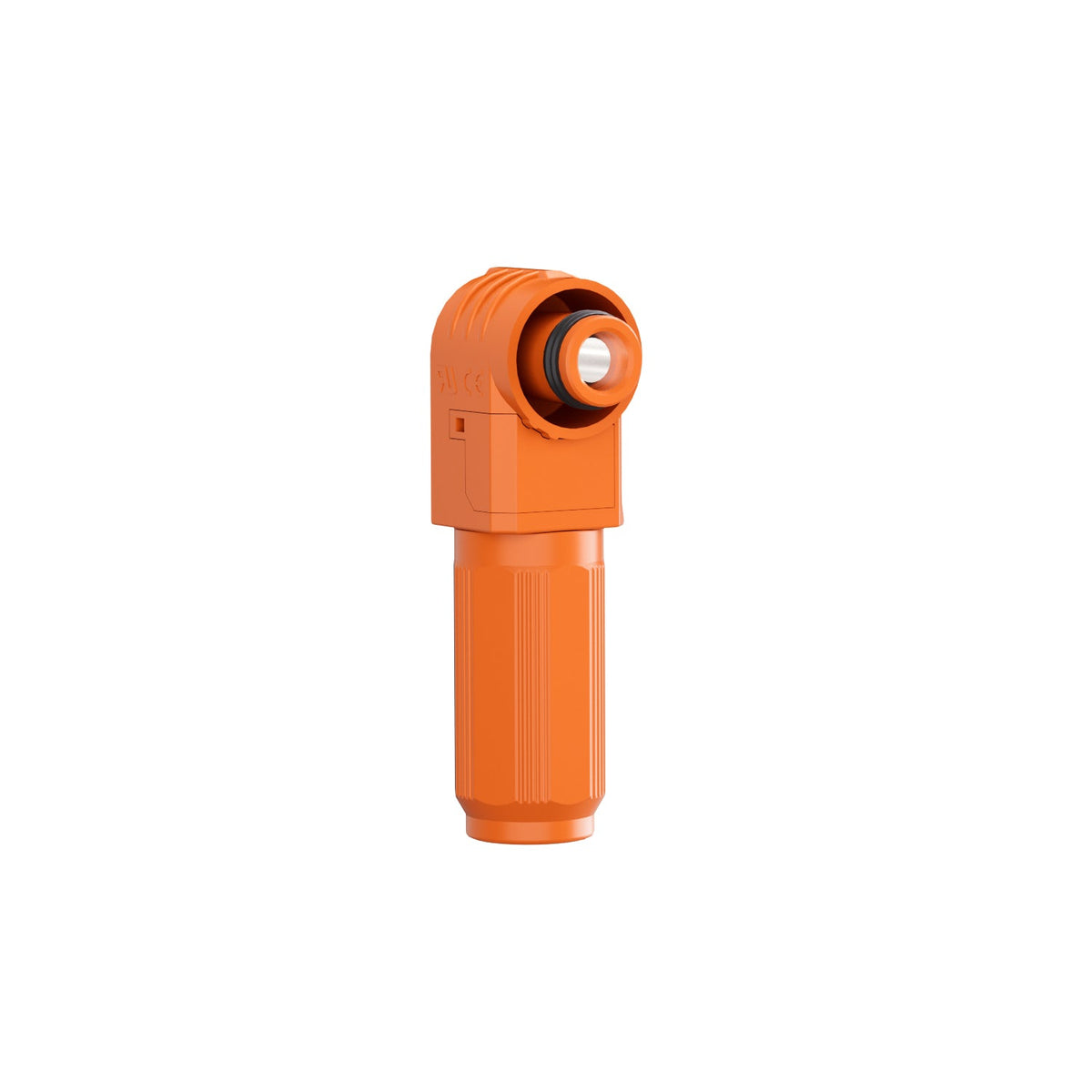

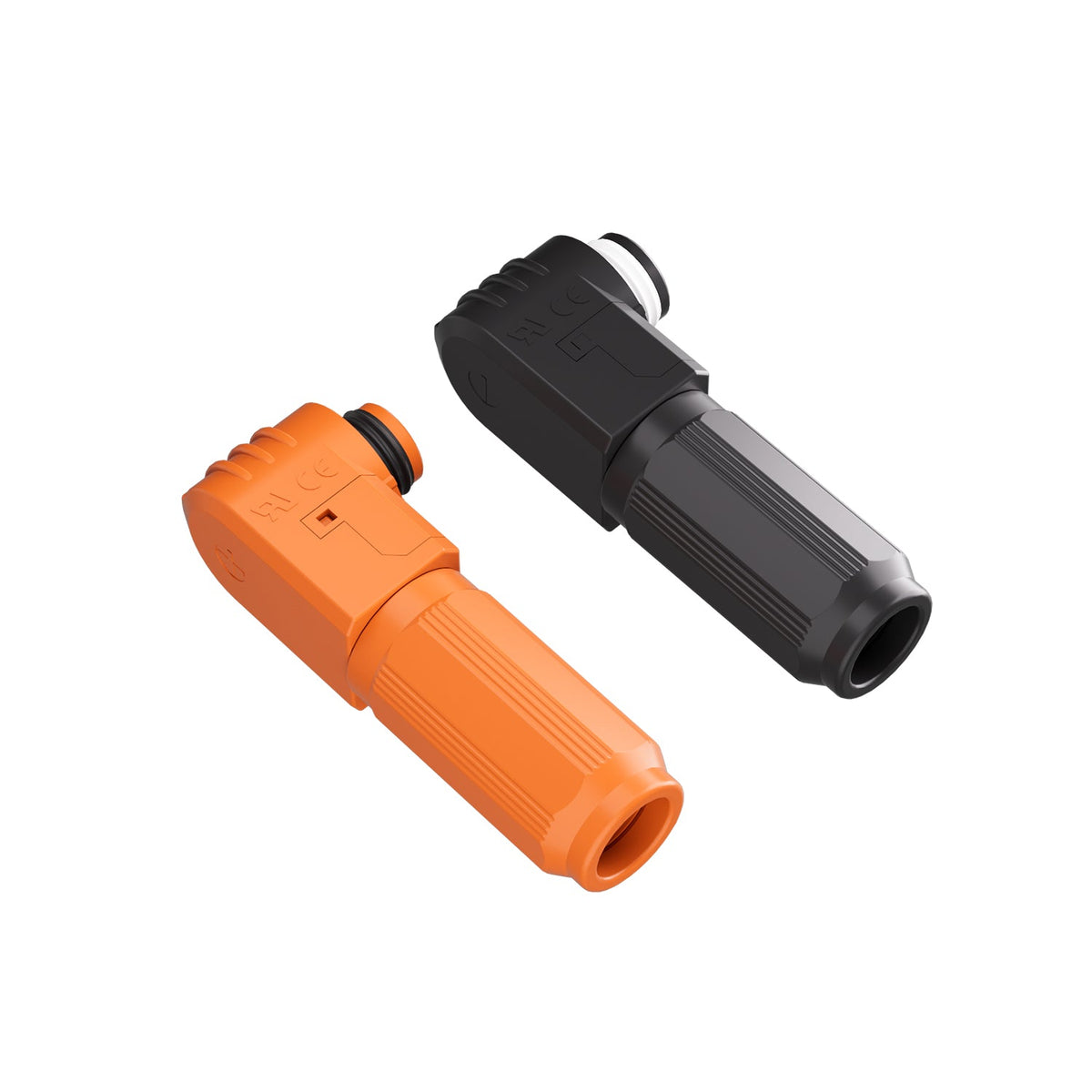

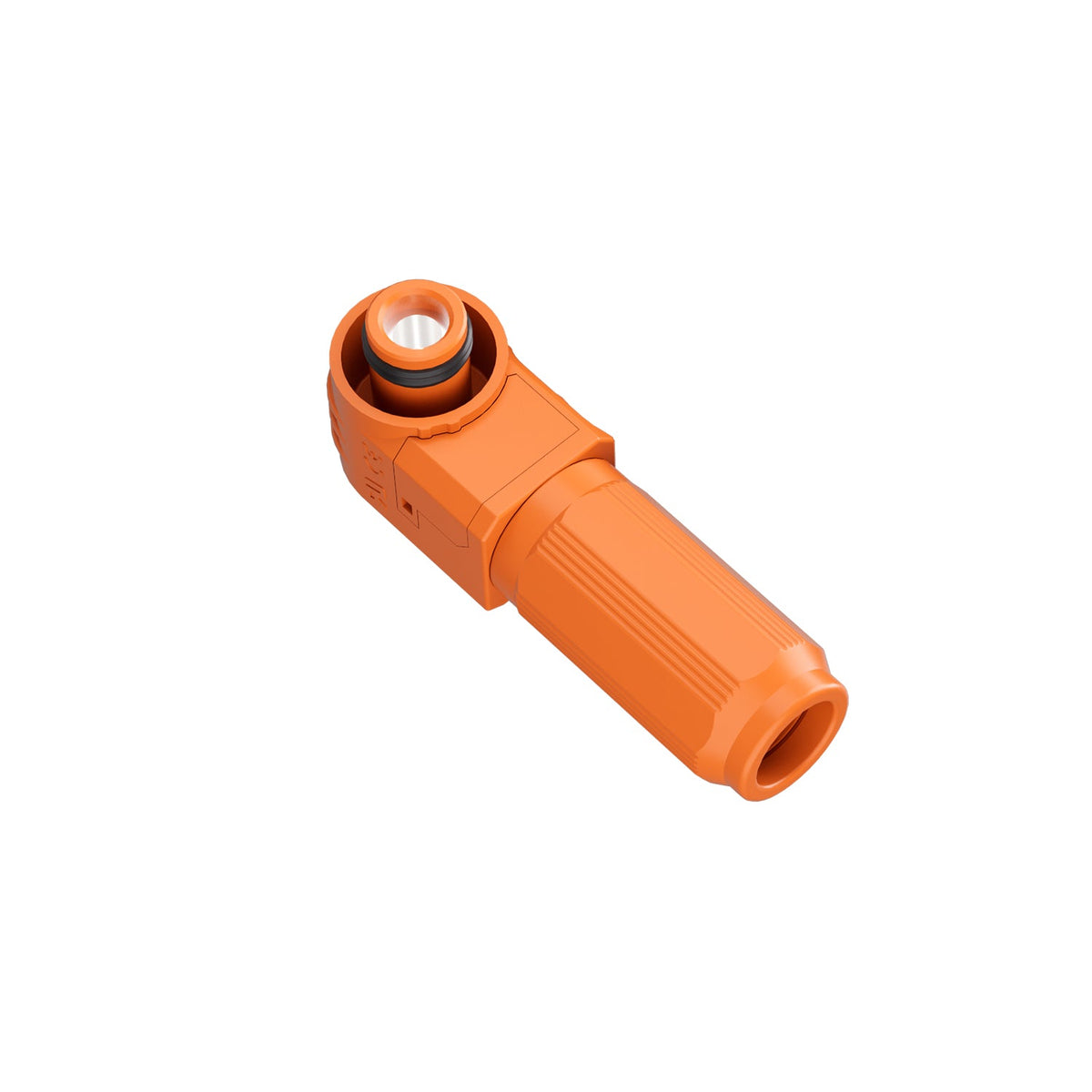

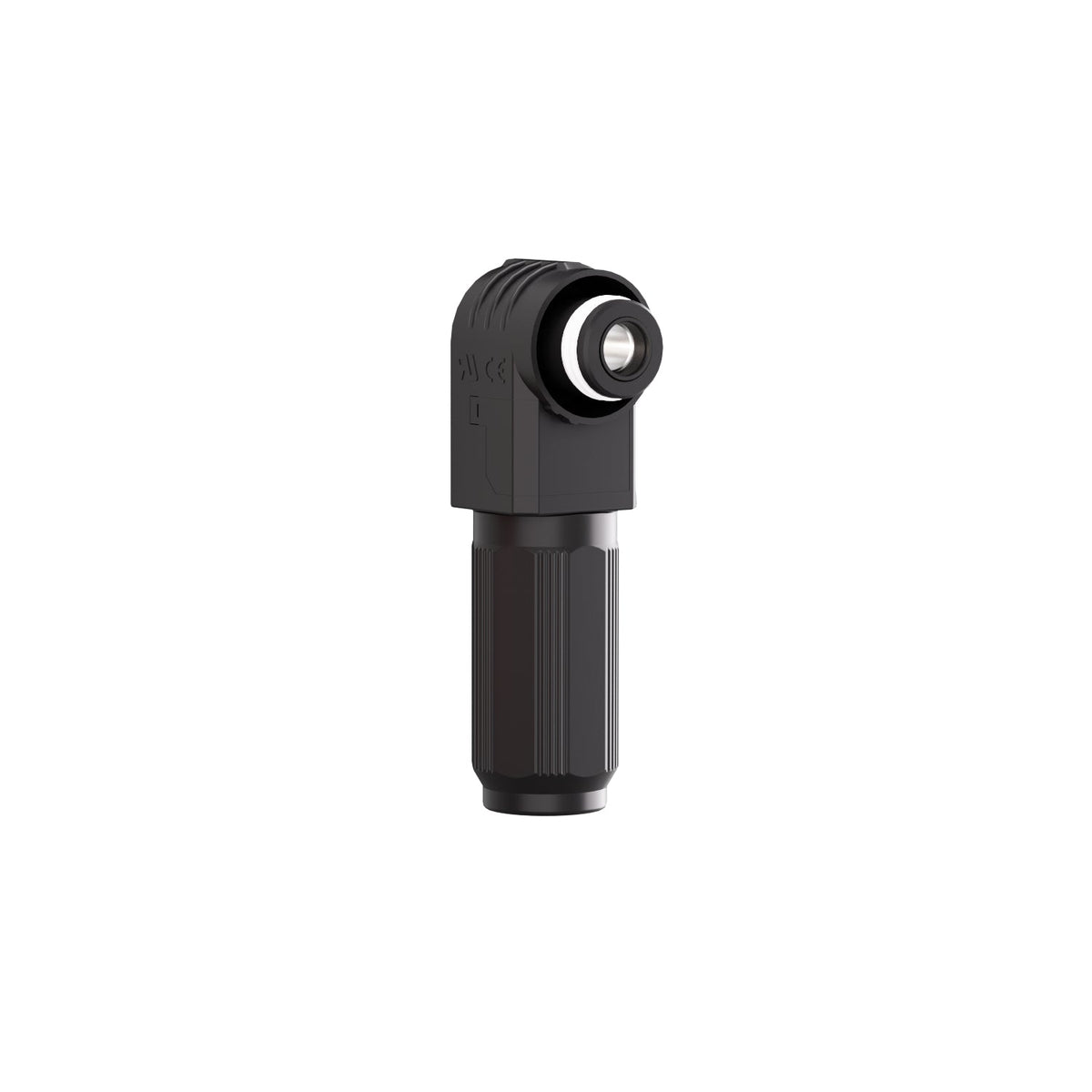

Positive contact: orange; negative contact: black. Dimensions: 2.60 × 0.63 in (66 × 16 mm); net weight: 1.31 oz (37 g).
UL94 V-0 flame-retardant housing with low-resistance copper contacts.

Safety Features and Certifications

Dual-size positive and negative contacts help prevent reverse connection. The snap-lock housing provides tool-free locking, while the impact-resistant, flame-retardant enclosure supports demanding operating conditions. Certified to UL and CE requirements and compliant with RoHS.

Installation and Maintenance Requirements

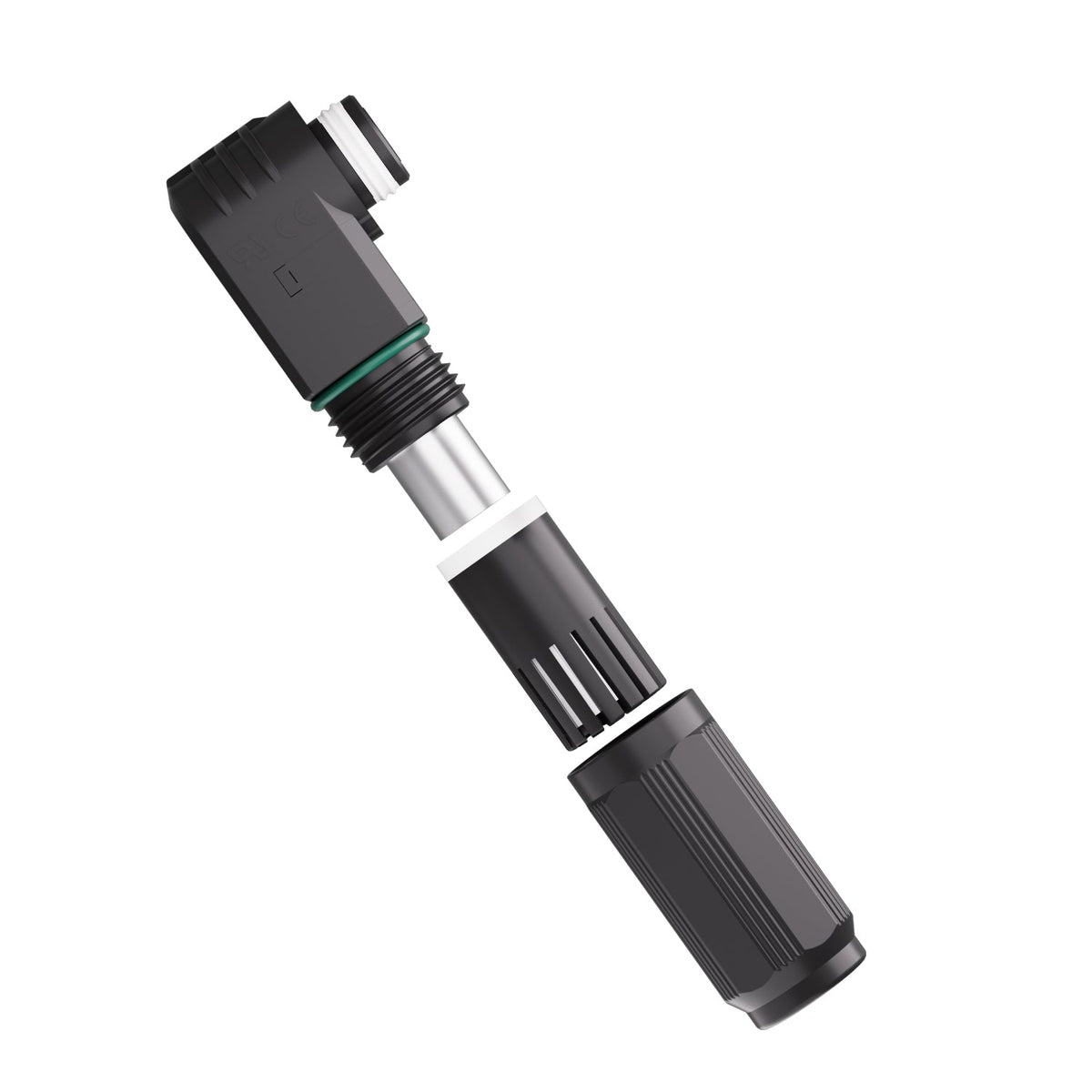

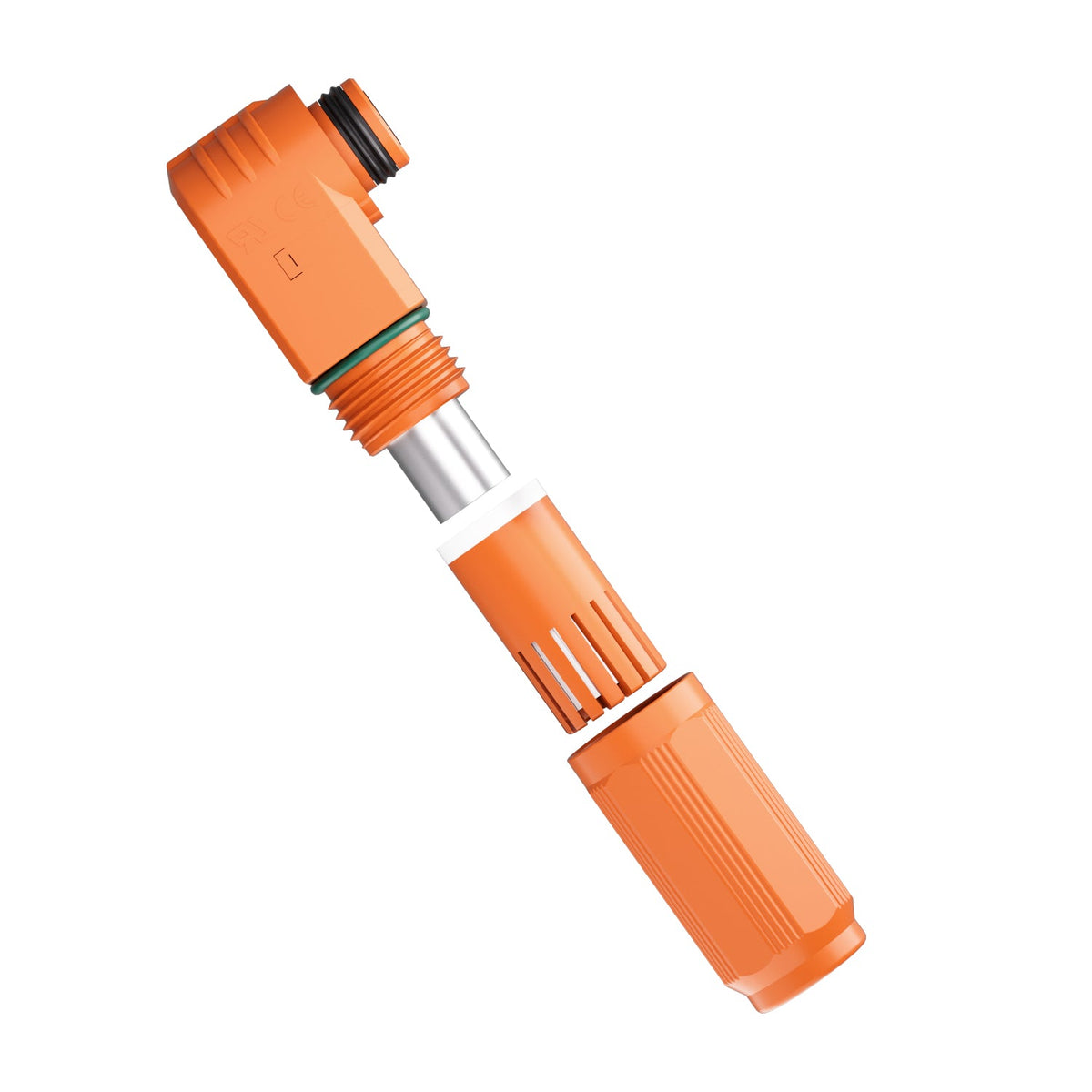

Wall mounting and a crimp terminal connection are required. Use compatible 4AWG/25 mm² cable and strip 13–14 mm of insulation. Confirm polarity, crimp the terminals, insert the contacts, and engage the snap-fit lock before mating. Inspect the housing, contacts, cable crimp, and locking mechanism during maintenance. Rated mating life is 100 insertion/withdrawal cycles; insertion force is ≤ 60 N and withdrawal force is > 10 N.

Warranty and Service Information

Warranty and service terms apply through RICH SOLAR for this product.

Branding/References

Manufacturer: RICH SOLAR. Models: RS-8001 / RS-8002. Compatible battery reference: ALPHA 5 PRO.

Differentiators

The connector combines 1500 V DC and 120 A ratings with polarity-specific dual-size contacts, tool-free snap-lock installation, and IP67 protection when mated.
