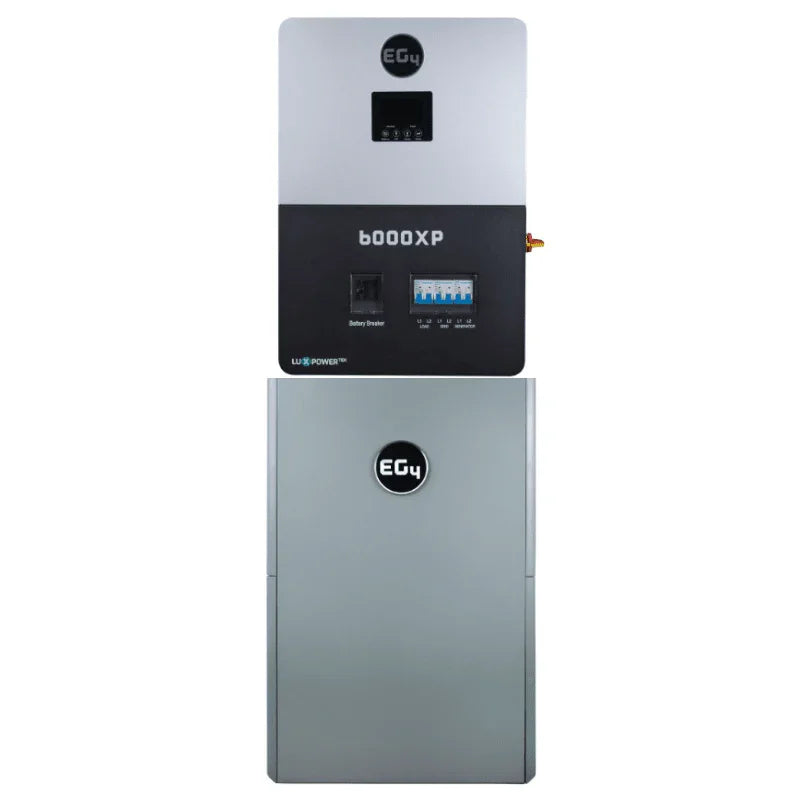

EG4 6K XP & EG4 PowerPro WallMount Battery Bundle (ESS) 14.3kWh Capacity | 10-Year Warranty

EG4 6K XP & EG4 PowerPro WallMount Battery Bundle (ESS) 14.3kWh Capacity | 10-Year Warranty

$4,999.00 USD
$6,739.00 USD $4,999.00 USD
Sale Sold out
Shipping calculated at checkout.
Conduit Box

features

• Solid design control box — Meets NEMA Type 4 & IP30 standard by lab test
• LCD color screen — Real-time status view and easy user interaction
• Breathing indicator light — Shows real-time charging status
• Control button — Adjust max output current & set scheduled charging time
• Water protection gasket — Resists 3-minute direct high-pressure water spray
• TPU cable — 14.76ft, excellent durability, cold resistant to -22°F
• ETL certified — Compliant with North American safety standards

Technical Specifications

Voltage: 240V/208V
Max Output Current: 40A (SS-PC1-100) / 32A (SS-HAY-100-32A)
Max Power: 8kW / 7kW
Frequency: 50/60Hz
Temperature Range: -22°F to 122°F
Humidity: 5–95%, no condensation
Connector: Type 1 (J1772)
Cable Length: 14.76ft (4.5m)
Altitude: ≤2000m (6,562ft)
Cooling: Natural
Safety Standards: ETL, UL2594, CSA C22.2
Scheduling: App / Timer control
Connectivity: Wi-Fi / Bluetooth
Warranty: 2 years

Packing Details

Package contents: Teison Portable Pro charger, TPU cable, user manual
Package weight: Please confirm with Ampere Authority


View full details

EG4 PowerPro WallMount AllWeather Battery Bundle (ESS) 14.3kWh Capacity | 10-Year Warranty

Engineered as a dedicated energy storage solution for solar self-consumption, backup power, and off-grid resilience, the EG4 PowerPro WallMount AllWeather Battery delivers 14.3kWh of LiFePO4 capacity at 48V. Paired with the EG4 6000XP Off-Grid Inverter, it provides 10 kW continuous delivery with 10.5 kW peak for 10 seconds and 15.4 kW for 3 seconds. The weatherized wall-mount form supports outdoor installations and reduces footprint without compromising reliability.

Performance specifications

  • Battery: LiFePO4 (Grade A), 48V nominal (51.2V typical, 54V float)
  • Capacity: 14.3kWh
  • Continuous charge/discharge: 200A (max)
  • Power: 10kW continuous; peaks 10.5kW (10 s) and 15.4kW (3 s)
  • Inverter compatibility: pairs with EG4, Victron, Growatt, Megarevo, Luxpower, Deye, Sol-Ark
  • Weight/Dims: 308.6 lb (140 kg); 34.6 in × 22.3 in × 9.1 in
  • Cycles/Lifetime: >8,000 cycles at 80% DOD; ~82.6 MWh lifetime production
  • BMS: 200A; integrated self-heating for low-temp operation
  • Connectors: Amphenol weather-rated quick connectors
  • Protection: All-Weather design; IP65

Safety features and certifications

  • Dual onboard fire arrestors; total emergency stop function (RSD/ESS disconnect/inverter RSD)
  • UL9540A Certified; UL9540 pending
  • Onboard LCD for BMS monitoring and communication

Installation and maintenance

  • Includes quick-connect battery cables; optional conduit box addon for EG4 18kPV installations
  • No routine maintenance required; no thermal monitoring or ventilation needed
  • Outdoor-ready, weatherized enclosure with all-weather mounting

Warranty and service

10-year warranty from EG4 Electronics. Lifetime customer support via email, live chat, and phone. Includes 1 x EG4 PowerPro 14.3kWh Wall Mount Battery, 1 x Inverter-to-Battery Cable, and 1 x EG4 6000XP Off-Grid Inverter.

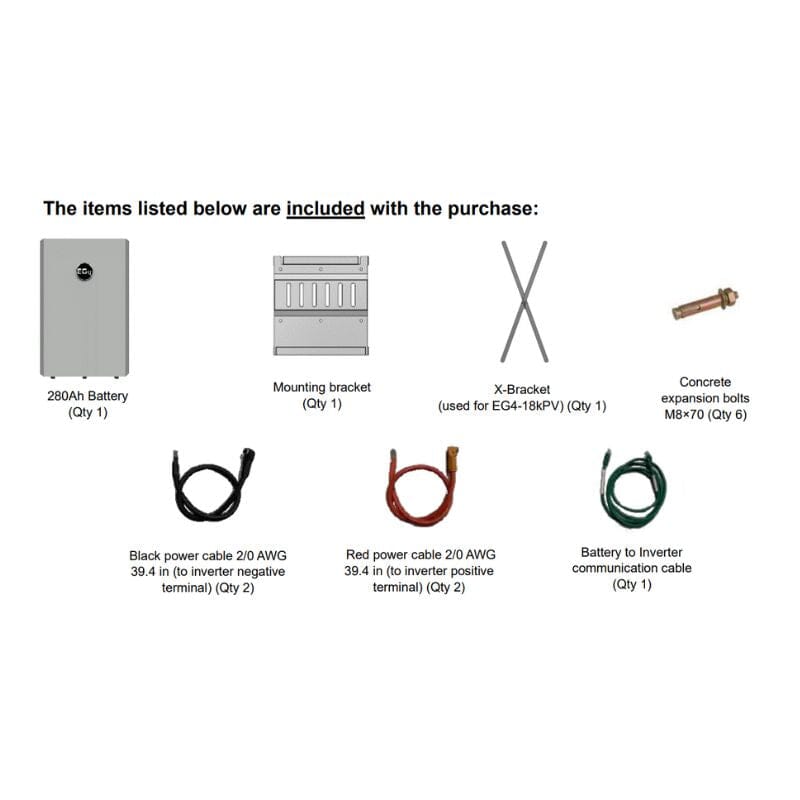

What's included

  • 1 x EG4 PowerPro 14.3kWh Wall Mount Lithium Battery
  • 1 x Inverter to Battery Cable
  • 1 x EG4 6000XP Off-Grid Inverter
  • Lifetime Customer Support (Email, Live Chat & Phone)

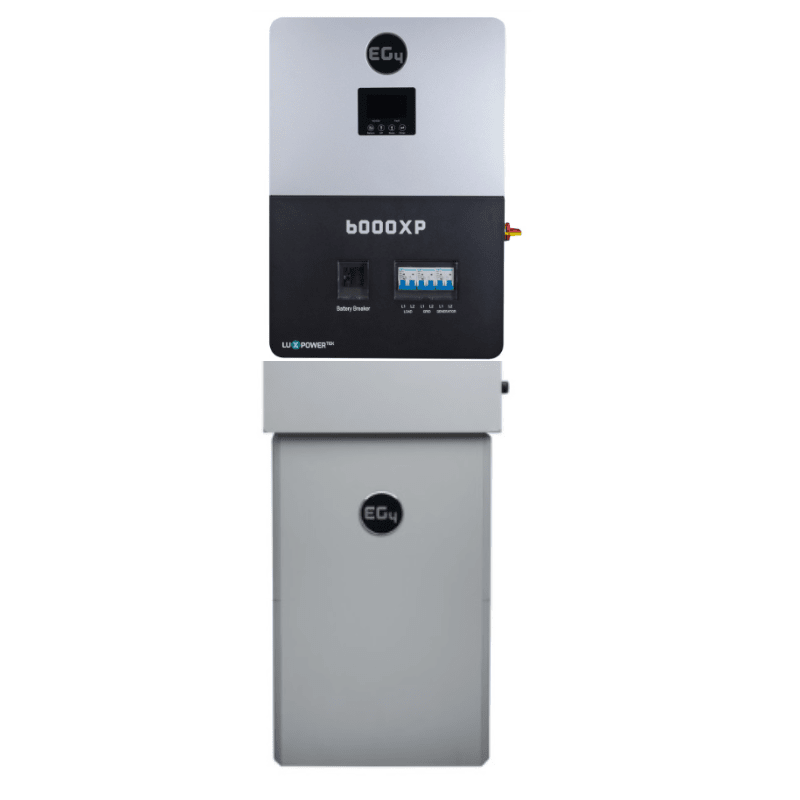

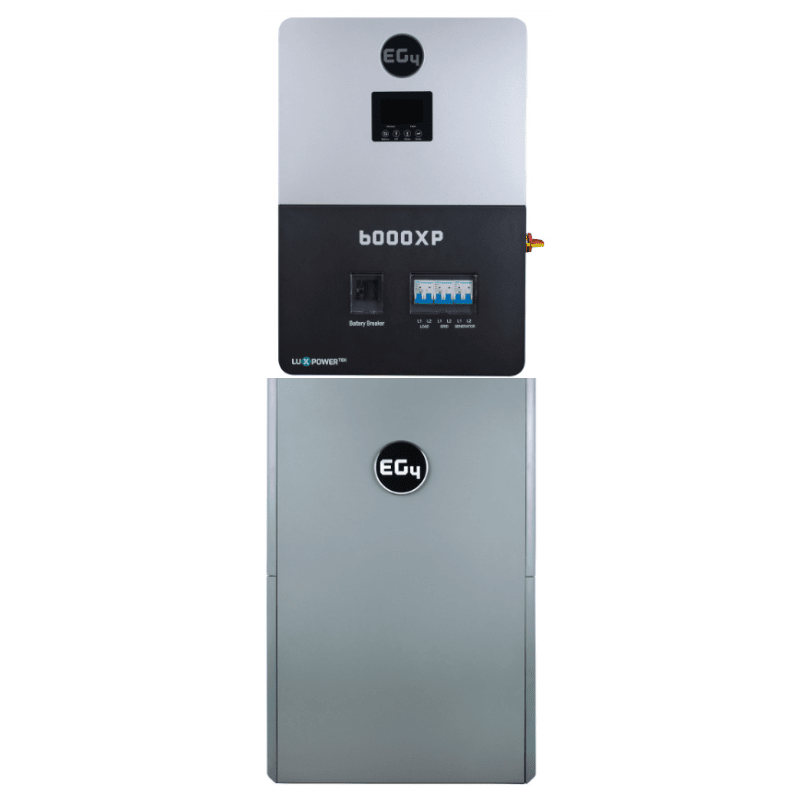

EG4 6K XP & EG4 PowerPro WallMount Battery Bundle (ESS) 14.3kWh Capacity | 10-Year Warranty

What's Included With Your Order?

  • 1 x EG4 PowerPro 14.3kWh Wall Mount Lithium Battery
  • 1 x Inverter to Battery Cable (Included with the Battery)
  • 1 x EG4 6000XP Off-Grid Inverter
  • Lifetime Customer Support (Email, Live Chat & Phone)

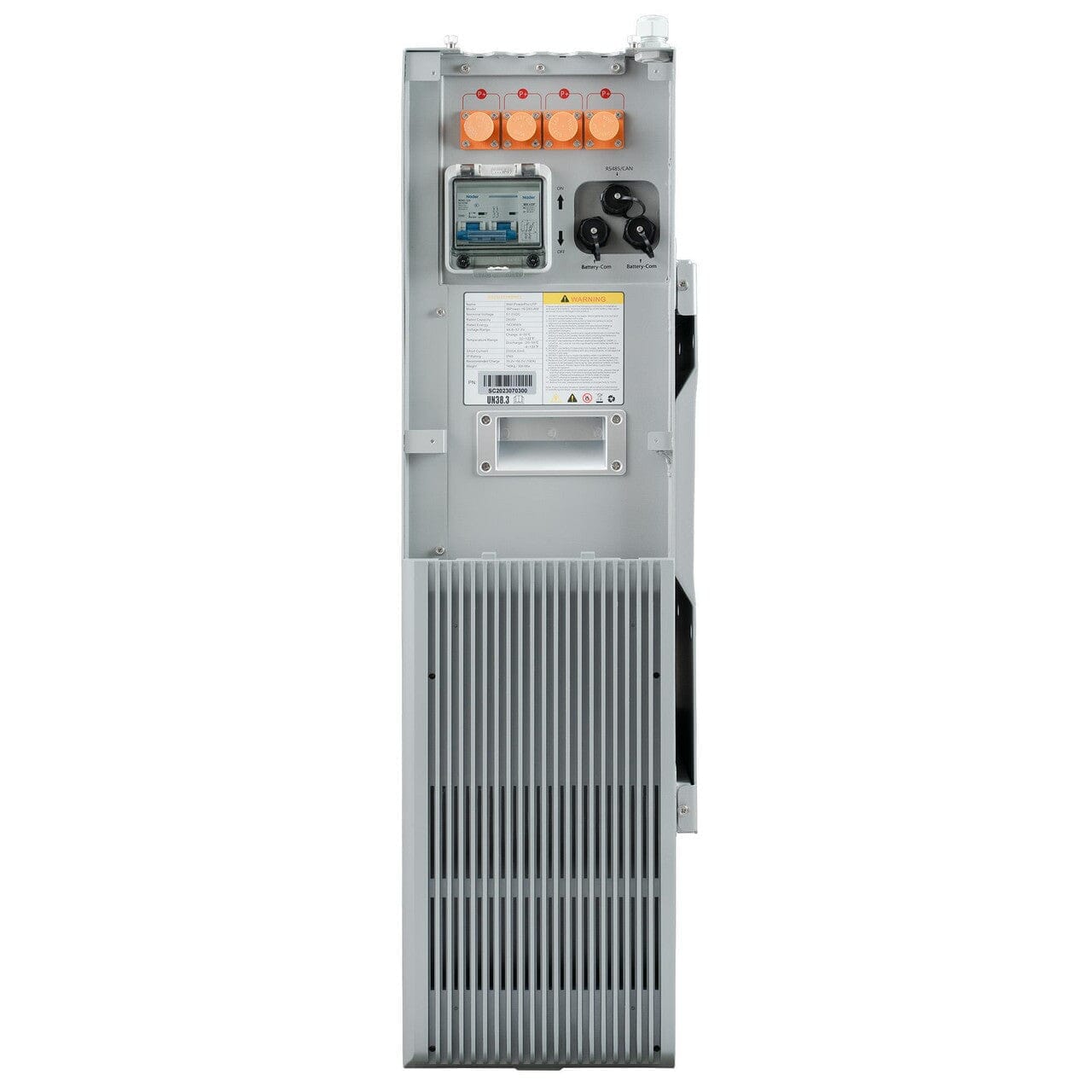

EG4 PowerPro Lithium Battery WallMount AllWeather Features

Introducing the EG4 PowerPro WallMount All Weather Battery - the ultimate energy storage solution for all your solar power needs. This cutting-edge 48V 280Ah Lithium Iron Phosphate (LiFePO4) battery redefines reliability and performance, ensuring your power supply remains uninterrupted.

Confident Power

  • 10kW delivery, with peak power 10.5kW (10 sec.) & 15.4kW (3 sec.)
  • Constant discharge current – 200A
  • Over 8000 cycles at 80% DOD with an 82.6Mwh lifetime production

Reliable

  • Smart and intelligent BMS for reliability, efficiency and safety
  • Integrated self-heating features when needed in low temperature

All-Weather Design

  • Perfect for outdoor applications, built to withstand various weather conditions
  • Integrated self-heating feature ensures optimal battery performance in low temperatures.
  • Weather rated quick connectors (Amphenol)

EG4 PowerPro Lithium Battery Safety

  • Dual onboard fire arrestors offer fail-safe protection
  • Innovative total emergency stop function for instant shutdown by RSD / ESS disconnect / inverter RSD
  • 10-year warranty offered by EG4 Electronics.

Seamless Integration

  • Can pair with any inverter in the market
    - Designed to pair seamlessly with EG4, Victron, Growatt, Megarevo, Luxpower, Deye, and Sol-Ark inverters

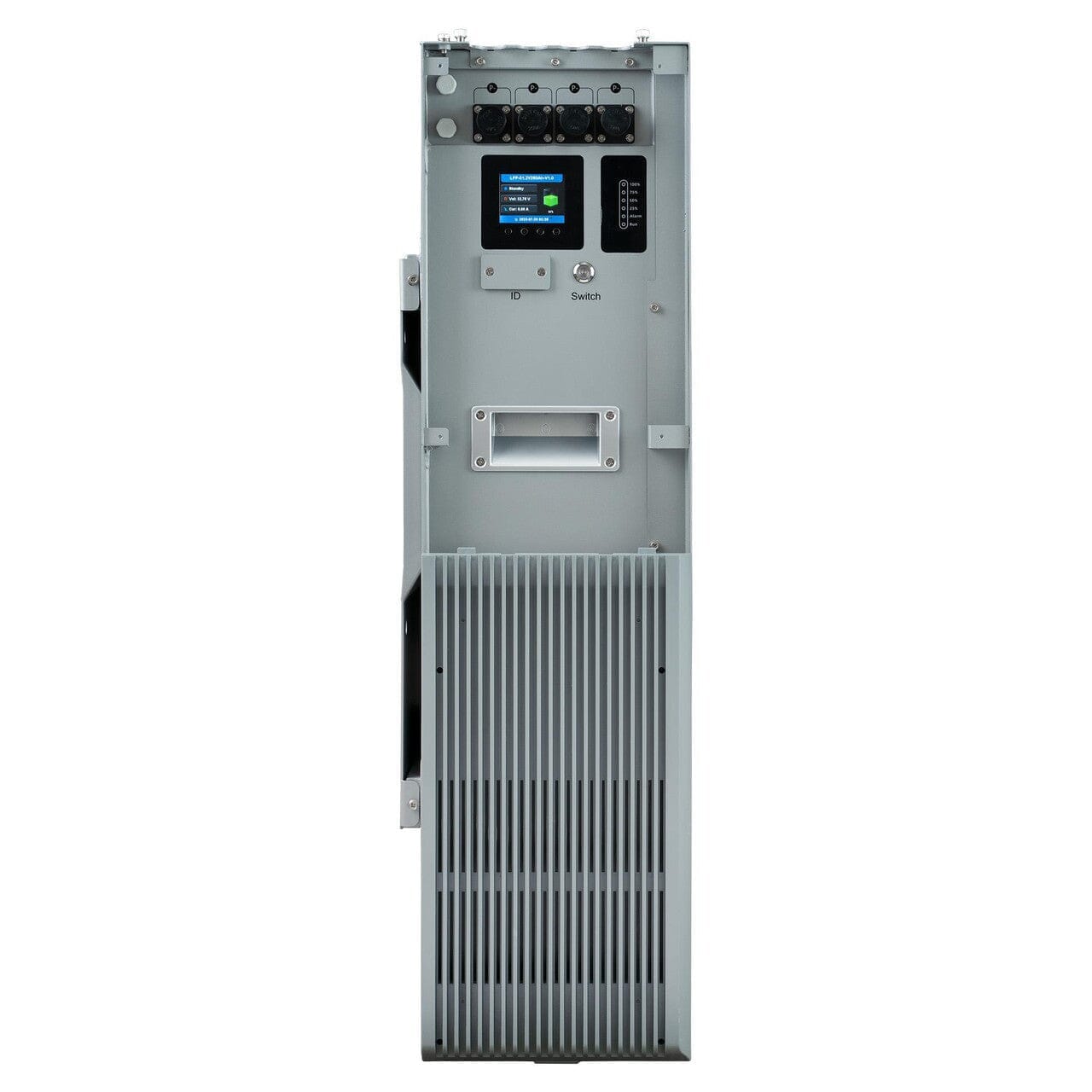

  • Onboard LCD touch screen for easy BMS monitoring and communication.
  • Quick connect battery cables for fast, safe, and reliable battery connections.

Comprehensive Certifications(Excludes this SKU, Please purchase 1511075 for Certifications)

  • UL9540A Certified
  • UL9540 pending
  • Outdoor Rating IP65

PowerPro ESS

  • Optional conduit box addon makes installation with an EG4 18kPV simple
  • Turn any PowerPro into a fully capable Energy Storage System when paired with an EG4 18kPV
  • No thermal monitoring, or ventilation needed
  • No maintenance

Technical Specifications

  • Model name: PowerPro WallMount AllWeather Battery
  • Battery Type: LiFePO4 (Lithium Iron Phosphate, Grade A)
  • Voltage: 48V (Nominal: 51.2V, Float: 54V)
  • Continuous Charge/Discharge Current: 200A (Max)
  • Capacity: 14.3kWh
  • BMS: 200A
  • Weight: 308.6 lbs. / 140Kg
  • 34.6 in.×22.3 in.×9.1 in

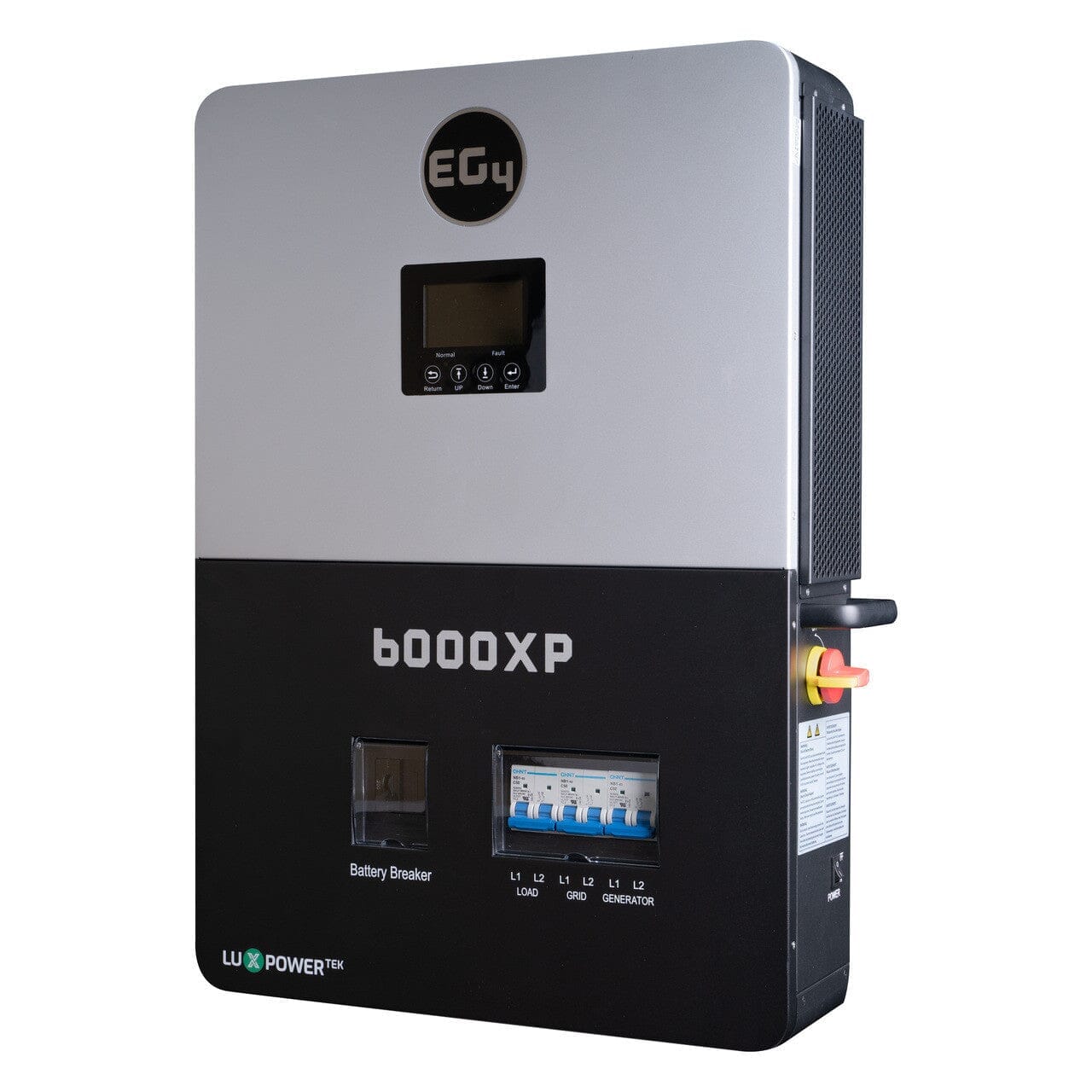

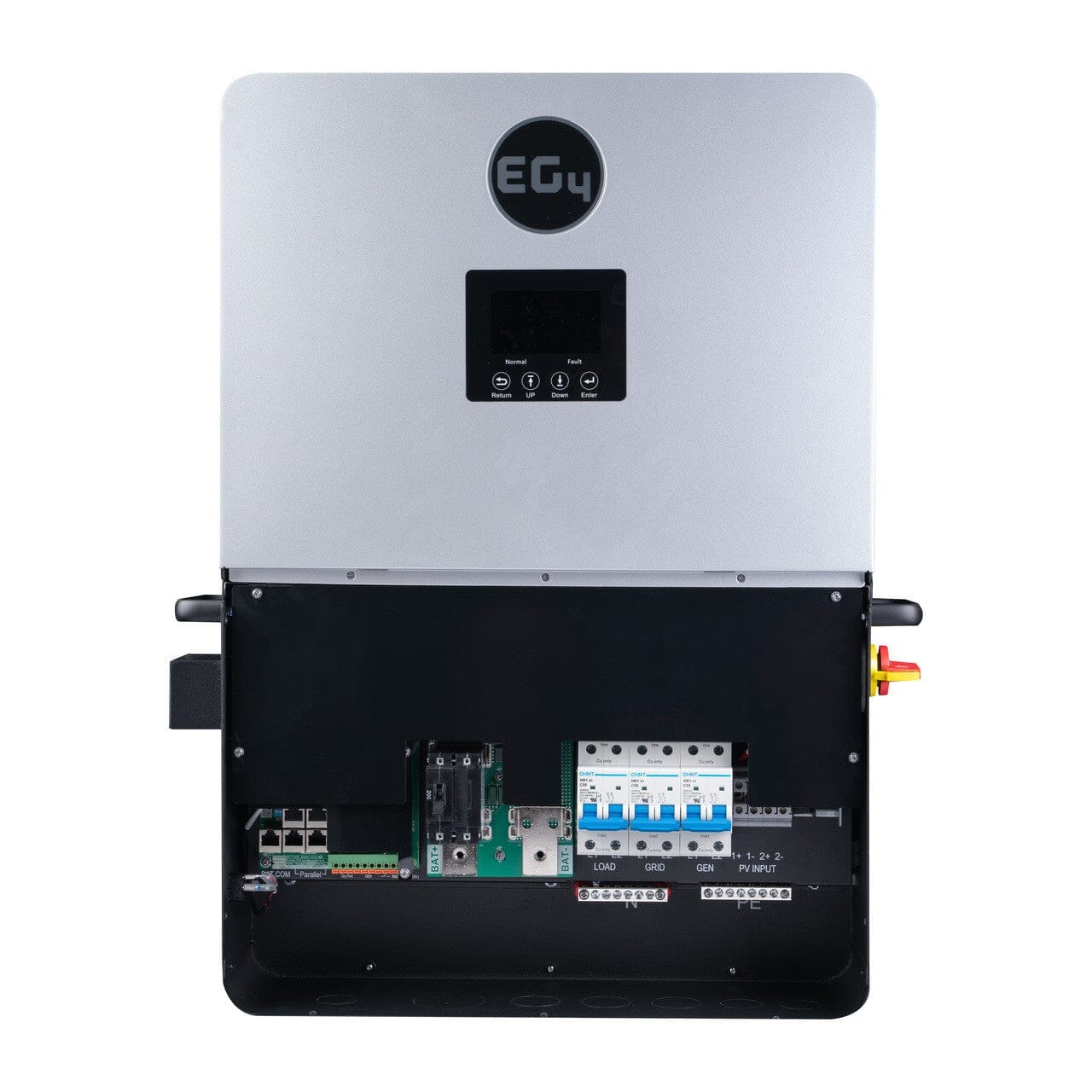

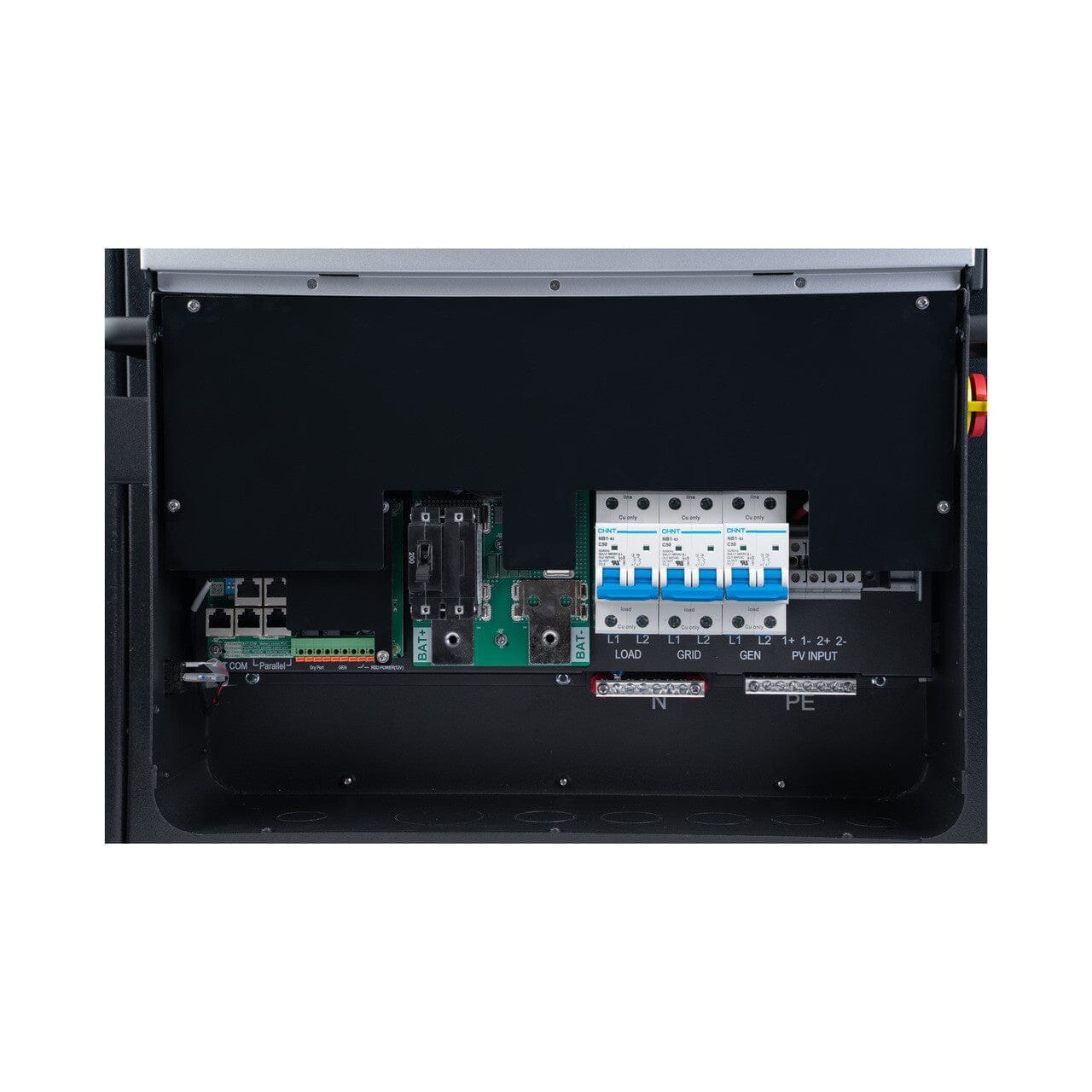

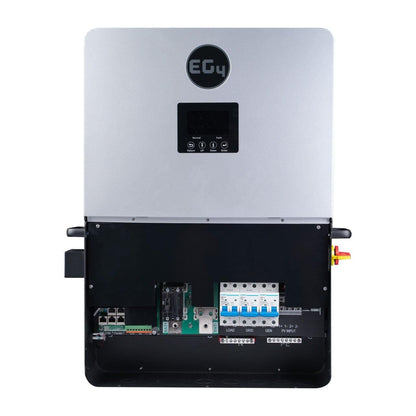

EG4 6000XP Off-Grid Inverter Features

The EG4 6000XP Inverter is a 48V split-phase, off-grid inverter/charger capable of utilizing 8kW of PV and efficiently outputting 6kW of power while also charging your battery bank. Parallel up to 16 units for 96kWs worth of output power and control multiple stations and units using the new EG4 monitoring software.

  • Applicable for purely off-grid inverter/backup power situations.
  • Integrated with 2 MPPT solar charge controllers with maximum PV input of 480V with an optimal range of 120VDC-385VDC.
  • Rated for 6kW output, with a power factor of 1.
  • Able to run without battery in off-grid mode.
  • Able to utilize generators with dedicated generator terminals.
  • Supports paralleling for up to 16 inverters.
  • Supports CAN/RS485 for Lithium battery communications.
  • Features remote monitoring and firmware updates via mobile phone app or monitoring system website.
  • Transformerless Split-Phase Design
  • Remote Adjustment via EG4 Software
  • 5-Year Warranty

All-In-One Solar Inverter

EG4 6000XP Inverter is capable of running entirely off the grid, or with grid input for supplemental charging and output power.

480VDC Max

The extra high voltage enables lower cable sizing for the 2 MPPTs and a maximum recommended PV input of 8,000W eliminating the need for a combiner box.

Mountable Wi-Fi Device

Enables wireless connection between our new monitoring platform and the 6000XP through the app or online website.

Closed-Loop Communications

Able to communicate with EG4 48V batteries and other battery brands. *A firmware update is required for closed-loop communications with LifePower4 batteries.

High Frequency, Split Phase Output

Allows for 120/240V service application with only a single unit.
