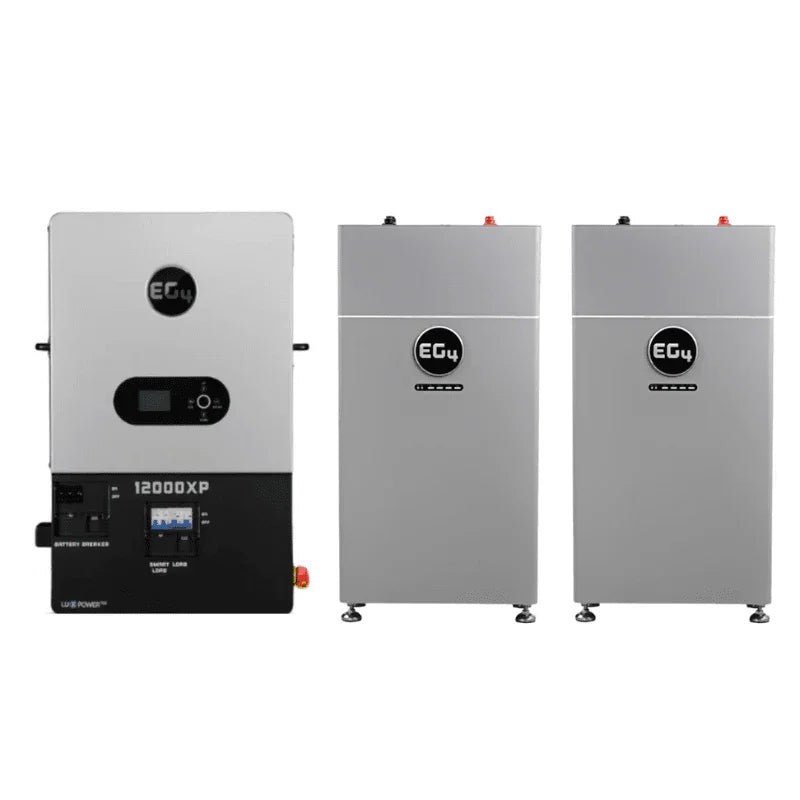

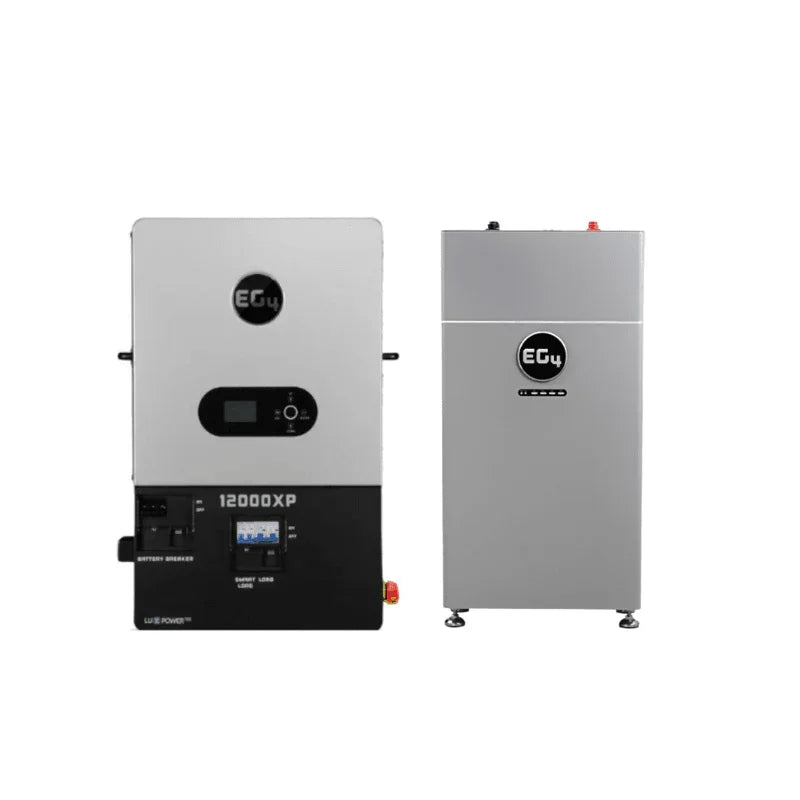

EG4 12K XP Inverter & 314Ah Wallmount Indoor Battery Bundle
Take control of your energy with the EG4 12K XP Inverter & 314Ah Wallmount Indoor Battery Bundle—an integrated 48V off-grid power solution designed for whole-home backup, remote cabins, and hybrid systems. This kit pairs a 12,000 W inverter with one or two 314Ah lithium wallmount batteries, delivering up to 32.2 kWh of expandable storage and seamless scalability without external busbars.
Performance & specifications
- Inverter: 12,000 W continuous output; up to 24 kW PV input; NEC 690.12 rapid shutdown ready with built-in protections.
- Batteries: 48V nominal, 314Ah per module; options: 1 x 314Ah (16.1 kWh) or 2 x 314Ah (32.2 kWh).
- Smart BMS: closed-loop inverter communication; integrated 600A busbars; dual fire arrestors; self-heating for cold climates.
- Durability & life: >8,000 cycles at 80% DoD; real-time system monitoring with remote inverter access; over 82.6 MWh of lifetime energy.
- Safety & control: one-touch ESS disconnect when paired with RSD inverter; comprehensive protections for safe operation.
- Warranty: 10-year warranty on the battery assembly and system components.
Installation, safety & maintenance
- DIY-friendly, scalable design: no external busbars required; wallmount indoor installation; add batteries later without component replacement.
- Safety features: smart monitoring, built-in protections, and rapid shutdown readiness for residential and remote applications.
- Maintenance: periodic checks of BMS status and terminal connections; ensure proper ventilation and compliance with local electrical codes.
Warranty & service
The EG4 bundle is backed by a 10-year warranty with ongoing support from EG4 engineering and Shop Solar, including remote monitoring access and responsive technical assistance for installation, configuration, and troubleshooting.
EG4 12K XP Inverter & 314Ah Wallmount Indoor Battery Bundle | 48V Off-Grid Power | Smart BMS + Self-Heating | 10-Year Warranty
Take control of your energy needs with the EG4 12000XP & 314Ah Wallmount Indoor Battery Bundle—a high-performance, off-grid power solution designed for whole-home backup, cabins, and remote systems. This complete kit pairs EG4’s flagship 12,000W inverter with one or two 314Ah lithium wall-mounted batteries, delivering up to 32.2kWh of reliable, expandable storage.
Built for serious loads and seamless integration, this bundle supports full off-grid living or hybrid backup applications—without the need for external busbars or complex wiring. The batteries include smart features like self-heating, built-in 600A busbars, and closed-loop communication for advanced safety and performance.
Key Features & Benefits:
-
🔋 Battery Options:
-
1 x 314Ah (16.1kWh) or 2 x 314Ah (32.2kWh) Wallmount Indoor Batteries
-
-

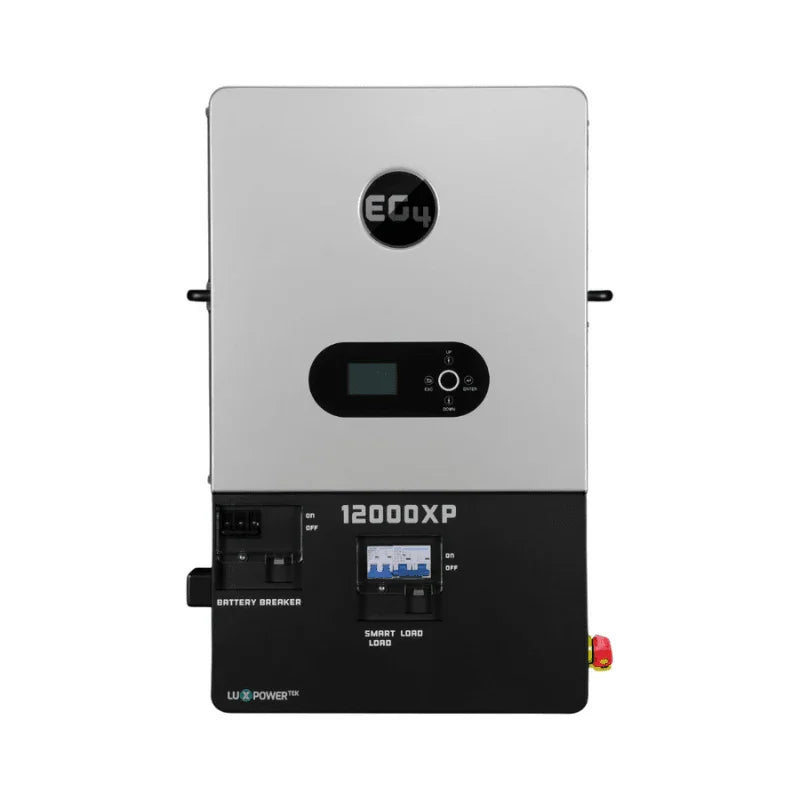

⚡ EG4 12000XP Off-Grid Inverter:
-
12,000W output | Up to 24kW PV input
-
Easily powers HVAC systems, appliances, and tools
-
NEC 690.12 rapid shutdown ready with built-in protections
-
-

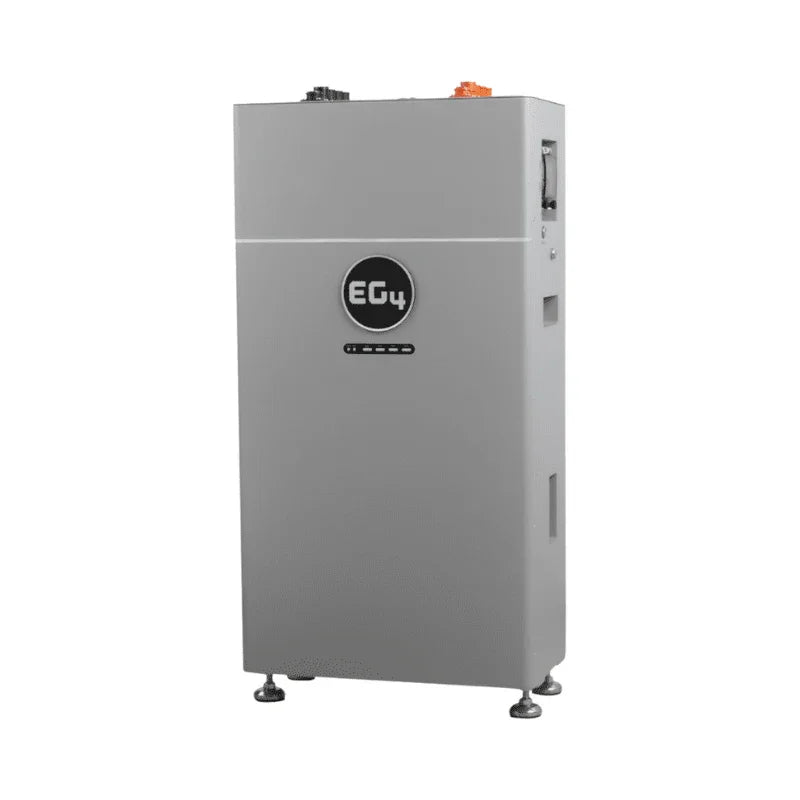

🔐 EG4 314Ah Indoor Wallmount Battery (48V):
-
Smart BMS with closed-loop inverter communication
-
Integrated 600A busbars + multiple terminals
-
Dual fire arrestors + self-heating for cold climates
-
Over 8,000 cycles @ 80% DoD | 10-Year Warranty
-
-
🧰 DIY-Friendly & Scalable:
-
No external busbars required
-
One-touch ESS disconnect when paired with RSD inverter
-
Add batteries later without needing to replace components
-
-
🧠 Smart Monitoring & Long-Term Reliability:
-
Real-time monitoring with remote inverter access
-
Built to deliver over 82.6 MWh of lifetime energy
-
Get peace of mind, energy independence, and industry-leading performance—all in one powerful, easy-to-install package backed by EG4’s trusted engineering and Shop Solar’s legendary support.
