ECO-WORTHY Complete Off-Grid Solar Power System - 10000W 120/240V Output | 20.48kWh/61.44kWh Lithium Battery | 4920 Watts/14760Watts PV Input

ECO-WORTHY Complete Off-Grid Solar Power System - 10000W 120/240V Output | 20.48kWh/61.44kWh Lithium Battery | 4920 Watts/14760Watts PV Input

$7,899.99 USD
$10,999.99 USD $7,899.99 USD
Sale Sold out
Shipping calculated at checkout.
Battery Bank Options

features

• Solid design control box — Meets NEMA Type 4 & IP30 standard by lab test
• LCD color screen — Real-time status view and easy user interaction
• Breathing indicator light — Shows real-time charging status
• Control button — Adjust max output current & set scheduled charging time
• Water protection gasket — Resists 3-minute direct high-pressure water spray
• TPU cable — 14.76ft, excellent durability, cold resistant to -22°F
• ETL certified — Compliant with North American safety standards

Technical Specifications

Voltage: 240V/208V
Max Output Current: 40A (SS-PC1-100) / 32A (SS-HAY-100-32A)
Max Power: 8kW / 7kW
Frequency: 50/60Hz
Temperature Range: -22°F to 122°F
Humidity: 5–95%, no condensation
Connector: Type 1 (J1772)
Cable Length: 14.76ft (4.5m)
Altitude: ≤2000m (6,562ft)
Cooling: Natural
Safety Standards: ETL, UL2594, CSA C22.2
Scheduling: App / Timer control
Connectivity: Wi-Fi / Bluetooth
Warranty: 2 years

Packing Details

Package contents: Teison Portable Pro charger, TPU cable, user manual
Package weight: Please confirm with Ampere Authority


View full details

ECO-WORTHY Complete Off-Grid Solar Power System

The all-in-one, high-capacity off-grid energy solution is designed for homes, cabins, workshops, and commercial applications. It integrates ECO-WORTHY solar modules, a 10 kW all-in-one inverter, and modular LiFePO4 storage to deliver clean, reliable power with scalable expansion options.

System configurations

  • 4920W PV input with 20.48kWh LiFePO4 storage: 12× 410W monocrystalline panels, 1× 10,000W all-in-one inverter, 4× 51.2V 100Ah batteries, and a 6-layer rack with 600A busbar.
  • 14760W PV input with 61.44kWh storage: 36× 410W panels, 2× 10,000W inverters, 12× 51.2V 100Ah batteries, and two 6-layer racks with 600A busbars.

Solar panel specifications

  • Rated power 410W; Mono PERC; Vmp 31.3V; Voc 37.5V; Isc 13.84A; Imp 13.1A; tolerance ±3%
  • Temperature coefficients: Isc 0.05%/°C; Voc −0.29%/°C; operating range −40°C to +85°C
  • Frame: Aluminum alloy; dimensions 1724 × 1134 × 30 mm; weight 20.5 kg

Inverter and battery specifications

  • 10,000W rated output, 20,000W peak; 120/240V AC, 50/60 Hz; Pure sine wave
  • Battery input 48V; PV charging MPPT 0–200A; MPPT voltage 125–425VDC; max PV input 11,000W
  • LiFePO4 battery: 100Ah, 51.2V, 5.12kWh; max charge/discharge 100A; max charge 58.4V; cut-off 10V
  • Operating temp for storage −20°C to 60°C; cycle life ≥4000 cycles at 50% DoD

Rack and expansion

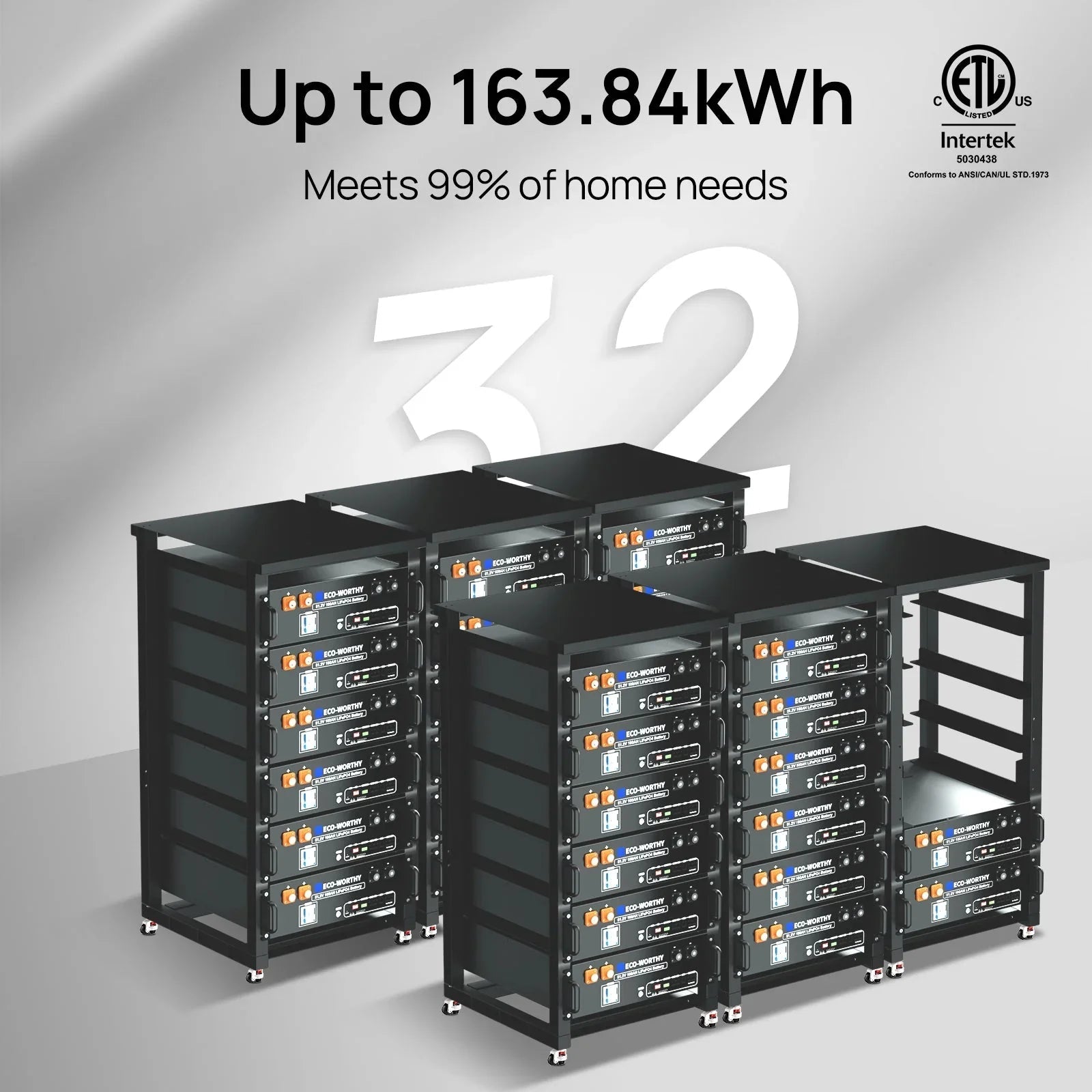

  • Optional server rack expansion; Rack6 V2 I 6-Layer design with 600A busbar

ECO-WORTHY Complete Off-Grid Solar Power System | 10000W 120/240V Output | 20.48kWh–61.44kWh Lithium Battery | 4920W–14760W PV Input

The ECO-WORTHY Complete Off-Grid Solar Power System is a high-capacity, all-in-one energy solution for homes, cabins, workshops, and commercial off-grid applications. Available in multiple configurations, this system combines high-efficiency ECO-WORTHY 410W monocrystalline solar panels, 10kW 48V All-in-One off-grid inverters, and modular 51.2V 100Ah LiFePO₄ lithium batteries to deliver reliable, clean, and scalable solar energy.

With integrated MPPT solar charging, pure sine wave output, and optional server rack expansion, this system provides robust power for heavy-duty appliances, electronics, and energy-intensive off-grid setups.

System Configurations

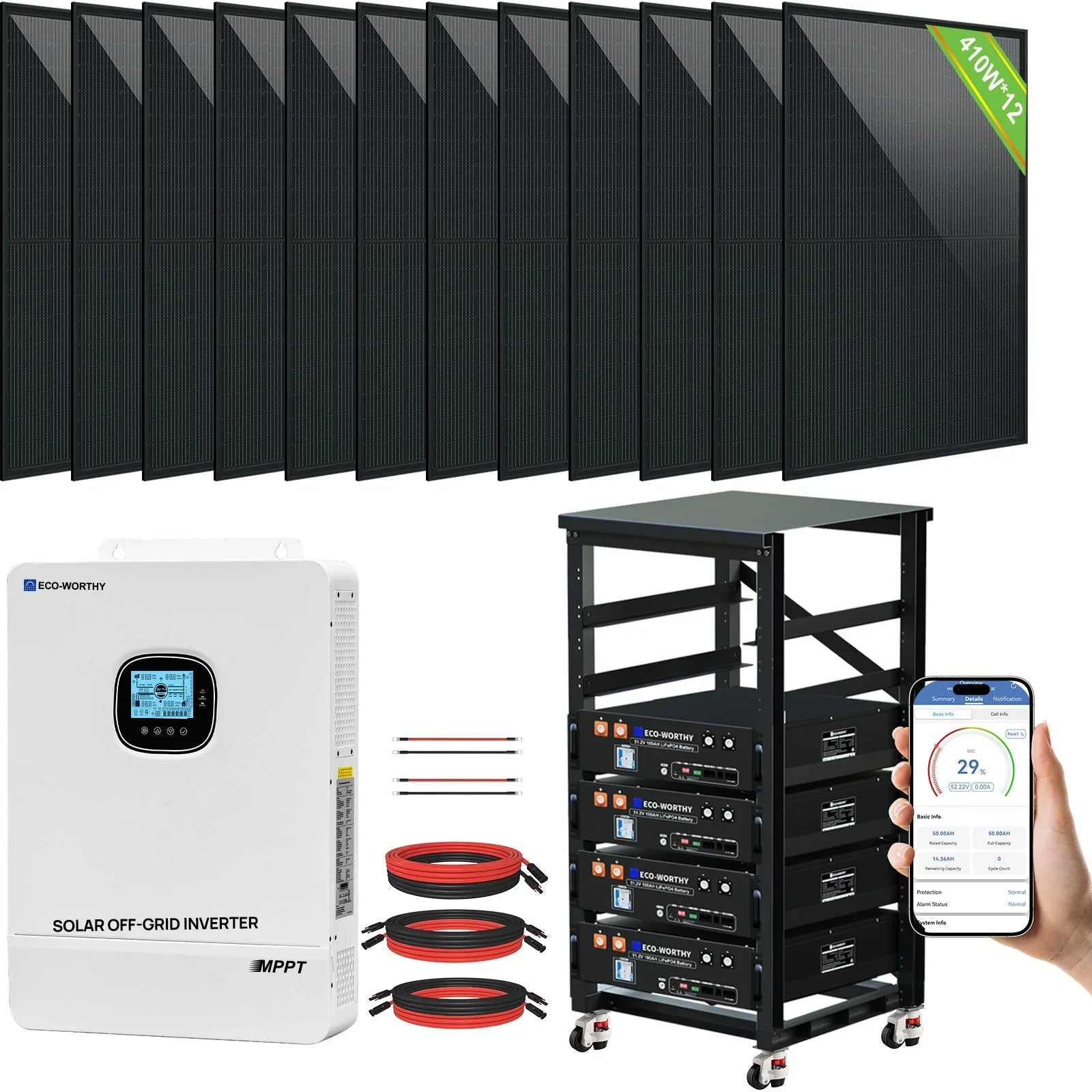

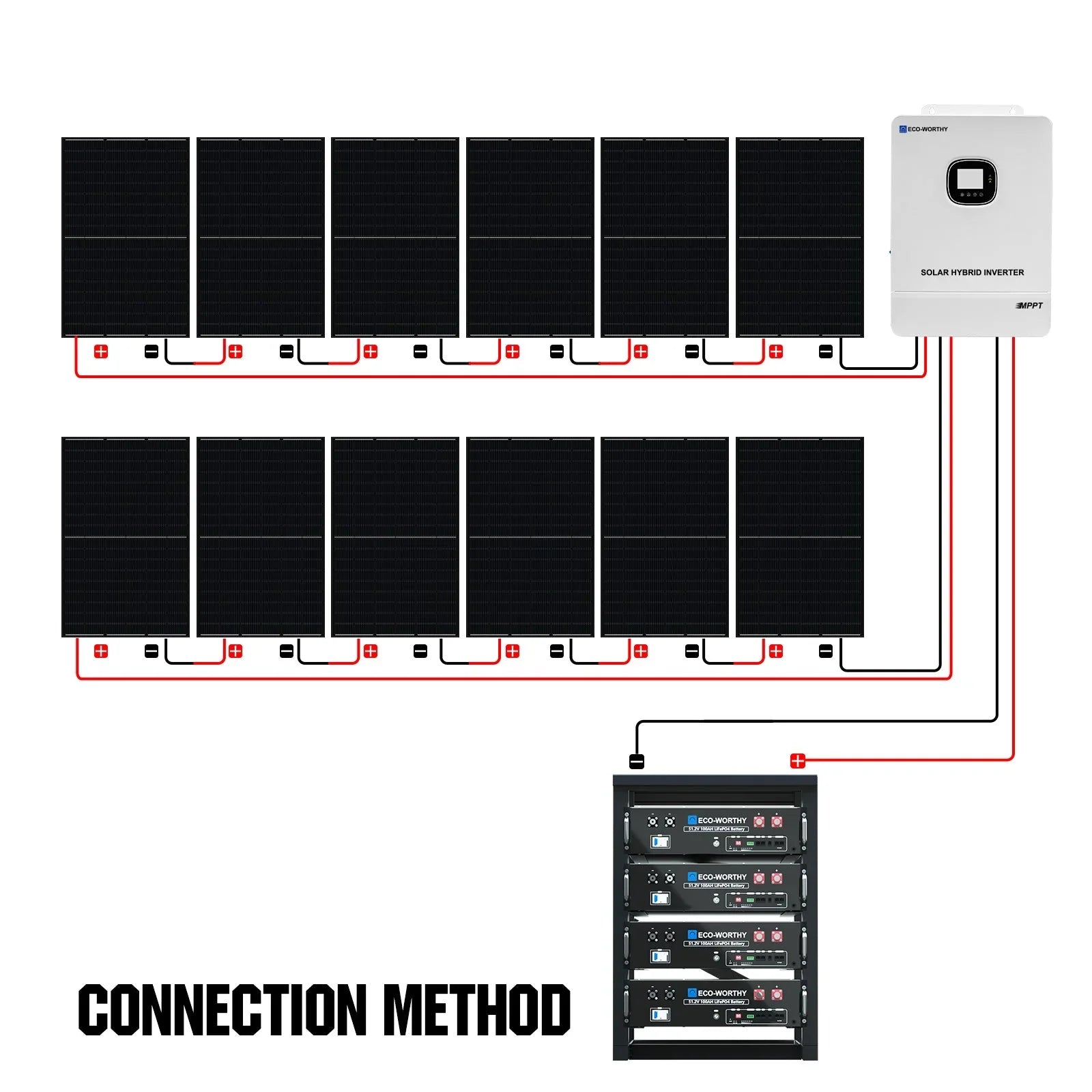

4920W PV & 20.48kWh Battery

  • 12× ECO-WORTHY 410W Monocrystalline Solar Panels (Black)

  • 1× ECO-WORTHY 10000W All-in-One Off-Grid Inverter

  • 1× PV-to-Inverter Cable

  • 2× PV Extension Cables

  • 4× ECO-WORTHY 51.2V 100Ah LiFePO₄ Batteries

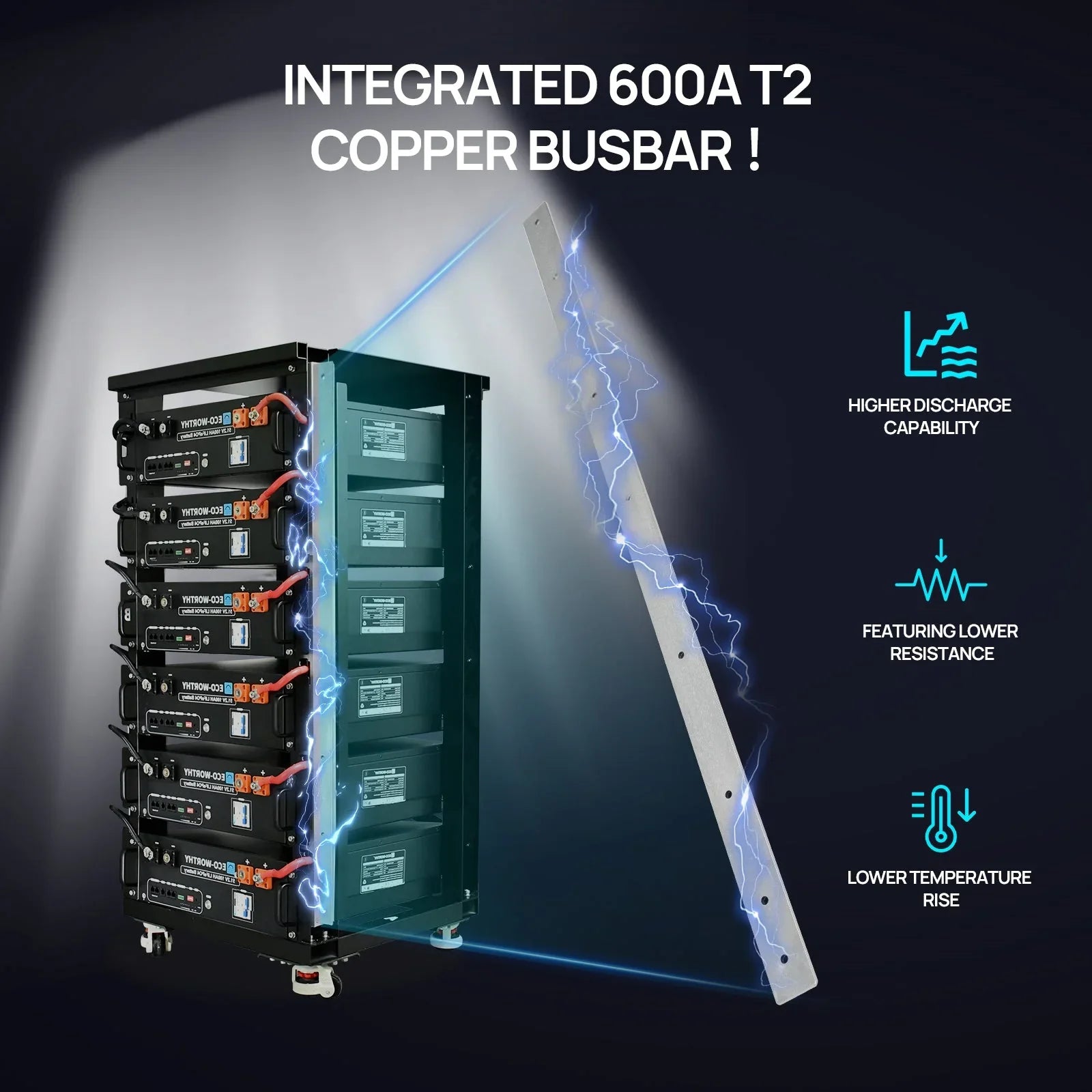

  • 1× ECO-WORTHY RACK6 V2 I 6-Layer Rack with 600A Busbar

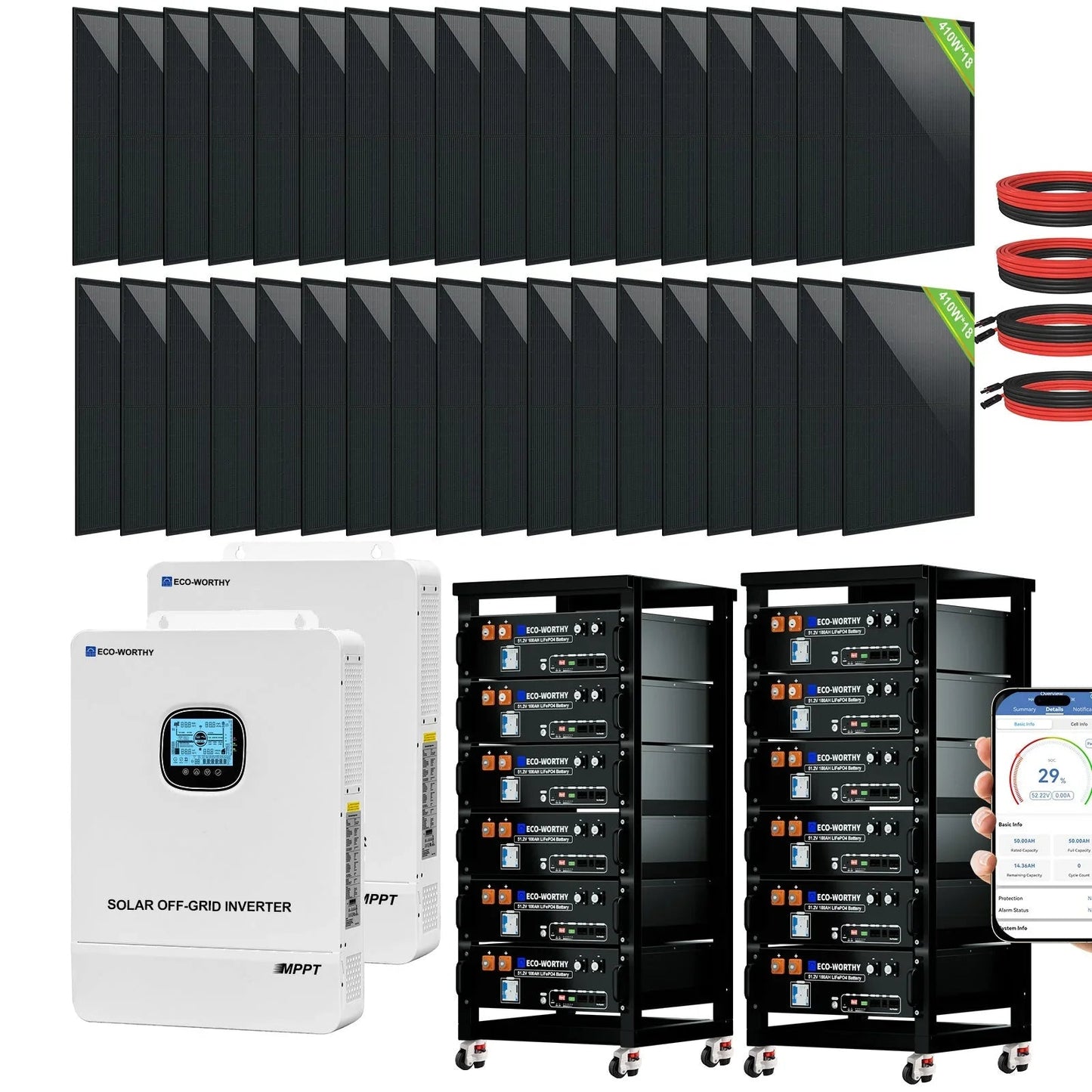

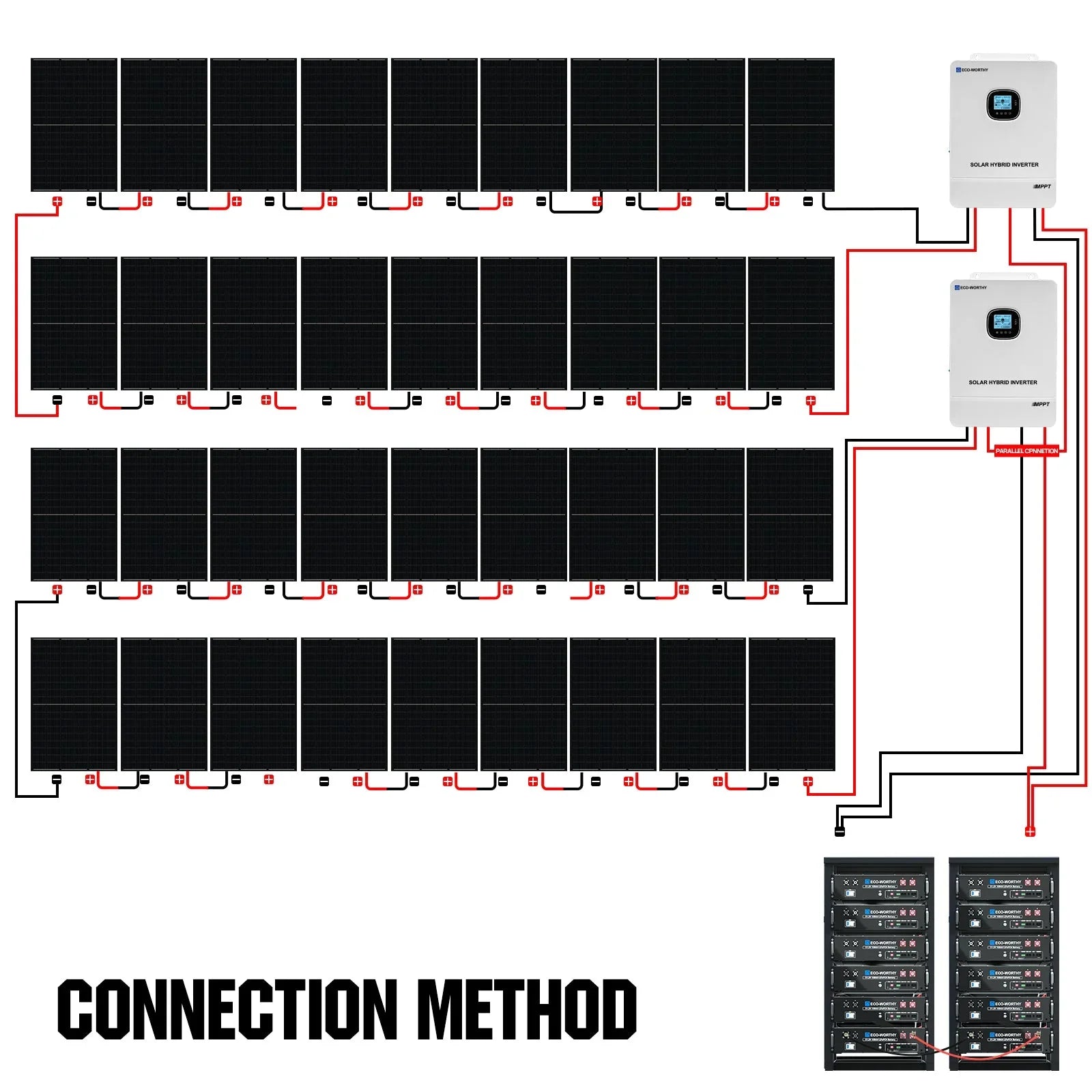

14760W PV & 61.44kWh Battery

  • 36× ECO-WORTHY 410W Monocrystalline Solar Panels (Black)

  • 2× ECO-WORTHY 10000W All-in-One Off-Grid Inverters

  • 4× PV-to-Inverter Cables

  • 8× PV Extension Cables

  • 12× ECO-WORTHY 51.2V 100Ah LiFePO₄ Batteries

  • 2× ECO-WORTHY RACK6 V2 I 6-Layer Racks with 600A Busbar

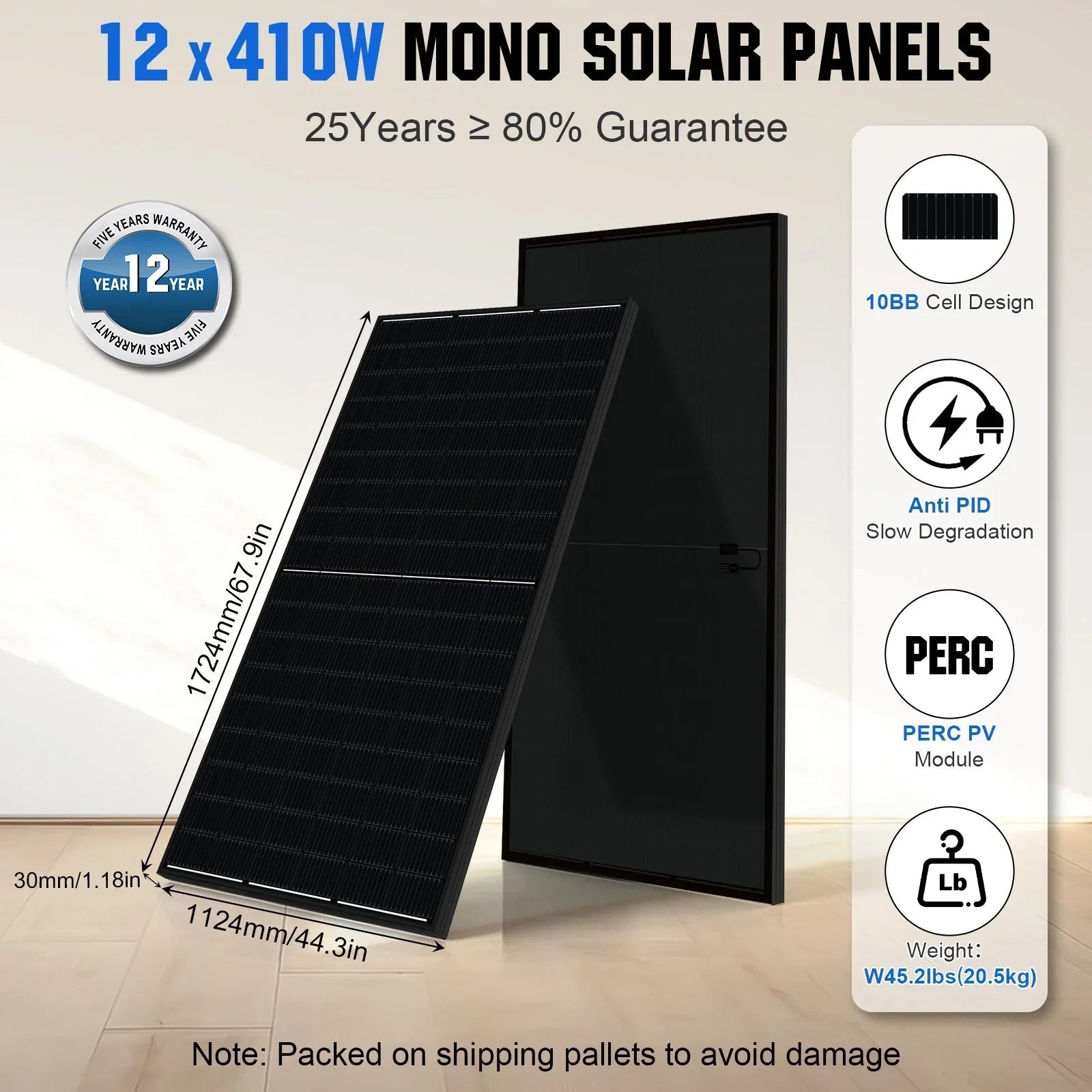

ECO-WORTHY 410W Monocrystalline Solar Panel Specifications

  • Rated Power: 410W

  • Solar Cell: Mono PERC

  • Maximum Power Voltage (Vmp): 31.3V

  • Open Circuit Voltage (Voc): 37.5V

  • Short Circuit Current (Isc): 13.84A

  • Maximum Current (Imp): 13.1A

  • Output Tolerance: ±3%

  • Temperature Coefficient of Isc: 0.05%/°C

  • Temperature Coefficient of Voc: –0.29%/°C

  • Operating Temperature: –40°C to +85°C

  • Frame: Aluminum Alloy

  • Dimensions: 1724 × 1134 × 30 mm

  • Weight: 20.5 kg

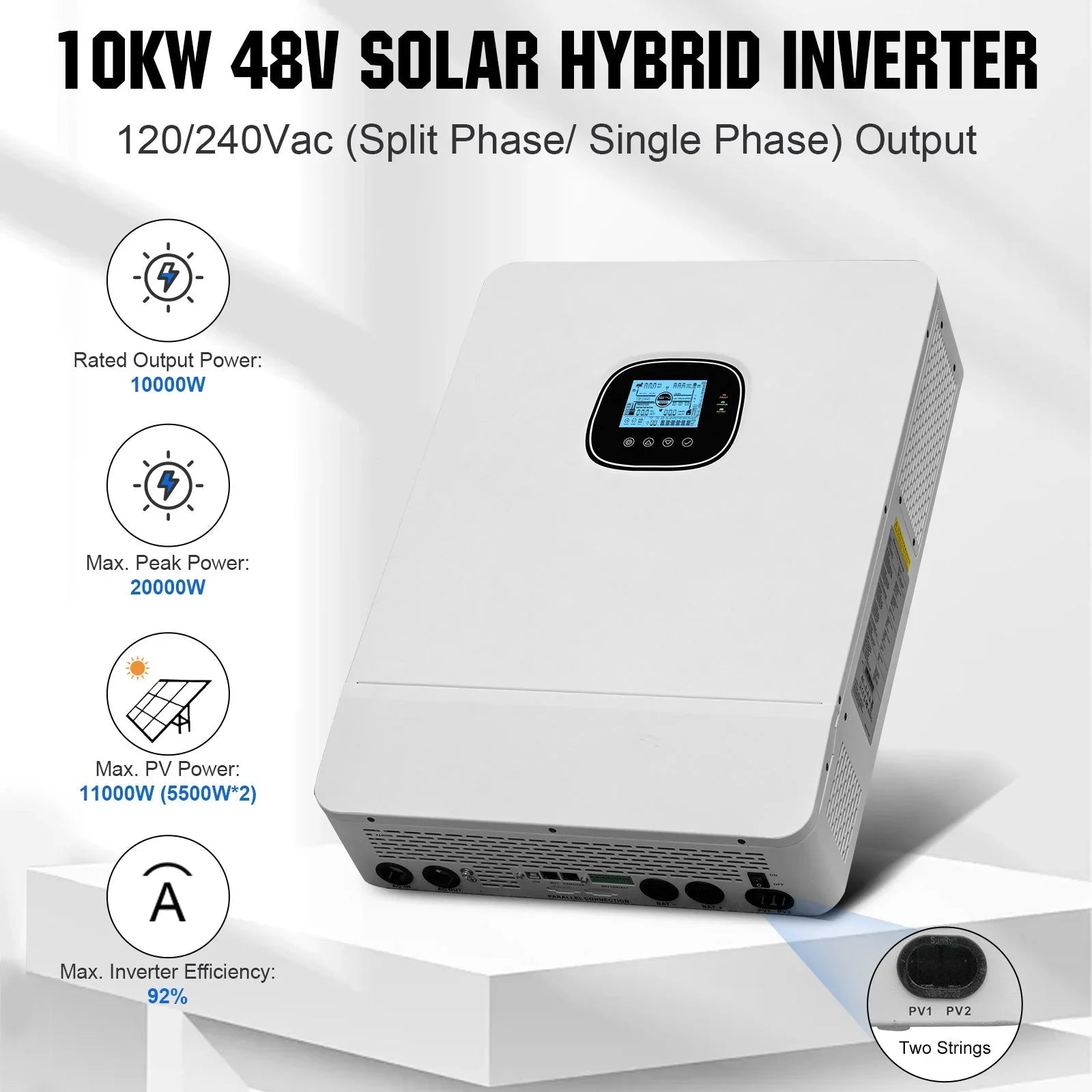

ECO-WORTHY 10kW 48V All-in-One Inverter with 200A MPPT

  • Rated Output Power: 10,000W

  • Peak Power: 20,000W

  • Output Voltage: 120/240V AC, 50Hz/60Hz

  • Output Waveform: Pure Sine Wave

  • Battery Input Voltage: 48V

  • Solar Charging Mode: PV Charging Current 0–200A, MPPT Voltage 125–425VDC, Max Input Power 11,000W

  • AC/Grid Charging Mode: 90–140VAC, 50Hz/60Hz (Auto Detect)

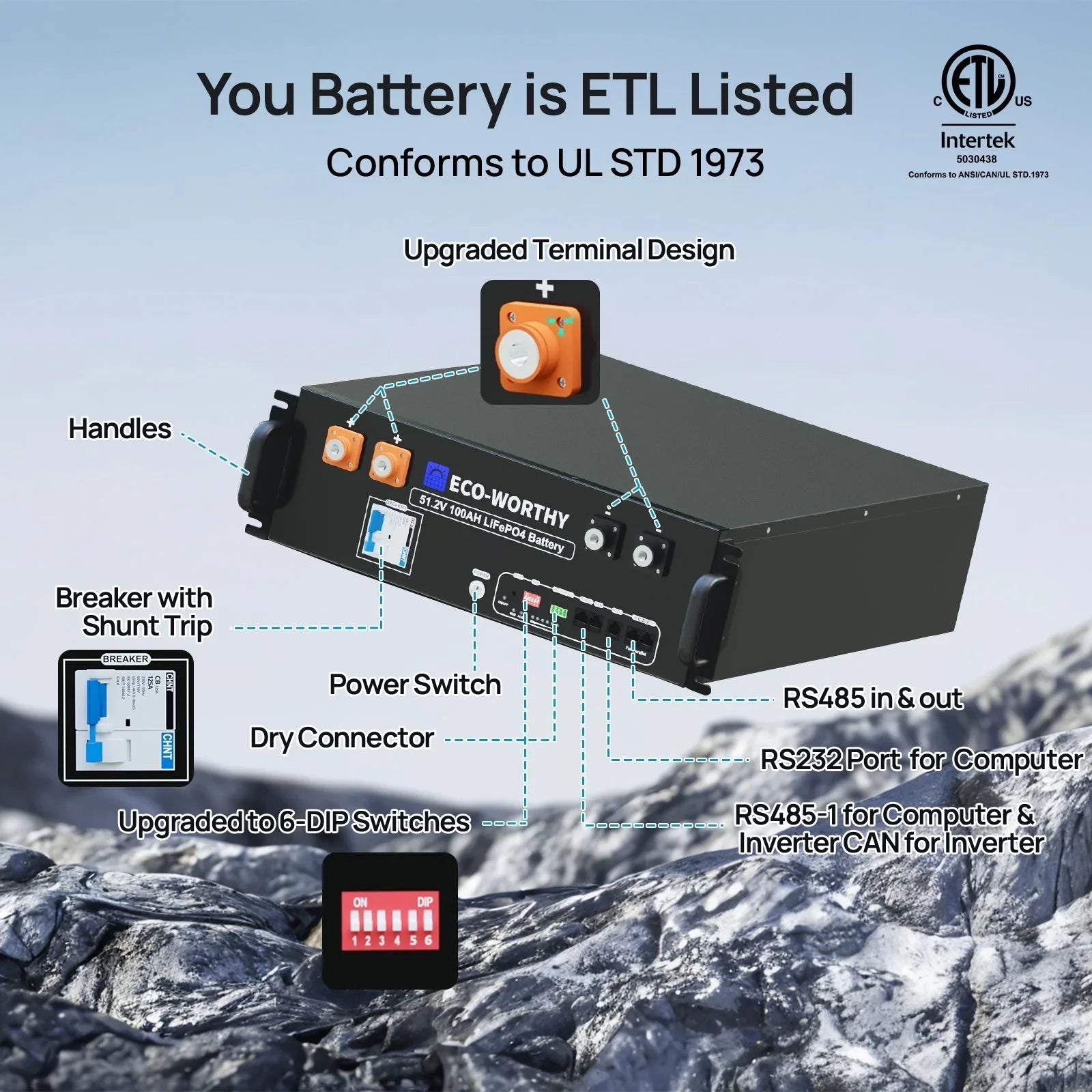

ECO-WORTHY 48V 100Ah LiFePO₄ Lithium Battery

  • Battery Capacity: 100Ah

  • Energy: 5.12kWh

  • Battery Voltage: 51.2V

  • Maximum Charge Current: 100A

  • Maximum Discharge Current: 100A

  • Max Charge Voltage: 58.4V

  • Discharge Cut-Off Voltage: 10V

  • Operating Temperature: –20°C to 60°C (–4°F to 140°F)

  • Cycle Life: ≥4000 cycles at 50% DoD

  • Dimensions: 22.55 × 17.13 × 5.63 in

  • Weight: 95 lbs

This ECO-WORTHY Complete Off-Grid Solar Power System provides a fully integrated, scalable, and high-efficiency solution for off-grid solar power, energy storage, and reliable backup power applications.
