ECO-WORTHY Complete Off-Grid Solar Panel Kit

The ECO-WORTHY Complete Off-Grid Solar Panel Kit is a fully integrated energy solution for off-grid homes, cabins, workshops, and commercial applications. Available in multiple configurations, this system blends high-efficiency 410W monocrystalline solar panels, 5000W 48V all-in-one off-grid inverters, and modular 51.2V 100Ah LiFePO₄ batteries to deliver reliable, scalable, and clean power. Advanced MPPT solar charging and pure sine wave output support high-demand loads, while expandable rack options enable larger energy storage for growing facilities.

Performance specifications

• PV input: 7380W–9840W (configurable by panel count)
• AC output: 120V/240V, pure sine wave
• Inverter: 2× 5000W All-in-One Off-Grid inverters
• Solar panels: 410W mono PERC, 31.3V Vmp, 37.5V Voc, Isc 13.84A, Imp 13.1A, tolerance ±3%
• Panel array options: 18× panels for 7380W configuration; 24× panels for 9840W configuration
• Battery bank: 51.2V, 100Ah LiFePO₄ per unit; system offers 20.48kWh (18 panels) or 30.72kWh (24 panels)
• Battery energy per unit: 5.12kWh; max charging current 100A; max discharge 100A

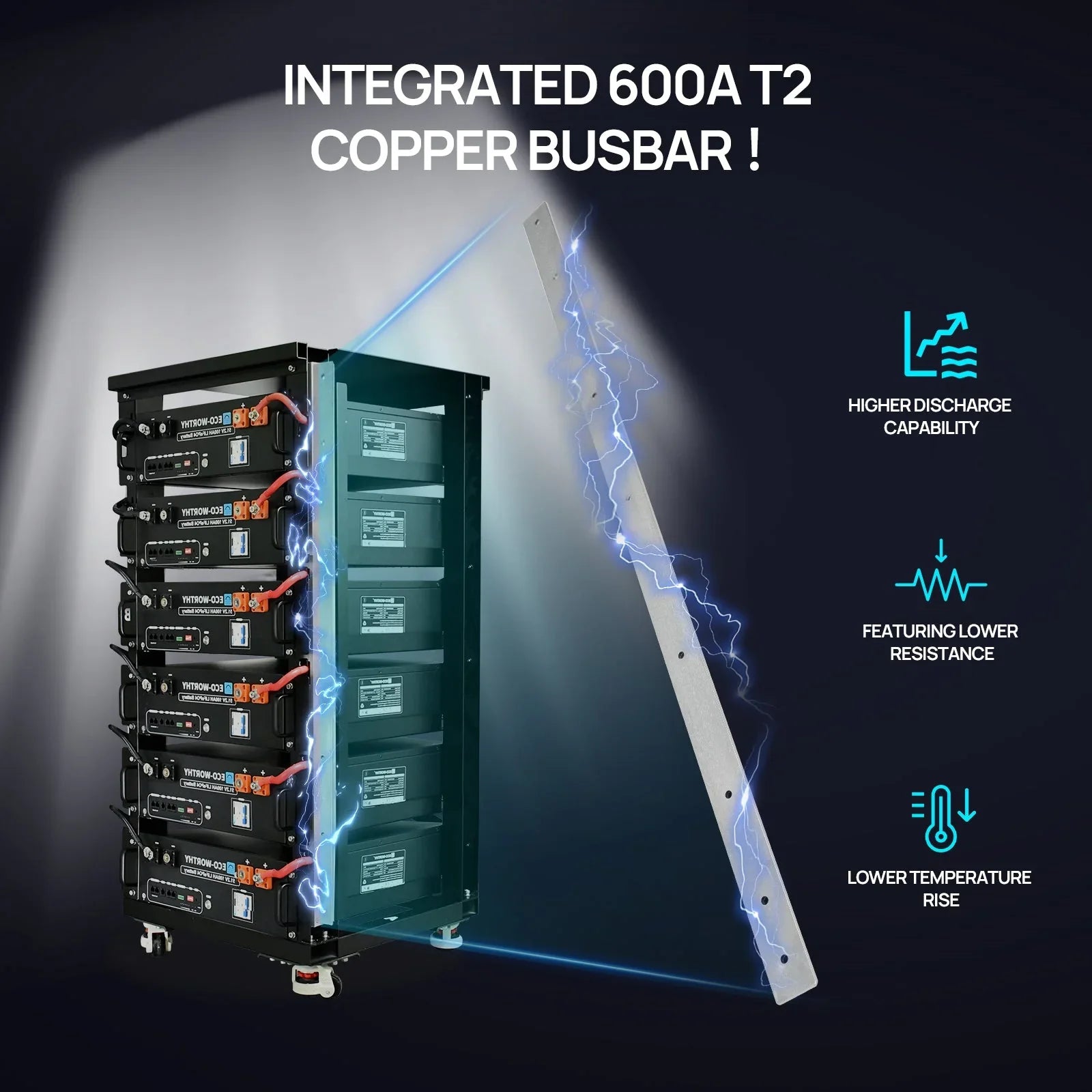

• System rack: ECO-WORTHY RACK6 V2 I 6-Layer Rack with 600A busbar
• Interconnects: PV-to-Inverter cables and PV extension cables included
• Panel dimensions and weight: 1724 × 1134 × 30 mm; 20.5 kg per panel
• Warranty: Solar panels come with 10-year warranty

Safety, reliability, and expandability

• Pure sine wave output minimizes harmonic distortion and protects sensitive equipment
• MPPT solar charging for efficient energy capture across varying irradiance
• Modular, scalable batteries and panels support gradual expansion to match growing load

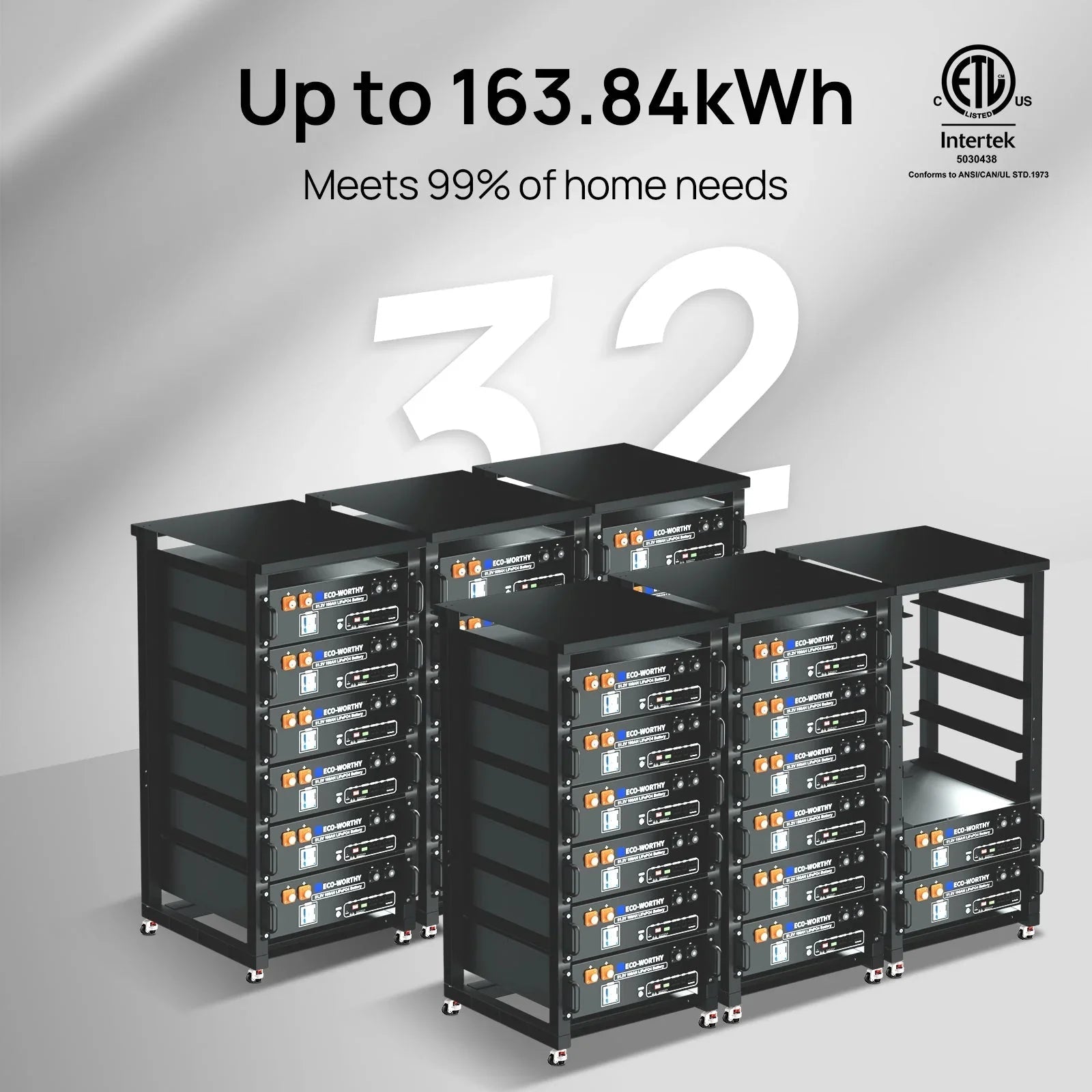

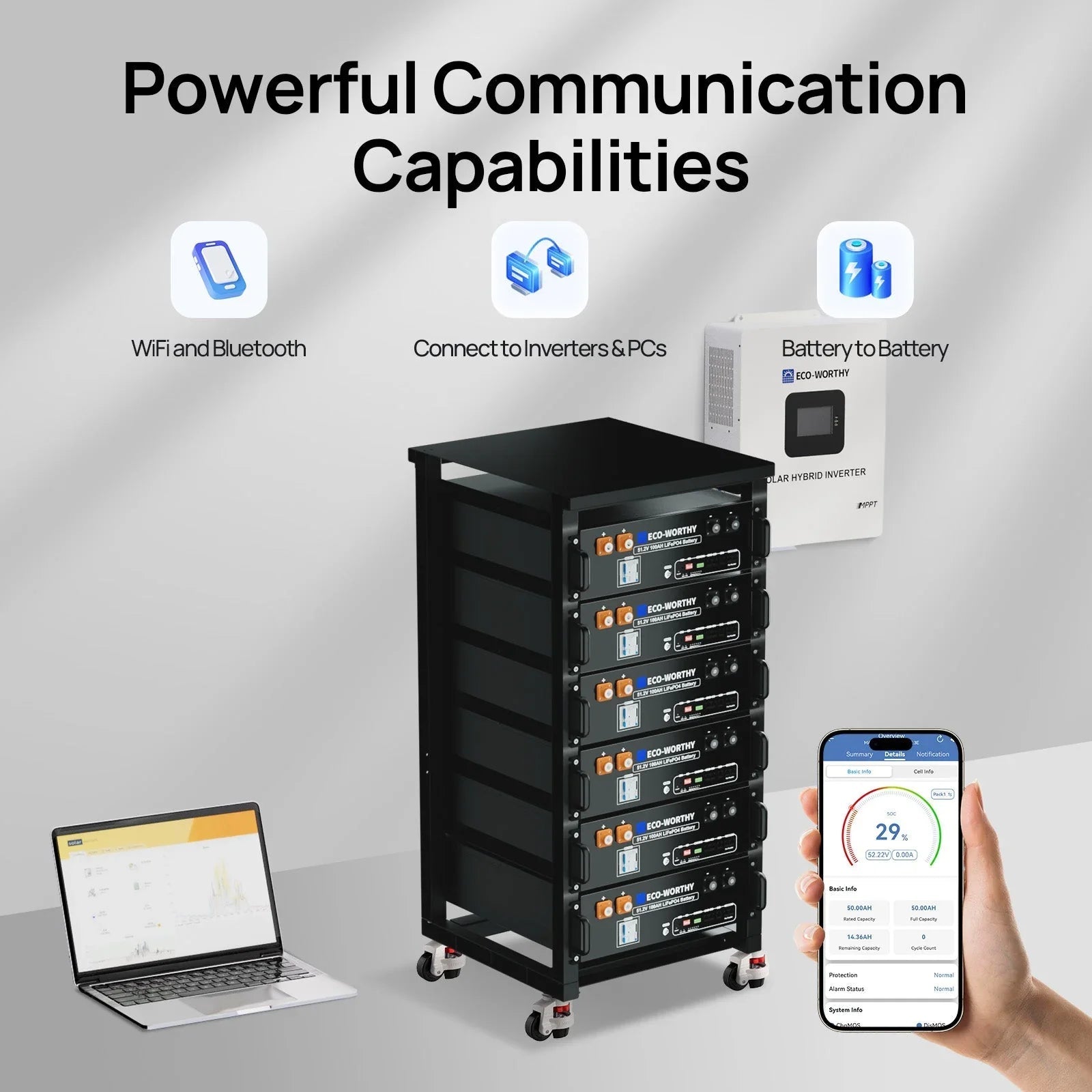

• Optional server rack expansion for large-scale energy storage

Installation, maintenance, and expansion

• Includes mounting rack, PV-to-Inverter cables, and PV extension cables for streamlined installation
• Two configurations provide a clear path from modest to high-demand off-grid deployments

Warranty and service

• Solar panels: 10-year warranty

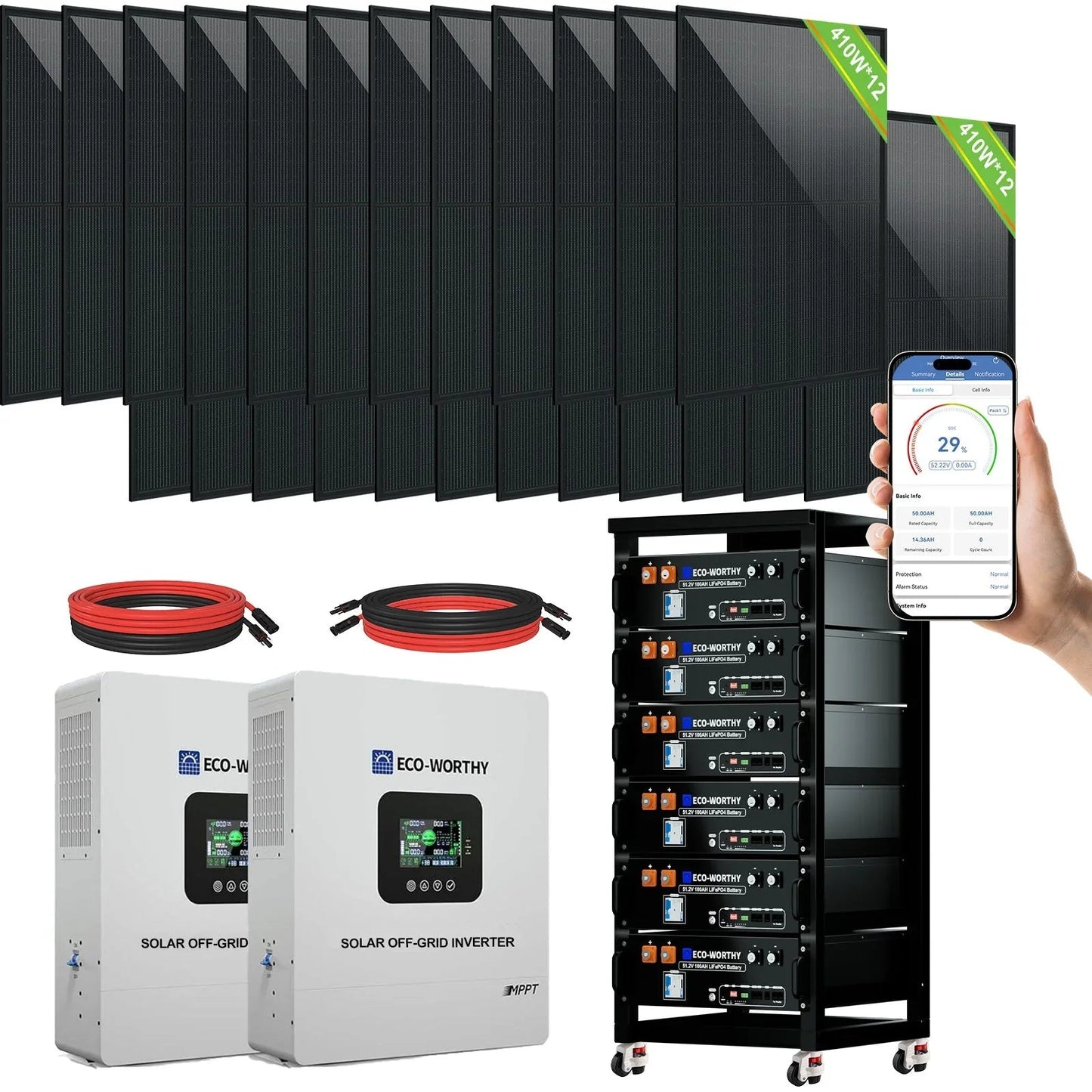

ECO-WORTHY Complete Off-Grid Solar Panel Kit | 2×5kW 120V/240V Output | 20.48kWh–30.72kWh Lithium Battery | 7380W–9840W Solar Input

The ECO-WORTHY Complete Off-Grid Solar Panel Kit is a fully integrated solar energy solution for off-grid homes, cabins, workshops, and commercial applications. Available in multiple configurations, this kit combines high-efficiency 410W monocrystalline solar panels, 5000W 48V All-in-One off-grid inverters, and modular 51.2V 100Ah LiFePO₄ lithium batteries, delivering reliable, scalable, and clean energy for your property.

This system features advanced MPPT solar charging, pure sine wave output, and optional server rack expansion for large-scale energy storage. It is designed to handle high-demand appliances, electronics, and off-grid loads with efficiency and reliability.

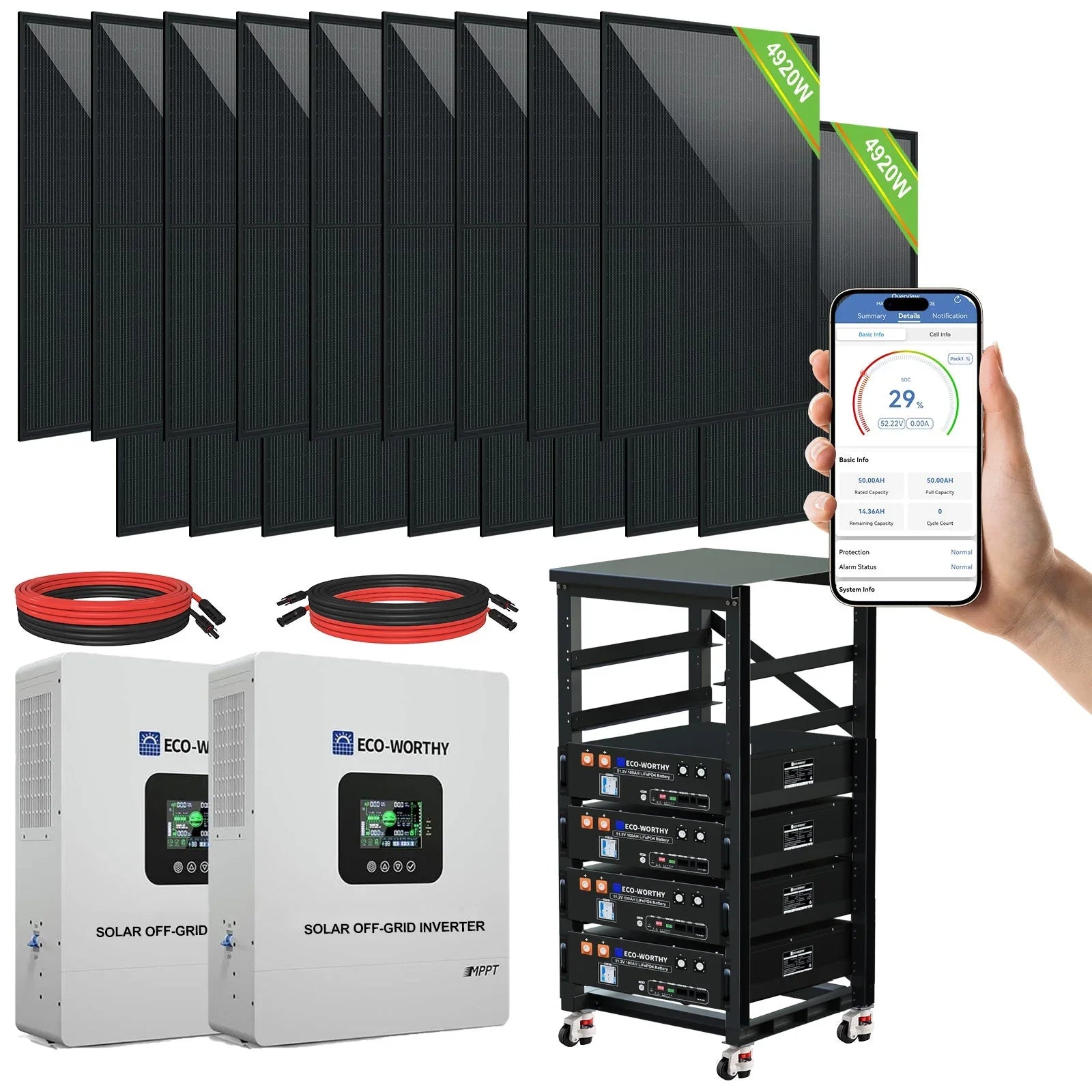

System Configurations

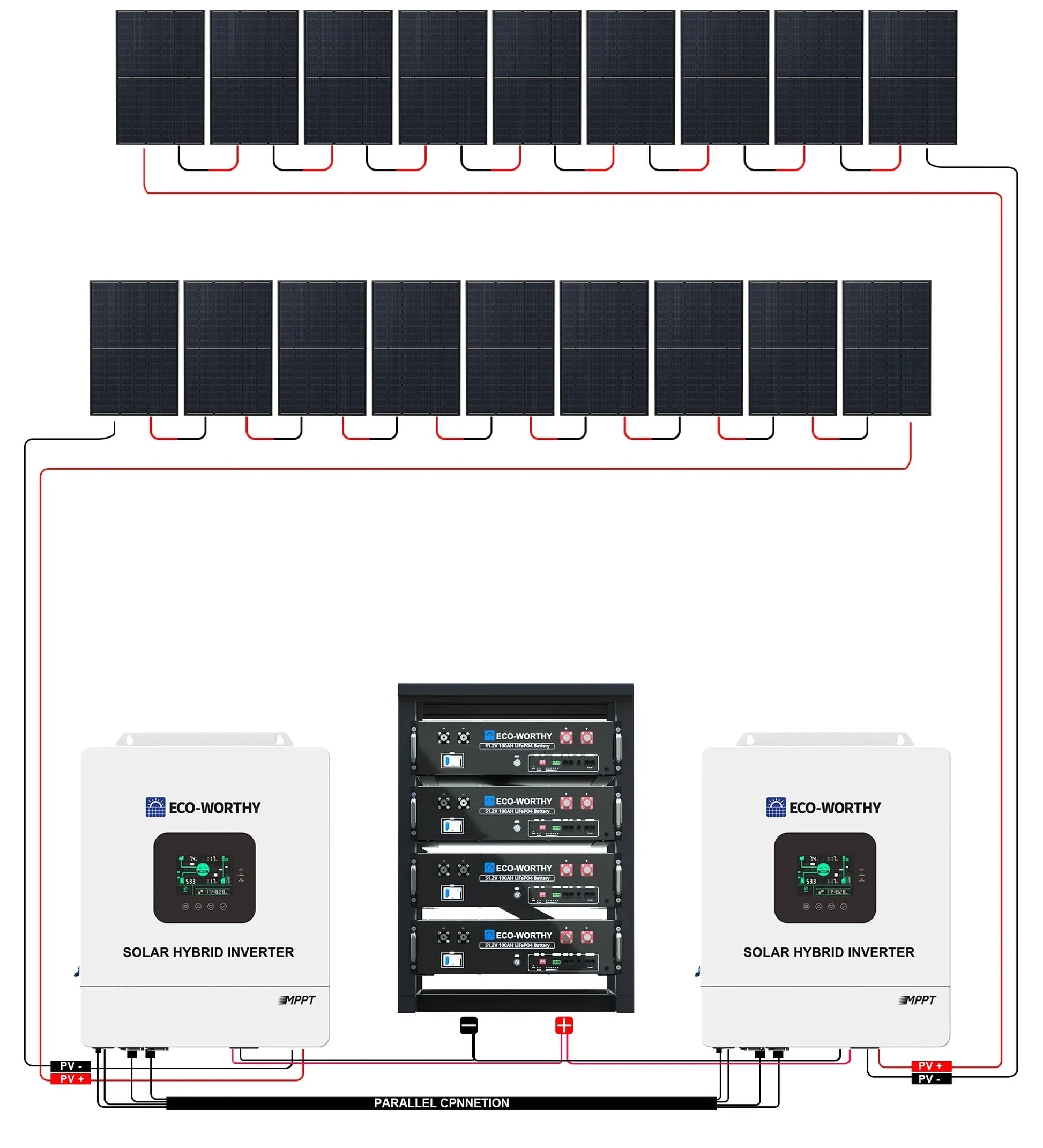

7380W PV & 20.48kWh Battery

• 18× ECO-WORTHY 410W Monocrystalline Solar Panels (Black)

• 2× ECO-WORTHY 5000W All-in-One Off-Grid Inverters

• 2× PV-to-Inverter Cables

• 4× PV Extension Cables

• 4× ECO-WORTHY 51.2V 100Ah LiFePO₄ Batteries

• 1× ECO-WORTHY RACK6 V2 I 6-Layer Rack with 600A Busbar

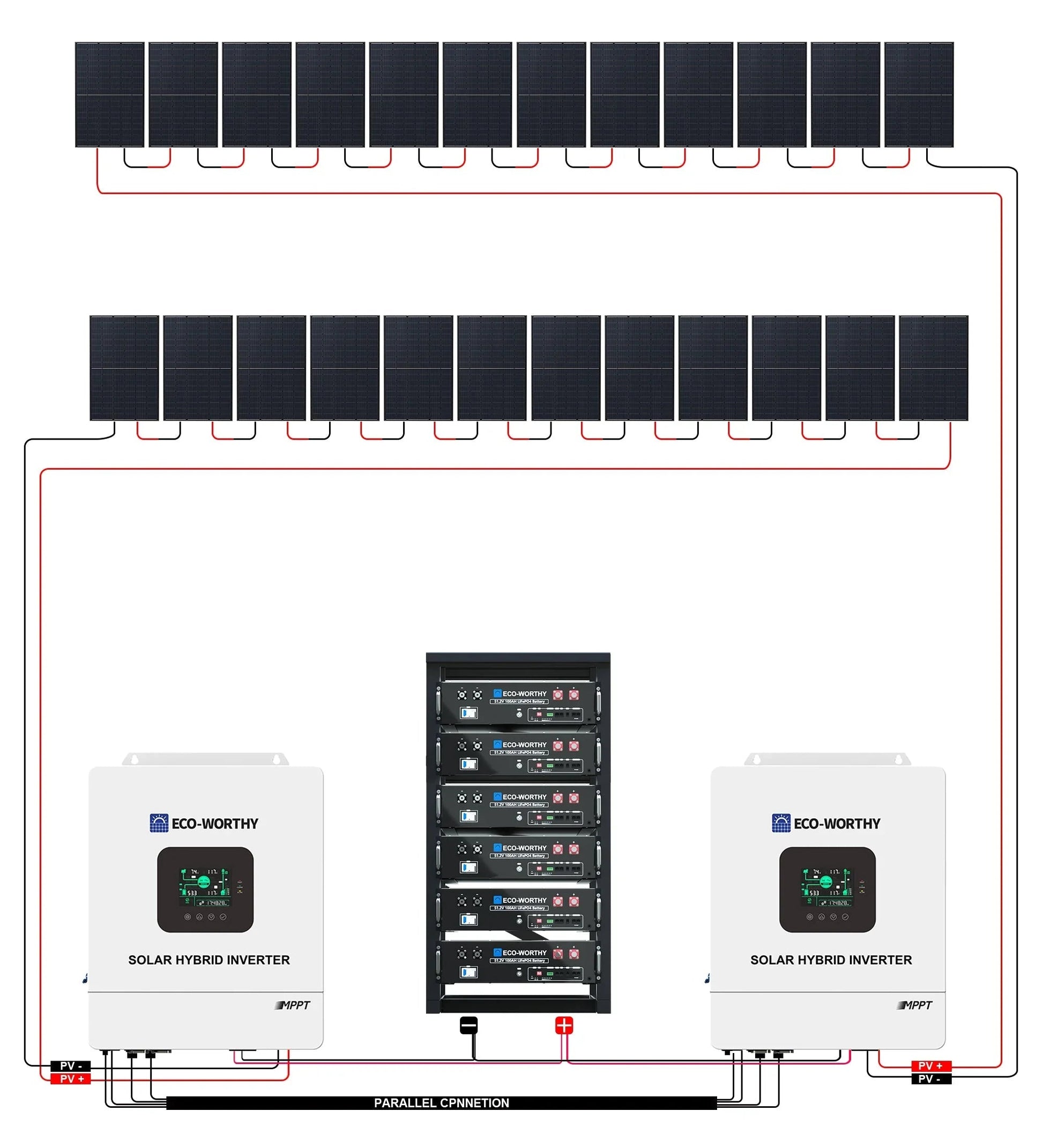

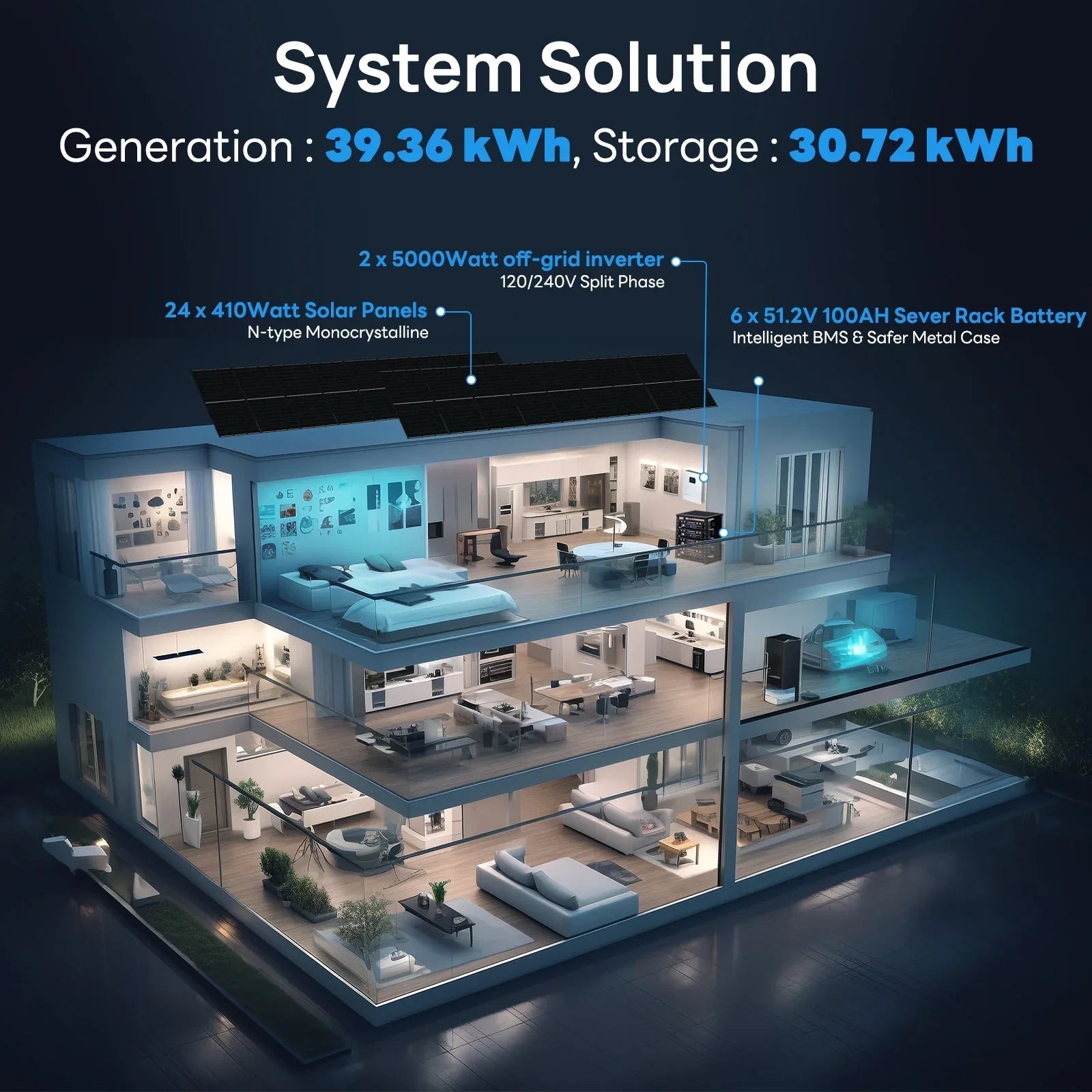

9840W PV & 30.72kWh Battery

• 24× ECO-WORTHY 410W Monocrystalline Solar Panels (Black)

• 2× ECO-WORTHY 5000W All-in-One Off-Grid Inverters

• 2× PV-to-Inverter Cables

• 4× PV Extension Cables

• 6× ECO-WORTHY 51.2V 100Ah LiFePO₄ Batteries

• 1× ECO-WORTHY RACK6 V2 I 6-Layer Rack with 600A Busbar

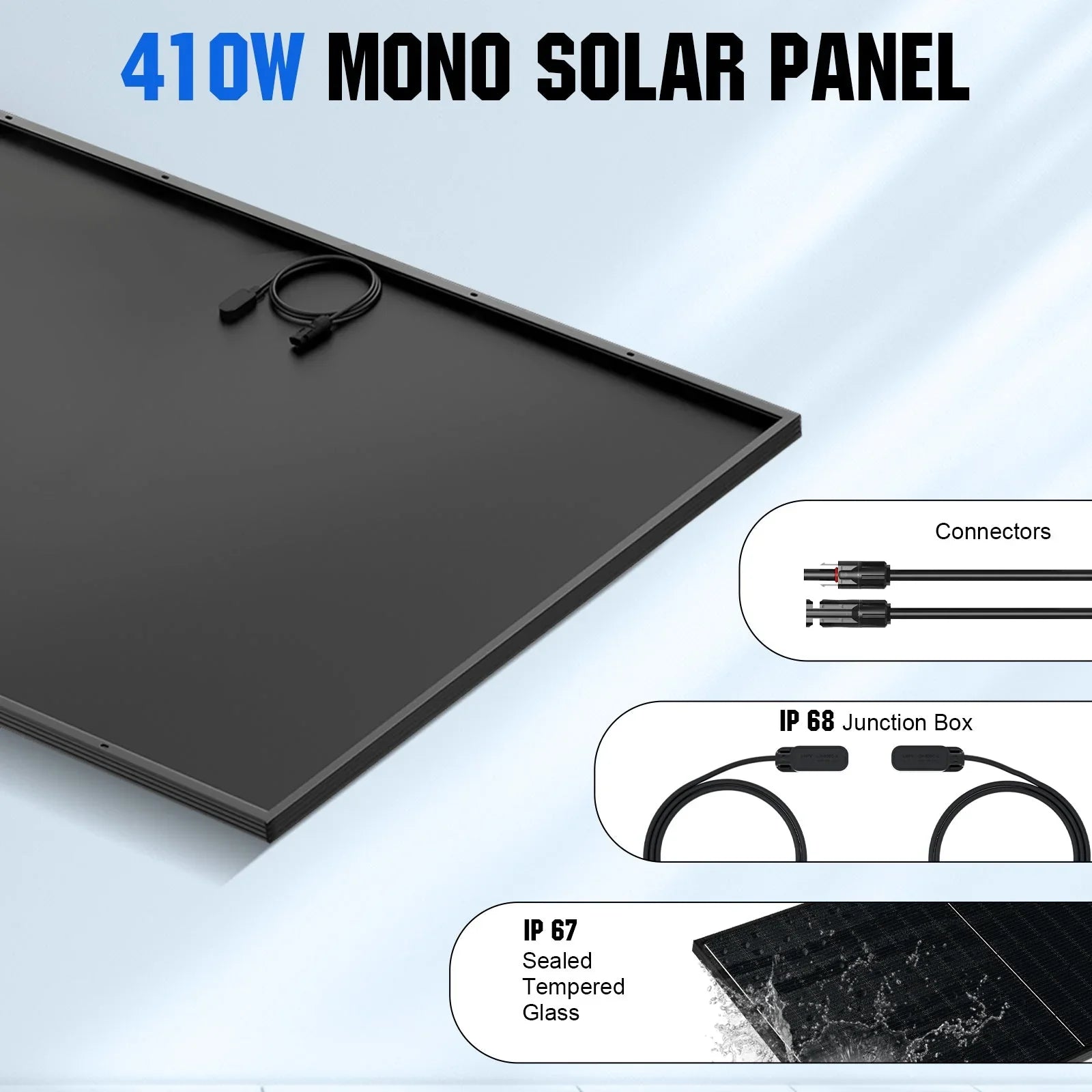

ECO-WORTHY 410W Monocrystalline Solar Panel

• Rated Power: 410W

• Solar Cell: Mono PERC

• Maximum Power Voltage (Vmp): 31.3V

• Open Circuit Voltage (Voc): 37.5V

• Short Circuit Current (Isc): 13.84A

• Maximum Current (Imp): 13.1A

• Output Tolerance: ±3%

• Temperature Coefficient of Isc: 0.05%/°C

• Temperature Coefficient of Voc: –0.29%/°C

• Operating Temperature: –40°C to +85°C

• Frame: Aluminum Alloy

• Dimensions: 1724 × 1134 × 30 mm

• Weight: 20.5 kg

• Warranty: 10 Years

ECO-WORTHY 5000W 48V Off-Grid Inverter Charger

• Rated Output Power: 5000W

• Peak Power: 10000W

• Output Voltage: 120V AC

• Output Waveform: Pure Sine Wave

• Battery Input Voltage: 48V

• AC Input Voltage Range: 90–140VAC

• AC Input Frequency: 50/60Hz (Auto Detect)

• Max AC Charge Current: 60A

• PV Charging Input: Max 5000W, 0–80A, MPPT 120–450VDC

• Battery Voltage Range: 40–60VDC

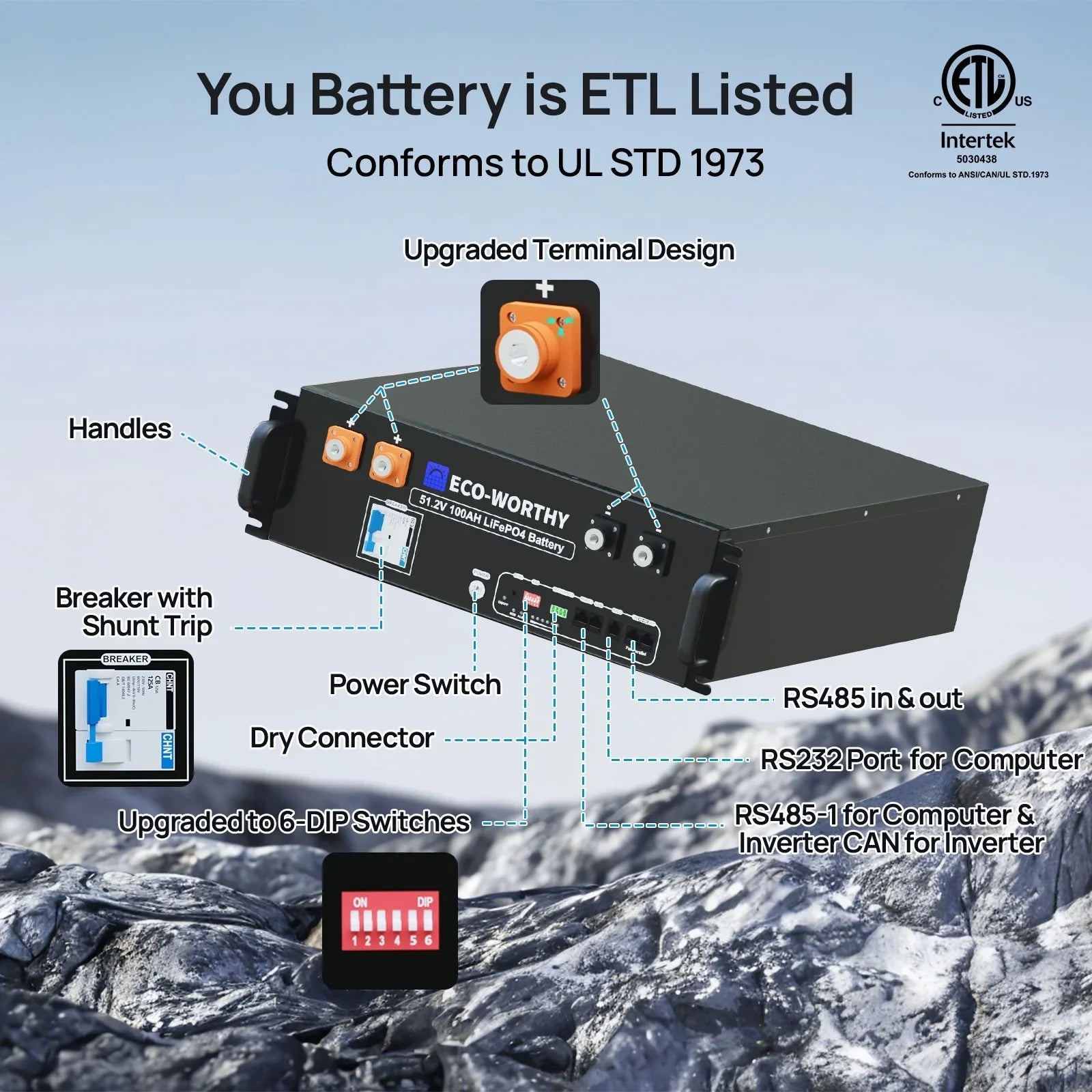

ECO-WORTHY 48V 100Ah LiFePO₄ Lithium Battery

• Battery Capacity: 100Ah

• Energy: 5.12kWh

• Battery Voltage: 51.2V

• Maximum Charging Current: 100A

• Maximum Discharging Current: 100A

• Max Charge Voltage: 58.4V

• Discharge Cut-Off Voltage: 10V

• Operating Temperature: –20°C to 60°C (–4°F to 140°F)

• Cycle Life: ≥4000 at 50% DoD

• Dimensions: 21.71 × 19.02 × 5.24 in

• Weight: 94.8 lbs

This ECO-WORTHY Complete Off-Grid Solar Panel Kit offers a complete, reliable, and expandable off-grid power solution for residential and commercial solar energy applications.
