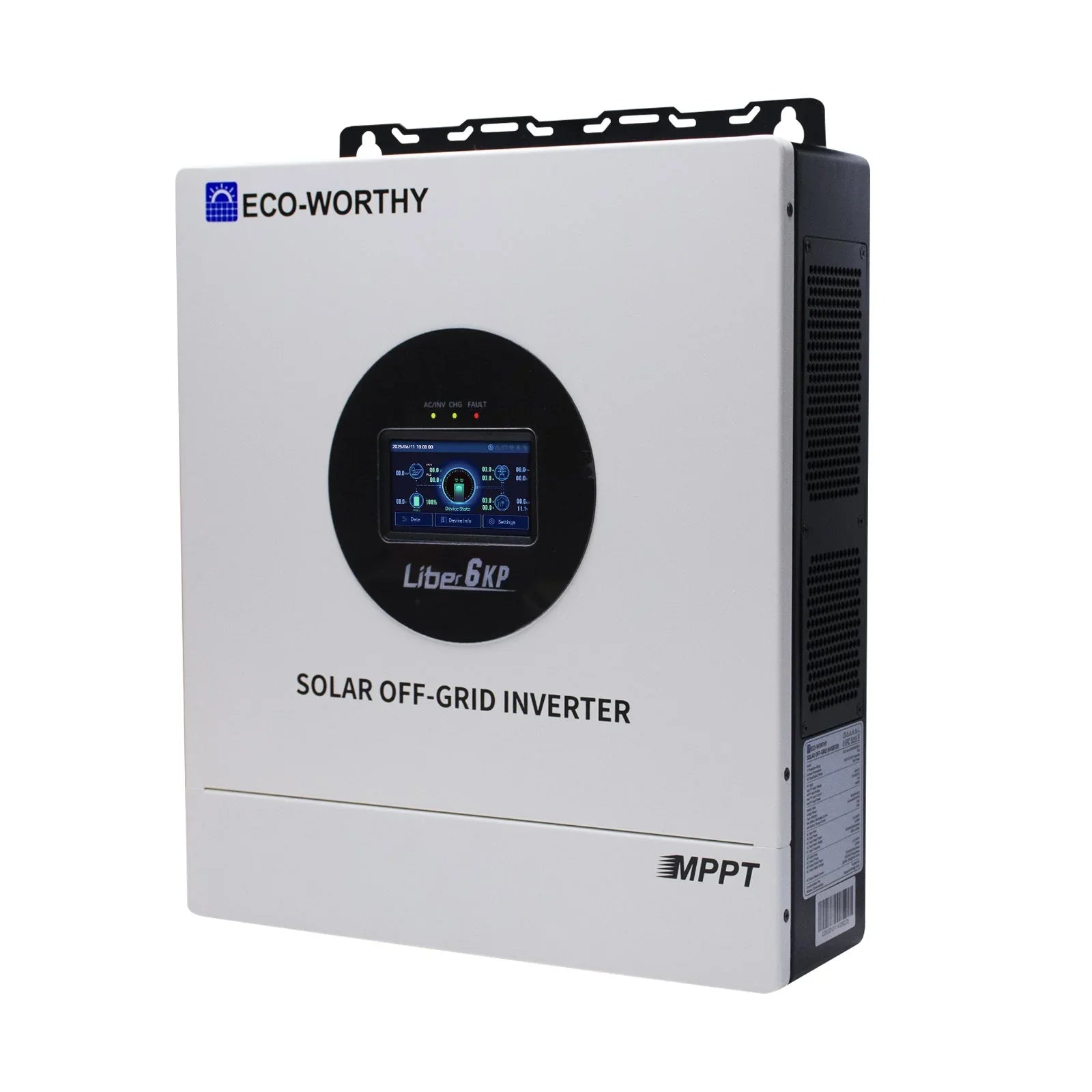

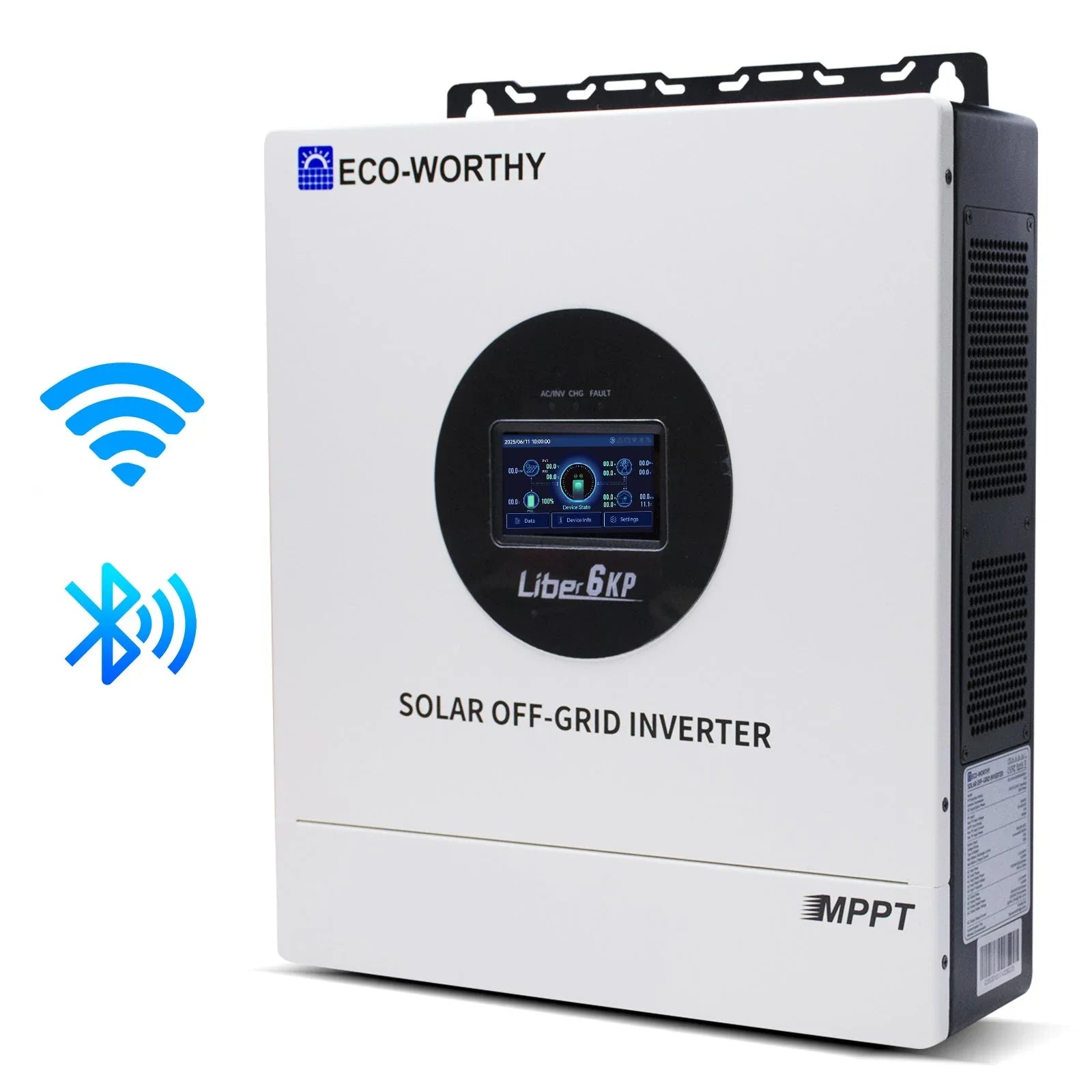

ECO-WORTHY 6KW Solar Off-grid Split-phase AIO Inverter

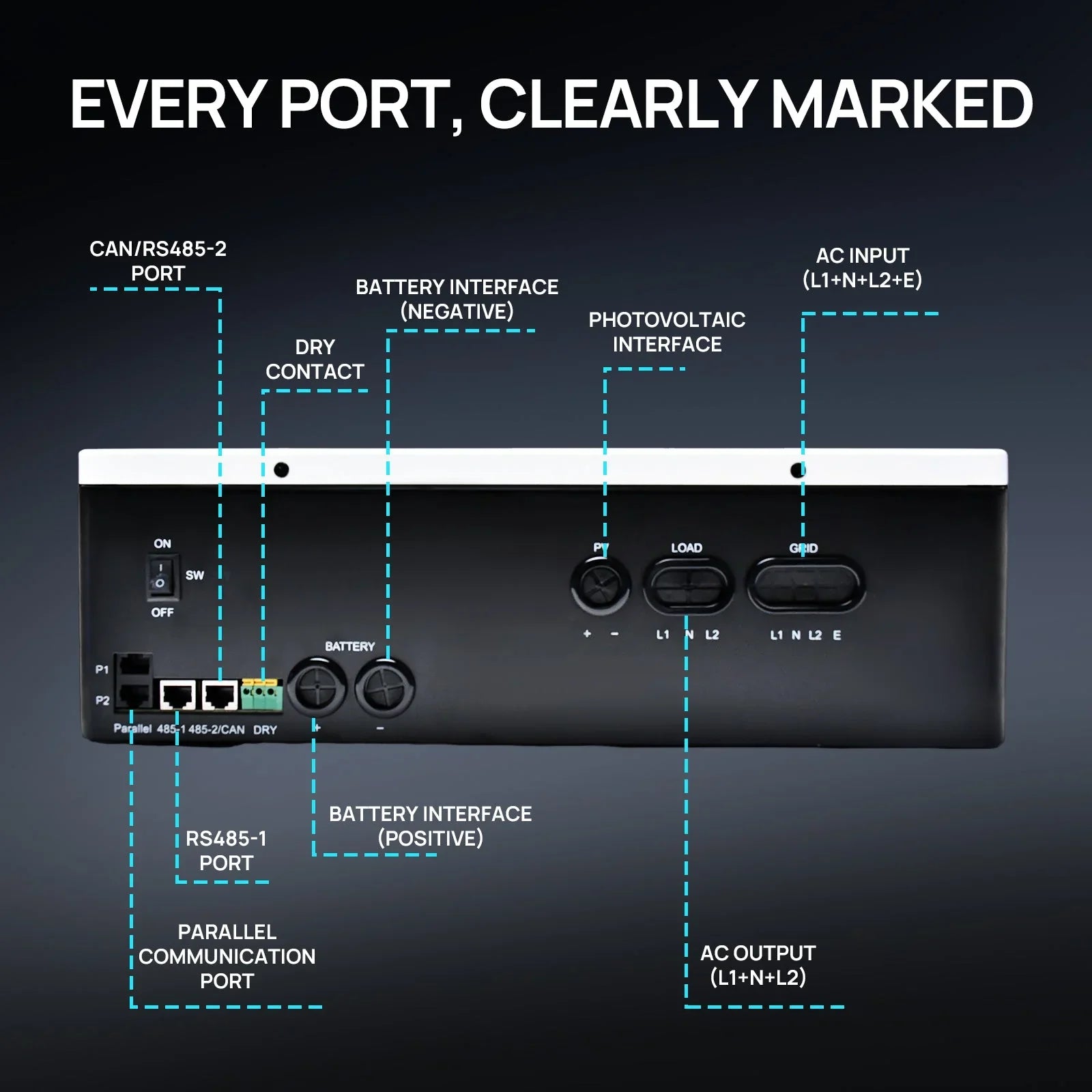

Power your off-grid home, cabin, shop, or backup system with the ECO-WORTHY 6KW Off-grid Split-phase All-in-One Inverter. Engineered for reliability and heavy-duty performance, it delivers 6000W of continuous power with up to 12,000W peak to support demanding appliances, motors, and whole-home loads. The unit provides true 120/240V split-phase output for standard outlets and large 240V loads, while a fast 10 ms switching time minimizes outages and protects sensitive electronics. This AIO integrates solar, battery, and generator inputs in a single enclosure, simplifying wiring and installation.

Key electrical specifications

• Inverter Rated Power: 6000W
• Peak Power: 12000W
• Output Voltage: 120/240V
• Frequency: 60Hz
• Waveform: Pure Sine
• Switching Time: 10 ms
• AC Input (Grid/Generator) Voltage Range: 180–280V
• AC Input Frequency: 60Hz
• Bypass Overload Current: 45A
• Battery System Compatibility: Lithium, Lead-acid, or User-defined
• Rated Battery Voltage: 48V
• Battery Voltage Range: 40–60V
• Max PV Charging: 120A
• Max Grid/Generator Charging: 100A
• Max Hybrid Charging: 120A
• Solar Input: 1 MPPT Route
• Max PV Input Power: 9000W
• Max PV Input Current: 27A
• Max VOC: 500V
• MPPT Range: 125–425V

System integration and use cases

The inverter is designed for full off-grid configurations as well as hybrid solar systems. It supports 48V battery banks and wide PV capacity, enabling flexible sizing with lithium or lead-acid chemistries. With 60Hz operation and stable pure sine-wave output, it accommodates a broad range of appliances—from well pumps and air conditioners to workshop tools—while maintaining power quality during transfers between grid, battery, and generator sources.

Eco-Worthy 6KW Solar Off-grid Split-phase AIO Inverter, 48Vdc to 120Vac/240Vac, 9kW@500V PV Input

Power your off-grid home, cabin, shop, or backup power system with the high-performance 6kW Off-Grid Split-Phase All-in-One (AIO) Inverter. Engineered for reliability, efficiency, and heavy-duty performance, this inverter delivers 6000W continuous power and up to 12,000W peak power, making it ideal for demanding appliances, motors, and whole-home off-grid systems.

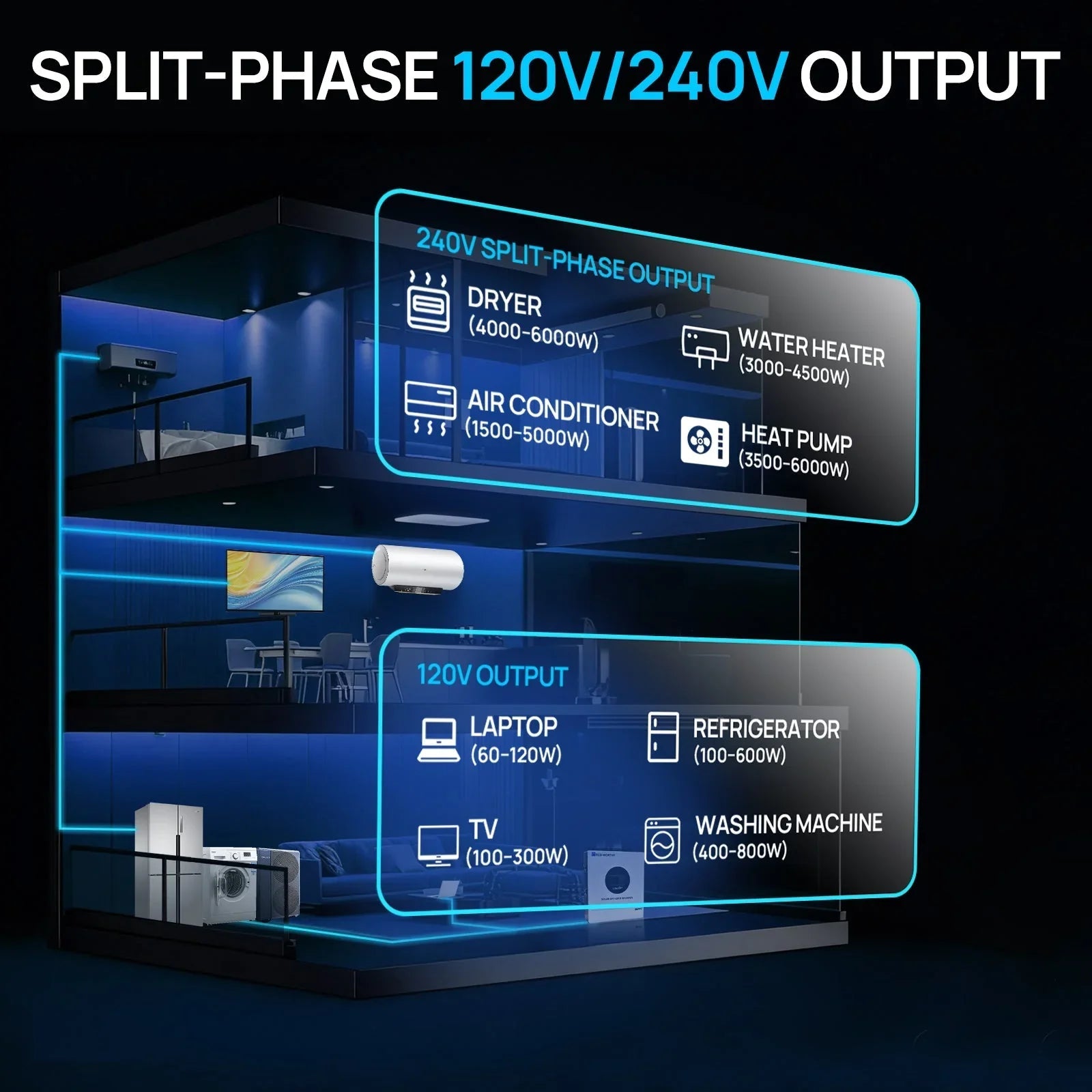

With true 120/240V split-phase output, this inverter supports everything from standard household outlets to large 240V loads such as well pumps, air conditioners, heaters, and workshop tools. A fast 10ms switching time ensures seamless transition during outages, protecting sensitive electronics.

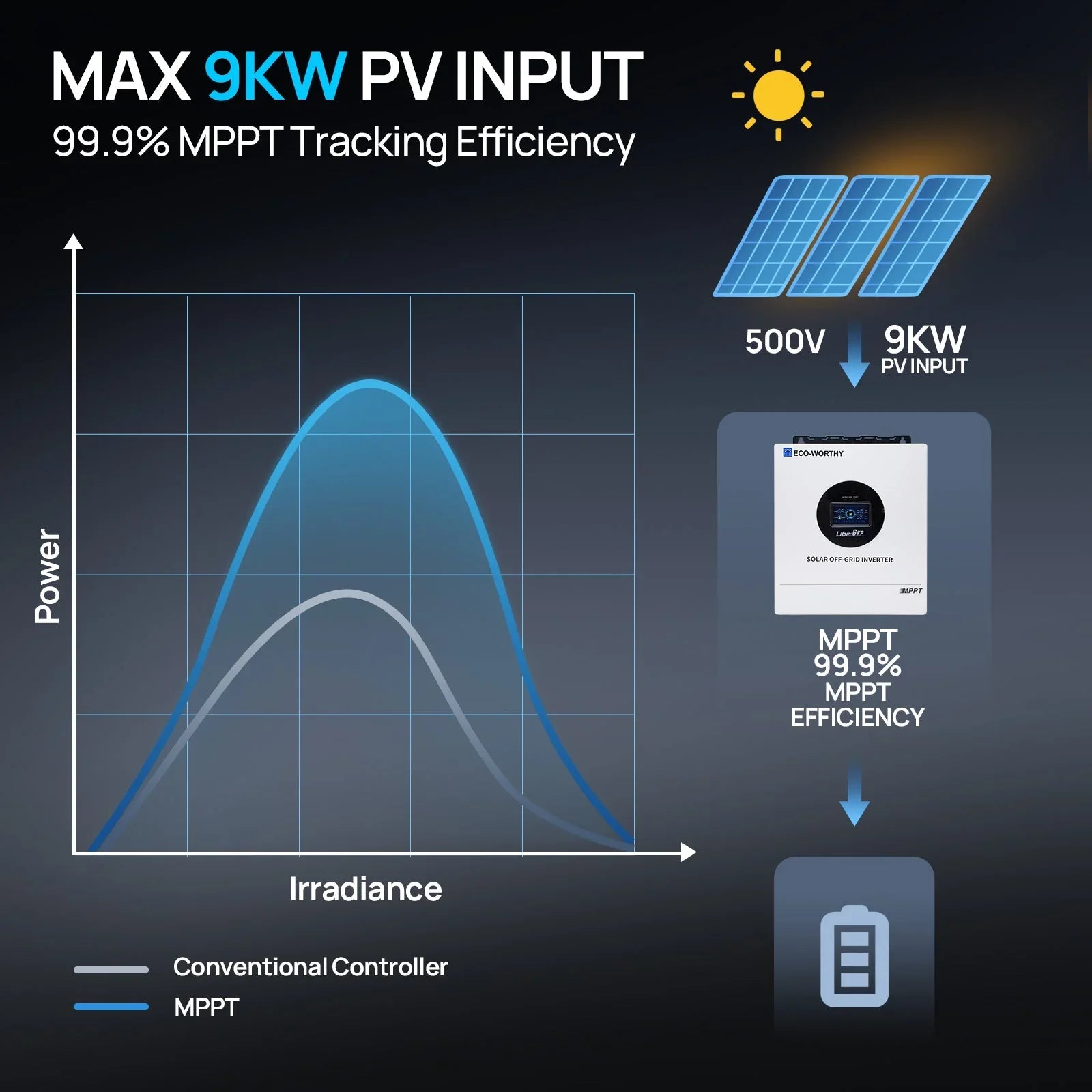

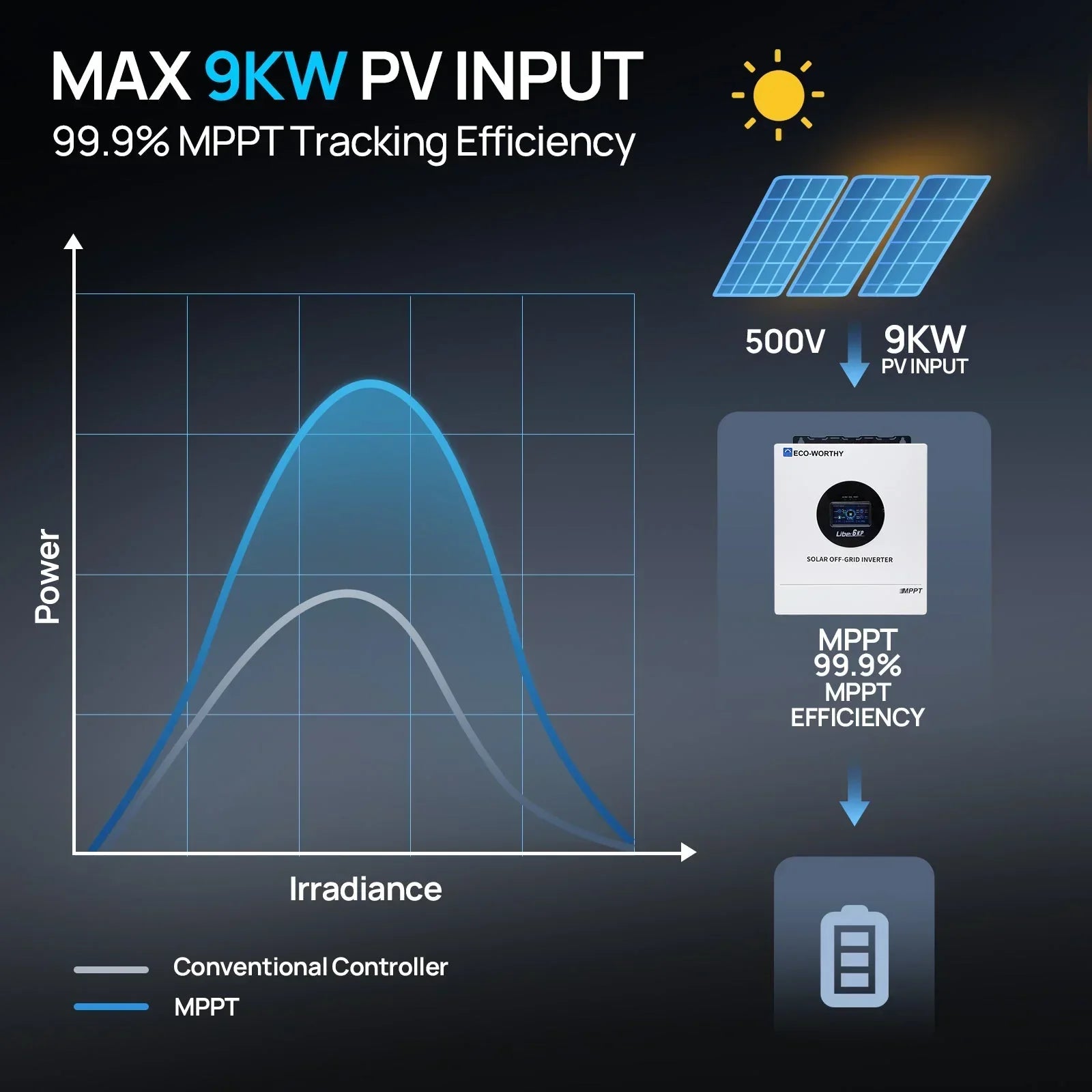

Designed for flexible energy setups, this AIO inverter integrates solar, battery, and generator inputs in one powerful unit. It supports 48V lithium or lead-acid batteries, offers a massive 9000W PV input, and features advanced MPPT technology for maximum solar efficiency.

Built for homeowners, off-grid systems, RVs, tiny homes, and commercial backup applications, this inverter delivers reliable energy independence—day and night.

Key Features

Inverter

• Rated Power: 6000W

• Peak Power: 12,000W

• Output Voltage: 120/240V (Single-phase/Split-phase)

• Motor Capacity: 4.8 HP

• Frequency: 60Hz

• Pure Sine Wave Output for clean, stable power

• Fast 10ms Switching for uninterrupted performance

AC Input (Grid/Generator)

• Voltage Range: 180–280V AC

• Frequency: 60Hz

• Bypass Overload Current: 45A

Battery System

• Compatible with Lithium, Lead-acid, or User-defined batteries

• Rated Voltage: 48V

• Voltage Range: 40–60V

• Max PV Charging: 120A

• Max Grid/Generator Charging: 100A

• Max Hybrid Charging: 120A

Solar Input

• 1 MPPT Route

• Max PV Input Power: 9000W

• Max Input Current: 27A

• Max VOC: 500V

• MPPT Range: 125–425V

Perfect for full off-grid homes, cabins, farms, remote sites, or hybrid solar systems, this 6kW AIO inverter delivers dependable power, flexible configuration, and high solar charging capacity to keep your system running efficiently.
