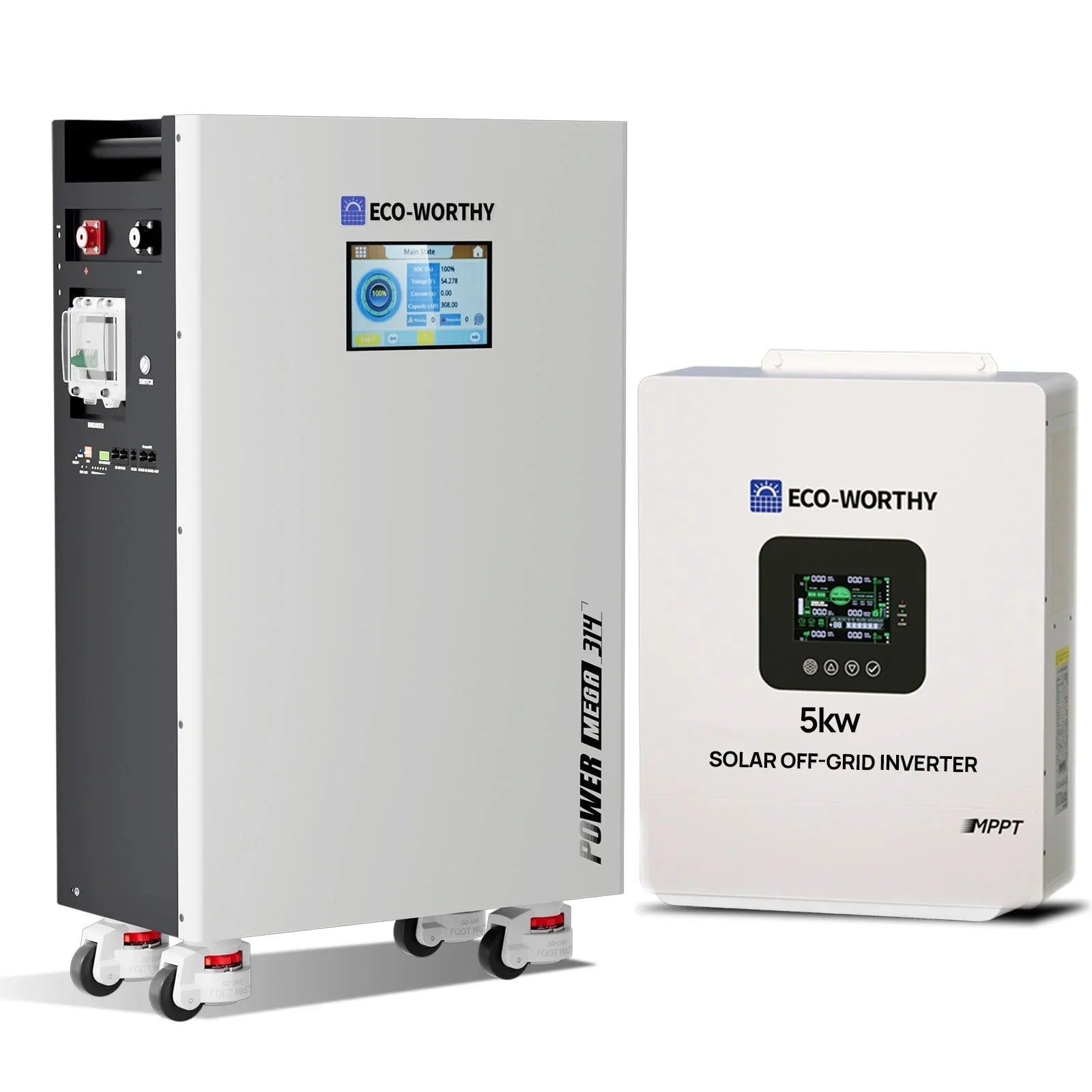

Eco-Worthy 5kW Home Backup Solar Power Bundle | 51.2V 314Ah Battery and 48V 5000W Off-Grid Inverter

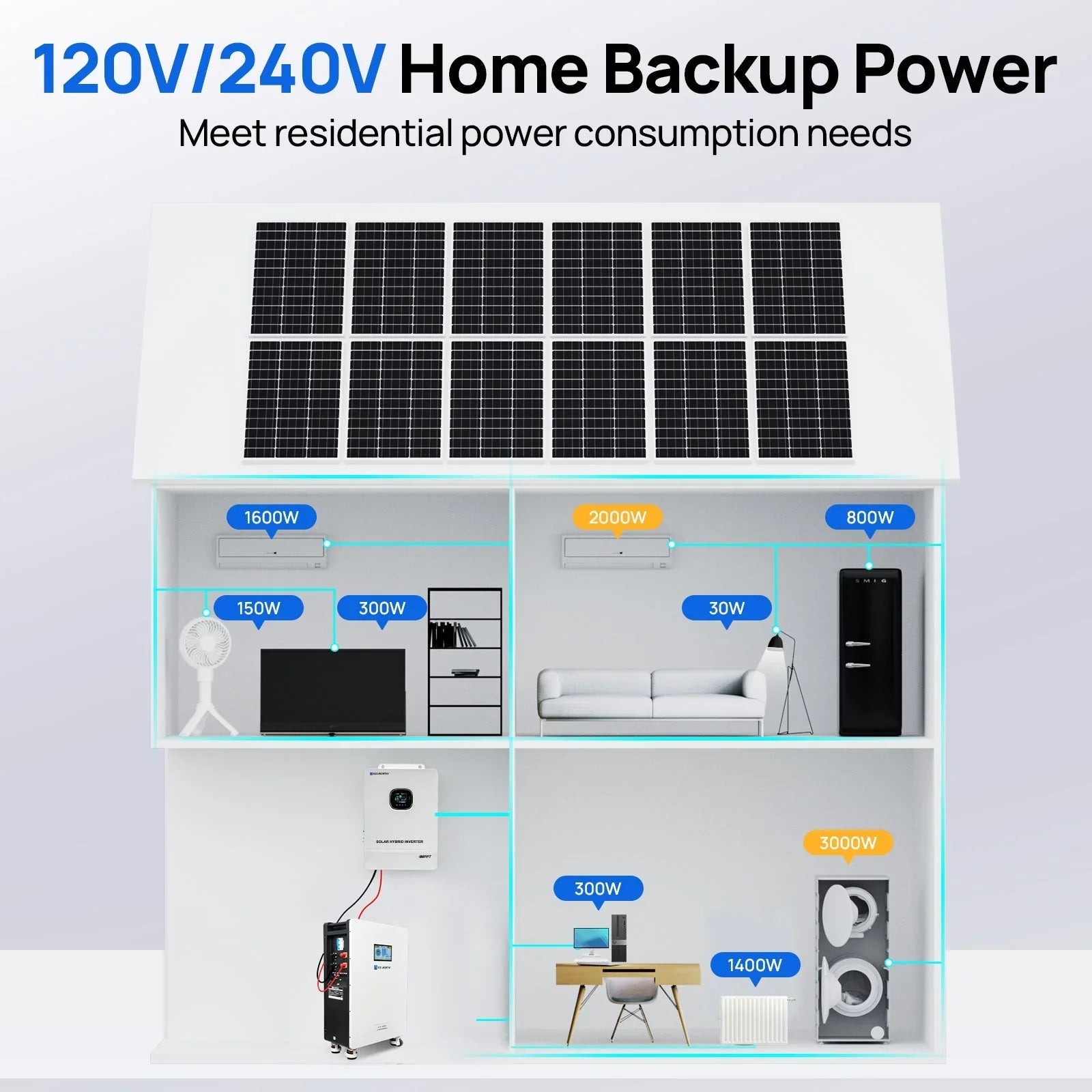

The Eco-Worthy PowerMega 314 home backup bundle combines a high-capacity LiFePO4 battery with a 5 kW all-in-one off-grid inverter, delivering reliable energy storage and resilient power for residential backup, off-grid solar installations, and microgrid applications. Designed for demanding daily cycling, it supports long-duration backup for critical loads and seamless solar integration.

Technical specifications

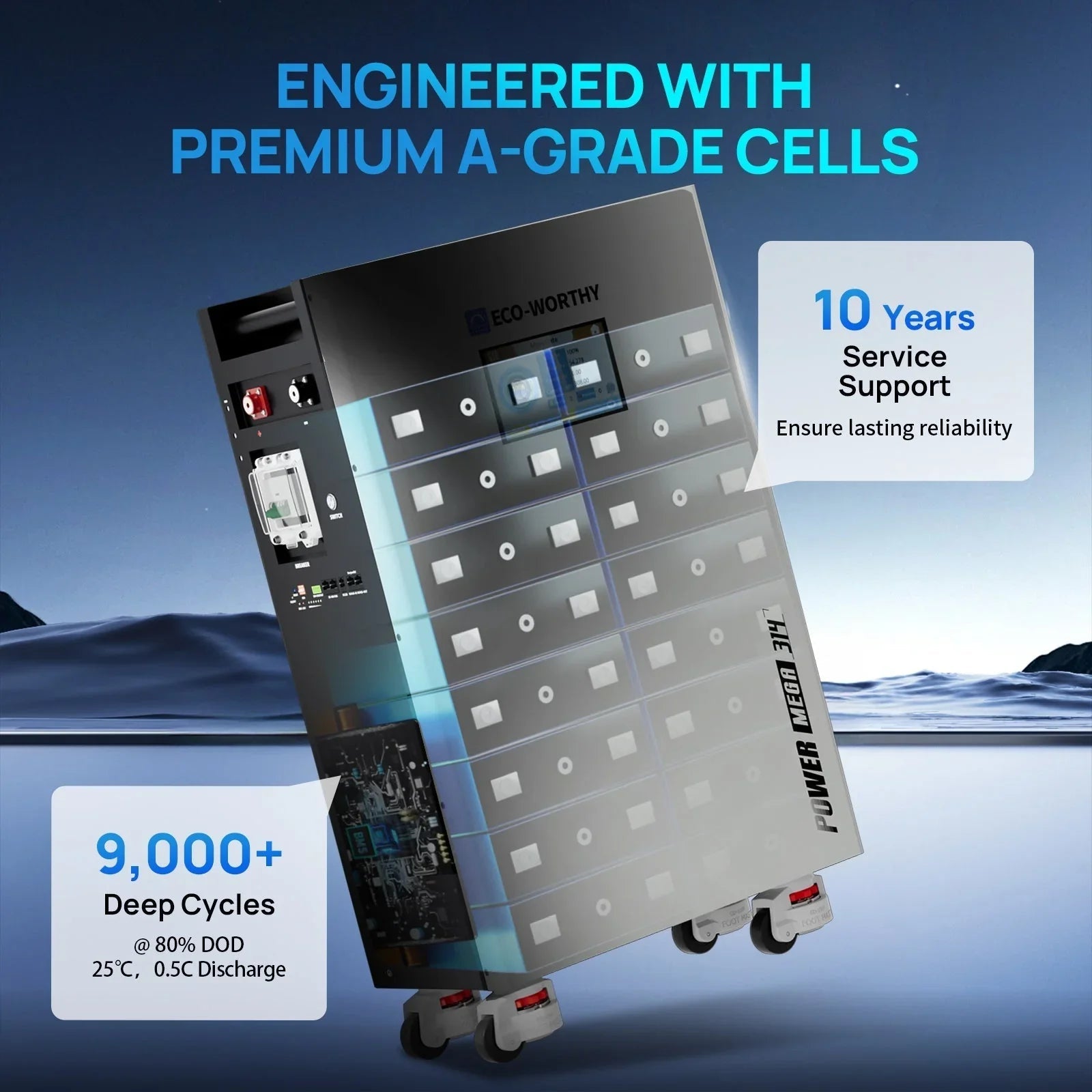

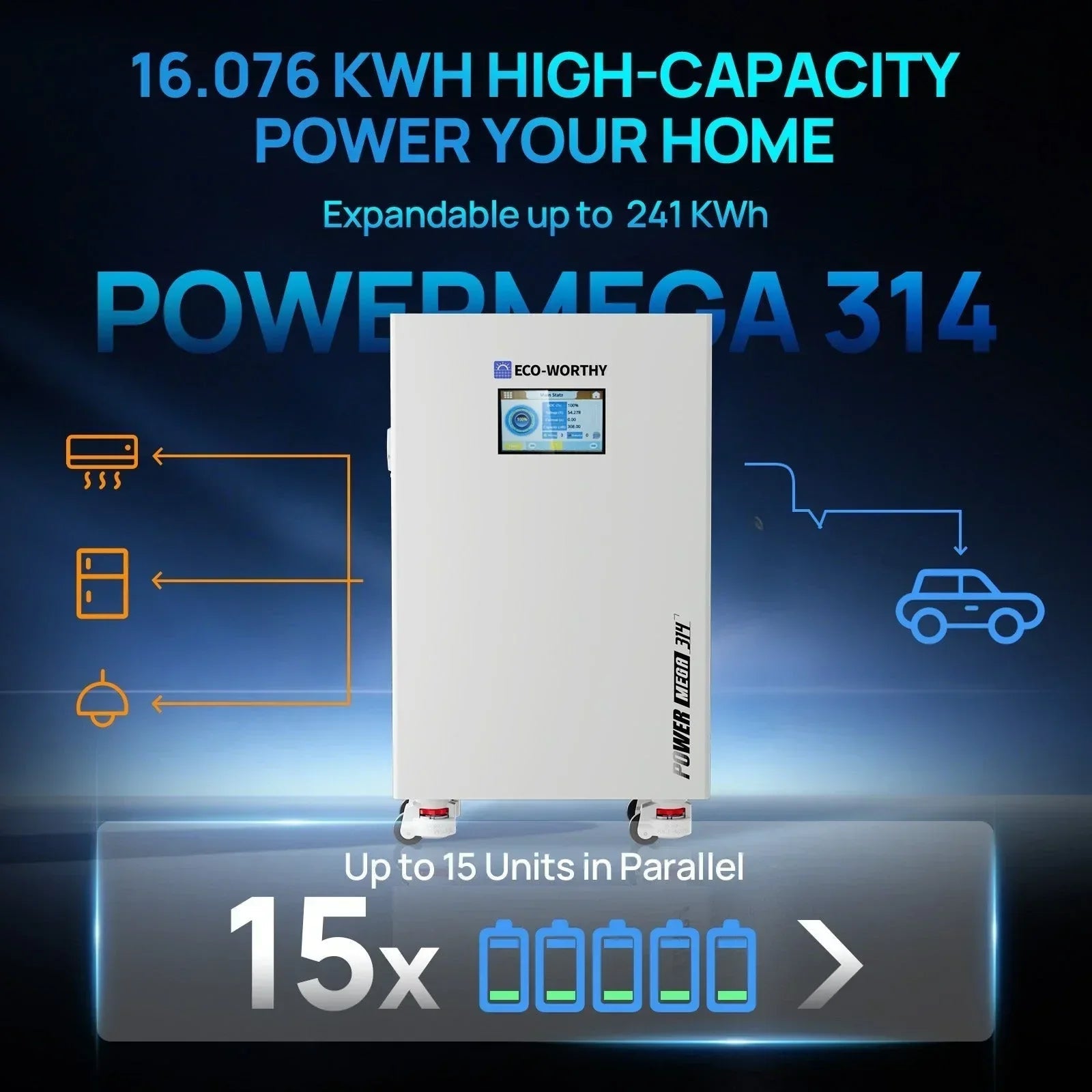

• Battery: LiFePO4, 314Ah, 16.08kWh nominal energy
• Rated voltage: 51.2V; Voltage range: 40–58.4V
• Maximum charge/discharge current: 200A; Standard charge/discharge current: 150A
• Charge temperature range: 0–55°C; Discharge temperature range: −20–55°C
• Maximum charging voltage: 58.4V; Battery weight: 127 kg (279.99 lb); Size: 84.15 × 50 × 26 cm (33.13 × 19.69 × 10.24 in)

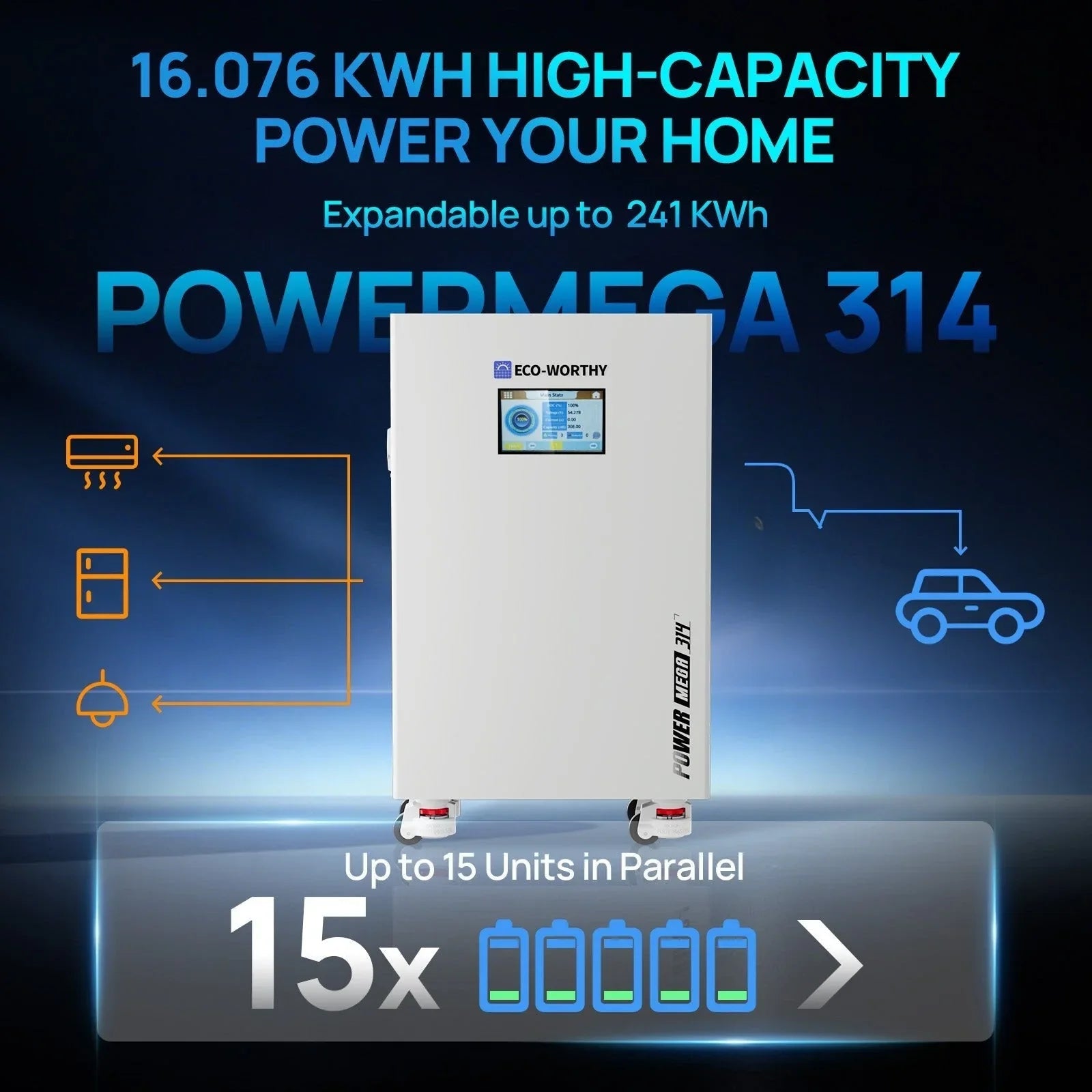

• Max parallel number: 15 pcs; Model: ECO-LFP4831400

• Inverter: 5 kW, 48V all-in-one off-grid unit; AC input 110/120 VAC, range 90–140 VAC; 50/60 Hz auto-detect
• Efficiency: >95%; AC reverse protection; Max bypass overload: 40 A
• Output: Pure Sine Wave, rated 5,000 W, 120 VAC; Peak power: 10,000 W
• Bypass breaker: 63 A; Battery input: 48 V; Min starting voltage: 44 V
• Power saving mode: ≤25 W; AC charging compatible with lead-acid or lithium batteries
• PV charging: up to 5,500 W; PV current 0–80 A (adjustable)
• PV open-circuit voltage: up to 500 V; PV operating range: 120–450 V
• MPPT voltage range: 120–450 V; Battery voltage range: 40–60 V
• Charging short-circuit protection: blown fuse

Safety features

• Circuit breaker-based overload/short-circuit protection for AC input and output
• AC reverse protection to prevent backfeed into the grid
• Bypass overload protection to safeguard continued operation under fault
• Overcharge/charging protection with audible alarm and automatic shutdown
• Blown fuse protection for PV charging short circuits

Installation and integration

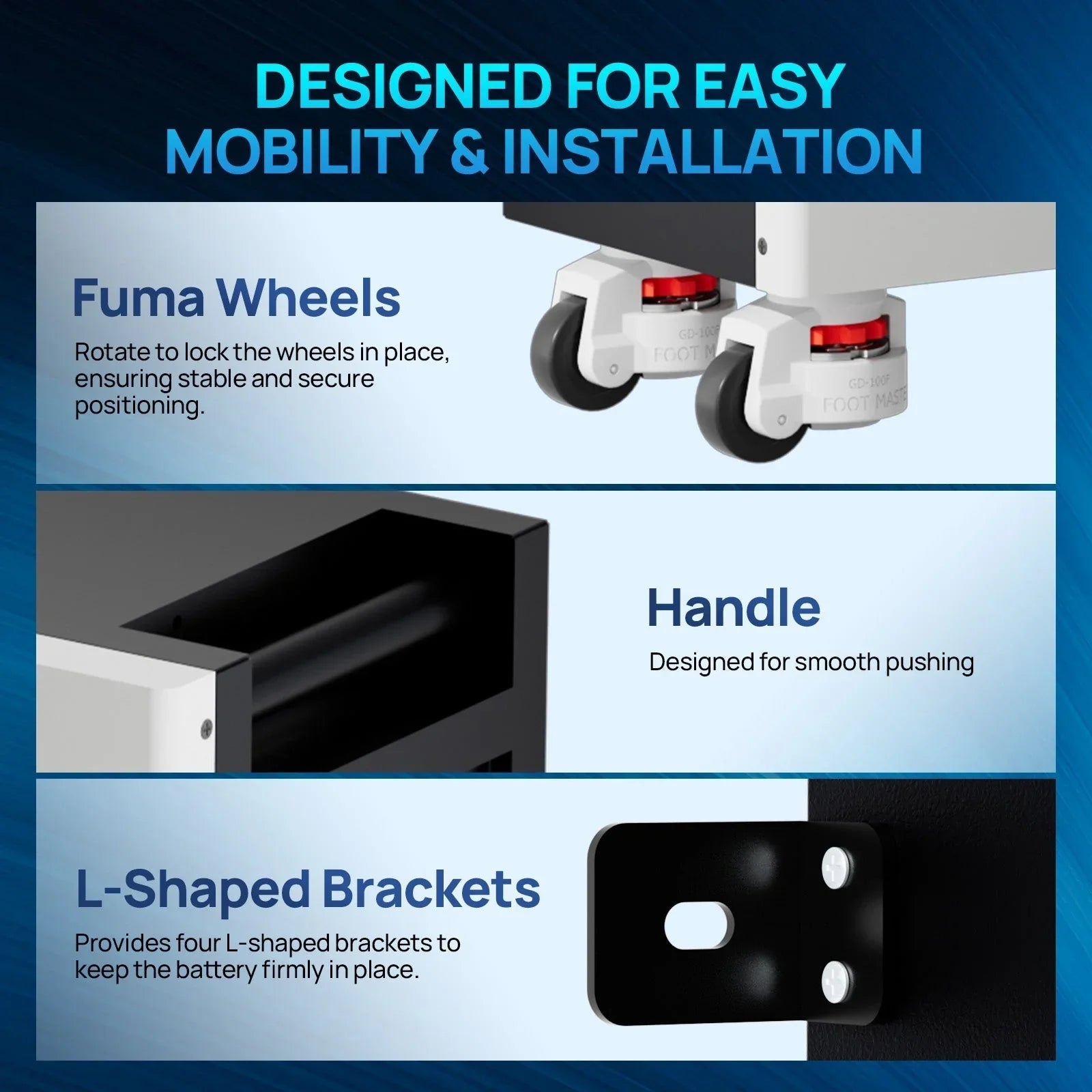

Package contents include the 5 kW 48 V all-in-one inverter, a 51.2 V 314 Ah battery, a battery-to-inverter communication cable (1500 mm), a wall-mounting bracket, and battery-to-busbar cables (2 AWG, 1500 mm). Mount the inverter and battery using the provided wall bracket and connect the battery to the inverter with the included communication cable and busbar cables. The system supports 0–80 A PV charging control and requires wiring compliant with local electrical codes. Refer to the included battery manual for detailed setup and configuration guidance.

Maintenance and support guidance

Maintenance guidance is documented in the included battery manual. Regular inspection of connections and fuses, and ensuring adequate ventilation around the enclosure, are advised to maintain optimal performance.

ECO-WORTHY PowerMega 314 | 51.2V 314Ah LiFePO4 Home Backup Battery with 5kW Inverter

51.2V 314Ah LiFePO4 Home Backup Battery
