Green Vista Living

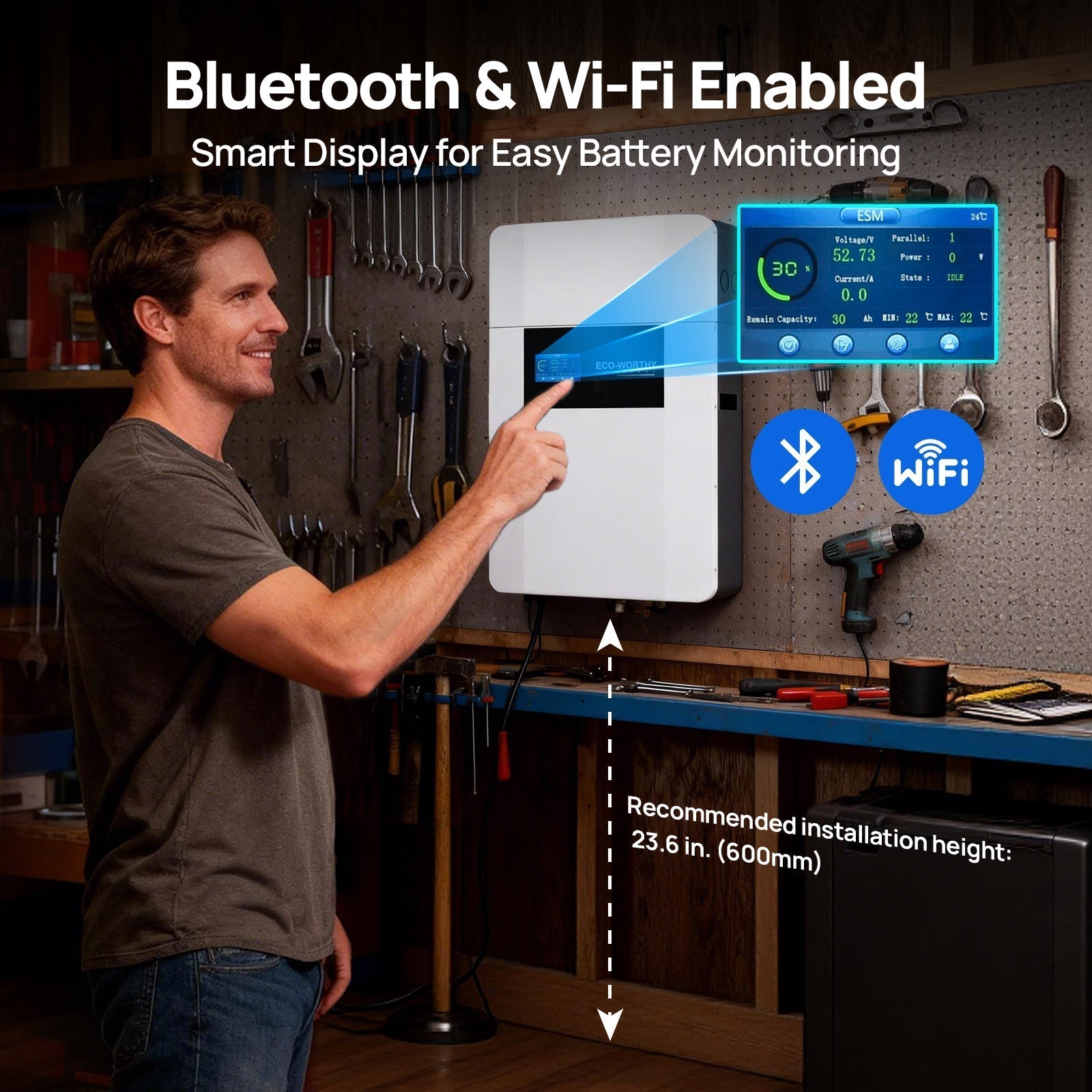

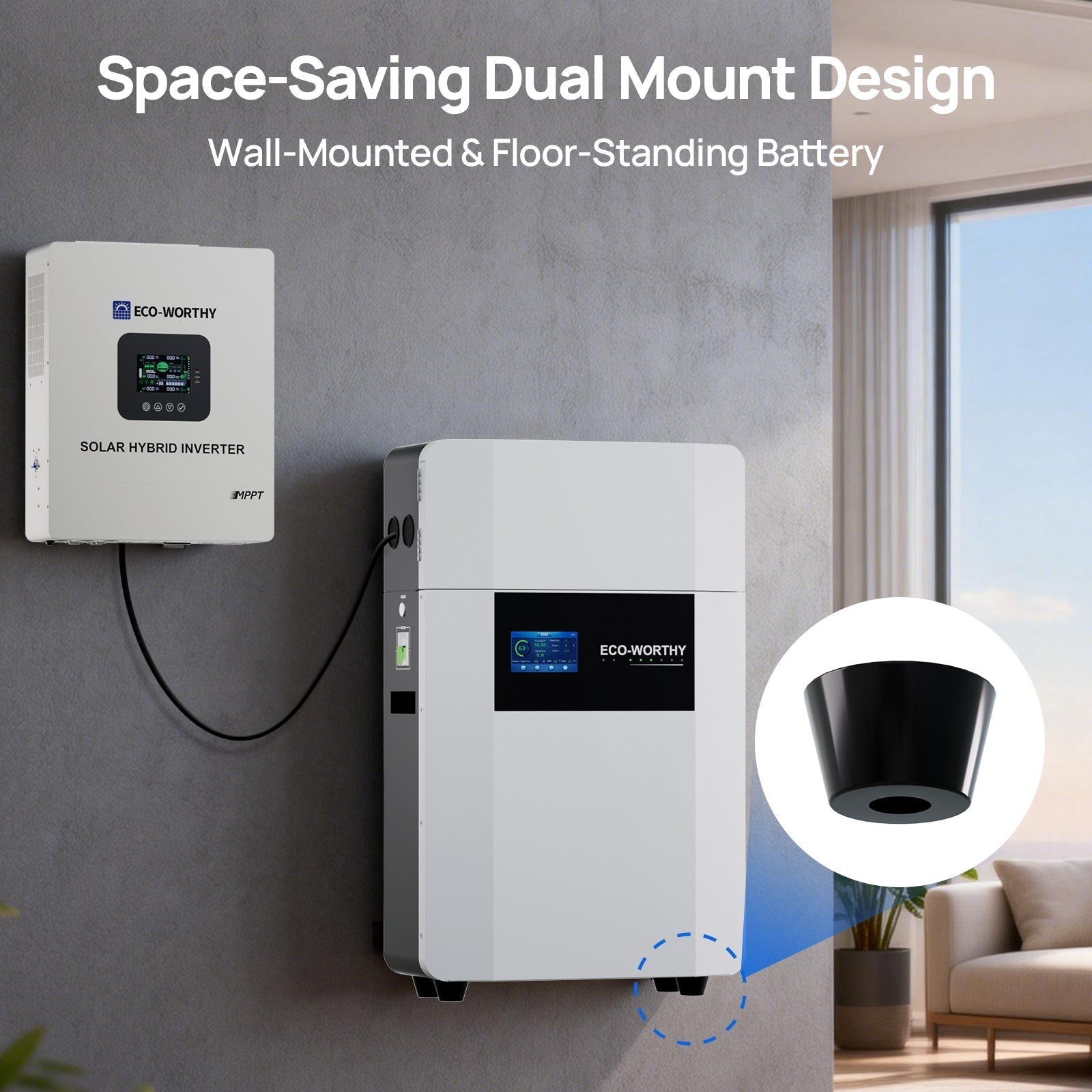

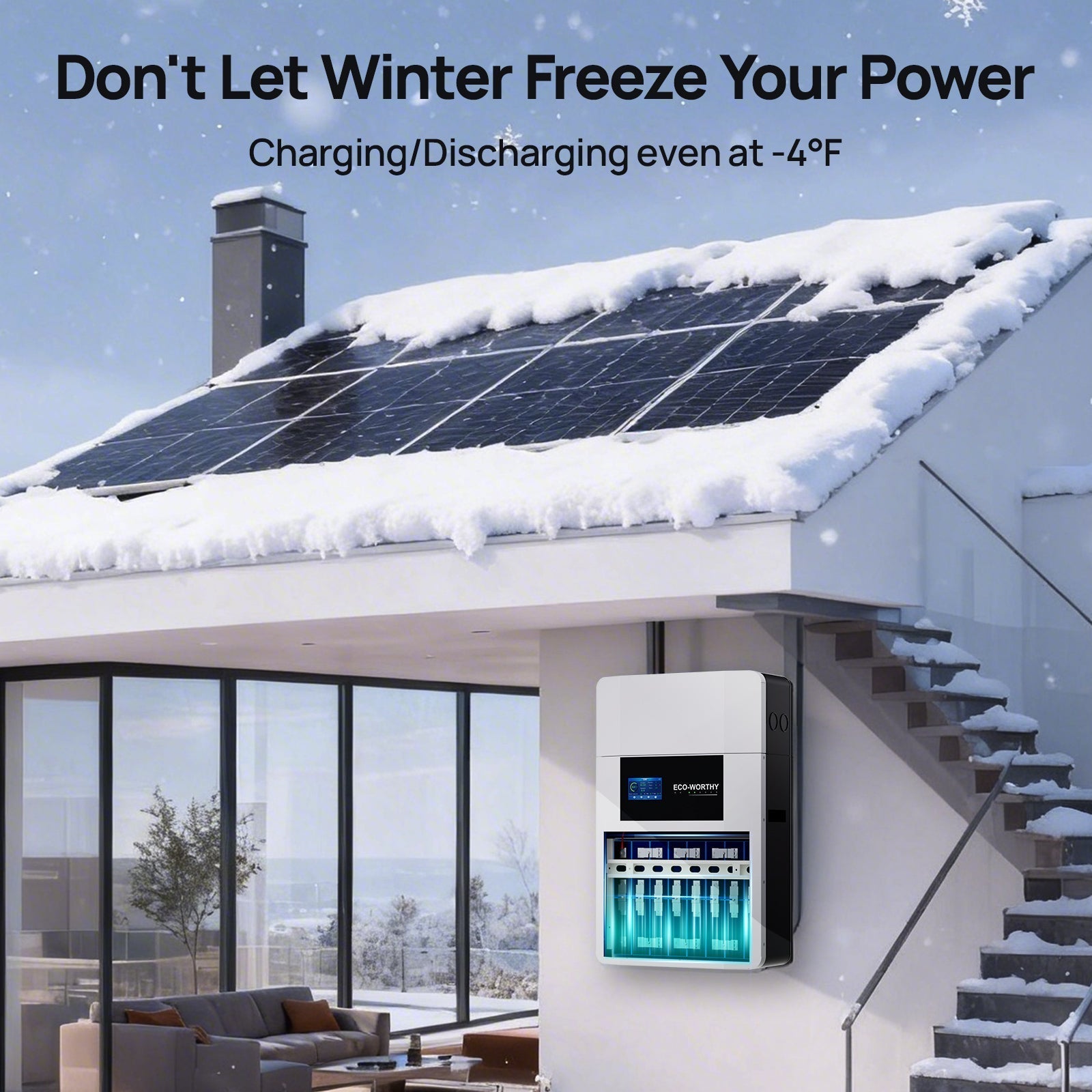

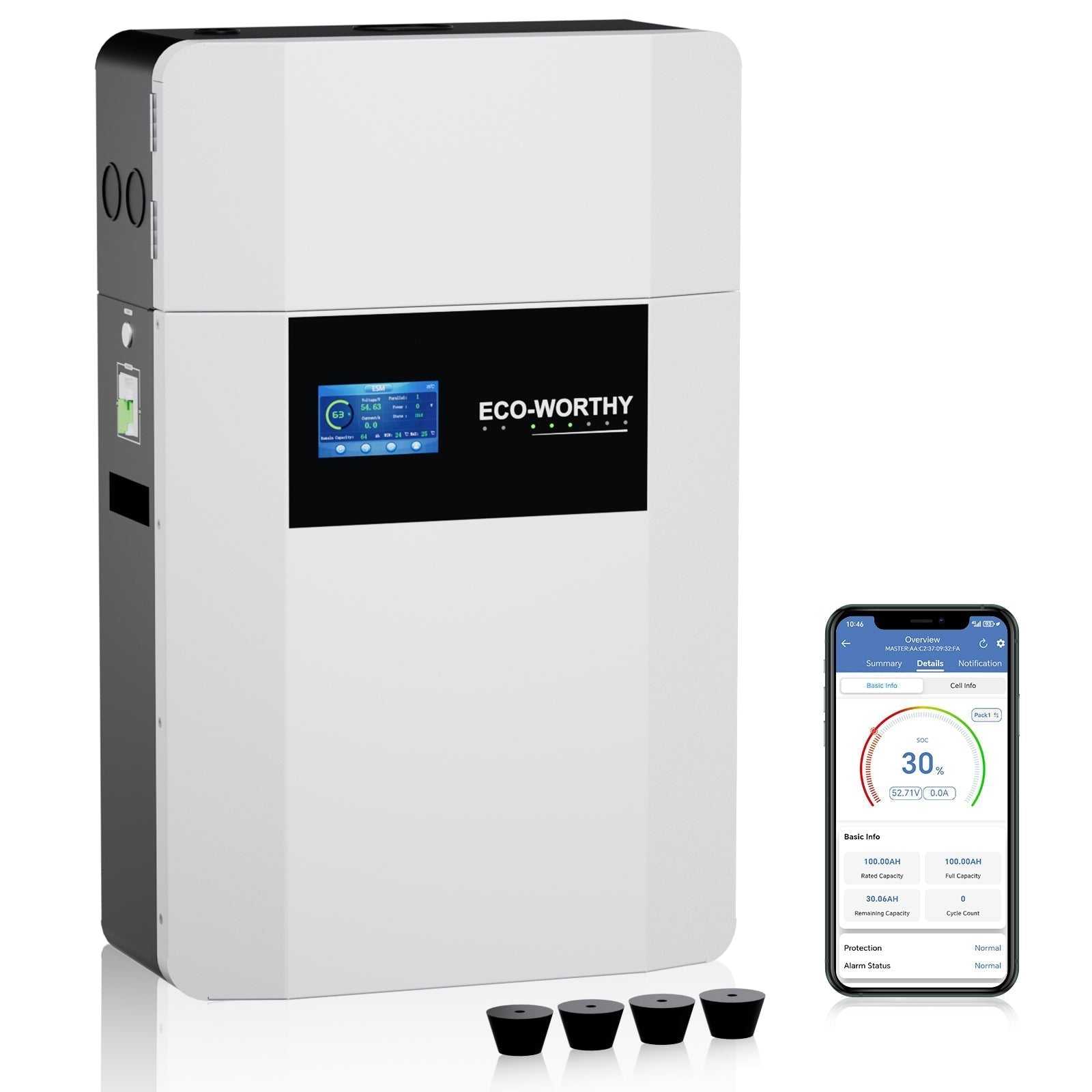

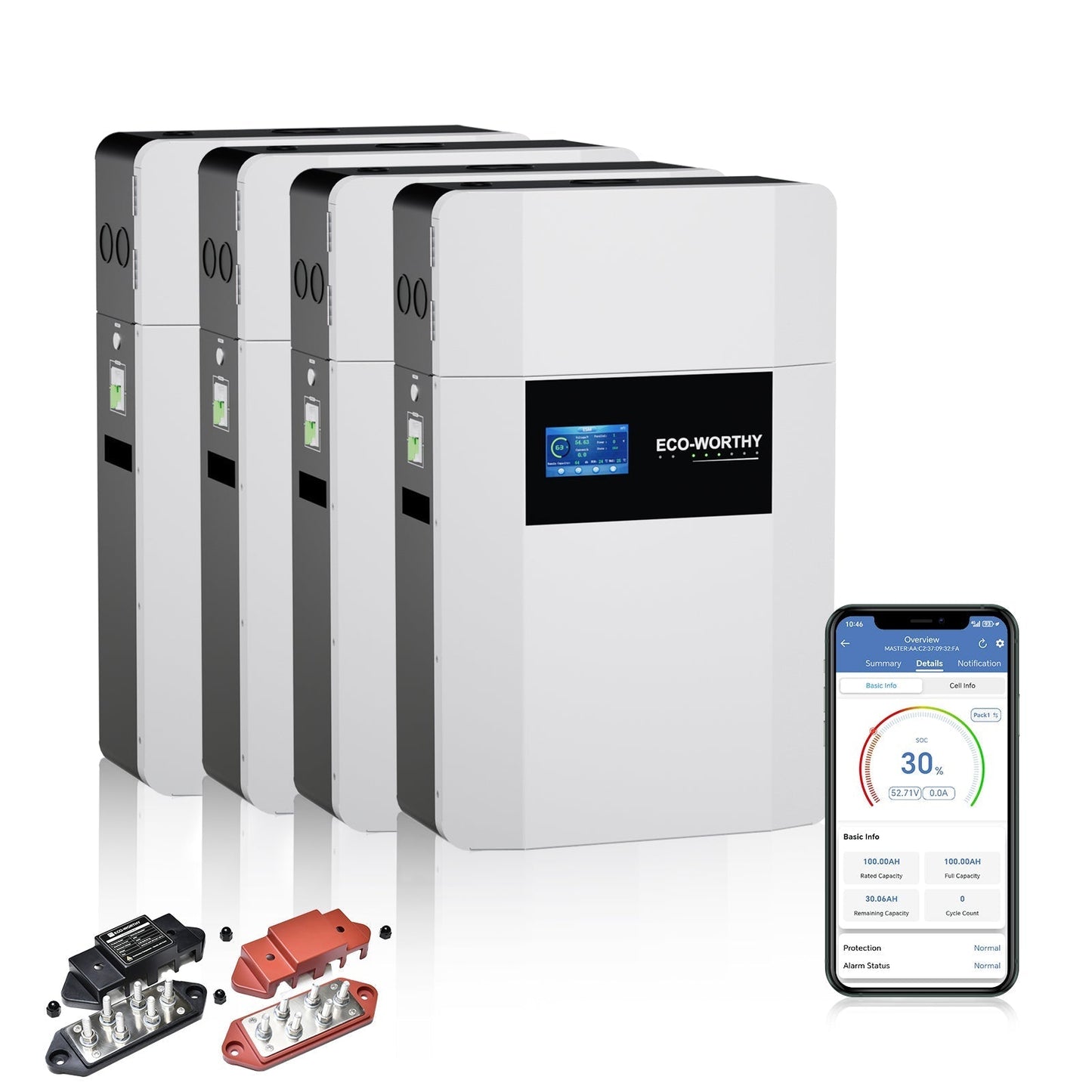

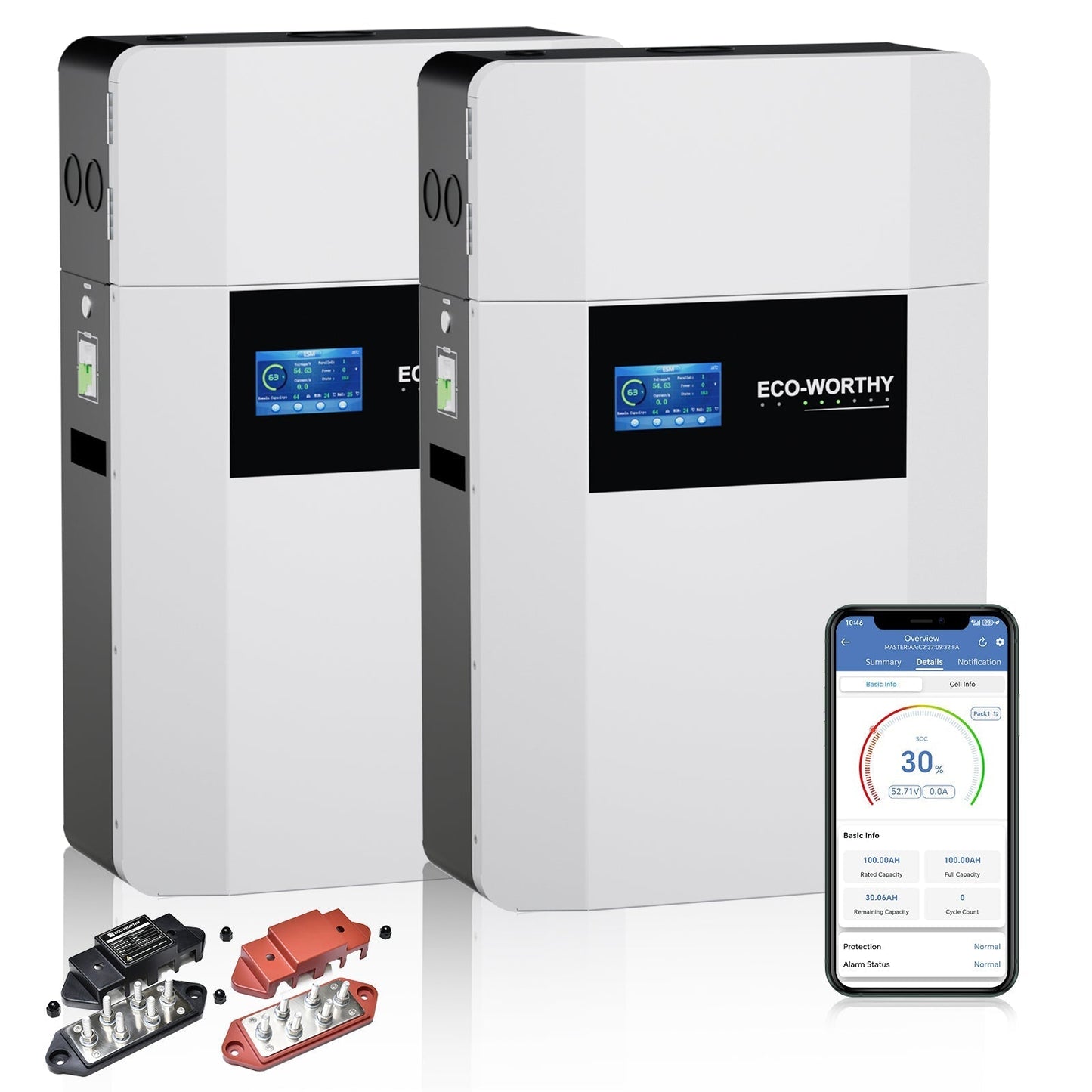

Eco-Worthy 48V 100AH Wall-Mount Lithium Battery LiFePO4 | -4℉ Charge Available | Bluetooth & WiFi | 10 Years Warranty

Eco-Worthy 48V 100AH Wall-Mount Lithium Battery LiFePO4 | -4℉ Charge Available | Bluetooth & WiFi | 10 Years Warranty

Regular price $889.99 USD
Regular price $1,299.99 USD Sale price $889.99 USD
Sale Sold out
Shipping calculated at checkout.
Packs
Quantity

features

• Solid design control box — Meets NEMA Type 4 & IP30 standard by lab test
• LCD color screen — Real-time status view and easy user interaction
• Breathing indicator light — Shows real-time charging status
• Control button — Adjust max output current & set scheduled charging time
• Water protection gasket — Resists 3-minute direct high-pressure water spray
• TPU cable — 14.76ft, excellent durability, cold resistant to -22°F
• ETL certified — Compliant with North American safety standards

Technical Specifications

Voltage: 240V/208V
Max Output Current: 40A (SS-PC1-100) / 32A (SS-HAY-100-32A)
Max Power: 8kW / 7kW
Frequency: 50/60Hz
Temperature Range: -22°F to 122°F
Humidity: 5–95%, no condensation
Connector: Type 1 (J1772)
Cable Length: 14.76ft (4.5m)
Altitude: ≤2000m (6,562ft)
Cooling: Natural
Safety Standards: ETL, UL2594, CSA C22.2
Scheduling: App / Timer control
Connectivity: Wi-Fi / Bluetooth
Warranty: 2 years

Packing Details

Package contents: Teison Portable Pro charger, TPU cable, user manual
Package weight: Please confirm with Ampere Authority


View full details

Eco-Worthy 48V 100AH Wall-Mount Lithium Battery LiFePO4 | -4℉ Charge Available | Bluetooth & WiFi | 10 Years Warranty



Included in the Box

box image

User manual

Eco-worthy 48V 100AH Wall Mounted Battery Manual

Download

48V 100AH Wall Mounted Battery firmware

Download

Eco-Worthy 5000W HYP48S+U100-H Manual(Neutral)EN_V1.0_23-05-11 Manual

Download

Eco-Worthy ECO5000W-UL 1741

Download
    Items    ECO-LFP48100WM01
Rated voltage     51.2V
Max Charge voltage     58.4V
Low voltage cut-off     40.0V
Nominal energy     5.12KWh
Usable energy     5.12KWh
Nominal capacity
    100Ah

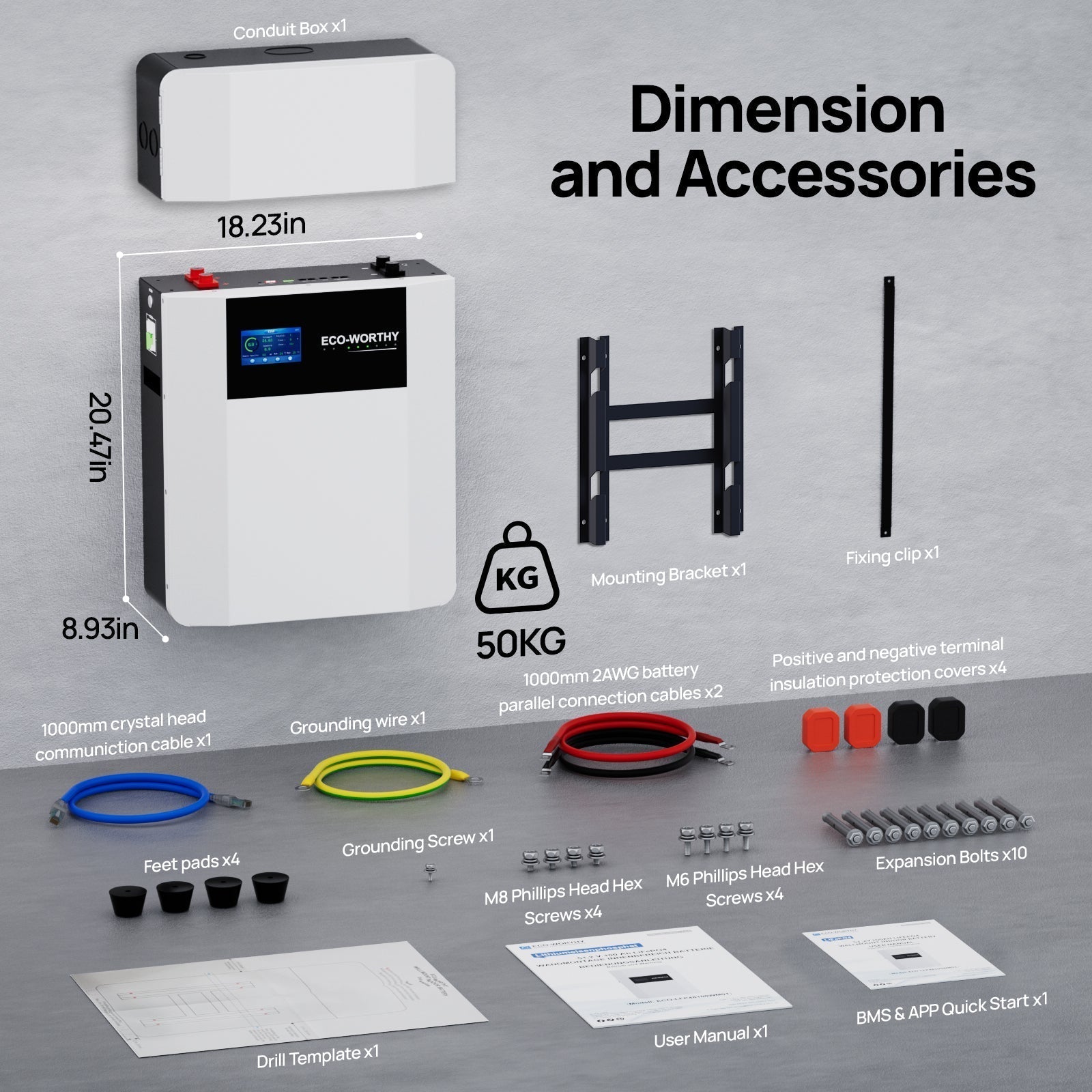

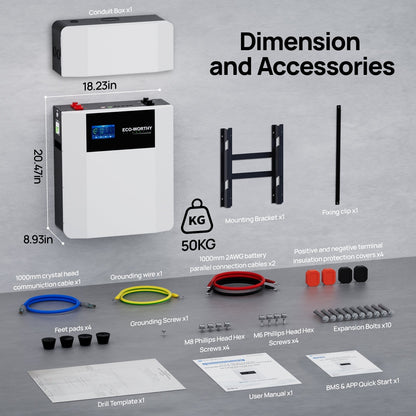

Dimension     18.23*8.93*20.47in/46.3*22.7*52cm
Weight     109lbs/50kg
Standard charge current
    ≤50A
Max.charge current
    100A
Standard discharge current
    ≤50A
Max.discharge current
   100A(initialtemp.≤35°C)

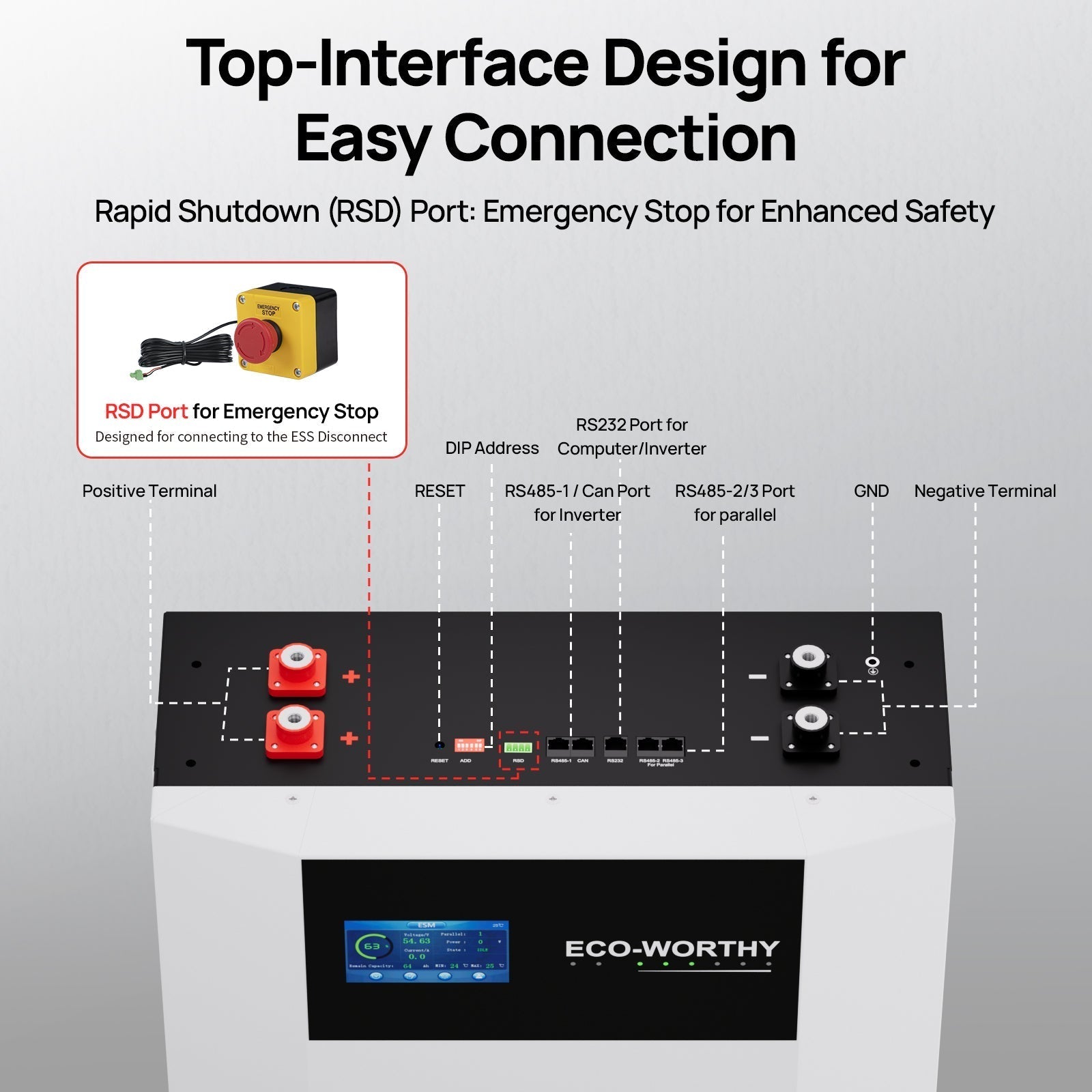

Communication port
    RS485/CAN/RS232
Max.parallel number
    32pcs
Rated capacity
    100Ah(0.5C,77°F)
Operating temperature
    Charge: -20~55°C       Discharge: -20~55°C
Cycle Life
    ≥6000 cycles @ 25 °C, 0.5C charge / 0.5C discharge, ≥80% SOH
Warranty   10 Years
