Eco-Worthy 10kW Home Backup Solar Power Bundle with PowerMega 51.2V 314Ah Batteries & 48V Inverter

Eco-Worthy PowerMega combines a 10kW/48V all-in-one inverter with two 51.2V 314Ah LiFePO4 batteries to create a robust, off-grid capable home backup system. This integrated kit is designed for reliable solar charging, seamless grid-tailored operation, and straightforward on-site installation. The modular architecture supports expansion up to 15 parallel battery strings, enabling scalable energy storage for peak shaving, blackout protection, and autonomous solar utilization.

Key specifications

• Battery capacity: 314Ah
• Battery energy: 16.08 kWh
• Rated voltage: 51.2V
• Voltage range: 40–58.4V
• Maximum charge/discharge current: 200A
• Charge temperature range: 0–55°C; Discharge temperature range: −20 to 55°C
• Maximum charge voltage: 58.4V
• Battery weight: 127 kg; Battery size: 84.15 × 50 × 26 cm (33.13 × 19.69 × 10.24 in)

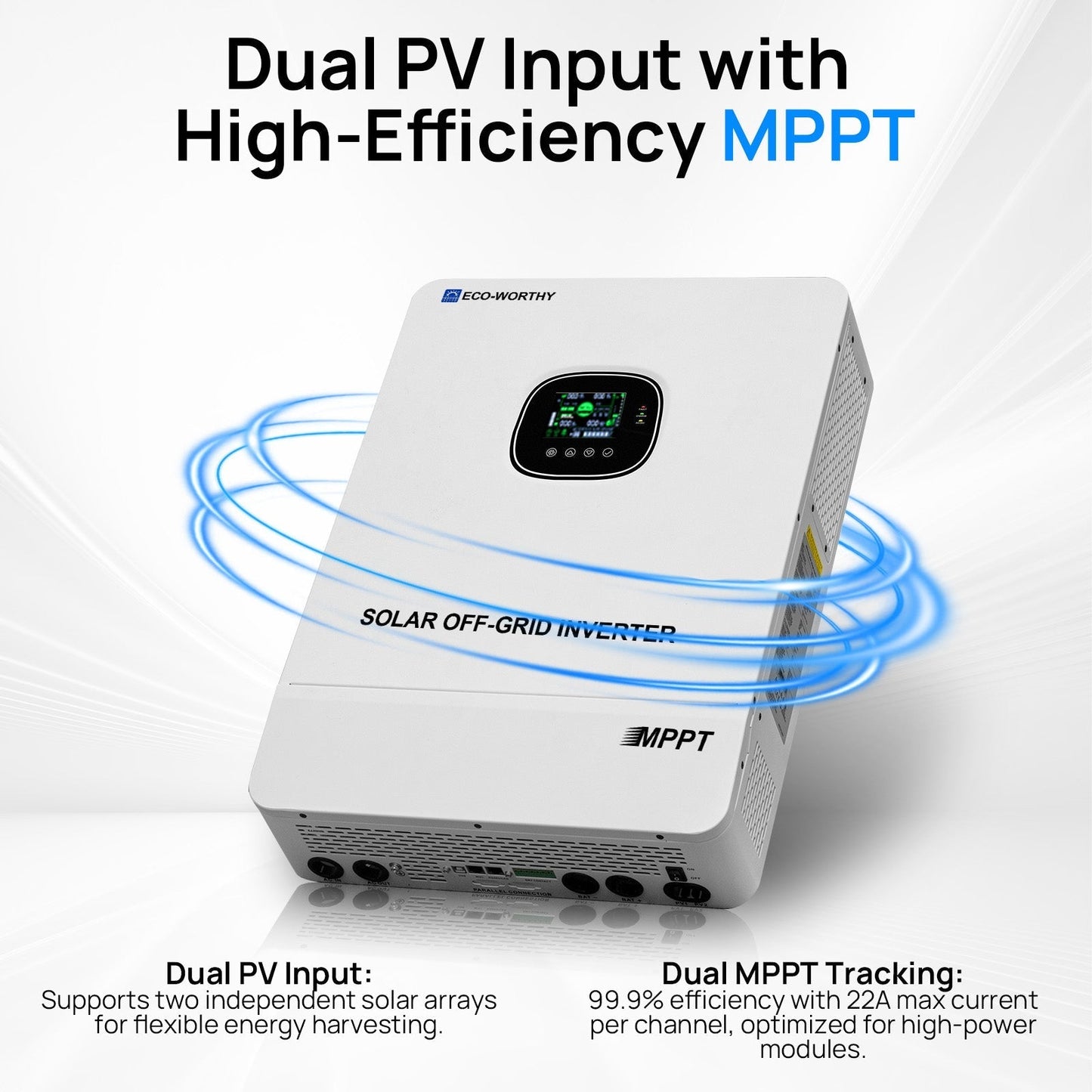

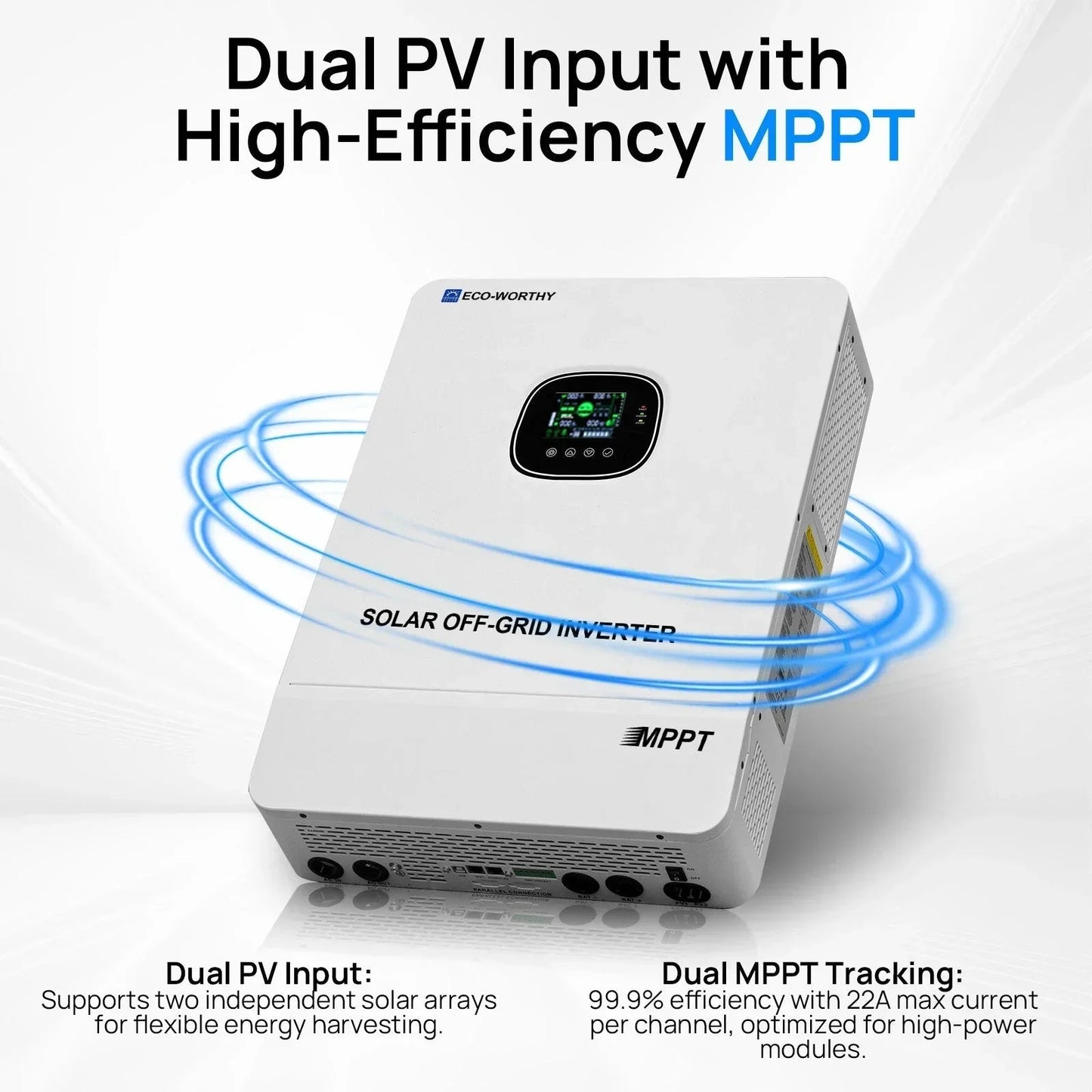

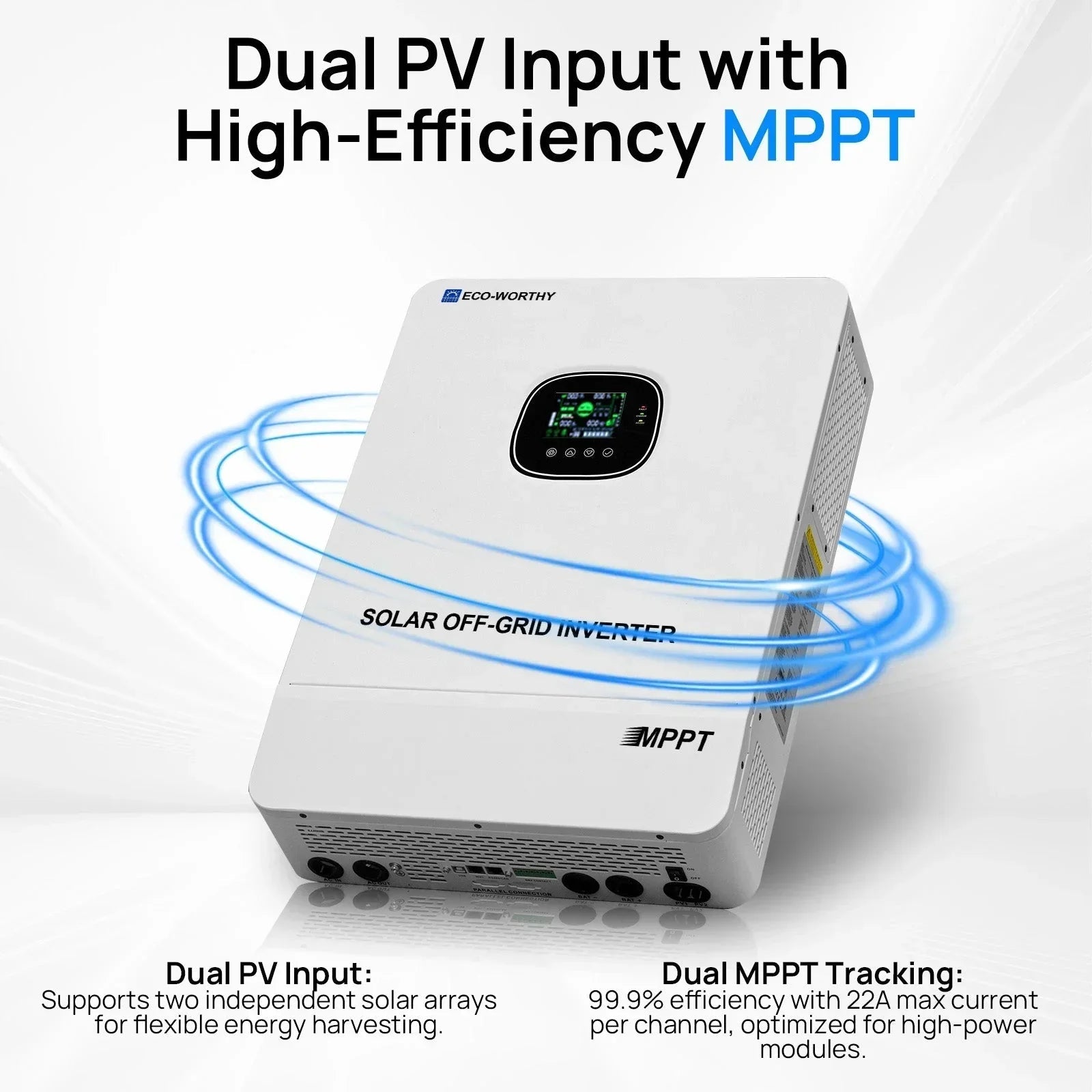

• Inverter: 10 kW, 48V, all-in-one unit (Model ECO-LFP4831400)
• Output waveform: Pure Sine Wave; Rated output: 120/240 VAC

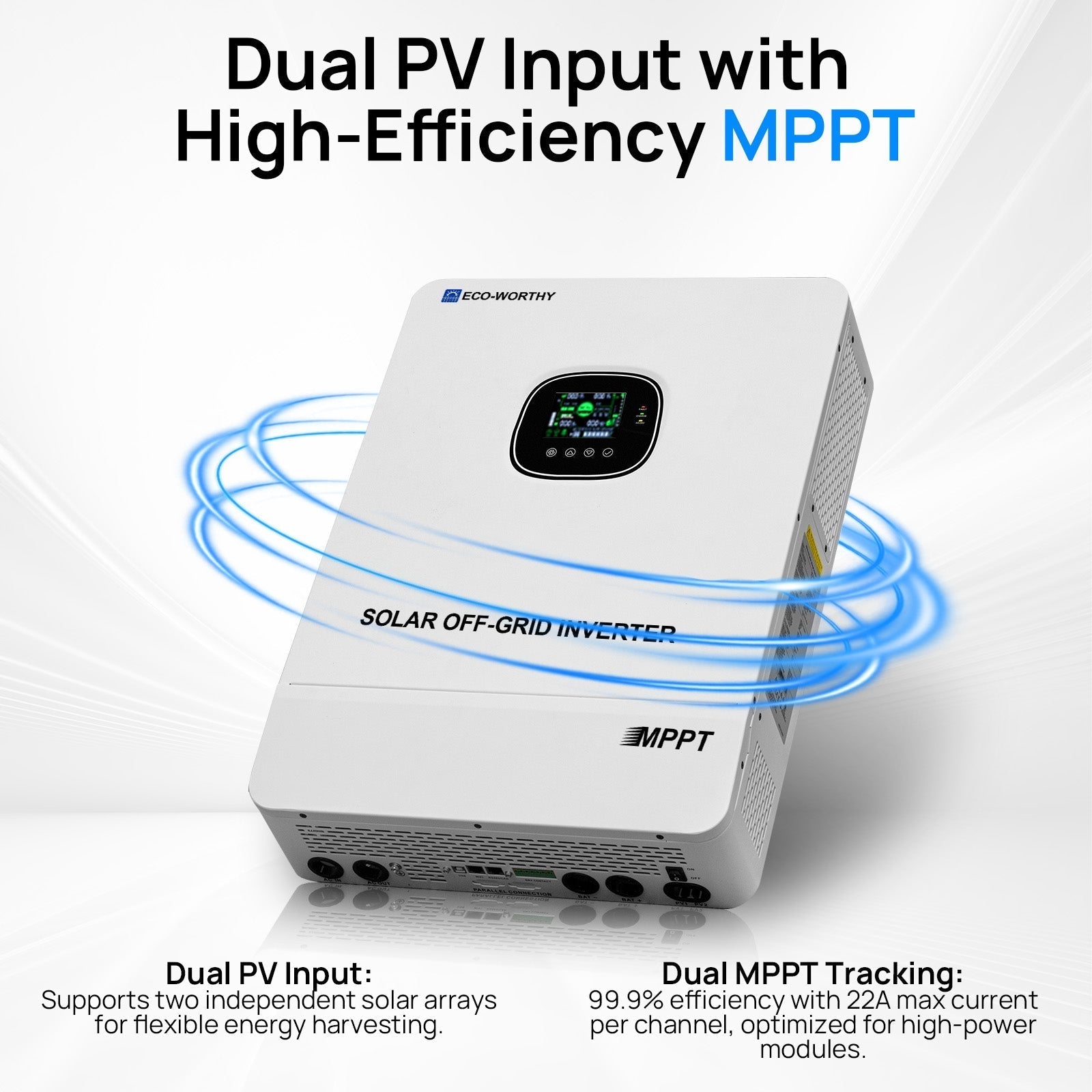

• MPPT voltage range: 125–425 VDC
• Max input power: 11,000 W (2 × 5,500 W)
• Pv charging current range: 0–200 A; Battery input voltage: 40–60 VDC
• AC/Grid charging mode: 90–140 VAC, 50/60 Hz auto-detect
• Max parallel number: 15 pcs
• Package contents: 1 × 10 kW 48V All-in-one Inverter; 2 × 51.2V 314Ah batteries; manuals; communication cable (1500 mm); battery-to-busbar cables (2 AWG, 1500 mm); 400A busbar

Performance and use cases

Designed for rapid solar charging and resilient backup, the system supports heavy-load operation with a peak capability of 20 kW and continuous 10 kW. The 125–425 VDC MPPT range accommodates a wide array of PV arrays, while the 40–58.4 V battery window ensures compatibility with the LiFePO4 chemistry chosen for long cycle life and stable performance across temperature variations. Ideal for residential backups, remote off-grid living, and small commercial applications where dependable energy continuity is critical.

Safety, installation and maintenance

• Operate within the specified temperature and voltage ranges to preserve battery health and inverter efficiency.
• The kit includes essential interconnects: Battery-to-Inverter communications cable, 2 AWG busbar cables, and a 400A busbar to support safe high-current connections.
• Installation should be performed by qualified personnel following the included manuals and regional electrical codes. Refer to the Eco-Worthy manuals for the 51.2V 314Ah batteries and the 10kW inverter for wiring diagrams, clearances, and commissioning steps.
• Maintenance focuses on verifying cable integrity, securing all terminations, and monitoring cell temperatures and state of charge via the provided manuals.

Warranty and service

Warranty terms and service options are not specified within the product data. Please contact the seller or consult the official Eco-Worthy documentation and downloadable manuals included with the bundle for applicable warranty coverage, service offerings, and support resources.

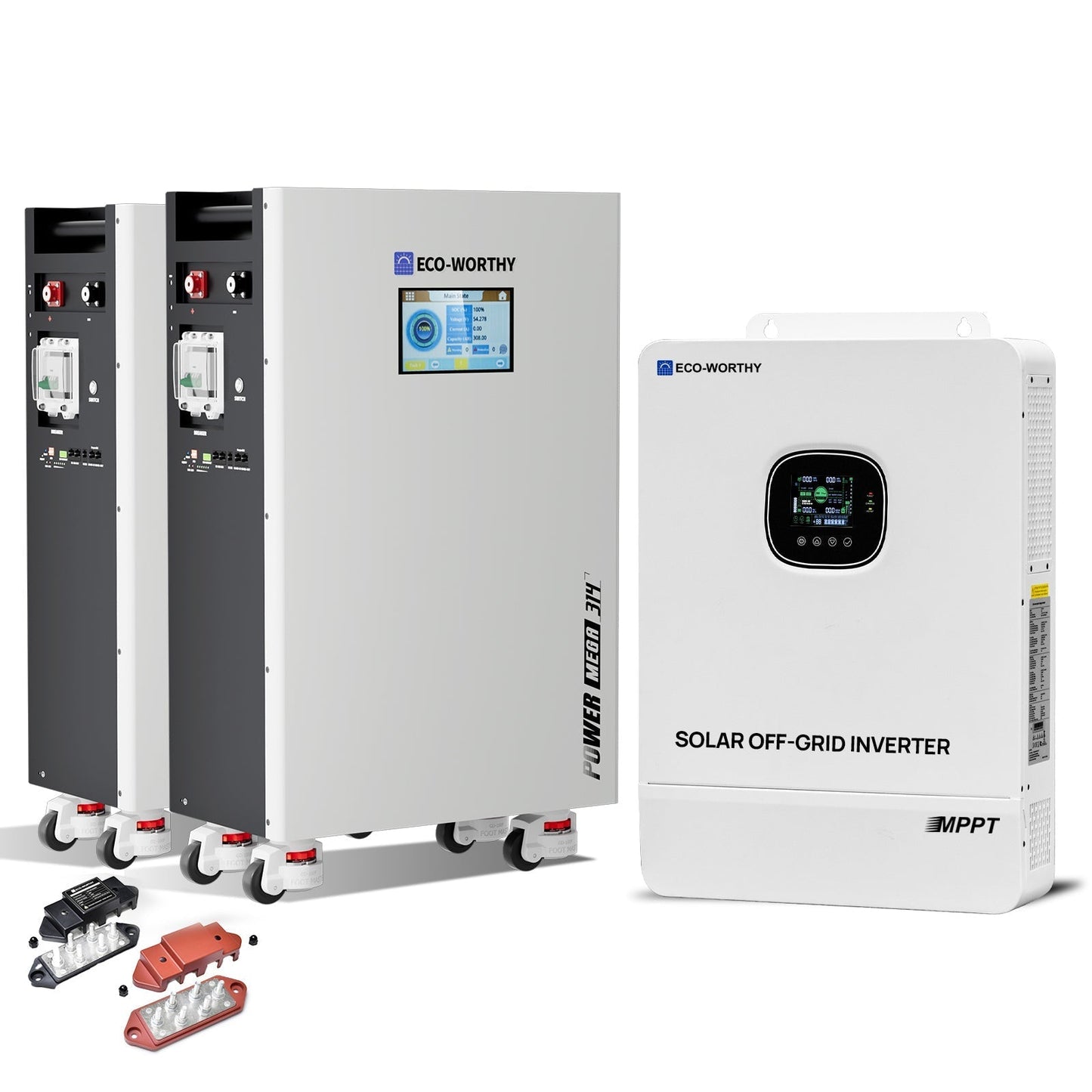

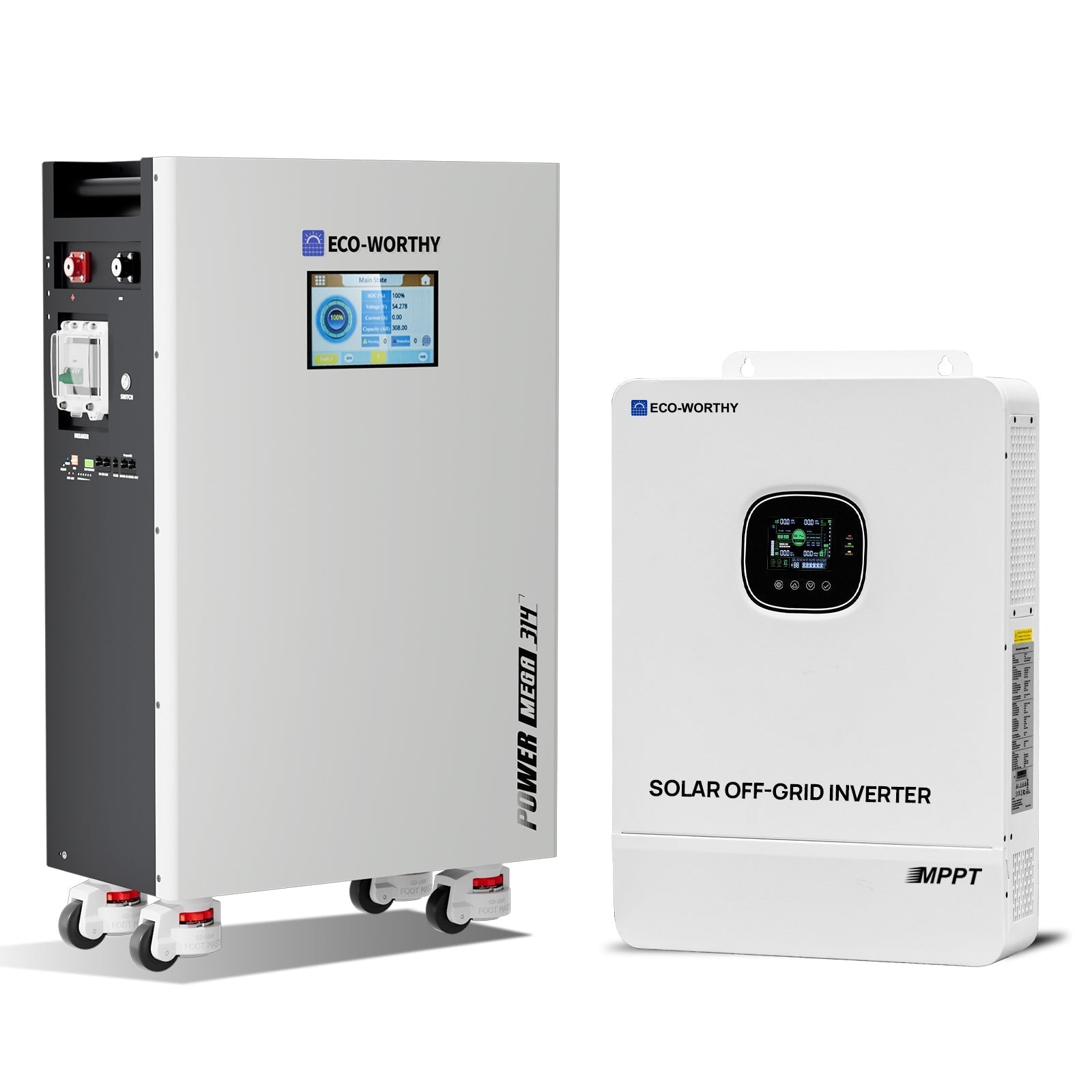

Eco-Worthy PowerMega 314 16.08kWh Home Backup Battery with 10kW Inverter

Included in the Box

1.1 x 10kW 48V All-in-one Inverter
2.2x 51.2v 314ah battery
3.1 x 51.2v 314ah battery manual
4.1 x Battery to Inverter communication cable(1500mm)
5.1 Pair Of Battery to Busbarcable(2AWG 1500mm Black)
6.1x400A busbar

51.2V 314Ah LiFePO4 Home Backup Battery
