Eco-Worthy 10kw Complete Off-Grid Solar Power System |20.48kWh/61.44kWh Battery | 10000W 120/240V | 4920W/14760W PV

Eco-Worthy 10kw Complete Off-Grid Solar Power System |20.48kWh/61.44kWh Battery | 10000W 120/240V | 4920W/14760W PV

$7,999.99 USD
$12,599.99 USD $7,999.99 USD
Sale Sold out
Shipping calculated at checkout.
Battery Bank Options

features

• Solid design control box — Meets NEMA Type 4 & IP30 standard by lab test
• LCD color screen — Real-time status view and easy user interaction
• Breathing indicator light — Shows real-time charging status
• Control button — Adjust max output current & set scheduled charging time
• Water protection gasket — Resists 3-minute direct high-pressure water spray
• TPU cable — 14.76ft, excellent durability, cold resistant to -22°F
• ETL certified — Compliant with North American safety standards

Technical Specifications

Voltage: 240V/208V
Max Output Current: 40A (SS-PC1-100) / 32A (SS-HAY-100-32A)
Max Power: 8kW / 7kW
Frequency: 50/60Hz
Temperature Range: -22°F to 122°F
Humidity: 5–95%, no condensation
Connector: Type 1 (J1772)
Cable Length: 14.76ft (4.5m)
Altitude: ≤2000m (6,562ft)
Cooling: Natural
Safety Standards: ETL, UL2594, CSA C22.2
Scheduling: App / Timer control
Connectivity: Wi-Fi / Bluetooth
Warranty: 2 years

Packing Details

Package contents: Teison Portable Pro charger, TPU cable, user manual
Package weight: Please confirm with Ampere Authority


View full details

Eco-Worthy 10kW Complete Off-Grid Solar Power System

The Eco-Worthy 10kW Complete Off-Grid Solar Power System combines high-performance solar panels, a 10kW all-in-one hybrid inverter, and long-lasting lithium battery storage to deliver reliable, efficient, and scalable energy for residential or commercial use. This hybrid system is designed for homes, cabins, and small businesses, providing clean solar energy while supporting AC/grid backup for continuous power.

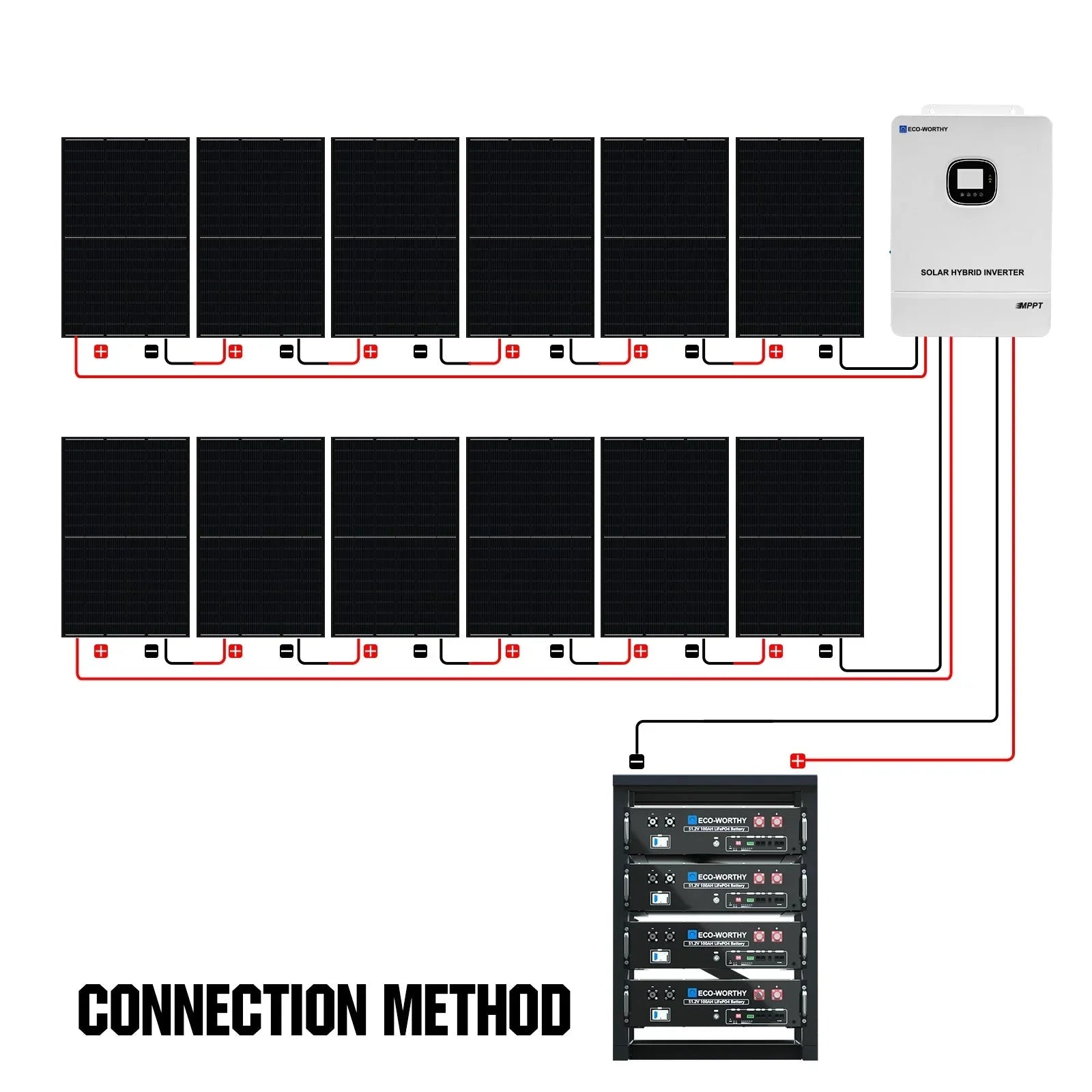

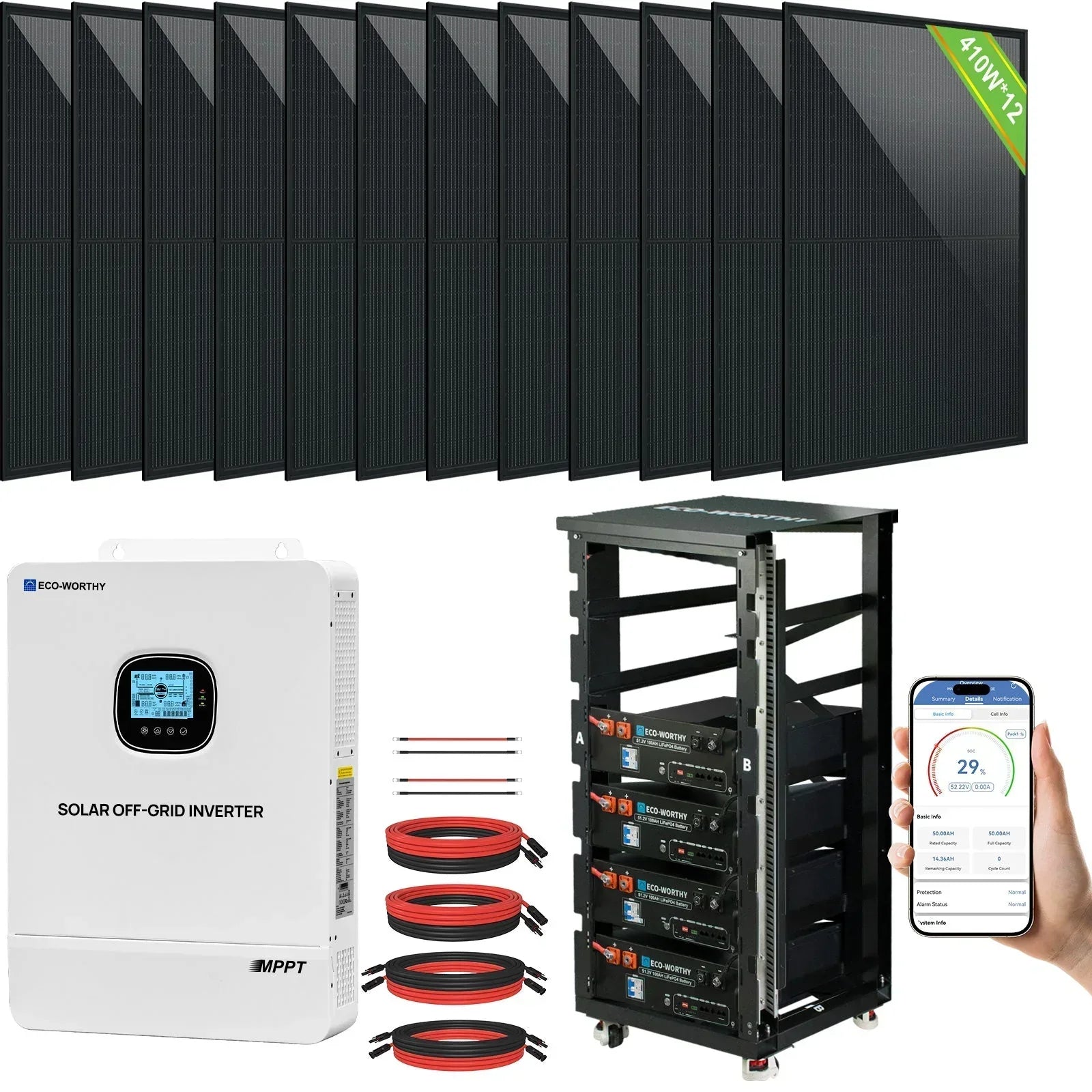

System Package – 4920W PV & 20.48kWh Battery

  • 12× ECO-WORTHY 410W Monocrystalline Solar Panels (Black)
  • 1× ECO-WORTHY 10kW All-in-One Hybrid Inverter
  • 1× PV-to-Inverter Cable
  • 2× PV Extension Cables
  • 4× ECO-WORTHY 51.2V 100Ah LiFePO₄ Batteries

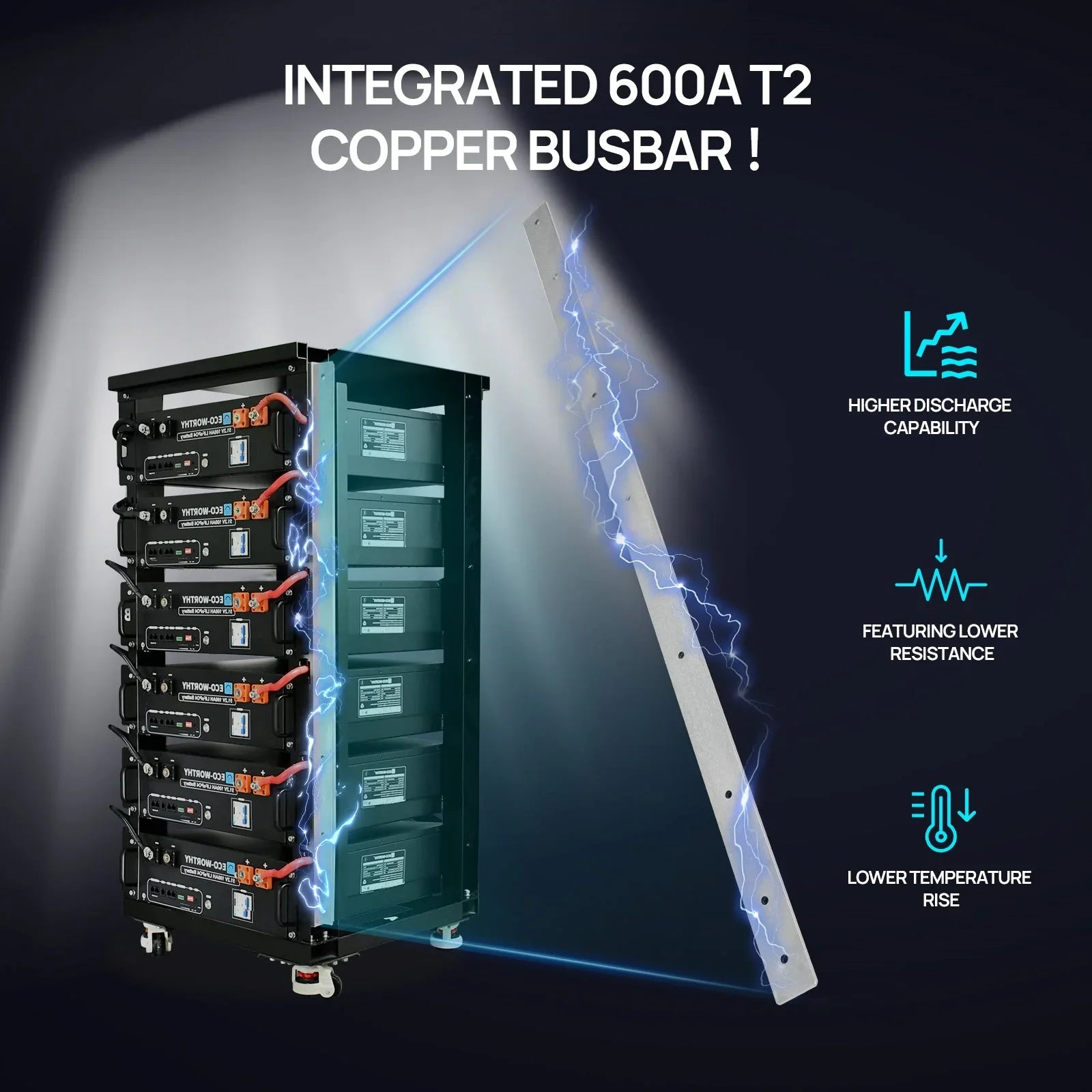

  • 1× ECO-WORTHY RACK6 V2 I 6-Layer Rack with 600A Busbar

Performance specifications

  • Solar Module: 410W per panel; Max Power Voltage (Vmp) 31.3V; Open-Circuit Voltage (Voc) 37.5V; Short-Circuit Current (Isc) 13.84A; Maximum Power Current (Imp) 13.1A; Output Tolerance ±3%
  • Total PV Rating: 4920W; MPPT Range: 150–450VDC; Max Input Power: 15,000W; PV Charging Mode: 0–200A
  • Inverter: 10,000W rated output; 20,000W peak; 120V/240V AC, 50/60Hz; Pure Sine Wave; Battery Input 48V; AC/Grid Charging Mode: 90–140VAC; Max Charge/Discharge Current 200A
  • Battery Bank: 4× 51.2V 100Ah LiFePO₄; Capacity 5.12kWh each; Total energy 20.48kWh; Max Charge 100A; Max Discharge 100A; Max Charge Voltage 58.4V; Discharge Cut-Off 10V; Operating -20°C to 60°C; Cycle Life ≥4000 at 50% DoD; 97 lb each

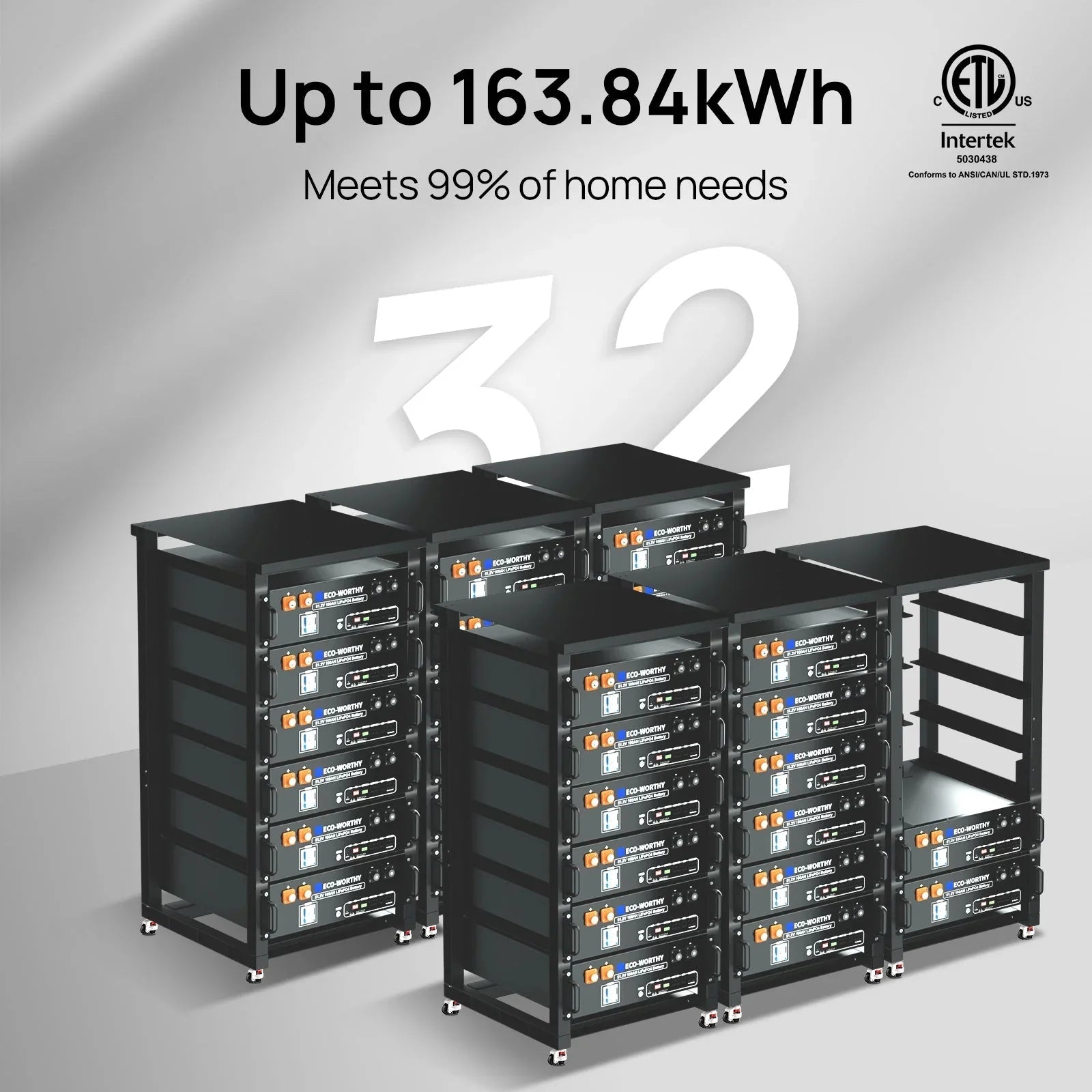

  • System configuration supports expandable storage up to the range stated in product title (20.48kWh to 61.44kWh) with the included rack and busbar

System use and capabilities

This Home Hybrid Solar Power System provides clean energy from solar while enabling AC/grid backup for continuous operation, suitable for off-grid independence or grid-tied backup scenarios, and is scalable for residential or light commercial applications.

Eco-Worthy 10kw Complete Off-Grid Solar Power System |20.48kWh to 61.44kWh Battery | 10000W 120/240V | 4920W to 14760W PV

The ECO-WORTHY Home Hybrid Solar Power System combines high-performance solar panels, a powerful 10kW Eco-worthy all-in-one hybrid inverter, and long-lasting lithium battery storage to deliver reliable, efficient, and scalable energy for residential or commercial use. This hybrid system is designed for homes, cabins, and small businesses, providing clean energy from solar while supporting AC/grid backup for continuous power.

System Package – 4920W PV & 20.48kWh Battery

  • 12× ECO-WORTHY 410W Monocrystalline Solar Panels (Black)

  • 1× ECO-WORTHY 10kW All-in-One Hybrid Inverter

  • 1× PV-to-Inverter Cable

  • 2× PV Extension Cables

  • 4× ECO-WORTHY 51.2V 100Ah LiFePO₄ Batteries

  • 1× ECO-WORTHY RACK6 V2 I 6-Layer Rack with 600A Busbar

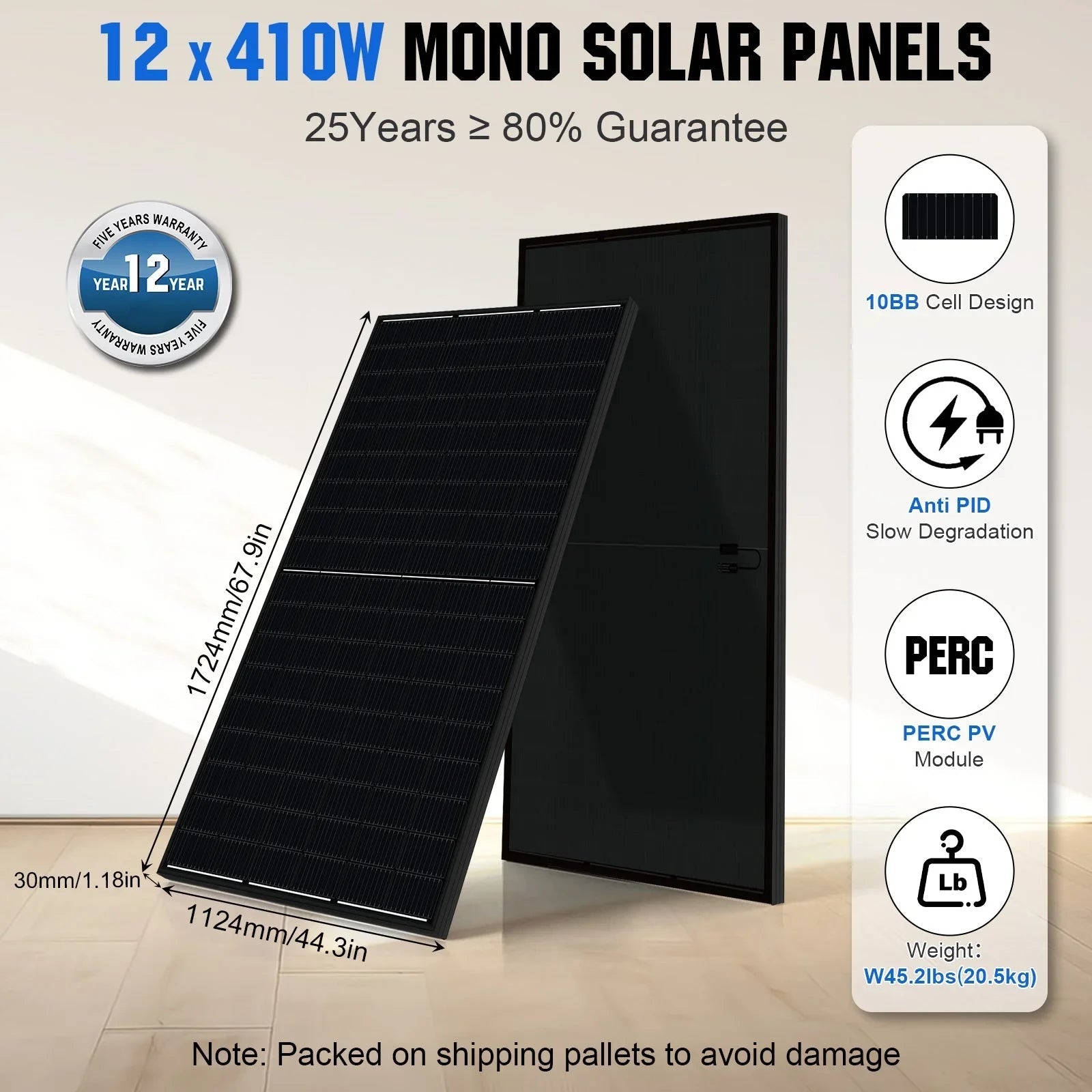

ECO-WORTHY 410W Monocrystalline Solar Panel

  • Rated Power: 410W

  • Solar Cell: Mono PERC

  • Maximum Power Voltage (Vmp): 31.3V

  • Open Circuit Voltage (Voc): 37.5V

  • Short Circuit Current (Isc): 13.84A

  • Maximum Current (Imp): 13.1A

  • Output Tolerance: ±3%

  • Temperature Coefficient of Isc: 0.05%/°C

  • Temperature Coefficient of Voc: –0.29%/°C

  • Operating Temperature: –40°C to +85°C

  • Frame: Aluminum Alloy

  • Dimensions: 1724 × 1134 × 30 mm

  • Weight: 20.5 kg

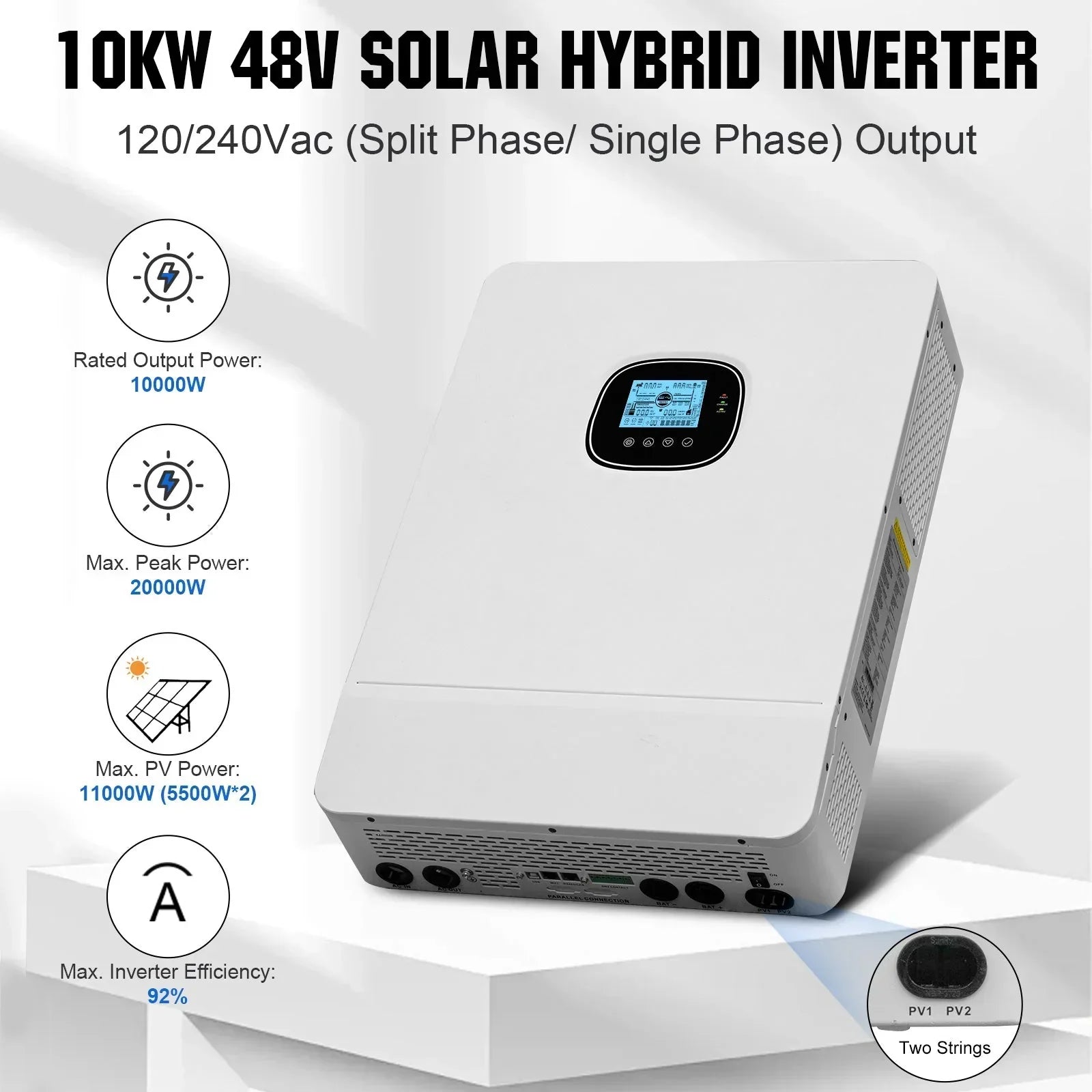

10kW 48V All-in-One Hybrid Inverter (200A MPPT)

  • Rated Output Power: 10,000W

  • Peak Power: 20,000W

  • Output Voltage: 120V/240V AC, 50/60Hz

  • Output Waveform: Pure Sine Wave

  • Battery Input Voltage: 48V

  • PV Charging Mode: 0–200A, MPPT 150–450VDC, Max Input Power 15,000W

  • AC/Grid Charging Mode: 90–140VAC, Max Charge/Discharge Current 200A

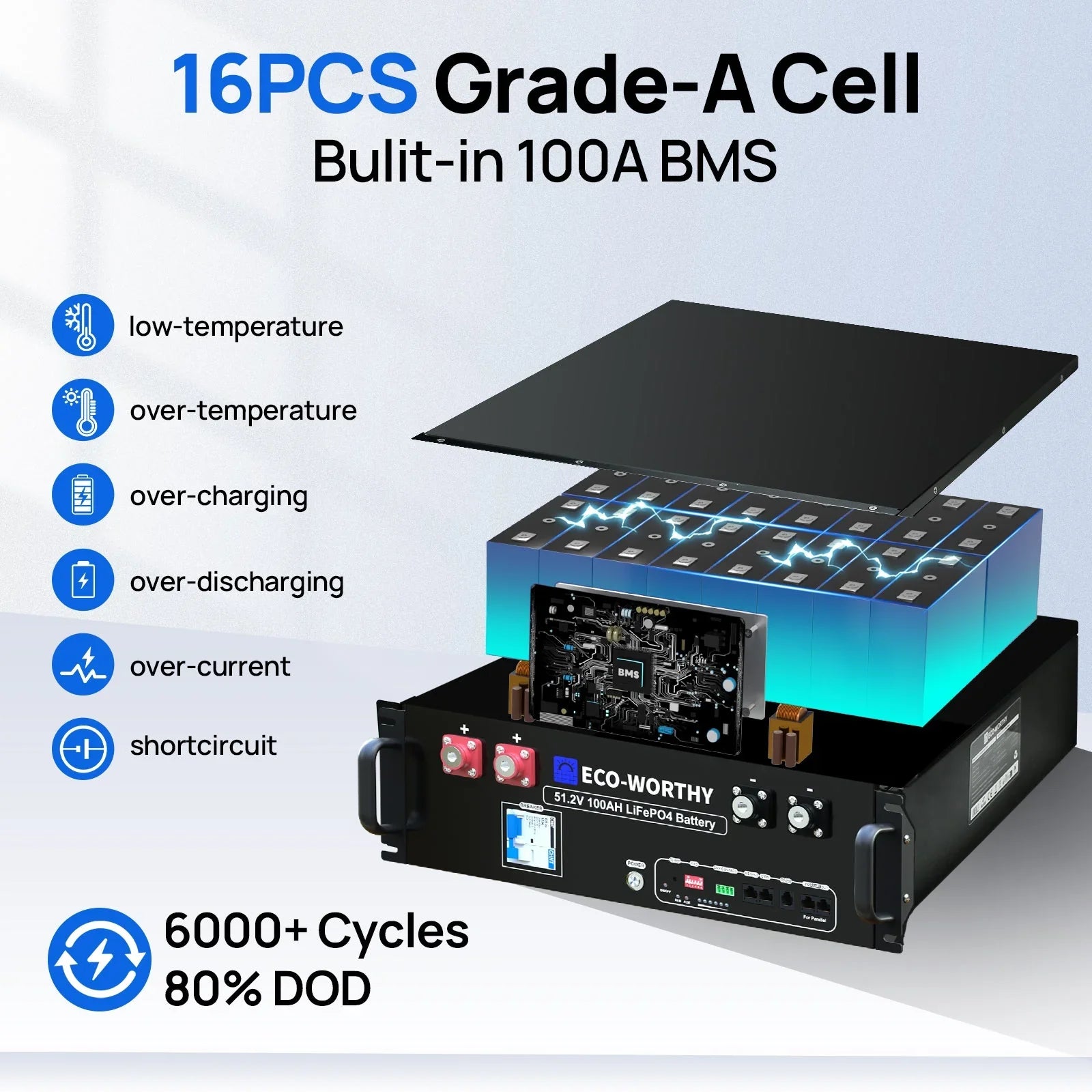

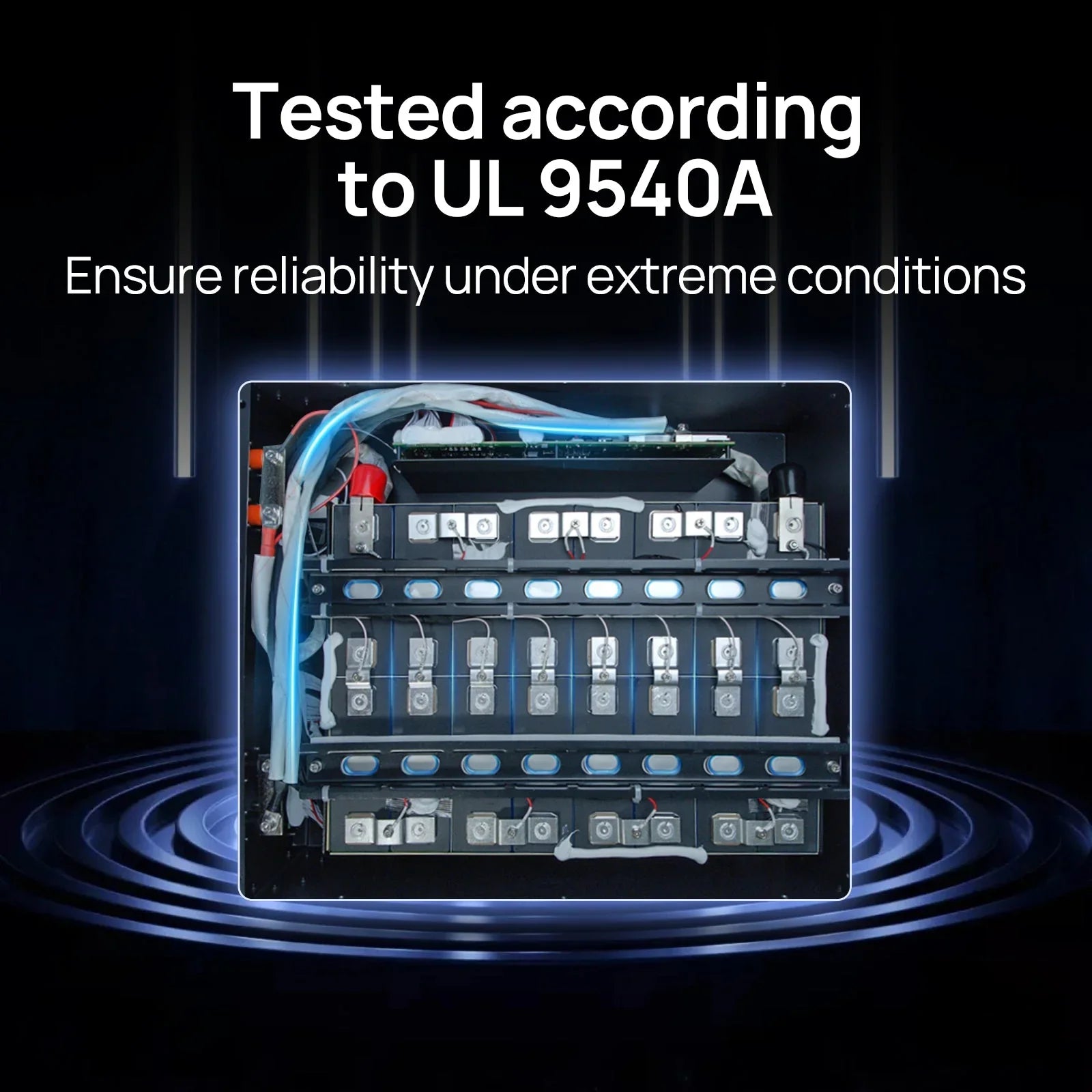

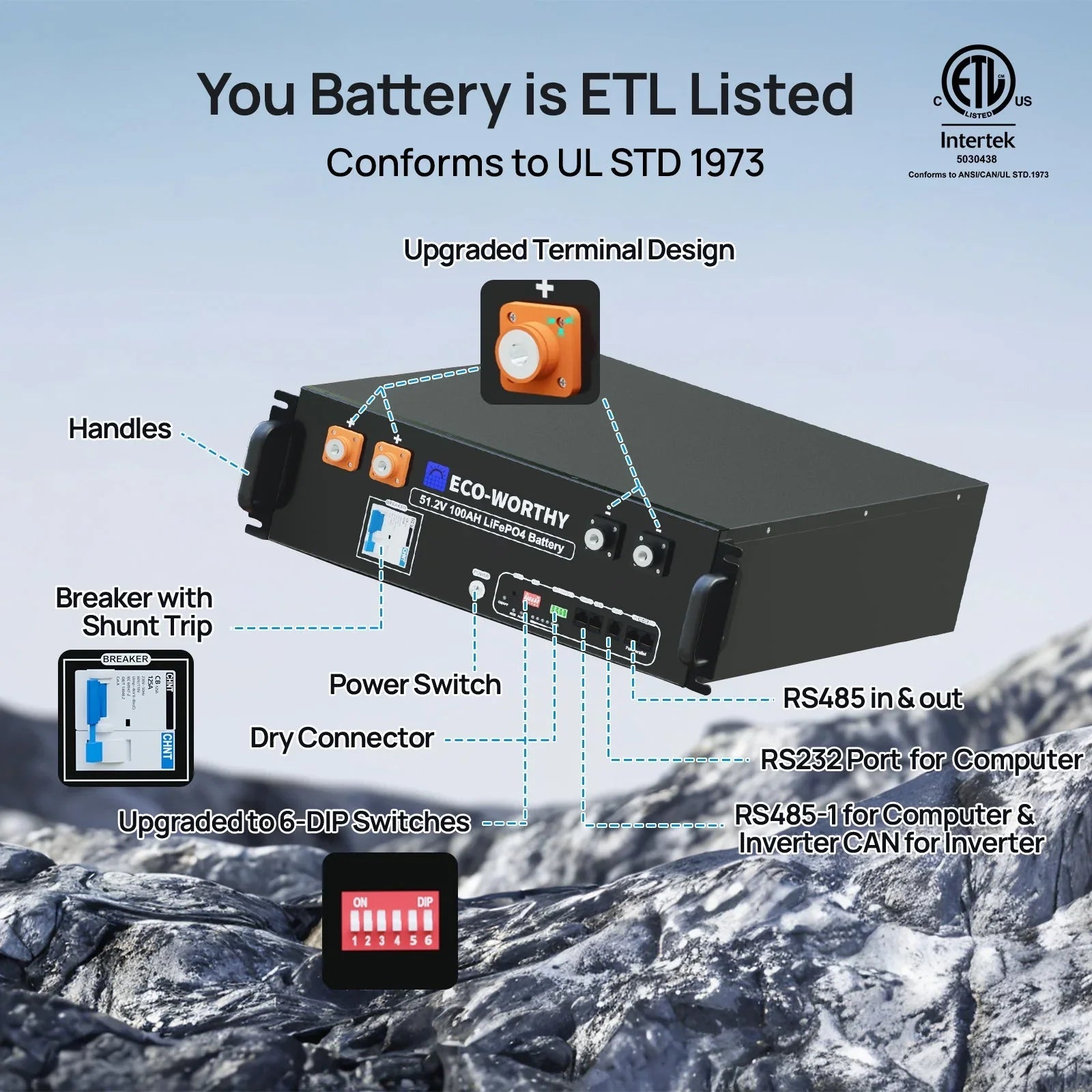

ECO-WORTHY 48V 100Ah LiFePO₄ Lithium Battery

  • Battery Capacity: 100Ah

  • Energy: 5.12kWh

  • Battery Voltage: 51.2V

  • Maximum Charging Current: 100A

  • Maximum Discharging Current: 100A

  • Max Charge Voltage: 58.4V

  • Discharge Cut-Off Voltage: 10V

  • Operating Temperature: –20°C to 60°C (–4°F to 140°F)

  • Cycle Life: ≥4000 at 50% DoD

  • Dimensions: 22.55 × 17.13 × 5.63 in

  • Weight: 97 lbs

This hybrid solar system offers a complete, reliable, and expandable off-grid and grid-tied solution, delivering consistent power for home energy independence and backup applications.
