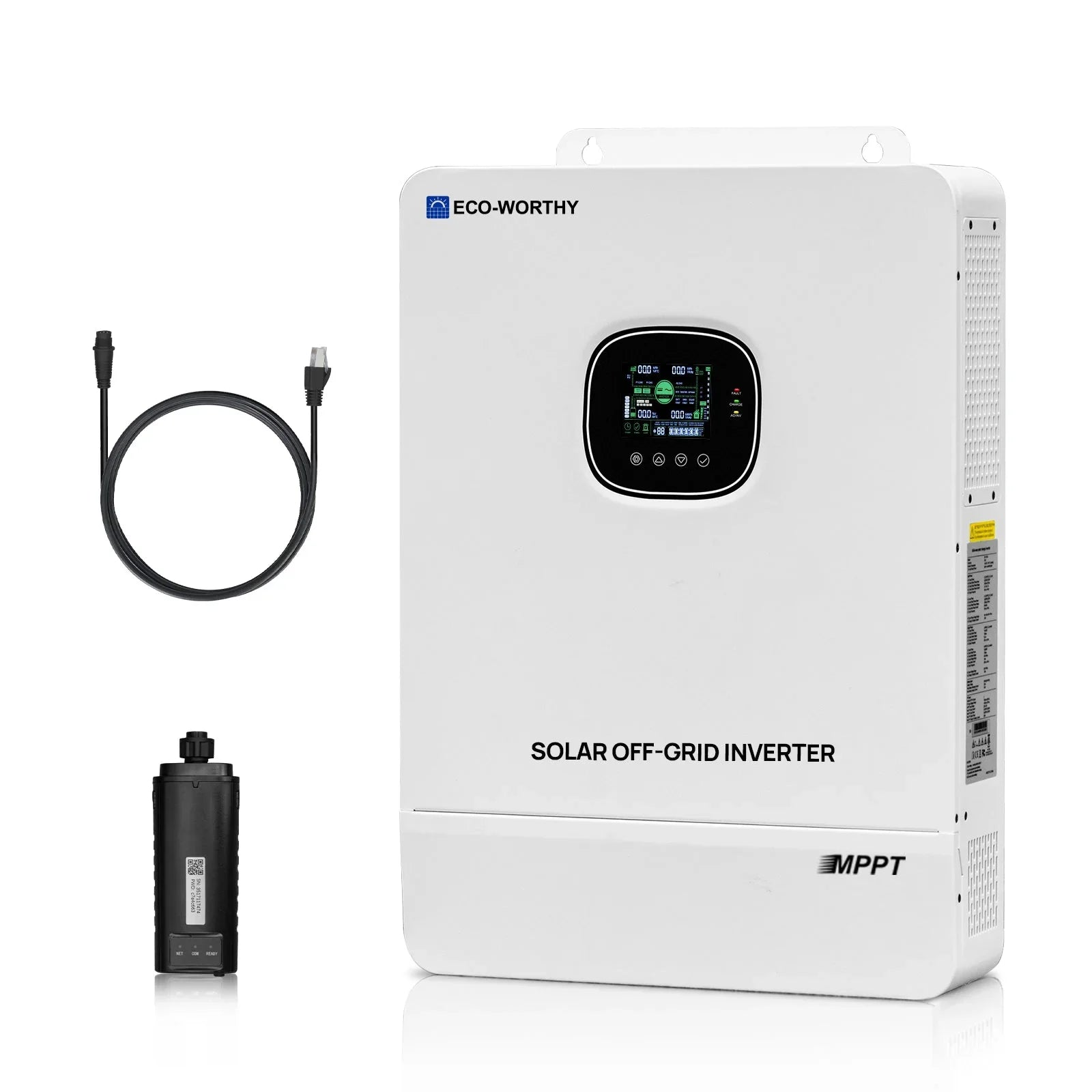

Eco-Worthy 10kW 48V All-in-One Solar Inverter for Off-Grid and Hybrid Systems
The Eco-Worthy 10kW 48V All-in-One Inverter is designed for high‑output off‑grid and hybrid solar installations, delivering reliable, whole‑home performance for residences, workshops, small businesses, and energy‑intensive loads. It provides true 120/240V split‑phase AC, enabling seamless operation of 240V equipment such as well pumps, HVAC systems, freezers, and power tools while charging from solar and battery banks.
Performance specifications
- Continuous output: 10,000W; Peak power: 20,000W
- Output: 120/240V AC (Split Phase); Frequency: 50Hz/60Hz auto‑detect
- Inverter input (DC): 48V nominal for battery operation
- PV charging (MPPT): up to 200A charge current; MPPT voltage range 125–425VDC
- Maximum solar input power: 11,000W
- Battery voltages supported: 40–60VDC; compatible with 48V lithium and lead‑acid banks
- AC/grid charging mode: rated input 90–140VAC; automatic 50/60Hz detection

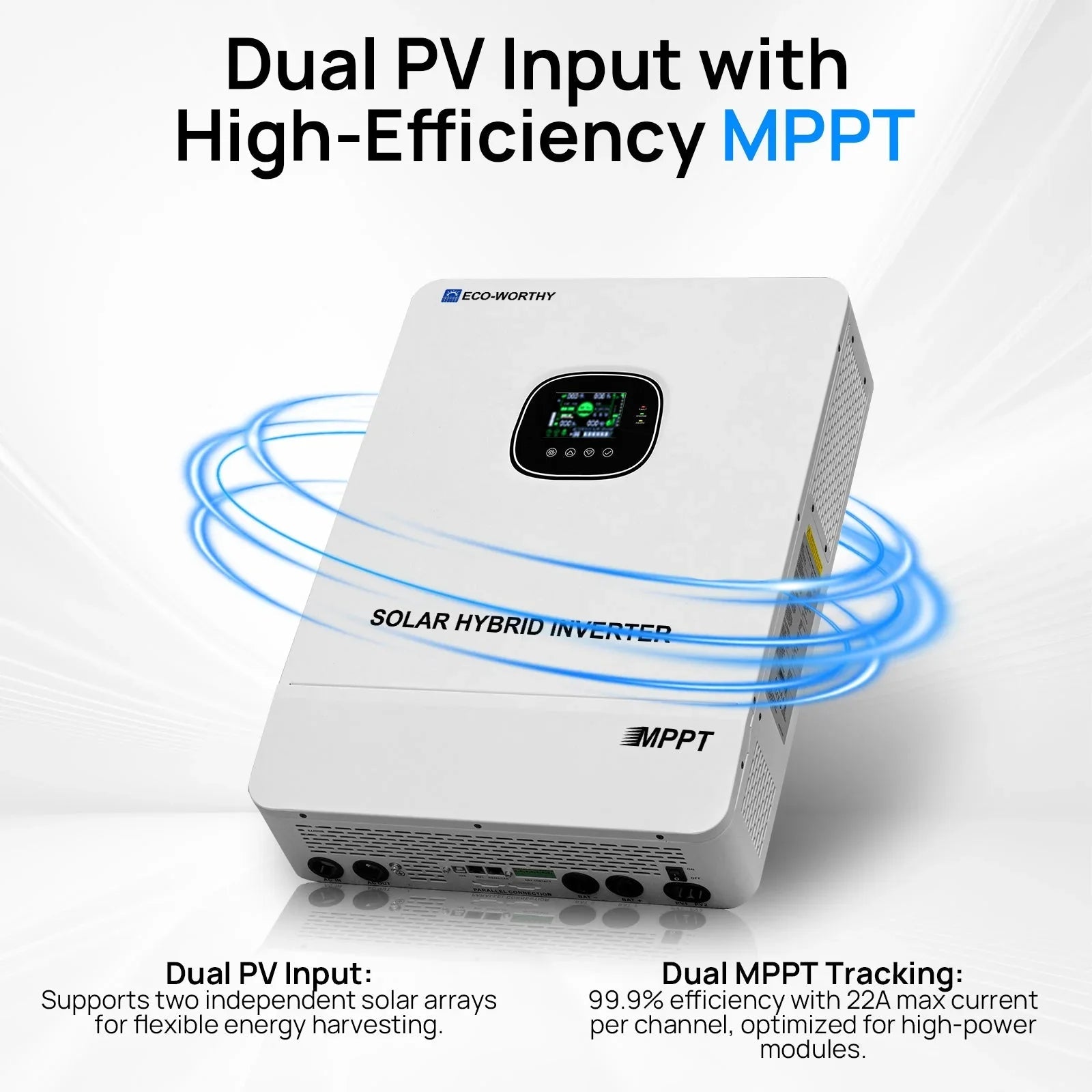

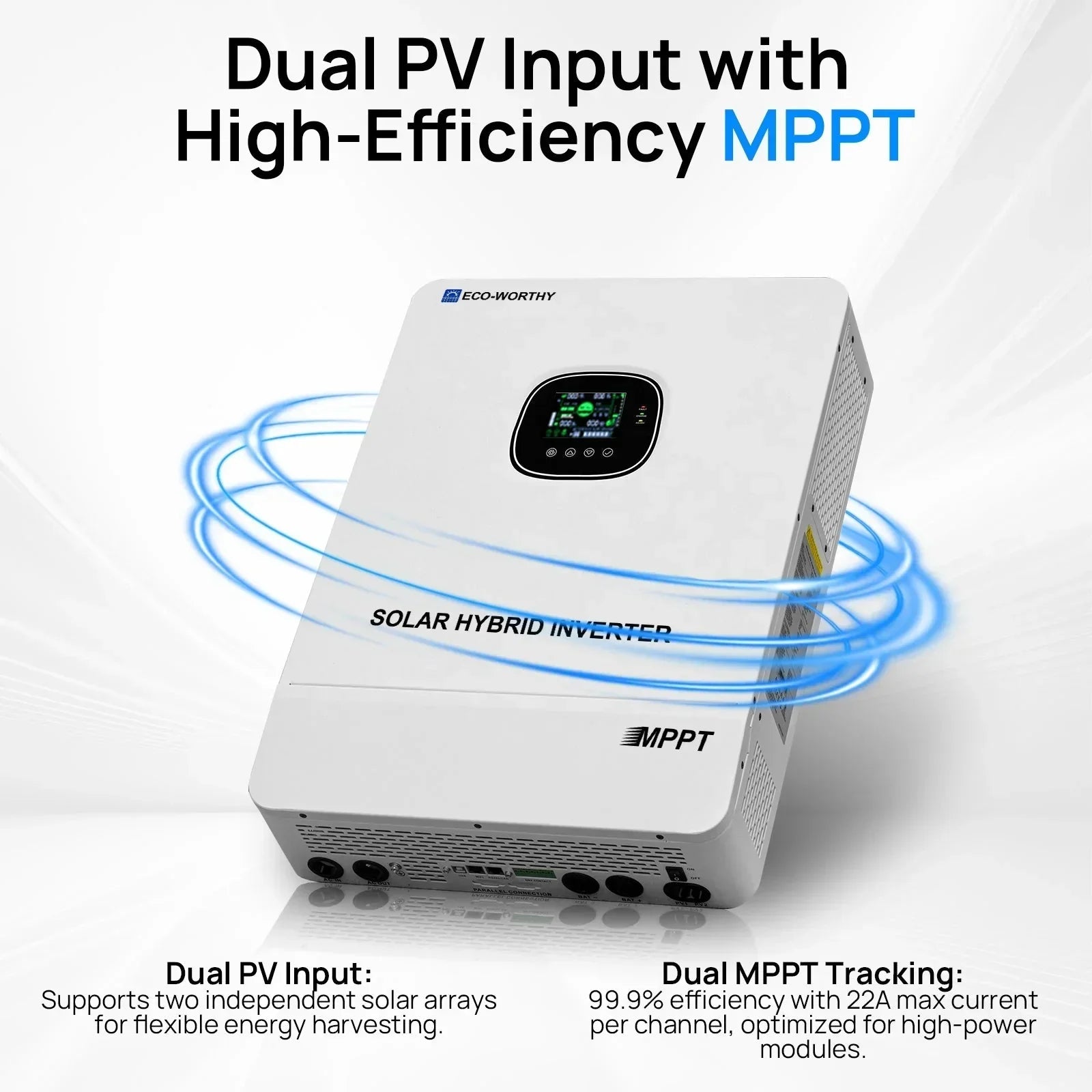

- Integrated MPPT solar charger and intelligent charging for fast, stable solar uptake
- Certification reference: UL 1741 listed

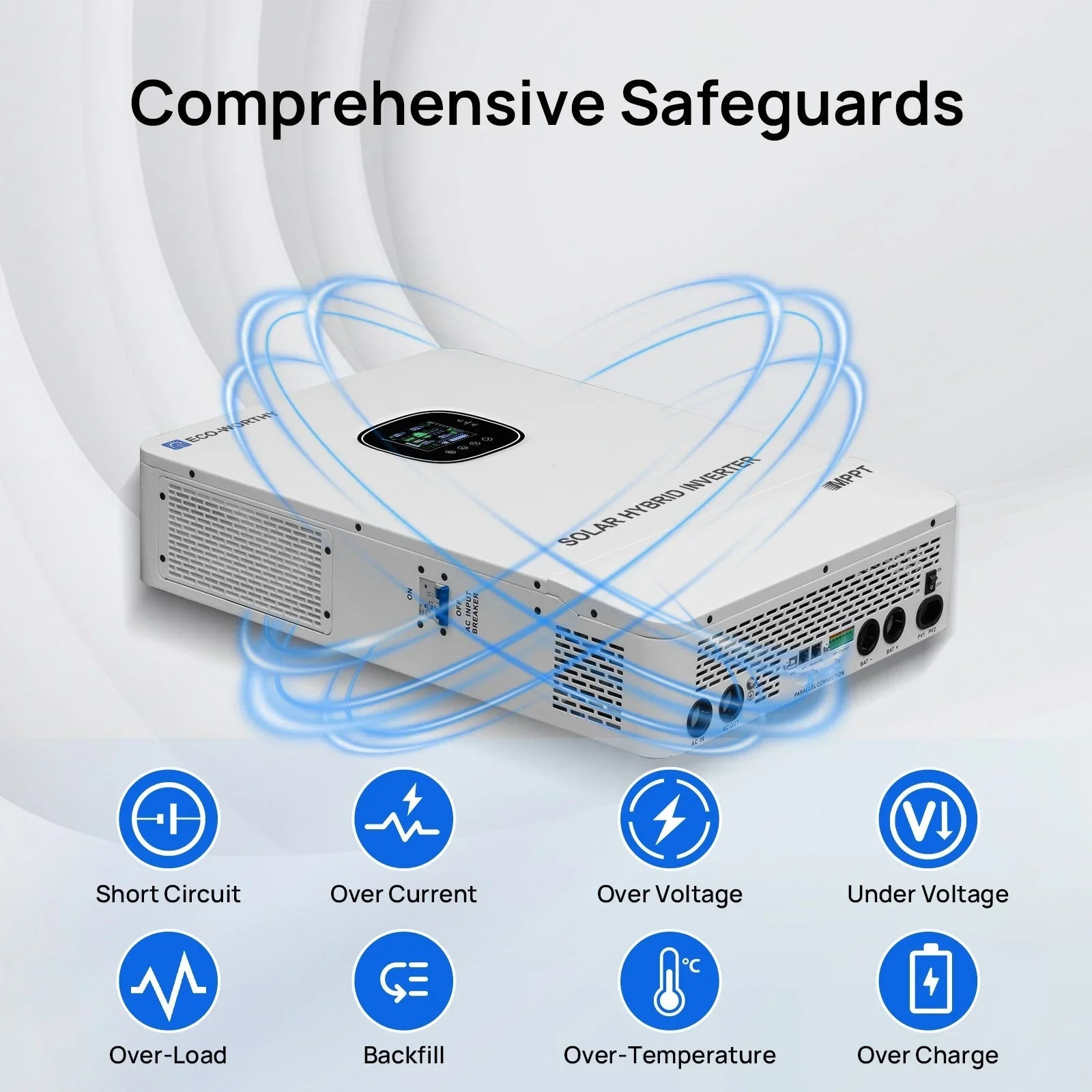

Safety, certifications and reliability
Listed to UL 1741, this all‑in‑one inverter emphasizes safety and compatibility for home and commercial use. Its true sine wave output ensures smooth operation of sensitive appliances, and the wide PV input range supports various solar array configurations, including high‑volume daytime charging and backup power operations.
Installation and maintenance
- Installation should be performed by a qualified electrician following local electrical codes and installer guidelines
- Ensure proper ventilation and clearances around the unit to prevent overheating
- Connect battery banks and AC wiring with appropriate gauge conductors and overcurrent protection
- Periodically inspect connections and enclosure for signs of wear or corrosion
Eco-Worthy 10kW 48V All-in-One Inverter with 200A MPPT | 120/240V Split Phase | 20kW Peak Power
Upgrade your off-grid or hybrid solar system with the Eco-Worthy 10kW 48V All-in-One Inverter, engineered for high-output power, ultra-fast solar charging, and reliable whole-home performance. With 10,000W continuous output, 20,000W peak load handling, and a powerful 200A MPPT solar charger, this inverter is built to support full-home loads, workshops, small businesses, and energy-intensive off-grid applications.

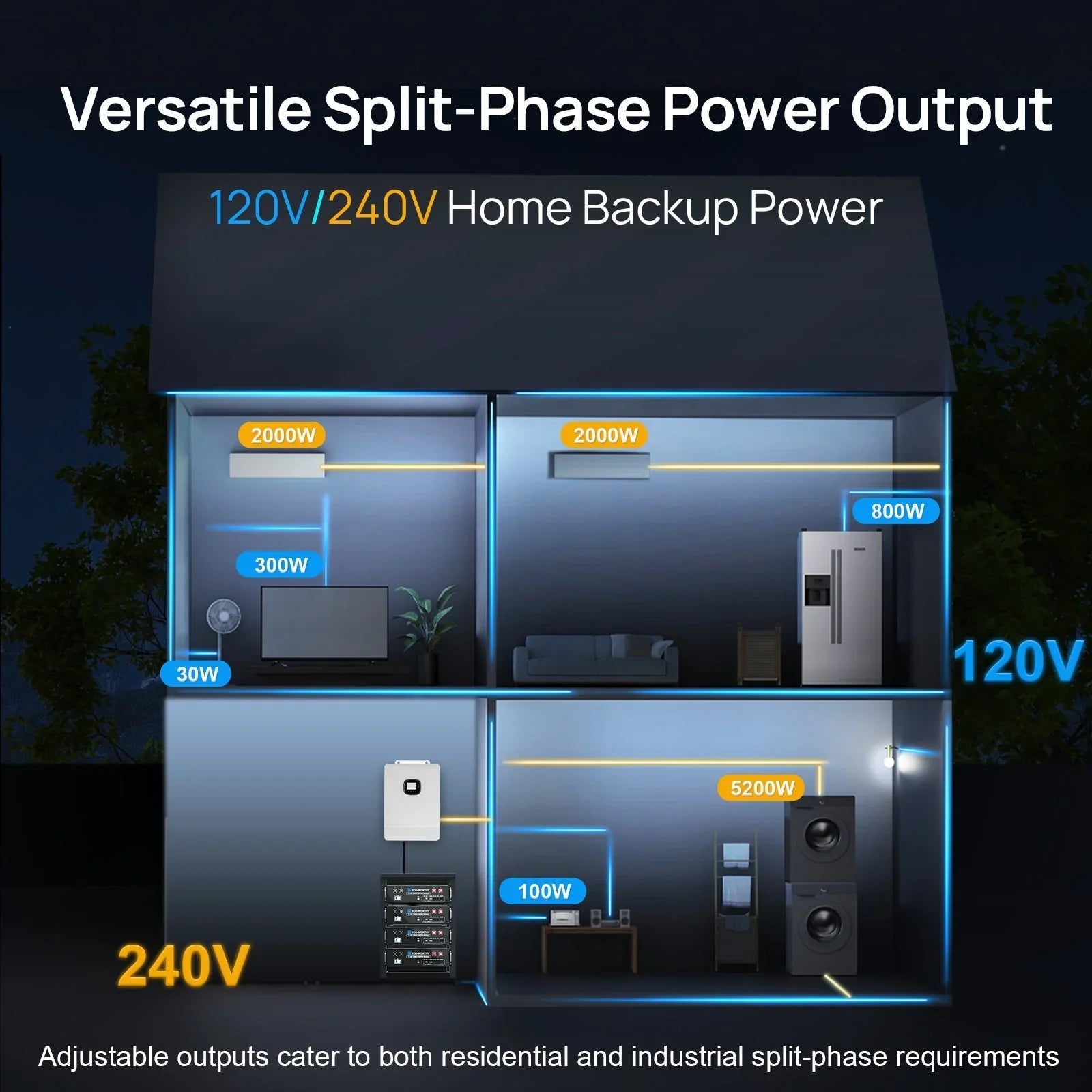

Providing true 120/240V split-phase output, the Eco-Worthy 10kW inverter can run everything from daily household appliances to heavy-duty 240V equipment such as well pumps, HVAC units, freezers, and power tools. The integrated 200A MPPT controller supports up to 11,000W of solar input, ensuring fast, stable, and efficient charging even during low-light conditions.

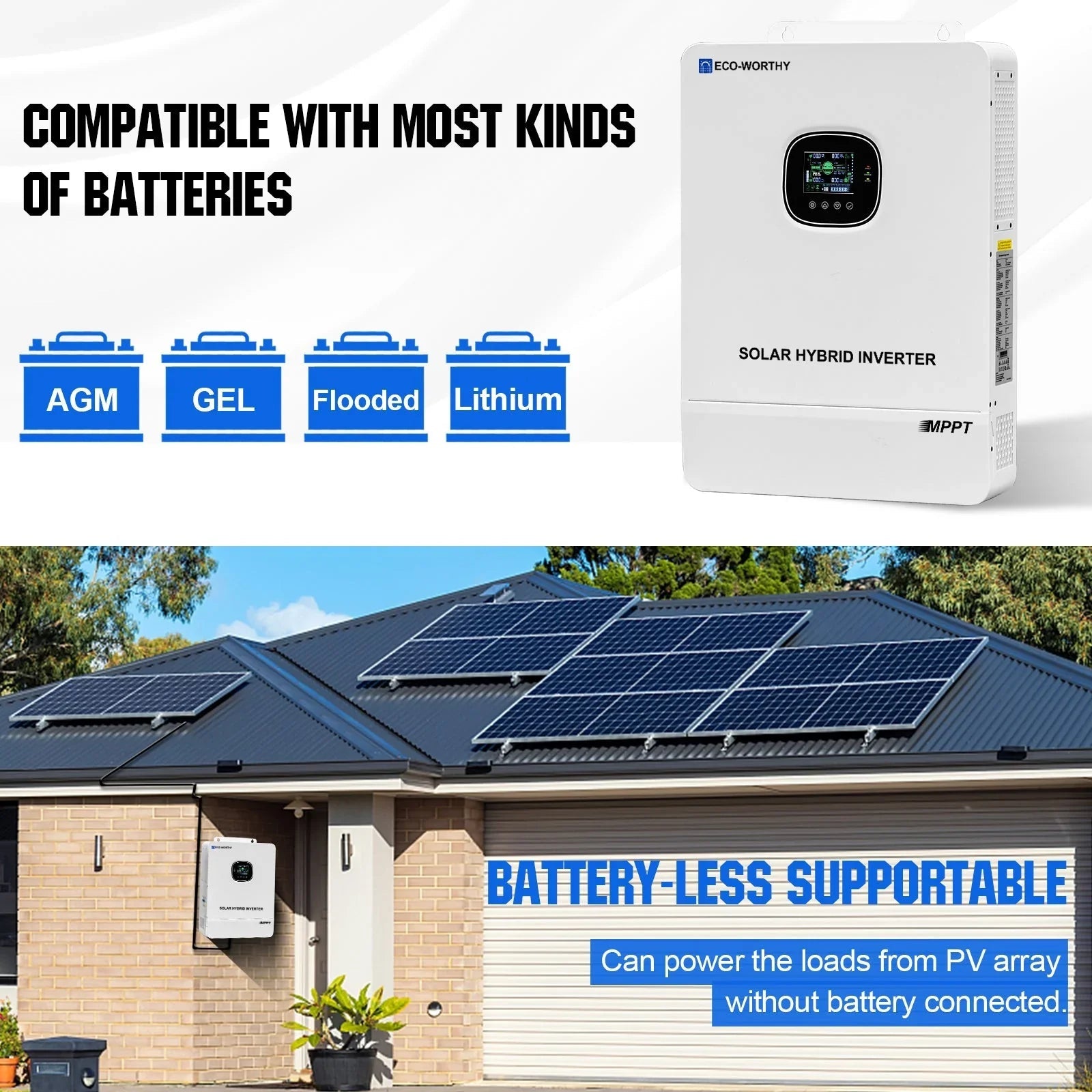

Compatible with 48V lithium and lead-acid battery banks, this unit also features intelligent AC/grid charging with automatic 50/60Hz detection—making it ideal for both off-grid and hybrid backup power systems.
Key Features & Specifications
Solar Charging Mode (MPPT)
PV Charging Current: 0–200A
MPPT Voltage Range: 125–425VDC
Maximum Solar Input Power: 11,000W
Battery Voltage Range: 40–60VDC
Inverter Mode
Rated Output Power: 10,000W
Peak Power: 20,000W
Output Voltage: 120/240V AC (Split Phase)
Frequency: 50Hz/60Hz
Output Waveform: Pure Sine Wave
Rated Battery Input Voltage: 48V
AC / Grid Charging Mode
Rated Input Voltage: 90–140VAC
Frequency: 50Hz/60Hz (Auto Detect)
Perfect For
Whole-home off-grid systems
High-demand solar setups
Hybrid/backup power systems
Shops, farms, and commercial loads
240V well pumps, HVAC units, and power tools
