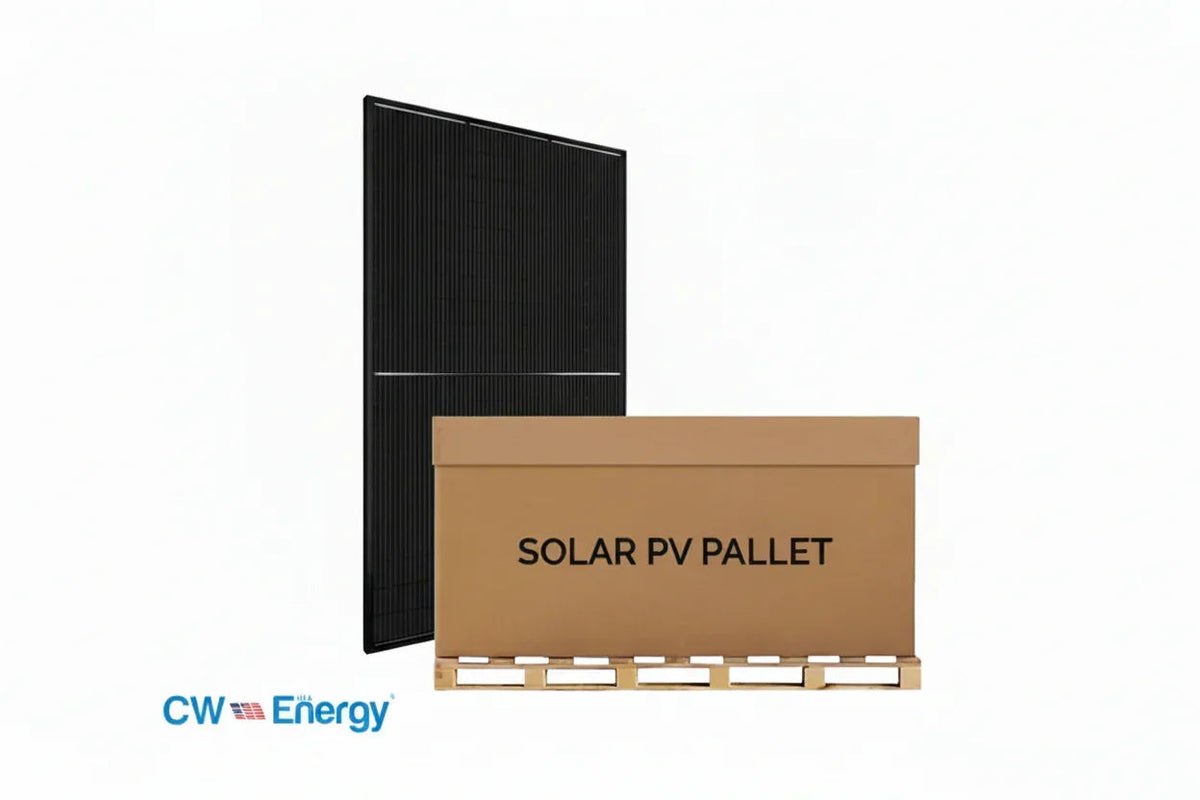

CW Energy 545W Bifacial Solar Panels | Up to 710W Bifacial Gain | CWT545-144PMB10 (Black) Full Pallet (31)
The CW Energy 545W bifacial solar panel is a good choice for commercial installations, large ground-mount arrays, and residential systems requiring maximum output. With half-cut monocrystalline PERC cells and up to 30% bifacial gain, this high-efficiency solar module delivers 710W peak performance when installed over reflective surfaces like white gravel or concrete.
- Up to 30% Bifacial Gain
- Half-Cut Cell Technology for Superior Shading Tolerance
- Extreme Weather Certification (5400 Pa Snow / 2400 Pa Wind)
About the Product
Engineered with 144 half-cut monocrystalline cells, CW Energy 545W bifacial solar panel reduces internal current flow and hot spot temperatures, improving shading tolerance and extending operational lifespan. The half-cut design minimizes power loss in cell connections compared to conventional full-cell modules, delivering superior efficiency even in partially shaded conditions.
It features self-cleaning anti-reflection glass coating that reduces surface dust accumulation. Furthermore, with a low temperature coefficient (Pmax) of -0.35%/°C, the CW Energy 545W bifacial solar panel maintains consistent performance even in hot climates. Heat-strengthened glass construction protects against micro-cracks and withstands extreme weather conditions—certified for snow loads up to 5400 Pa and wind loads up to 2400 Pa.
Standard MC4 connectors enable seamless integration with existing solar arrays. Backed by a 30-year linear power performance warranty and 12-year product warranty, this module delivers decades of reliable energy production.
Specifications
|
Brand |
CW Energy |
|
Rated Power (Pmax) |
545 W |
|
Cell Type |
Monocrystalline PERC |
|
Dimensions |
89.69 x 44.65 x 1.38 inches |
|
Weight |
61.73 lbs |
|
Open Circuit Voltage (VOC) |
49.76 V |
|
Current at Short Circuit (ISC) |
13.99 A |
|
Current at Maximum Power (IMP) |
13.21 A |
|
Operating Temperature |
-40 ~ +85°C (-40 °F to +185 °F) |
|
Module Efficiency |
21.10% |
Download full specifications here.
Download the warranty here.
