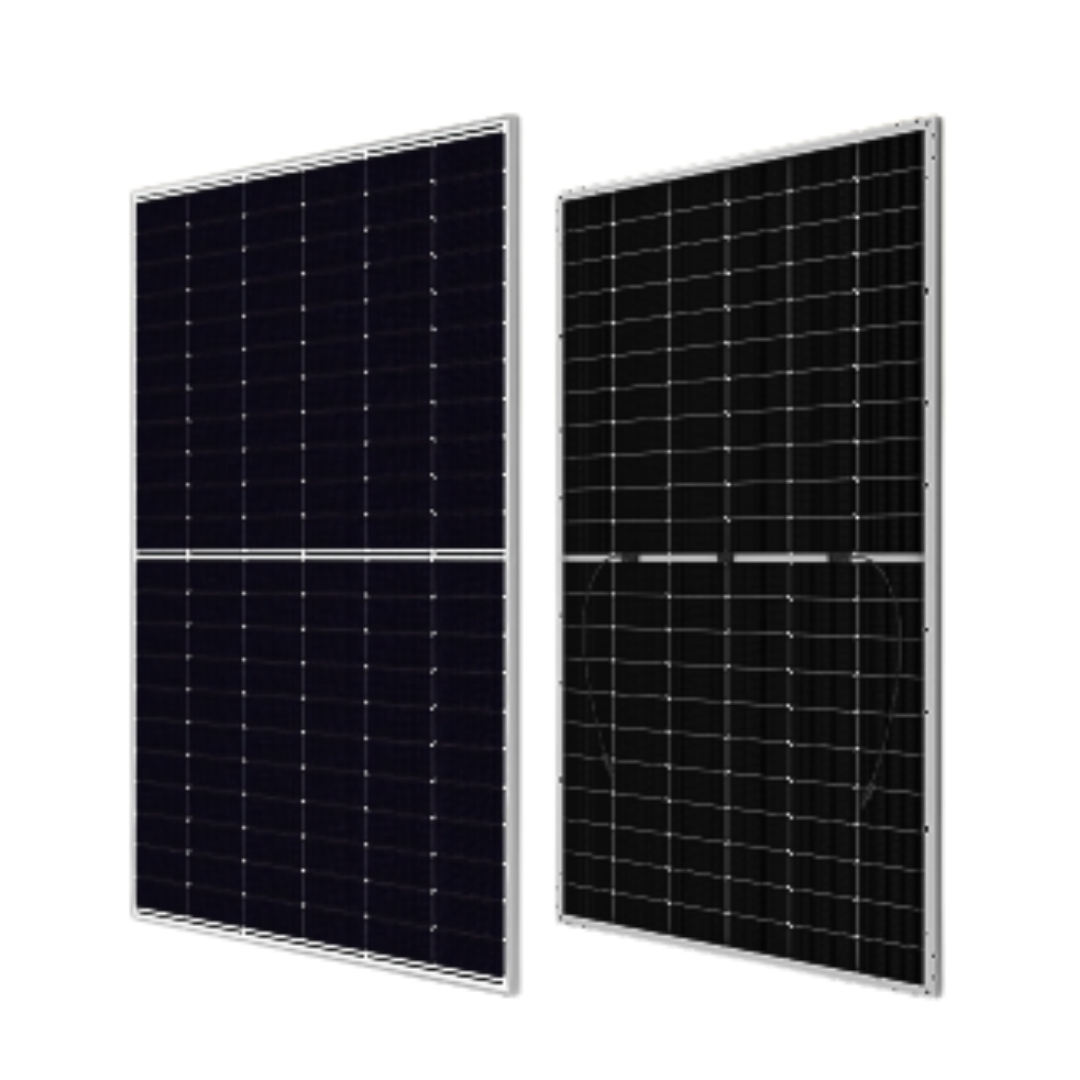

Canadian Solar 610W TOPBiHiKu6 N Type Bifacial TOPCon CS6.2-66TB-610H Solar Panel
Harness the power of cutting-edge TOPCon technology with the CSI Solar TOPBiHiKu6 solar panel. Designed for maximum energy output and long-term reliability, this bifacial module delivers exceptional performance for residential, commercial, and utility-scale solar projects.
Key Benefits:
- High Power Output & Efficiency: Achieve up to 620W of power and 23.0% module efficiency, maximizing energy production.
- Superior Temperature Performance: Lower temperature coefficient (-0.29%/°C) ensures optimal performance in hot climates.
- Enhanced Durability & Reliability: Excellent anti-LeTID and anti-PID performance minimizes power degradation, while robust construction withstands harsh weather conditions.
- Bifacial Technology: Up to 85% bifaciality captures sunlight from both sides, increasing overall energy yield.
- Lower LCOE: Reduced Levelized Cost of Energy and system costs, ensuring excellent return on investment.
- Robust Design: Withstands heavy snow loads (up to 5400 Pa) and wind loads (up to 2400 Pa).
Warranty:
- Enhanced product warranty on materials and workmanship.
- Linear power performance warranty, guaranteeing minimal power degradation over time.
Best Use Cases:
- Residential rooftop solar systems.
- Commercial and industrial rooftop installations.
- Utility-scale solar power plants.
- Ground-mounted solar projects.
- Applications in high-temperature environments.
About Canadian Solar:
Canadian Solar, founded in 2001, is a global leader in solar modules and battery storage solutions, with operations in over 20 countries and a strong focus on clean energy innovation
Technical Specifications:
| Specification | Value |
|---|---|
| Cell Type | TOPCon |
| Maximum Power (Pmax) | Up to 620 W |
| Module Efficiency | Up to 23.0% |
| Temperature Coefficient (Pmax) | -0.29%/°C |
| Bifaciality | Up to 85% |
| Maximum System Voltage | 1500 V (IEC/UL) |
| Operating Temperature | -40°C to +85°C |
| Snow Load Capacity | 5400 Pa |
| Wind Load Capacity | 2400 Pa |
| Dimensions | 93.8 ˣ 44.6 ˣ 1.18 in |
| Weight | 74.1 lbs
|
FAQs
Q: What is the power output of the Canadian Solar CS6.2-66TB-610H panel?
The Canadian Solar CS6.2-66TB-610H panel delivers a maximum power output of 610 watts, making it suitable for large-scale solar installations.
Q: What is the efficiency of the Canadian Solar CS6.2-66TB-610H panel?
This panel has an efficiency rating of approximately 22.6%, ensuring high energy production.
Q: What are the dimensions and weight of the Canadian Solar CS6.2-66TB-610H panel?
The panel measures 2,382 mm in length, 1,134 mm in width, and has a depth of 30 mm. It weighs approximately 32.8 kg.
Q: What type of solar cells does the Canadian Solar CS6.2-66TB-610H panel use?
The panel utilizes 132 N-type TOPCon bifacial cells, enhancing efficiency and performance.
Q: What kind of warranty does Canadian Solar offer for this panel?
Canadian Solar provides a 12-year product warranty and a 30-year linear performance warranty for the CS6.2-66TB-610H panel, ensuring long-term reliability.
Q: Is the Canadian Solar CS6.2-66TB-610H panel suitable for low-light conditions?
Yes, the panel's N-type TOPCon technology enhances performance in low-light environments, such as cloudy days or early mornings.
Q: How durable is the Canadian Solar CS6.2-66TB-610H panel in extreme weather conditions?
The panel is designed to withstand heavy snow loads up to 5,400 Pa and wind loads up to 2,400 Pa, ensuring durability in various climates.
Q: Is the Canadian Solar CS6.2-66TB-610H panel compatible with different mounting systems?
Yes, it is compatible with various standard rooftop and ground-mounted racking systems, offering flexibility in installation.
Q: Can the Canadian Solar CS6.2-66TB-610H panel help reduce energy costs?
Absolutely! With its high efficiency and power output, this panel can generate more electricity per square meter, potentially lowering energy costs.
Q: How many panels do I need for my home or business?
The number of panels required depends on your energy consumption and available space. For a household using 10,000 kWh/year, approximately 17 Canadian Solar CS6.2-66TB-610H panels may be needed. Consult a certified installer for an accurate assessment.
Q: How many panels are in each pallet?
Each pallet contains 27 Canadian Solar CS6.2-66TB-610H panels, facilitating efficient bulk installations.
