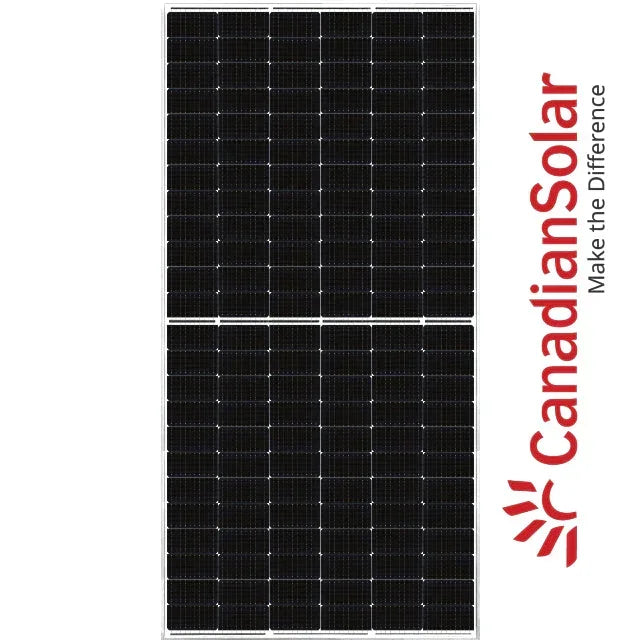

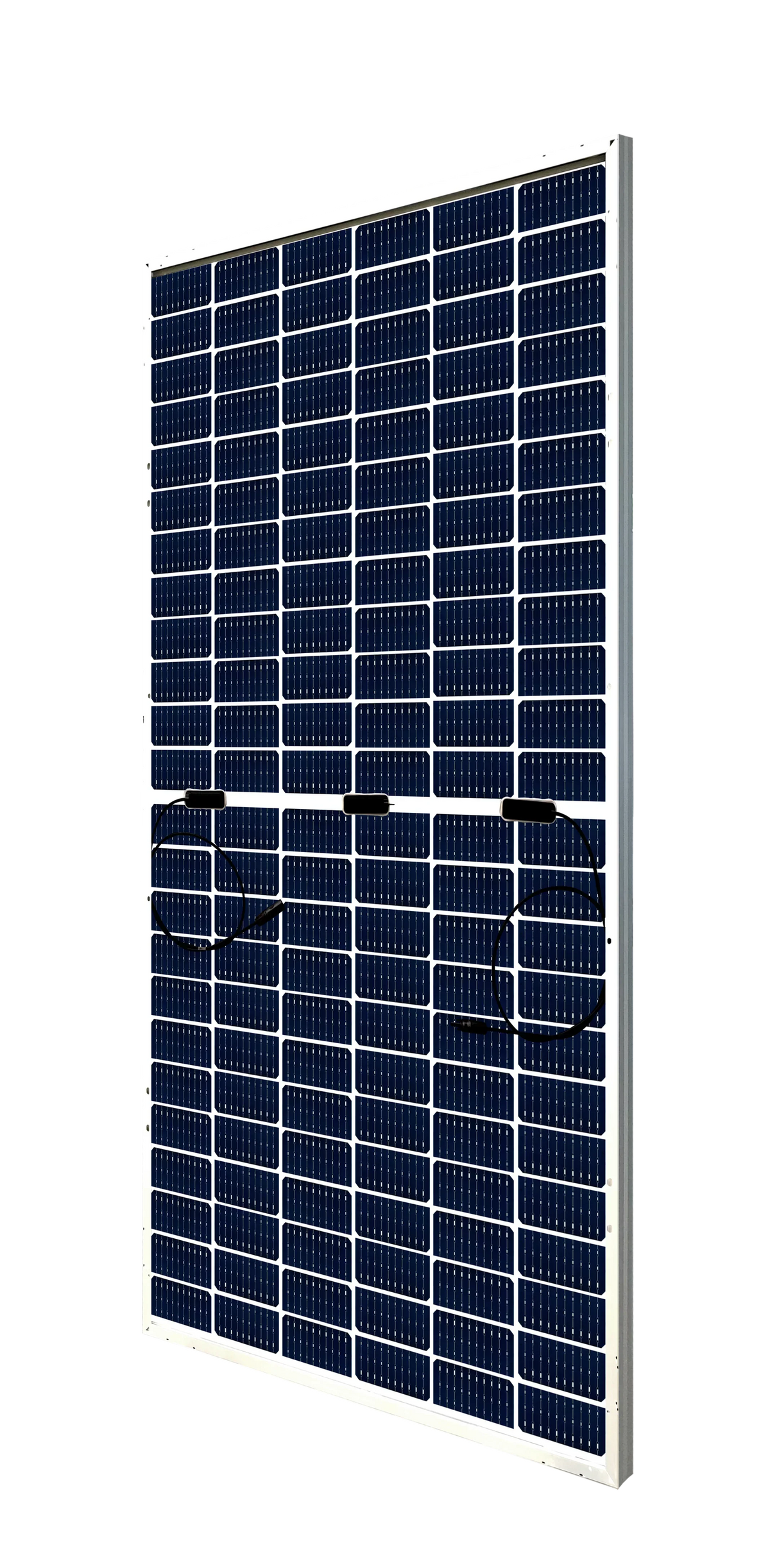

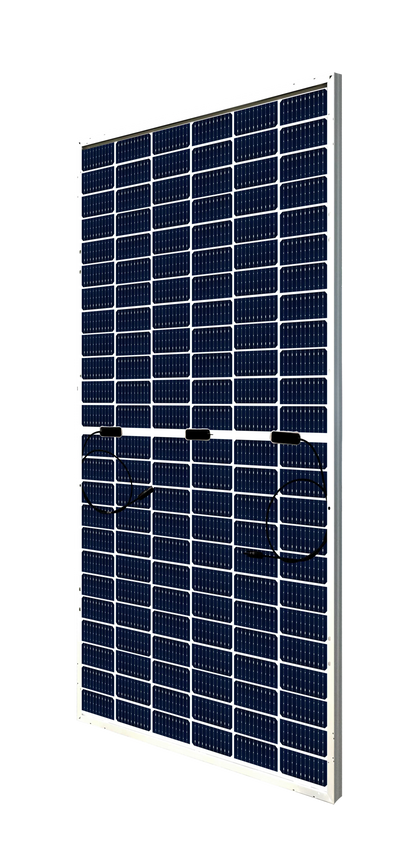

Canadian Solar 600W N-Type TOPCon Bifacial Solar Panel
The Canadian Solar CS6W-600TB-AG is a high-output 600-watt N-Type TOPCon bifacial solar panel engineered for maximum energy yield in commercial, industrial, and large-scale residential solar installations. Built with advanced TOPCon cell technology, this module delivers superior efficiency, lower degradation, and excellent long-term performance compared to conventional P-type panels.
With a robust dual-glass design, enhanced low-light response, and reduced temperature coefficient, the CS6W-600TB-AG is ideal for ground-mount, rooftop, and utility-scale systems where reliability and lifetime energy production matter most.
Key Features & Benefits
-
600W High Power Output
Designed to reduce balance-of-system costs by delivering more power per module. -
N-Type TOPCon Cell Technology
Higher efficiency, lower LID/LeTID, and improved long-term performance versus P-type modules. -
Bifacial Energy Gain
Transparent back glass captures reflected light from the rear side to increase total system yield. -
Dual-Glass Construction
2.0 mm heat-strengthened glass on both sides improves durability, moisture resistance, and lifespan. -
Lower Degradation Rates
N-type cells offer superior resistance to performance loss over time. -
Commercial & Utility Ready
Optimized for large installations requiring consistent output and long service life.
Specifications
|
Brand |
Canadian Solar |
|
Rated Power (Pmax) |
600 W |
|
Cell Type |
Monocrystalline |
|
Dimensions |
89.7 x 44.6 x 1.57 inches |
|
Weight |
69.7 lbs |
|
Open Circuit Voltage (VOC) |
53 V |
|
Current at Short Circuit (ISC) |
14.18 A |
|
Current at Maximum Power (IMP) |
13.68 A |
|
Operating Temperature |
-40 °F to +185 °F |
|
Module Efficiency |
Up to 27.9% |
Full Pallet Quantity: 26
