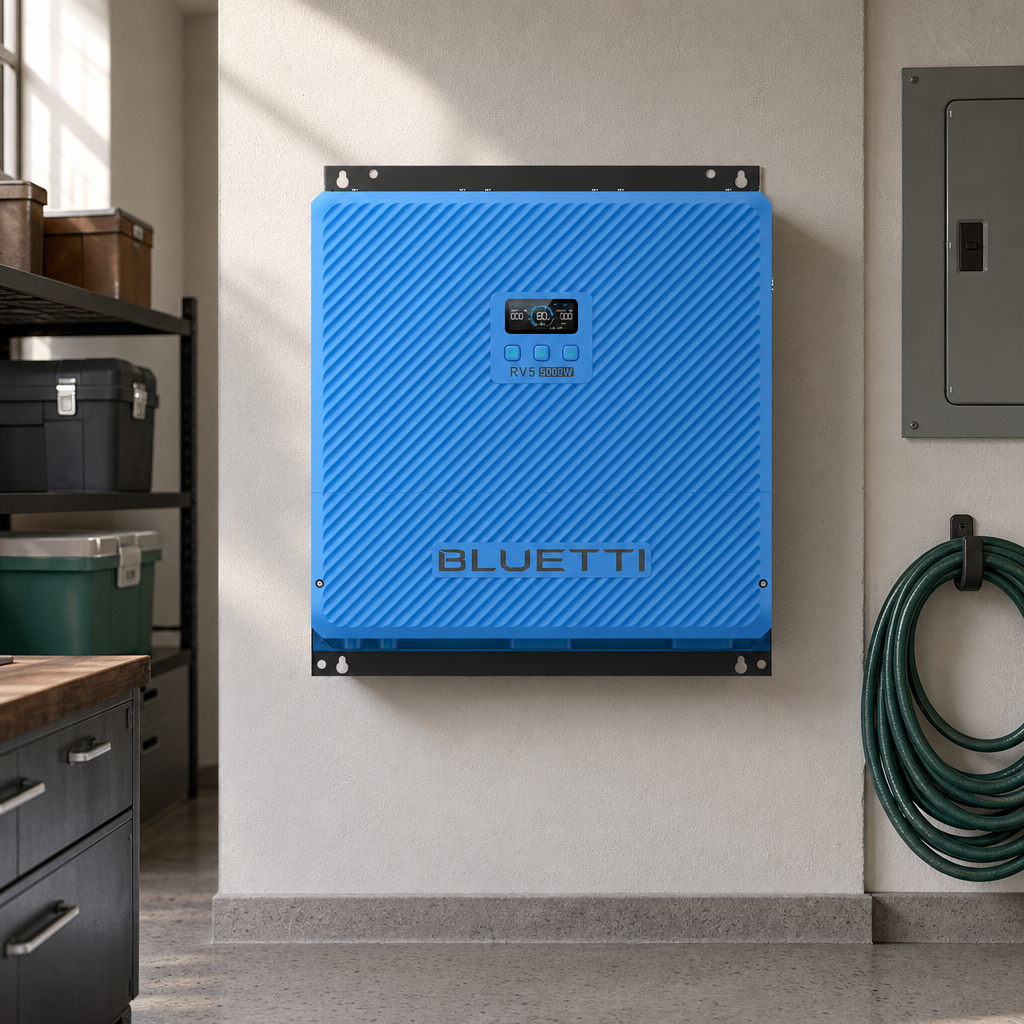

• BLUETTI RV5 Complete RV Power Generation And Battery Kit lifestyle product image
1 8

BLUETTI RV5 Complete RV Power Generation And Battery Kit

BLUETTI RV5 Complete RV Power Generation And Battery Kit

$3,899.00 USD
$4,799.00 USD $3,899.00 USD
Sale Sold out
Shipping calculated at checkout.

 Refund Policy

features

• Solid design control box — Meets NEMA Type 4 & IP30 standard by lab test
• LCD color screen — Real-time status view and easy user interaction
• Breathing indicator light — Shows real-time charging status
• Control button — Adjust max output current & set scheduled charging time
• Water protection gasket — Resists 3-minute direct high-pressure water spray
• TPU cable — 14.76ft, excellent durability, cold resistant to -22°F
• ETL certified — Compliant with North American safety standards

Technical Specifications

Voltage: 240V/208V
Max Output Current: 40A (SS-PC1-100) / 32A (SS-HAY-100-32A)
Max Power: 8kW / 7kW
Frequency: 50/60Hz
Temperature Range: -22°F to 122°F
Humidity: 5–95%, no condensation
Connector: Type 1 (J1772)
Cable Length: 14.76ft (4.5m)
Altitude: ≤2000m (6,562ft)
Cooling: Natural
Safety Standards: ETL, UL2594, CSA C22.2
Scheduling: App / Timer control
Connectivity: Wi-Fi / Bluetooth
Warranty: 2 years

Packing Details

Package Contents

  • 1 × BLUETTI RV5 Power Hub
  • 1 × BLUETTI B4810 battery
  • 1 × E-Panel
  • 1 × E-Pad
  • Connection cable set
View full details

BLUETTI RV5 Complete RV Power Generation and Battery Kit

Equipment Type and Primary Applications

Integrated mobile power system for full-time RV living, expedition travel, permanent off-grid habitation, and grid-independent backup during utility outages. The kit combines the RV5 Power Hub, battery storage, smart distribution, control interface, and photovoltaic input equipment for generator-free electrical supply.

Performance Specifications

  • AC output: 5,000 W continuous.
  • Energy storage: 5,120 Wh nominal; scalable deployment up to 122.88 kWh.
  • System architecture: 48 V nominal bus for reduced line losses.
  • Solar input: up to 1,800 W through integrated MPPT controllers.
  • UPS transfer: automatic critical-load transfer within ≤20 ms.
  • Included PV100 FX module: 100 W peak output, Mono PERC cells, MC4 termination.

Safety Features and Certifications

  • Electronic overcurrent protection and short-circuit interruption across distribution lines.
  • Manual safety disconnects integrated into color-coded red/black high-current cables.
  • Dedicated green/yellow pre-terminated DC harnesses for ground-fault mitigation.
  • Battery enclosure rated IP65 for dust-tight exterior mounting.

Installation and Maintenance Requirements

Mounts to standard structural rails with a minimum 12-inch service clearance around ventilation zones. Commissioning requires bus-voltage alignment verification before solar and utility connections are engaged. Inspect cable compression fittings and photovoltaic connector seals twice annually. Solid-state lithium chemistry eliminates electrolyte replenishment.

Warranty and Service Information

Coverage terms are governed by the official BLUETTI product guarantee manual. Authorized distributors provide registration assistance and access to tier-based technical support.

Branding/References

Manufacturer: BLUETTI. Product line: RV5 Complete Kit. Components: RV5 Power Hub, B4810 48V LiFePO₄ Array, Epanel Smart Distribution Module, and Epad 10.1-inch Control Screen. References include official electrical layout diagrams and CAN integration manuals.

Differentiators

Modular capacity expansion uses the same Power Hub infrastructure, allowing incremental upgrades while retaining unified load-management software.
