BT-1 Module | Bluetooth Module for Solar Charge Controllers

BT-1 Module | Bluetooth Module for Solar Charge Controllers

$28.79 USD
$35.99 USD $28.79 USD
Sale Sold out
Shipping calculated at checkout.

features

• Solid design control box — Meets NEMA Type 4 & IP30 standard by lab test
• LCD color screen — Real-time status view and easy user interaction
• Breathing indicator light — Shows real-time charging status
• Control button — Adjust max output current & set scheduled charging time
• Water protection gasket — Resists 3-minute direct high-pressure water spray
• TPU cable — 14.76ft, excellent durability, cold resistant to -22°F
• ETL certified — Compliant with North American safety standards

Technical Specifications

Voltage: 240V/208V
Max Output Current: 40A (SS-PC1-100) / 32A (SS-HAY-100-32A)
Max Power: 8kW / 7kW
Frequency: 50/60Hz
Temperature Range: -22°F to 122°F
Humidity: 5–95%, no condensation
Connector: Type 1 (J1772)
Cable Length: 14.76ft (4.5m)
Altitude: ≤2000m (6,562ft)
Cooling: Natural
Safety Standards: ETL, UL2594, CSA C22.2
Scheduling: App / Timer control
Connectivity: Wi-Fi / Bluetooth
Warranty: 2 years

Packing Details

View full details

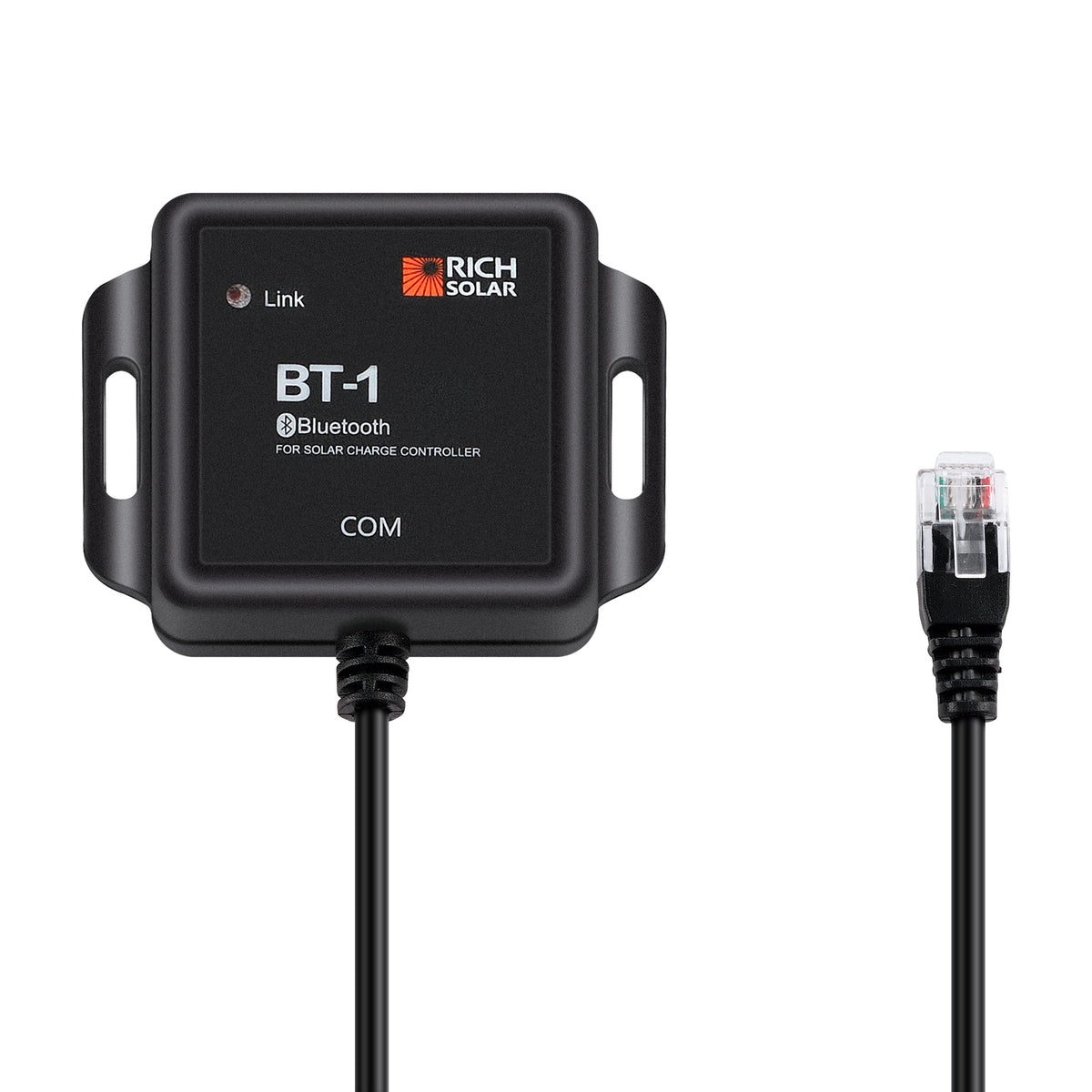

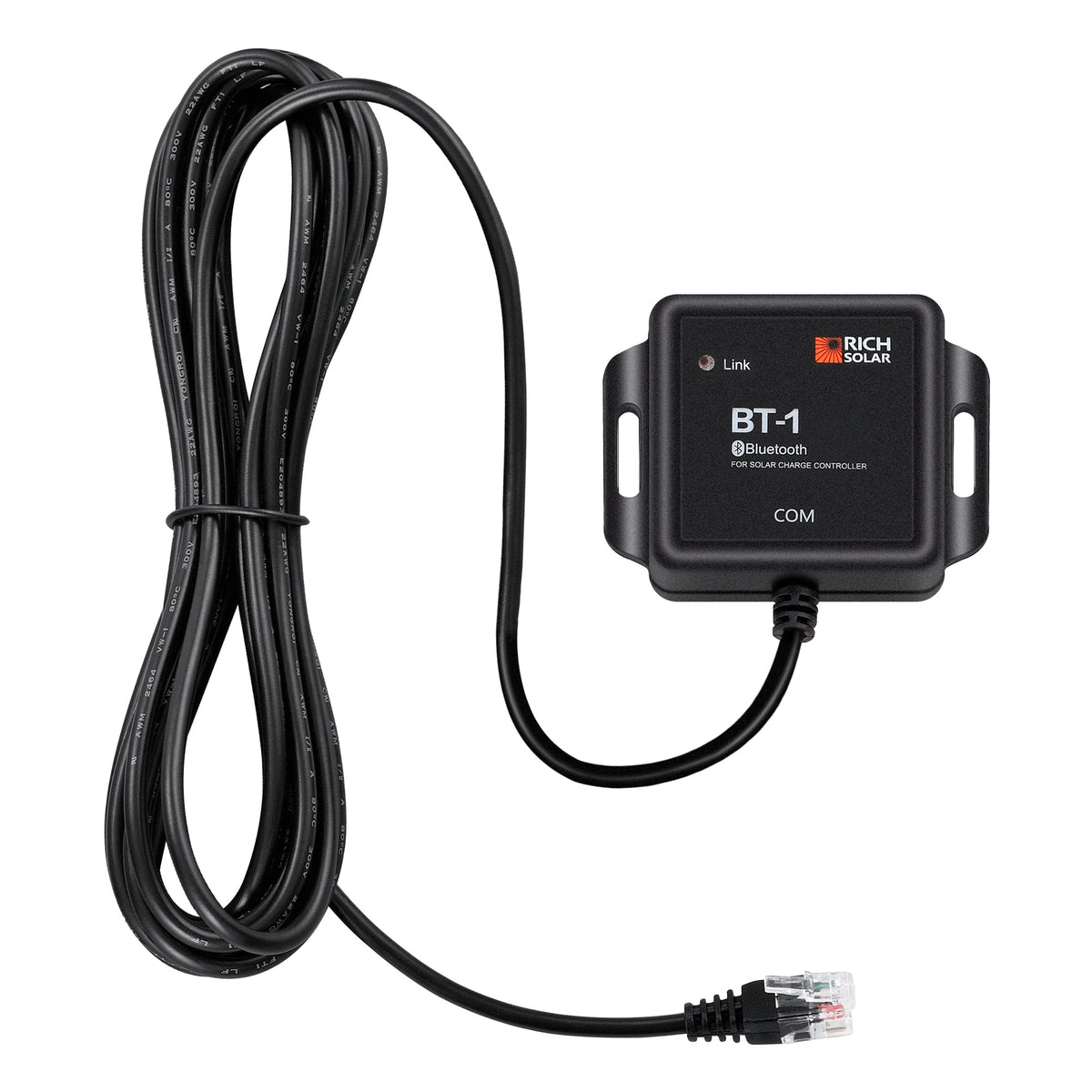

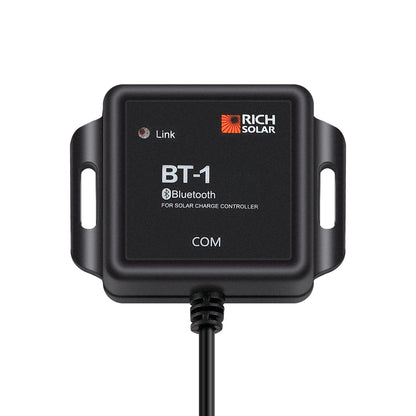

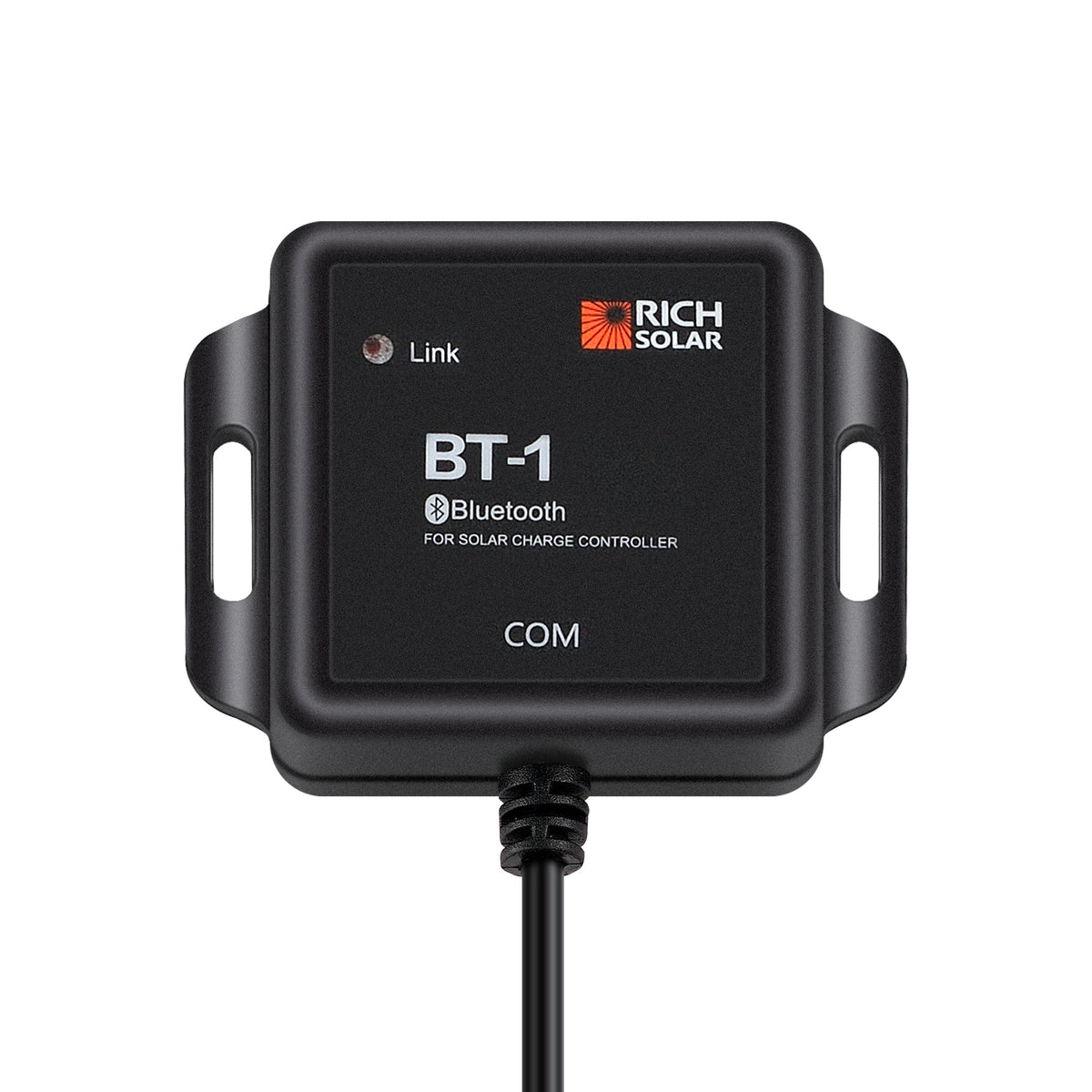

BT-1 Bluetooth Module for Solar Charge Controllers

Equipment Type: Bluetooth communication module for compatible solar charge controllers. Primary Applications: Wireless system monitoring and controller management through a smartphone app, including remote access to operating information and compatible control functions.

Performance Specifications

  • Model: BT-1
  • Wireless technology: Bluetooth 4.0 with BLE
  • Communication range: Up to 15 m (50 ft)
  • Serial baud rate: Fixed 9600 bps
  • Input voltage: 5–12 V
  • Standby power consumption: 0.04 W
  • Operating power consumption: 0.05 W
  • Power connection: RJ12 communication port
  • Cable length: 5.00 m (16.4 ft)
  • Dimensions: 2.6 × 2.01 × 0.61 in
  • Installation dimensions: 57.5 mm, Ø3.2 mm (2.26 in, Ø0.13 in)
  • Protection grade: IP67
  • Weight: 120 g (4.2 oz)

Safety Features and Certifications

  • IP67 protection rating for the module enclosure.
  • Certification marks and compliance standards are not specified for this product.

Installation and Maintenance Requirements

  • Connect the module directly to a compatible solar charge controller through its RJ12 communication port.
  • Use the supplied 5.00 m cable and mounting dimensions when positioning the module.
  • Commissioning consists of establishing the RJ12 connection and confirming Bluetooth communication through the smartphone app.
  • Inspect the cable, RJ12 connection, and enclosure periodically for physical damage or loss of protection.

Warranty and Service Information

Branding/References

Product reference: BT-1 Bluetooth Module. Manufacturer branding and additional datasheet references are not specified.

Differentiators

The BT-1 combines Bluetooth 4.0 and BLE communication with low energy consumption, drawing only 0.05 W during operation and 0.04 W in standby. Its IP67 protection rating and 15 m wireless range support practical installation around compatible solar charge controller systems.
