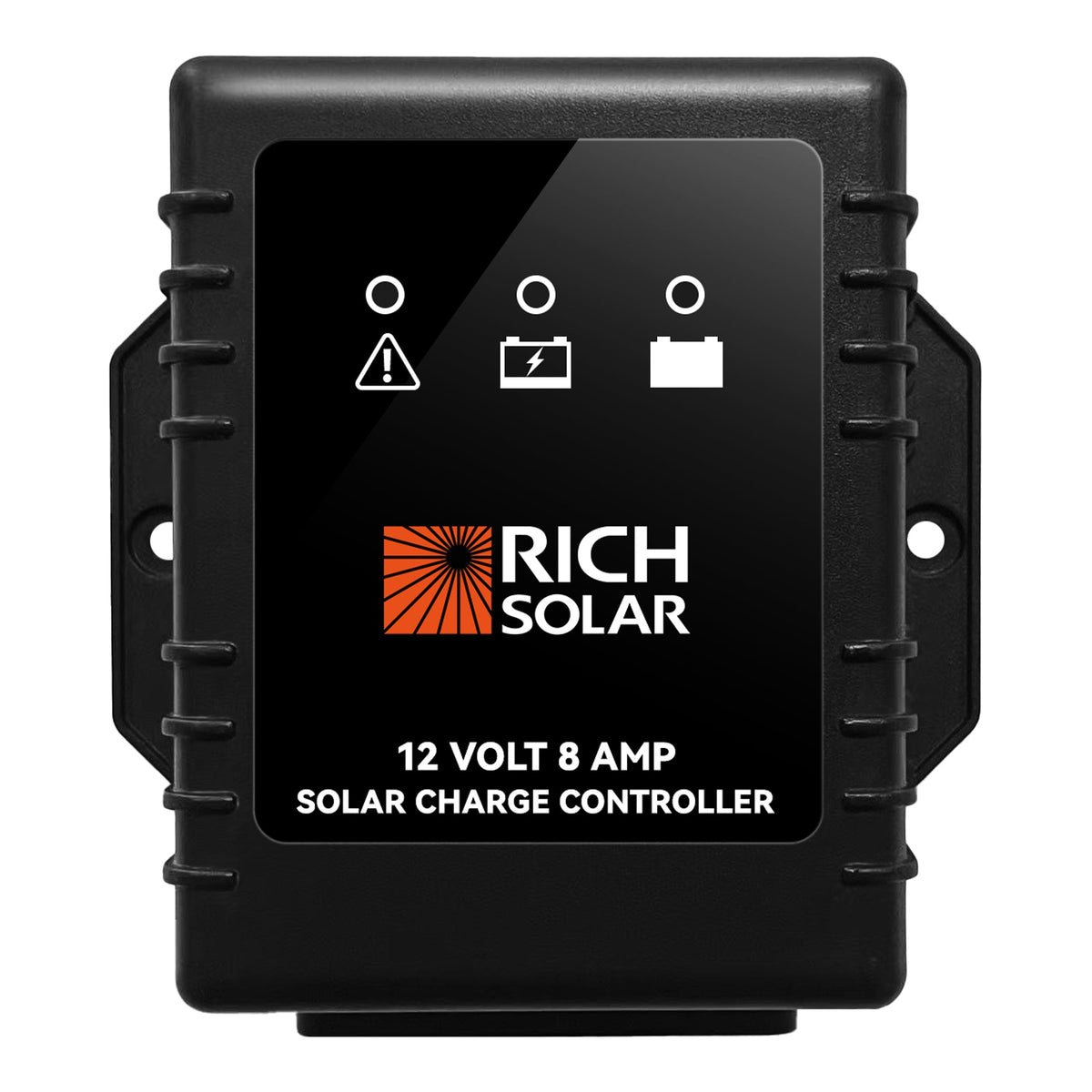

BRAVO Waterproof 8 | 8 Amp Waterproof PWM Solar Charge Controller

BRAVO Waterproof 8 | 8 Amp Waterproof PWM Solar Charge Controller

$10.39 USD
$12.99 USD $10.39 USD
Sale Sold out
Shipping calculated at checkout.

features

• Solid design control box — Meets NEMA Type 4 & IP30 standard by lab test
• LCD color screen — Real-time status view and easy user interaction
• Breathing indicator light — Shows real-time charging status
• Control button — Adjust max output current & set scheduled charging time
• Water protection gasket — Resists 3-minute direct high-pressure water spray
• TPU cable — 14.76ft, excellent durability, cold resistant to -22°F
• ETL certified — Compliant with North American safety standards

Technical Specifications

Voltage: 240V/208V
Max Output Current: 40A (SS-PC1-100) / 32A (SS-HAY-100-32A)
Max Power: 8kW / 7kW
Frequency: 50/60Hz
Temperature Range: -22°F to 122°F
Humidity: 5–95%, no condensation
Connector: Type 1 (J1772)
Cable Length: 14.76ft (4.5m)
Altitude: ≤2000m (6,562ft)
Cooling: Natural
Safety Standards: ETL, UL2594, CSA C22.2
Scheduling: App / Timer control
Connectivity: Wi-Fi / Bluetooth
Warranty: 2 years

Packing Details

View full details

BRAVO Waterproof 8 | 8 Amp Waterproof PWM Solar Charge Controller

Equipment Type and Primary Applications

The BRAVO Waterproof 8 is an 8 amp PWM solar charge controller for 12V battery systems and outdoor solar charging installations. It supports Flooded (WET), AGM, GEL, and LiFePO₄ batteries, with battery selection through a built-in DIP switch. Common positive grounding makes it suitable for compatible positive-ground systems.

Performance Specifications

  • Rated solar charging current: maximum 8A.
  • Normal solar input: 15–22VDC; maximum open-circuit solar input: 25VDC.
  • Lowest operating voltage: 9VDC at the solar or battery side.
  • Maximum solar-to-battery voltage drop: 0.25VDC.
  • Standby consumption at night: 2mA.
  • Charging stages: soft start at 3–10VDC ±0.2V, bulk charge at 10–14VDC ±0.2V, and equalization at 15.5VDC ±0.2V.
  • Equalization timer: 2 hours; temperature compensation: -24mV/°C from -4°F to 122°F.
  • Operating temperature: -25–50°C (-13–122°F); storage temperature: -40–85°C (-40–185°F).
  • Operating humidity: up to 100%, non-condensing.

Safety Features and Certifications

IP65 housing, conformal-coated circuit board, spark-free battery connection, reverse-polarity, short-circuit, over-voltage, over-temperature, and thermal protection. Charging over-temperature protection activates at 149°F. CE, EMC, and FCC compliant.

Installation and Maintenance Requirements

Mount vertically on a flat surface using the supplied three plastic spacers and self-tapping screws. M4 terminals accept stranded wire up to #12 AWG (3mm²). Configure battery type with the DIP switch before operation.

Warranty and Service Information

Branding/References

Brand: BRAVO. Model: Waterproof 8. Product reference: 8 Amp Waterproof PWM Solar Charge Controller.

Differentiators

Combines PWM and MOSFET charging with charging-time management, 25V solar input capability, positive grounding, and IP65 outdoor protection in an approximately 0.2kg controller.
