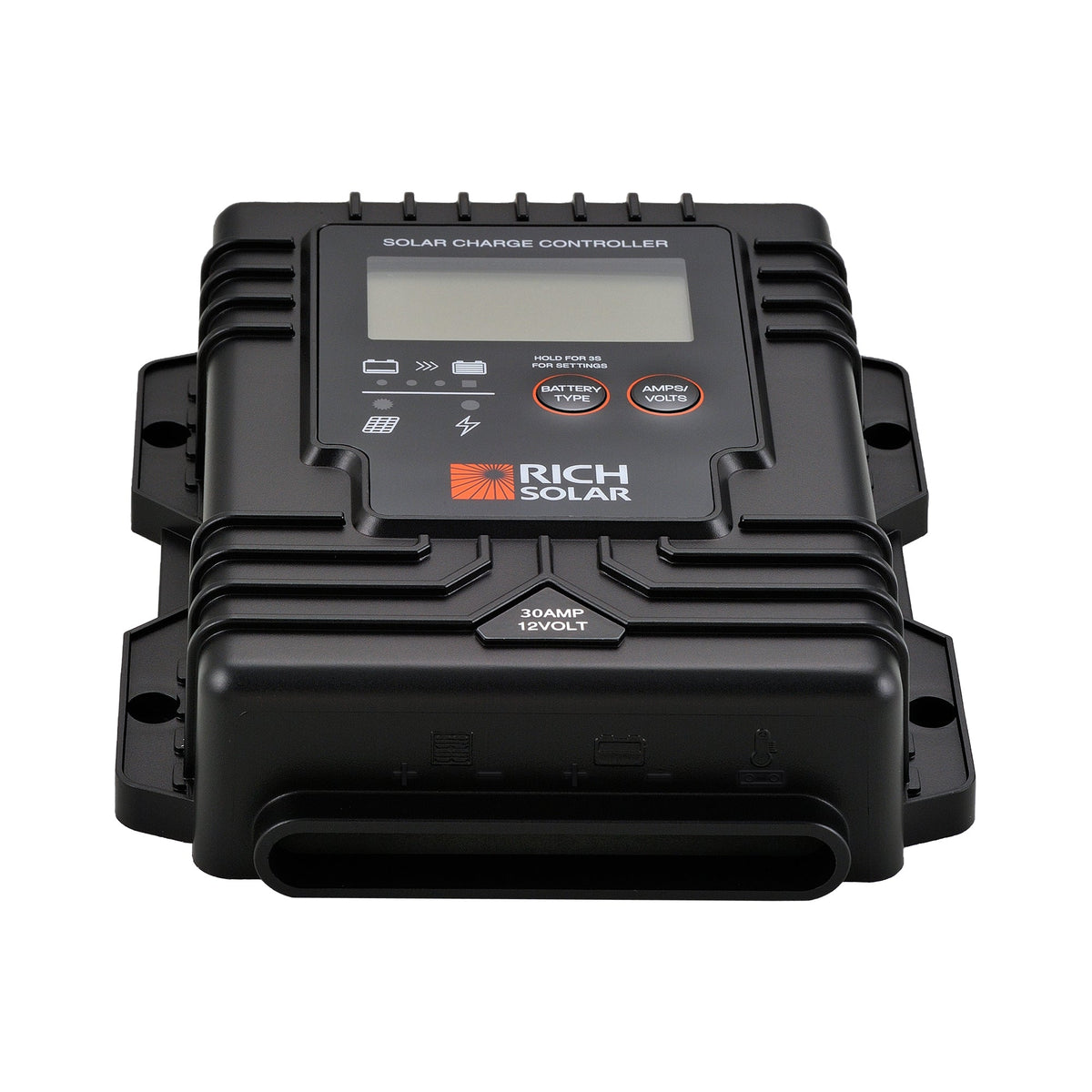

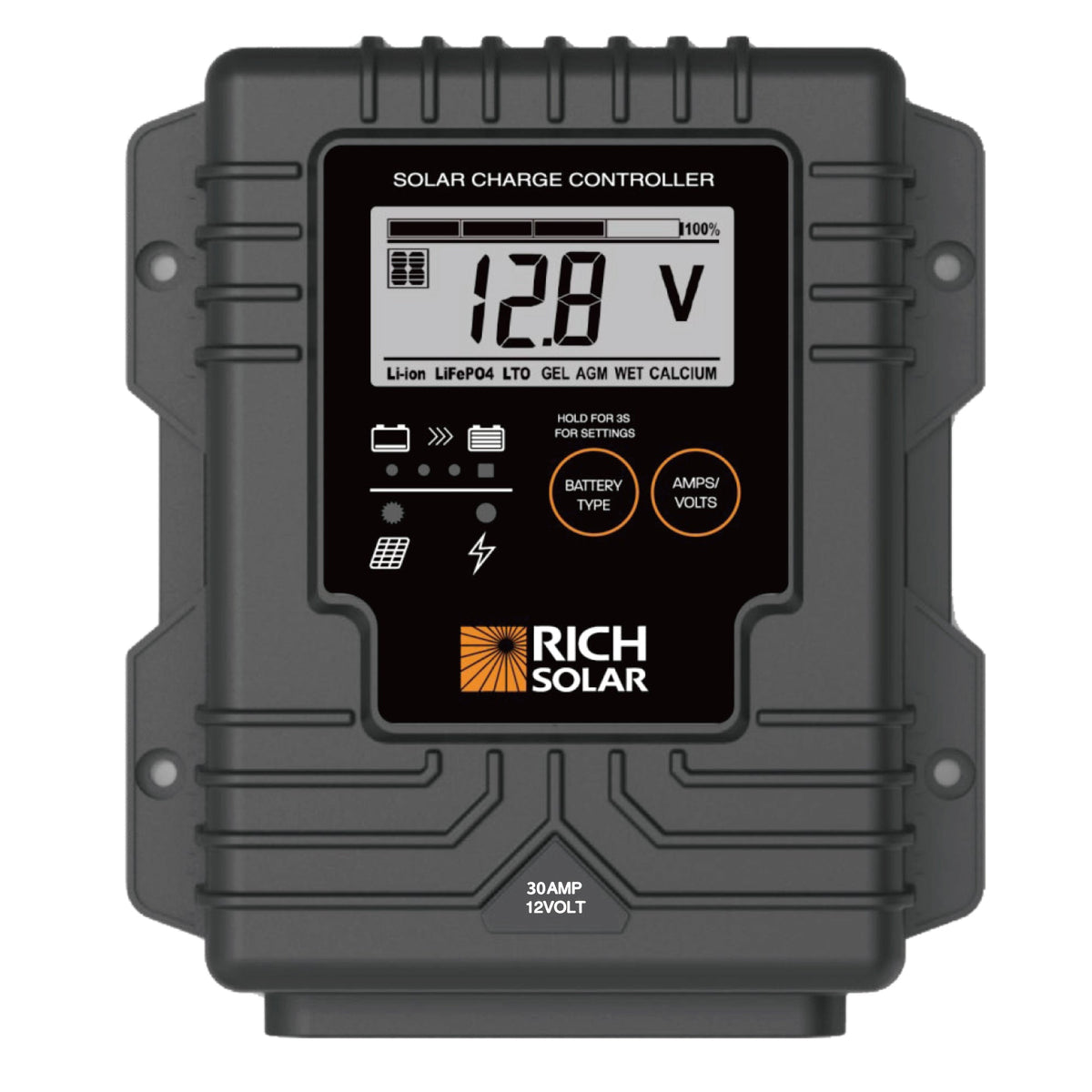

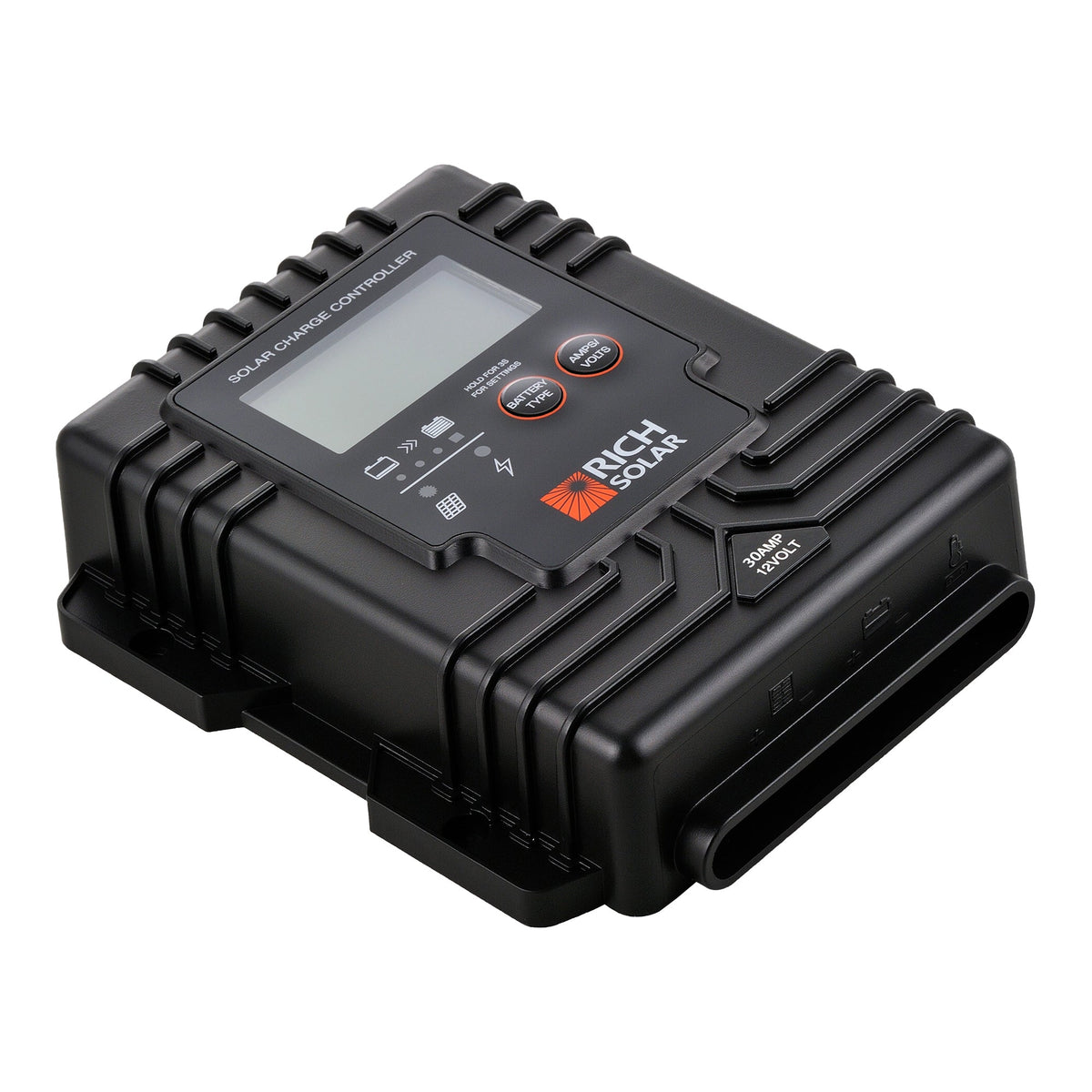

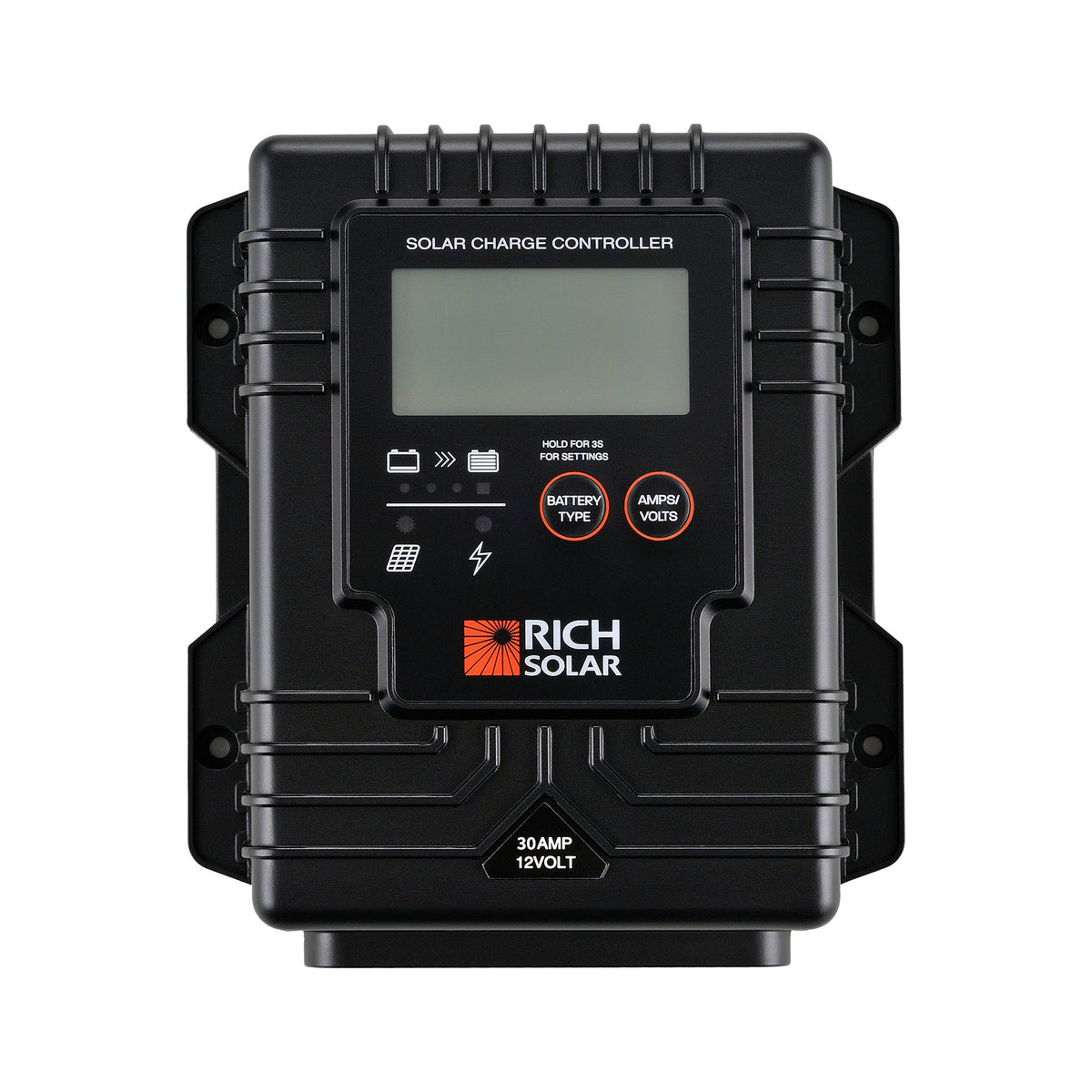

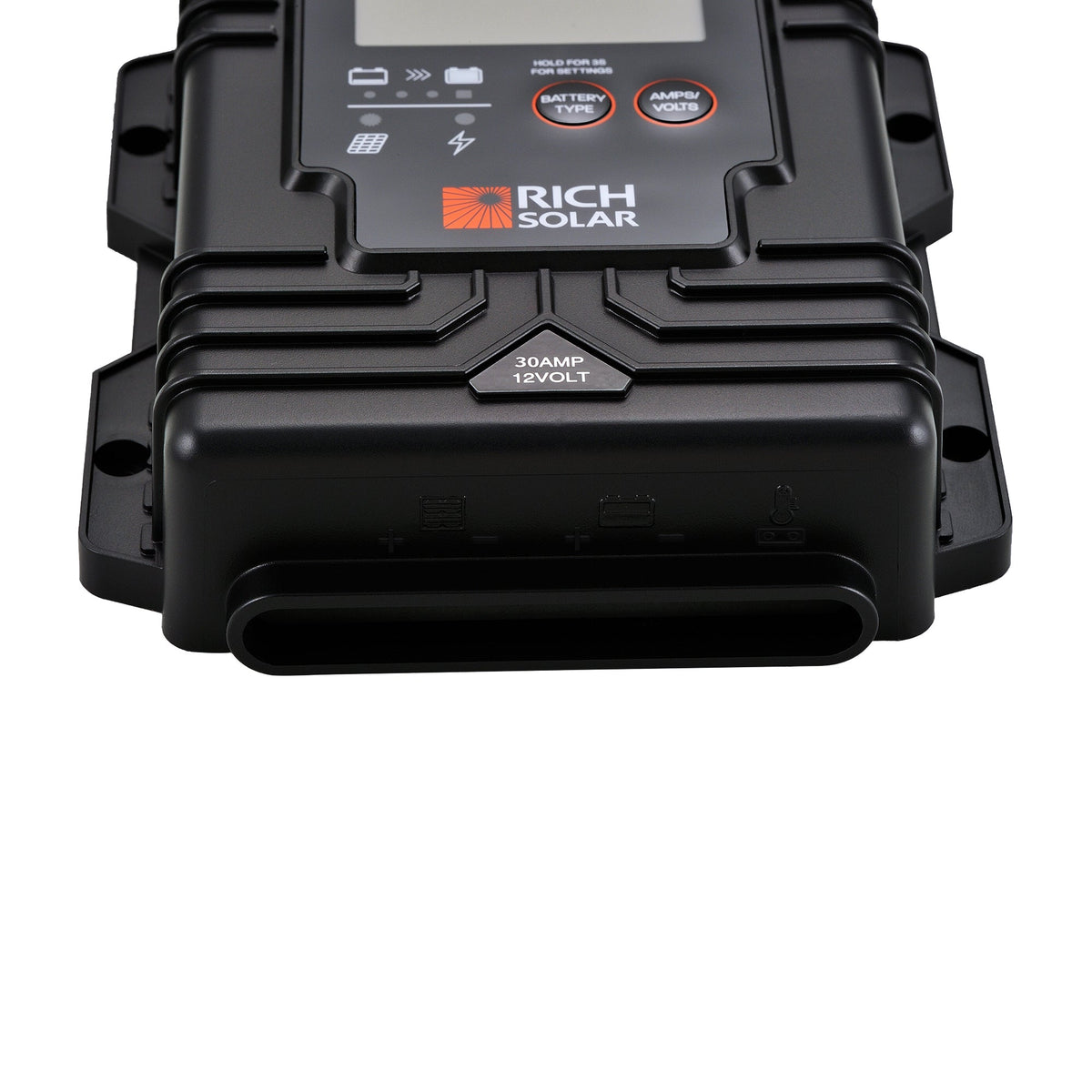

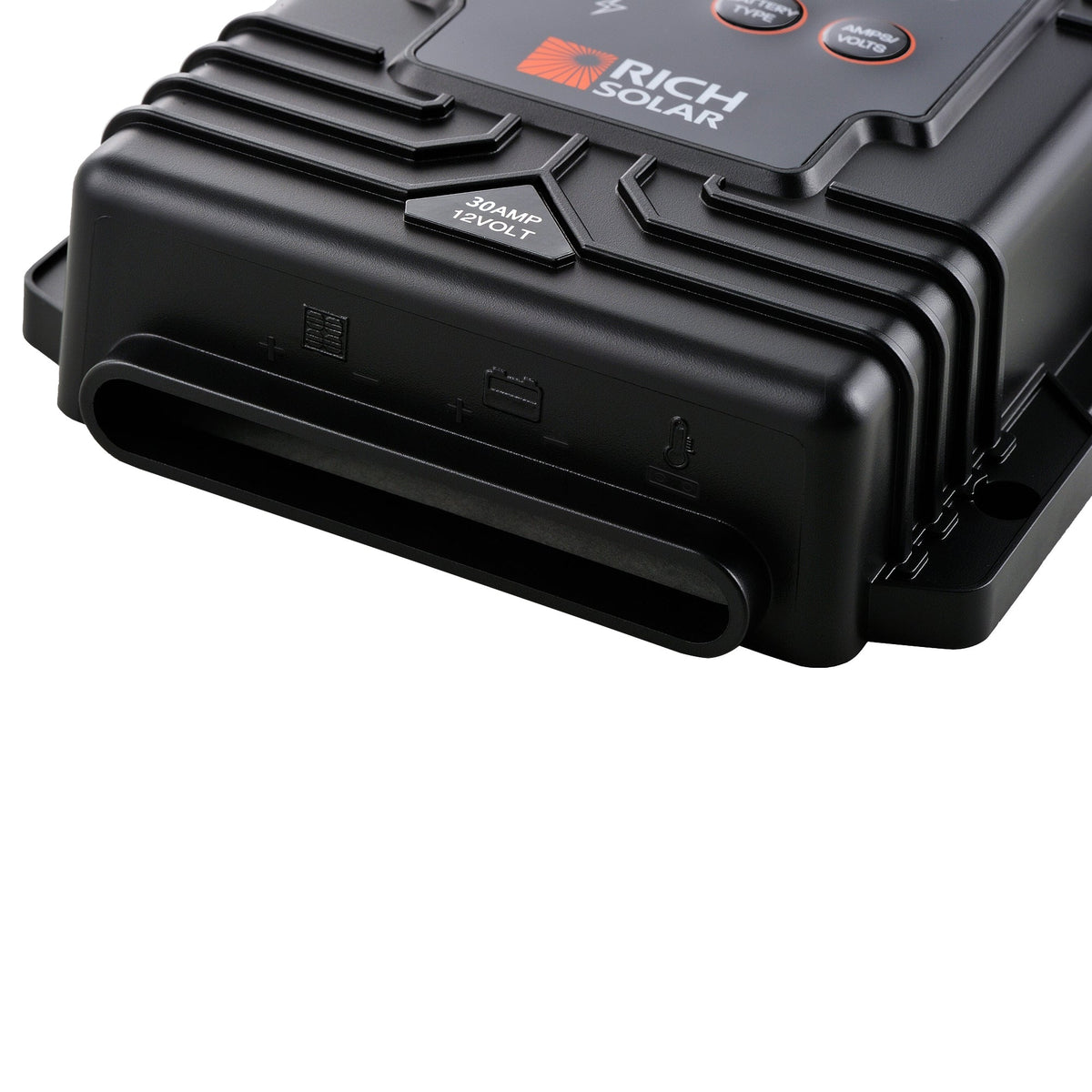

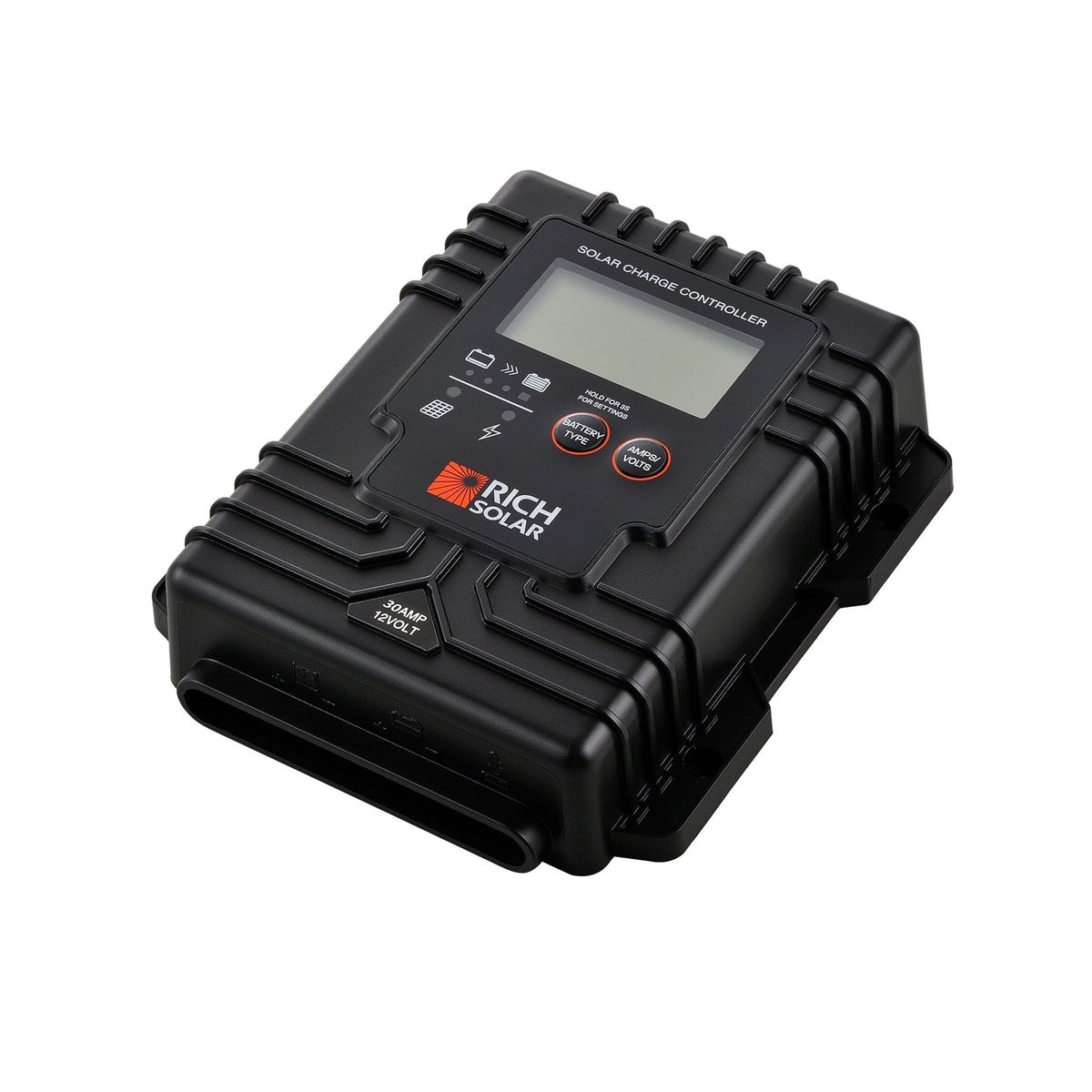

BRAVO Waterproof 30 | 30 Amp Waterproof PWM Solar Charge Controller

BRAVO Waterproof 30 | 30 Amp Waterproof PWM Solar Charge Controller

$31.99 USD
$39.99 USD $31.99 USD
Sale Sold out
Shipping calculated at checkout.

features

• Solid design control box — Meets NEMA Type 4 & IP30 standard by lab test
• LCD color screen — Real-time status view and easy user interaction
• Breathing indicator light — Shows real-time charging status
• Control button — Adjust max output current & set scheduled charging time
• Water protection gasket — Resists 3-minute direct high-pressure water spray
• TPU cable — 14.76ft, excellent durability, cold resistant to -22°F
• ETL certified — Compliant with North American safety standards

Technical Specifications

Voltage: 240V/208V
Max Output Current: 40A (SS-PC1-100) / 32A (SS-HAY-100-32A)
Max Power: 8kW / 7kW
Frequency: 50/60Hz
Temperature Range: -22°F to 122°F
Humidity: 5–95%, no condensation
Connector: Type 1 (J1772)
Cable Length: 14.76ft (4.5m)
Altitude: ≤2000m (6,562ft)
Cooling: Natural
Safety Standards: ETL, UL2594, CSA C22.2
Scheduling: App / Timer control
Connectivity: Wi-Fi / Bluetooth
Warranty: 2 years

Packing Details

View full details

BRAVO Waterproof 30 | 30 Amp Waterproof PWM Solar Charge Controller

Equipment Type and Primary Applications

The BRAVO Waterproof 30 is a 30 amp PWM solar charge controller for 12V battery systems and outdoor solar charging installations. It supports Flooded (WET), AGM, GEL, Calcium, and lithium batteries, with positive-ground compatibility and solar input up to 25VDC.

Performance Specifications

  • Rated solar charging current: maximum 30A
  • Normal solar array voltage: 15–22VDC; maximum no-load input: 25VDC
  • Lowest operating voltage: 8VDC; minimum battery start voltage: 3VDC
  • Maximum solar-to-battery voltage drop: 0.25VDC; nighttime standby current: 5mA
  • Soft-start voltage: 3–10 ±0.2VDC; soft-start current: up to 15A at 50% PWM duty
  • Equalization voltage: 15.5 ±0.2VDC at 25°C, with a two-hour timer
  • Temperature compensation: -24mV/°C from -20–50°C (-4–122°F)
  • Operating temperature: -25–50°C (-13–122°F); storage: -40–85°C (-40–185°F); humidity: 100% non-condensing
  • IP65 enclosure, ABS plastic housing, approximately 0.3kg (0.66lb)

Safety Features and Certifications

Protection includes over-voltage, short circuit, reverse polarity, over-temperature, and thermal protection. Spark-free battery connection, conformal-coated electronics, and IP65 construction support outdoor installation. CE, EMC, and FCC compliant.

Installation and Maintenance Requirements

Mount vertically on a flat surface using the supplied three plastic spacers and self-tapping screws. Use M5 terminals, #10 AWG stranded or 5mm² cable, and terminal torque up to 17in-lb (1.92N·m). An optional external BTS temperature sensor is supported.

Warranty and Service Information

Branding/References

Manufacturer/brand: BRAVO. Model: Waterproof 30. Reference: 30 Amp Waterproof PWM Solar Charge Controller.

Differentiators

Automatic BMS activation can reactivate protected lithium batteries, while PWM plus MOSFET charging and optional temperature compensation support controlled multi-stage charging.
