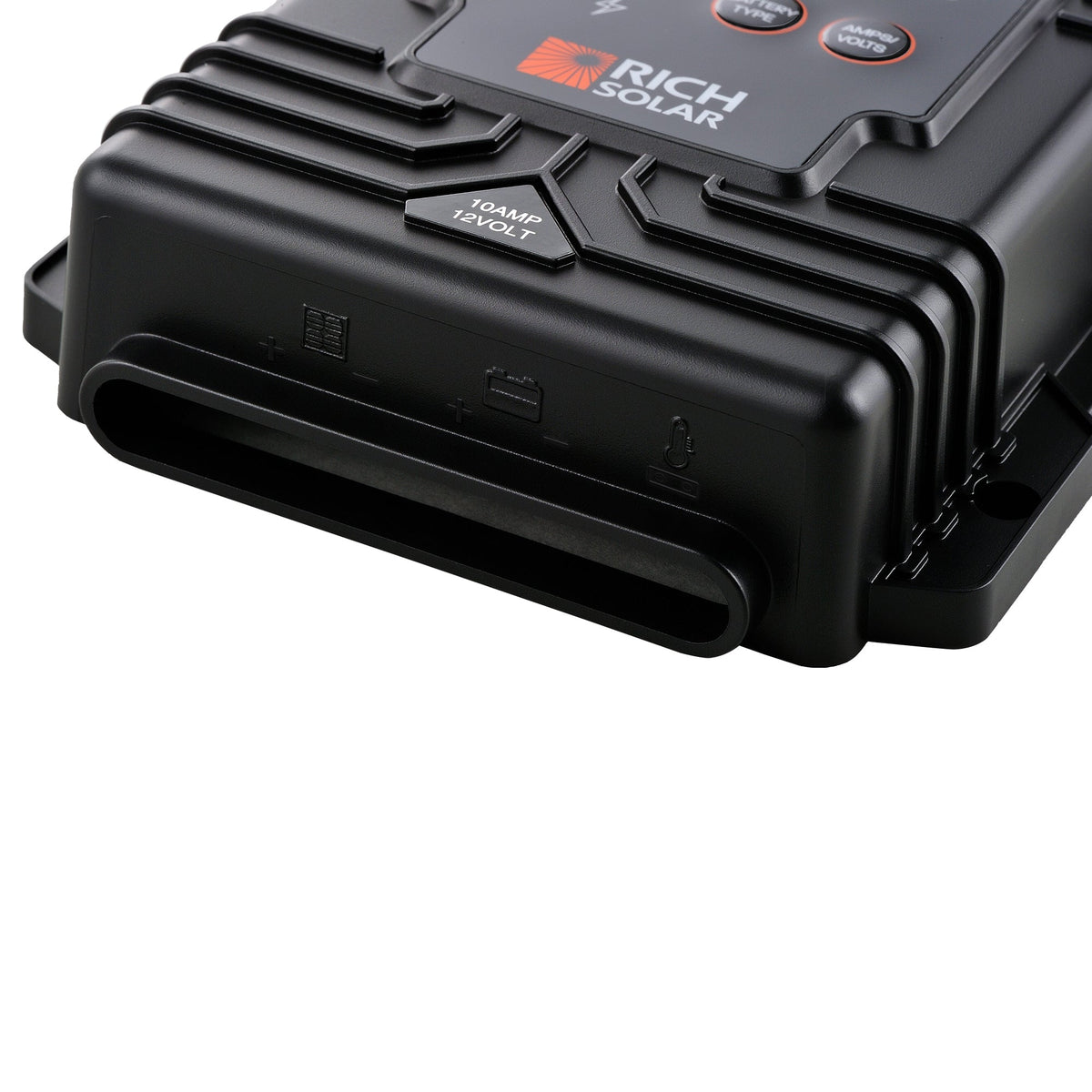

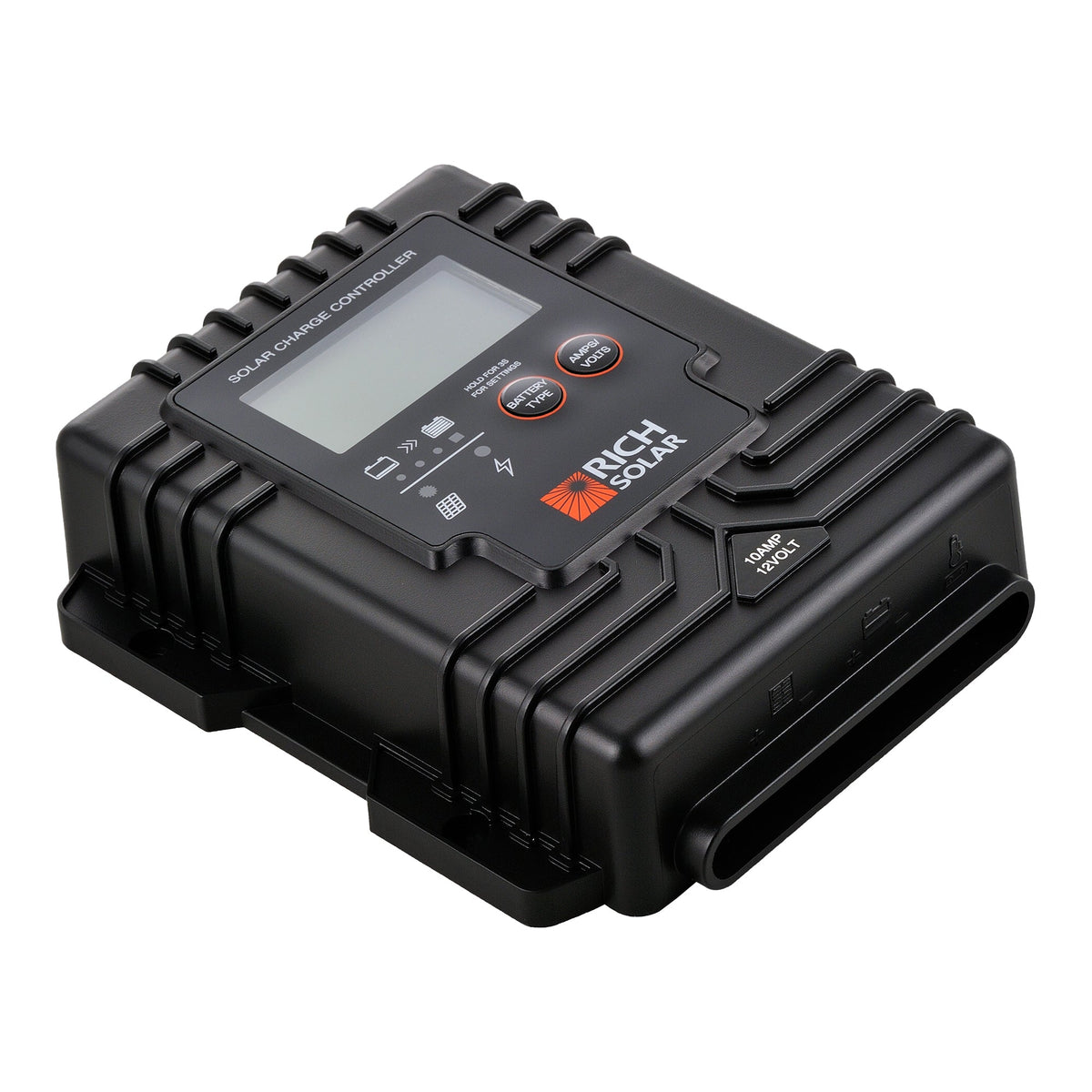

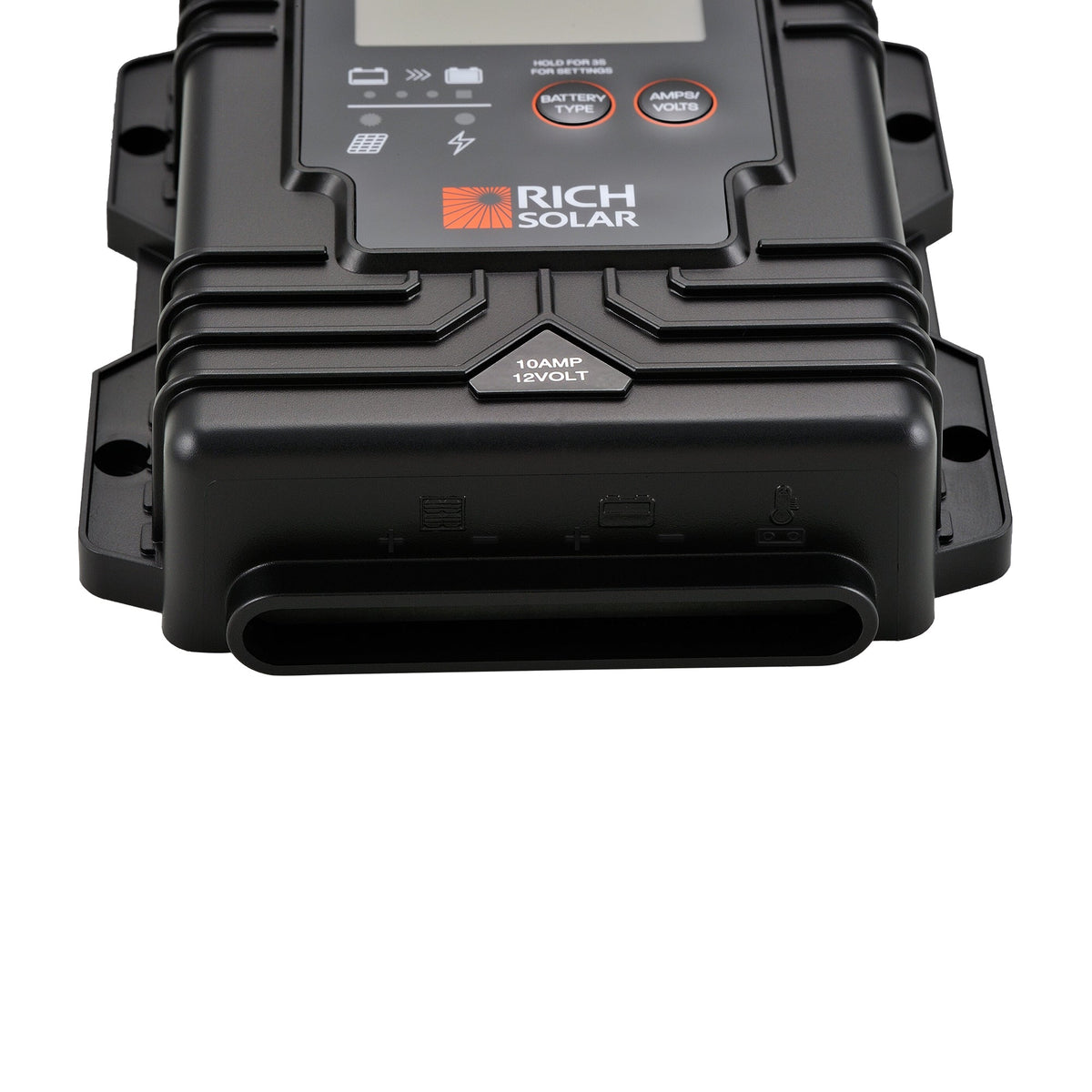

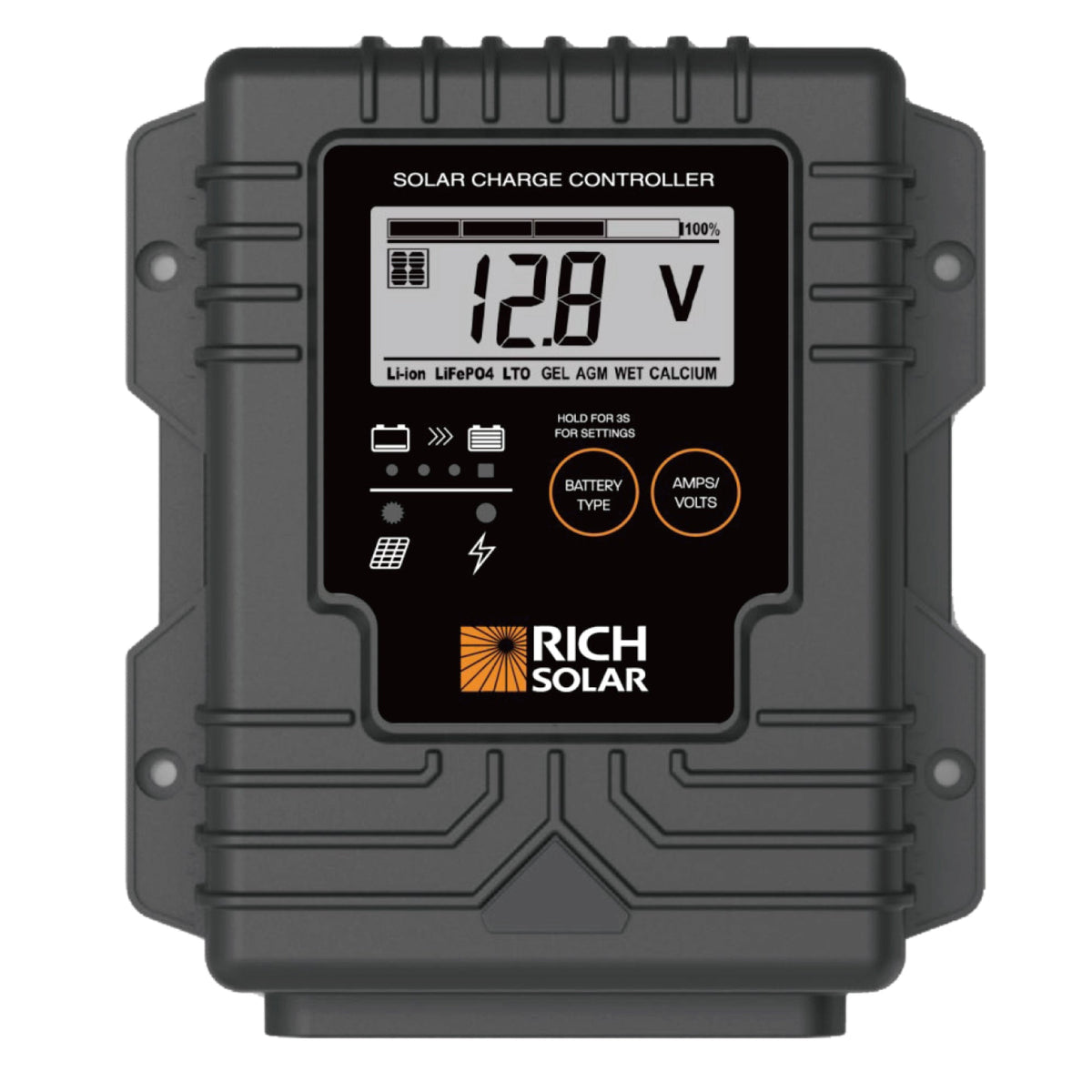

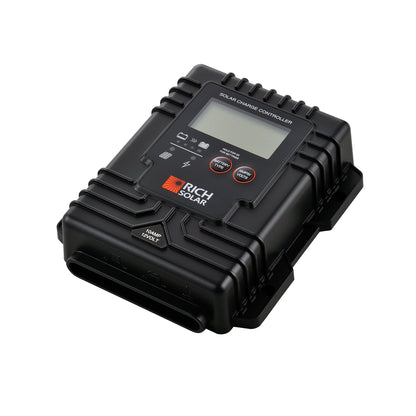

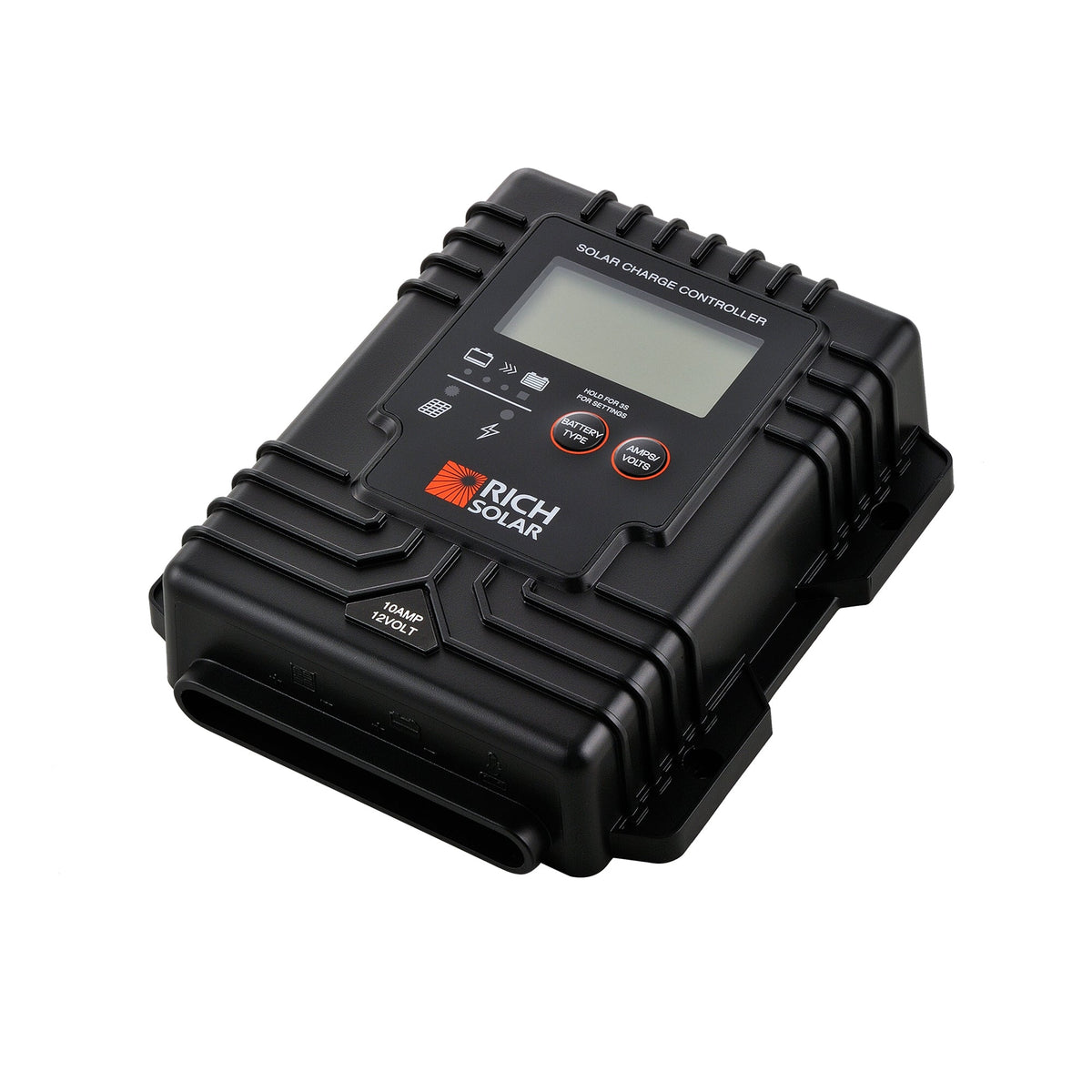

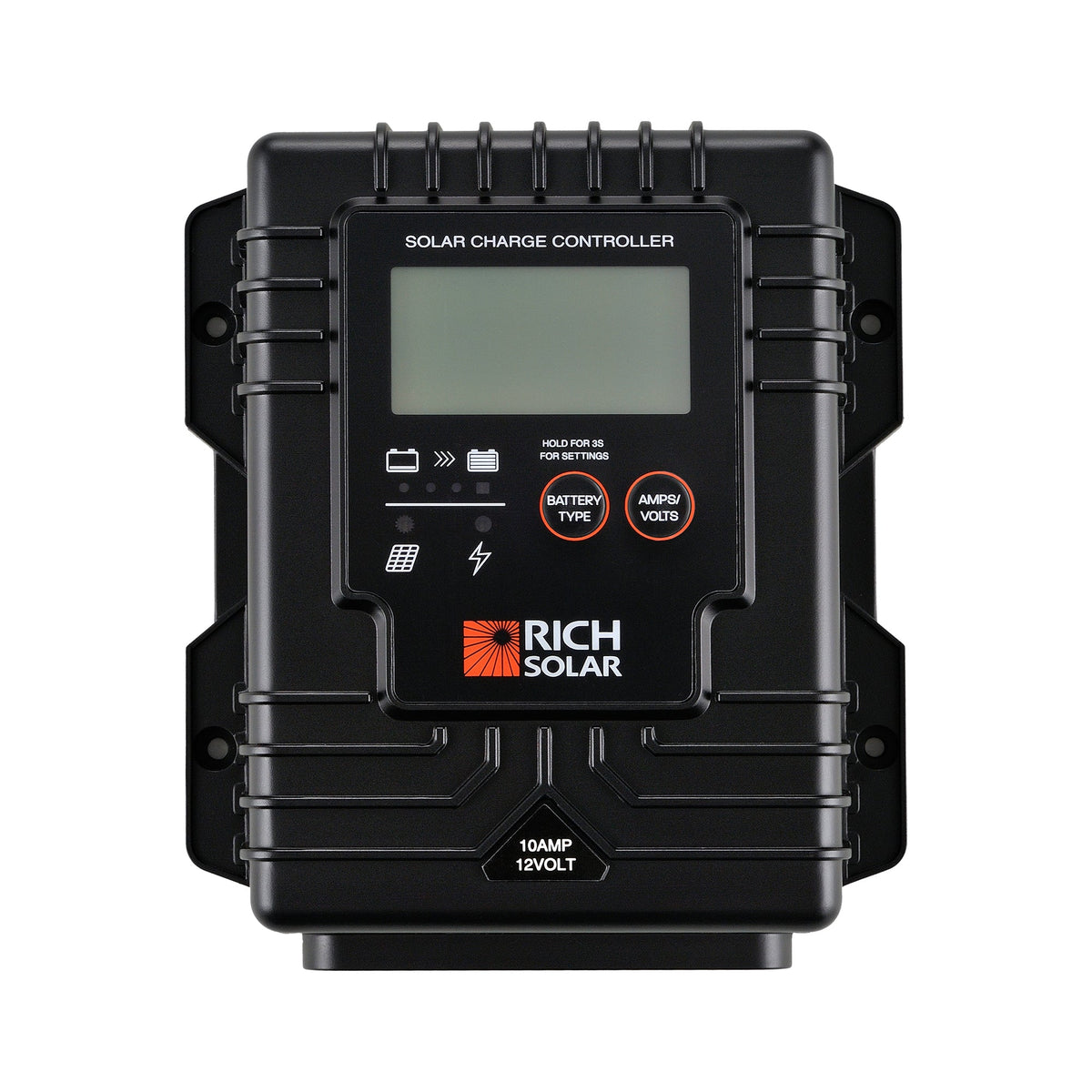

BRAVO Waterproof 10 | 10 Amp Waterproof PWM Solar Charge Controller

BRAVO Waterproof 10 | 10 Amp Waterproof PWM Solar Charge Controller

$21.59 USD
$26.99 USD $21.59 USD
Sale Sold out
Shipping calculated at checkout.

features

• Solid design control box — Meets NEMA Type 4 & IP30 standard by lab test
• LCD color screen — Real-time status view and easy user interaction
• Breathing indicator light — Shows real-time charging status
• Control button — Adjust max output current & set scheduled charging time
• Water protection gasket — Resists 3-minute direct high-pressure water spray
• TPU cable — 14.76ft, excellent durability, cold resistant to -22°F
• ETL certified — Compliant with North American safety standards

Technical Specifications

Voltage: 240V/208V
Max Output Current: 40A (SS-PC1-100) / 32A (SS-HAY-100-32A)
Max Power: 8kW / 7kW
Frequency: 50/60Hz
Temperature Range: -22°F to 122°F
Humidity: 5–95%, no condensation
Connector: Type 1 (J1772)
Cable Length: 14.76ft (4.5m)
Altitude: ≤2000m (6,562ft)
Cooling: Natural
Safety Standards: ETL, UL2594, CSA C22.2
Scheduling: App / Timer control
Connectivity: Wi-Fi / Bluetooth
Warranty: 2 years

Packing Details

View full details

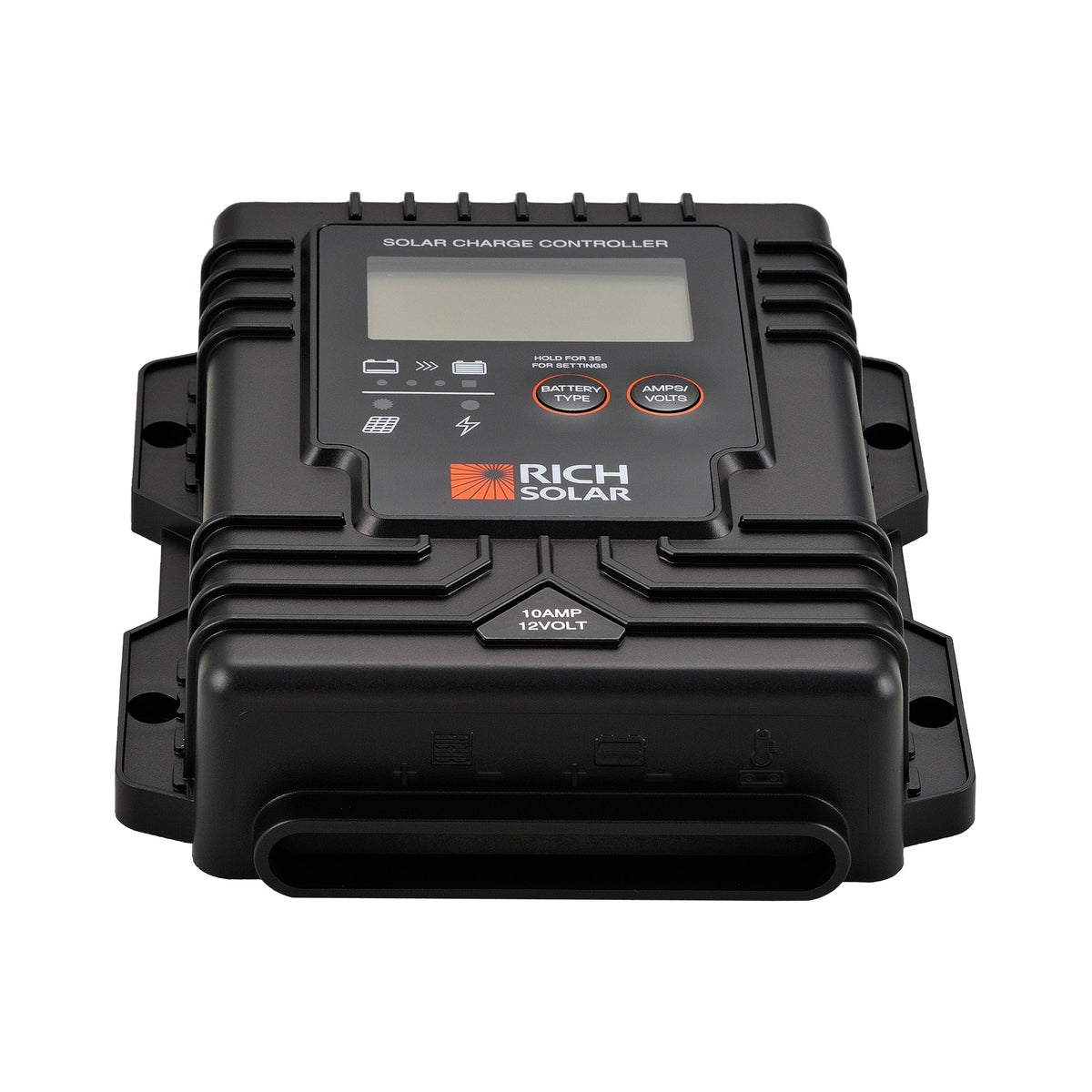

Equipment Type: 10 Amp Waterproof PWM Solar Charge Controller

Primary Applications: Outdoor 12V battery charging for solar systems using flooded WET, AGM, GEL, calcium, or lithium batteries. The BRAVO Waterproof 10 is intended for installations requiring IP65 protection, positive grounding, and solar input up to 25VDC.

Performance Specifications

  • Rated solar charging current: 10A maximum.
  • Normal solar input: 15–22VDC; maximum open-circuit solar input: 25VDC.
  • Minimum operating voltage: 8VDC at the solar or battery side.
  • Minimum battery start voltage: 3VDC; soft-start range: 3–10VDC ±0.2VDC.
  • Soft-start charging current: up to 5A at 50% PWM duty.
  • Equalization voltage: 15.5V ±0.2V at 25°C; equalization timer: 2 hours.
  • Maximum solar-to-battery voltage drop: 0.25VDC; night standby consumption: 5mA.
  • Temperature compensation: -24mV/°C from -20 to +50°C (-4 to 122°F).
  • Operating temperature: -25 to 50°C (-13 to 122°F); storage: -40 to 85°C (-40 to 185°F); operating humidity: 100% non-condensing.

Safety Features and Certifications

  • IP65 enclosure, conformal-coated circuit board, spark-free connection, and thermal protection.
  • Electronic protection against over-voltage, short circuit, reverse polarity, and over-temperature; charging over-temperature protection activates at 65°C (149°F).
  • CE, EMC, and FCC compliant.

Installation and Maintenance Requirements

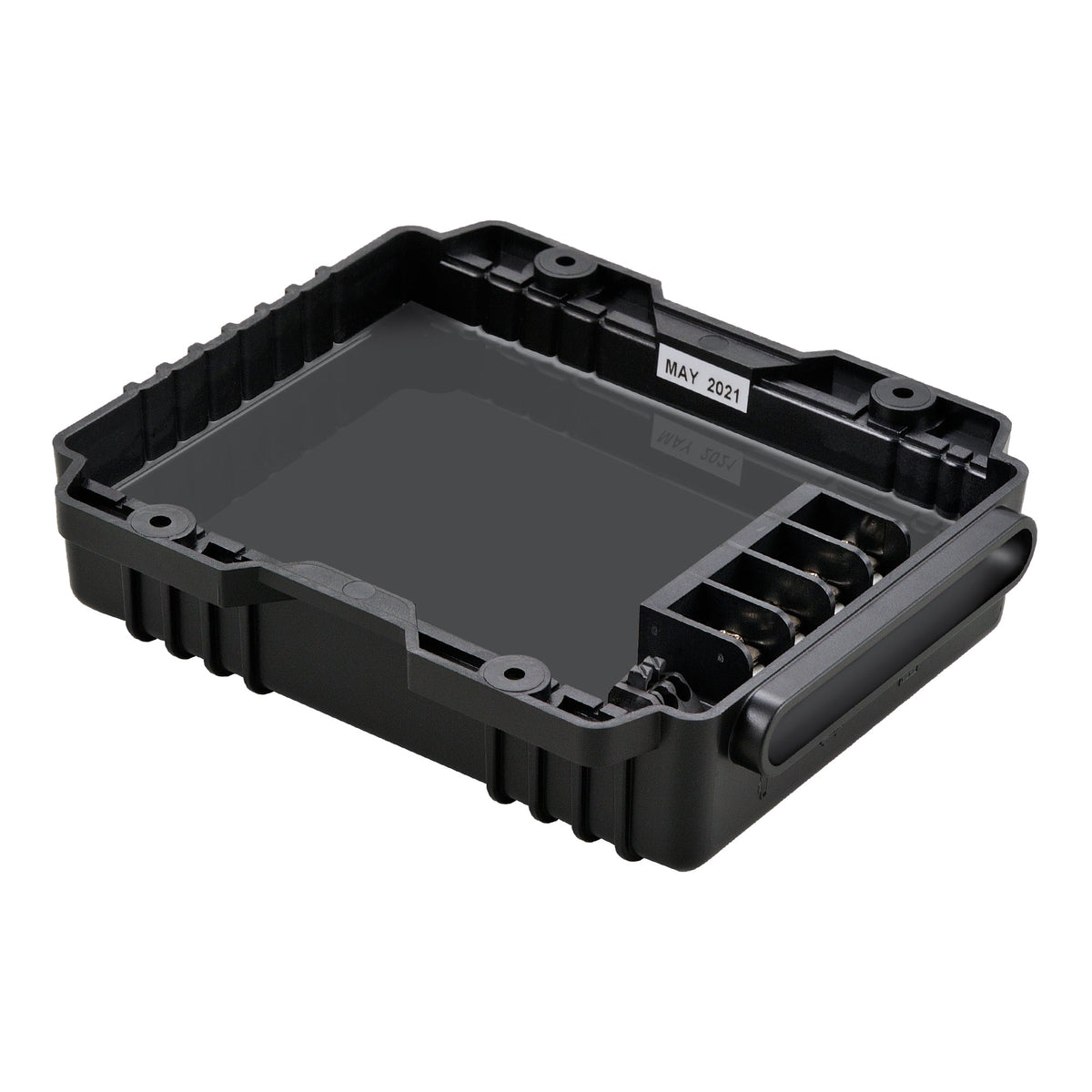

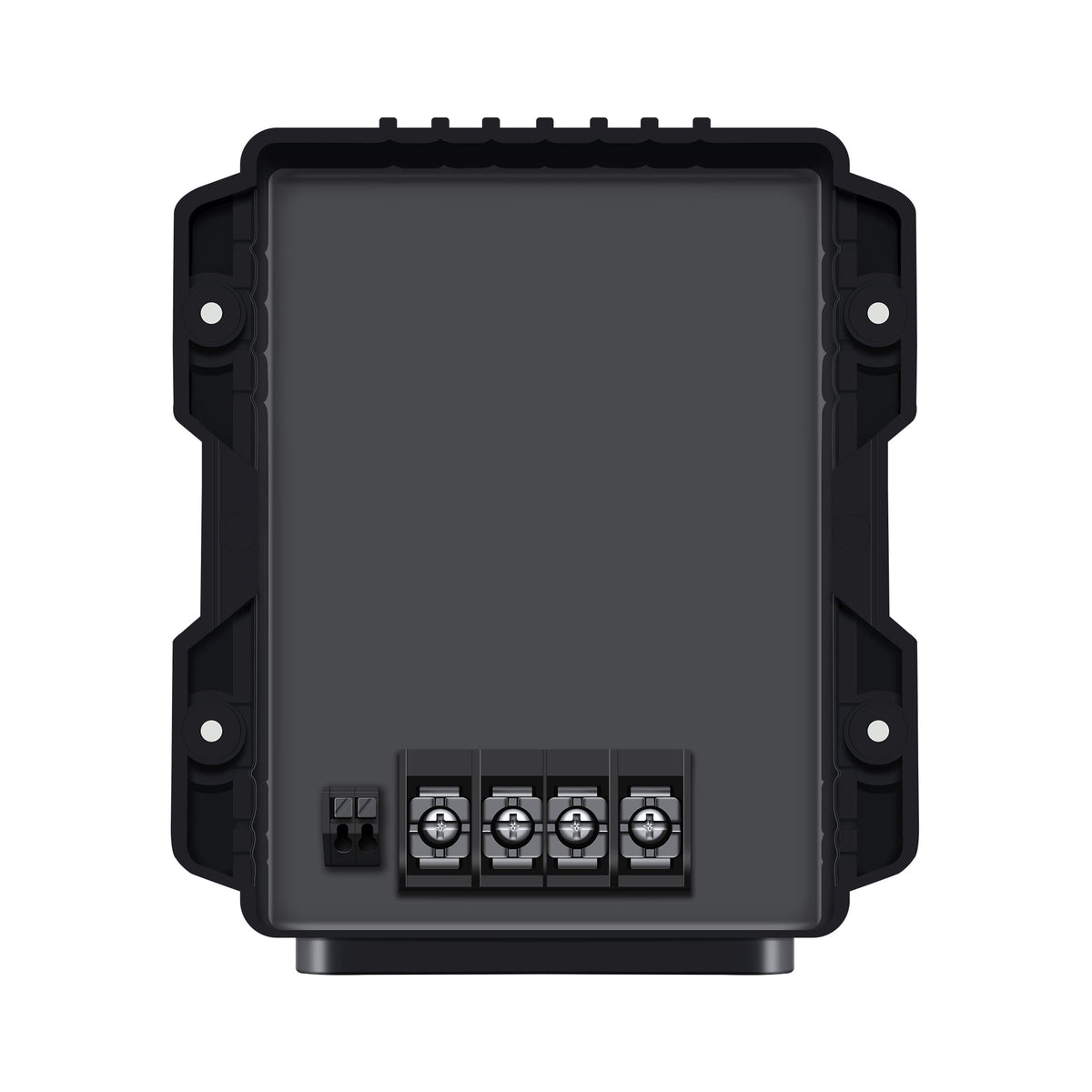

Mount vertically on a flat surface using the supplied three plastic spacers and self-tapping screws. Use M5 terminals with power wiring up to #10 AWG stranded or 5mm². Install in the stated operating environment and maintain connections and enclosure condition during service.

Warranty and Service Information

Branding/References

Brand: BRAVO. Product reference: Waterproof 10. Charging technology: PWM with MOSFET control.

Differentiators

Automatic BMS activation can reactivate protected lithium batteries, while optional external battery temperature sensing supports automatic charging compensation.
