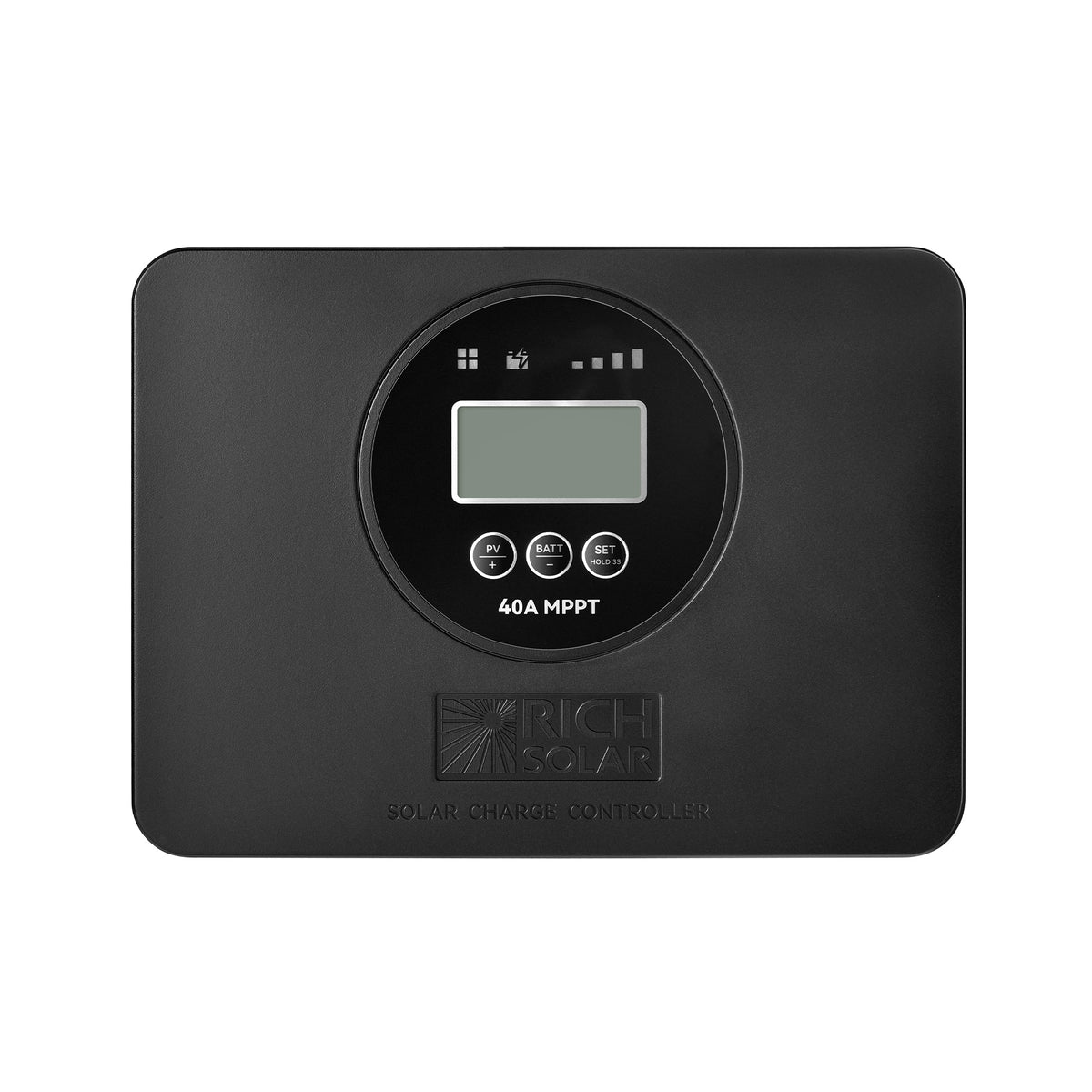

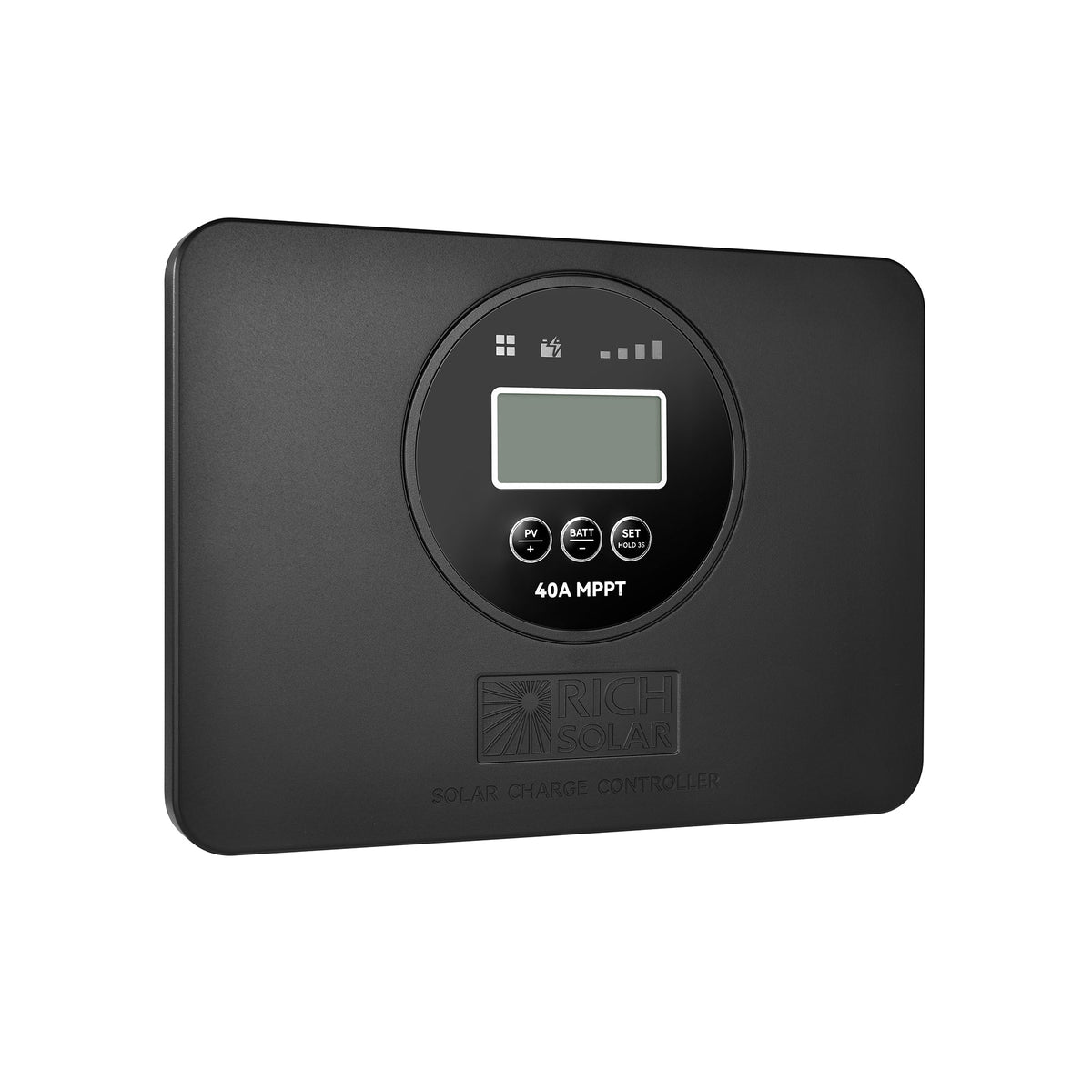

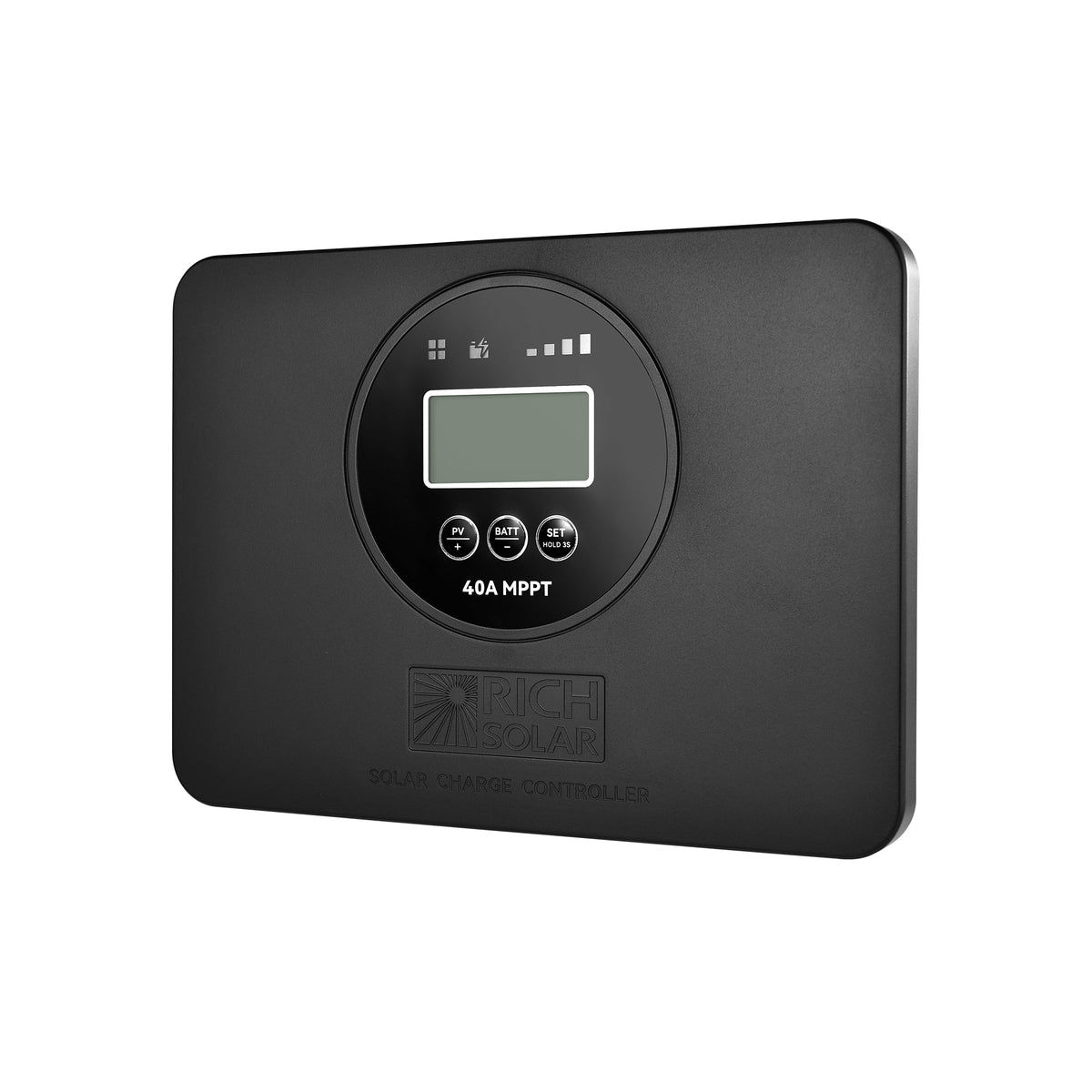

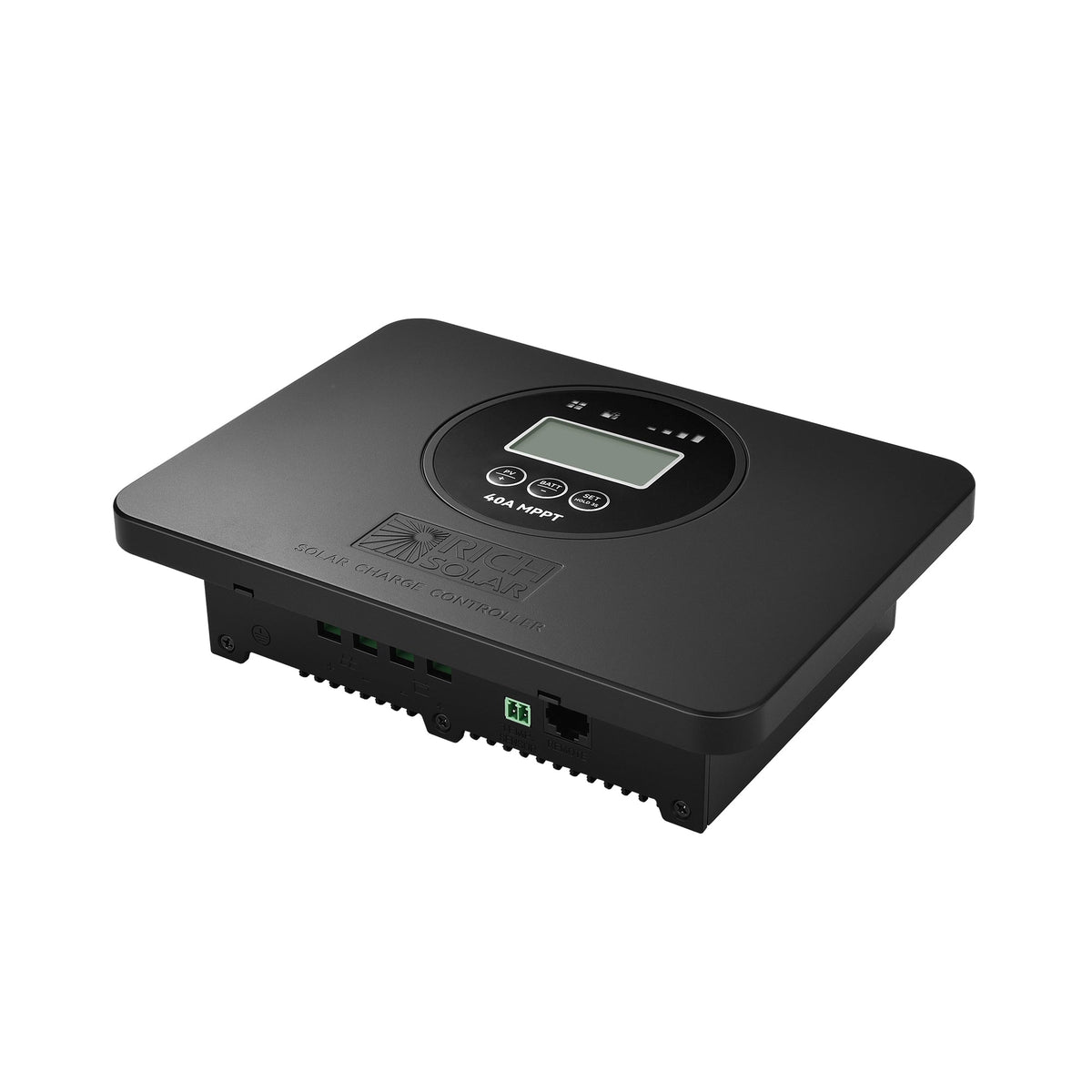

BRAVO PRO 40 40A 12V/24V MPPT Solar Charge Controller
Equipment Type and Primary Applications
The BRAVO PRO 40 is a flush-mount 40A MPPT solar charge controller for 12V and 24V battery systems in RVs, trailers, campers, vans, boats, and off-grid installations. Automatic system-voltage detection simplifies integration with compatible solar and battery configurations.
Performance Specifications
- Maximum solar input current: 40A; maximum charging current: 40A
- Recommended PV input: 600W at 12V or 1,200W at 24V
- Solar input voltage range: 8–100V; MPPT tracking range: 15–72VDC
- MPPT tracking efficiency: over 99.5%; charge conversion efficiency: up to 98%
- Battery compatibility: GEL, AGM, WET, LFP, LTO, LCO, Crystal, Calcium, and customizable profiles
- Standby current: 10mA; operating temperature: -13°F to 122°F
- Ingress protection: IP43; dimensions: 8.3 × 6.1 × 2.2 inches; weight: 1.8 lb
Safety Features and Certifications

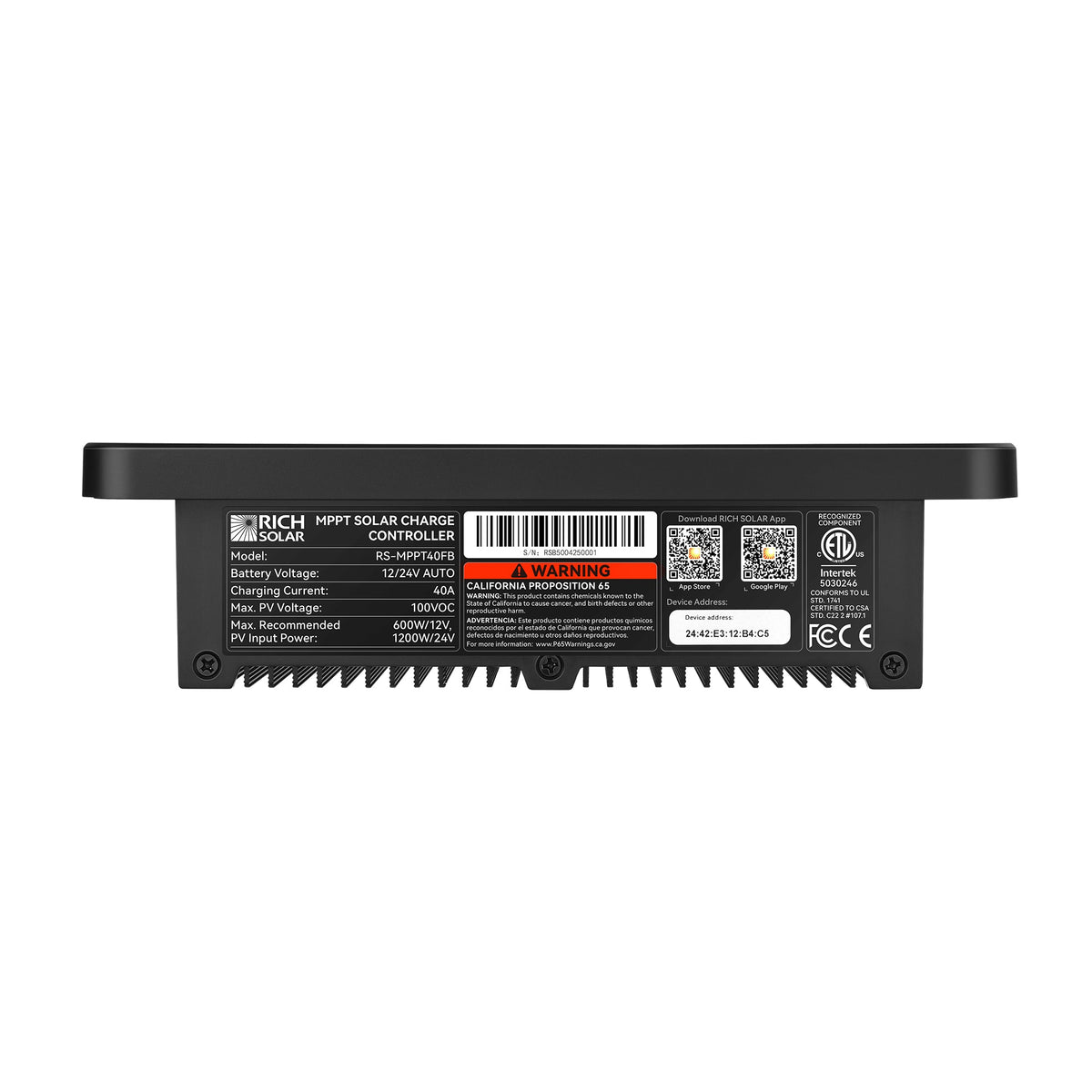

Protection includes over-voltage, reverse polarity, short circuit, and over-temperature safeguards. Certifications and compliance markings include UL 1741, CE, FCC, EMC, and RoHS.
Installation and Maintenance Requirements

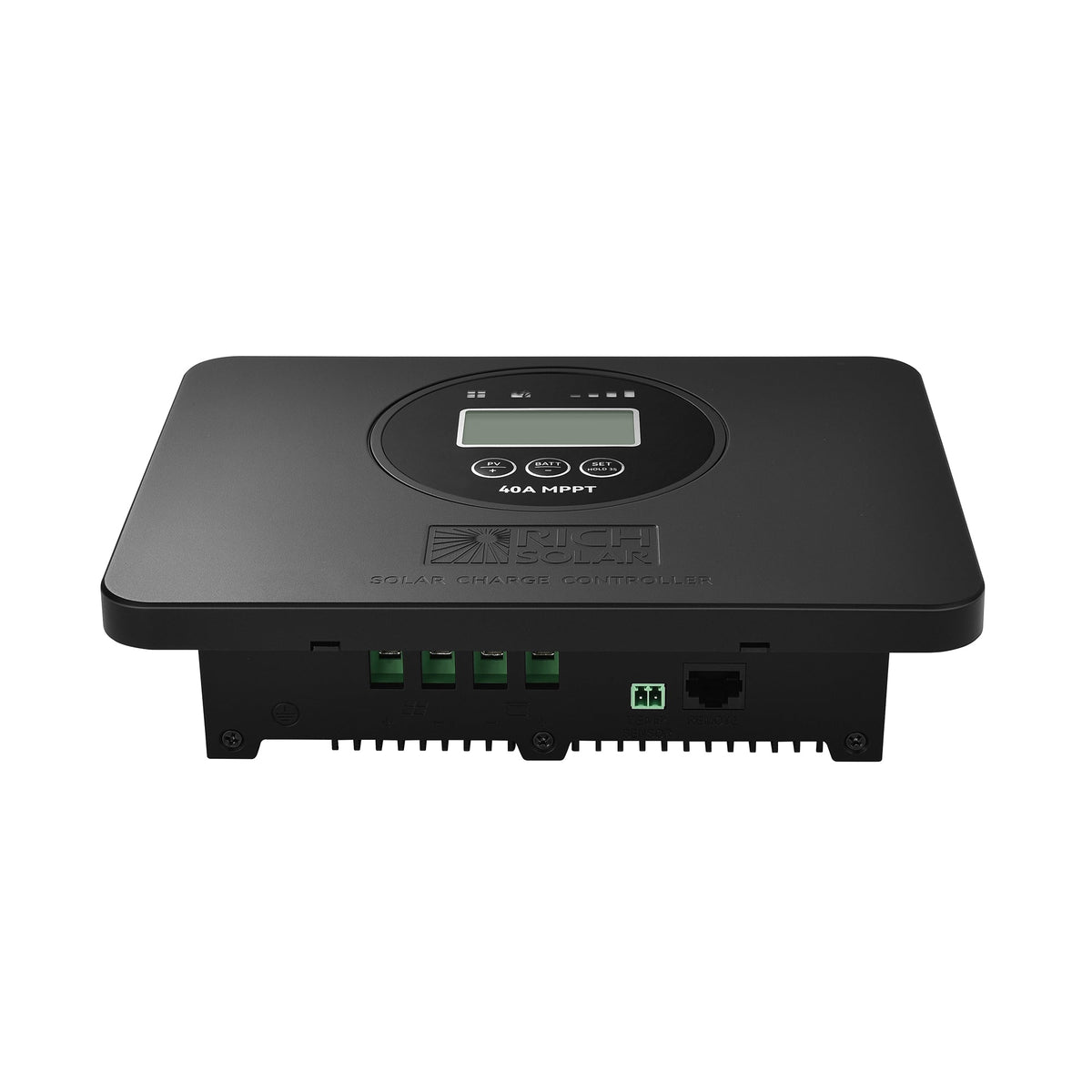

Install as a flush-mount controller within a 12V or 24V solar-battery system. Connect compatible PV and battery circuits within the stated voltage and power limits, then allow automatic system-voltage detection during installation. Optional accessories include an external battery temperature sensor and digital remote display.
Branding/References
Product: BRAVO PRO 40. Monitoring compatibility: RICH SOLAR App through built-in Bluetooth.
Differentiators
The controller combines 99.5% MPPT tracking efficiency, support for PV arrays up to 1,200W at 24V, automatic 12V/24V detection, and flush-mount installation in one compact unit.
