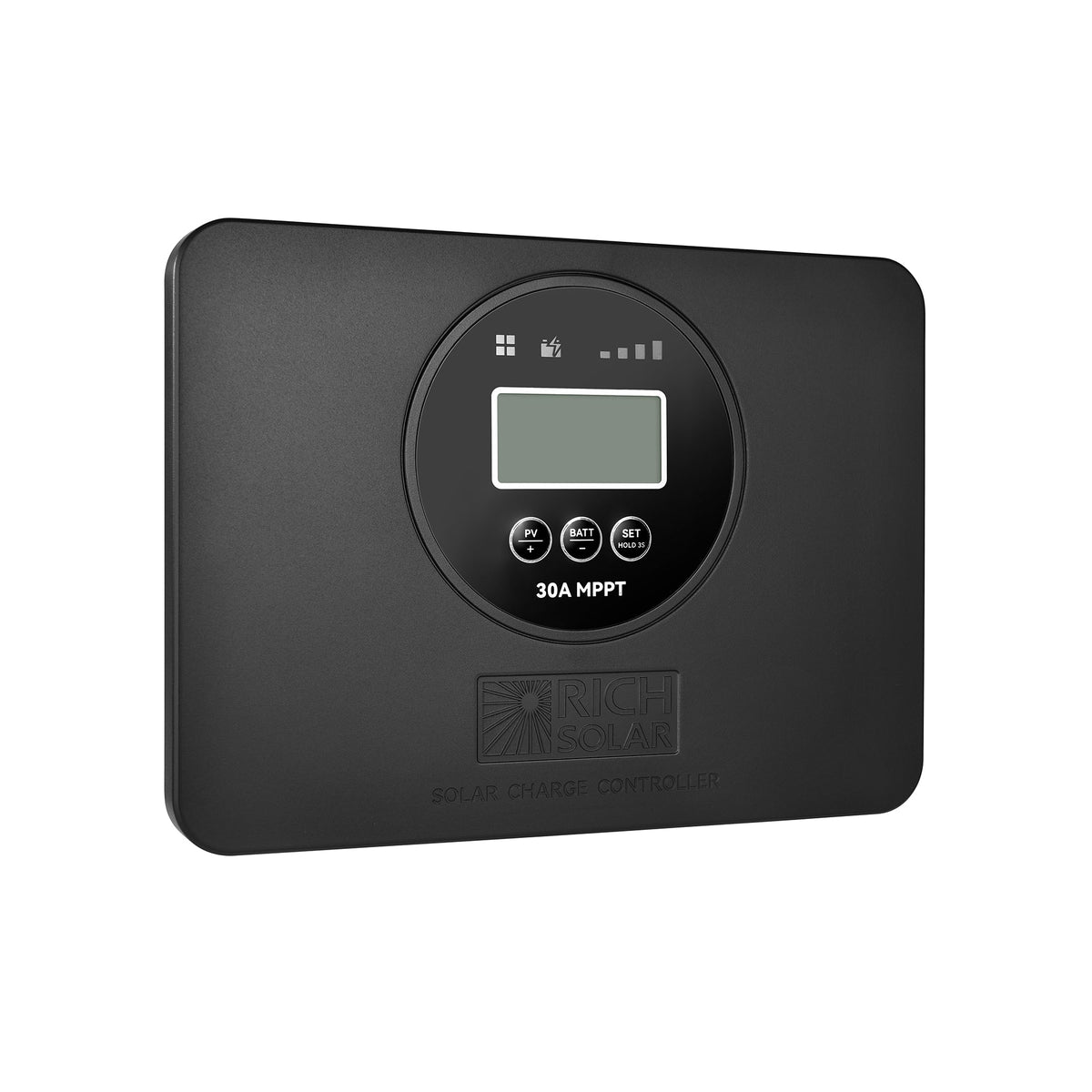

BRAVO FLUSH 30 | 30 Amp Flush Mount MPPT Solar Charge Controller

BRAVO FLUSH 30 | 30 Amp Flush Mount MPPT Solar Charge Controller

$159.99 USD
$199.99 USD $159.99 USD
Sale Sold out
Shipping calculated at checkout.

features

• Solid design control box — Meets NEMA Type 4 & IP30 standard by lab test
• LCD color screen — Real-time status view and easy user interaction
• Breathing indicator light — Shows real-time charging status
• Control button — Adjust max output current & set scheduled charging time
• Water protection gasket — Resists 3-minute direct high-pressure water spray
• TPU cable — 14.76ft, excellent durability, cold resistant to -22°F
• ETL certified — Compliant with North American safety standards

Technical Specifications

Voltage: 240V/208V
Max Output Current: 40A (SS-PC1-100) / 32A (SS-HAY-100-32A)
Max Power: 8kW / 7kW
Frequency: 50/60Hz
Temperature Range: -22°F to 122°F
Humidity: 5–95%, no condensation
Connector: Type 1 (J1772)
Cable Length: 14.76ft (4.5m)
Altitude: ≤2000m (6,562ft)
Cooling: Natural
Safety Standards: ETL, UL2594, CSA C22.2
Scheduling: App / Timer control
Connectivity: Wi-Fi / Bluetooth
Warranty: 2 years

Packing Details

View full details

BRAVO FLUSH 30 | 30A Flush-Mount MPPT Solar Charge Controller

Equipment Type and Primary Applications

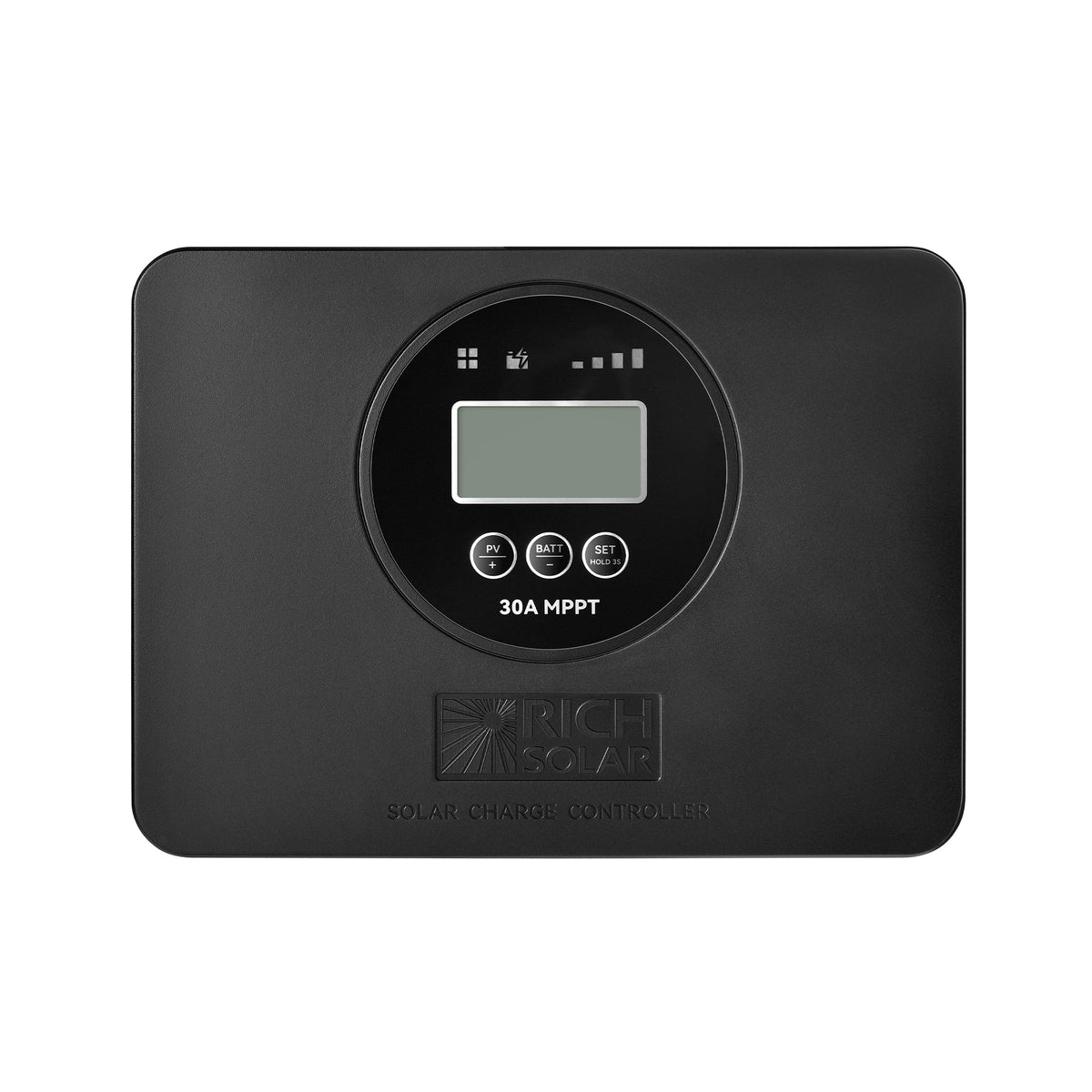

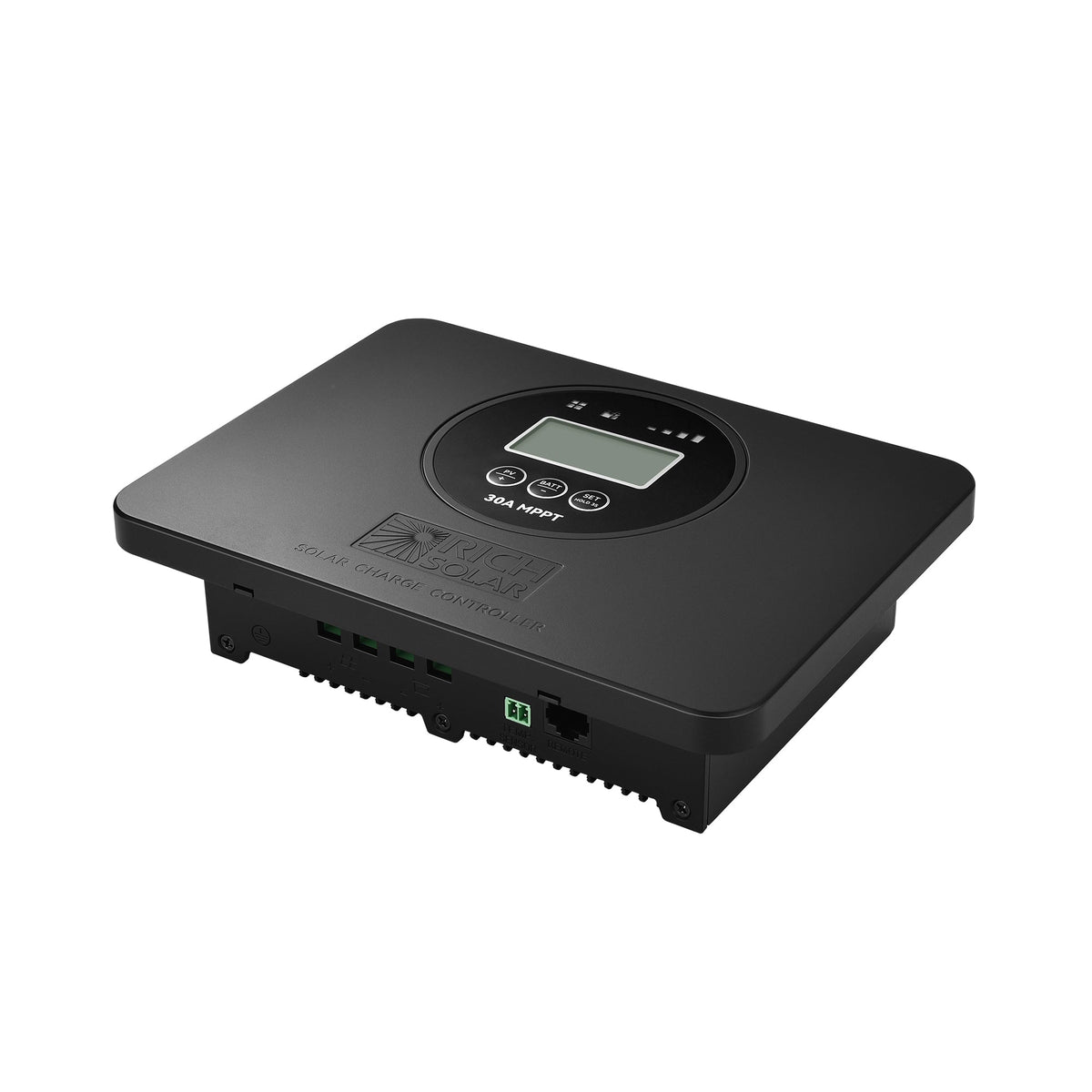

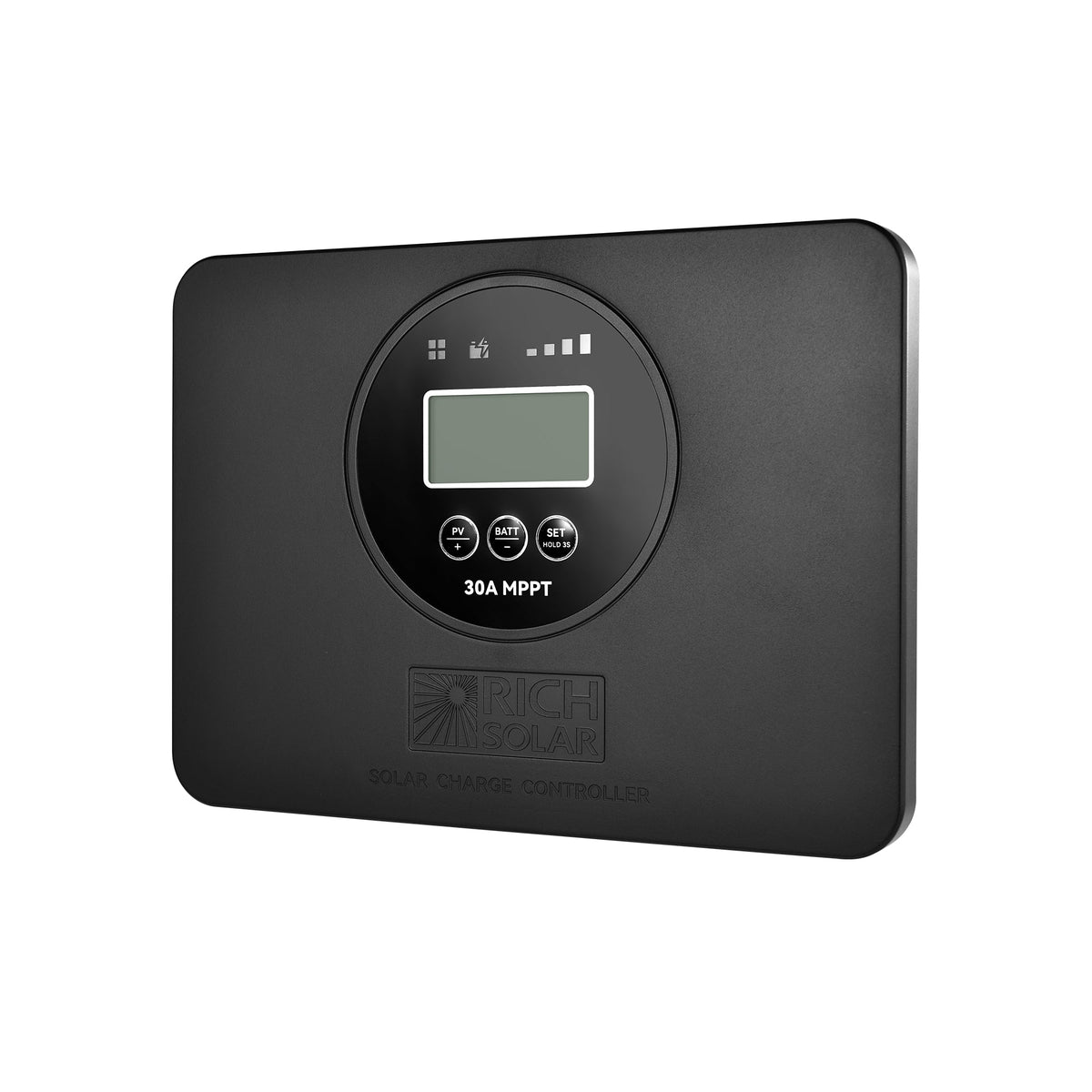

The BRAVO FLUSH 30 is a 30A MPPT solar charge controller for 12V and 24V battery systems, designed for flush installation in RV and vehicle control panels. It supports solar arrays up to 500W at 12V or 1,000W at 24V and works with GEL, AGM, WET, LFP, LTO, LCO, Crystal, Calcium, and customizable battery types.

Performance Specifications

  • Maximum solar input current: 30A; maximum charging current: 30A
  • Solar input voltage range: 8–100V; maximum PV open-circuit voltage: 100V
  • MPPT voltage tracking range: 15–72VDC
  • MPPT tracking efficiency: 99.5%; charge conversion efficiency: 98%
  • System voltage: 12V/24V automatic detection
  • Standby current: 10mA; ingress protection: IP43
  • Operating temperature: -13°F to 122°F
  • Dimensions: 8.3 × 6.1 × 2.2in; product weight: 1.8lb

Safety Features and Certifications

Protection functions include over-voltage, reverse polarity, short circuit, and over-temperature protection. Certifications and compliance markings include ETL, UL 1741, CE, FCC, EMC, and RoHS.

Installation and Maintenance Requirements

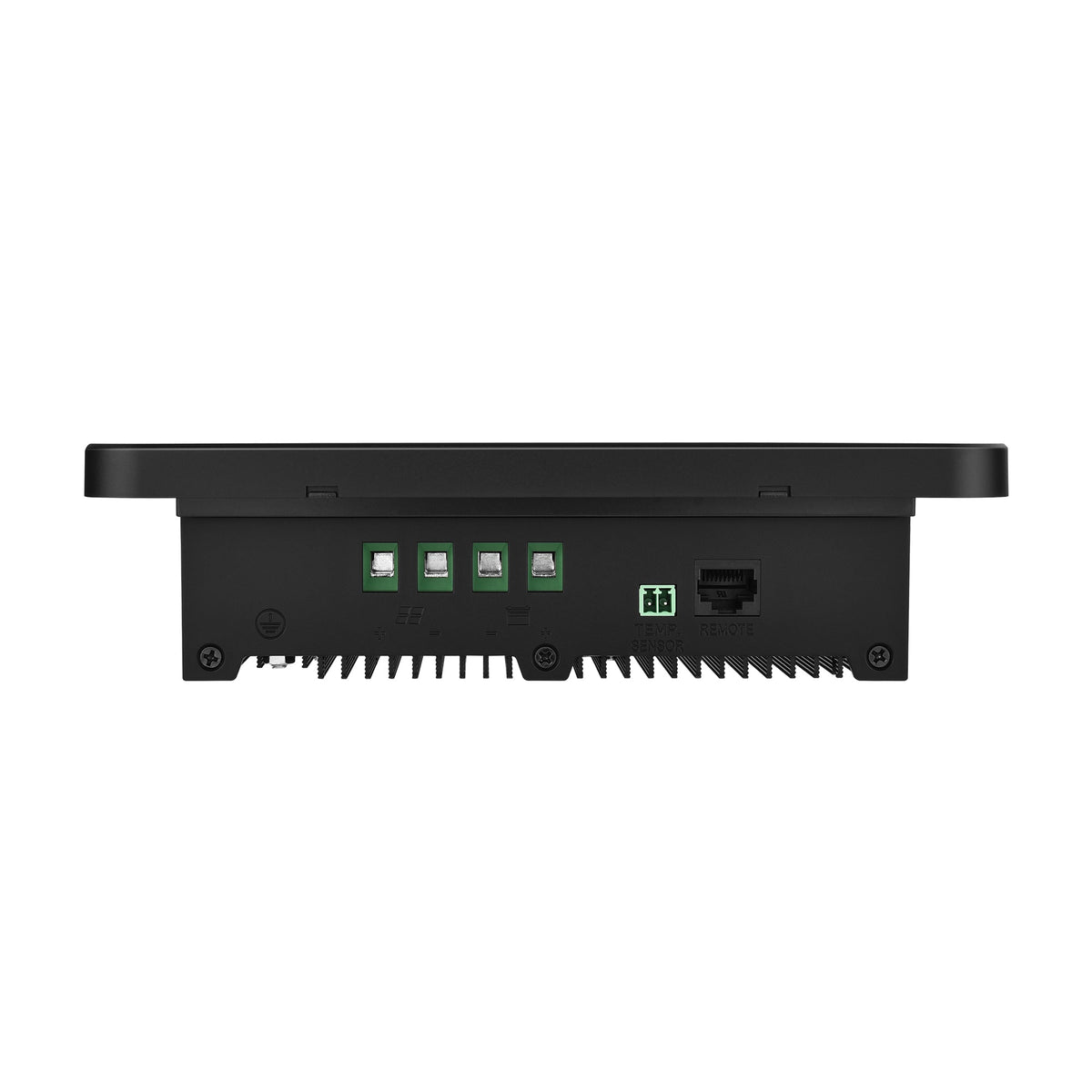

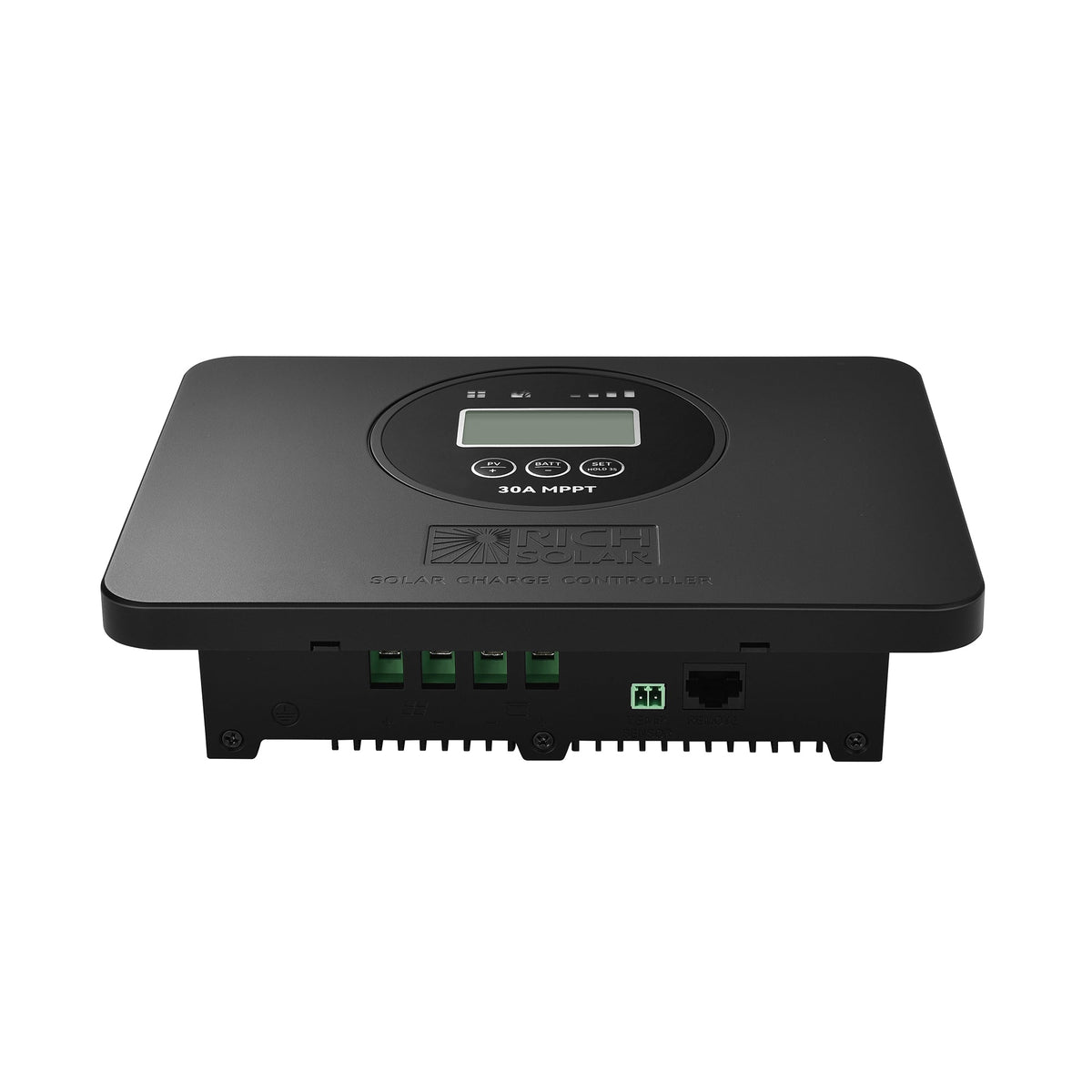

Install as a flush-mounted controller with compatible 12V or 24V battery and PV wiring. The unit accepts 8–100V solar input and includes built-in Bluetooth monitoring through the RICH SOLAR App. Optional accessories include an external battery temperature sensor and digital remote display.

Warranty and Service Information

Branding/References

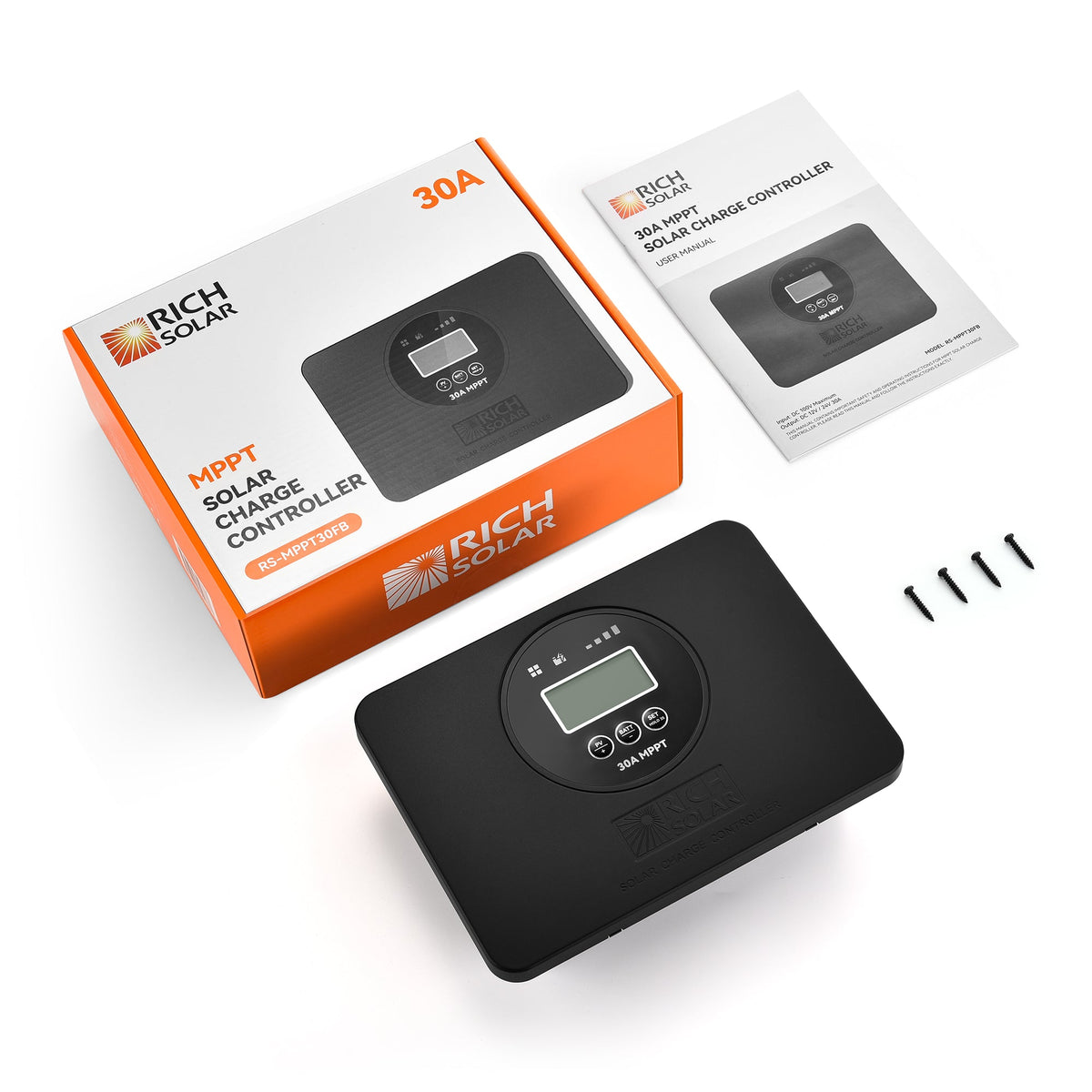

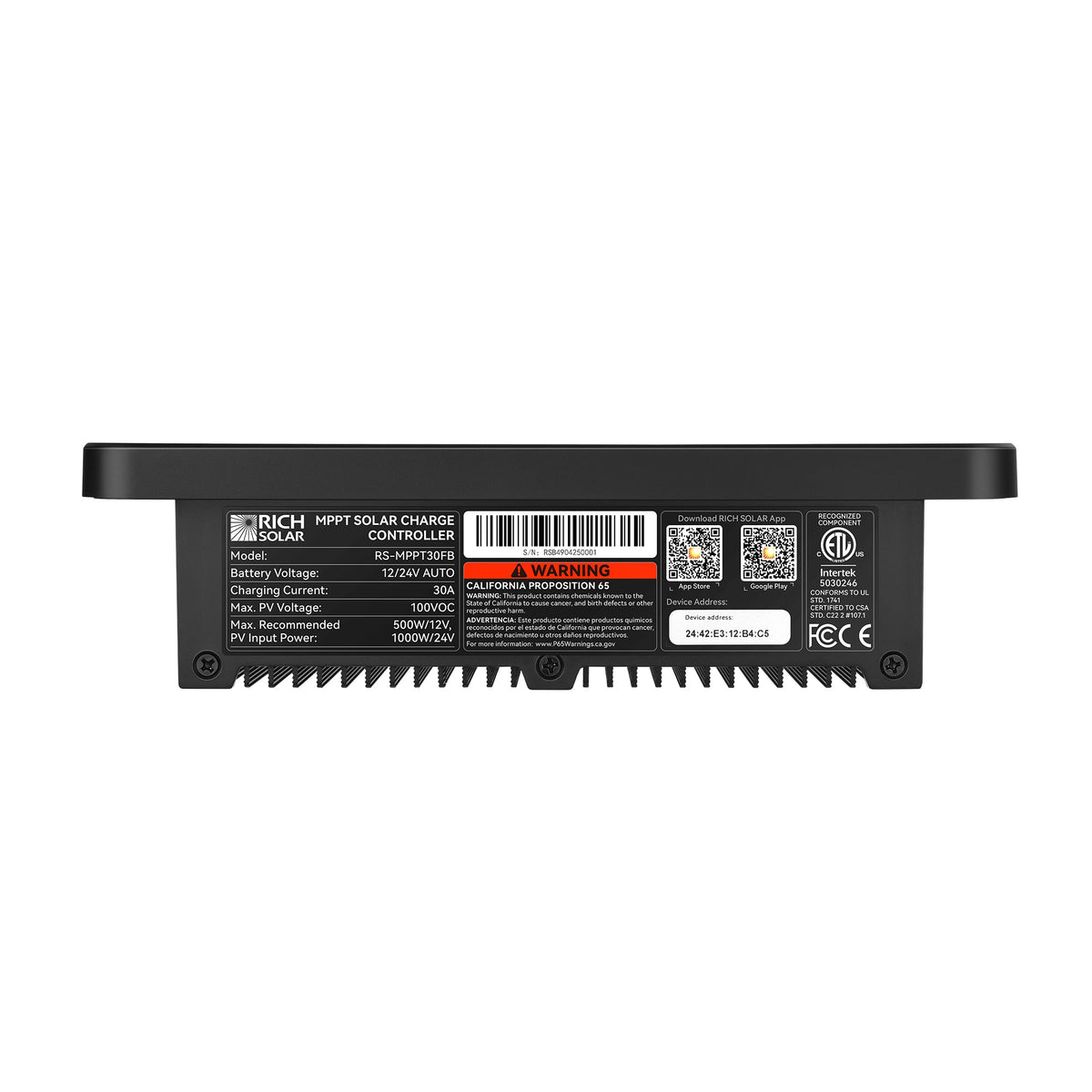

Manufacturer: RICH SOLAR. Model: BRAVO FLUSH 30. Package dimensions: 10 × 8 × 4in; gross weight: 3lb.

Differentiators

The controller combines 99.5% MPPT tracking efficiency, 98% conversion efficiency, automatic 12V/24V detection, and Bluetooth status monitoring in a compact flush-mount design.
