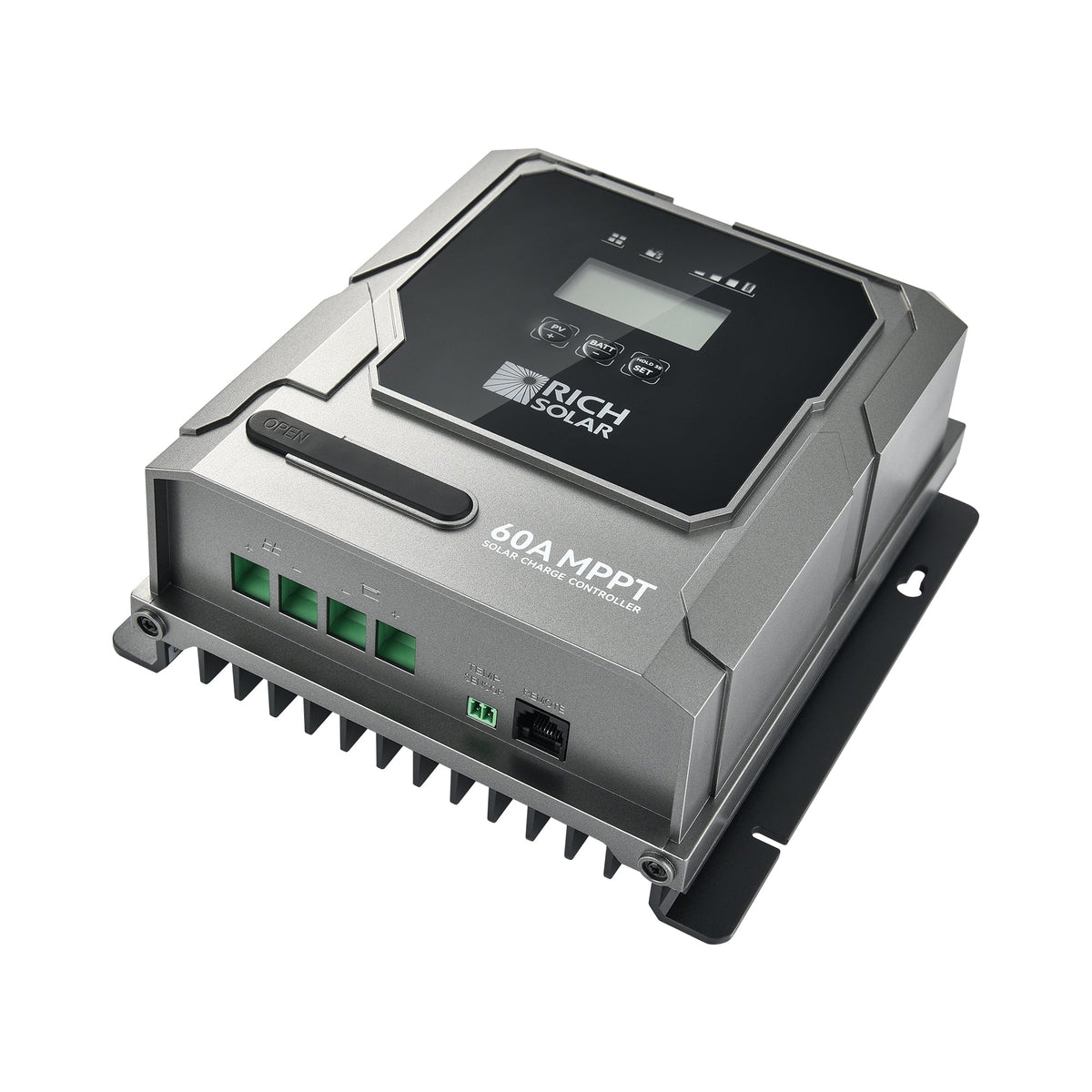

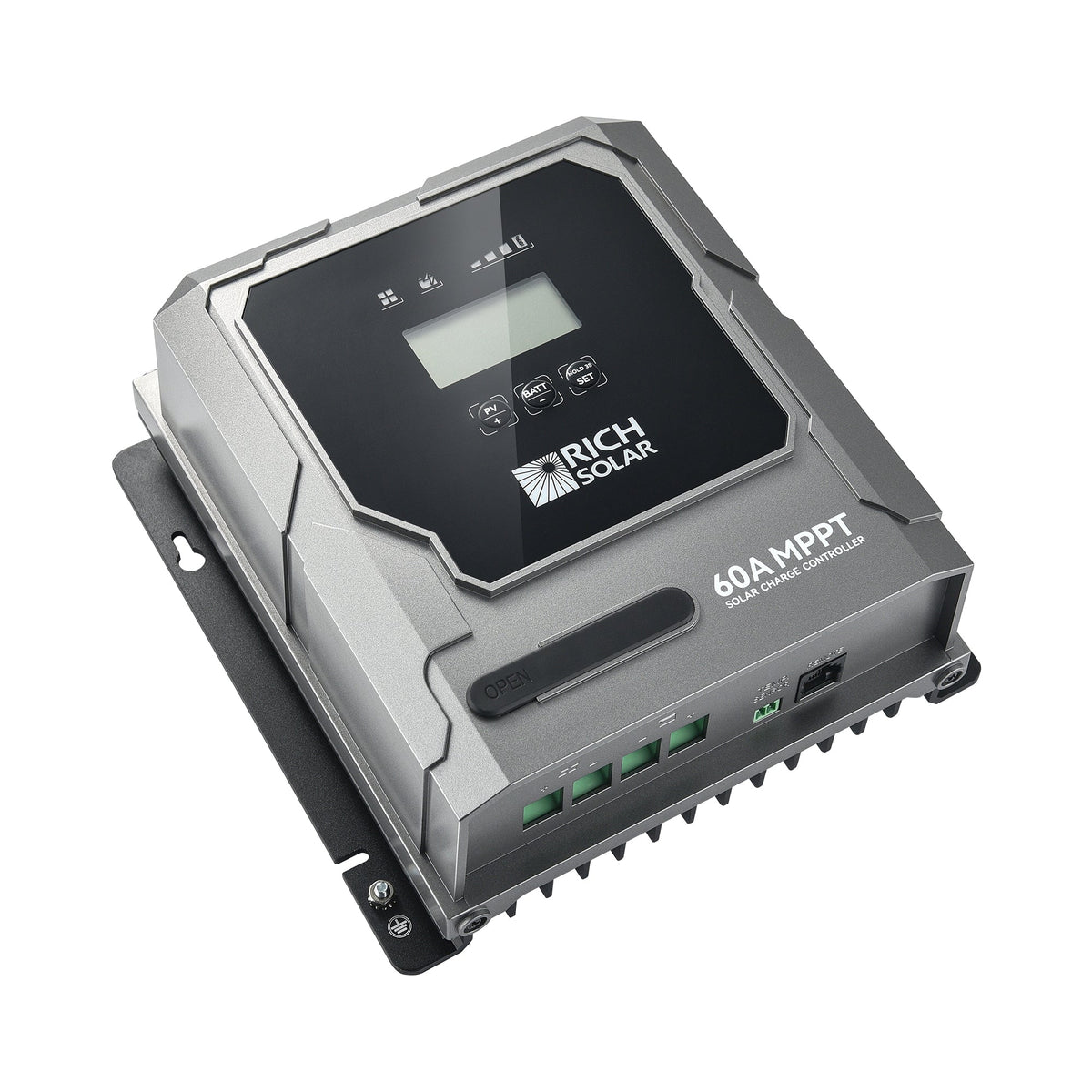

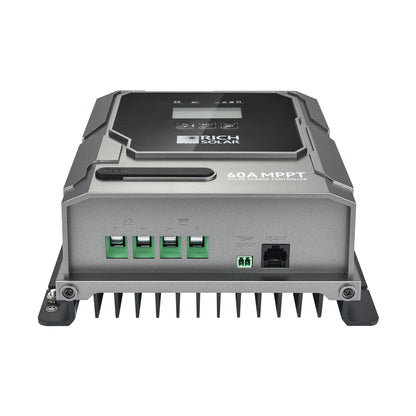

BRAVO 60 60A MPPT Solar Charge Controller
Equipment Type and Primary Applications
The BRAVO 60 is a 60A MPPT solar charge controller for 12V and 24V battery systems. It is designed for RVs, trailers, campers, vans, boats, and off-grid solar installations requiring high-capacity battery charging and real-time system monitoring.

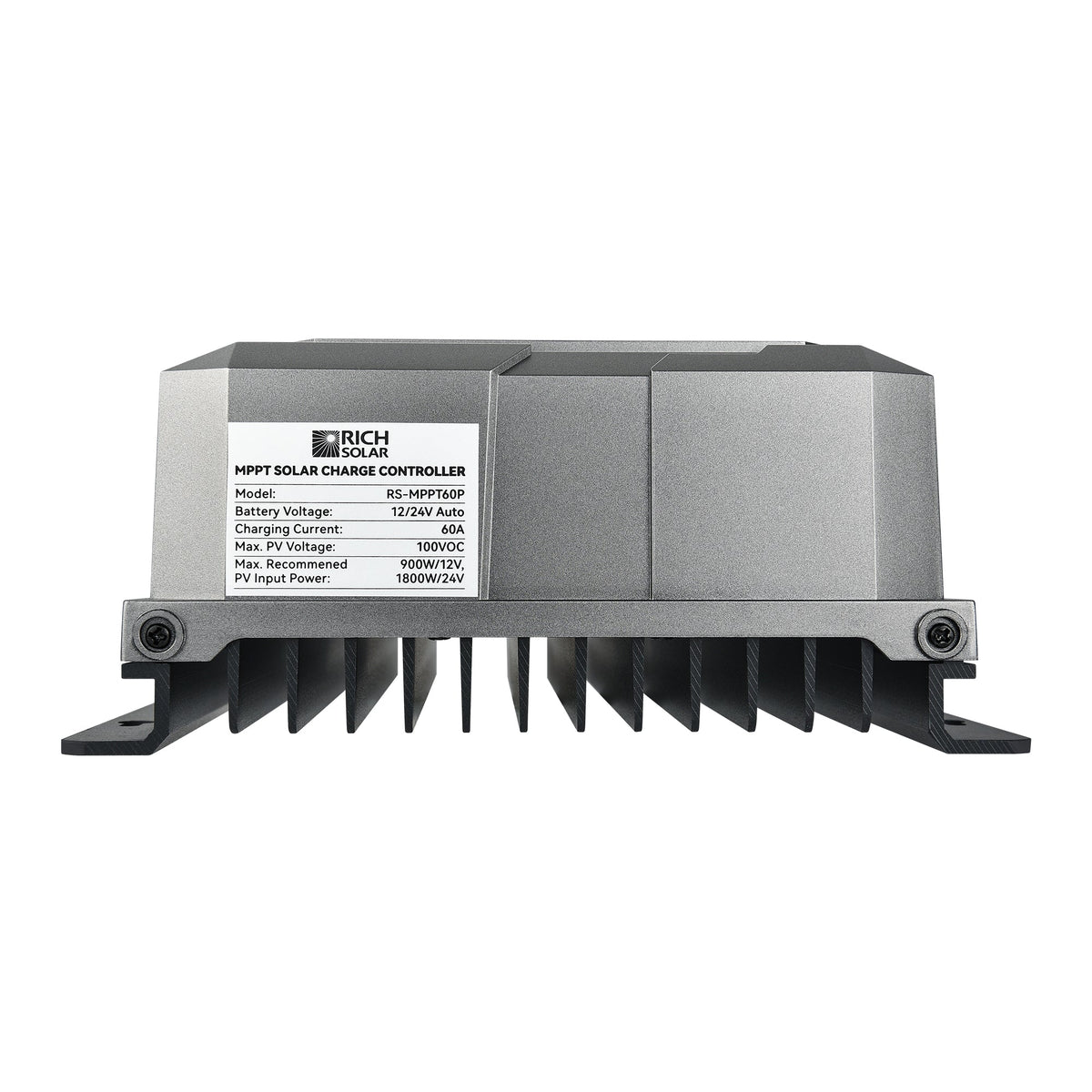

Performance Specifications
- System voltage: 12V/24V with automatic detection.
- Maximum PV charging current: 60A.
- Recommended PV input: 900W at 12V or 1,800W at 24V.
- Maximum PV open-circuit voltage: 100V DC.
- MPPT tracking efficiency: greater than 99.5%.
- Charge conversion efficiency: up to 98%.
- Battery presets: Crystal, GEL, AGM, WET, Calcium, LCO, LiFePO₄/LFP, and LTO.
- Protection ratings: IP43 for the internal PCBA and IP22 for the connection area.
- Dimensions: 201 × 195 × 85 mm (7.9 × 7.7 × 3.3 in).
- Net weight: 1.90 kg (4.18 lb).
Safety Features and Certifications
- Electronic protection against over-voltage, reverse discharge, and circuit faults.
- Common-negative grounding design for system integration.
- Conformal-coated circuit board for improved durability in demanding environments.
Installation and Maintenance Requirements

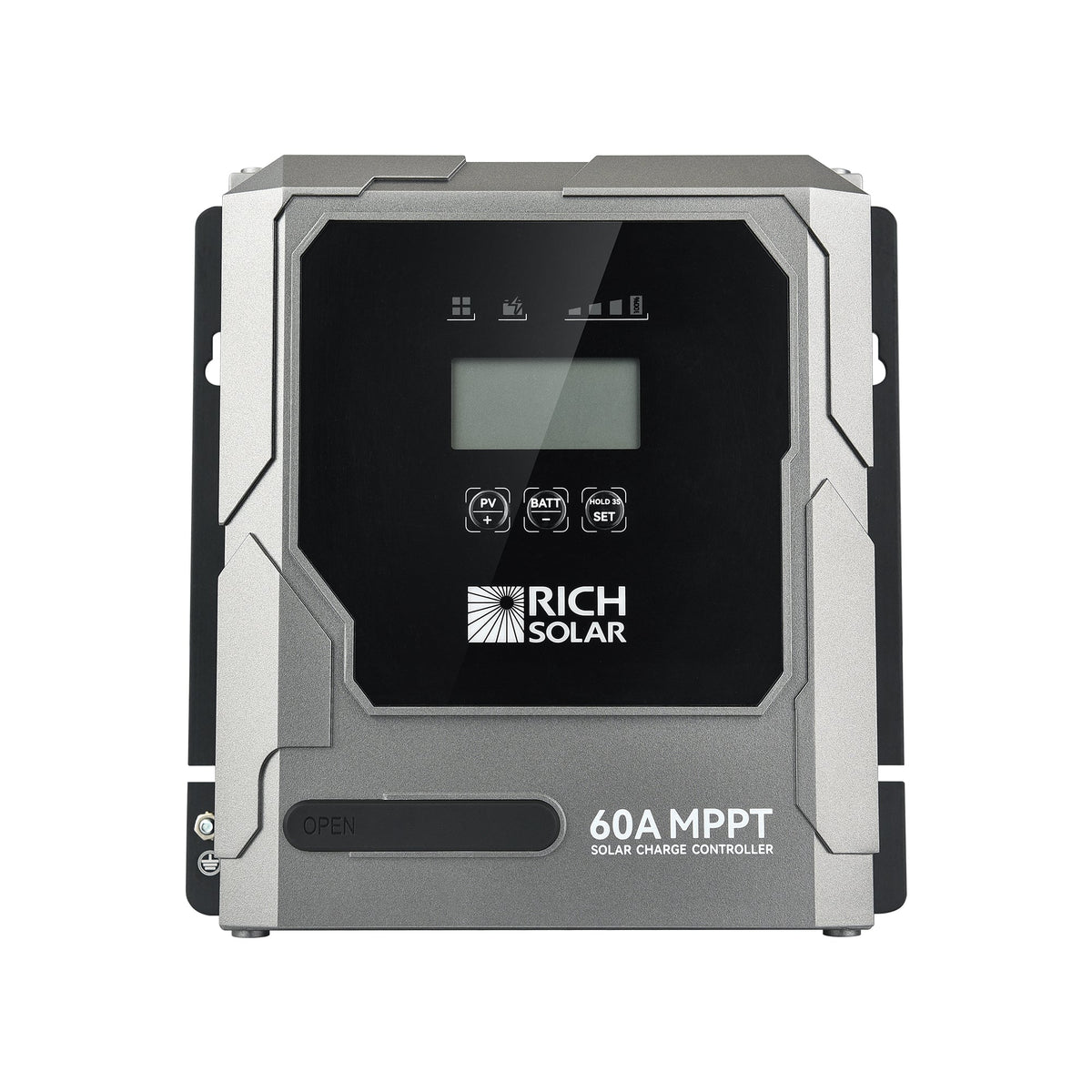

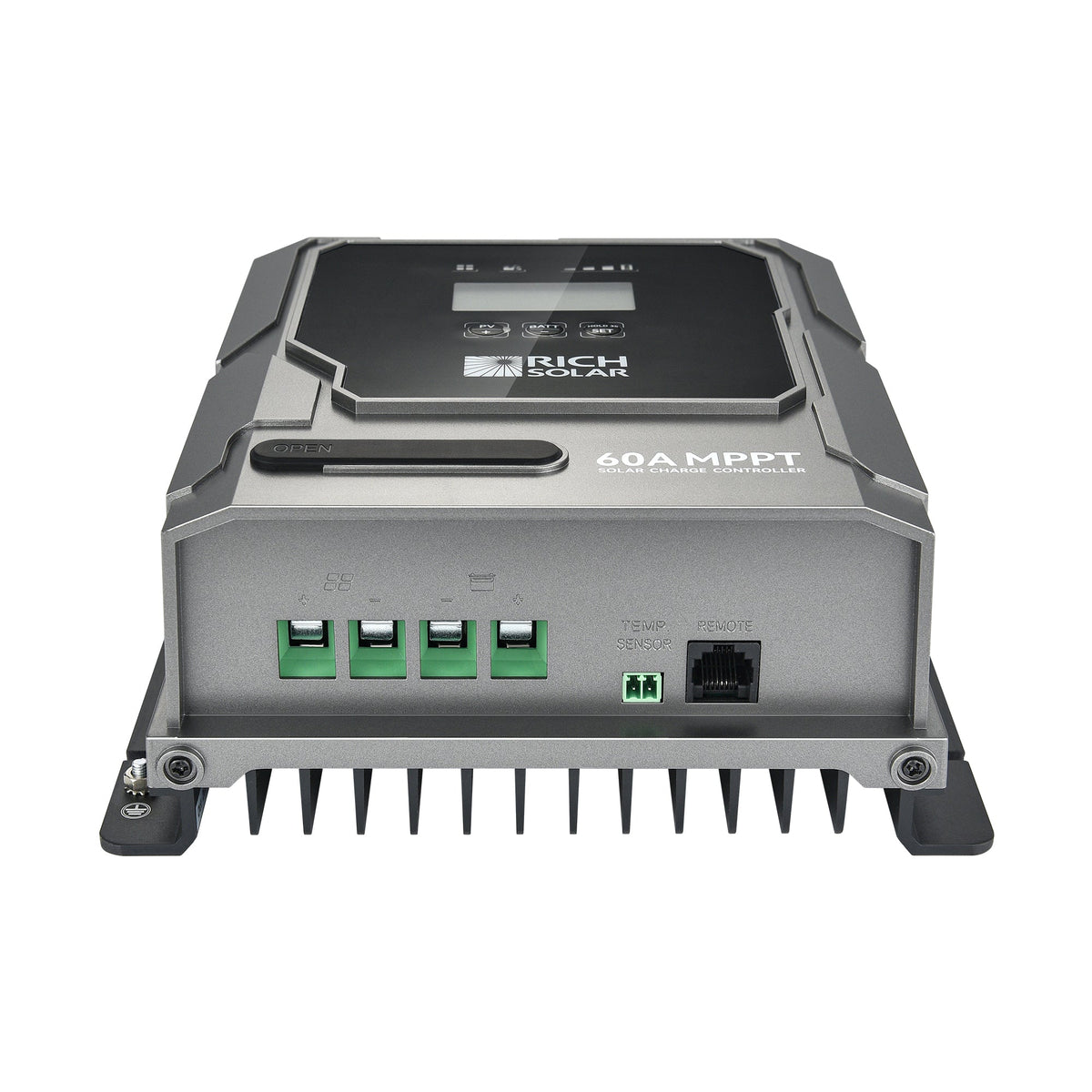

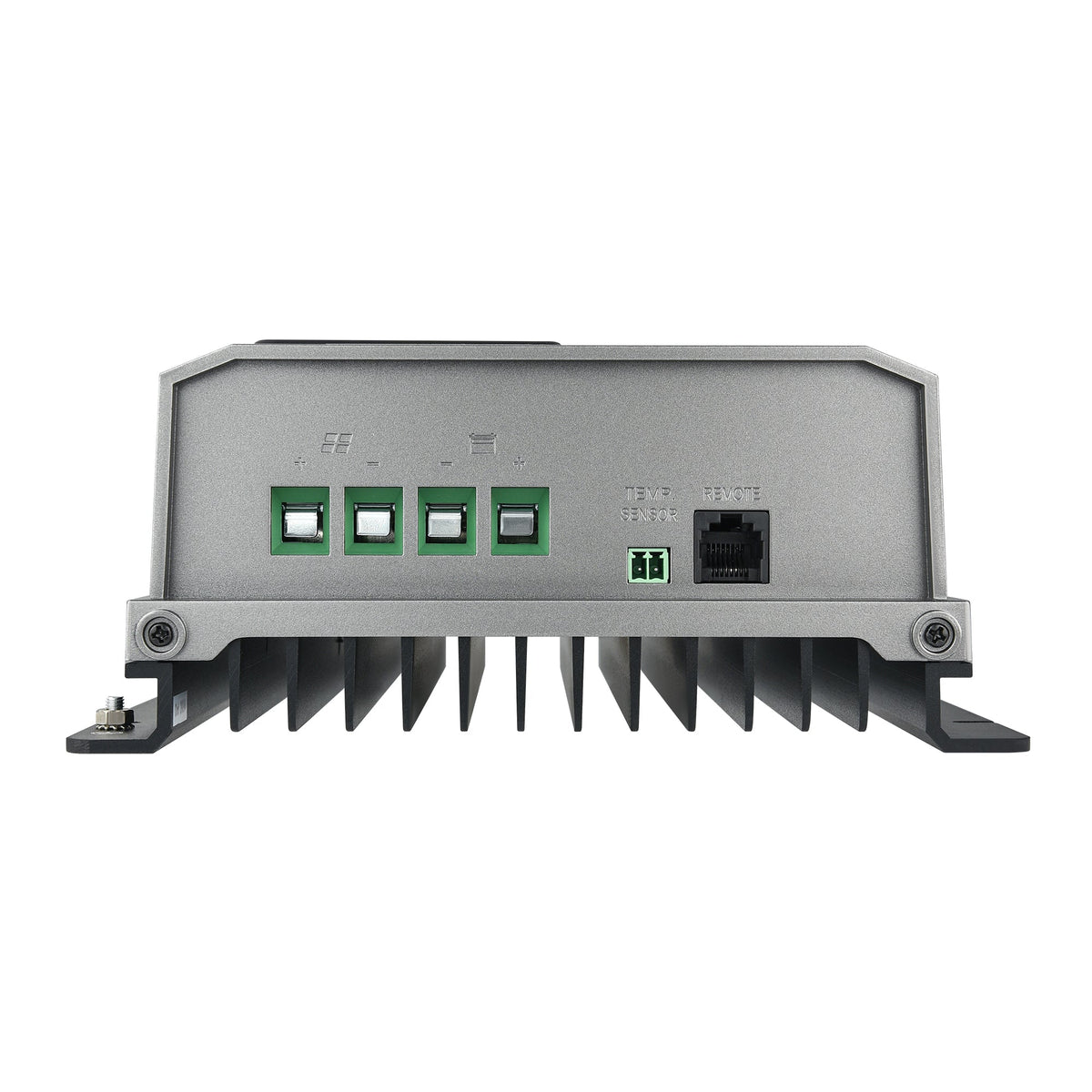

Install in a suitable location for the specified IP-rated housing and connect compatible PV and battery circuits. Confirm automatic 12V/24V system detection during commissioning, select the applicable battery preset, and verify charging data on the LCD display. Optional accessories include a remote meter and battery temperature sensor. Monitor operating status through the Tuya Bluetooth Module and inspect wiring and connections periodically.
Warranty and Service Information
Branding/References
Brand: BRAVO. Model: BRAVO 60. Reference: 60A MPPT solar charge controller.
Differentiators
The controller combines greater-than-99.5% MPPT tracking efficiency, up to 1,800W PV support at 24V, built-in Tuya Bluetooth monitoring, and automatic 12V/24V detection in one compact unit.
