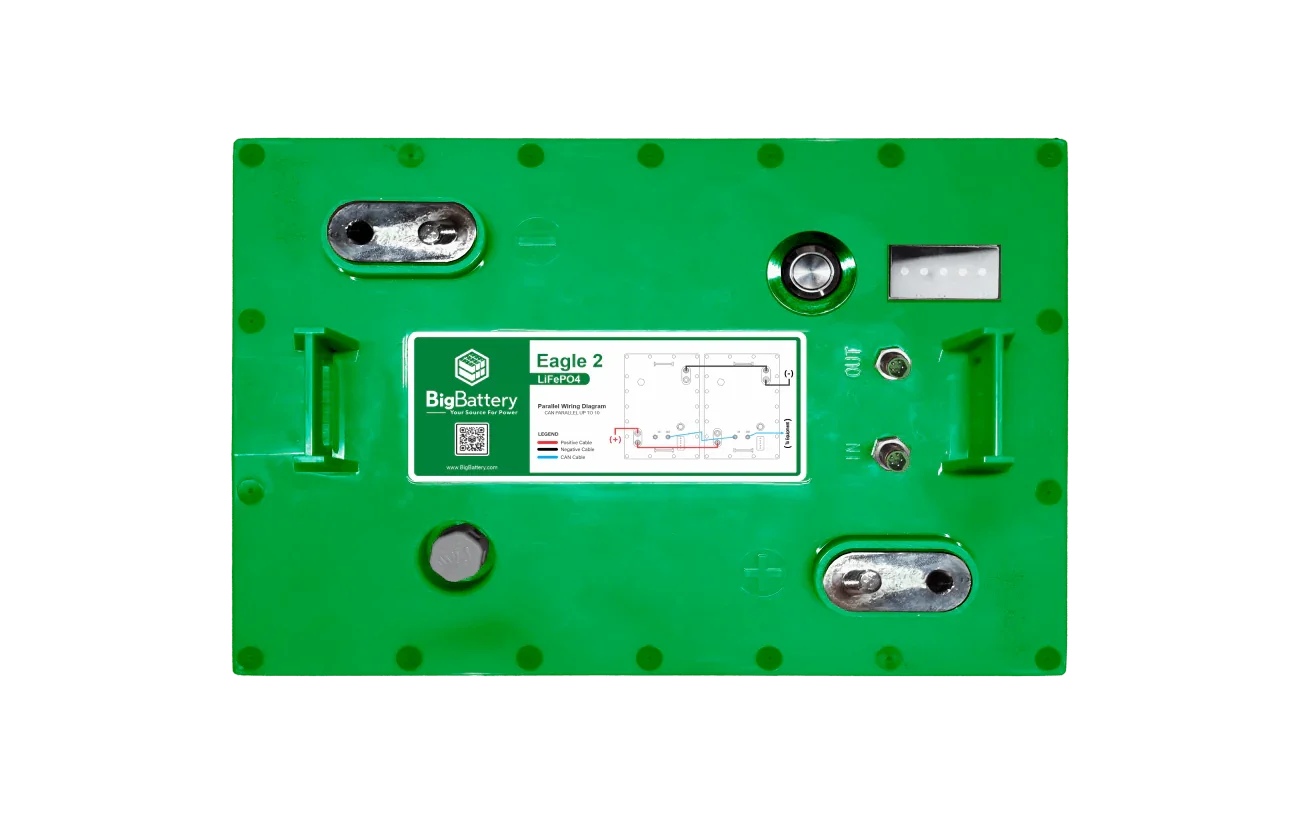

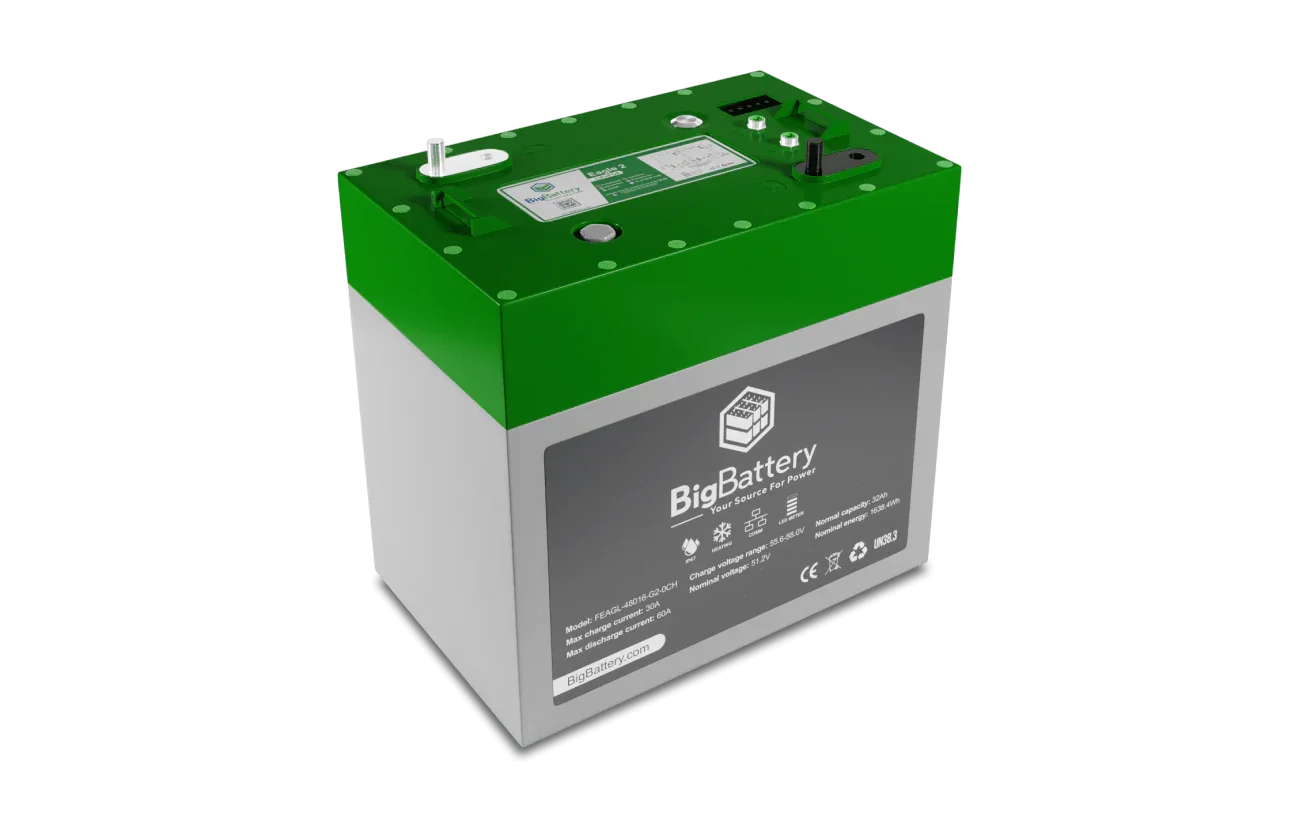

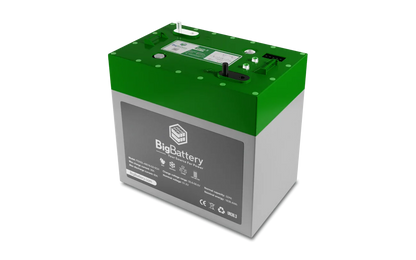

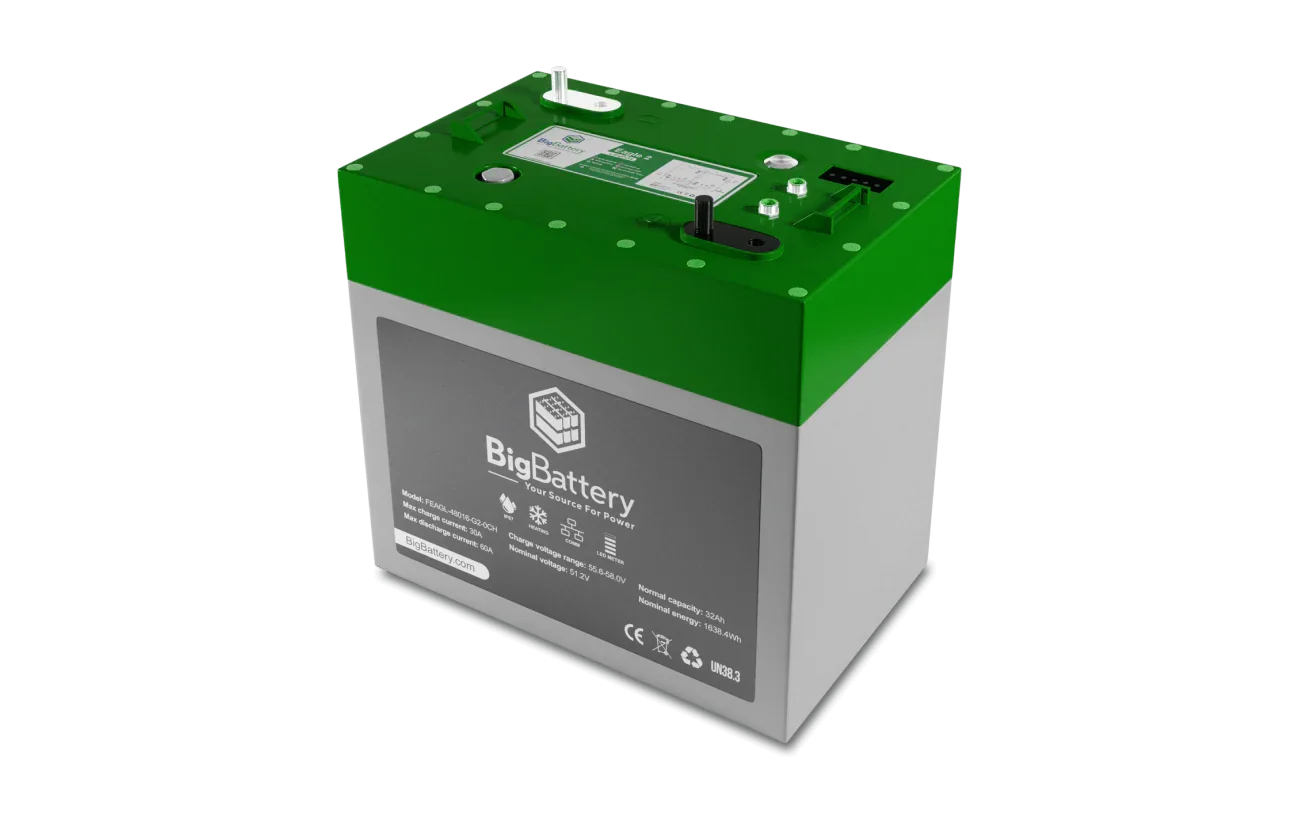

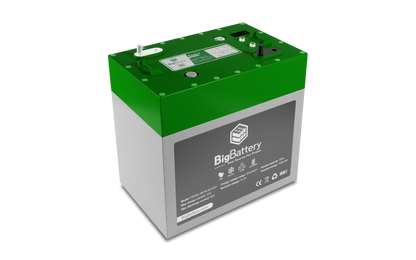

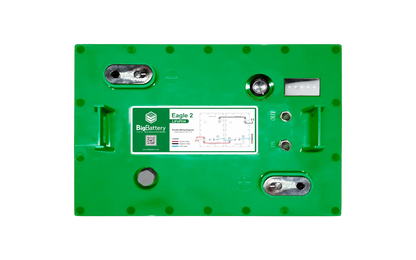

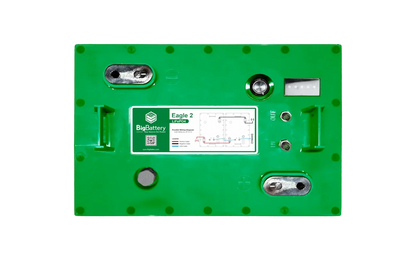

BigBattery 48 V EAGLE 2

The BigBattery 48 V EAGLE 2 delivers a premium LiFePO4 upgrade for 48‑volt systems, ideal for golf carts, utility vehicles, RVs and remote equipment. In a GC2/T-105 form factor, it serves as a true drop‑in replacement that mirrors legacy lead‑acid trays, enabling straightforward, cost‑effective retrofits without specialized mounting revisions. With Tier‑1 LiFePO4 chemistry, it combines long cycle life, stable thermal performance and enhanced safety with clean, quiet operation.

Key specifications

• System Voltage: 48 V (Nominal 51.2 V)
• Capacity: 1.63 kWh (32 Ah)
• Max Continuous Discharge: 60 A (~3,072 W)
• Peak Discharge (Short): 200 A for ~3 s
• Weight: 38 lb (≈17.2 kg)
• Protection Rating: IP67 / NEMA-6
• Operating Temperature: -20 °C to +60 °C (-4 °F to +140 °F)
• Form-Factor: GC2 / T-105 style tray replacement
• Parallel Modules: Supports up to 10 units in parallel
• Warranty: 12‑year warranty

Safety, durability & connectivity

Designed for real‑world duty, the EAGLE 2 uses premium LiFePO4 cells for improved cycle life and thermal stability. The sealed IP67/NEMA‑6 enclosure guards against dust and water ingress, while CANbus communications enable monitoring and integration with vehicle controllers and energy management systems.

Installation & maintenance

• Drop‑in GC2/T‑105 footprint facilitates retrofit from common lead‑acid trays.
• Suitable for parallel expansion (up to 10 modules) to scale capacity.
• Mounting and wiring should follow standard 48 V lithium battery practices and system safety protocols.

Warranty & service

Backed by a 12‑year warranty, the EAGLE 2 provides long‑term reliability and manufacturer support for commercial and fleet applications.

BigBattery 48 V EAGLE 2 — Premium Lithium Upgrade for 48 V Systems

Upgrade your 48-volt system with this high-quality LiFePO₄ (LFP) battery option. Packed into a compact GC2-style format, the EAGLE 2 delivers longer life, higher performance and cleaner power for golf carts, utility vehicles, RVs and more.

Why the EAGLE 2 Stands Out

• True drop-in replacement – The 48 V EAGLE 2 is engineered in a GC2 form factor and mirrors the footprint of many legacy lead-acid trays (such as the T-105 style). This makes installation straightforward and cost-effective.

• Premium cell chemistry – Featuring Tier-1 LiFePO₄ cells, it offers superior cycle life, enhanced thermal stability and better operational safety compared to older lead-acid or generic lithium packs.

• Compact but capable – With a capacity of 1.63 kWh (32 Ah) and nominal system voltage of 48 V / 51.2 V, this battery supports meaningful upgrade in energy without requiring a large footprint.

• Strong discharge performance – Max continuous discharge current of 60A and max continuous power of 3,072W means it can handle demanding loads and payloads. Peak discharge up to 200A for short bursts.

• All-weather ready + rugged design – Rated IP67 / NEMA-6 for dust and water protection. Operating temperature range includes -20 °C to +60 °C (-4 °F to +140 °F).

• Smart connectivity & scalable – CANbus communications allow integration with monitored systems. Supports up to ten (10) parallel modules for expanded capacity.

• Long-term confidence – Backed by a 12-year warranty which underlines the manufacturer’s confidence in durability.

Key Specifications (At a Glance)

Ideal Applications & Use-Cases

• Golf carts & utility vehicles – Replace aging lead-acid banks with this lithium pack for longer runtime and less maintenance.

• 48 V neighborhood EVs, LSVs, UTVs – Deliver cleaner power, improved acceleration & fewer voltage sag issues under load.

• RV, camper van house bank – Use the EAGLE 2 as part of your 48 V energy storage system for off-grid or mobile power.

• Light industrial equipment – Forklifts, utility carts, tow-behind trailers can benefit from higher efficiency and longer life.

• Parallel systems / modular expansion – With support for up to 10 units in parallel, you can scale up capacity without redesigning your system.

If you’re seeking a robust, high-quality 48 V lithium battery upgrade, the BigBattery 48 V EAGLE 2 delivers an appealing mix of compact form, powerful performance and long-term durability. It’s designed for real-world applications where ease of installation, runtime, reliability and modular expandability matter.
