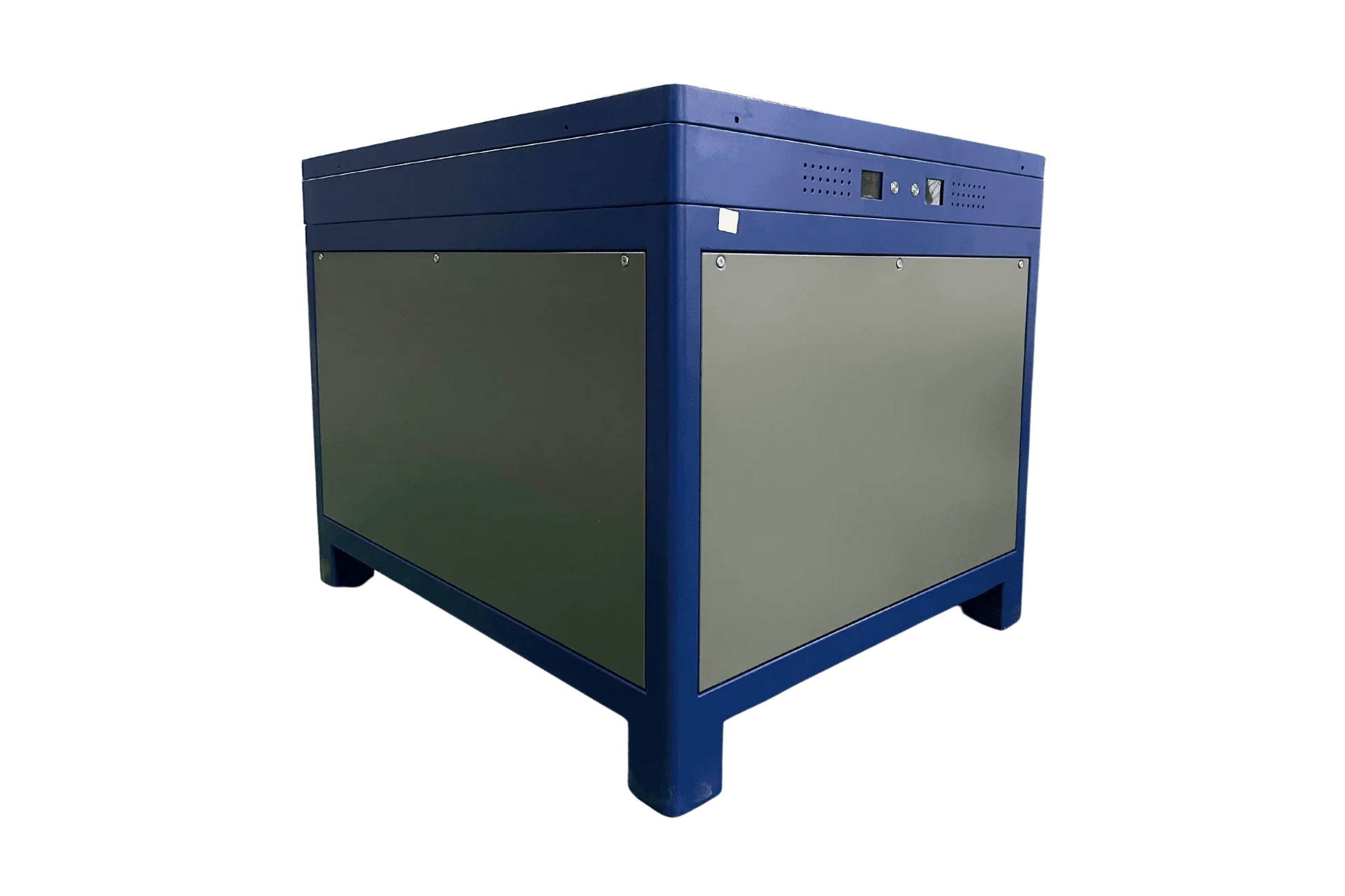

WALRUS PACIFIC 12K INVERTER ENERGY STORAGE SYSTEM
The BatteryEvo WALRUS PACIFIC 12K INV delivers a high-capacity, reliable power storage solution for off-grid homes, grid-tied solar sites, and commercial applications. With a 62 kWh energy storage system paired to a 12 kVA inverter, it supports heavy-wattage loads, emergency backup, and energy independence while remaining scalable through parallel expansion.
Key Features and Applications
- 62 kWh lithium iron phosphate (LFP) chemistry; 16S4P configuration for durability and long cycle life.
- Inverter rating: nominal 12 kVA with peak discharge up to 600 A; supports up to eight units in parallel for expanded capacity.
- AC interfaces: system voltage AC110/220V with built-in 110V/220V outlets on the center console.
- DC solar input: PV input DC 90–230V via included BE175 connector for flexible solar integration.
- 7-inch color touchscreen, plus Wi‑Fi and network ports for remote monitoring and control.
- Portability: wheels installed; no wall mounting required; expandable by linking multiple Walrus units.
- Made in America; comprehensive 10-year warranty.
Performance Specifications
- Nominal System Voltage: 51.2V; Operating Range: 44.8–58.4V; Charging Range: 55.2–58.4V; Max Charge: 58.8V.
- Discharge: Max Continuous 500 A; Peak 600 A; Charge Current: up to 500 A.
- Storage Temperature: -5°C to 35°C (max 6 months); Operating Temperature: charging 0–55°C, discharging -20–55°C; Optimal Discharge: 15–35°C.
- Weight and footprint: 1230 lb (557.9 kg); 43.5 in D × 34.1 in W × 31.5 in H.
- Energy and power: 62 kWh capacity; 12 kVA continuous inverter output.
Safety, Installation, and Maintenance
Safety features include a 300 A fuse and a Battery Management System with over/under voltage, over current, and temperature protections. Installation supports up to eight parallel units; AC input up to 50 A and DC PV input 90–230 V. The system offers programmable charge/discharge scheduling and built-in outlets for immediate use. Designed for minimal maintenance, it leverages stable LFP chemistry and a robust enclosure; periodic inspection of electrical connections and ambient conditions is recommended.
Warranty and Service
Backed by a comprehensive 10-year warranty, the WALRUS PACIFIC emphasizes long-term reliability and support.

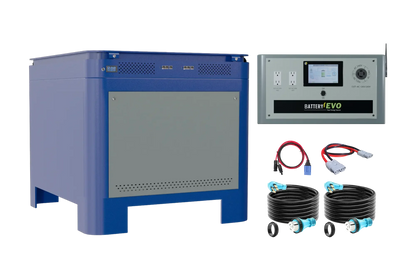

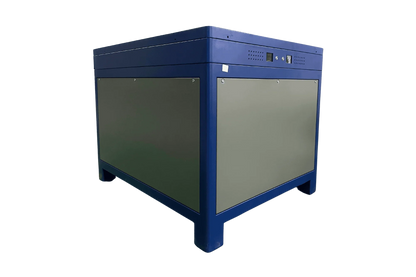

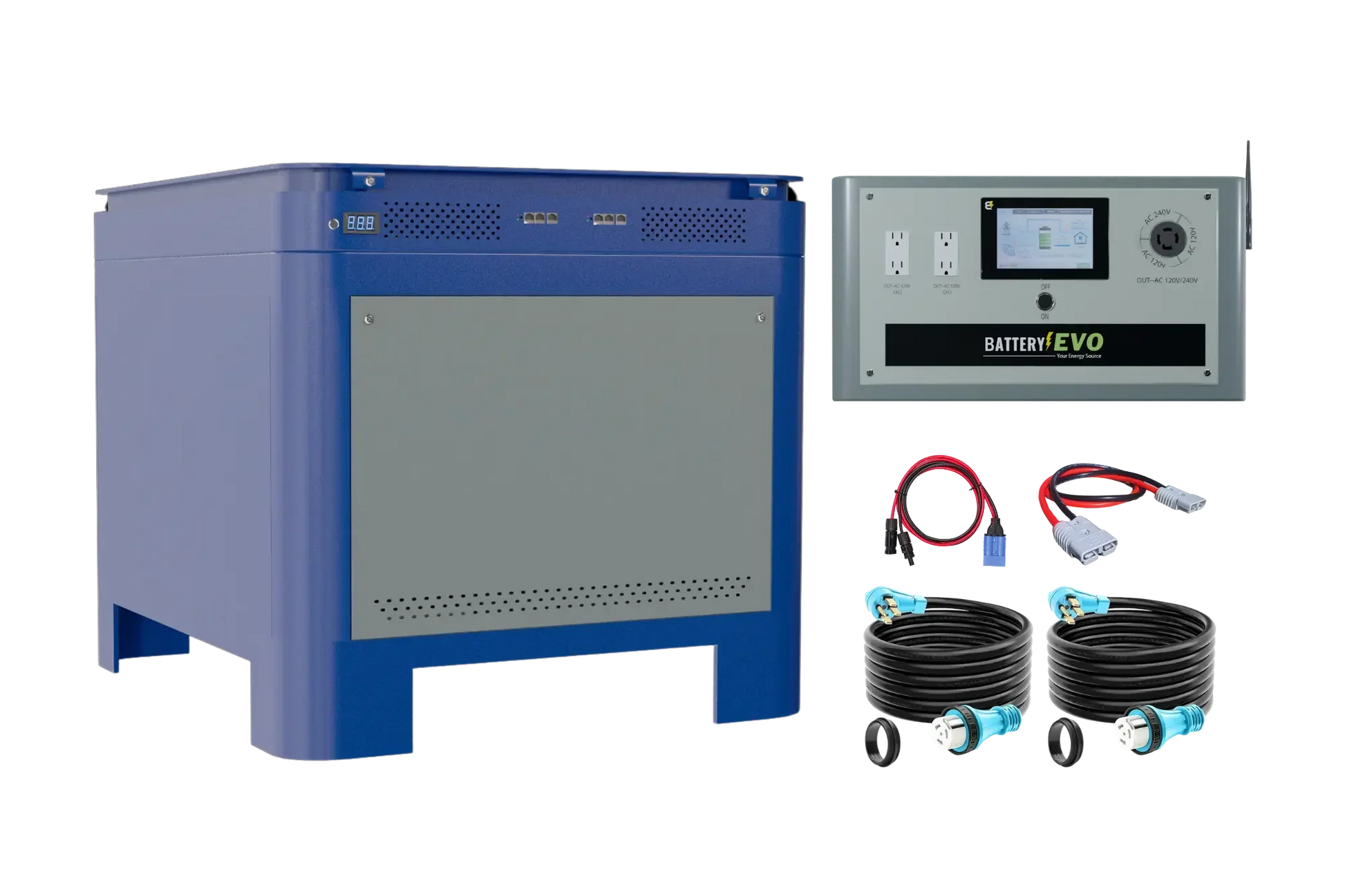

BatteryEvo - WALRUS PACIFIC 12K INV. 62 kWh AC110/220V 48Vdc
An impressive leap forward in power storage technology, the WALRUS PACIFIC is designed to deliver unmatched capacity and performance for high-demand applications. Featuring an advanced 62kWh energy storage system paired with a 12kVA inverter, this model provides robust and reliable power solutions for both residential and commercial use. A sleek, new colorful 7-inch touchscreen interface simplifies monitoring and control, making energy management seamless and intuitive for all users.
The WALRUS PACIFIC is perfect for off-grid systems, providing dependable, high-capacity energy storage to support households or businesses aiming to achieve full energy independence. Its immense power capacity is ideal for running heavy-duty appliances like HVAC systems, industrial equipment, and other high-wattage devices. Moreover, it serves as a top-tier emergency backup system, ensuring uninterrupted power during outages or critical moments.
Every WALRUS PACIFIC battery system is backed by a comprehensive 10-year warranty, offering confidence in its durability and long-term performance. Engineered for maximum efficiency and minimal maintenance, this system surpasses traditional battery technologies, providing up to three times the lifespan of conventional lead-acid batteries. With its cutting-edge design and user-friendly features, the WALRUS PACIFIC is the ultimate solution for anyone seeking reliable, high-performance energy storage.
Features
- Works on homes with grid tied solar panels for more utility savings.
- Works on off-grid homes with DC solar panels using PV 90-230V.
- Works on homes without solar panels to reduce energy bills.
- Wi-Fi and network ports installed.
- 7-inch color touch screen
- 110V/220V Outlets installed on center console.
- Programmable charge/discharge time scheduler.
- Wheels installed for portability and removes the need to wall mount.

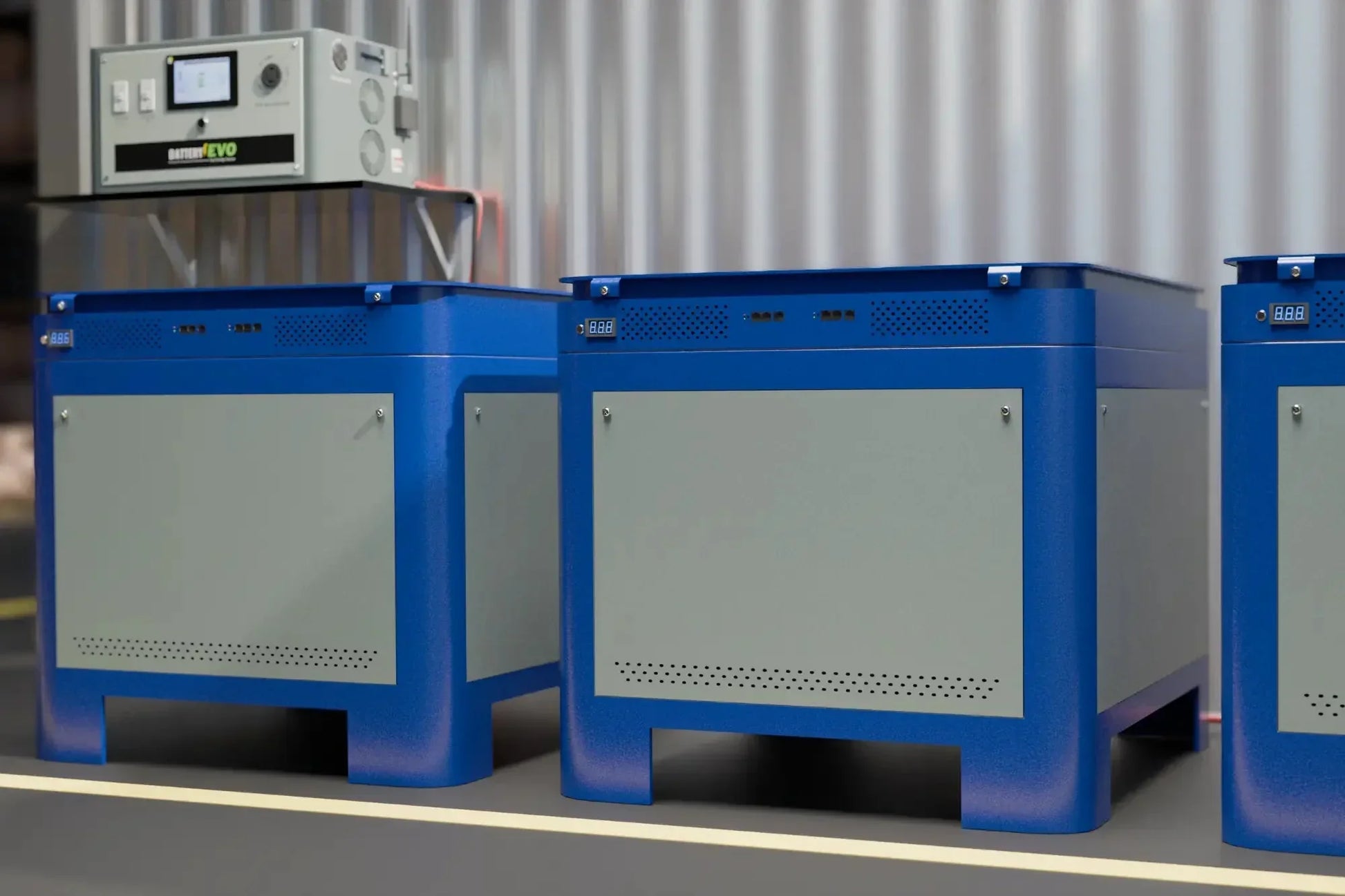

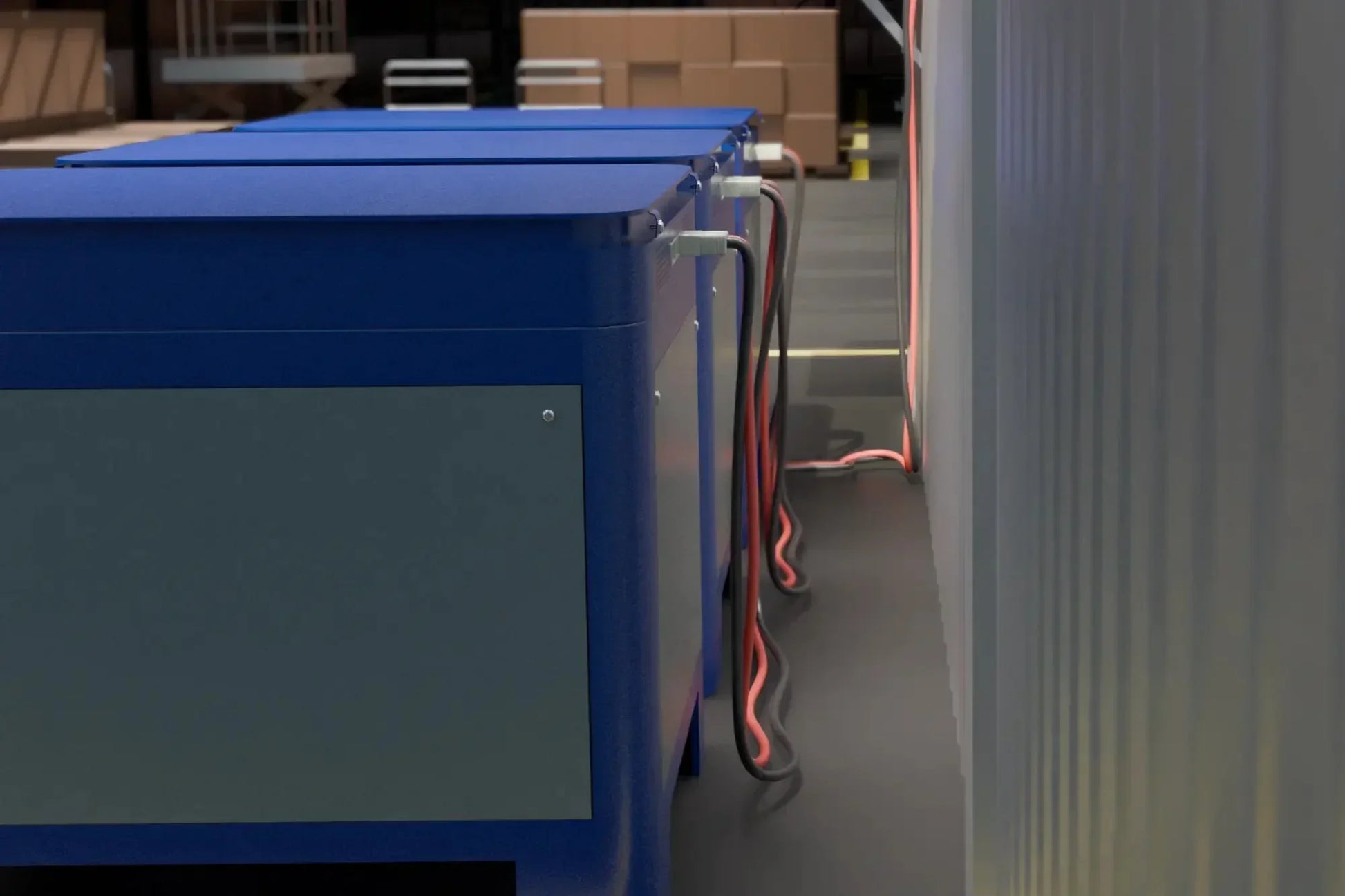

- Expandable by connecting multiple Walrus to get more capacity.
- Made in America.
- 10 Year warranty.
HOW TO INSTALL
Congratulations! You save $1,600 on labor of this installation.
- You will need the following materials (Est. $270): Download Now!
- Watch this video carefully:
Walrus Informational Videos gallery:
110V/220V Outlets
Power tools and appliances directly with built-in 110V and 220V outlets.
PV Input DC (90V-230V)
Easily connect your solar panels DC using the included BE175 connector.
AC Input (Max 50A)
Connect home AC grid power to the Walrus using SS2-50P connector.
AC Output (Max 50A)
Connect the Walrus to your home using NEMA14-50R connector.
DC Input (Max 58V)

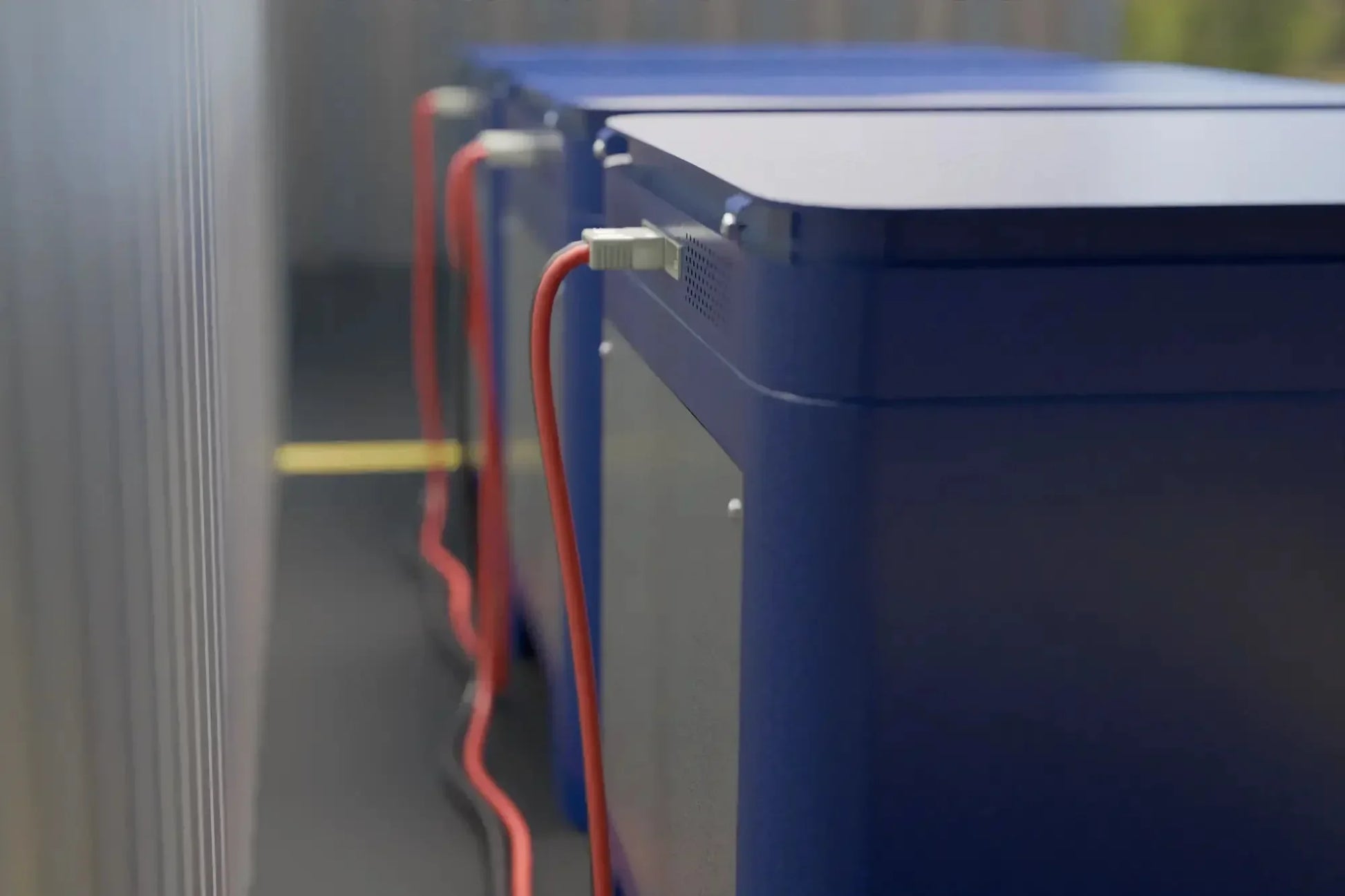

Expand your battery capacity easily with one connection.
Wi-Fi and Network Ports
Connect to your homes network and monitor the Walrus through our app.
Tech Spec
| SKU: | EVO-WLRS-1062-48 |
| System Voltage: | AC110/220V |
| Nominal Voltage: | 51.2V |
| Chemistry: | LFP |
| kWh Capacity: | 62 kWh |
| Ah Capacity: | 1210Ah |
| Charging Voltage: | 55.2V - 58.4V |
| Max Charge Voltage: | 58.8V |
| Operating Voltage Range: | 44.8V - 58.4V |
| Suggested Low Voltage Cutoff: | 44.8V - 50.8V |

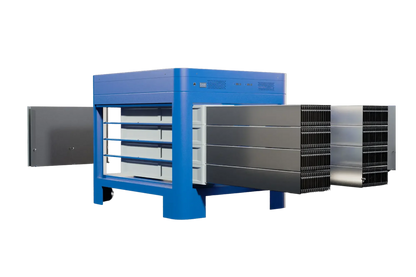

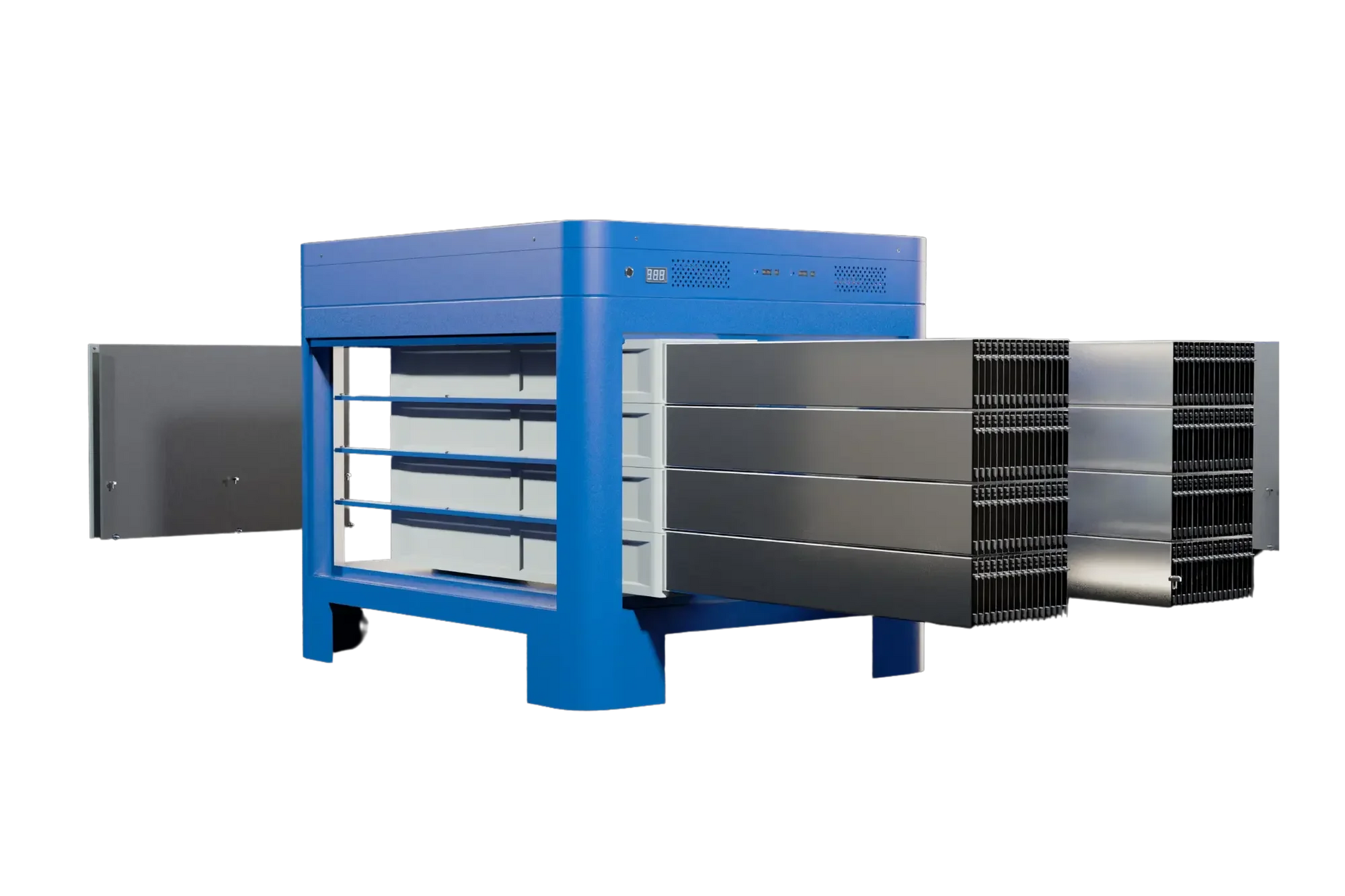

| Cell Configuration: | 16S4P |
| Max Continuous Discharge Current: | 500A |
| Max Continuous Power: | 12.5kVA |
| Max Discharge Peak Current: | 600A |
| Max Charge Current: | 500A |
| Charge Temperature Range: | 0°C (32°F) / 55°C (131°F) |
| Discharge Temperature Range: | -20°C (-4°F) / 55°C (131°F) |
| Optimal Discharge Temperature Range: | 15°C (59°F) / 35°C (95°F) |
| Storage Temperature Range: | -5°C (23°F) / 35°C (95°F) (Max 6 Months) |
| Weight: | 1230lbs (557.9kg) |
| Depth: | 43.5in (1105mm) |
| Width: | 34.1in (866mm) |
| Height: | 31.5in (800mm) |
| Safety Features: | Fuse (300A) & Battery Management System (Over/Under Voltage, Over Current, & Over/Under Temperature Protections) |
| Max Connections: | Up To (8) Parallel |
| Spec Sheet: | View |
| Inverter Spec Sheet: | View |
Suitable for
- OFF-GRID SYSTEMS
- LARGE COMMERCIAL
- EV CHARGING STATION
FAQ`s
Our standard shipping process ensures swift order fulfillment, with packages typically dispatched within 24 to 48 hours. Your estimated delivery times are as follows:
- For the East Coast, please expect delivery within 5 to 7 business days.
- If you’re in the Central region, you can anticipate your package arriving in 3 to 5 business days.
- For our West Coast customers, delivery is expedited, with packages expected to reach you in just 2 to 3 business days.
We proudly offer a generous 90-day return and exchange policy, designed to ensure your complete satisfaction with our products.
If you wish to update or change your shipping address, kindly email us your revised shipping details, and we will be more than happy to make the necessary changes in our system to ensure a seamless experience for your future transactions.
Once your order is shipped, an email containing your tracking number and a convenient link to monitor your package’s journey will be promptly sent to you. Keeping you informed every step of the way is our commitment to exceptional service.
While our advanced shipping system is designed to detect any incorrect addresses, we understand that changes may arise. Feel free to reach out to us via email or phone to provide us with any updates or corrections to your address. Your convenience is our priority, and we’re here to assist you promptly.
We proudly ship to USA Mainland addresses. Due to the hazmat nature of our batteries, we are currently unable to facilitate international shipping. However, for our international customers, we do offer the flexibility for buyers to arrange their own shipping to their desired destination country. Your convenience and satisfaction remain at the forefront of our service.
As some of our packages may exceed standard shipping dimensions, your order may arrive in multiple packages. To streamline your tracking experience, we provide a Master tracking number, with each individual package’s tracking number conveniently attached for your reference. Your order’s safe and efficient delivery is our top priority.
What Can Walrus Do?
The Walrus is an all-in-one energy storage system designed as a battery back up for homes and portable power generator.
