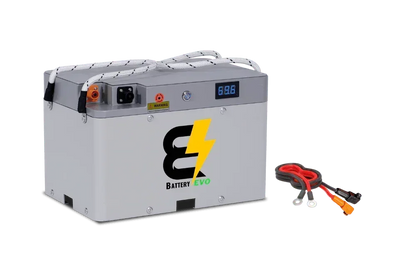

72V FALCON Battery System (27Ah – 2.1 kWh)
The BatteryEVO 72V FALCON Battery (27Ah – 2.1 kWh) is a LiFePO4 upgrade designed for work and transport carts that demand longer runtime, higher range, and faster operation. It drops into standard battery trays without tray modification, matching the footprint of two T-105 lead-acid batteries side by side. A raised base resolves divider interference, ensuring reliable seating in diverse tray geometries.
- System Voltage: 72V
- Nominal Voltage: 76.8V
- Chemistry: LiFePO4
- Capacity: 2.1 kWh / 27Ah
- Charging Voltage: 84V – 87.6V
- Max Charge Voltage: 88.8V
- Operating Voltage Range: 66.5V – 87.6V
- Suggested Low Voltage Cutoff: 66.5V – 72V
- Cell Configuration: 24S1P
- Max Continuous Discharge Current: 80 A
- Max Continuous Power: 6000 W
- Max Discharge Peak Current: 160 A (5 seconds)
- Max Charge Current: 80 A
- Charge Temperature Range: 0°C – 55°C
- Discharge Temperature Range: -20°C – 55°C
- Optimal Discharge Temperature Range: 15°C – 35°C
- Storage Temperature Range: -5°C – 35°C (max 6 months)
- Weight: 63 lbs (28.6 kg)

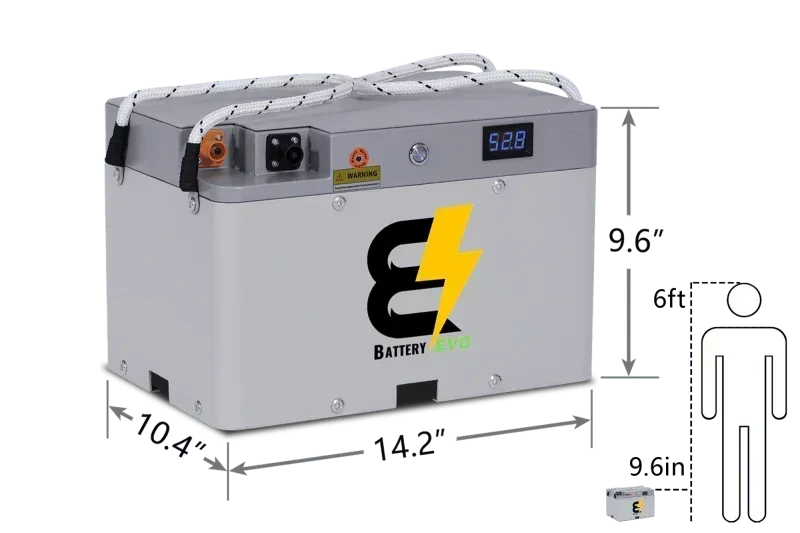

- Dimensions: 14.2" W × 10.4" D × 9.6" H
- Safety Features: 300A fuse & Battery Management System (Over/Under Voltage, Over Current, & Over/Under Temperature protections)
- Max Connections: Up To 8 in parallel

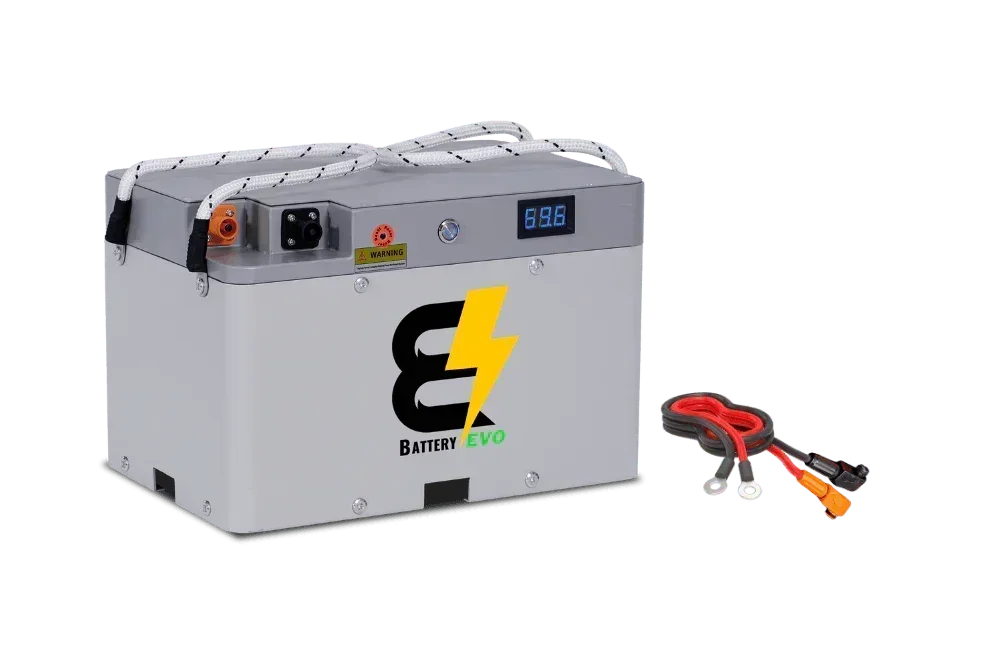

- Package Inclusions: 72V FALCON-S and 6AWG NE120 to Ring Terminal Cable
Installation and maintenance: Align with the Falcon Kit specifications—select a kit whose continuous power matches your motor and controller, as going outside the specified range will void the warranty. Ensure proper seating in the tray with the raised base to accommodate divider configurations. Use the supplied 6AWG harness for interim connections and verify secure, corrosion-free terminations. Maintain thermal conditions within the stated charge and discharge ranges, monitor the Battery Management System for faults, and keep the unit clean and dry during operation.
Warranty and service: BatteryEVO offers a 10-Year Warranty guaranteeing the battery from defects in materials and workmanship for 10 years from purchase. If a covered component fails within the warranty period, repair or replacement is provided at no charge. For the first year, shipping costs to and from the continental US are covered. This warranty supports continued performance when used within the defined specifications and the Falcon Kit guidelines.
BatteryEVO 72V FALCON Battery (27Ah - 2.1 kWh)
Are you looking for a reliable lithium upgrade for your work or transport cart? Look no further than the FALCON! It offers long-lasting performance, increased range, and faster speeds; a big change from the old lead-acid batteries that might be slowing down your cart.
What’s more, the FALCON fits perfectly into your battery tray. It’s about the same size as two T-105 lead-acid batteries side by side, so you don’t have to change your tray, and if there’s a divider causing issues, don’t worry! The FALCON has a raised base that solves that problem. It comes with top-notch LiFePO4 cells and our special Triple Safety Redundancy System. Upgrade your cart today and experience the power of the FALCON!

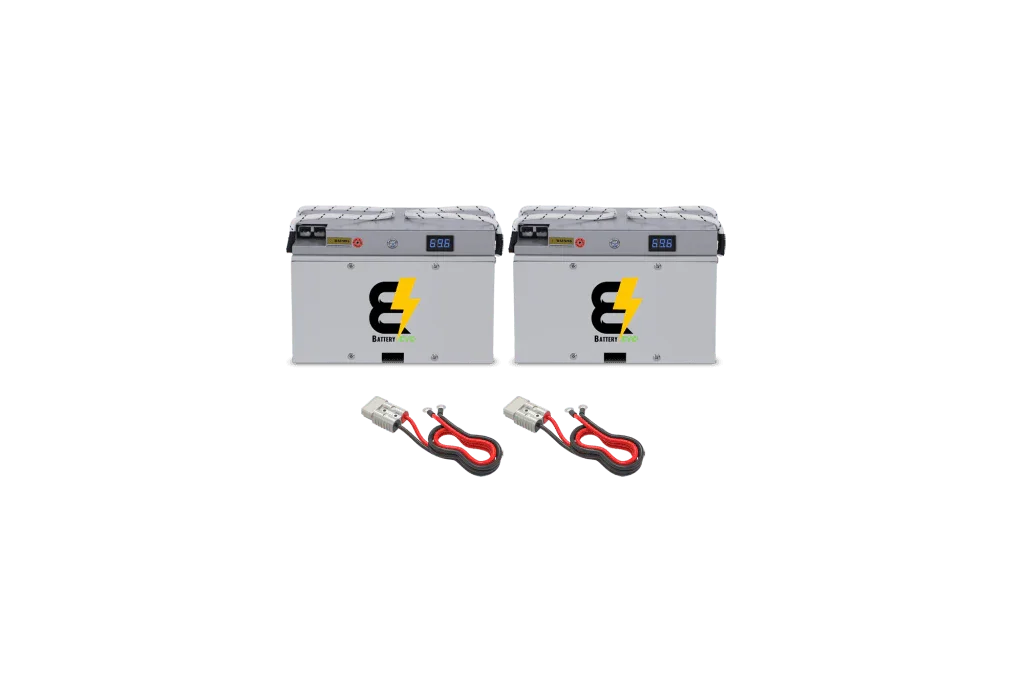

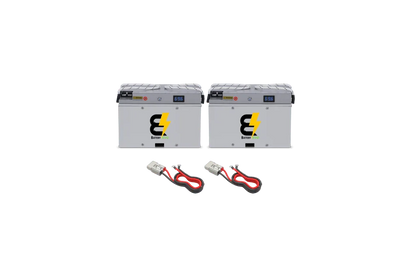

Please Note: One FALCON battery isn’t enough to power a whole golf cart. The individual FALCON battery is made for different power upgrades provided by the FALCON Kit. To make sure you get the right battery kit, compare the Continuous Power specifications of the FALCON kits with your motor and controller. Going against the battery specs will void the warranty.
PACKAGE INCLUSIONS
| Product | Quantity | |
|---|---|---|
|
|
72V FALCON-S |
1
|
|
|
6AWG NE120 to Ring Terminal Cable |
1
|
Product Specifications
BatteryEVO 72V FALCON Battery (27Ah - 2.1 kWh) Product Specifications
| SKU: | EVO-FLCN-72021-G2 |
| Name: | 72V FALCON |
| System Voltage: | 72V |
| Nominal Voltage: | 76.8V |
| Chemistry: | LFP |
| kWh Capacity: | 2.1 kWh |
| Ah Capacity: | 27Ah |
| Charging Voltage: | 84V - 87.6V |
| Max Charge Voltage: | 88.8V |
| Operating Voltage Range: | 66.5V - 87.6V |
| Suggested Low Voltage Cutoff: | 66.5V - 72V |
| Cell Configuration: | 24S1P |
| Max Continuous Discharge Current: | 80 A |
| Max Continuous Power: | 6000 W |
| Max Discharge Peak Current: | 160 A (5 seconds) |
| Max Charge Current: | 80 A |
| Charge Temperature Range: | 0°C (32°F) / 55°C (131°F) |
| Discharge Temperature Range: | -20°C (-4°F) / 55°C (131°F) |
| Optimal Discharge Temperature Range: | 15°C (59°F) / 35°C (95°F) |
| Storage Temperature Range: | -5°C (23°F) / 35°C (95°F) (Max 6 Months) |
| Weight: | 63lbs (28.6kg) |
| Depth: | 10.4in (264.2mm) |
| Width: | 14.2in (360.7mm) |

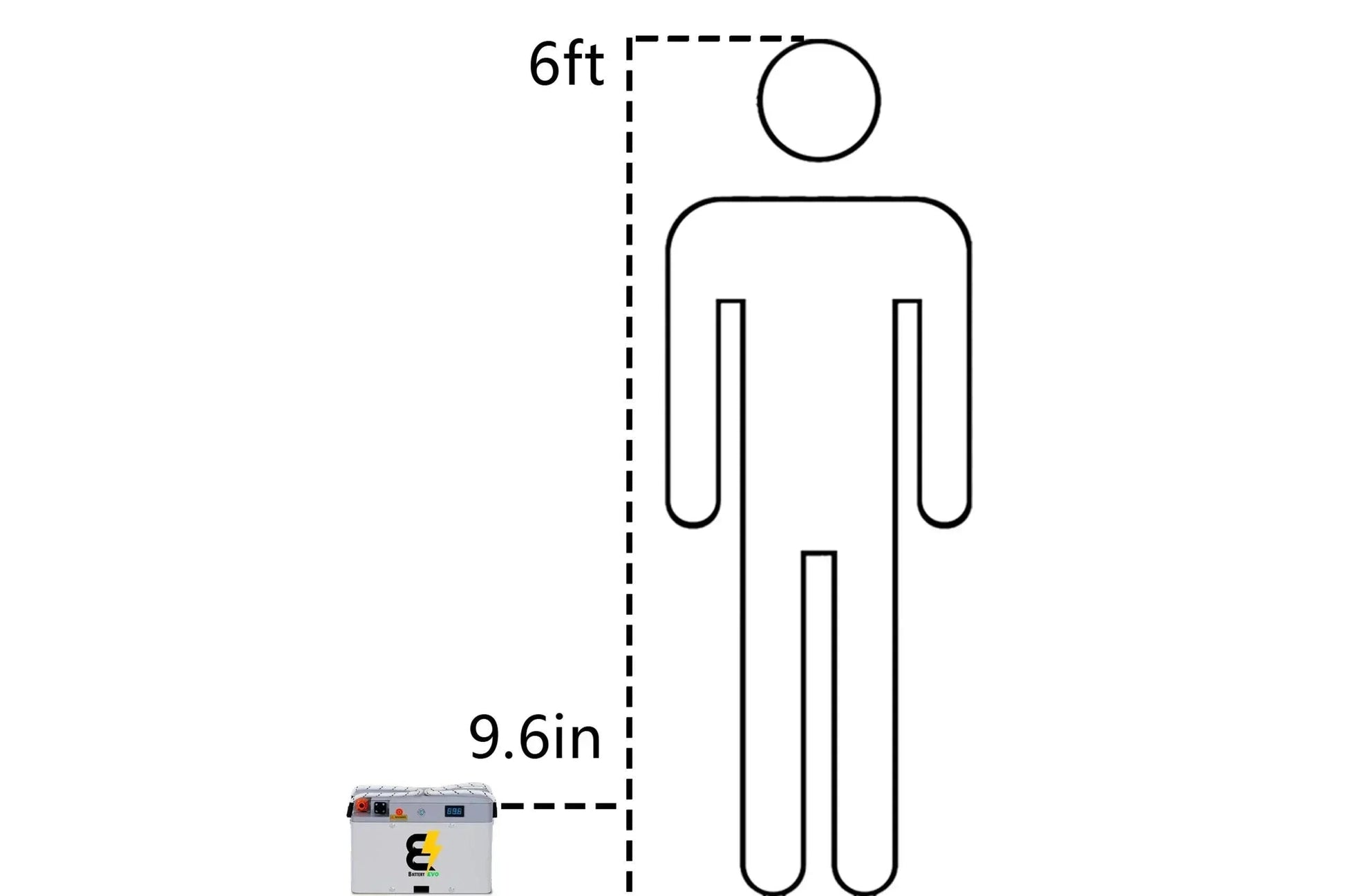

| Height: | 9.6in (243.8mm) |
| Safety Features: | Fuse (300A) & Battery Management System (Over/Under Voltage, Over Current, & Over/Under Temperature Protections) |
| Max Connections: | Up To (8) Parallel |
| Battery Spec Sheet: | View |
