BatteryEvo 48V MUSTANG
The BatteryEvo 48V MUSTANG is a high-capacity energy storage system designed for off-grid power, backup power, and demanding on-site applications. This 7 kWh (140 Ah) battery pack uses Razor LiFePO4 cells and an advanced Beyond BMS to deliver reliable, maintenance-free energy with enhanced safety and durability. The bundle includes 1x 48V MUSTANG-S module and 1x 4AWG 4FT BE175 to Ring Terminal Cable for straightforward integration.
Technical specifications
- System Voltage: 48V; Nominal Voltage: 51.2V
- Chemistry: Lithium Iron Phosphate (LFP)
- Energy Capacity: 7 kWh; Ah Capacity: 140 Ah
- Charging Voltage Range: 55.2V – 58.4V; Max Charge Voltage: 58.8V
- Operating Voltage Range: 44.8V – 58.4V
- Recommended Low Voltage Cutoff: 44.8V – 50.8V
- Charge Temperature Range: 0°C to 55°C; Discharge Temperature Range: -20°C to 55°C
- Optimal Discharge Temperature Range: 15°C – 35°C; Storage Temperature: -5°C to 35°C (maximum 6 months)
Performance and safety
Designed for high energy density and long life, the MUSTANG delivers reliable power with minimal maintenance. Safety is reinforced by a 300A fuse and a Battery Management System featuring over/under voltage, over current, and over/under temperature protections, plus triple safety redundancy provided by Beyond BMS technology.
Installation and maintenance
- Install with the included 4AWG 4FT BE175 to Ring Terminal Cable for secure electrical connections.
- Operate within the specified temperature and voltage ranges to preserve performance and longevity.
- Provide proper mounting and ventilation as part of standard safety practices for stationary energy storage systems.
- Periodic inspections of cabling, isolation, and connectors are recommended to maintain optimal operation.
Warranty and service
Warranty: 10-year warranty covering manufacturing defects and defined performance criteria under normal use. Service: official BatteryEvo support is available for diagnostics, guidance, and replacement parts as needed to ensure continuous operation.
BatteryEvo 48V MUSTANG

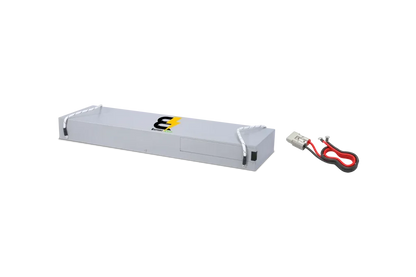

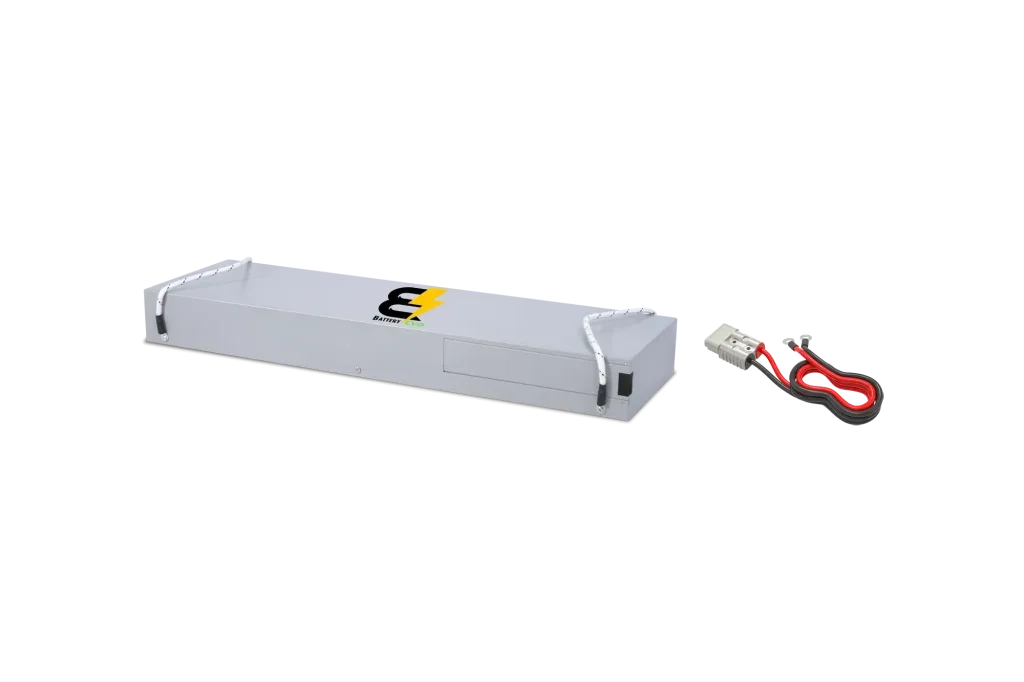

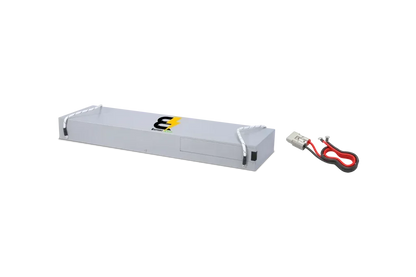

Included in this bundle:
- 1.
48V MUSTANG-S (x1) - 2.
4AWG 4FT BE175 to Ring Terminal Cable (x1)
Product information:
The BatteryEVO 48V 7kWh (140Ah) MUSTANG battery delivers reliable, high-capacity energy for off-grid, backup, and worksite power needs. Built with premium Razor LiFePO4 cells and an advanced Beyond BMS, it ensures top safety, efficiency, and durability. Embrace powerful, maintenance-free energy with this next-generation solution.
➤ Beyond BMS with triple safety redundancy
➤ Razor LiFePO4 cells for superior safety
➤ High energy density, maintenance-free
➤ 10-year warranty
