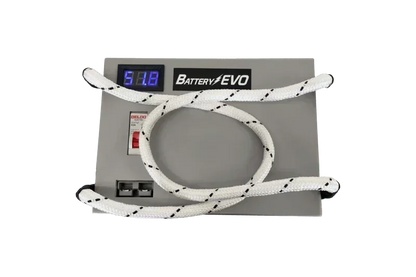

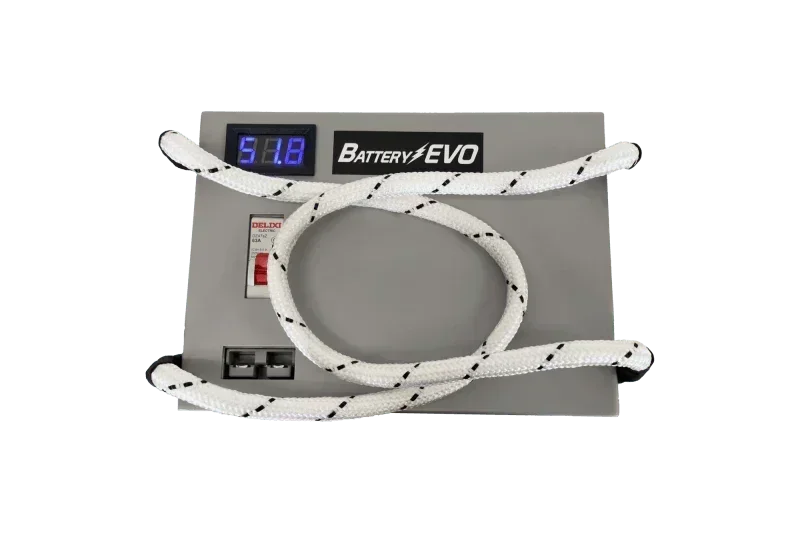

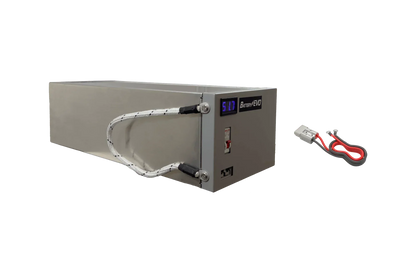

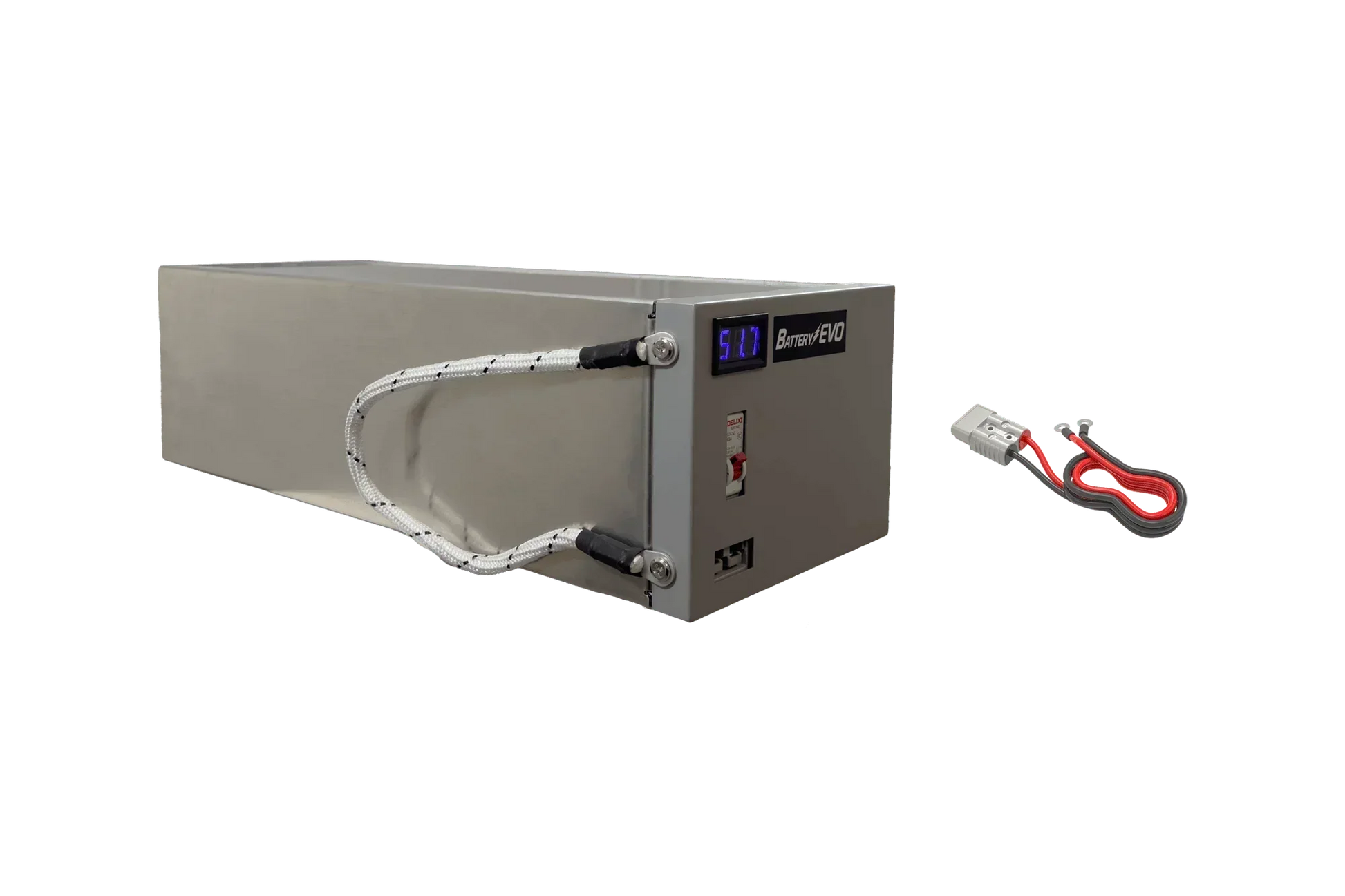

BatteryEVO 48V CHIHUAHUA Battery (40Ah - 2 kWh) for Golf Carts
The BatteryEVO 48V CHIHUAHUA Battery is a compact 48V LiFePO4 power pack designed to elevate electric golf carts with reliable, efficient performance. At 2 kWh capacity (40Ah) and a lightweight 57 lb form factor, this module delivers higher usable energy per charge while saving space and simplifying installation.
Performance specifications
- System Voltage: 48V
- Nominal Voltage: 51.2V
- Capacity: 2 kWh (40Ah)
- Max Continuous Discharge Current: 60A
- Max Continuous Power: 3000W
- Cell Configuration: 16S
- Weight: 57 lbs (25.85 kg)
- Dimensions (L×W×H): 20.5 in × 8.5 in × 6.5 in
- Charging Voltage: 55.2V–58.4V
- Operating Voltage Range: 44.8V–58.4V
- Discharge Temperature Range: -20°C to 55°C
- Charge Temperature Range: 0°C to 60°C

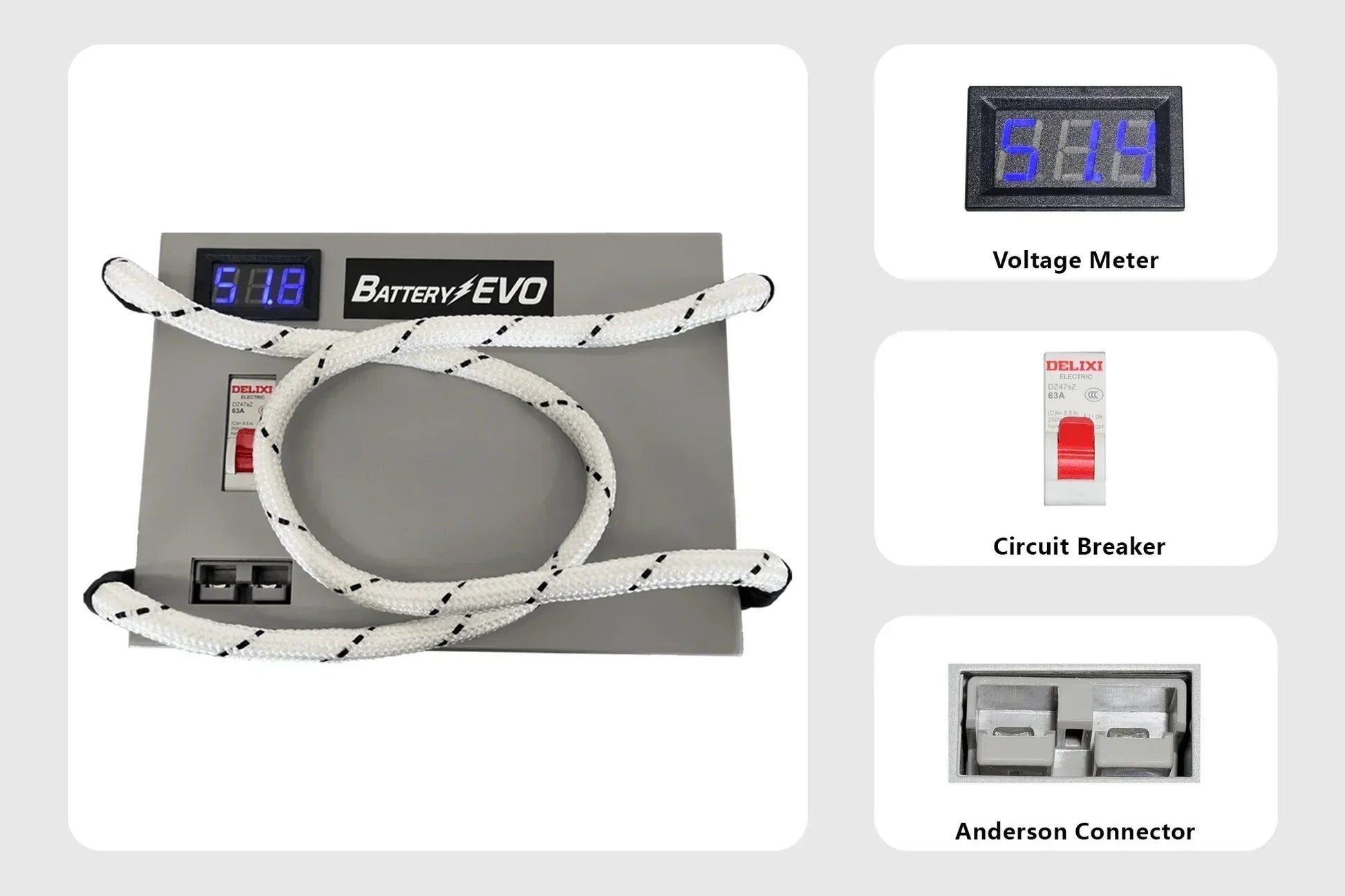

Safety features
- Comprehensive Battery Management System (BMS)
- 63A safety breaker
- Over/Under Voltage protections
- Over Current protections
- Over/Under Temperature protections
Installation and maintenance
The CHIHUAHUA battery is engineered for space-saving integration in a 48V golf cart, benefitting from its compact footprint and 57‑lb weight. For detailed installation guidance, refer to the Product Manual. Maintenance follows standard LiFePO4 guidelines and requires a charger within the specified 55.2–58.4V range while operating within 44.8–58.4V and temperature limits of -20°C to 55°C (discharge) and 0°C to 60°C (charge). See the Product Spec Sheet for complete setup and care recommendations.
Warranty and service
Warranty terms and service options are provided in the Product Spec Sheet.
Refer to Product Manual and Product Spec Sheet for detailed information on setup and optimal usage.
BatteryEVO 48V CHIHUAHUA Battery (40Ah - 2 kWh)
Introducing the BatteryEVO 48V CHIHUAHUA Battery (40Ah - 2 kWh), your ultimate solution for an enhanced golf cart experience. This next-generation LiFePO4 battery is designed to be compact yet powerful, offering unmatched reliability and efficiency. With advanced lithium-ion technology, the CHIHUAHUA battery stands out as a game-changer, ready to elevate your golfing adventures.
Main Advantages:
- Lightweight and Space-Saving: Weighing only 57 lbs, the CHIHUAHUA is incredibly lightweight, making it easy to install while maximizing available space in your golf cart.
- Superior Performance: Equipped with cutting-edge features like a 63A Safety Breaker and a comprehensive Battery Management System (BMS), this battery ensures high discharge rates and exceptional longevity, outperforming traditional lead-acid batteries.
- Unbeatable Value: Offering an outstanding price point, the CHIHUAHUA is the most budget-friendly 48V lithium option on the market, delivering high performance without compromising your wallet.
Why This Product is Essential:
For anyone serious about enhancing their golf cart capabilities, the CHIHUAHUA battery is essential. Its combination of lightweight design, advanced safety features, and affordability unlocks new possibilities for your golfing experience. Don’t settle for less – choose the CHIHUAHUA and enjoy longer, more efficient outings on the course.
Specifications and Guides:
Features:
- System Voltage: 48V
- Nominal Voltage: 51.2V
- Capacity: 2 kWh (40Ah)
- Max Continuous Discharge Current: 60A
- Max Continuous Power: 3000W
- Comprehensive Safety Features: Over/Under Voltage, Over Current, and Over/Under Temperature Protections
Manuals & Guides:
Access the Product Manual and Product Spec Sheet for detailed information on setup and optimal usage.
Specifications:
- Charging Voltage: 55.2V - 58.4V
- Operating Voltage Range: 44.8V - 58.4V
- Cell Configuration: 16S
- Weight: 57 lbs (25.85 kg)
- Dimensions (L x W x H): 20.5in x 8.5in x 6.5in
- Temperature Range: -20°C to 55°C (Discharge); 0°C to 60°C (Charge)
