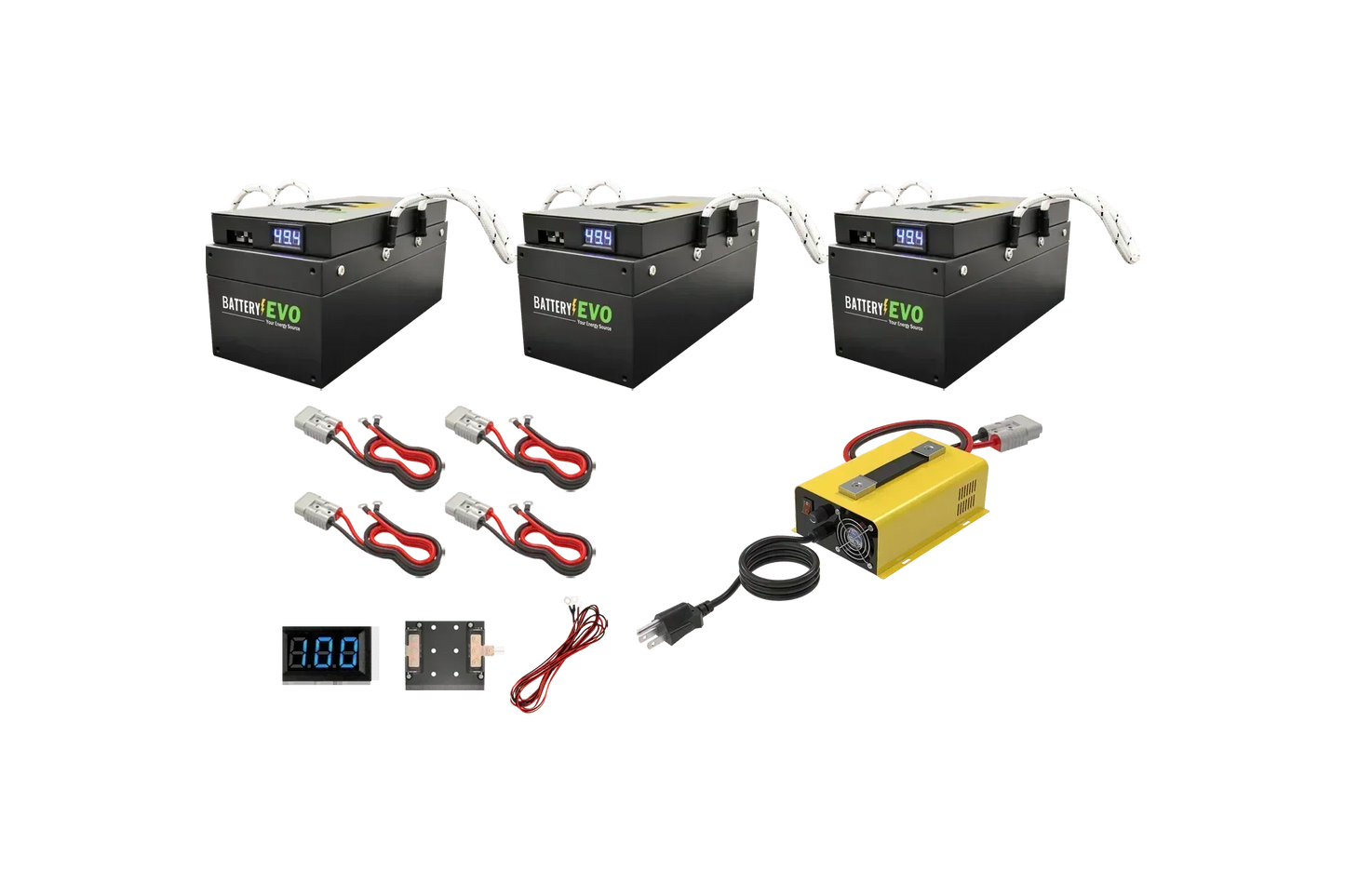

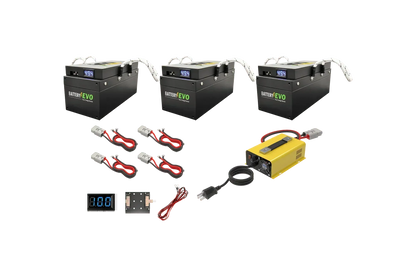

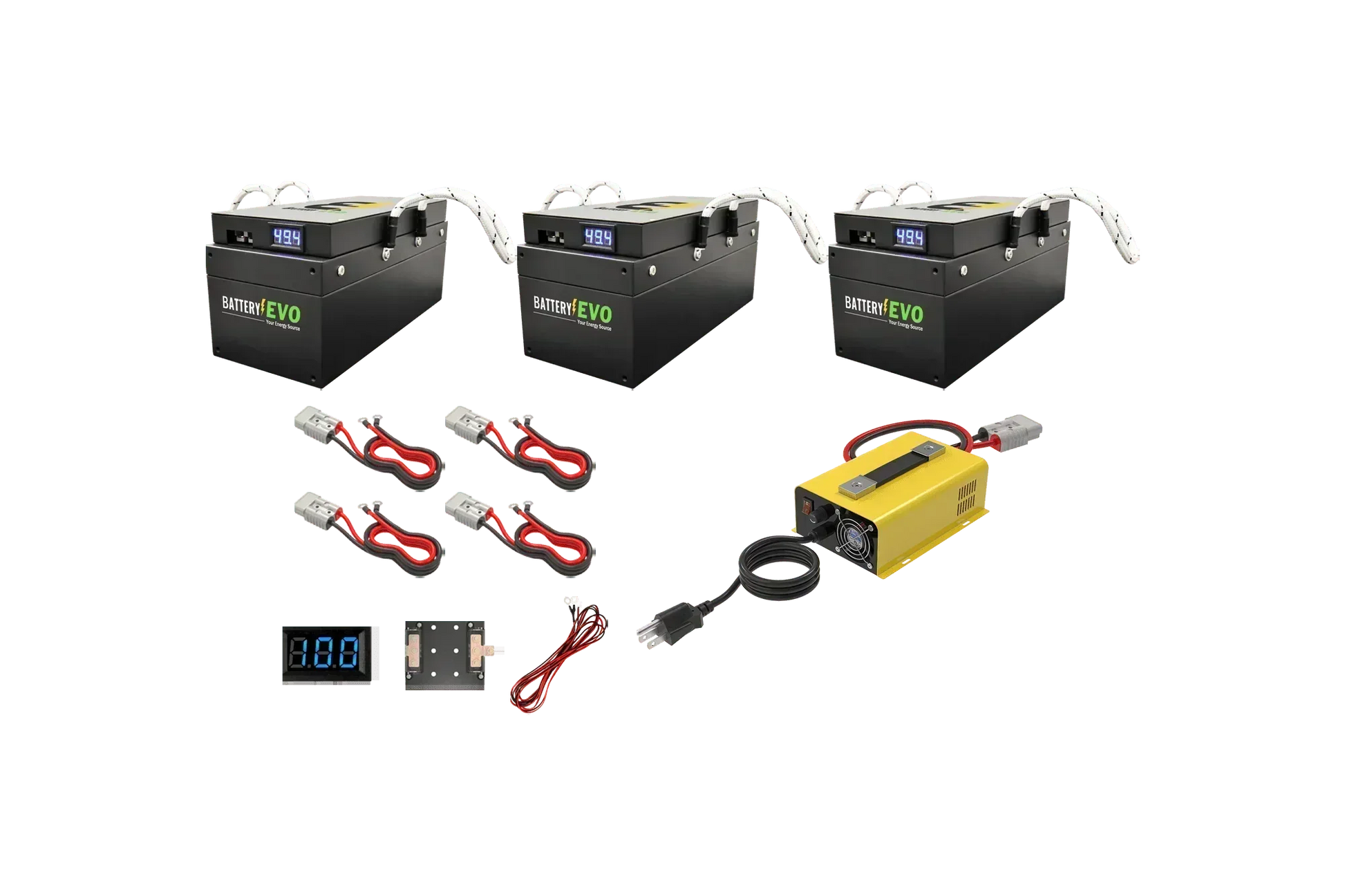

BatteryEVO 48V BADGER 3x Battery Kit (141Ah - 6.3 kWh) for Compact Golf Carts
The BatteryEVO 48V BADGER 3x Battery Kit is a compact, high-efficiency energy solution engineered to upgrade golf carts from lead-acid to advanced lithium chemistry. With a total capacity of 141Ah and 6.3 kWh, this 48V pack delivers reliable power and improved cycle life in a space-constrained format, enabling longer rides and faster acceleration without added weight.
Key specifications
- System Voltage: 48V
- Nominal Voltage: 44.2V
- Battery Type: NMC Lithium-ion
- Capacity: 141Ah, 6.3 kWh
- Charging Voltage: 49.8V – 50.4V
- Max Charge Current: 60A
- Max Continuous Discharge Current: 60A
- Max Discharge Peak Current: 120A (6 seconds)
- Weight: 36 lbs (16.3 kg)
- Optimal Discharge Temperature: 15°C to 35°C
Safety and protection

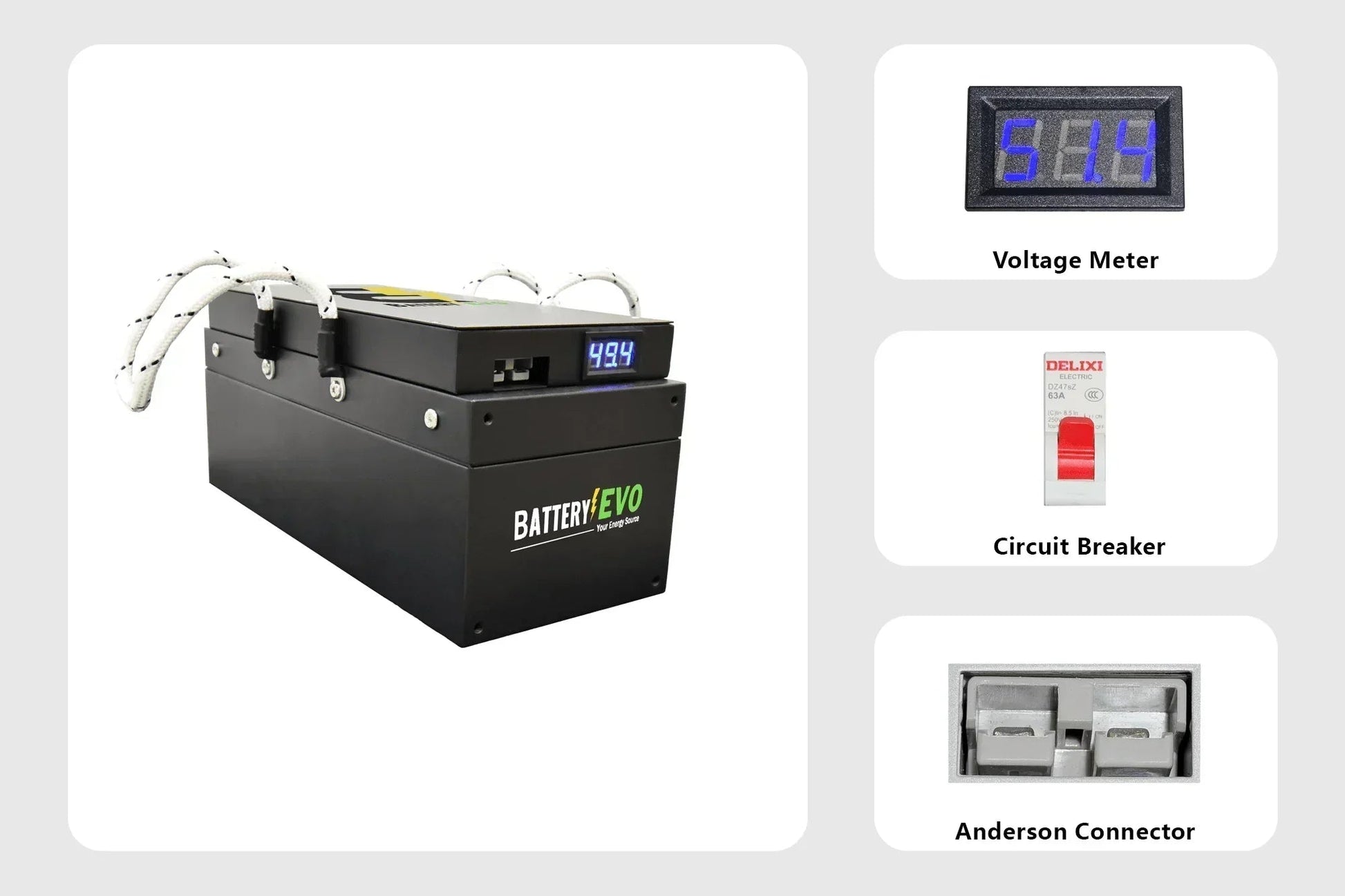

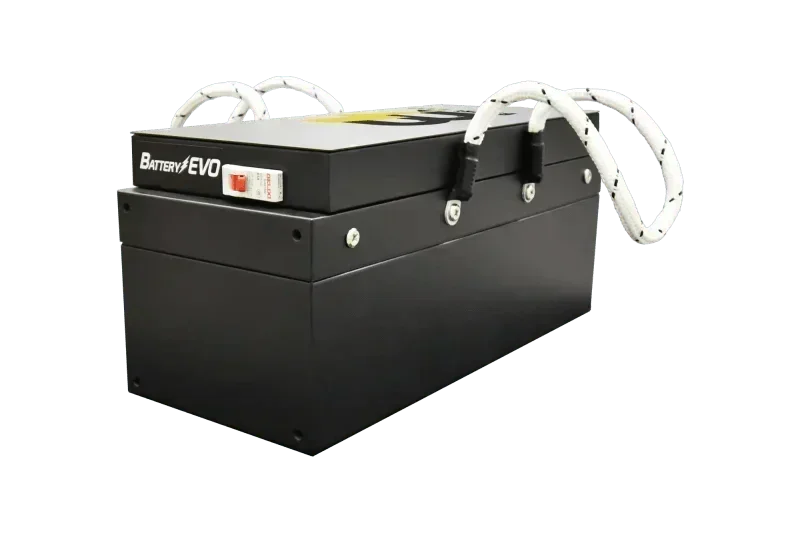

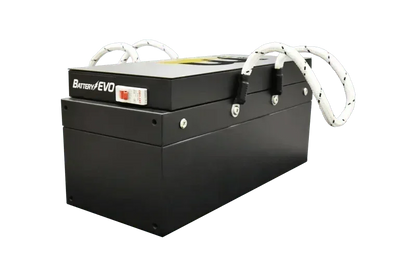

- 63A safety breaker integrated for rapid fault isolation
- Advanced Battery Management System (BMS) with over/under voltage, over current, and temperature protections
- Thermal Management System to maintain safe operating temperatures
Installation and maintenance
Installations should be conducted by qualified personnel familiar with 48V golf-cart electrics. The BADGER kit is designed for straightforward replacement of lead-acid packs, with attention to secure mounting and proper wiring to the vehicle’s 48V system. For detailed installation steps and maintenance guidelines, refer to the Product Manual and the Product Spec Sheet.
Warranty and service
Warranty: 10 Years with Lifetime Tech Support. Gain ongoing service and expertise to maximize uptime and battery longevity.
Enhance your golf cart’s performance with the BatteryEVO BADGER Battery Kit—combining lightweight design, robust discharge capability, and comprehensive safety features to deliver a reliable, cost-effective lithium solution. See the Product Manual and Product Spec Sheet for deeper technical details.
BatteryEVO 48V BADGER 3x Battery Kit (141Ah - 6.3 kWh)
Introducing the BatteryEVO 48V BADGER 3x Battery Kit, the pinnacle of innovation in compact golf cart solutions! Don’t let its small size fool you; the BADGER is engineered for exceptional reliability and efficiency, boasting an impressive capacity designed to elevate your golf cart experience. With top-tier lithium-ion cells, a robust 63A Safety Breaker, and an advanced Battery Management System featuring a Thermal Management System, the BADGER goes beyond merely replacing traditional lead-acid options – it outperforms them.
Main Advantages:
- Lightweight & Cost-Effective: Weighing only 36 lbs/kWh, the BADGER is the lightest and most affordably priced 48V lithium battery solution on the market today.
- High Discharge Performance: Featuring a 2C Discharge Rate, the BADGER efficiently manages high discharge currents to ensure optimal battery system performance.
- Comprehensive Safety Features: Equipped with a 63A breaker and an advanced BMS, the BADGER includes essential safeguards against over/under voltage, over current, and temperature extremes.
Why This Product is Essential:
Upgrade your golf cart with the BatteryEVO BADGER Battery Kit and experience a significant enhancement in power and efficiency. Designed for those who demand performance without compromising on weight or cost, the BADGER provides a reliable power source that meets all your golfing needs.
Specifications and Guides:
Features:
- System Voltage: 48V
- Nominal Voltage: 44.2V
- Max Continuous Discharge Current: 60A
- Max Discharge Peak Current: 120A (for 6 seconds)
- Weight: 36 lbs (16.3 kg)
- Optimal Discharge Temperature Range: 15°C (59°F) to 35°C (95°F)
Manuals:
For detailed instructions, please visit our Product Manual.
Guides:
Access our Product Spec Sheet for more technical specifications.
Specifications:
- Battery Type: NMC Lithium-ion
- Capacity: 141Ah, 6.3 kWh
- Charging Voltage: 49.8V - 50.4V
- Max Charge Current: 60A
- Warranty: 10 Years with Lifetime Tech Support
Don't miss out on the opportunity to enhance your golf cart performance with the BatteryEVO 48V BADGER 3x Battery Kit. Join the revolution in battery technology and ensure a powerful ride every time!
