12V OWL105 LiFePO4 Battery for Vans and RVs — 105Ah / 1.35 kWh
Designed for van life and boondocking, the BatteryEVO 12V OWL105 delivers reliable, maintenance-free energy storage. At 105Ah (1.35kWh), it combines lightweight LiFePO4 chemistry with a robust BMS to protect against faults and enable safe charging across varied operating conditions.
Key specifications
- System Voltage: 12V
- Nominal Voltage: 12.8V
- Chemistry: LiFePO4 (LFP)
- Capacity: 105Ah / 1.35kWh
- Cell Configuration: 4S
- Charge Voltage Range: 13.8–14.6V
- Max Charge Current: 100A
- Max Discharge Current: 100A
- Max Discharge Power: 1344W
- Discharge Peak Current: 300A (5 s)
- Operating Range: 11.2–14.6V
- Low Cutoff: 11.2–12.8V
- Charge Temp: 0–55°C
- Discharge Temp: −20–55°C
- Optimal Discharge: 15–35°C
- Storage Temp: −5–35°C (6 mo)
- Weight/Dims: 35 lb; 10.1" D × 7.2" W × 12" H
- Max Parallel: Up to 8 units

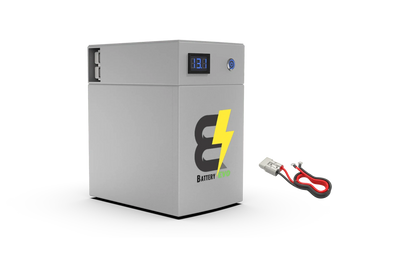

- Inclusions: 12V OWL105-S; 4AWG 4FT BE175 to Ring Terminal Cable
Safety and reliability
The integrated Battery Management System provides Over/Under Voltage Protection, Overcurrent Protection, and Over/Under Temperature protections to guard charging and discharging across ambient temperatures. A sturdy 300A fuse adds fault isolation for high-current events, while LiFePO4 chemistry offers improved thermal stability, longer cycle life, and maintenance-free operation.
Installation and maintenance
Install in a well-ventilated, secure location within the van or RV. The system supports up to eight in parallel to scale capacity for heavier loads. Use the included 4AWG BE175 to Ring Terminal Cable (4 ft) to connect to your distribution panel, following the provided wiring diagram. The OWL105 is maintenance-free; no routine fluid top-ups required.
Warranty and service
Warranty coverage includes BatteryEVO’s 10-Year Warranty with Free Repair & Replacement for defects in material and workmanship for 10 years from the date of purchase. For service, contact BatteryEVO support through official channels.
BatteryEVO 12V OWL105 Battery (105Ah - 1.35 kWh)
Specially designed for vans and RVs, the BatteryEVO 12V 1.35 kWh LiFePO4 OWL battery epitomizes the high-quality battery standard that our brand is known for.
Featuring advanced LFP cells, recognized as today’s safest lithium chemistry, the OWL battery is a pinnacle of reliability and safety. Its top-tier Battery Management System (BMS) provides comprehensive Over/Under Voltage Protection, Overcurrent Protection, and an intricate Thermal Management System. This ensures safe charging and discharging over a broad temperature range, reinforced by a sturdy 300A Fuse. Ideal for full-time van lifers or boondocking enthusiasts, the OWL battery is your steadfast power ally.
Embrace a transformative leap to Lithium Power. The 12V OWL battery revolutionizes your energy source, offering double the power, half the weight, faster charging, and up to four times the cycle life of traditional lead-acid batteries. And the best part? It’s maintenance-free. The longevity of the OWL battery eliminates frequent battery replacements, rendering it a more favorable choice in the long run. In the realm of lithium RV batteries, the OWL battery stands out for its cost-effectiveness. Upgrade to unparalleled power today and set off on your next RV journey, powered by the unmatched performance of the 12V OWL from BatteryEVO. This is a more favorable choice.
PACKAGE INCLUSIONS
| Product | Quantity | |
|---|---|---|
|
|
12V OWL105-S |
1
|
|
|
4AWG 4FT BE175 to Ring Terminal Cable |
1
|
Product Specifications
BatteryEVO 12V OWL105 Battery (105Ah - 1.35 kWh) Product Specifications
| SKU: | EVO-OWL-12013-G1 |
| Name: | OWL105 |
| System Voltage: | 12V |
| Nominal Voltage: | 12.8V |
| Chemistry: | LFP |
| kWh Capacity: | 1.35kWh |
| Ah Capacity: | 105Ah |
| Charging Voltage: | 13.8V-14.6V |
| Max Charge Voltage: | 14.8V |
| Operating Voltage Range: | 11.2V - 14.6V |
| Suggested Low Voltage Cutoff: | 11.2V - 12.8V |
| Cell Configuration: | 4S |
| Max Continuous Discharge Current: | 100A |
| Max Continuous Power: | 1344W |
| Max Discharge Peak Current: | 300A (5 seconds) |
| Max Charge Current: | 100A |
| Charge Temperature Range: | 0°C (32°F) / 55°C (131°F) |
| Discharge Temperature Range: | --20°C (-4°F) / 55°C (131°F) |
| Optimal Discharge Temperature Range: | 15°C (59°F) / 35°C (95°F) |
| Storage Temperature Range: | -5°C (23°F) / 35°C (95°F) (Max 6 Months) |
| Weight: | 35lbs (15.9kg) |
| Depth: | 10.1in (256.5mm) |
| Width: | 7.2in (182.9mm) |
| Height: | 12in (304.8mm) |
| Safety Features: | Fuse (300A) & Battery Management System (Over/Under Voltage, Over Current, & Over/Under Temperature Protections) |
| Max Connections: | Up To (8) Parallel |
| Battery Spec Sheet: | View |
