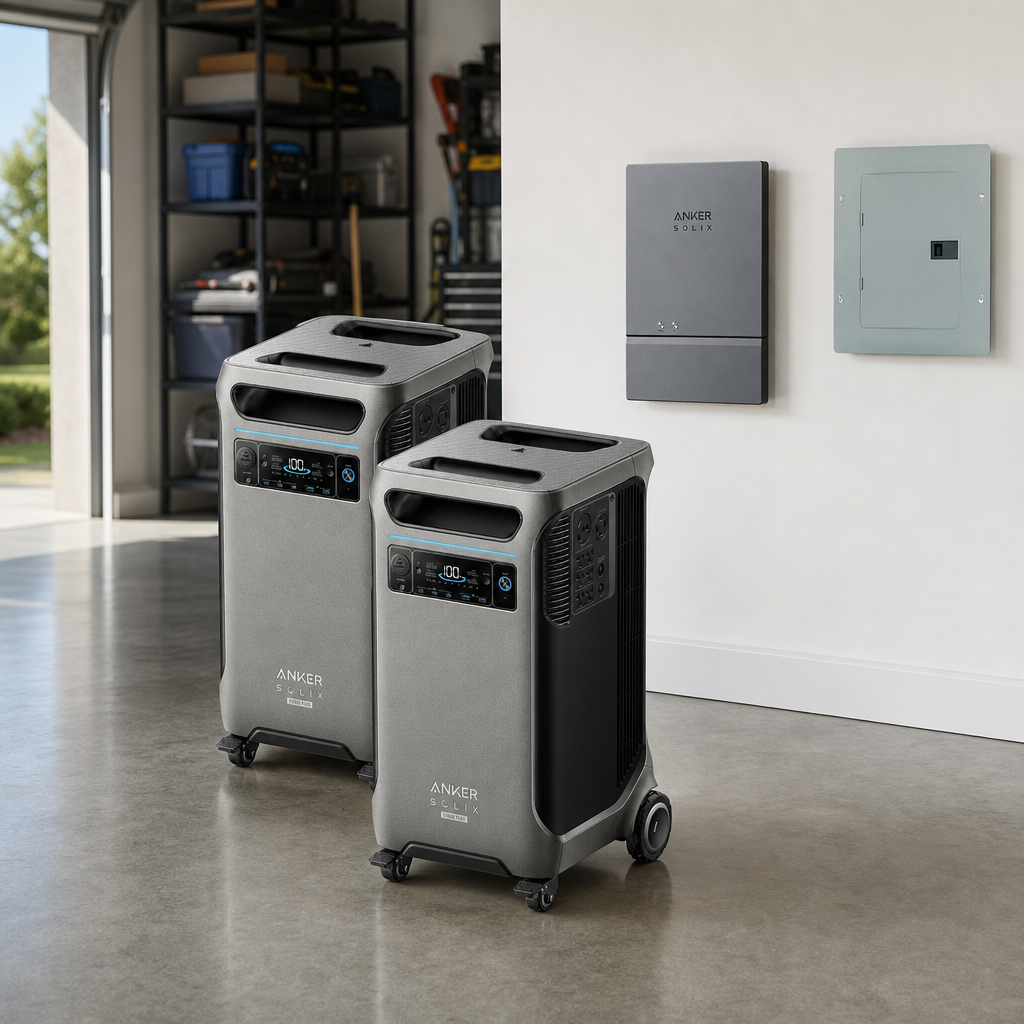

Anker SOLIX F3800 Plus Dual Power Station with Home Backup Panels
Equipment Type: Dual-unit lithium backup system with integrated Home Power Panel and Sub Panel.
Primary Applications: Whole-home outage resilience, off-grid solar capture, remote cabin power, and continuous supply for high-wattage 240 V loads including HVAC, well pumps, and workshop tools.
Performance Specifications
- Total Storage: 7,680 Wh across two units (expandable to 26.9 kWh via six BP3800 banks)
- Chemistry & Cycles: LiFePO4 core (32140FS-15000mAh), 51.2 Vdc nominal, 75 Ah per module, 3,000+ cycles to 80% SoH
- Inputs: AC charging 1,800 W max or 1,440 W continuous; dual MPPT solar ports accepting 11–165 V, 17 A max per channel (1,600 W per port); DC input limit 60 V, 120 A
- Output & Transfer: 6,000 W continuous AC rating with true 240 V split-phase delivery; distributes to 12 independent sub-panel circuits; switchover time 20 ms
- Environment: Discharge -20 °C to 40 °C; charge 0 °C to 40 °C; size 70.2 × 38.8 × 39.5 cm per unit; mass 62 kg
Safety Features and Certifications
- BMS regulates cell balancing, isolation resistance, and thermal thresholds
- Enclosure protects against conductive ingress; outlets feature overload and ground-fault interruption
- Complies with residential branch circuit protection standards
Installation and Maintenance Requirements
- Utilities: Integrates with 120 V grid, photovoltaic arrays, or standby generators
- Space: Maintain 1 m clearance around convection cooling vents
- Commissioning: Hardwire panels to main service entrance under licensed electrician supervision
- Maintenance: Verify terminal torque quarterly, test solar MPPT tracking annually, apply firmware updates bi-annually
Warranty and Service Information
- Warranty duration, coverage scope, and service response timelines are not documented in the provided materials
Branding/References
- Manufacturer: Anker SOLIX | Models: F3800 Plus (x2), Home Power Panel, Sub Panel
- Reference: Official product datasheet and user manual
Differentiators
- Native 240 V split-phase generation allows direct parallel operation of whole-house HVAC and large motors without external transfer switches
| Specifications | Details |
| Battery Type | LiFePO4 Cell |
| Cell Part Number | 32140FS-15000mAh |
| Charging Cycle | 3000+ (to 80%) |
| Cell Capacity | 51.2Vdc 75Ah/3840Wh |
| Specifications | Details |
| AC Input | 120V~ 15A Max (< 3hrs) / 12A Max (continuous), 60Hz, L+N+PE |
| AC Input Power (Charging) | 1800W Max |
| AC Input Power (Bypass Mode) | 1440W Max |
| Solar Panel Input 1 | 11-165V - 17A Max (1600W Max Each) |
| Solar Panel Input 2 | 11-165V - 17A Max (1600W Max Each) |
| DC Input Port | 60V Max, 120A Max |
| Specifications | Details |
| Car Charger Output | 12V - 10A |
| Home Panel Power Port | 6000W Max (AC Input), 6000W Max (AC Output), 120V/240V, L1+L2+N+PE |
| AC Output Power (Total) | 6000W Max |
| AC Output 1 | 120V~ 20A Max, 60Hz, 2400W Max |
| AC Output 2 | 120V~ 20A Max, 60Hz, 2400W Max |
| AC Output (NEMA L14-30R) | 120V/240V~ 25A Max, 60Hz, 6000W Max |
| USB-A Output | 5V - 2.4A (12W Max Per Port) |
| USB-C Output | 5V - 3A / 9V - 3A / 15V - 3A / 20V - 3A / 20V - 5A (100W Max Per Port) |
| Specifications | Details |
| UPS | 20ms |
| Specifications | Details |
| Discharging Temperature | -4°F-104°F / -20°C-40°C |
| Charging Temperature | 32°F-104°F / 0°C-40°C |
| Specifications | Details |
| Size | 27.6×15.3×15.6 in / 70.2×38.8×39.5 cm |
| Net Weight | 62kg / 136.7lb |
