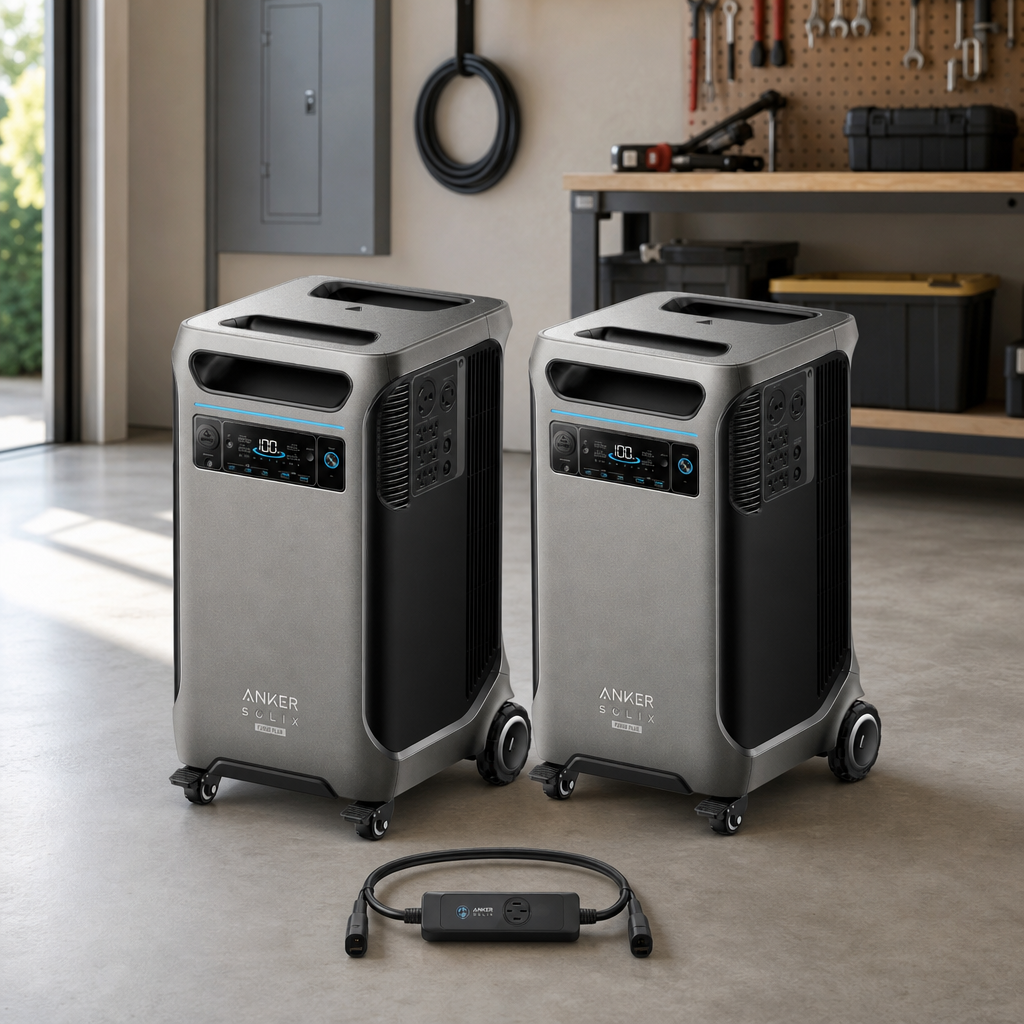

Anker SOLIX F3800 Plus Portable Power Station x2 + Double Voltage Hub
Equipment Type: Modular lithium iron phosphate energy storage system with split-phase AC distribution. Primary Applications: Whole-home backup, off-grid residential builds, RV electrical integration, and sustained cycling of high-amperage loads like central HVAC, well pumps, and electric ranges.
Performance Specifications
- Total Capacity: 7,680Wh (51.2Vdc, 75Ah per unit; expandable to 53.8kWh via BP3800 modules)
- AC Output: 12,000W continuous, 24,000W inrush, true 120V/240V split-phase
- Photovoltaic Input: 6,400W aggregate (11–165V, 17A max per MPPT)
- Line Charging: 1,800W per unit; compatible with 240V generator bypass
- UPS Switchover: 20ms, 1440W bypass pass-through enabled
- Thermal Limits: −20°C to 40°C discharge, 0°C to 40°C charge
Safety Features and Certifications
Integrated multiprotect architecture enforces over-current isolation, thermal cutoff, and fault mitigation. Field integration must comply with local standby power codes.
Installation and Maintenance Requirements
- Deployment: Maintain 10cm perimeter for convective airflow on level flooring
- Commissioning: Secure hub interconnects, establish 50A dedicated feed, validate grounding, then initialize system calibration
- Maintenance: Check terminal torque quarterly; perform monthly load verification; update firmware via network interface
Warranty and Service Information
Regional manufacturer repair protocols apply; authorized centers handle module-level swaps.
Branding/References
- Manufacturer: Anker SOLIX
- Models: F3800 Plus Portable Power Station, Double Voltage Hub (A17B2)
- Resources: Commissioning guide, MPPT matrix, BP3800 expansion documentation
Differentiators
- Native dual-chassis 240V split-phase inversion removes external transformer dependencies, allowing direct power delivery to commercial-grade residential compressors while sustaining seamless grid-failure transitions.
| Specifications | Details |
| Battery Type | LiFePO4 Cell |
| Cell Part Number | 32140FS-15000mAh |
| Charging Cycle | 3000+ (to 80%) |
| Cell Capacity | 51.2Vdc 75Ah/3840Wh |
| Specifications | Details |
| AC Input | 120V~ 15A Max (< 3hrs) / 12A Max (continuous), 60Hz, L+N+PE |
| AC Input Power (Charging) | 1800W Max |
| AC Input Power (Bypass Mode) | 1440W Max |
| Solar Panel Input 1 | 11-165V - 17A Max (1600W Max Each) |
| Solar Panel Input 2 | 11-165V - 17A Max (1600W Max Each) |
| DC Input Port | 60V Max, 120A Max |
| Specifications | Details |
| Car Charger Output | 12V - 10A |
| Home Panel Power Port | 6000W Max (AC Input), 6000W Max (AC Output), 120V/240V, L1+L2+N+PE |
| AC Output Power (Total) | 6000W Max |
| AC Output 1 | 120V~ 20A Max, 60Hz, 2400W Max |
| AC Output 2 | 120V~ 20A Max, 60Hz, 2400W Max |
| AC Output (NEMA L14-30R) | 120V/240V~ 25A Max, 60Hz, 6000W Max |
| USB-A Output | 5V - 2.4A (12W Max Per Port) |
| USB-C Output | 5V - 3A / 9V - 3A / 15V - 3A / 20V - 3A / 20V - 5A (100W Max Per Port) |
| Specifications | Details |
| UPS | 20ms |
| Specifications | Details |
| Discharging Temperature | -4°F-104°F / -20°C-40°C |
| Charging Temperature | 32°F-104°F / 0°C-40°C |
| Specifications | Details |
| Size | 27.6×15.3×15.6 in / 70.2×38.8×39.5 cm |
| Net Weight | 62kg / 136.7lb |
| Specifications | Details |
| Model | A17B2 |
| Input Voltage | 120V / 240V, 60Hz |
| Output Voltage | 240V, 60Hz |
| Max AC Input / Output Power | 12000W Max, 120 | 240V, 50A Max, 60Hz, L1+L2+N+PE |
| Operational Temperature Range | -4°F to 104°F |/ -20°C to 40°C |
| Dimensions | 376 ×104.5 × 61.3mm | 14.8 x 4.1 x 2.4 in |
| Net Weight | 3.57kg | 7.87lb |
