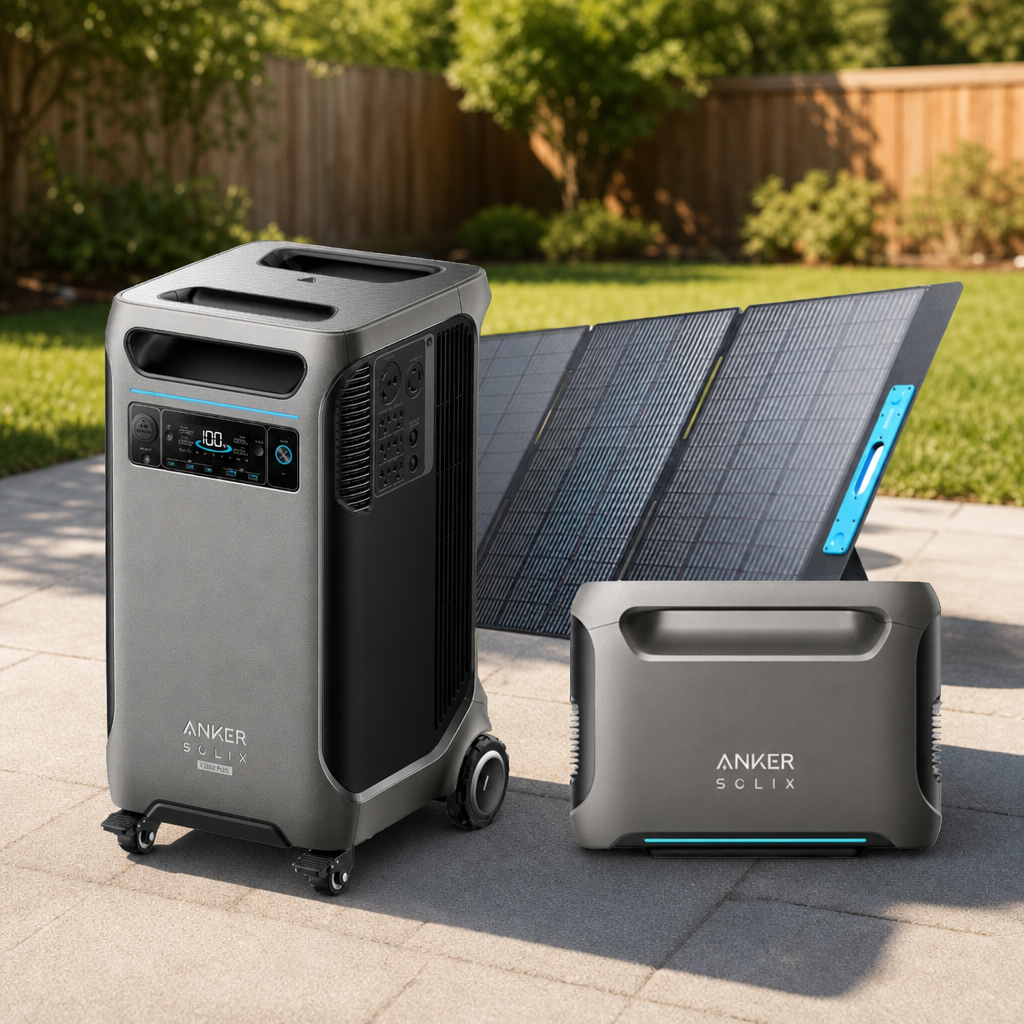

Anker SOLIX F3800 Plus Bundle with 3,840Wh Expansion Battery and 400W Solar Panel
Deliver 53.8kWh scalable backup power with this bundle, combining a 6,000W base station, BP3800 expansion battery, and 400W foldable solar array for whole-home resilience or off-grid operations.
Performance Specifications
- Base Storage: 3,840Wh (51.2V, 75Ah); includes BP3800 module for immediate 7,680Wh capacity.
- Output: 6,000W continuous, 12,000W surge; NEMA L14-30R port enables 240V heavy appliance cycling for HVAC and well pumps.
- Recharge: 1,800W AC, 3,200W solar max; restores 100% in ≈1.5 hours with optimal PV setup.
- Solar Ports: Dual inputs support 11–165V at 17A each.
- UPS: <20ms transfer protects sensitive loads.
Safety Features and Ratings
- LiFePO₄ Chemistry: Intrinsically safe, long-life cells rated for 3,000+ cycles to 80% depth of discharge.
- IP67 Rating: Anker SOLIX 400W solar panel withstands dust and rain exposure.
- BMS/App: Smart battery management monitors cell balance; app enables remote control and energy automation.
Installation and Maintenance
- Plug-and-Play Home Coupling: Attaches directly to home inlet box; verify local code compliance for permanent wiring.
- Temperatures: Discharge valid from -4°F to 104°F; charging restricted to 32°F to 104°F.
- Care: Inspect connections quarterly; clean panel surface with soft cloth when dry.
Manufacturer Details
ANker SOLIX F3800 Plus, BP3800 Expansion Battery, SOLIX 400W Panel. Includes system, MC4 connector, AC cable, and documentation.Technical Differentiators
- Scales to 53.8kWh total by stacking multiple BP3800 packs beyond the included expansion unit.
- 3,200W solar concurrency minimizes recovery time after deep discharge events versus standard consumer stations.
| Specifications | Details |
| Battery Type | LiFePO4 Cell |
| Cell Part Number | 32140FS-15000mAh |
| Charging Cycle | 3000+ (to 80%) |
| Cell Capacity | 51.2Vdc 75Ah/3840Wh |
| Specifications | Details |
| AC Input | 120V~ 15A Max (< 3hrs) / 12A Max (continuous), 60Hz, L+N+PE |
| AC Input Power (Charging) | 1800W Max |
| AC Input Power (Bypass Mode) | 1440W Max |
| Solar Panel Input 1 | 11-165V - 17A Max (1600W Max Each) |
| Solar Panel Input 2 | 11-165V - 17A Max (1600W Max Each) |
| DC Input Port | 60V Max, 120A Max |
| Specifications | Details |
| Car Charger Output | 12V - 10A |
| Home Panel Power Port | 6000W Max (AC Input), 6000W Max (AC Output), 120V/240V, L1+L2+N+PE |
| AC Output Power (Total) | 6000W Max |
| AC Output 1 | 120V~ 20A Max, 60Hz, 2400W Max |
| AC Output 2 | 120V~ 20A Max, 60Hz, 2400W Max |
| AC Output (NEMA L14-30R) | 120V/240V~ 25A Max, 60Hz, 6000W Max |
| USB-A Output | 5V - 2.4A (12W Max Per Port) |
| USB-C Output | 5V - 3A / 9V - 3A / 15V - 3A / 20V - 3A / 20V - 5A (100W Max Per Port) |
| Specifications | Details |
| UPS | 20ms |
| Specifications | Details |
| Discharging Temperature | -4°F-104°F / -20°C-40°C |
| Charging Temperature | 32°F-104°F / 0°C-40°C |
| Specifications | Details |
| Size | 27.6×15.3×15.6 in / 70.2×38.8×39.5 cm |
| Net Weight | 62kg / 136.7lb |
| Specification | Details |
| Peak Power | 400W |
| Open Circuit Voltage | 57.6V |
| Operating Voltage | 48V |
| Rated Current | 8.33A |
| Cell Efficiency | 23% |
| Net Weight | 20.34 lb | 9.23 kg |
| Product Dimensions (Folded) | 35.9 × 25.9 × 1.9 in | 913 × 659 × 47 mm |
| Product Dimensions (Unfolded) | 102 × 35.9 × 1.2 in | 2,591 × 913 × 30 mm |
| Product Weight | 35.1 lb | 15.9 kg |
| Operating Temperature | 4°F-140°F | -20°C-60°C |
| Specification | Details |
| Capacity | 51.2Vdc 75Ah / 3840Wh |
| Expansion Battery Port Input | 75A Max |
| Expansion Battery Port Output | 170A Max |
| Discharging Temperature | -4°F - 104°F | -20°C - 40°C |
| Charging Temperature | 32°F - 104°F | 0°C - 40°C |
| Dimensions | 15.5 × 14.0 × 10.3 in | 39.3 × 35.5 × 26.2 cm |
| Net Weight | 33 kg | 72 lb |
