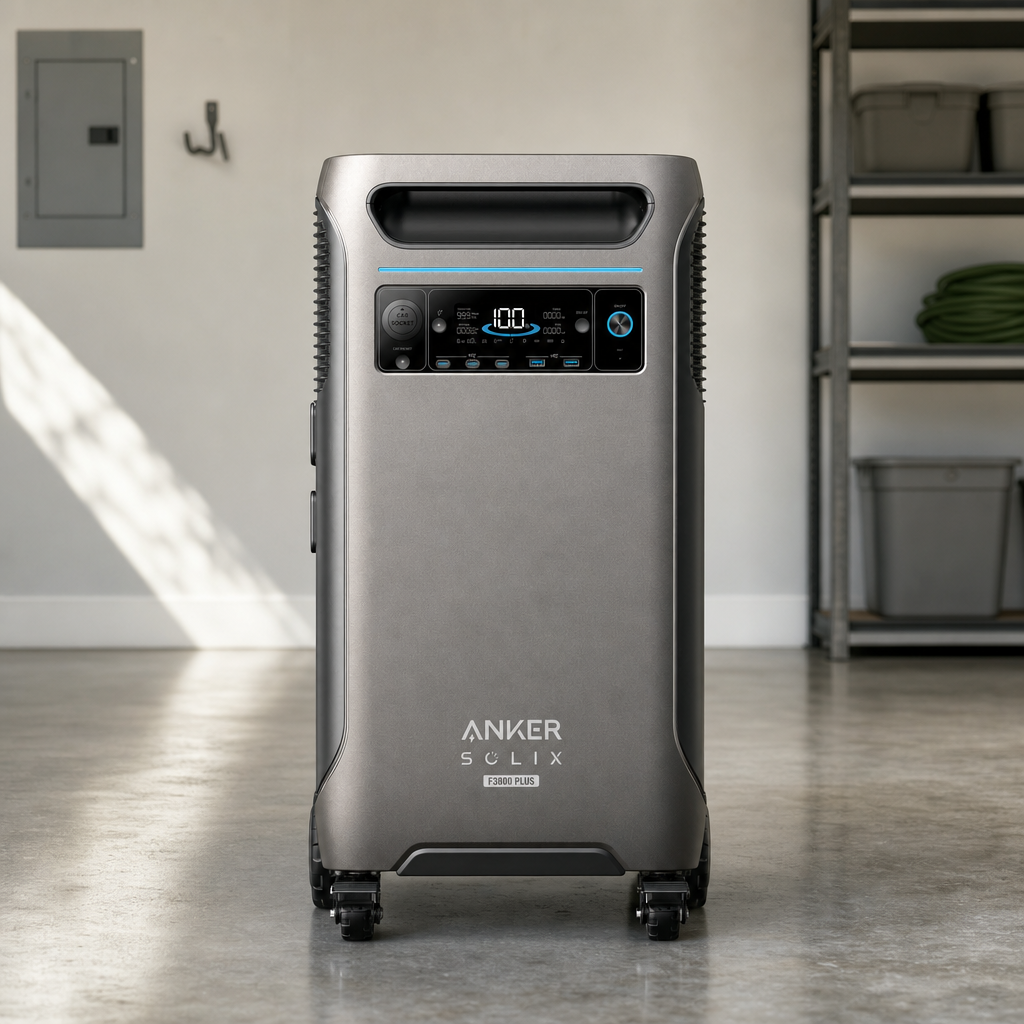

Anker SOLIX F3800 Plus Portable Power Station
Equipment Type: Solar-integrated portable energy storage unit. Primary Applications: Whole-home blackout backup, off-grid cabin operation, and remote worksite power delivery.
Performance Specifications
- CAPACITY: 3840Wh (51.2Vdc, 75Ah) LiFePO4 chemistry
- AC OUTPUT: 6000W continuous, 12000W surge; dual 120V/240V via NEMA L14-30R
- SOLAR INPUT: Dual MPPT channels, 11–165V each, 17A max (3200W combined)
- AC CHARGING: 1800W maximum (full recharge ≈1.5 hours)
- UPS TRANSFER: 20ms delay
- OPERATING TEMPERATURE: Discharge –20°C to 40°C; Charge 0°C to 40°C
Safety Features and Certifications
- Active BMS providing instantaneous over-voltage, reverse polarity, and thermal throttling
- Protected internal circuitry meets residential interconnect protocols via approved isolation switches
Installation and Maintenance Requirements
- Hardwired main-panel bypass requires licensed electrician; installs in several hours
- Plug-and-play solar deployment uses MC4 connectors; zero external adapters needed
- Predictive maintenance involves quarterly DC contact inspection and annual firmware sync via mobile software
Warranty and Service Information
- Factory-backed repair program with certified technician routing and OEM parts fulfillment upon registration
Branding/References
Anker SOLIX F3800 Plus | Cell ID: 32140FS-15000mAh | Engineering schematics and telemetry guidelines documented in provided manual and companion software.
Differentiators
- Parallel expansion architecture scaling total storage to 53.8kWh
- Smart load-shedding engine cuts auxiliary generator run-time by up to 50%
| Specifications | Details |
| Battery Type | LiFePO4 Cell |
| Cell Part Number | 32140FS-15000mAh |
| Charging Cycle | 3000+ (to 80%) |
| Cell Capacity | 51.2Vdc 75Ah/3840Wh |
| Specifications | Details |
| AC Input | 120V~ 15A Max (< 3hrs) / 12A Max (continuous), 60Hz, L+N+PE |
| AC Input Power (Charging) | 1800W Max |
| AC Input Power (Bypass Mode) | 1440W Max |
| Solar Panel Input 1 | 11-165V - 17A Max (1600W Max Each) |
| Solar Panel Input 2 | 11-165V - 17A Max (1600W Max Each) |
| DC Input Port | 60V Max, 120A Max |
| Specifications | Details |
| Car Charger Output | 12V - 10A |
| Home Panel Power Port | 6000W Max (AC Input), 6000W Max (AC Output), 120V/240V, L1+L2+N+PE |
| AC Output Power (Total) | 6000W Max |
| AC Output 1 | 120V~ 20A Max, 60Hz, 2400W Max |
| AC Output 2 | 120V~ 20A Max, 60Hz, 2400W Max |
| AC Output (NEMA L14-30R) | 120V/240V~ 25A Max, 60Hz, 6000W Max |
| USB-A Output | 5V - 2.4A (12W Max Per Port) |
| USB-C Output | 5V - 3A / 9V - 3A / 15V - 3A / 20V - 3A / 20V - 5A (100W Max Per Port) |
| Specifications | Details |
| UPS | 20ms |
| Specifications | Details |
| Discharging Temperature | -4°F-104°F / -20°C-40°C |
| Charging Temperature | 32°F-104°F / 0°C-40°C |
| Specifications | Details |
| Size | 27.6×15.3×15.6 in / 70.2×38.8×39.5 cm |
| Net Weight | 62kg / 136.7lb |
