Anker SOLIX F3000 Portable Solar Battery System
Equipment Type: Commercial-Grade Energy Storage Unit | Primary Applications: Essential load backup, RV off-grid operation, weatherproof emergency reserve, and modular DC/AC management. Delivers 3,072 Wh of verified capacity at 3,600 W steady output with zero transfer delay.
Performance Specifications
- Storage: 51.2 V LFP chemistry storing 3,072 Wh at 60 Ah continuous rating
- Output: 3,600 W steady AC delivery; 7,200 W total surge tolerance
- Recharge Inputs: Dual solar MPPT lines accepting 11-60 V⎓17 A (800 W) and 11-165 V⎓17 A (1,600 W); AC intake up to 3,600 W via dedicated adapter
- Environmental Limits: Discharge -4°F to 104°F; charge 32°F to 104°F
- Transfer Time: 20 ms inline UPS switching for uninterrupted sensitive circuits
Safety Features and Certifications
- BMS-enforced cell balancing with thermal cutoff and ground-fault isolation
- SurgePad network absorbs transients up to 4,860 W to shield downstream equipment
- Engineered for compliance with standard residential backfeed separation protocols
Installation and Maintenance Requirements
- Interfaces: Standard receptacle, TT-30R recreational connector, and bi-directional transfer breaker
- Physical Profile: 25.6 in × 11.8 in × 14.8 in frame; 91.5 lbs static load
- Commissioning: Auto-calibration on power-up; daisy-chaining two units delivers 240 V without licensed hardwiring
- Maintenance Cycle: Sealed LFP construction eliminates fluid checks; factory validation guarantees 4,000 complete charge-discharge cycles before exceeding 20% capacity loss
Warranty and Service Information
- InfiniPower™ architecture covered by manufacturer durability standards
- Direct authorized repair routing with priority replacement processing
Branding and References

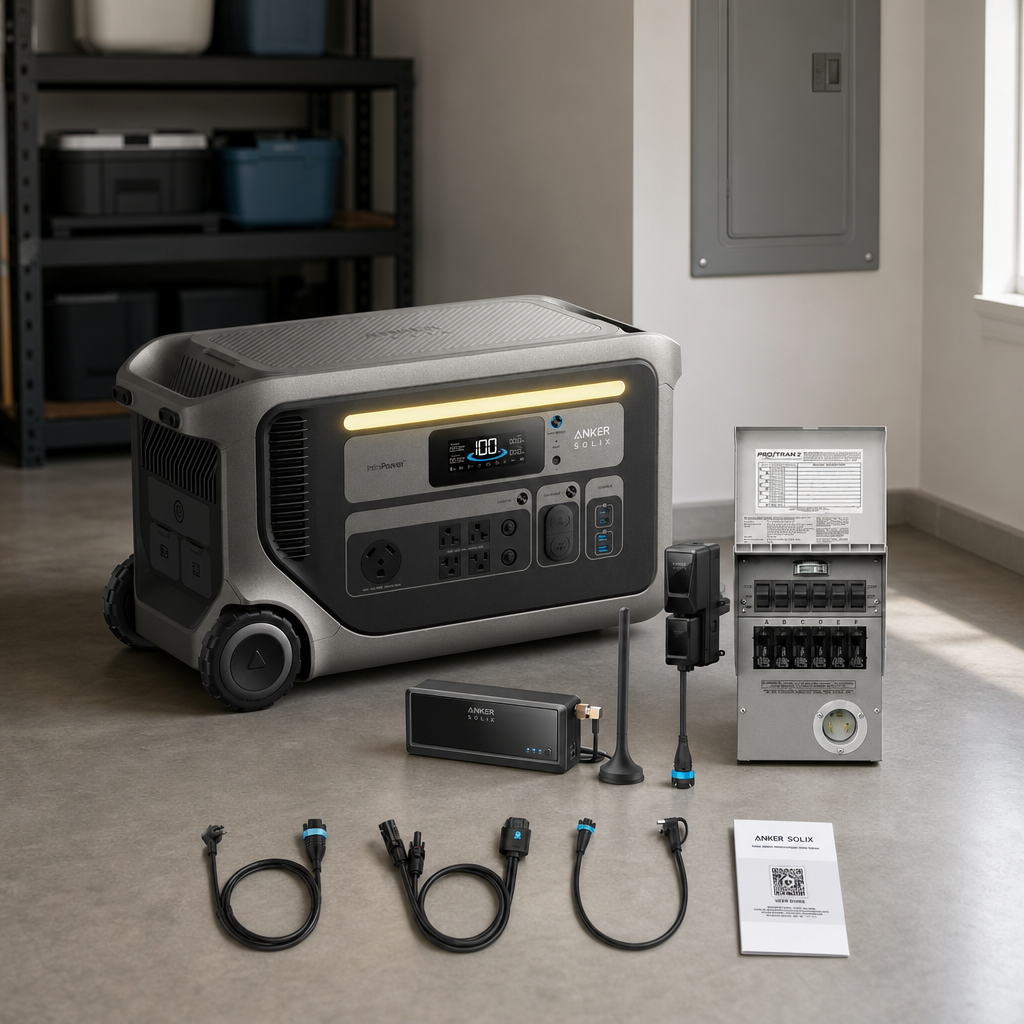

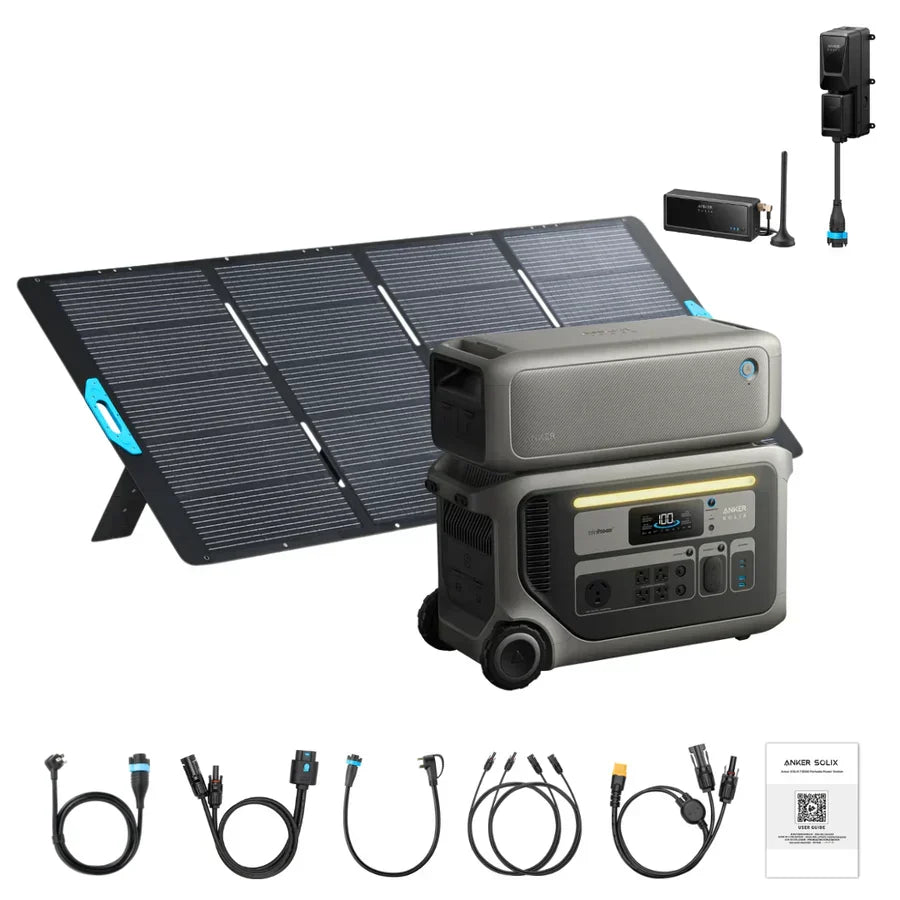

Anker SOLIX F3000 with Power Saver Kit. Consult Anker SOLIX 440W Rigid Panel datasheets for correct PV string configuration.
Differentiators
Concurrent full-load discharge and rapid solar replenishment without derating, paired with a 5 W idle drain that extends standby duration beyond conventional portable systems.
| BATTERY | |
|---|---|
| Battery Type | LFP |
| Cell Capacity | 51.2V / 60Ah / 3,072Wh |
| Cycle Life | 4000 Cycles |
| INPUT | |
| AC Input (AC Charging Cable) | 120V~ 15A Max (< 3 Hr), 1800W Max, 12A (Continuous), 60Hz, L+N+PE |
| AC Input (Bi-Directional Inlet box) | 120 V~15 A Max, 1800W Max, 60Hz (< 3 Hr when current exceeds 12A), L+N+PE |
| AC Input (TT-30 Charging Cable + EV Charging Adapter) |
120V~ 30A Max (< 3 Hr), 3600W Max, 24A (Continuous), 60Hz, L+N+PE |
| AC Input (EV Charging Adapter) | 240V~ 15A Max, 3600W Max, 60Hz, L+N+PE |
| High-PV Input | 11-165V⎓17A Max, 1,600W |
| Low-PV Input | 11-60V⎓17A Max, 800W |
| DC Input Port | 60V⎓120A Max |
| OUTPUT | |
| AC Output (NEMA 5-20R) | 120V~ 20A Max, 60Hz, 2400W Max |
| SurgePad Power | 4860W |
| AC Surge Power | 7200W |
| AC Output (Bi-Directional Inlet box) | 120V~ 15A Max, 1,800W Max, 60Hz, L+N+PE |
| AC Output (Double Voltage Hub) | 120V~ 30A Max, 3,600W Max, 60Hz, L+N+PE |
| AC Output (TT-30R) | 120V~ 30A Max, 60Hz, 3600W Max |
| Car Charger Output | 12V~10A |
| Anderson DC Output | 13.4V⎓30A |
| USB-A Output | 5V⎓2.4A, 12W Max (per Port) |
| USB-C Output | 5V⎓3A / 9V⎓3A / 15V⎓3A / 20V⎓3A / 20V⎓5A, 100W (per Port) |
| UPS | 20 ms |
| ENVIRONMENTAL OPERATION | |
| Discharging Temperature | -4°F-104°F |
| Charging Temperature | 32°F-104°F |
| MECHANICAL SPECIFICATIONS | |
| Dimensions | 25.6 in × 11.8 in × 14.8 in |
| Net Weight | 91.5 lbs |
| Rated Maximum Power (Pmax) | 440W |
|---|---|
| Power Sorting | 0~5W |
| Voltage at Pmax (Vmp) | 33.21V |
| Current at Pmax (Imp) | 13.25A |
| Open-Circuit (Voc) | 39.16V |
| Short-Circuit Current (Isc) | 13.88A |
| Max System Voltage | 1500V |
| Max Series Fuse Rating | 30A |
| Operating Temperature | -40°F ~ 185°F |
| Dimensions | 67.8 in × 44.6 in × 1.3 in |
| Net Weight | 46.3 lbs |
